2-1. Instrument cluster

Displays suggestions to the driver in
the following situations. To select a
response to a displayed suggestion,
use the meter control switches.

■

Suggestion to turn off the head-
lights

If the headlights are left on for a certain
amount of time with the headlight

switch in

after the engine switch

has been turned off, a suggestion mes-
sage will be displayed asking if you
wish to turn the headlights off.
To turn the headlights off, select “Yes”.

If a front door is opened after the engine
switch is turned off, this suggestion mes-
sage will not be displayed.

■

Suggestion to close the power win-
dows (linked to windshield wiper
operation)

If the windshield wipers are operated
with a power window open, a sugges-
tion message will be displayed asking if
you wish to close the power windows.
To close all of the power windows,
select “Yes”.

■

Customization

Some functions can be customized.

(



P.476)

WARNING

■

Cautions during setting up the dis-

play

As the engine needs to be running dur-

ing setting up the display, ensure that the

vehicle is parked in a place with ade-

quate ventilation. In a closed area such as

a garage, exhaust gases including harm-

ful carbon monoxide (CO) may collect

and enter the vehicle. This may lead to

death or a serious health hazard.

NOTICE

■

During setting up the display

To prevent battery discharge, ensure that

the engine is running while setting up the

display features.

Suggestion function

2-1. Instrument cluster

Vehi

e s

tus

info
rm

ation a

indi
cators

: If equipped

Illustrations used in this text are intended as examples, and may differ from the image that is
actually displayed by the head-up display.

Navigation system-linked display area (if equipped)

Displays the following items which are linked to the navigation system:
• Route guidance to destination
• Street name
• Compass (heading-up display)

Driving support system display area (



P.92)

RSA (Road Sign Assist) display area (if equipped) (



P.261)

Driving information display area

Displays the following items:
• Speedometer
• Shift position/shift range/gear position (



P.172)

Head-up display

The head-up display projects a variety of driving-related information and the
operating state of the driving support systems on the windshield.

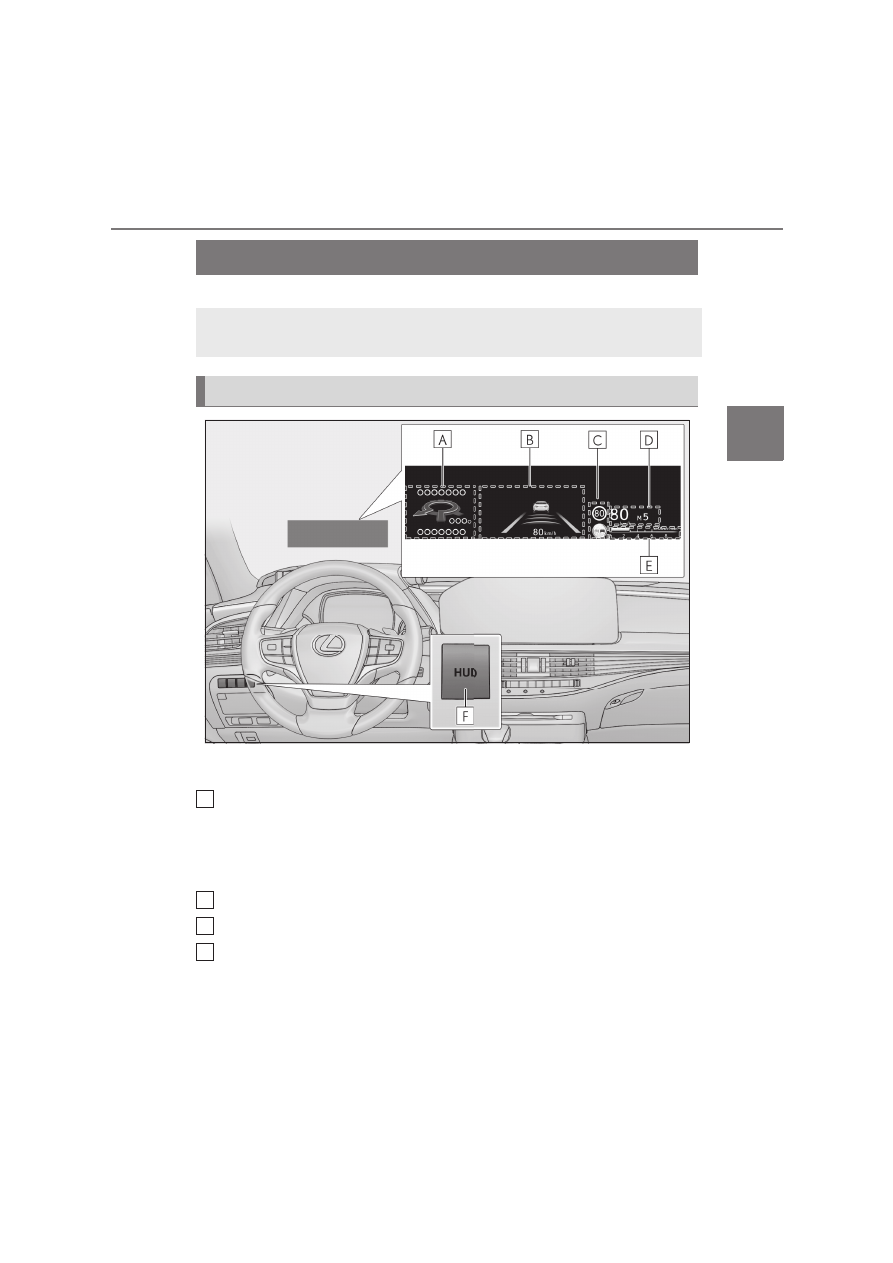

System components

B
C
D

2-1. Instrument cluster

Tachometer/Eco Driving Indicator display area (



P.93)

HUD (Head-up display) switch

■

Head-up display will operate when

The engine switch is in IGNITION ON

mode.

■

When using the head-up display

The head-up display may seem dark or hard

to see when viewed through sunglasses,

especially polarized sunglasses. Adjust the

brightness of the head-up display or

remove your sunglasses.

■

Street name display

Only street names which are included in the

map data will be displayed.

■

Outside temperature display

●

In the following situations, the outside

temperature is displayed:

• When the ambient temperature is

approximately 3°C (37°F) or lower (In

this case, the outside temperature display

will be displayed and the low outside tem-

perature indicator will flash for approxi-

mately 10 seconds.)

• After the opening screen is displayed

(The outside temperature display will be

displayed for approximately 10 seconds.)

●

In the following situations, the correct

outside temperature may not be dis-

played, or the display may take longer

than normal to change:

• When stopped, or driving at low speeds

(less than 20 km/h [12 mph])

• When the outside temperature has

changed suddenly (at the entrance/exit of

a garage, tunnel, etc.)

●

When “--” or “E” is displayed, the system

may be malfunctioning. Take your vehicle

to any authorized Lexus retailer or Lexus

authorized repairer, or any reliable

repairer.

E
F

WARNING

■

When using the head-up display

●

Check that the position and brightness

of the head-up display image does not

interfere with safe driving. Incorrect

adjustment of the image’s position or

brightness may obstruct the driver’s

view and lead to an accident, resulting

in death or serious injury.

●

Do not continuously look at the

head-up display while driving as you

may fail to see pedestrians, objects on

the road, etc. ahead of the vehicle.

NOTICE

■

Head-up display projector

●

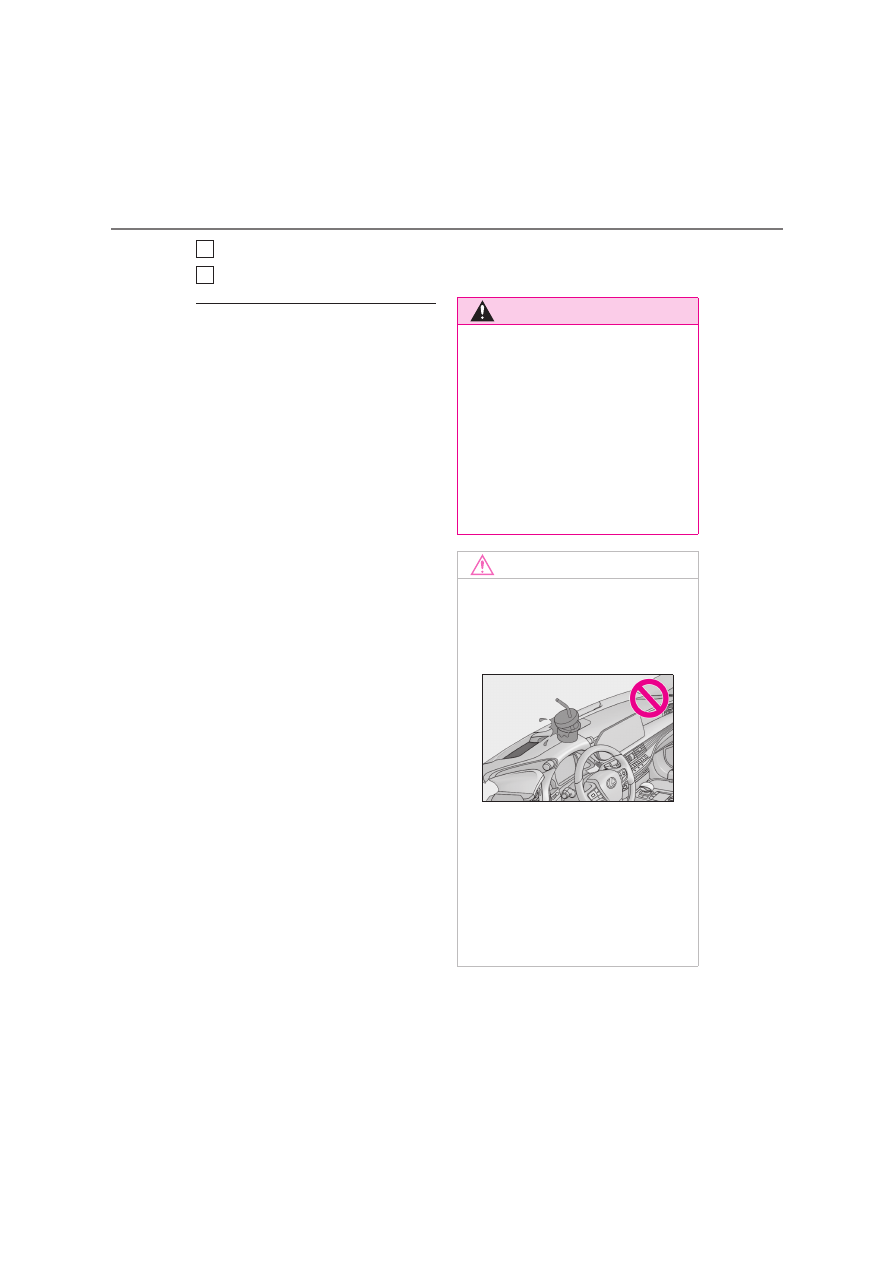

Do not place any drinks near the

head-up display projector. If the pro-

jector gets wet, electrical malfunctions

may result.

●

Do not place anything on or put stick-

ers onto the head-up display projector.

Doing so could interrupt head-up dis-

play indications.

●

Do not touch the inside of the head-up

display projector or thrust sharp edges

or the like into the projector.

Doing so could cause mechanical mal-

functions.

2-1. Instrument cluster

Vehi

e s

tus

info
rm

ation a

indi
cators

■

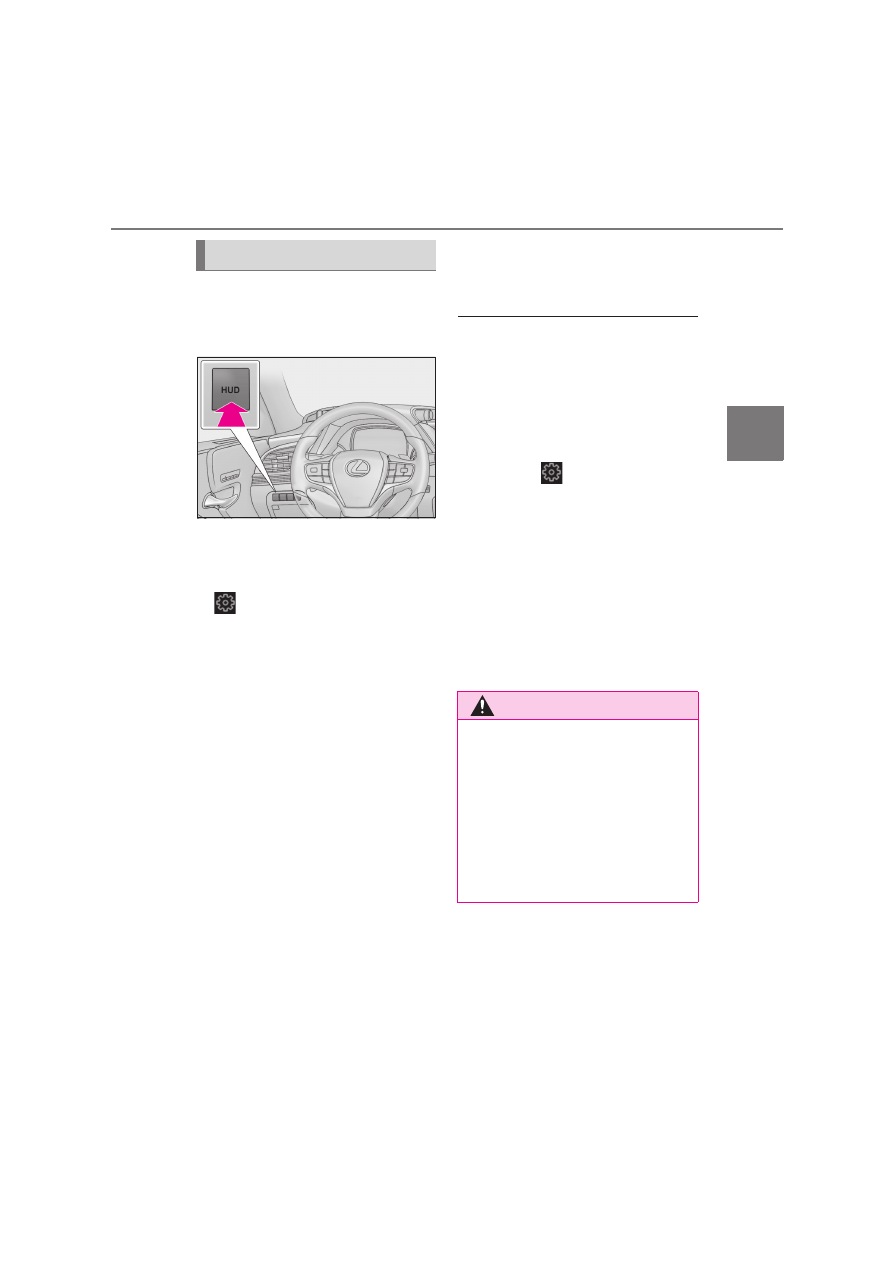

Enabling/disabling the head-up dis-
play

Press the HUD switch.

■

Changing settings of the head-up
display

The following settings can be changed
on

of the multi-information display.

(



P.476)



Brightness and vertical position of
the head-up display

Select to adjust the brightness or vertical
position of the head-up display.



Tachometer/Eco Driving Indicator

Select to display the tachometer, Eco Driv-
ing Indicator or no content.



Display content

Select to enable/disable the following
items:
• Route guidance to destination/street

name

• Driving support system display

• Compass (heading-up display)
• Audio system operation status

: Make sure to enable this display when

using the driving support systems



Display angle

Select to adjust the angle of the head-up
display.

■

Enabling/disabling of the head-up dis-

play

If the head-up display is disabled, it will

remain disabled when the engine switch is

turned off then back to IGNITION ON

mode.

■

Display brightness

The brightness of the head-up display can
be adjusted on

of the multi-information

display. Also, it is automatically adjusted

according to the ambient brightness.

■

Head-up display automatic position

adjustment

If the display position is recorded into mem-

ory, the head-up display will be automati-

cally adjusted to the desired position.

(



P.131)

■

When the battery is disconnected

The customize settings of the head-up dis-

play will be reset.

Using the head-up display

WARNING

■

Caution for changing settings of the

head-up display

As the engine needs to be running while

changing the settings of the head-up dis-

play, ensure that the vehicle is parked in a

place with adequate ventilation. In a

closed area such as a garage, exhaust

gases including harmful carbon monox-

ide (CO) may collect and enter the vehi-

cle. This may lead to death or a serious

health hazard.

2-1. Instrument cluster

Displays the operational status of the
following systems:



LTA (Lane Tracing Assist) (if
equipped) (



P.241, 251)



Dynamic radar cruise control with
full-speed range (if equipped)
(



P.265)

Details of content displayed on the
head-up display may differ from that dis-
played on the multi-information display. For
details, refer to the explanation of each sys-
tem.

Pop-up displays for the following sys-
tems will be displayed when necessary.

■

Driving support systems

Displays a warning/suggestion/advice
message or the operating state of a rel-
evant system.



PCS (Pre-Collision System) (if
equipped) (



P.213, 226)



FCTA (Front Cross Traffic Alert) (if
equipped) (



P.238)



Lexus parking assist-sensor
(



P.292)



Parking Support Brake function (for
static objects) (if equipped)
(



P.311)



Brake Override System (



P.162)



Drive-Start Control (



P.167)

Details of content displayed on the
head-up display may differ from that dis-
played on the multi-information display. For
details, refer to the explanation of each sys-
tem.

■

icons

These icons are linked to the
multi-information display

: Master warning icon

Displayed when a warning message is dis-
played on the multi-information display.
(



P.443)

: Information icon

Displayed when a suggestion pop-up dis-
play (



P.88) or advice pop-up display is

displayed on the multi-information display.

■

Warning message

Some warning messages are displayed
when necessary, according to certain
conditions.

Details of content displayed on the
head-up display may differ from that dis-
played on the multi-information display.

■

Audio system operation status

Displayed when an audio remote con-
trol switch on the steering wheel is
operated.

■

Hands-free system status

Displayed when the hands-free system
is operated.

NOTICE

■

When changing the settings of the

head-up display

To prevent battery discharge, ensure that

the engine is running while the changing

the settings of the head-up display.

Driving support system display
area

Pop-up display

2-1. Instrument cluster

Vehi

e s

tus

info
rm

ation a

indi
cators

■

When a pop-up display is displayed

When a pop-up display is displayed, a cur-

rent display may no longer be displayed. In

this case, the display will return after the

pop-up display disappears.

■

Tachometer

Displays the engine speed in revolu-
tions per minute.

■

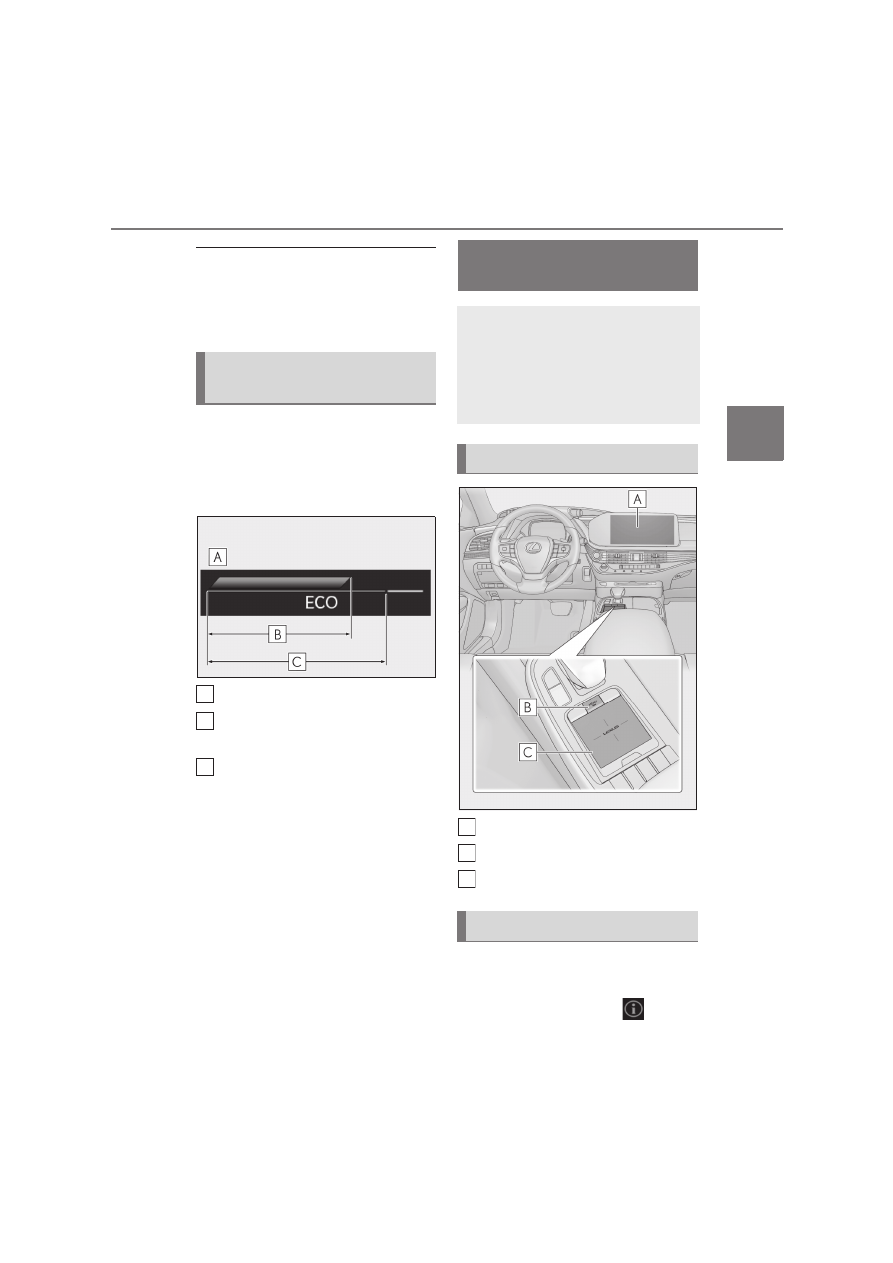

Eco Driving Indicator

Eco Driving Indicator Zone Display
Eco driving ratio based on acceler-
ation
Zone of Eco driving

Displayed content is the same as that dis-
played on the multi-information display
(Eco Driving Indicator). For details, refer to
P.85.

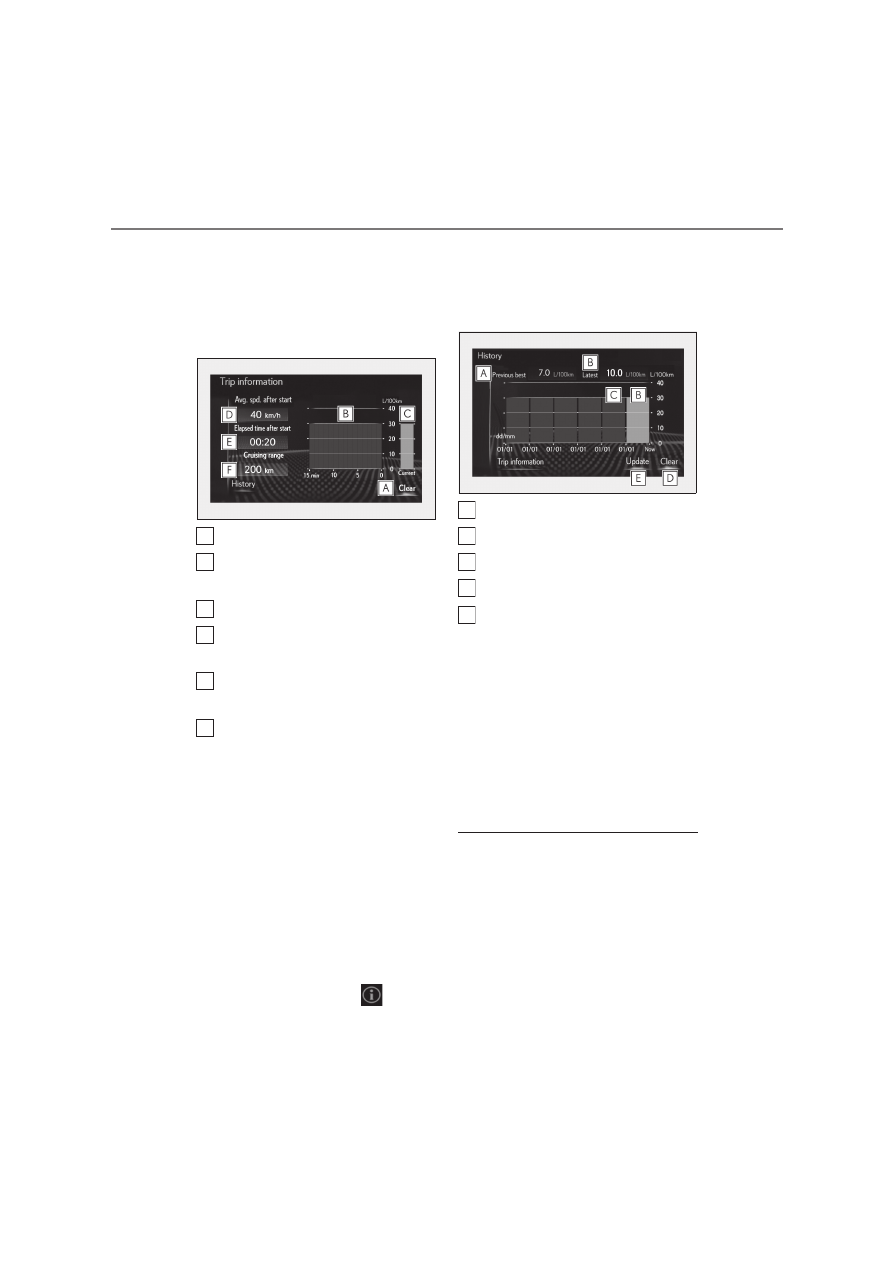

Center Display
“MENU” button
Touchpad

■

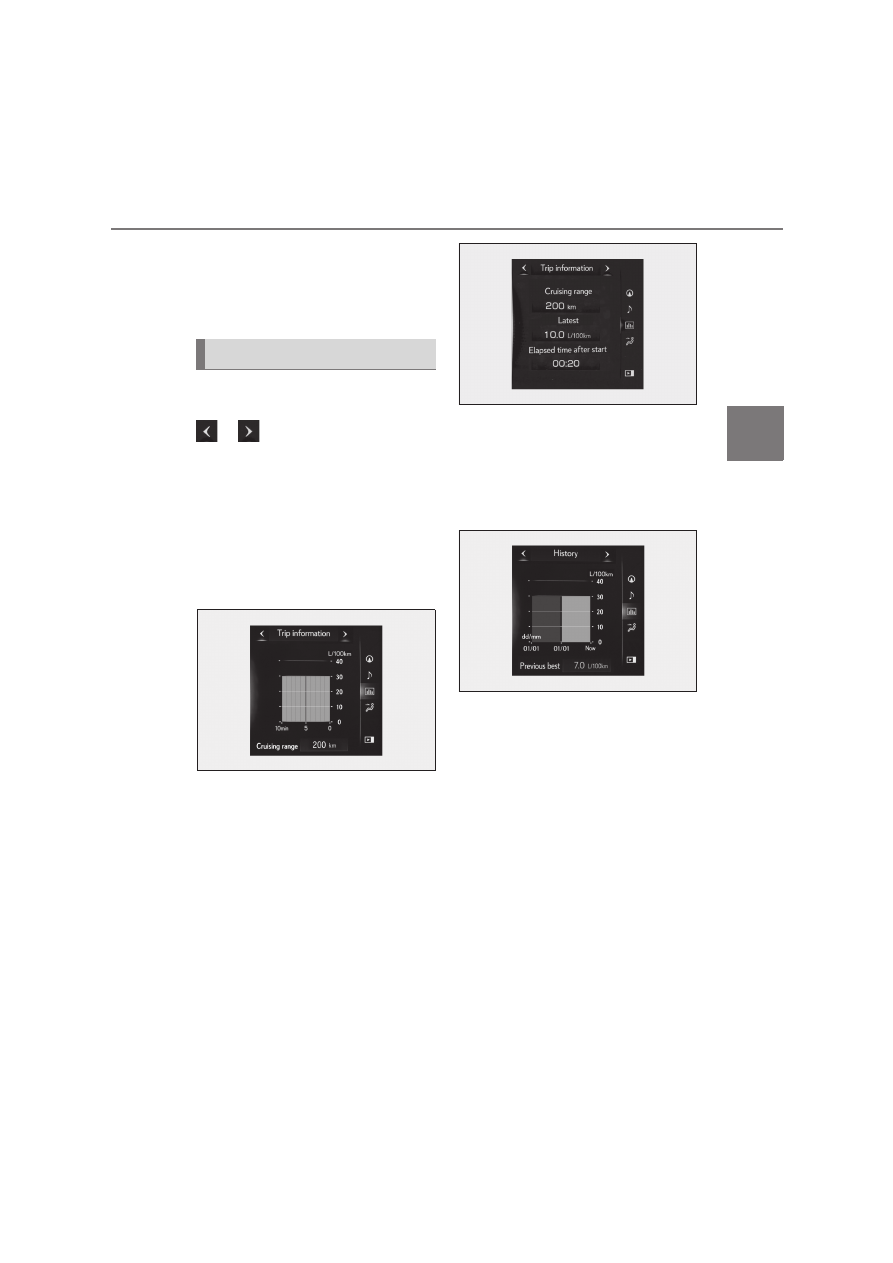

Trip information

Press the “MENU” button on the
Remote Touch, then select

on the

Tachometer/Eco Driving Indica-
tor

A
B

Fuel consumption informa-
tion

Fuel consumption information can
be displayed on the Center Display.

The fuel consumption information
can be displayed and operated on
the side display.

System components

Consumption

A
B
C

2-1. Instrument cluster

menu screen.
If a screen other than “Trip information”
is displayed, select “Trip information”.

This system can also be operated by the
touch screen.

Resetting the consumption data
Fuel consumption in the past 15
minutes
Current fuel consumption
Average vehicle speed since the
engine was started.
Elapsed time since the engine was
started.
Cruising range

Average fuel consumption for the past
15 minutes is divided by color into past
averages and averages attained since
the engine switch was last turned to
IGNITION ON mode. Use the dis-
played average fuel consumption as a
reference.

The image is an example only, and may
vary slightly from actual conditions.

■

History

Press the “MENU” button on the
Remote Touch, then select

on the

menu screen.

If a screen other than “History” is dis-
played, select “History”.

This system can also be operated by the
touch screen.

Best recorded fuel consumption
Latest fuel consumption
Previous fuel consumption record
Resetting the history data
Updating the latest fuel consump-
tion data

The average fuel consumption history
is divided by color into past averages
and the average fuel consumption
since the last updated. Use the dis-
played average fuel consumption as a
reference.

The image is an example only, and may
vary slightly from actual conditions.

■

Updating the history data

Update the latest fuel consumption by

selecting “Update” to measure the current

fuel consumption again.

■

Resetting the data

The fuel consumption data can be deleted

by selecting “Clear”.

■

Cruising range

Displays the estimated maximum distance

that can be driven with the quantity of fuel

A
B

C
D

A
B
C
D

2-1. Instrument cluster

Vehi

e s

tus

info
rm

ation a

indi
cators

remaining.
This distance is computed based on your

average fuel consumption.

As a result, the actual distance that can be

driven may differ from that displayed.

Display the vehicle information on the
side display (



P.335), and then select

to display the desired

screen.
The image is an example only, and may
vary slightly from actual conditions.

■

Trip information (type A)

Displays the average fuel consumption
for the past 10 minutes in 1 minute
intervals, as well as the cruising range.

Use the displayed average fuel consump-
tion as a reference.

■

Trip information (type B)

Displays the cruising range, latest fuel
consumption and the amount of time
elapsed since the engine was started.

Use the displayed average fuel consump-
tion as a reference.

■

History

Displays the average fuel consumption
and highest fuel consumption.

Use the displayed average fuel consump-
tion as a reference.

Using the side display

fore
driving

Before driving

3-1. Key information

Keys ...................................................

3-2. Opening, closing and locking the

doors and trunk

Doors ..............................................

102

Trunk ...............................................

107

Smart entry & start system......

114

3-3. Adjusting the seats

Front seats......................................

119

Power rear seat ..........................

126

Driving position memory .........

131

Rear seat position memory....

135

Head restraints............................

136

3-4. Adjusting the steering wheel and

mirrors

Steering wheel ............................

139

Inside rear view mirror.............

140

Digital Rearview Mirror ...........

141

Outside rear view mirrors......

149

3-5. Opening, closing the windows

and moon roof

Power windows ..........................

152

Moon roof .....................................

155

3-1. Key information

3-1.Key information

The following keys are provided with
the vehicle.

Electronic keys

• Operating the smart entry & start sys-

tem (



P.114)

• Operating the wireless remote control

function (



P.100)

Mechanical keys
Key number plate
Card key (electronic key) (if
equipped)

Operating the smart entry & start system
(



P.114)

■

Card key (if equipped)

●

The card key is not waterproof.

●

The mechanical key that is stored inside

the card key should be used only if a

problem arises, such as when the card

key does not operate properly.

●

If it is difficult to take out the mechanical

key, push down the lock release button

using a pen tip etc. If it is still difficult to

pull it out, use a coin etc.

●

To store the mechanical key in the card

key, insert it while pressing the lock

release button.

●

If the battery cover is not installed and the

battery falls out or if the battery was

removed because the key got wet, rein-

stall the battery with the positive terminal

facing the Lexus emblem.

■

When riding in an aircraft

When bringing an electronic key onto an

aircraft, make sure you do not press any

buttons on the electronic key while inside

the aircraft cabin. If you are carrying an

electronic key in your bag etc., ensure that

the buttons are not likely to be pressed acci-

dentally. Pressing a button may cause the

electronic key to emit radio waves that

could interfere with the operation of the air-

craft.

■

Electronic key battery depletion

●

The standard battery life is 1 to 2 years.

(The card key battery life is about a year

and a half.)

●

If the battery becomes low, an alarm will

sound in the cabin and a message will be

Keys

The keys

B
C
D

3-1. Key information

fore
driving

shown on the multi-information display

when the engine is stopped.

●

To reduce key battery depletion when the

electronic key is to not be used for long

periods of time, set the electronic key to

the battery-saving mode. (



P.116)

●

As the electronic key always receives

radio waves, the battery will become

depleted even if the electronic key is not

used. The following symptoms indicate

that the electronic key battery may be

depleted. Replace the battery when nec-

essary.

• The smart entry & start system or the

wireless remote control does not oper-

ate.

• The detection area becomes smaller.

• The LED indicator on the key surface

does not turn on.

●

To avoid serious deterioration, do not

leave the electronic key within 1 m (3 ft.)

of the following electrical appliances that

produce a magnetic field:

• TVs

• Personal computers

• Cellular phones, cordless phones and

battery chargers

• Recharging cellular phones or cordless

phones

• Table lamps

• Induction cookers

■

Replacing the battery



P.419

■

Confirmation of the number of regis-

tered keys

The number of keys already registered to

the vehicle can be confirmed. Ask any

authorized Lexus retailer or Lexus author-

ized repairer, or any reliable repairer for

details.

■

If “A New Key has been Registered

Contact Your Dealer for Details” is

shown on the multi-information display

This message will be displayed each time

the driver’s door is opened when the doors

are unlocked from the outside for approxi-

mately 10 days after a new electronic key

has been registered.

If this message is displayed but you have not

had a new electronic key registered, ask

any authorized Lexus retailer or Lexus

authorized repairer, or any reliable repairer

to check if an unknown electronic key

(other than those in your possession) has

been registered.

NOTICE

■

To prevent key damage

●

Do not drop the keys, subject them to

strong shocks or bend them.

●

Do not expose the keys to high tem-

peratures for a long period of time.

●

Do not get the keys wet or wash them

in an ultrasonic washer etc.

●

Do not attach metallic or magnetic

materials to the keys or place the keys

close to such materials.

●

Do not disassemble the keys.

●

Do not attach a sticker or anything else

to the surface of the electronic key.

●

Do not place the keys near objects that

produce magnetic fields, such as TVs,

audio systems and induction cookers,

or medical electrical equipment, such

as low-frequency therapy equipment.

■

Carrying the electronic key on your

person

Carry the electronic key 10 cm (3.9 in.)

or more away from electric appliances

that are turned on. Radio waves emitted

from electric appliances within 10 cm

(3.9 in.) of the electronic key may inter-

fere with the key, causing the key to not

function properly.

■

In case of a smart entry & start system

malfunction or other key-related

problems



P.449

■

When an electronic key is lost



P.448

100

3-1. Key information

The electronic keys are equipped with
the following wireless remote control:

Locks the doors (



P.102)

Closes the windows and moon
roof

(



P.102)

Unlocks the doors (



P.102)

Opens the windows and moon
roof

(



P.102)

Opens the trunk (



P.110)

: These settings must be customized at

any authorized Lexus retailer or Lexus
authorized repairer, or any reliable
repairer.

To take out the mechanical key, push
the release button and take the key out.

The mechanical key can only be inserted in
one direction, as the key only has grooves
on one side. If the key cannot be inserted in
a lock cylinder, turn it over and re-attempt
to insert it.
After using the mechanical key, store it in
the electronic key. Carry the mechanical
key together with the electronic key. If the
electronic key battery is depleted or the

NOTICE

■

Handling the card key (if equipped)

●

Do not apply excess force when insert-

ing the mechanical key into the card

key. Doing so may damage the card

key.

●

If the battery or card key terminals get

wet, the battery may corrode and the

card key may stop working.

If the key is dropped into water, or if

drinking water, etc. is spilled on the key,

immediately remove the battery cover

and wipe the battery and terminals. (To

remove the battery cover, lightly grasp

and pull it.) If the battery is corroded,

have any authorized Lexus retailer or

Lexus authorized repairer, or any relia-

ble repairer replace the battery.

●

Do not crush the battery cover or use

a screwdriver to remove the battery

cover.

Forcibly removing the battery cover

may bend or damage the key.

●

If the battery cover is frequently

removed, the battery cover may

become loose.

●

When installing the battery, make sure

to check the direction of the battery.

Installing the battery in the wrong

direction may cause the battery to

deplete rapidly.

●

The surface of the card key may be

damaged, or its coating may peel off in

the following situations:

• The card key is carried together with

hard objects, such as coins and keys.

• The card key is scraped with a sharp

object, such as the tip of a mechanical

pencil.

• The surface of the card key is wiped

with thinner or benzene.

Wireless remote control

Using the mechanical key

A
B

C
D

101

3-1. Key information

fore
driving

entry function does not operate properly,
you will need the mechanical key.
(



P.449)

■

When required to leave the vehicle’s

key with a parking attendant

Turn the trunk opener main switch off

(



P.113) and lock the glove box (



P.363)

as circumstances demand.

Remove the mechanical key for your own

use and provide the attendant with the elec-

tronic key only.

■

If you lose your mechanical keys



P.448

■

If a wrong key is used

The key cylinder rotates freely, isolated

from the internal mechanism.

102

3-2. Opening, closing and locking the doors and trunk

3-2.Opening, closing and locking the doors and trunk

■

Smart entry & start system

Carry the electronic key to enable this
function.

Grip the door handle to unlock the
doors.*

Make sure to touch the sensor on the back
of the handle.
The doors cannot be unlocked for 3 sec-
onds after the doors are locked.

: The door unlock settings can be

changed.

Touch the lock sensor (indentation
on the upper part of the door han-
dle) to lock all the doors.

Check that the door is securely locked.

■

Wireless remote control

Locks all the doors

Check that the door is securely locked.
Press and hold to close the windows and
moon roof.

Unlocks all the doors

Press and hold to open the windows and
moon roof.

: These settings must be customized at

any authorized Lexus retailer or Lexus
authorized repairer, or any reliable
repairer.

■

Switching the door unlock function

It is possible to set which doors the entry

function unlocks using the wireless remote

control.

Turn the engine switch off.

Cancel the intrusion sensor and tilt sen-

sor of the alarm system to prevent unin-

tended triggering of the alarm while

changing the settings. (if equipped)

(



P.66)

When the indicator light on the key sur-
face is not on, press and hold

for approximately 5 seconds

while pressing and holding

The setting changes each time an operation

is performed, as shown below. (When

changing the setting continuously, release

the buttons, wait for at least 5 seconds, and

repeat step

Doors

Unlocking and locking the doors
from the outside

103

3-2. Opening, closing and locking the doors and trunk

fore
driving

To prevent unintended triggering of the

alarm, unlock the doors using the wireless

remote control and open and close a door

once after the settings have been changed.

(If a door is not opened within 30 seconds
after

is pressed, the doors will be

locked again and the alarm will automati-

cally be set.)

In a case that the alarm is triggered, imme-

diately stop the alarm. (



P.65)

■

Impact detection door lock release sys-

tem

In the event that the vehicle is subject to a

strong impact, all the doors are unlocked.

Depending on the force of the impact or the

type of accident, however, the system may

not operate.

■

Operation signals

The emergency flashers flash to indicate

that the doors have been locked/unlocked.

(Locked: once; Unlocked: twice)
A buzzer sounds to indicate that the win-

dows and moon roof are operating.

■

Security feature

If a door is not opened within approximately

30 seconds after the vehicle is unlocked,

the security feature automatically locks the

vehicle again.

■

When the doors cannot be locked by the

lock sensor on the upper part of the

door handle

When the doors cannot be locked even if

the lock sensor on the upper part of the

door handle is touched by a finger, touch

the lock sensor with the palm.
If you are wearing gloves, remove them.

■

Open door warning buzzer

If an attempt to lock the doors is made when

a door is not fully closed, a buzzer sounds

continuously for 5 seconds. Fully close the

door to stop the buzzer, and lock the vehi-

cle once more.

■

Setting the alarm

Locking the doors will set the alarm system.

(



P.65)

■

Conditions affecting the operation of

the smart entry & start system or wire-

less remote control



P.116

■

If the smart entry & start system or the

wireless remote control does not oper-

ate properly

Use the mechanical key to lock and unlock

the doors. (



P.449)

Replace the key battery with a new one if it

is depleted. (



P.419)

■

If the battery is discharged

The doors cannot be locked and unlocked

using the smart entry & start system or

wireless remote control. Lock or unlock the

doors using the mechanical key. (



P.449)

■

Rear seat reminder function

In order to remind you not to forget lug-

Multi-information

display/Beep

Unlocking function

Exterior: Beeps 3

times

Interior: Pings once

Holding the driver’s
door handle unlocks
only the driver’s
door.

Holding any of the
passenger door
handles unlocks all
the doors.

Exterior: Beeps

twice

Interior: Pings once

Holding a door han-
dle unlocks all the
doors.

104

3-2. Opening, closing and locking the doors and trunk

gage, etc. in the rear seat, when the engine

switch is turned off after any of the following

conditions are met, a buzzer will sound and

a message will be displayed on the

multi-information display for approximately

6 seconds.

●

The engine is started within approxi-

mately 10 minutes after opening and

closing a rear door.

●

A rear door has been opened and closed

after the engine was started.

However, if a rear door is opened and then

closed within approximately 2 seconds, the

rear seat reminder function may not oper-

ate.
The rear seat reminder function determines

that luggage, etc. has been placed in a rear

seat based on opening and closing of a rear

door. Therefore, depending on the situation,

the rear seat reminder function may not

operate and you may still forget luggage,

etc. in the rear seat, or it may operate

unnecessarily.

■

Customization

Some functions can be customized.

(



P.476)

WARNING

■

To prevent an accident

Observe the following precautions while

driving the vehicle.

Failure to do so may result in a door

opening and an occupant throwing out of

the vehicle, resulting in death or serious

injury.

●

Ensure that all doors are properly

closed.

●

Do not pull the inside handle of the

doors while driving.

Be especially careful for the front doors,
as the doors may be opened even if the
inside lock buttons are in locked position.

●

Set the rear door child-protector locks

when children are seated in the rear

seats.

■

When opening or closing a door

Check the surroundings of the vehicle

such as whether the vehicle is on an

incline, whether there is enough space

for a door to open and whether a strong

wind is blowing. When opening or clos-

ing the door, hold the door handle tightly

to prepare for any unpredictable move-

ment.

■

When using the wireless remote con-

trol and operating the power windows

or moon roof

Operate the power windows or the

moon roof after checking to make sure

that there is no possibility of any passen-

ger having any of their body parts caught

in the windows or the moon roof. Also, do

not allow children to operate the wireless

remote control. It is possible for children

and other passengers to get caught in

the power windows or the moon roof.

■

Vehicle height control precautions

(vehicles with electronically modu-

lated air suspension)

In the following situations, make sure to

check the safety of the area around the

vehicle, as the vehicle height may change

and part of someone’s body may be

caught in the vehicle, possibly causing

injury or the vehicle may be damaged.

●

When opening or closing a door

●

When locking the doors

Content .. 3 4 5 6 ..
