7-2. Steps to take in an emergency

Wh
en

troubl
e ar
ises

Stop the hybrid system. Set the
parking brake and shift the shift
lever to P.

Remove the mud, snow or sand
from around the front wheels.

Place wood, stones or some other
material under the front wheels to
help provide traction.

Restart the hybrid system.

Shift the shift lever to D or R and
release the parking brake. Then,
while exercising caution, depress
the accelerator pedal.

When it is difficult to free the vehicle

Press the

switch to turn off TRC.

WARNING

When inspecting under the hood of

your vehicle

Observe the following precautions.

Failure to do so may result in serious

injury such as burns.

If steam is seen coming from under the

hood, do not open the hood until the

steam has subsided. The engine com-

partment may be very hot.

After the hybrid system has been

turned off, check that the “READY”

indicator is off.

When the hybrid system is operating,

the gasoline engine may automatically

start, or the cooling fan may suddenly

operate even if the gasoline engine

stops. Do not touch or approach rotat-

ing parts such as the fan, which may

lead to fingers or clothing (especially a

tie, a scarf or a muffler) getting caught,

resulting in serious injury.

Do not loosen the coolant inlet cap or

coolant reservoir caps while the hybrid

system and radiator are hot.

High temperature steam or coolant

could spray out.

NOTICE

When adding engine/power control

unit coolant

Add coolant slowly after the hybrid sys-

tem has cooled down sufficiently. Adding

cool coolant to a hot hybrid system too

quickly can cause damage to the hybrid

system.

To prevent damage to the cooling

system

Observe the following precautions:

Avoid contaminating the coolant with

foreign matter (such as sand or dust

etc.).

Do not use any coolant additive.

If the vehicle becomes stuck

Carry out the following procedures
if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:

Recovering procedure

452

7-2. Steps to take in an emergency

WARNING

When attempting to free a stuck vehi-

cle

If you choose to push the vehicle back

and forth to free it, make sure the sur-

rounding area is clear to avoid striking

other vehicles, objects or people. The

vehicle may also lunge forward or lunge

back suddenly as it becomes free. Use

extreme caution.

When shifting the shift lever

Be careful not to shift the shift lever with

the accelerator pedal depressed.

This may lead to unexpected rapid accel-

eration of the vehicle that may cause an

accident resulting in death or serious

injury.

NOTICE

To avoid damaging the transmission

and other components

Avoid spinning the front wheels and

depressing the accelerator pedal

more than necessary.

If the vehicle remains stuck even after

these procedures are performed, the

vehicle may require towing to be

freed.

453

Vehic

le spe

cif

ion
s

Vehicle specifications

8-1. Specifications

Maintenance data (fuel, oil level,

etc.) ..............................................

454

Fuel information.........................

462

8-2. Customization

Customizable features ...........

463

8-3. Items to initialize

Items to initialize ........................

476

454

8-1. Specifications

8-1.Specifications

: Unladen vehicle

Vehicle identification number

The vehicle identification number
(VIN) is the legal identifier for your
vehicle. This is the primary identifica-
tion number for your Lexus. It is used in
registering the ownership of your vehi-
cle.
This number is on the top left of the
instrument panel.

This number is also stamped under the
right-hand front seat.

Maintenance data (fuel, oil level, etc.)

Dimensions and weights

Overall length

4975 mm (195.9 in.)

Overall width

1865 mm (73.4 in.)

Overall height

1445 mm (56.9 in.)

Wheelbase

2870 mm (113.0 in.)

Front tread

With 17-inch tires

1600 mm (63.0 in.)

With 18-inch tires/19-inch tires

1590 mm (62.6 in.)

Rear tread

With 17-inch tires

1610 mm (63.4 in.)

With 18-inch tires/19-inch tires

1600 mm (63.0 in.)

Gross vehicle mass

2150 kg (4740 lb.)

Maximum permissi-
ble axle capacity

Front

1190 kg (2624 lb.)

Rear

1100 kg (2425 lb.)

Vehicle identification

455

8-1. Specifications

Vehic

le spe

cif

ion
s

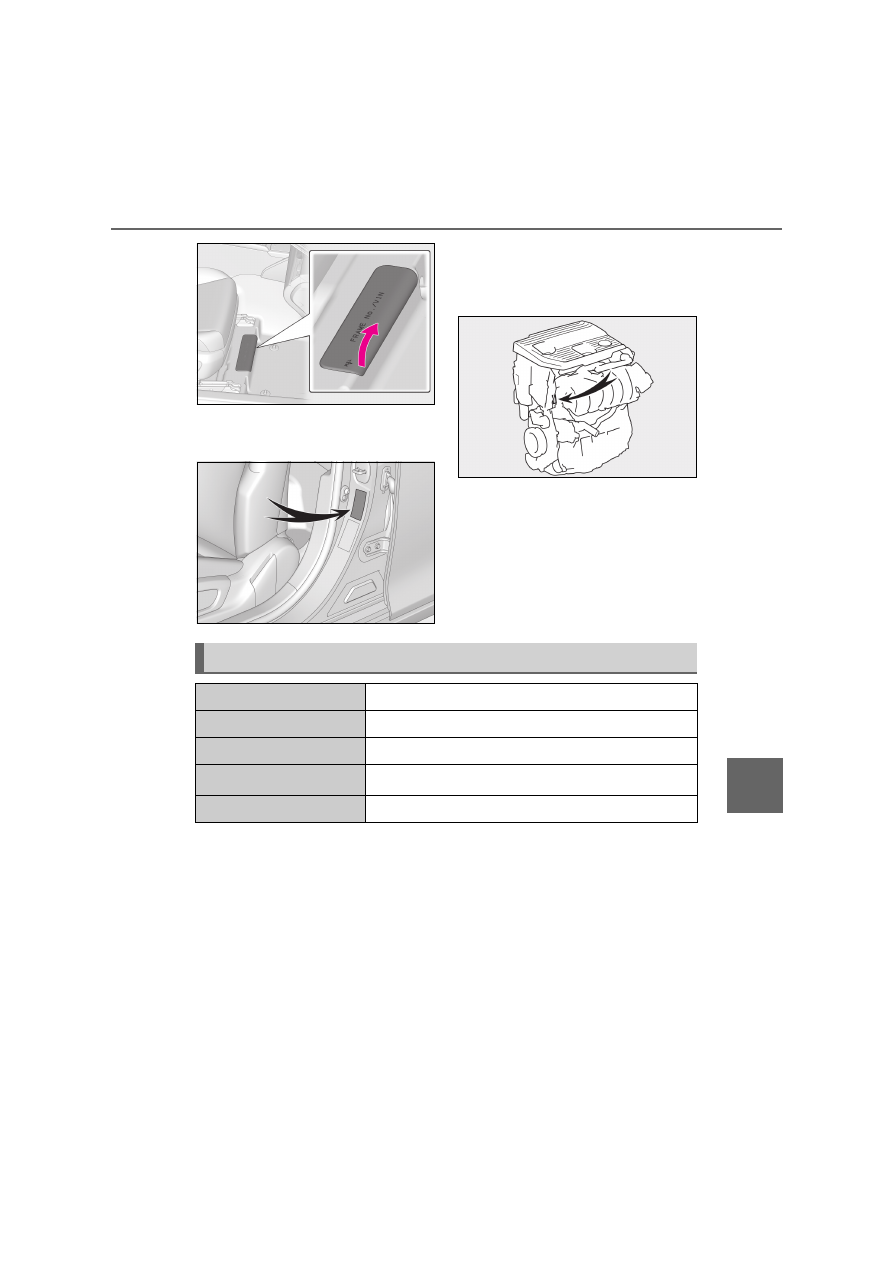

This number is also on the manufac-
turer’s label.

Engine number

The engine number is located as
shown.

Engine

Model

A25A-FXS

Type

4-cylinder in line, 4-cycle, gasoline

Bore and stroke

87.5



103.4 mm (3.44



4.07 in.)

Displacement

2487 cm

(151.8 cu.in.)

Valve clearance

Automatic adjustment

456

8-1. Specifications

Oil capacity (Drain and refill [Ref-
erence

])

: The engine oil capacity is a reference

quantity to be used when changing the

Fuel

Fuel type

When you find these types of fuel label at the
gas station, use only the fuel with one of the fol-
lowing labels.

EU area:
Unleaded gasoline conforming to European
standard EN228 only
Except EU area:
Unleaded gasoline only

Research Octane Number

95 or higher

Fuel tank capacity (Reference)

50 L (13.2 gal., 11.0 Imp.gal.)

Electric motor (traction motor)

Type

Permanent magnet synchronous motor

Maximum output

88 kW

Maximum torque

202 N•m (20.6 kgf•m, 149 ft•lbf)

Hybrid battery (traction battery)

Type

Nickel-metal hydride battery

Voltage

7.2 V/module

Capacity

6.5 Ah (3HR)

Quantity

34 modules

Nominal voltage

244.8 V

Lubrication system

With filter

4.5 L (4.8 qt., 4.0 Imp.qt.)

Without filter 4.2 L (4.4 qt., 3.7 Imp.qt.)

457

8-1. Specifications

Vehic

le spe

cif

ion
s

engine oil. Warm up the engine and turn
off the hybrid system, wait more than 5
minutes, and check the oil level on the
dipstick.

Engine oil selection

“Toyota Genuine Motor Oil” is used in
your Lexus vehicle. Lexus recom-
mends the use of approved “Toyota
Genuine Motor Oil”. Another motor
oil of matching quality can also be
used.
Oil grade:
0W-16:
API grade SN “Resource-Conserv-
ing”, SN PLUS “Resource-Conserv-
ing” or SP “Resource-Conserving”; or
ILSAC GF-6B multigrade engine oil
0W-20 and 5W-30:
API grade SM “Energy-Conserving”,
SN “Resource-Conserving”, SN PLUS
“Resource-Conserving” or SP
“Resource-Conserving”; or ILSAC
GF-6A multigrade engine oil
Recommended viscosity (SAE):
SAE 0W-16 is filled into your Lexus
vehicle at manufacturing, and the best
choice for good fuel economy and
good starting in cold weather.
If SAE 0W-16 oil is not available, SAE
0W-20 oil may be used. However, it
should be replaced with SAE 0W-16
at the next oil change.

Temperature range anticipated
before next oil change.

Preferred

Oil viscosity (0W-16 is explained here
as an example):
• The 0W in 0W-16 indicates the

characteristic of the oil which allows
cold startability. Oils with a lower
value before the W allow for easier
starting of the engine in cold
weather.

• The 16 in 0W-16 indicates the vis-

cosity characteristic of the oil when
the oil is at high temperature. An oil
with a higher viscosity (one with a
higher value) may be better suited if
the vehicle is operated at high
speeds, or under extreme load con-
ditions.

How to read oil container labels:
Either or both API registered marks
are added to some oil containers to
help you select the oil you should use.

458

8-1. Specifications

API Service Symbol

Top portion: “API SERVICE SP” means
the oil quality designation by American

Petroleum Institute (API).
Center portion: “SAE 0W-16” means the
SAE viscosity grade.
Lower portion: “Resource-Conserving”
means that the oil has fuel-saving and envi-
ronmental protection capabilities.

ILSAC Certification Mark

The International Lubricant Specification
Advisory Committee (ILSAC) Certifica-
tion Mark is displayed on the front of the
container.

: The fluid capacity is a reference quantity.

If replacement is necessary, contact any authorized Lexus retailer or Lexus authorized
repairer, or any reliable repairer.

Spark plug

Cooling system

Capacity

Gasoline
engine

6.1 L (6.4 qt., 5.4 Imp.qt.)

Power control
unit

1.8 L (1.9 qt., 1.6 Imp.qt.)

Coolant type

Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-sili-

cate, non-amine, non-nitrite, and non-borate coolant
with long-life hybrid organic acid technology

Do not use plain water alone.

Ignition system

Make

DENSO FC16HR-Q8

Gap

0.8 mm (0.031 in.)

459

8-1. Specifications

Vehic

le spe

cif

ion
s

: The fluid capacity is a reference quantity.

If replacement is necessary, contact any authorized Lexus retailer or Lexus authorized
repairer, or any reliable repairer.

NOTICE

Iridium-tipped spark plugs

Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

Electrical system (12-volt battery)

Specific gravity reading at 20°C
(68°F):

1.25 or higher
If the specific gravity is lower than the standard value,
charge the battery.

Charging rates

Quick charge

15 A max.

Slow charge

5 A max.

Hybrid transmission

Fluid capacity

3.9 L (4.1 qt., 3.4 Imp.qt.)

Fluid type

Toyota Genuine ATF WS

NOTICE

Hybrid transmission fluid type

Using transmission fluid other than the above type may cause abnormal noise or vibra-

tion, or ultimately damage the transmission of your vehicle.

Brakes

Pedal clearance

with 16-inch front wheel brake 85 mm (3.3 in.) Min.

with 17-inch front wheel brake 83 mm (3.3 in.) Min.

Pedal free play

1.0



6.0 mm (0.04



0.24 in.)

460

8-1. Specifications

: Minimum pedal clearance when depressed with a force of 300 N (30.6 kgf, 67.4 lbf)

while the hybrid system is operating.
When performing the brake pedal inspection, also be sure to check that the brake sys-
tem warning light is not illuminated when the hybrid system is operating. (If the brake
system warning light is illuminated, refer to P.406)

: Make sure to confirm that the brake system warning light (yellow) does not illuminate. (If

the brake system warning light illuminates, refer to P.406)



17-inch tires

Parking brake indicator

When pushing the parking brake
switch for 1 to 2 seconds: comes on
When pulling the parking brake switch
for 1 to 2 seconds: turns off

Fluid type

SAE J1703 or FMVSS No. 116 DOT 3
SAE J1704 or FMVSS No.116 DOT 4

Steering

Free play

Less than 30 mm (1.2 in.)

Tires and wheels

Tire size

215/55R17 94W
215/55R17 94V

Tire inflation pressure
(Recommended cold tire
inflation pressure)

Vehicle speed

Front tire and rear tire

More than 160 km/h (100
mph)

320 kPa (3.2 kgf/cm

or bar,

46 psi)

160 km/h (100 mph) or less

240 kPa (2.4 kgf/cm

or bar,

35 psi)

Wheel size



7 1/2J

Wheel nut torque

103 N•m (10.5 kgf•m, 76 ft•lbf)

461

8-1. Specifications

Vehic

le spe

cif

ion
s



18-inch tires



19-inch tires



Compact spare tire (if equipped)

Tire size

235/45R18 94Y
235/45R18 94W

Tire inflation pressure
(Recommended cold tire
inflation pressure)

Vehicle speed

Front tire and rear tire

More than 160 km/h (100
mph)

320 kPa (3.2 kgf/cm

or bar,

46 psi)

160 km/h (100 mph) or less

240 kPa (2.4 kgf/cm

or bar,

35 psi)

Wheel size



Wheel nut torque

103 N•m (10.5 kgf•m, 76 ft•lbf)

Tire size

235/40R19 96Y XL

Tire inflation pressure
(Recommended cold tire
inflation pressure)

Vehicle speed

Front tire and rear tire

More than 220 km/h (137
mph)

320 kPa (3.2 kgf/cm

or bar,

46 psi)

220 km/h (137 mph) or less

230 kPa (2.3 kgf/cm

or bar,

33 psi)

Wheel size



Wheel nut torque

103 N•m (10.5 kgf•m, 76 ft•lbf)

Tire size

T155/70D17 110M

Tire inflation pressure
(Recommended cold tire
inflation pressure)

420 kPa (4.2 kgf/cm

or bar, 60 psi)

Wheel size



4 T

Wheel nut torque

103 N•m (10.5 kgf•m, 76 ft•lbf)

Light bulbs (vehicles with single-beam headlights)

Light bulbs

Type

Front turn signal lights

Wedge base bulbs (amber)

462

8-1. Specifications

Use of ethanol blended gasoline in a

gasoline engine

Lexus allows the use of ethanol blended

gasoline where the ethanol content is up to

10%. Make sure that the ethanol blended

gasoline to be used has a Research Octane

Number that follows the above.

If your engine knocks

Consult any authorized Lexus retailer or

Lexus authorized repairer, or any reliable

repairer.

You may occasionally notice light knock-

ing for a short time while accelerating or

driving uphill. This is normal and there is

no need for concern.

Fuel information

When you find these types of fuel
label at the gas station, use only the
fuel with one of the following labels.

EU area:
You must only use unleaded gaso-
line conforming to European stan-
dard EN228.
Select unleaded gasoline with a
Research Octane Number of 95 or
higher for optimum engine perfor-
mance.

Except EU area:
You must only use unleaded gaso-
line.
Select unleaded gasoline with a
Research Octane Number of 95 or
higher for optimum engine perfor-
mance.

NOTICE

Notice on fuel quality

Do not use improper fuels. If improper

fuels are used, the engine will be dam-

aged.

Do not use gasoline with metallic addi-

tives, for example manganese, iron or

lead, otherwise it may cause damage

on your engine or emission control

system.

Do not add aftermarket fuel additives

which contain metallic additives.

EU area: Bioethanol fuel sold under

names such as “E50” or “E85” and

fuel containing a large amount of etha-

nol should not be used. The use of

these fuels will damage the vehicle’s

fuel system. In case of any doubt, ask

any authorized Lexus retailer or Lexus

authorized repairer, or any reliable

repairer.

Except EU area: Bioethanol fuel sold

under names such as “E50” or “E85”

and fuel containing a large amount of

ethanol should not be used. Your vehi-

cle can use gasoline mixed with 10%

max ethanol. The use of fuel with more

than 10% ethanol content (E10) will

damage the vehicle’s fuel system. You

must ensure that refueling is carried

out only from a source where fuel

specification and quality can be guar-

anteed. In case of any doubt, ask any

authorized Lexus retailer or Lexus

authorized repairer, or any reliable

repairer.

Do not use the methanol blended gas-

oline such as M15, M85, M100. The

use of gasoline containing methanol

may cause engine damage or failure.

463

8-2. Customization

Vehic

le spe

cif

ion
s

8-2.Customization

Changing by using the meter con-
trol switches

Press

to select

Operate the meter control
switches to select the desired item
to be customized.

According to the display, select the
desired setting.

To go back to the previous screen or exit
the customize mode, press

Changing by using the Remote
Touch (



P.314)

Press the “MENU” button on the
Remote Touch.

Select “Setup” on the menu screen
and select “Vehicle”.

Select “Vehicle customisation” or
“Drive mode customisation”.

Various setting can be changed. Refer to

the list of settings that can be changed for

details.

For details on the Remote Touch, refer
to the “NAVIGATION AND MULTI-
MEDIA SYSTEM OWNER’S MAN-
UAL”.

During customization

Stop the vehicle in a safe place, apply the

parking brake, and shift the shift lever to P.

Also, to prevent 12-volt battery discharge,

leave the hybrid system operating while

customizing the features.

Some function settings are changed simultaneously with other functions being cus-
tomized. Contact any authorized Lexus retailer or Lexus authorized repairer, or
any reliable repairer for further details.

Customizable features

Your vehicle includes a variety of
electronic features that can be per-
sonalized to your preferences. The
settings of these features can be
changed by using the meter control
switches, the Remote Touch or at
any authorized Lexus retailer or
Lexus authorized repairer, or any
reliable repairer.

Customizing vehicle features

WARNING

During customization

As the hybrid system needs to be operat-

ing during customization, ensure that the

vehicle is parked in a place with ade-

quate ventilation. In a closed area such as

a garage, exhaust gases including harm-

ful carbon monoxide (CO) may collect

and enter the vehicle. This may lead to

death or a serious health hazard.

NOTICE

During customization

To prevent 12-volt battery discharge,

ensure that the hybrid system is operat-

ing while customizing features.

Customizable features

464

8-2. Customization

Settings that can be changed using the Remote Touch

Settings that can be changed using the meter control switches

Settings that can be changed by any authorized Lexus retailer or Lexus autho-

rized repairer, or any reliable repairer

Definition of symbols: O = Available,



= Not available

Gauges, meters and multi-information display (



P.97, 101, 107)

Function

Default setting

Customized setting

Language

*2, 3

English

French



German

Spanish

Italian

Russian

Arabic

Turkish

Dutch

Units

*2, 3

km (L/100 km)

km (km/L)



miles (MPG)

Speedometer display

Digital

Analog



Analog and digital

Drive information 1

Current fuel con-

sumption

Customizable items:



P.108



Average fuel econ-

omy (after reset)

Drive information 2

Distance (driving

range)

Average vehicle

speed (after reset)

Clock

24-hour display

12-hour display



Pop-up display

Off



Accent color

Color 1

Color 2



465

8-2. Customization

Vehic

le spe

cif

ion
s

: For details about each function:



P.111

: The default setting varies according to country.

: The customized setting varies according to country.

: Except F SPORT models

: F SPORT models

Head-up Display

(



P.113)

: If equipped

Tachometer setting

Change according

to driving mode

Always tachometer



Always Hybrid Sys-

tem Indicator

Rev indicator

4000 r/min

2000 - 5700 r/min



Off

Rev peak

Off



EV indicator

Off



Suggestion function

On (when the vehi-

cle is stopped)



Off

Function

Default setting

Customized setting

Gauge information

Hybrid System Indi-

cator

Tachometer



No content

Route guidance to destina-
tion/street name

Off



Driving support system dis-
play

Off



Compass

Off



Audio system operation sta-
tus

Off



Function

Default setting

Customized setting

466

8-2. Customization

Door lock (



P.128, 133, 441)

Rear seat reminder (



P.130)

Smart entry & start system and wireless remote control (



P.128, 140)

Function

Default setting

Customized setting

Unlocking using a mechani-
cal key

All doors unlocked

in one step

Driver’s door

unlocked in one

step, all doors

unlocked in two step

 

Speed linked door locking
function

Off



Shift lever linked door locking
function

Off



Shift lever linked door
unlocking function

Off



Driver’s door linked door
unlocking function

Off



Locking/unlocking of the
trunk when all doors are
locked/unlocked

Off

 

Function

Default setting

Customized setting

Rear seat reminder function

Off



Function

Default setting

Customized setting

Operation signal (Emer-
gency flashers)

Off



Time elapsed before auto-
matic door lock function is
activated if door is not
opened after being unlocked

30 seconds

60 seconds

 

120 seconds

Open door warning buzzer
(When locking the vehicle)

Off

 

Lexus ES (2022 year). Manual in english - page 27
