291

4-5. Using the driving support systems

ivin
g

The system determined that emergency
braking is necessary.
Center Display (Panoramic view monitor):
“BRAKE!”
Multi-information display: “BRAKE!”
PKSB OFF indicator: Not illuminated
Buzzer: Short beep



Vehicle stopped by system opera-
tion

The vehicle has been stopped by brake
control operation.
Center Display (Panoramic view monitor):
“Press Brake Pedal”
Multi-information display: “Switch to
Brake” (If the accelerator pedal is not
depressed, “Press Brake Pedal” will be dis-
played.)
PKSB OFF indicator: Illuminated
Buzzer: Short beep

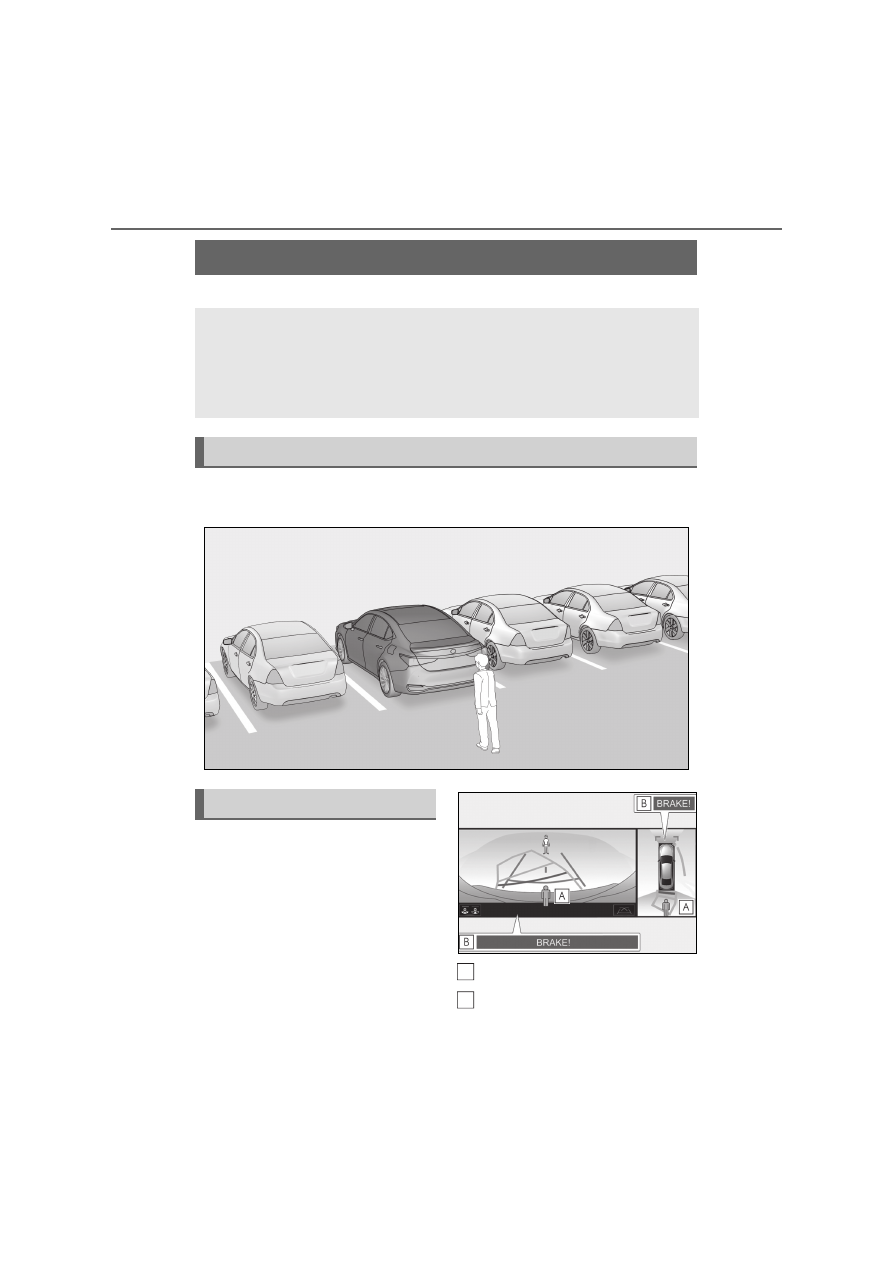

If the Parking Support Brake determines that a collision with a detected object or
pedestrian is possible, the hybrid system output will be restricted to restrain any
increase in the vehicle speed. (Hybrid system output restriction control: See figure
2 below.)
Additionally, if the accelerator pedal continues to be depressed, the brakes will be
applied automatically to reduce the vehicle speed. (Brake control: See figure 3
below.)



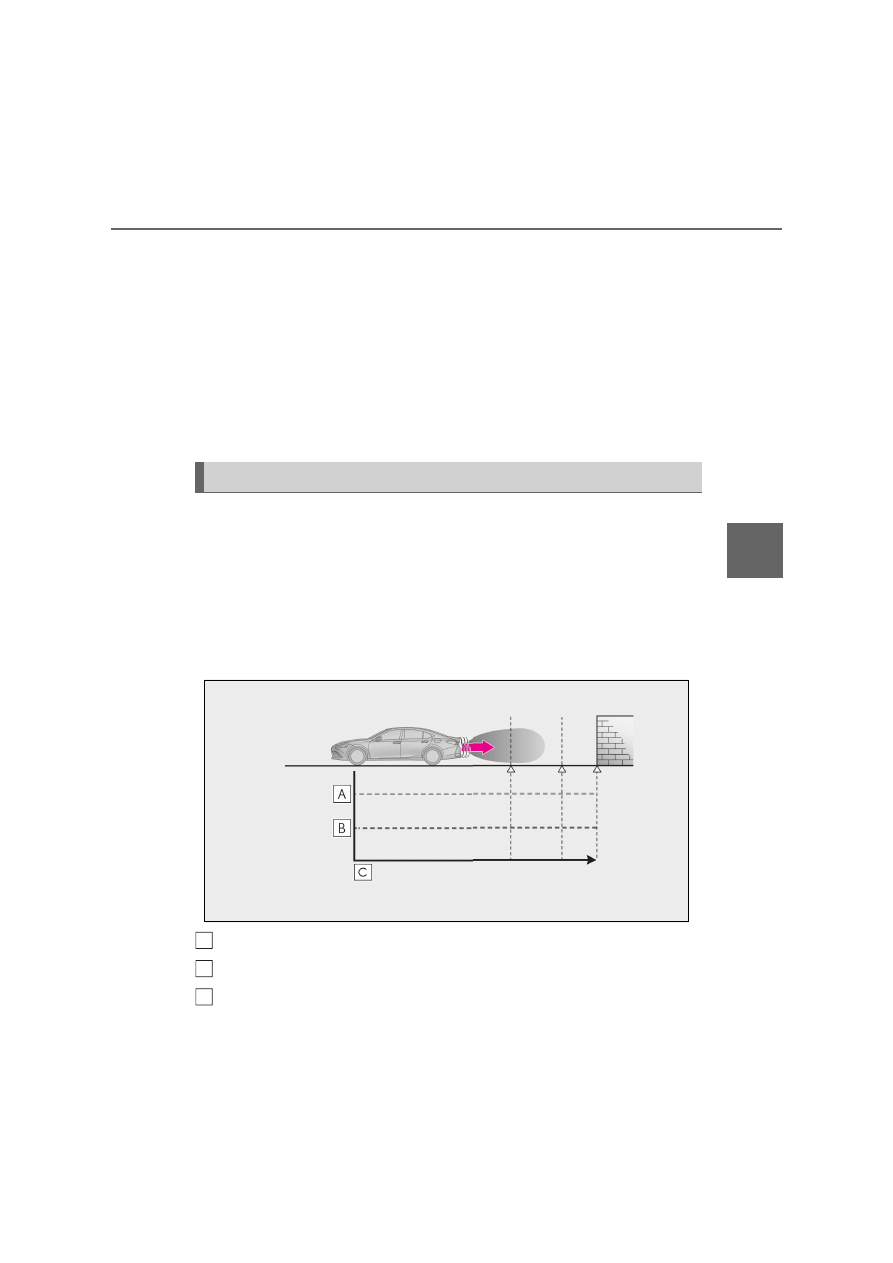

Figure 1 When the PKSB (Parking Support Brake) is disabled

Hybrid system output

Braking force

Time



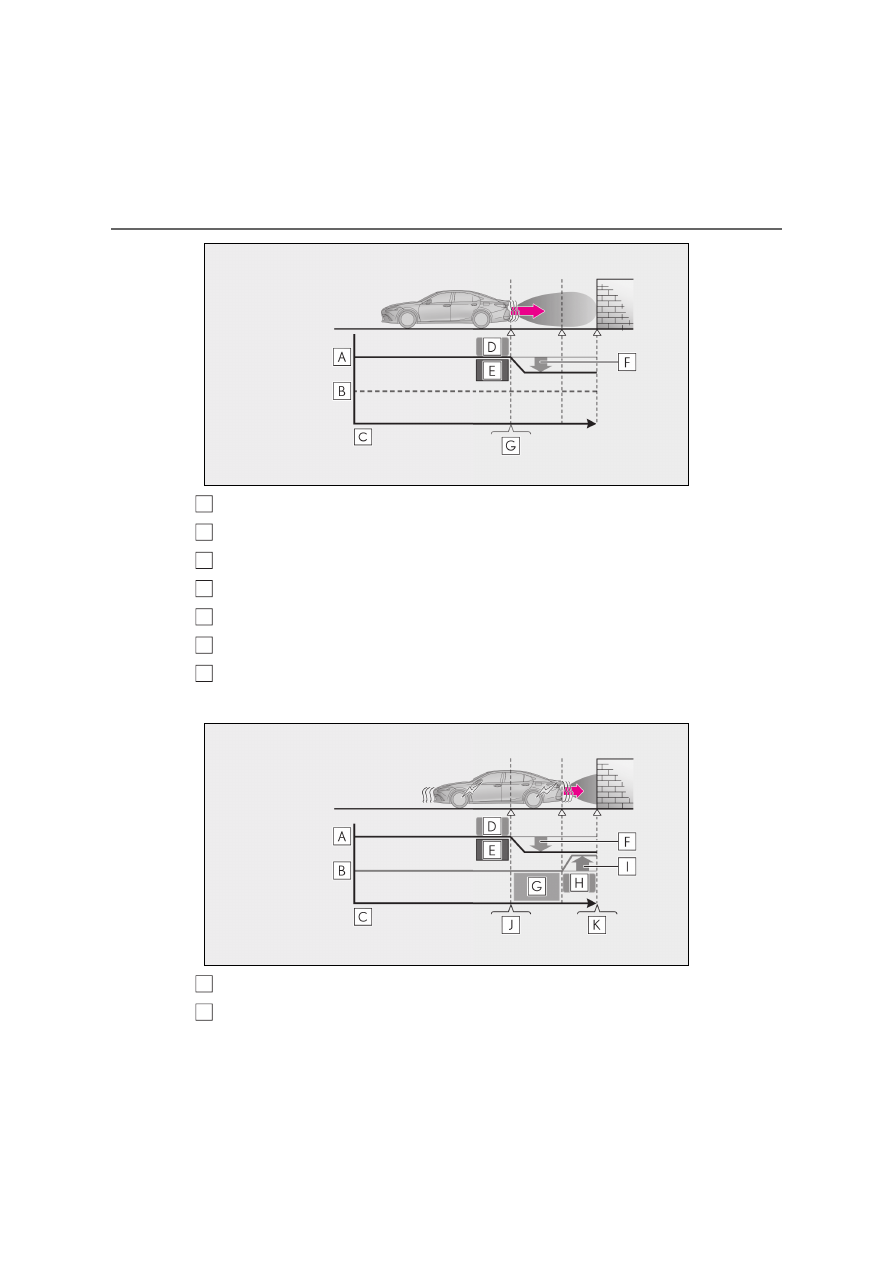

Figure 2 When hybrid system output restriction control operates

System overview

A
B
C

292

4-5. Using the driving support systems

Hybrid system output

Braking force

Time

Hybrid system output restriction control begins operating

System determines that possibility of collision with detected object is high

Hybrid system output reduced

Example: Multi-information display: “BRAKE!”



Figure 3 When brake control operates

Hybrid system output

Braking force

A
B
C
D

E
F

A
B

293

4-5. Using the driving support systems

ivin
g

Time

Hybrid system output restriction control begins operating

System determines that possibility of collision with detected object is high

Hybrid system output reduced

System determines that possibility of collision with detected object is extremely
high

Brake control begins operating

Brake control strength increased

Example: Multi-information display: “BRAKE!”

Example: Multi-information display: “Switch to Brake”

If the Parking Support Brake has oper-

ated

If the vehicle is stopped due to operation of

the Parking Support Brake, the Parking

Support Brake will be disabled and the

PKSB OFF indicator will illuminate. If the

Parking Support Brake operates unneces-

sarily, brake control can be canceled by

depressing the brake pedal or waiting for

approximately 2 seconds for it to automati-

cally be canceled. Then, the vehicle can be

operated by depressing the accelerator

pedal.

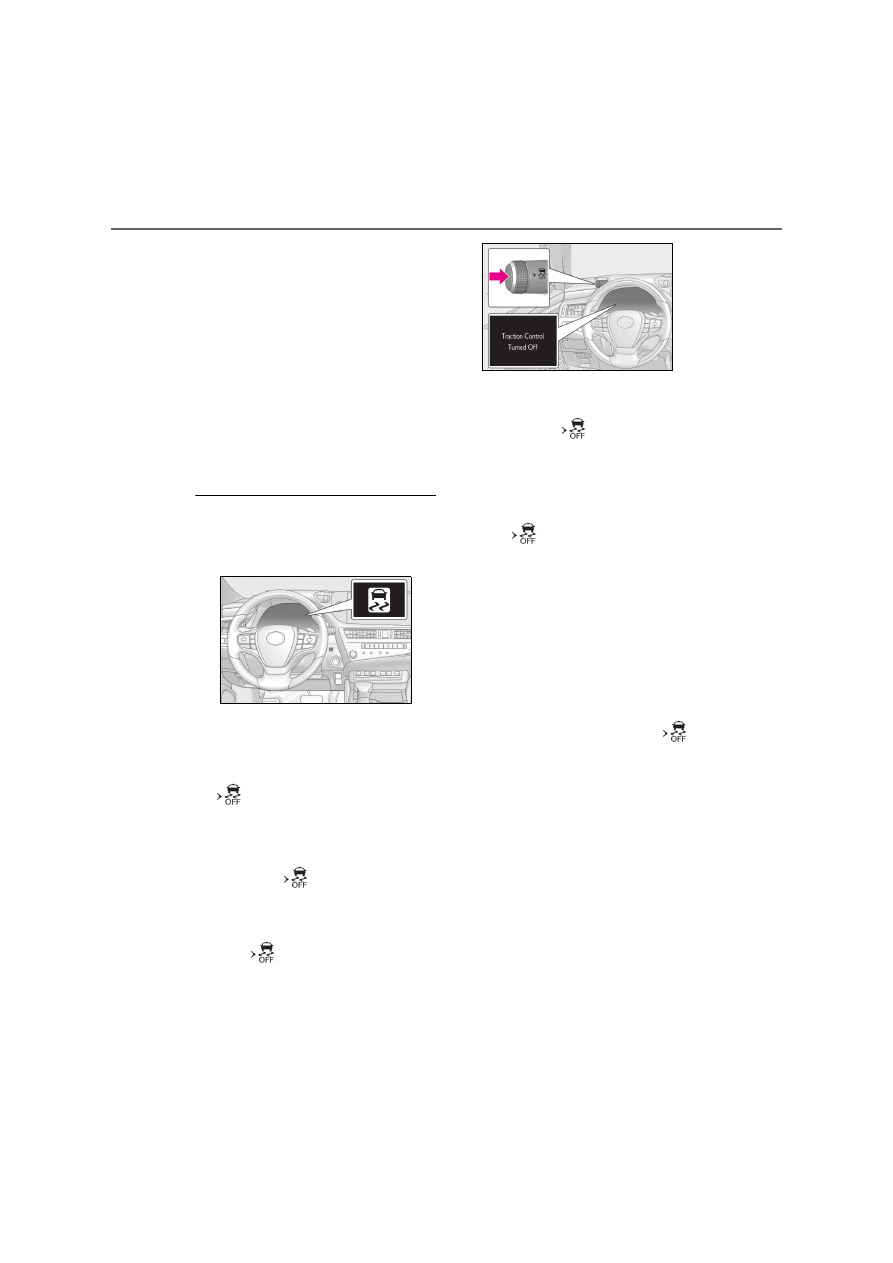

Re-enabling the Parking Support Brake

To re-enable the Parking Support Brake

when it has been disabled due to system

operation, perform any of the following

operations. At this time, the PKSB OFF

indicator will turn off. (



P.94)

Turn the PKSB system on (



P.290)

Turn the power switch off, and then back

to ON mode

Shift the shift lever to P

Drive with no operation targets in the

traveling direction of the vehicle

Change the traveling direction of the
vehicle

: Except the Parking Support Brake func-

tion (rear pedestrian)

If “Parking Support Brake Unavailable”

is displayed on the multi-information

display and the PKSB OFF indicator is

flashing

If this message is displayed only when the

shift lever is in R, the rear camera lens may

be dirty. Clean the camera lens. If this mes-

sage is displayed when the shift lever is in

any position other than R, a sensor on the

front or rear bumper may be dirty. Clean

the sensors and their surrounding area on

the bumpers.

If “Parking Support Brake Unavailable”

and “Parking Assist Unavailable Clean

Parking Assist Sensor” are displayed on

the multi-information display and the

PKSB OFF indicator is flashing

A sensor may be covered with ice, snow,

dirt, etc. In this case, remove the ice,

snow, dirt, etc., from the sensor to return

the system to normal. If this message is

shown even after removing dirt from the

sensor, or shown when the sensor was

not dirty to begin with, have the vehicle

inspected by any authorized Lexus

retailer or Lexus authorized repairer, or

any reliable repairer.

A sensor may be frozen. Once the ice

melts, the system will return to normal.

Water may be continuously flowing over

the sensor surface, such as in a heavy

rain. When the system determines that it

C
D

E
F

294

4-5. Using the driving support systems

is normal, the system will return to nor-

mal.

If a 12-volt battery terminal has been

disconnected and reconnected

The system needs to be initialized. To initial-

ize the system, drive the vehicle straight

ahead for 5 seconds or more at a speed of

approximately 35 km/h (22 mph) or more.

Additionally, for vehicles with the Parking

Support Brake function, turn the steering

wheel fully to the left and right with the vehi-

cle stopped.

295

4-5. Using the driving support systems

ivin
g

This function will operate in situations such as the following if an object is detected
in the traveling direction of the vehicle.

When traveling at a low speed and the brake pedal is not depressed, or is
depressed late

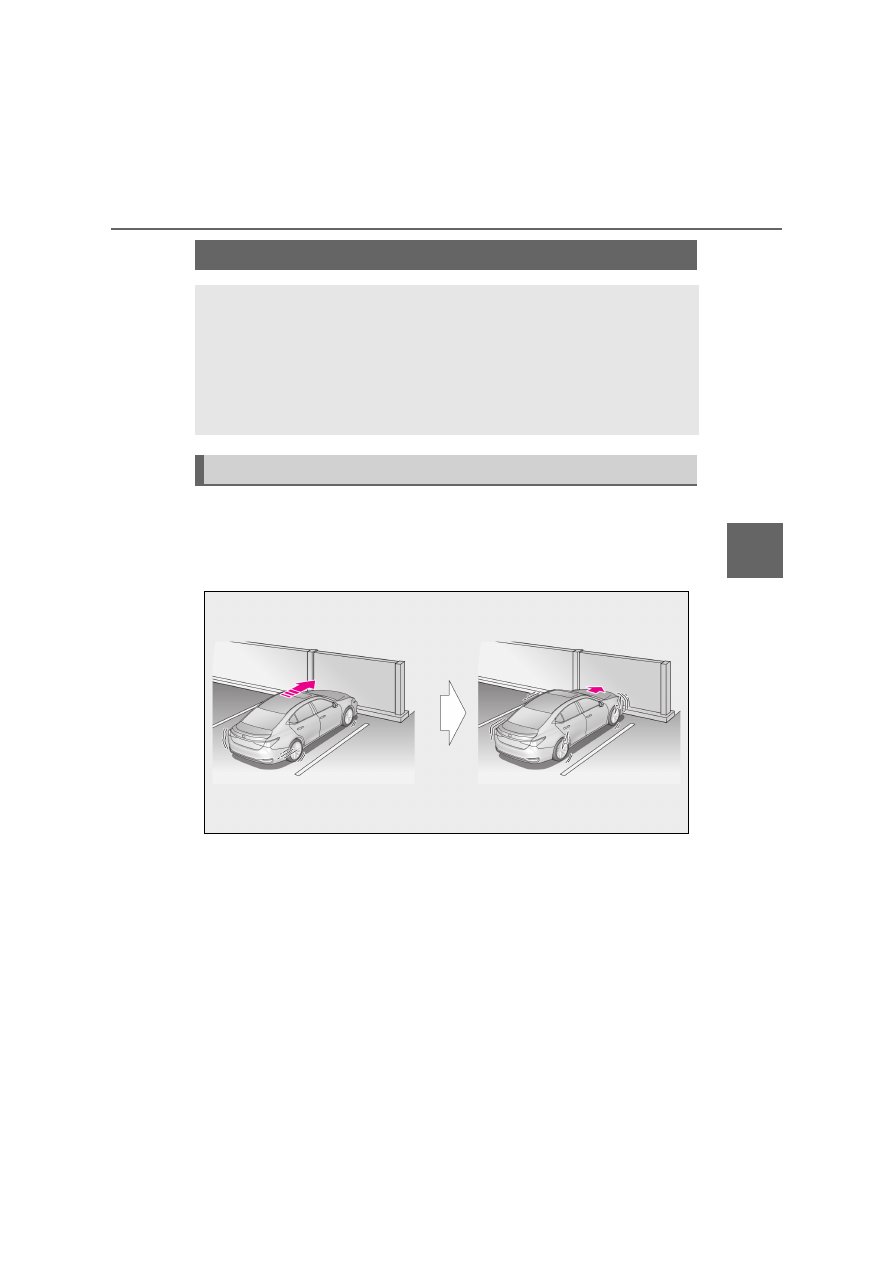

Parking Support Brake function (static objects)

If the sensors detect a static object, such as a wall, in the traveling direction of
the vehicle and the system determines that a collision may occur due to the
vehicle suddenly moving forward due to an accidental accelerator pedal
operation, the vehicle moving the unintended direction due to the wrong shift
position being selected, or while parking or traveling at low speeds, the system
will operate to lessen the impact with the detected static object and reduce
the resulting damage.

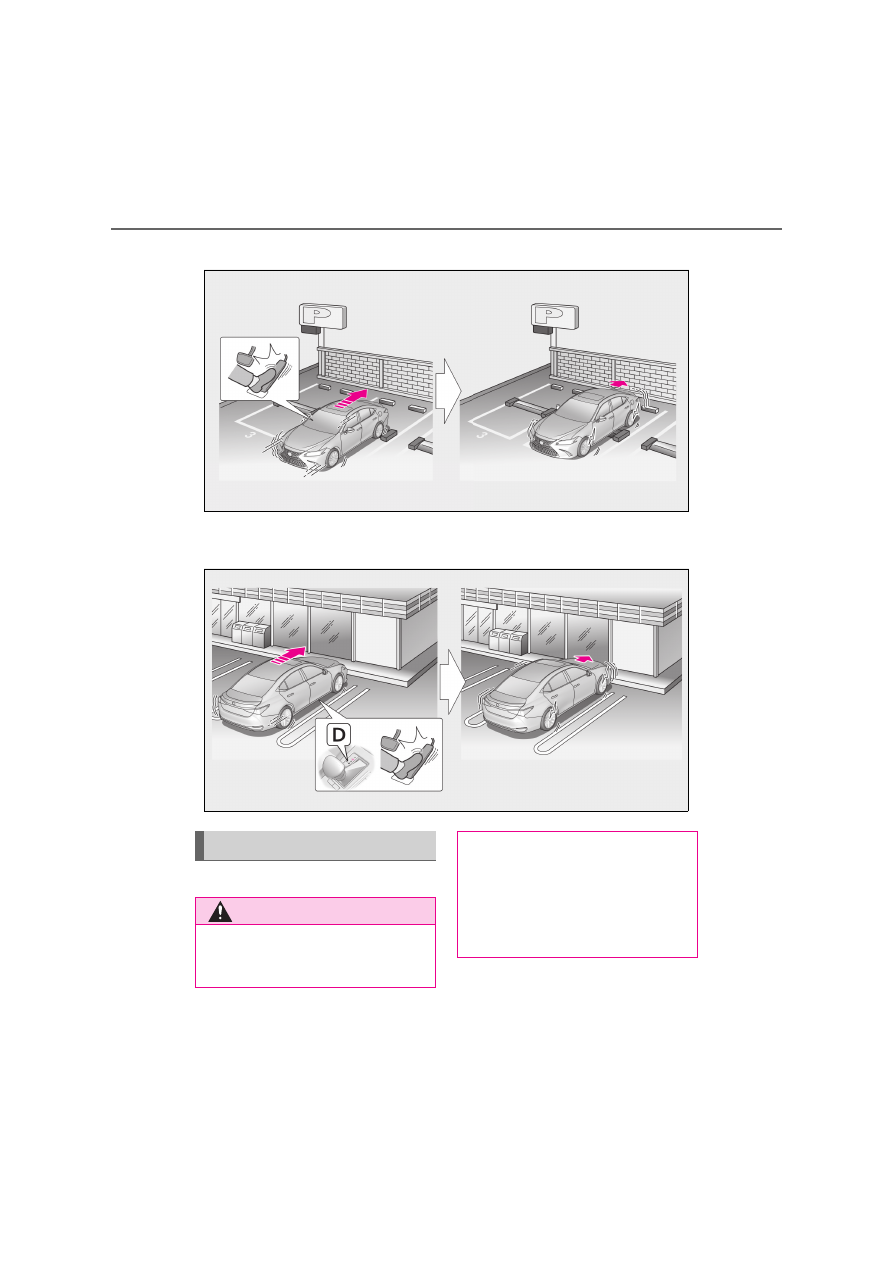

Examples of function operation

296

4-5. Using the driving support systems

When the accelerator pedal is depressed excessively

When the vehicle moves in the unintended direction due to the wrong shift
position being selected



P.271

Types of sensors

WARNING

To ensure the system can operate

properly



P.273

If the Parking Support Brake function

(static objects) operates unnecessar-

ily, such as at a railroad crossing



P.293

Notes when washing the vehicle



P.273

297

4-5. Using the driving support systems

ivin
g

The Parking Support Brake function

(static object) will operate when

The function will operate when the PKSB

OFF indicator is not illuminated or flashing

(



P.93, 94) and all of the following condi-

tions are met:

Hybrid system output restriction control

• The Parking Support Brake is enabled.

• The vehicle speed is approximately 15

km/h (9 mph) or less.

• There is a static object in the traveling

direction of the vehicle and approxi-

mately 2 to 4 m (6 to 13 ft.) away.

• The Parking Support Brake determines

that a stronger-than-normal brake oper-

ation is necessary to avoid a collision.

Brake control

• Hybrid system output restriction control

is operating.

• The Parking Support Brake determines

that an immediate brake operation is

necessary to avoid a collision.

The Parking Support Brake function

(static objects) will stop operating when

The function will stop operating if any of the

following conditions are met:

Hybrid system output restriction control

• The Parking Support Brake is disabled.

• The system determines that the collision

has become avoidable with normal brake

operation.

• The static object is no longer approxi-

mately 2 to 4 m (6 to 13 ft.) away from the

vehicle or in the traveling direction of the

vehicle.

Brake control

• The Parking Support Brake is disabled.

• Approximately 2 seconds have elapsed

since the vehicle was stopped by brake

control.

• The brake pedal is depressed after the

vehicle is stopped by brake control.

• The static object is no longer approxi-

mately 2 to 4 m (6 to 13 ft.) away from the

vehicle or in the traveling direction of the

vehicle.

Detection range of the Parking Support

Brake function (static objects)

The detection range of the Parking Support

Brake function (static objects) differs from

the detection range of the Lexus parking

assist-sensor. (



P.276) Therefore, even if

the Lexus parking assist-sensor detects an

object and provides a warning, the Parking

Support Brake function (static objects) may

not start operating.

Situations in which the Parking Support

Brake function (static objects) may not

operate

When the shift lever is in N.

Situations in which the system may not

operate properly



P.274

Situations in which the system may

operate even if there is no possibility of a

collision



P.275

298

4-5. Using the driving support systems

This function will operate in situations such as the following if a vehicle is detected
in the traveling direction of the vehicle.

When reversing, a vehicle is approaching and the brake pedal is not
depressed, or is depressed late



P.264

The Parking Support Brake function

(rear-crossing vehicles) will operate

when

The function will operate when the PKSB

OFF indicator is not illuminated or flashing

(



P.93, 94) and all of the following condi-

tions are met:

Hybrid system output restriction control

• The Parking Support Brake is enabled.

• The vehicle speed is approximately 15

km/h (9 mph) or less.

• Vehicles are approaching from the right

or left at the rear of the vehicle at a travel-

ing speed of approximately 8 km/h (5

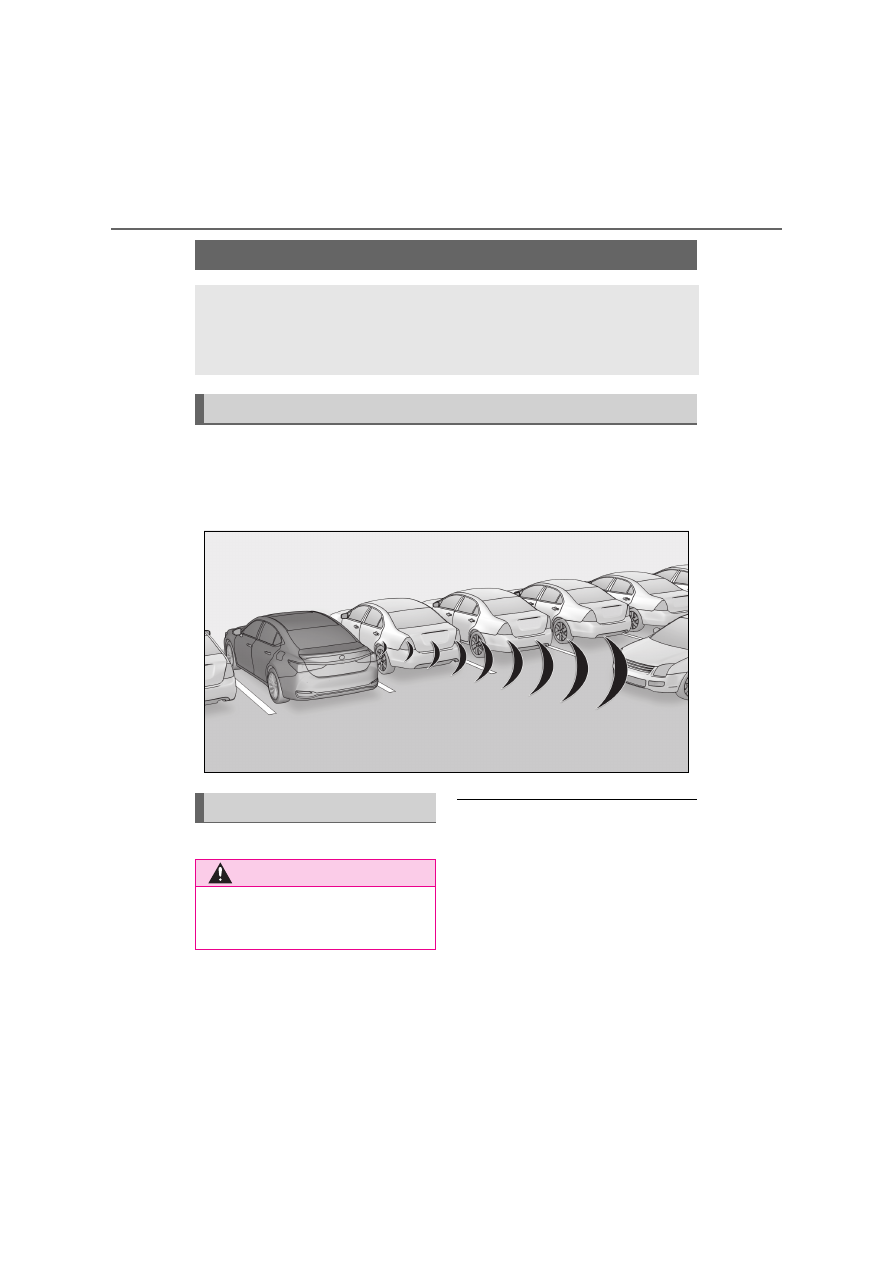

Parking Support Brake function (rear-crossing vehicles)

If a rear radar sensor detects a vehicle approaching from the right or left at
the rear of the vehicle and the system determines that the possibility of a colli-
sion is high, this function will perform brake control to reduce the likelihood of
an impact with the approaching vehicle.

Examples of function operation

Types of sensors

WARNING

To ensure the system can operate

properly



P.264

299

4-5. Using the driving support systems

ivin
g

mph) or more.

• The shift lever is in R.

• The Parking Support Brake determines

that a stronger than normal brake opera-

tion is necessary to avoid a collision with

an approaching vehicle.

Brake control

• Hybrid system output restriction control

is operating.

• The Parking Support Brake determines

that an emergency brake operation is

necessary to avoid a collision with an

approaching vehicle.

The Parking Support Brake function

(rear-crossing vehicles) will stop oper-

ating when

The function will stop operating if any of the

following conditions are met:

Hybrid system output restriction control

• The Parking Support Brake is disabled.

• The collision becomes avoidable with

normal brake operation.

• A vehicle is no longer approaching from

the right or left at the rear of the vehicle.

Brake control

• The Parking Support Brake is disabled.

• Approximately 2 seconds have elapsed

since the vehicle was stopped by brake

control.

• The brake pedal is depressed after the

vehicle is stopped by brake control.

• A vehicle is no longer approaching from

the right or left at the rear of the vehicle.

Detection area of the Parking Support

Brake function (rear-crossing vehicles)

The detection area of the Parking Support

Brake function (rear-crossing vehicles) dif-

fers from the detection area of the RCTA

function (



P.281). Therefore, even if the

RCTA function detects a vehicle and pro-

vides an alert, the Parking Support Brake

function (rear-crossing vehicles) may not

start operating.

RCTA buzzer

Regardless of whether the RCTA function

is enabled or not (



P.280), if the Parking

Support Brake function is enabled

(



P.290) and brake control is performed,

a buzzer will sound to notify the driver.

Situations in which the system may not

operate properly



P.282

Situations in which the system may

operate even if there is no possibility of a

collision



P.283

300

4-5. Using the driving support systems

: If equipped

When a pedestrian is detected behind the vehicle while backing up, the brake
pedal is not depressed or is depressed late.

Displays a message to urge the driver
to take evasive action when a pedes-
trian is detected in the detection area
behind the vehicle. (A message will
also be displayed on the multi-informa-
tion display and head-up display (if
equipped).)

Pedestrian detection icon

Brake reminder

Parking Support Brake function (rear pedestrians)

If the rear camera sensor detects a pedestrian behind the vehicle while back-
ing up and the system determines that the possibility of colliding with the
detected pedestrian is high, a buzzer will sound. If the system determines that
the possibility of colliding with the detected pedestrian is extremely high, the
brakes will be applied automatically to help reduce the impact of the collision.

Examples of system operation

Center Display

A
B

301

4-5. Using the driving support systems

ivin
g

Parking Support Brake function (rear

pedestrians) will operate when

The function will operate when the PKSB

OFF indicator is not illuminated or flashing

(



P.93, 94) and all of the following condi-

tions are met:

Hybrid system output restriction control

• The Parking Support Brake is enabled.

• The vehicle speed is 15 km/h (9 mph) or

less.

• The shift lever is in R.

• The rear camera sensor detects a pedes-

trian behind the vehicle while backing up

and the system determines that the possi-

bility of colliding with the detected

pedestrian is high.

Brake control

• Hybrid system output restriction control

is operating.

• The Parking Support Brake determines

that an emergency brake operation is

necessary to avoid a collision with a

pedestrian.

The Parking Support Brake function

(rear pedestrians) will stop operating

when

The function will stop operating if any of the

following conditions are met:

Hybrid system output restriction control

• The Parking Support Brake is disabled.

• The collision becomes avoidable with

normal brake operation.

• The pedestrian is no longer detected

behind your vehicle.

Brake control

• The Parking Support Brake is disabled.

• Approximately 2 seconds have elapsed

since the vehicle was stopped by brake

control.

• The brake pedal is depressed after the

vehicle is stopped by brake control.

• The pedestrian is no longer detected

behind your vehicle.

Re-enabling the Parking Support Brake

function (rear pedestrians)



P.293

Detection area of the Parking Support

Brake function (rear pedestrians)

The detection area of the Parking Support

Brake function (rear pedestrians) differs

from the detection area of the RCD func-

tion (



P.286). Therefore, even if the RCD

function detects a pedestrian and provides

an alert, the Parking Support Brake func-

tion (rear pedestrians) may not start operat-

ing.

Situations in which the system may not

operate properly



P.287

Situations in which the system may

operate unexpectedly



P.287

WARNING

If the Parking Support Brake function

(rear pedestrians) operates unneces-

sarily

Depress the brake pedal immediately

after the Parking Support Brake function

(rear pedestrians) operates. (Operation

of the function is canceled by depressing

the brake pedal.)

Correct use of the Parking Support

Brake function (rear pedestrians)



P.285

302

4-5. Using the driving support systems

If “Exhaust Filter Full See Owner’s Man-

ual” is shown on the multi-information

display

The message may be displayed while

high load driving with particulate matter

accumulating.

Hybrid system output (engine speed) is

restricted when a certain amount of par-

ticulate matter accumulates, however, it

is possible to drive the vehicle unless the

malfunction indicator lamp comes on.

Particulate matter can accumulate more

quickly if the vehicle is frequently driven

short trips or at low speeds, or if the

hybrid system is regularly started in an

extremely cold environment. Excessive

accumulation of particulate matter can

be prevented by periodically driving long

distances continuously with intermittent

releasing of the accelerator pedal, such

as when driving on highways and free-

ways.

If the malfunction indicator lamp comes

on or “Exhaust Filter Full Visit Your

Dealer” is shown on the multi-informa-

tion display

The amount of accumulated particulate

matter has exceeded a certain level. Have

the vehicle inspected by any authorized

Lexus retailer or Lexus authorized repairer,

or any reliable repairer immediately.

GPF (Gasoline Particulate
Filter) system

The GPF system collects particu-
late matter in the exhaust gas by
using an exhaust gas filter.
The system will operate to regener-
ate the filter automatically,
depending on the vehicle condi-
tions.

NOTICE

To prevent the GPF system from not

operating properly

Do not use fuel other than the speci-

fied type

Do not modify the exhaust pipes

303

4-5. Using the driving support systems

ivin
g

ECB (Electronically Controlled
Brake System)

The electronically controlled system
generates braking force correspond-
ing to the brake operation

ABS (Anti-lock Brake System)

Helps to prevent wheel lock when the
brakes are applied suddenly, or if the
brakes are applied while driving on a
slippery road surface

Brake assist

Generates an increased level of brak-
ing force after the brake pedal is
depressed when the system detects a
panic stop situation

VSC (Vehicle Stability Control)

Helps the driver to control skidding
when swerving suddenly or turning on
slippery road surfaces

VSC+ (Vehicle Stability Control+)

Provides cooperative control of the
ABS, TRC, VSC and EPS. Helps to

maintain directional stability when
swerving on slippery road surfaces by
controlling steering performance.

Secondary Collision Brake (if
equipped)

When the SRS airbag sensor detects a
collision and the system operates, the
brakes and brake lights are automati-
cally controlled to reduce the vehicle
speed and help reduce the possibility
of further damage due to a secondary
collision.

TRC (Traction Control)

Helps to maintain drive power and
prevent the drive wheels from spinning
when starting the vehicle or accelerat-
ing on slippery roads

Active Cornering Assist (ACA)

Helps to prevent the vehicle from drift-
ing to the outer side by performing
inner wheel brake control when
attempting to accelerate while turning

Hill-start assist control

Helps to reduce the backward move-
ment of the vehicle when starting on an
uphill

EPS (Electric Power Steering)

Employs an electric motor to reduce
the amount of effort needed to turn the
steering wheel

AVS (Adaptive Variable Suspen-
sion system) (if equipped)

By independently controlling the
damping force of the shock absorbers
for each of the 4 wheels according to

Driving assist systems

To keep driving safety and perfor-
mance, the following systems oper-
ate automatically in response to
various driving situations. Be
aware, however, that these systems
are supplementary and should not
be relied upon too heavily when
operating the vehicle.

Summary of the driving assist
systems

304

4-5. Using the driving support systems

the road and driving conditions, this
system helps riding comfort with supe-
rior vehicle stability, and helps good
vehicle posture
Also, the damping force changes
depending on the selected driving
mode. (



P.267)

Emergency brake signal

When the brakes are applied suddenly,
the stop lights automatically flash to
alert the vehicle behind.

When the TRC/VSC/ABS systems are

operating

The slip indicator light will flash while the

TRC/VSC/ABS systems are operating.

Disabling the TRC system

If the vehicle gets stuck in mud, dirt or snow,

the TRC system may reduce power from

the hybrid system to the wheels. Pressing
the

switch to turn the system off may

make it easier for you to rock the vehicle in

order to free it.
To turn the TRC system off, quickly press
and release the

switch.

The “Traction Control Turned Off” will be
shown on the multi-information display.

Press the

switch again to turn the

system back on.

Turning off TRC and VSC systems

To turn the TRC and VSC systems off,
press and hold the

switch for more

than 3 seconds while the vehicle is stopped.
The VSC OFF indicator light will come on

and the “Traction Control Turned Off” will
be shown on the multi-information display.

Press the

switch again to turn the

system back on.

: On vehicles with PCS (Pre-Collision

System), PCS will also be disabled (only
Pre-Collision warning is available). The
PCS warning light will come on and a
message will be displayed on the multi-
information display. (



P.234)

When the message is displayed on the

multi-information display showing that
TRC has been disabled even if the

switch has not been pressed

TRC is temporary deactivated. If the infor-

mation continues to show, contact any

authorized Lexus retailer or Lexus autho-

rized repairer, or any reliable repairer.

Operating conditions of hill-start assist

control

When all of the following conditions are

met, the hill-start assist control will operate:

The shift lever is in a position other than P

or N (when starting off forward/back-

ward on an upward incline).

The vehicle is stopped.

The accelerator pedal is not depressed.

The parking brake is not engaged.

305

4-5. Using the driving support systems

ivin
g

Automatic system cancelation of hill-

start assist control

The hill-start assist control will turn off in any

of the following situations:

The shift lever is shifted to P or N.

The accelerator pedal is depressed.

The parking brake is engaged.

2 seconds at maximum elapsed after the

brake pedal is released

Sounds and vibrations caused by the

ABS, brake assist, VSC, TRC and hill-

start assist control systems

A sound may be heard from the engine

compartment when the brake pedal is

depressed repeatedly, when the hybrid

system is started or just after the vehicle

begins to move. This sound does not indi-

cate that a malfunction has occurred in

any of these systems.

Any of the following conditions may

occur when the above systems are oper-

ating. None of these indicates that a mal-

function has occurred.

• Vibrations may be felt through the vehi-

cle body and steering.

• A motor sound may be heard also after

the vehicle comes to a stop.

ECB operating sound

ECB operating sound may be heard in the

following cases, but it does not indicate that

a malfunction has occurred.

Operating sound heard from the engine

compartment when the brake pedal is

operated.

Motor sound of the brake system heard

from the front part of the vehicle when

the driver’s door is opened.

Operating sound heard from the engine

compartment when one or two minutes

passed after the stop of the hybrid sys-

tem.

Active Cornering Assist operation

sounds and vibrations

When the Active Cornering Assist is oper-

ated, operation sounds and vibrations may

be generated from the brake system, but

this is not a malfunction.

EPS operation sound

When the steering wheel is operated, a

motor sound (whirring sound) may be

heard. This does not indicate a malfunction.

Automatic reactivation of TRC and

VSC systems

After turning the TRC and VSC systems off,

the systems will be automatically re-

enabled in the following situations:

When the power switch is turned off

If only the TRC system is turned off, the

TRC will turn on when vehicle speed

increases

If both the TRC and VSC systems are

turned off, automatic re-enabling will not

occur when vehicle speed increases.

Secondary Collision Brake operating

conditions

The system operates when the SRS airbag

sensor detects a collision while the vehicle

is in motion.
However, the system does not operate

when the components are damaged.

Secondary Collision Brake automatic

cancellation

The system is automatically canceled in any

of the following situations.

The vehicle speed drops to approxi-

mately 10 km/h (6 mph)

A certain amount of time elapses during

operation

The accelerator pedal is depressed a

large amount

Operating conditions of Active Corner-

ing Assist

The system operates when the following

occurs.

TRC/VSC can operate

The driver is attempting to accelerate

while turning

The system detects that the vehicle is

drifting to the outer side

The brake pedal is released

306

4-5. Using the driving support systems

Reduced effectiveness of the EPS sys-

tem

The effectiveness of the EPS system is

reduced to prevent the system from over-

heating when there is frequent steering

input over an extended period of time. The

steering wheel may feel heavy as a result.

Should this occur, refrain from excessive

steering input or stop the vehicle and turn

the hybrid system off. The EPS system

should return to normal within 10 minutes.

Operating conditions of emergency

brake signal

When the following conditions are met, the

emergency brake signal will operate:

The emergency flashers are off.

Actual vehicle speed is over 55 km/h

(35 mph).

The system judges from the vehicle

deceleration that it is a sudden braking

operation.

Automatic system cancelation of emer-

gency brake signal

The emergency brake signal will be can-

celed in any of the following situations:

The emergency flashers are turned on.

The system judges from the vehicle

deceleration that is not a sudden braking

operation.

WARNING

The ABS does not operate effectively

when

The limits of tire gripping performance

have been exceeded (such as exces-

sively worn tires on a snow covered

road).

The vehicle hydroplanes while driving

at high speed on wet or slick roads.

Stopping distance when the ABS is

operating may exceed that of normal

conditions

The ABS is not designed to shorten the

vehicle’s stopping distance. Always

maintain a safe distance from the vehicle

in front of you, especially in the following

situations:

When driving on dirt, gravel or snow-

covered roads

When driving with tire chains

When driving over bumps in the road

When driving over roads with pot-

holes or uneven surfaces

TRC/VSC may not operate effec-

tively when

Directional control and power may not

be achievable while driving on slippery

road surfaces, even if the TRC/VSC sys-

tem is operating.
Drive the vehicle carefully in conditions

where stability and power may be lost.

Active Cornering Assist does not

operate effectively when

Do not overly rely on Active Corner-

ing Assist. Active Cornering Assist

may not operate effectively when

accelerating down slopes or driving on

slippery road surfaces.

When Active Cornering Assist fre-

quently operates, Active Cornering

Assist may temporarily stop operating

to ensure proper operation of the

brakes, TRC and VSC.

Hill-start assist control does not oper-

ate effectively when

Do not overly rely on hill-start assist

control. Hill-start assist control may

not operate effectively on steep

inclines and roads covered with ice.

Content .. 15 16 17 18 ..
