7-2. Steps to take in an emergency



RX350/RX350L

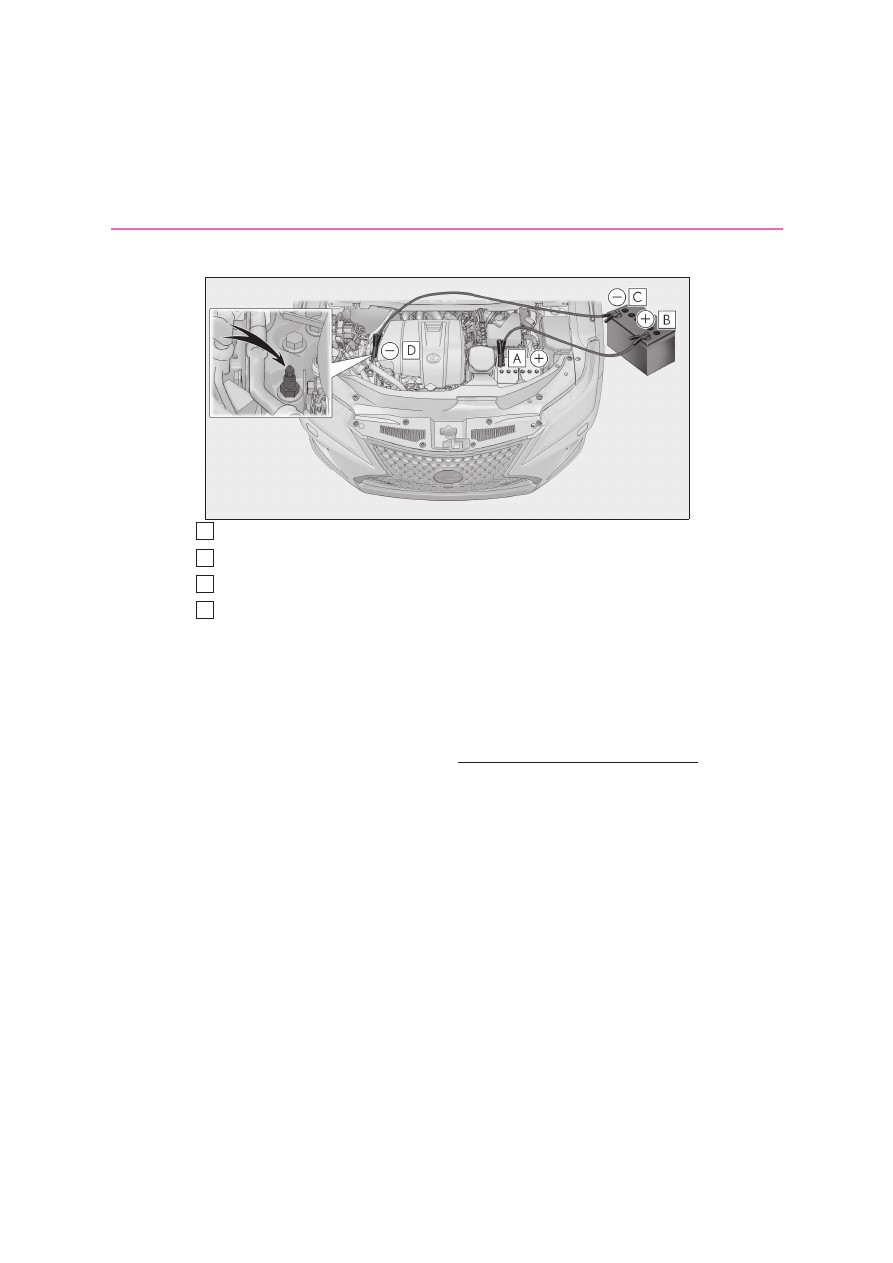

Positive (+) battery terminal (your vehicle)
Positive (+) battery terminal (second vehicle)
Negative (-) battery terminal (second vehicle)
Solid, stationary, unpainted metallic point away from the battery and any mov-
ing parts as shown in the illustration

Start the engine of the second vehi-
cle. Increase the engine speed
slightly and maintain at that level for
approximately 5 minutes to
recharge the battery of your vehi-
cle.

Open and close any of the doors of
your vehicle with the engine switch
off.

Maintain the engine speed of the
second vehicle and start the engine
of your vehicle by turning the
engine switch to IGNITION ON
mode.

Once the vehicle’s engine has
started, remove the jumper cables
in the exact reverse order from
which they were connected.

Once the engine starts, have the vehi-
cle inspected at any authorized Lexus
retailer or Lexus authorized repairer,
or any reliable repairer as soon as pos-
sible.

■

Starting the engine when the battery is

discharged

The engine cannot be started by push-start-

ing.

■

To prevent battery discharge

●

Turn off the headlights and the audio sys-

tem while the engine is stopped. (Vehi-

cles with a Stop & Start system: Except

when the engine is stopped by the Stop &

Start system.)

●

Turn off any unnecessary electrical com-

ponents when the vehicle is running at a

low speed for an extended period, such

as in heavy traffic.

A
B
C
D

575

7-2. Steps to take in an emergency

When trouble

ises

■

When removing the battery terminals

When the battery terminals are removed,

the information stored in the ECU is

cleared. Before removing the battery termi-

nals, contact any authorized Lexus retailer

or Lexus authorized repairer, or any reliable

repairer as soon as possible.

■

Charging the battery

The electricity stored in the battery will dis-

charge gradually even when the vehicle is

not in use, due to natural discharge and the

draining effects of certain electrical appli-

ances. If the vehicle is left for a long time,

the battery may discharge, and the engine

may be unable to start. (The battery

recharges automatically during driving.)

■

When the battery is removed or dis-

charged

●

In some cases, it may not be possible to

unlock the doors using the smart entry &

start system when the battery is dis-

charged. Use the wireless remote control

or the mechanical key to lock or unlock

the doors.

●

The engine may not start on the first

attempt after the battery has recharged

but will start normally after the second

attempt. This is not a malfunction.

●

The engine switch mode is memorized by

the vehicle. When the battery is recon-

nected, the system will return to the

mode it was in before the battery was dis-

charged. Before disconnecting the bat-

tery, turn the engine switch off.

If you are unsure what mode the engine

switch was in before the battery dis-

charged, be especially careful when

reconnecting the battery.

●

Vehicles with power back door: The

power back door must be initialized.

(



P.126)

●

Vehicles with a Stop & Start system: After

the battery terminals have been discon-

nected then reconnected or the battery

has been replaced, the Stop & Start sys-

tem may not automatically stop the

engine for approximately 5 to 60 min-

utes.

■

Replacing the battery

●

Vehicles with Stop & Start system: Use a

genuine battery specifically designed for

use with the Stop & Start system or a bat-

tery with equivalent specifications to a

genuine battery. If an unsupported bat-

tery is used, Stop & Start system func-

tions may be restricted to protect the

battery. Also, battery performance may

decrease and the engine may not be able

to restart. Contact any authorized Lexus

retailer or Lexus authorized repairer, or

any reliable repairer for details.

●

Use a battery with the same case size as

the previous battery and an equivalent

20 hour rate capacity (20HR) or greater.

• If the sizes differ, the battery cannot be

properly secured.

• If the 20 hour rate capacity is low, even if

the time period where the vehicle is not

used is a short time, the battery may dis-

charge and the engine may not be able to

start.

●

For details, consult any authorized Lexus

retailer or Lexus authorized repairer, or

any reliable repairer.

WARNING

■

When removing the battery terminals

Always remove the negative (-) terminal

first. If the positive (+) terminal contacts

any metal in the surrounding area when

the positive (+) terminal is removed, a

spark may occur, leading to a fire in addi-

tion to electrical shocks and death or

serious injury.

■

Avoiding battery fires or explosions

Observe the following precautions to

prevent accidentally igniting the flamma-

ble gas that may be emitted from the bat-

tery:

●

Make sure each jumper cable is con-

nected to the correct terminal and that

it is not unintentionally in contact with

any other than the intended terminal.

576

7-2. Steps to take in an emergency

WARNING

●

Do not allow the other end of the

jumper cable connected to the “+” ter-

minal to come into contact with any

other parts or metal surfaces in the

area, such as brackets or unpainted

metal.

●

Do not allow the + and - clamps of the

jumper cables to come into contact

with each other.

●

Do not smoke, use matches, cigarette

lighters or allow open flame near the

battery.

■

Battery precautions

The battery contains poisonous and cor-

rosive acidic electrolyte, while related

parts contain lead and lead compounds.

Observe the following precautions when

handling the battery:

●

When working with the battery, always

wear safety glasses and take care not

to allow any battery fluids (acid) to

come into contact with skin, clothing

or the vehicle body.

●

Do not lean over the battery.

●

In the event that battery fluid comes

into contact with the skin or eyes,

immediately wash the affected area

with water and seek medical attention.

Place a wet sponge or cloth over the

affected area until medical attention

can be received.

●

Always wash your hands after handling

the battery support, terminals, and

other battery-related parts.

●

Do not allow children near the battery.

■

When replacing the battery

●

When the vent plug and indicator are

close to the hold down clamp, the bat-

tery fluid (sulfuric acid) may leak.

●

For information regarding battery

replacement, contact any authorized

Lexus retailer or Lexus authorized

repairer, or any reliable repairer.

NOTICE

■

When handling jumper cables

When connecting the jumper cables,

ensure that they do not become entan-

gled in the cooling fans or engine drive

belt.

577

7-2. Steps to take in an emergency

When trouble

ises

Stop the vehicle in a safe place and
turn off the air conditioning system,
and then stop the engine.

If you see steam:
Carefully lift the hood after the
steam subsides.
If you do not see steam:
Carefully lift the hood.

After the engine has cooled down
sufficiently, inspect the hoses and

radiator core (radiator) for any
leaks.

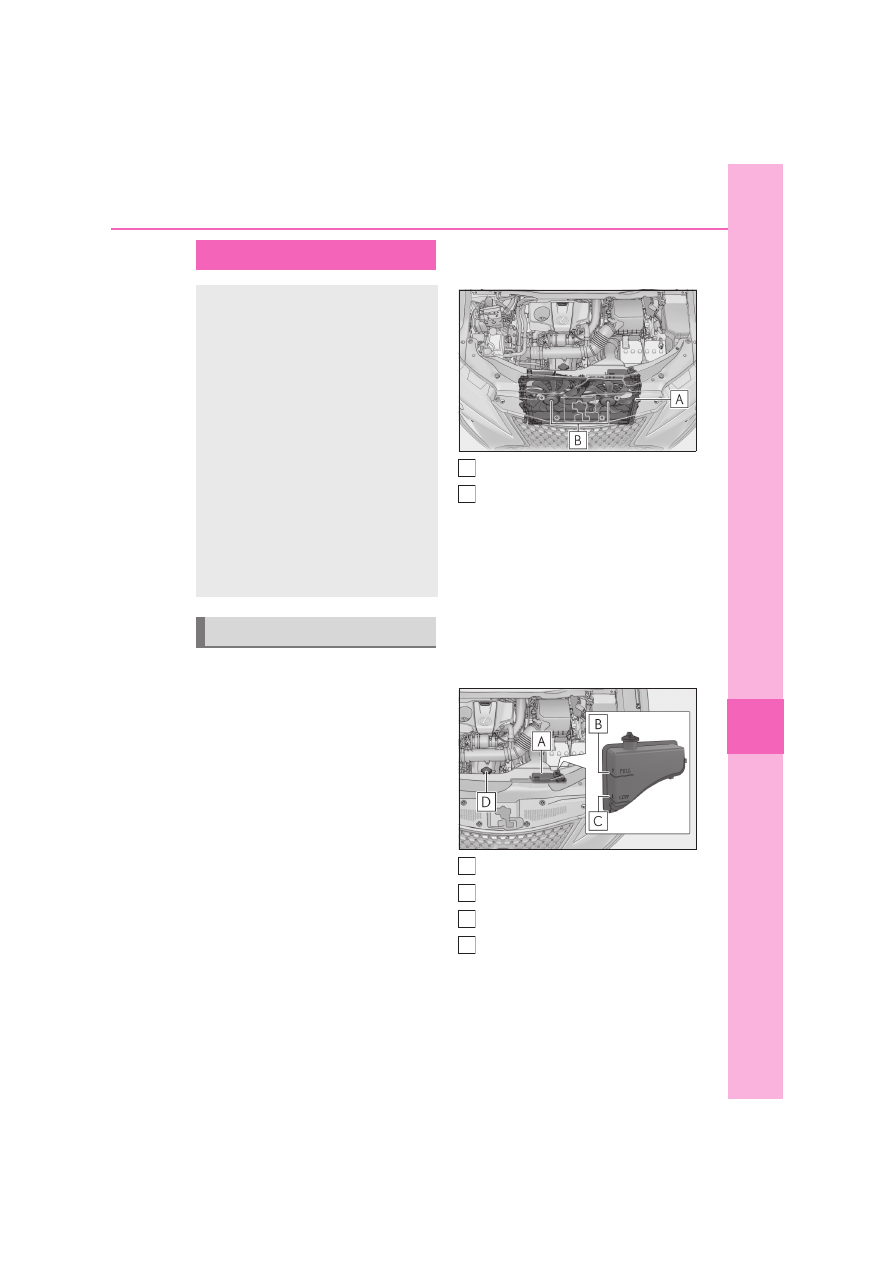

Radiator
Cooling fans

If a large amount of coolant leaks, immedi-
ately contact any authorized Lexus retailer
or Lexus authorized repairer, or any relia-
ble repairer.

The coolant level is satisfactory if it
is between the “FULL” and “LOW”
lines on the reservoir.



Engine

Reservoir
“FULL” line
“LOW” line
Radiator cap

If your vehicle overheats

The following may indicate that
your vehicle is overheating.



The needle of the engine coolant
temperature gauge (



P.87)

enters the red zone, or a loss of
engine power is experienced.
(For example, the vehicle speed
does not increase.)



“Engine Coolant Temp High Stop
in a Safe Place See Owner’s
Manual” is shown on the
multi-information display.



Steam comes out from under the
hood.

Correction procedures

A
B

A
B
C
D

578

7-2. Steps to take in an emergency



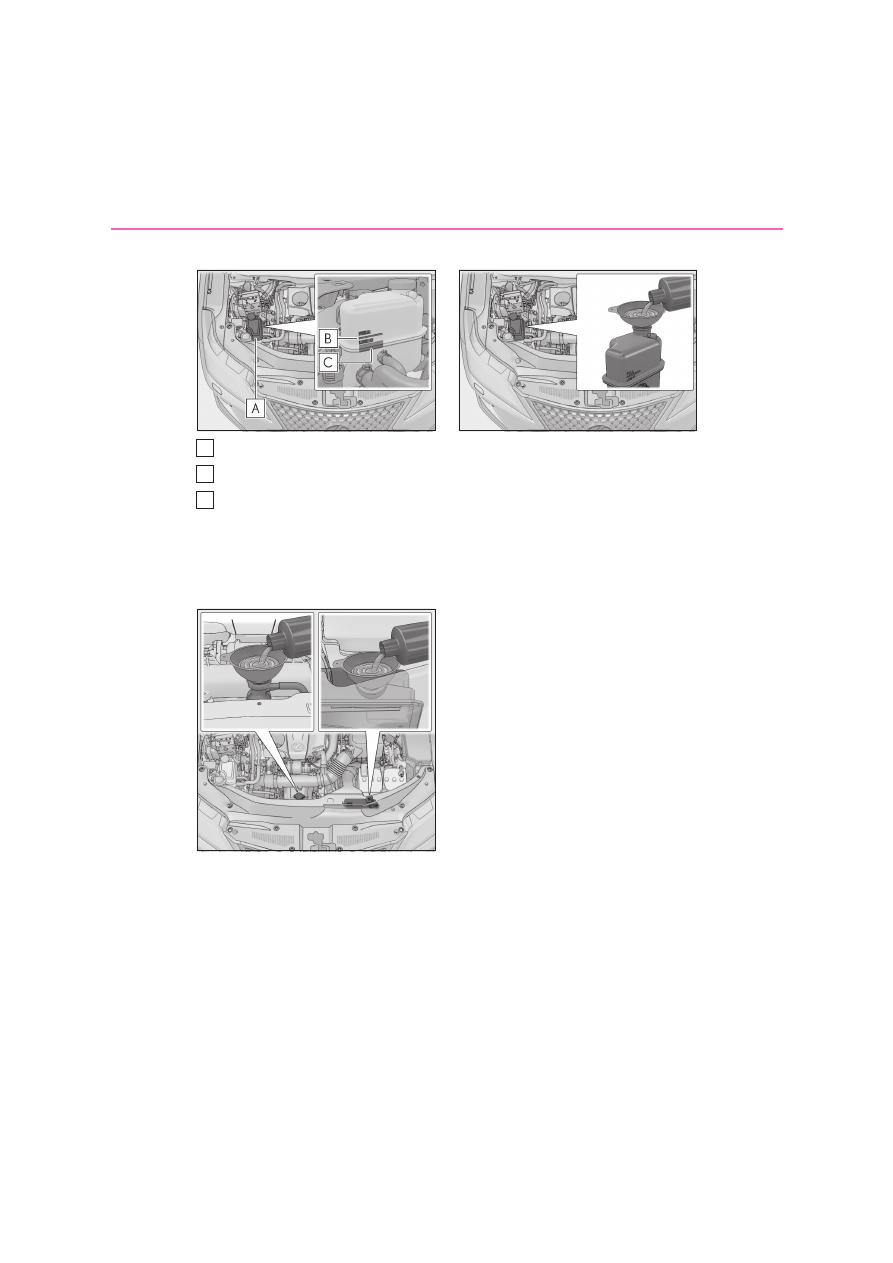

Intercooler (RX300)

Reservoir
“FULL” line
“LOW” line

Add coolant if necessary.

Water can be used in an emergency if

coolant is unavailable.



Engine



Intercooler (RX300)

Start the engine and turn the air
conditioning system on to check
that the radiator cooling fans oper-
ate and to check for coolant leaks
from the radiator or hoses.

The fans operate when the air conditioning

system is turned on immediately after a

cold start. Confirm that the fans are oper-

ating by checking the fan sound and air

flow. If it is difficult to check these, turn the

air conditioning system on and off repeat-

edly.

(The fans may not operate in freezing tem-

peratures.)

If the fans are not operating:
Stop the engine immediately and
contact any authorized Lexus
retailer or Lexus authorized
repairer, or any reliable repairer.
If the fans are operating:
Have the vehicle inspected at the
nearest any authorized Lexus
retailer or Lexus authorized
repairer, or any reliable repairer.

Check if “Engine Coolant Temp
High Stop in a Safe Place See
Owner's Manual” is shown on the
multi-information display.

If the message does not disappear:

Stop the engine and contact any author-

ized Lexus retailer or Lexus authorized

A
B
C

579

7-2. Steps to take in an emergency

When trouble

ises

repairer, or any reliable repairer.

If the message is not displayed:

Have the vehicle inspected at the nearest

authorized Lexus retailer or Lexus author-

ized repairer, or any reliable repairer.

Stop the engine. Shift the shift lever
to P and set the parking brake.

Remove the mud, snow or sand
from around the front wheels.

Place wood, stones or some other
material under the front wheels to
help provide traction.

Restart the engine.

AWD models: Activate all-wheel
drive lock mode. (



P.393)

Shift the shift lever to D or R and
release the parking brake. Then,
while exercising caution, depress
the accelerator pedal.

■

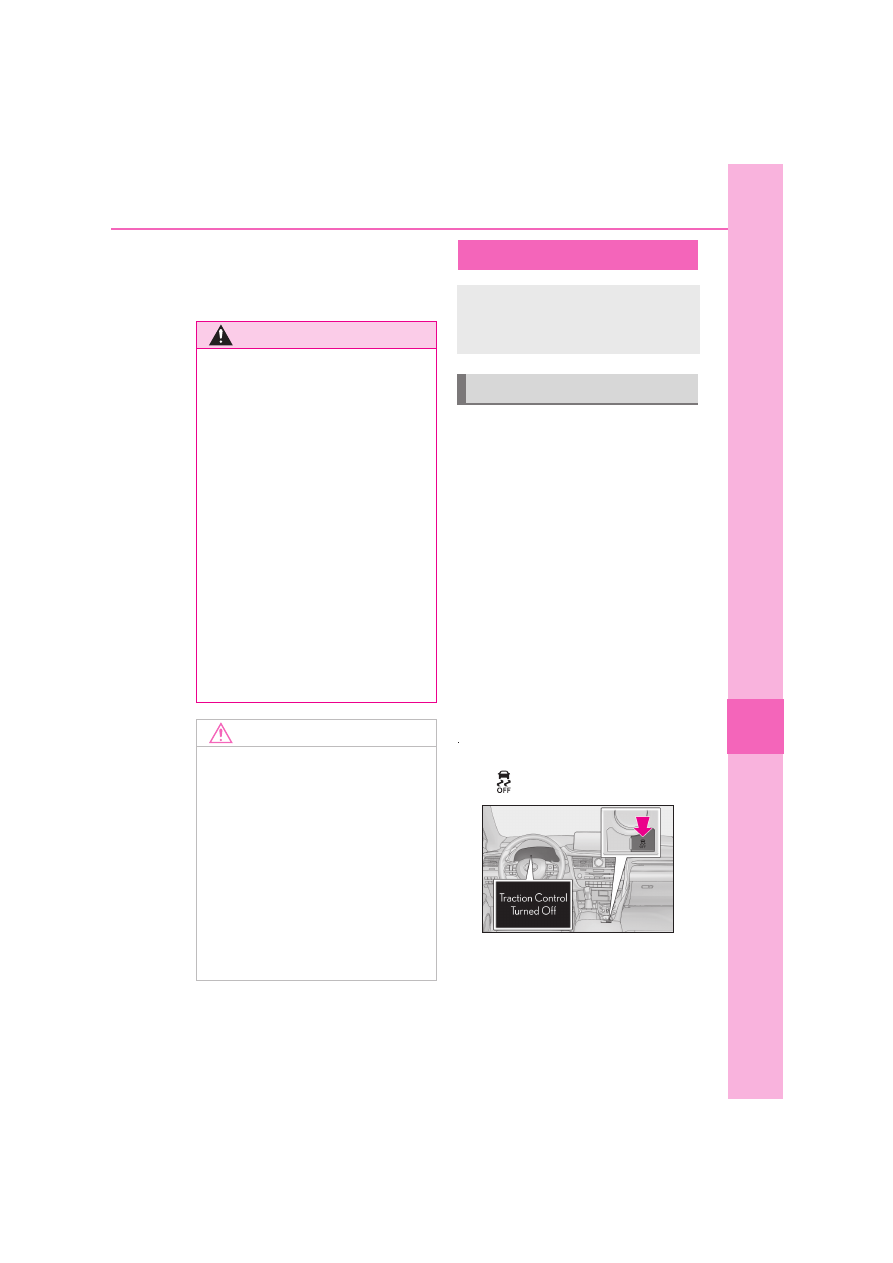

When it is difficult to free the vehicle

Press

to turn off TRC.

WARNING

■

When inspecting under the hood of

your vehicle

Observe the following precautions.

Failure to do so may result in serious

injury such as burns.

●

If steam is seen coming from under the

hood, do not open the hood until the

steam has subsided. The engine com-

partment may be very hot.

●

Keep hands and clothing (especially a

tie, a scarf or a muffler) away from the

fans and belts.

Failure to do so may cause the hands

or clothing to be caught, resulting in

serious injury.

●

Do not loosen the radiator cap and the

coolant reservoir caps while the

engine and radiator are hot.

High temperature steam or coolant

could spray out.

NOTICE

■

When adding engine coolant

Add coolant slowly after the engine has

cooled down sufficiently. Adding cool

coolant to a hot engine too quickly can

cause damage to the engine.

■

To prevent damage to the cooling sys-

tem

Observe the following precautions:

●

Avoid contaminating the coolant with

foreign matter (such as sand or dust,

etc.).

●

Do not use any coolant additive.

If the vehicle becomes stuck

Carry out the following proce-
dures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:

Recovering procedure

580

7-2. Steps to take in an emergency

WARNING

■

When attempting to free a stuck vehi-

cle

If you choose to push the vehicle back

and forth to free it, make sure the sur-

rounding area is clear to avoid striking

other vehicles, objects or people. The

vehicle may also lunge forward or lunge

back suddenly as it becomes free. Use

extreme caution.

■

When shifting the shift lever

Be careful not to shift the shift lever with

the accelerator pedal depressed.

This may lead to unexpected rapid accel-

eration of the vehicle that may cause an

accident resulting in death or serious

injury.

NOTICE

■

To avoid damage to the transmission

and other components

●

Avoid spinning the front wheels and

depressing the accelerator pedal

more than necessary.

●

If the vehicle remains stuck even after

these procedures are performed, the

vehicle may require towing to be freed.

581

Vehi

cle

ifica

tio

Vehicle specifications

8-1. Specifications

Maintenance data (fuel, oil level,

etc.) ..............................................

582

Fuel information..........................

591

8-2. Customization

Customizable features ...........

592

8-3. Initialization

Items to initialize ........................

606

582

8-1. Specifications

8-1.Specifications

: RX300

: RX350

: RX350L

: Unladen vehicle

: Vehicles without roof antenna

: Vehicles with roof antenna

: 2WD models

: AWD models

Maintenance data (fuel, oil level, etc.)

Dimensions and weights

Overall length

4890 mm (192.5 in.)

*1, 2

5000 mm (196.9 in.)

Overall width

1895 mm (74.6 in.)

Overall height

1690 mm (66.5 in.)

*1, 2, 5

1710 mm (67.3 in.)

*1, 2, 6

1700 mm (66.9 in.)

*3, 5

1720 mm (67.7 in.)

*3, 6

Wheelbase

2790 mm (109.8 in.)

Tread

Front

1640 mm (64.6 in.)

Rear

1630 mm (64.2 in.)

Gross vehicle mass

2500 kg (5511 lb.)

*1, 7

2575 kg (5676 lb.)

*1, 2, 8

2720 kg (5997 lb.)

Maximum permissible axle capac-
ity

Front

1360 kg (2998 lb.)

Rear

1590 kg (3505 lb.)

Drawbar load

80 kg (176 lb.)

Towing capacity

Without brake

750 kg (1653 lb.)

With brake

1500 kg (3307 lb.)

2000 kg (4409 lb.)

*2, 3

583

8-1. Specifications

Vehi

cle

ifica

tio

: Vehicles with towing package

■

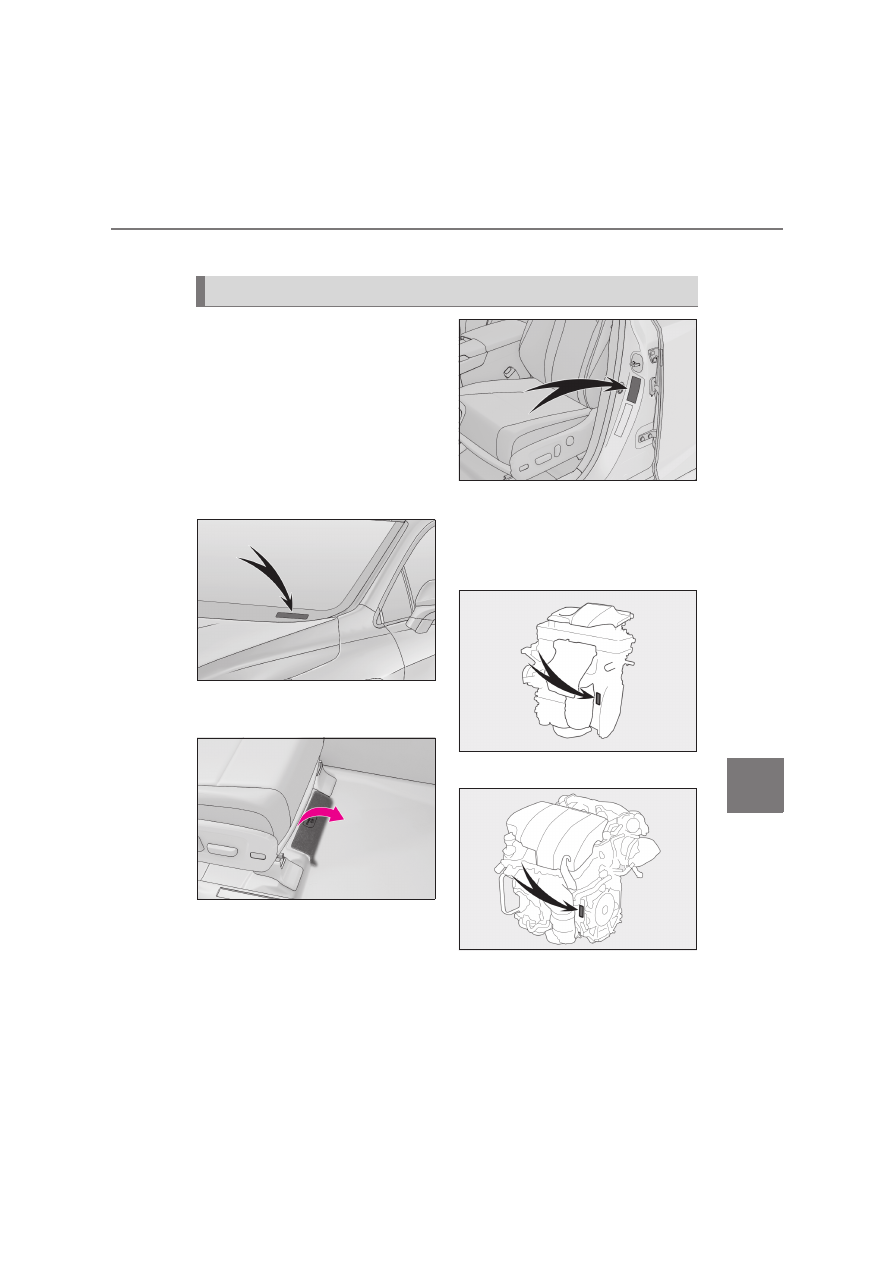

Vehicle identification number

The vehicle identification number
(VIN) is the legal identifier for your
vehicle. This is the primary identifica-
tion number for your Lexus. It is used in
registering the ownership of your vehi-
cle.
This number is stamped on the top left
of the instrument panel.

This number is also stamped under the
right-hand front seat.

This number is also on the manufac-
turer’s label.

■

Engine number

The engine number is stamped on the
engine block as shown.



RX300



RX350/RX350L

Vehicle identification

584

8-1. Specifications



RX300



RX350/RX350L

Engine

Model

8AR-FTS

Type

4-cylinder in line, 4-cycle, gasoline (with
turbocharger)

Bore and stroke

86.0



86.0 mm (3.39



3.39 in.)

Displacement

1998 cm

(121.9 cu. in.)

Valve clearance (engine cold)

Automatic adjustment

Drive belt tension

Automatic adjustment

Model

2GR-FKS

Type

6-cylinder V type, 4-cycle, gasoline

Bore and stroke

94.0



83.0 mm (3.70



3.27 in.)

Displacement

3456 cm

(210.9 cu. in.)

Valve clearance (engine cold)

Automatic adjustment

Drive belt tension

Automatic adjustment

Fuel

Fuel type

When you find these types of fuel label at the
gas station, use only the fuel with one of the
following labels.

EU area:
Unleaded gasoline conforming to European
standard EN228 only
Except EU area:
Unleaded gasoline only

585

8-1. Specifications

Vehi

cle

ifica

tio

■

Oil capacity (Drain and refill



ref-

erence

)



RX300



RX350/RX350L

: The engine oil capacity is a reference

quantity to be used when changing the
engine oil. Warm up and turn off the
engine, wait more than 5 minutes, and
check the oil level on the dipstick.

■

Engine oil selection

“Toyota Genuine Motor Oil” is used in
your Lexus vehicle. Lexus recom-
mends the use of approved “Toyota
Genuine Motor Oil”. Another motor
oil of matching quality can also be
used.
Oil grade:
0W-20 and 5W-30
API grade SL “Energy-Conserving”,
SM “Energy-Conserving”, SN
“Resource-Conserving” or SN PLUS
“Resource-Conserving”; or ILSAC

multigrade engine oil

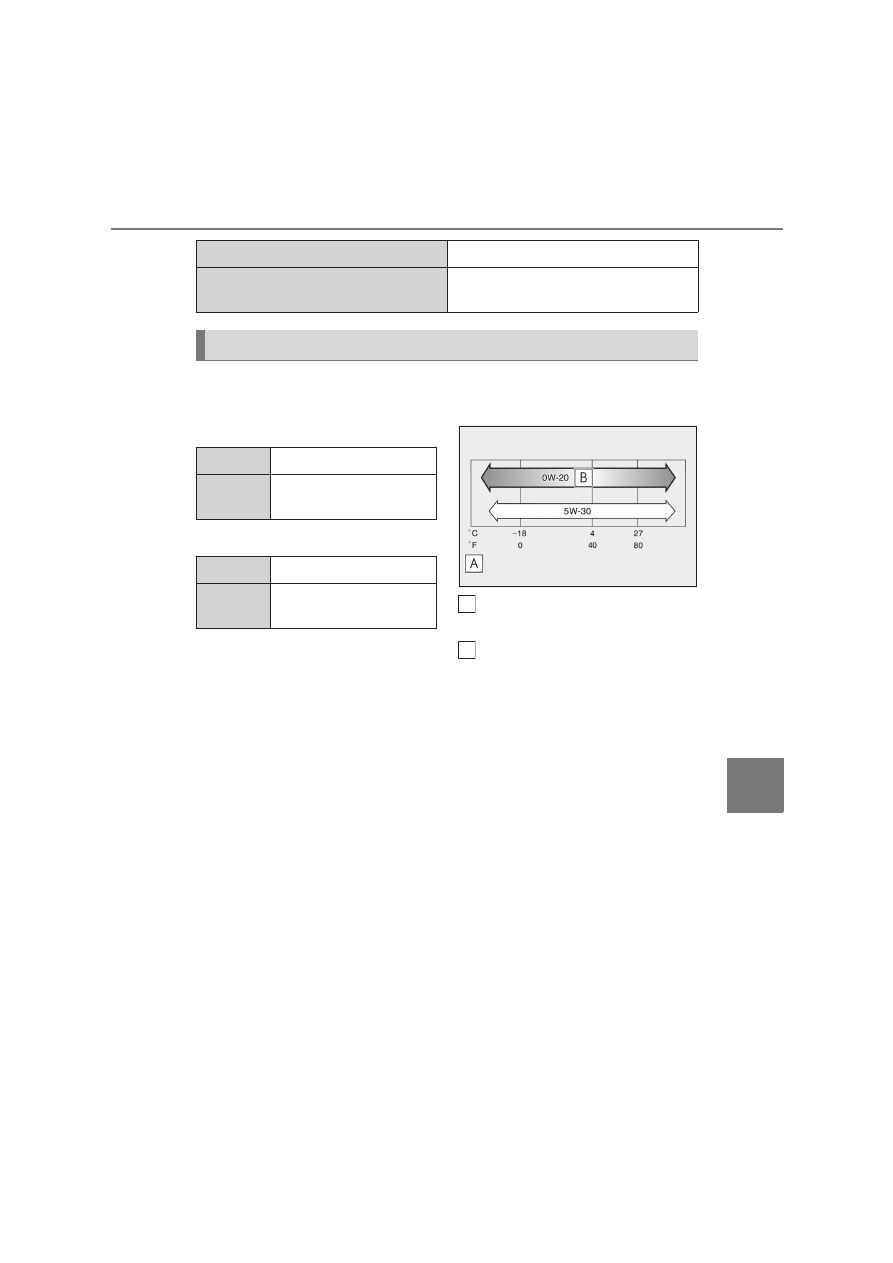

Recommended viscosity (SAE):

Temperature range anticipated
before next oil change
Preferred

SAE 0W-20 is filled into your Lexus
vehicle at manufacturing, and the best
choice for good fuel economy and
good starting in cold weather. If SAE
0W-20 oil is not available, SAE
5W-30 oil may be used. However, it
should be replaced with SAE 0W-20
at the next oil change.
Oil viscosity (0W-20 is explained here
as an example):
• The 0W in 0W-20 indicates the

characteristic of the oil which allows
cold startability. Oils with a lower
value before the W allow for easier
starting of the engine in cold
weather.

• The 20 in 0W-20 indicates the vis-

Research Octane Number

95 or higher

Fuel tank capacity
(Reference)

72 L (19.0 gal., 15.8 lmp. gal.)

Lubrication system

With filter

4.9 L (5.2 qt., 4.3 Imp. qt.)

Without fil-
ter

4.7 L (5.0 qt., 4.1 Imp. qt.)

With filter

5.5 L (5.8 qt., 4.8 Imp. qt.)

Without fil-
ter

5.3 L (5.6 qt., 4.7 Imp. qt.)

586

8-1. Specifications

cosity characteristic of the oil when
the oil is at high temperature. An oil
with a higher viscosity (one with a
higher value) may be better suited if
the vehicle is operated at high
speeds, or under extreme load con-
ditions.

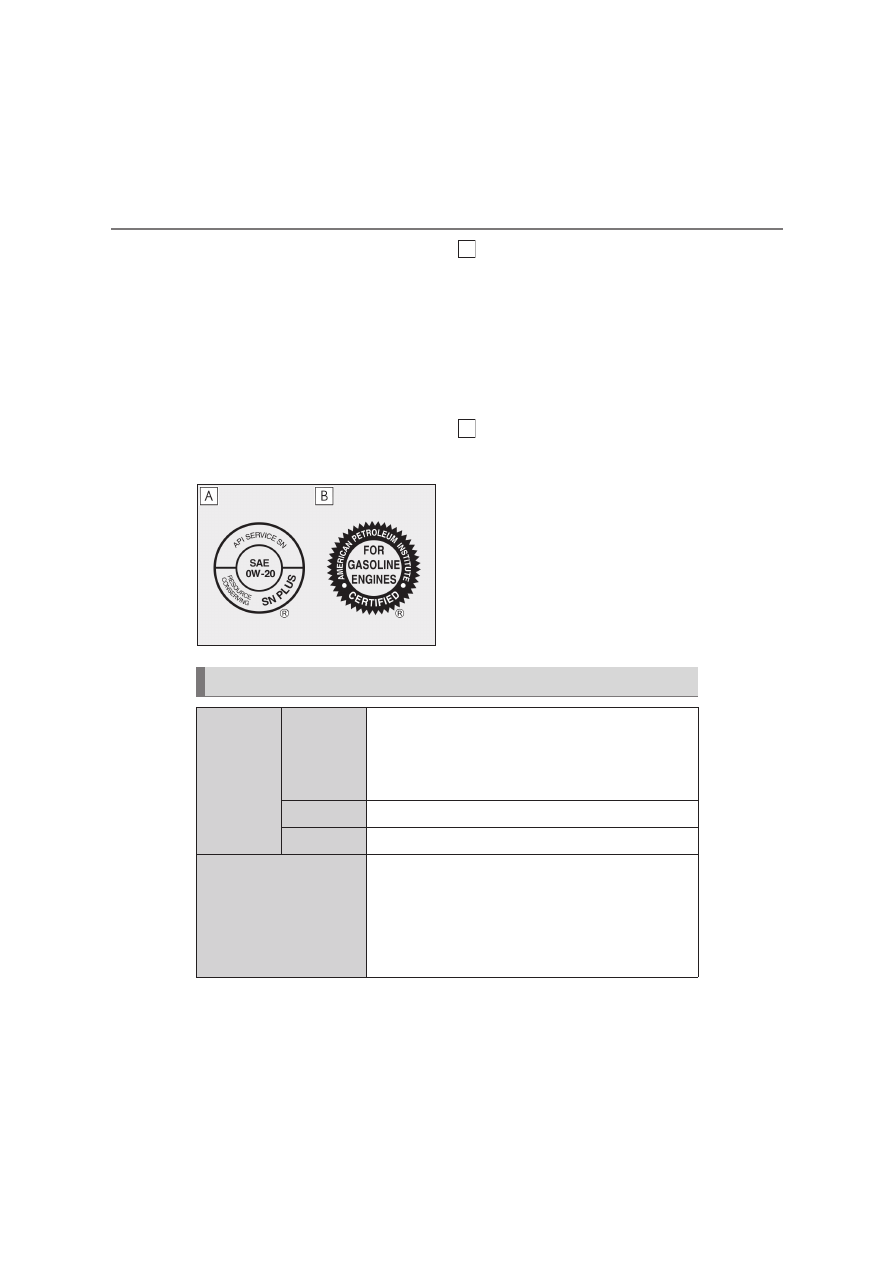

How to read oil container labels:
Either or both API registered marks
are added to some oil containers to
help you select the oil you should use.

API Service Symbol

Top portion: “API SERVICE SN” means the
oil quality designation by American Petro-
leum Institute (API).
Center portion: “SAE 0W-20” means the
SAE viscosity grade.
Lower portion: “Resource-Conserving”
means that the oil has fuel-saving and envi-
ronmental protection capabilities.

ILSAC Certification Mark

The International Lubricant Specification
Advisory Committee (ILSAC) Certifica-
tion Mark is displayed on the front of the
container.

: The coolant capacity is a reference quantity.

If replacement is necessary, contact any authorized Lexus retailer or Lexus authorized

Cooling system

Capacity

RX300



Gasoline engine

8.7 L (9.2 qt., 7.7 Imp. qt.)



Intercooler

3.2 L (3.4 qt., 2.8 Imp. qt.)

RX350

9.9 L (10.5 qt., 8.7 Imp. qt.)

RX350L

12.4 L (13.1 qt., 11.0 Imp. qt.)

Coolant type

Use either of the following:



“Toyota Super Long Life Coolant”



Similar high-quality ethylene glycol-based non-silicate,
non-amine, non-nitrite, and non-borate coolant with
long-life hybrid organic acid technology

Do not use plain water alone.

587

8-1. Specifications

Vehi

cle

ifica

tio

repairer, or any reliable repairer.

: The fluid capacity is a reference quantity.

If replacement is necessary, contact any authorized Lexus retailer or Lexus authorized
repairer, or any reliable repairer.

Ignition system (spark plug)

Make

RX300

NGK DILFR7K9G

RX350/RX350L

DENSO FK20HBR8

Gap

RX300

0.9 mm (0.04 in.)

RX350/RX350L

0.8 mm (0.03 in.)

NOTICE

■

Iridium-tipped spark plugs

Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

Electrical system (battery)

Specific gravity reading at 20°C
(68°F):

1.250



1.290 Fully charged

1.160



1.200 Half charged

1.060



1.100 Discharged

(Turn the engine switch off and turn on the head-
lights for 20 to 30 seconds.)

Charging rates
Quick charge
Slow charge

15 A max.
5 A max.

Automatic transmission

Fluid capacity

RX300

6.7 L (7.1 qt., 5.9 Imp. qt.)

RX350/RX350L

6.8 L (7.2 qt., 6.0 Imp. qt.)

Fluid type

Toyota Genuine ATF WS

588

8-1. Specifications

Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the fac-
tory. Use Lexus approved “Toyota Genuine Differential Gear Oil” or an equivalent
of matching quality to satisfy the above specification. Please contact any author-
ized Lexus retailer or Lexus authorized repairer, or any reliable repairer for further
details.

: Minimum pedal clearance when depressed with a force of 490 N (50 kgf, 110 lbf) while

the engine is running.

NOTICE

■

Transmission fluid type

Using transmission fluid other than the above type may cause abnormal noise or vibra-

tion, or damage the transmission of your vehicle.

Transfer (AWD models)

Oil capacity

0.8 L (0.8 qt., 0.7 Imp. qt.)

Oil type and viscosity

Toyota Genuine Differential gear oil LT 75W-85 GL-5
or equivalent

Rear differential (AWD models)

Oil capacity

0.5 L (0.5 qt., 0.4 Imp. qt.)

Oil type and viscosity

Toyota Genuine Differential gear oil LT 75W-85
GL-5 or equivalent

Brakes

Pedal clearance

86 mm (3.4 in.) Min.

Pedal free play

1.0



6.0 mm (0.04



0.24 in.)

Fluid type

SAE J1703 or FMVSS No. 116 DOT 3
SAE J1704 or FMVSS No. 116 DOT 4

589

8-1. Specifications

Vehi

cle

ifica

tio



Type A



Type B



Compact spare tire (if equipped)

Steering

Free play

Less than 30 mm (1.2 in.)

Tires and wheels

Tire size

235/65R18 106V

Tire inflation pressure
(Recommended cold
tire inflation pressure)

Vehicle speed

Front wheel
kPa (kgf/cm

or bar,

psi)

Rear wheel
kPa (kgf/cm

or bar,

psi)

More than 160 km/h
(100 mph)

260 (2.6, 38)

160 km/h (100 mph)
or less

250 (2.5, 36)

Wheel size



Wheel nut torque

103 N•m (10.5 kgf•m, 76 ft•lbf)

Tire size

235/55R20 102V

Tire inflation pressure
(Recommended cold
tire inflation pressure)

Vehicle speed

Front wheel
kPa (kgf/cm

or bar,

psi)

Rear wheel
kPa (kgf/cm

or bar,

psi)

More than 160 km/h
(100 mph)

300 (3.0, 44)

160 km/h (100 mph)
or less

230 (2.3, 33)

Wheel size



Wheel nut torque

103 N•m (10.5 kgf•m, 76 ft•lbf)

Tire size

T165/90D18 107M

Spare tire inflation pressure
(Recommended cold tire
inflation pressure)

420 kPa (4.2 kgf/cm

or bar, 60 psi)

Content .. 26 27 28 29 ..
