: The function operates even if the vehicle

speed is less than approximately 32 mph
(50 km/h) when the lane centering
function is operating.

: Boundary between asphalt and the side

of the road, such as grass, soil, or a curb

●

Steering assist function

This function operates when all of the fol-

225

4-5. Using the driving support systems

Driving

lowing conditions are met in addition to the
operation conditions for the lane departure
alert function.

• Setting for “Steering Assist” in

of the

multi-information display is set to “On”.
(

P. 89)

• Vehicle is not accelerated or decelerated

by a fixed amount or more.

• Steering wheel is not operated with a

steering force level suitable for changing

lanes.

• ABS, VSC, TRAC and PCS are not oper-

ating.

• TRAC or VSC is not turned off.

• Hands off steering wheel warning is not

displayed. (



●

Vehicle sway warning function

This function operates when all of the fol-
lowing conditions are met.

• Setting for “Sway Warning” in

of the

multi-information display is set to “On”.
(

• Vehicle speed is approximately 32 mph

(50 km/h) or more.

• Width of traffic lane is approximately 9.8

ft. (3 m) or more.

• No system malfunctions are detected.

(

●

Lane centering function

This function operates when all of the fol-
lowing conditions are met.
• LTA is turned on.
• Setting for “Steering Assist” and “Lane

Center” in

of the multi-information

display are set to “On”. (

• This function recognizes white (yellow)

lane lines or the position of a preceding

vehicle (except when the preceding vehi-

cle is small, such as a motorcycle).

• The dynamic radar cruise control with

full-speed range is operating in vehicle-

to-vehicle distance control mode.

• Width of traffic lane is approximately 10

to 13 ft. (3 to 4 m).

• Turn signal lever is not operated.

• Vehicle is not being driven around a

sharp curve.

• No system malfunctions are detected.

(



• Vehicle does not accelerate or deceler-

ate by a fixed amount or more.

• Steering wheel is not operated with a

steering force level suitable for changing

lanes.

• ABS, VSC, TRAC and PCS are not oper-

ating.

• TRAC or VSC is not turned off.

• Hands off steering wheel warning is not

displayed. (

• The vehicle is being driven in the center

of a lane.

• Steering assist function is not operating.

■

Temporary cancelation of functions

●

When operation conditions are no longer

met, a function may be temporarily can-

celed. However, when the operation con-

ditions are met again, operation of the

function is automatically restored.

(



P.224)

●

If the operation conditions (

P.224) are

no longer met while the lane centering
function is operating, the steering wheel
may vibrate and the buzzer may sound to
indicate that the function has been tem-
porarily canceled. However, if the “Alert”
customization setting is set to

the system will notify the driver by vibrat-
ing the steering wheel instead of sound-
ing the buzzer.

■

Steering assist function/lane centering

function

●

Depending on the vehicle speed, lane

departure situation, road conditions, etc.,

the driver may not feel the function is

operating or the function may not oper-

ate at all.

●

The steering control of the function is

overridden by the driver’s steering wheel

operation.

●

Do not attempt to test the operation of

the steering assist function.

■

Lane departure alert function

●

The warning buzzer may be difficult to

hear due to external noise, audio play-

back, etc. Also, it may be difficult to feel

steering wheel vibrations due to the road

226

4-5. Using the driving support systems

conditions, etc.

●

If the edge of the course

is not clear or

straight, the lane departure alert function

may not operate.

●

Do not attempt to test the operation of

the lane departure alert function.

: Boundary between asphalt and the side

of the road, such as grass, soil, or a curb

■

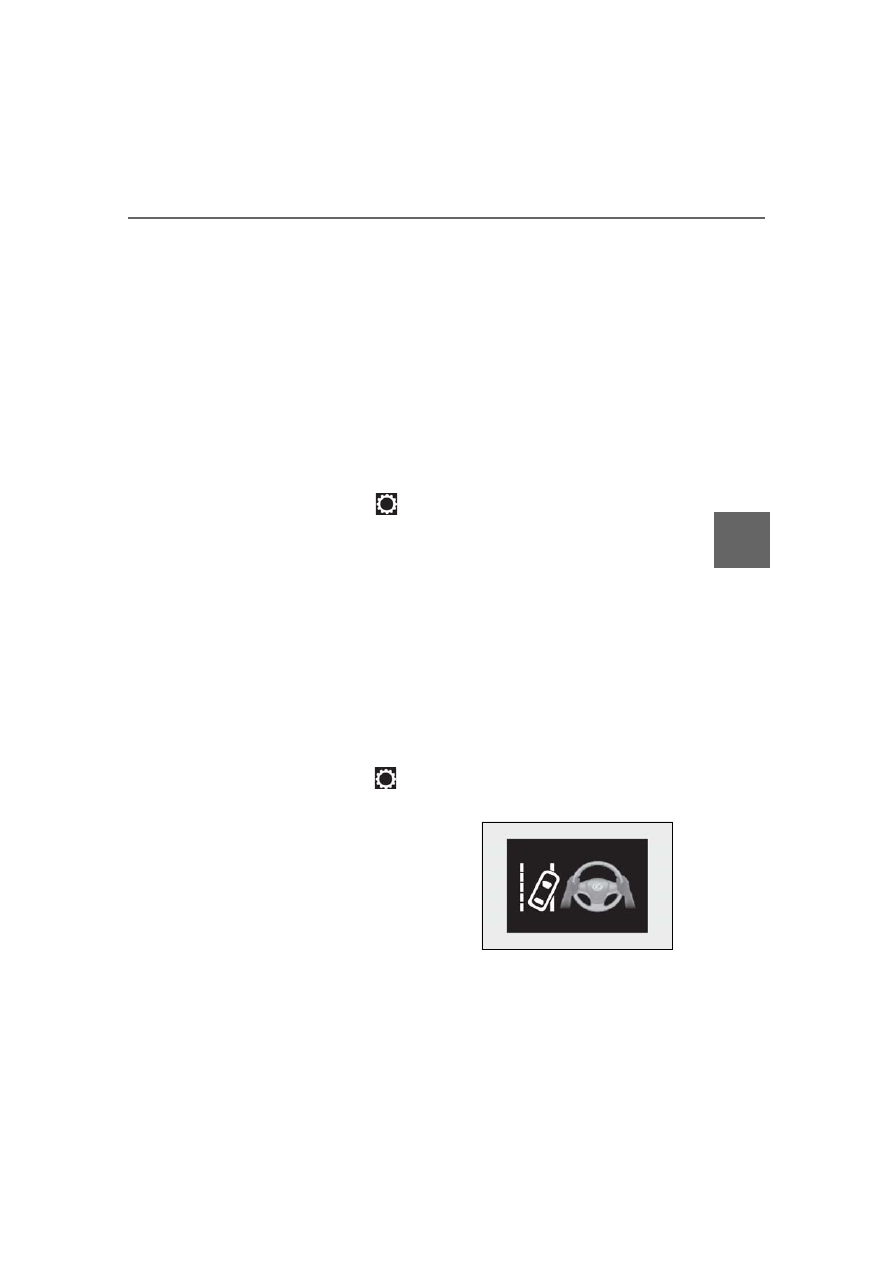

Hands off steering wheel warning

In the following situations, a warning mes-

sage urging the driver to hold the steering

wheel and the symbol shown in the illustra-

tion are displayed on the multi-information

display to warn the driver. The warning

stops when the system determines that the

driver holds the steering wheel. Always

keep your hands on the steering wheel

when using this system, regardless of warn-

ings.

●

When the system determines that the

driver is driving without holding the steer-

ing wheel while the system is operating

If the driver continues to keep their hands
off of the steering wheel, the buzzer sounds,
the driver is warned and the function is tem-
porarily canceled. This warning also oper-
ates in the same way when the driver
continuously operates the steering wheel
only a small amount.

The buzzer also sounds even if the alert
type is set to

●

When the system determines that the

vehicle may not turn and instead depart

from its lane while driving around a curve

Depending on the vehicle condition and
road conditions, the warning may not oper-
ate. Also, if the system determines that the

vehicle is driving around a curve, warnings
will occur earlier than during straight-lane
driving.

●

When the system determines that the

driver is driving without holding the steer-

ing wheel while the steering wheel assist

of the steering assist function is operat-

ing.

If the driver continues to keep their hands
off of the steering wheel and the steering
wheel assist is operating, the buzzer sounds
and the driver is warned. Each time the
buzzer sounds, the continuing time of the
buzzer becomes longer.

The buzzer also sounds even if the alert
type is set to

■

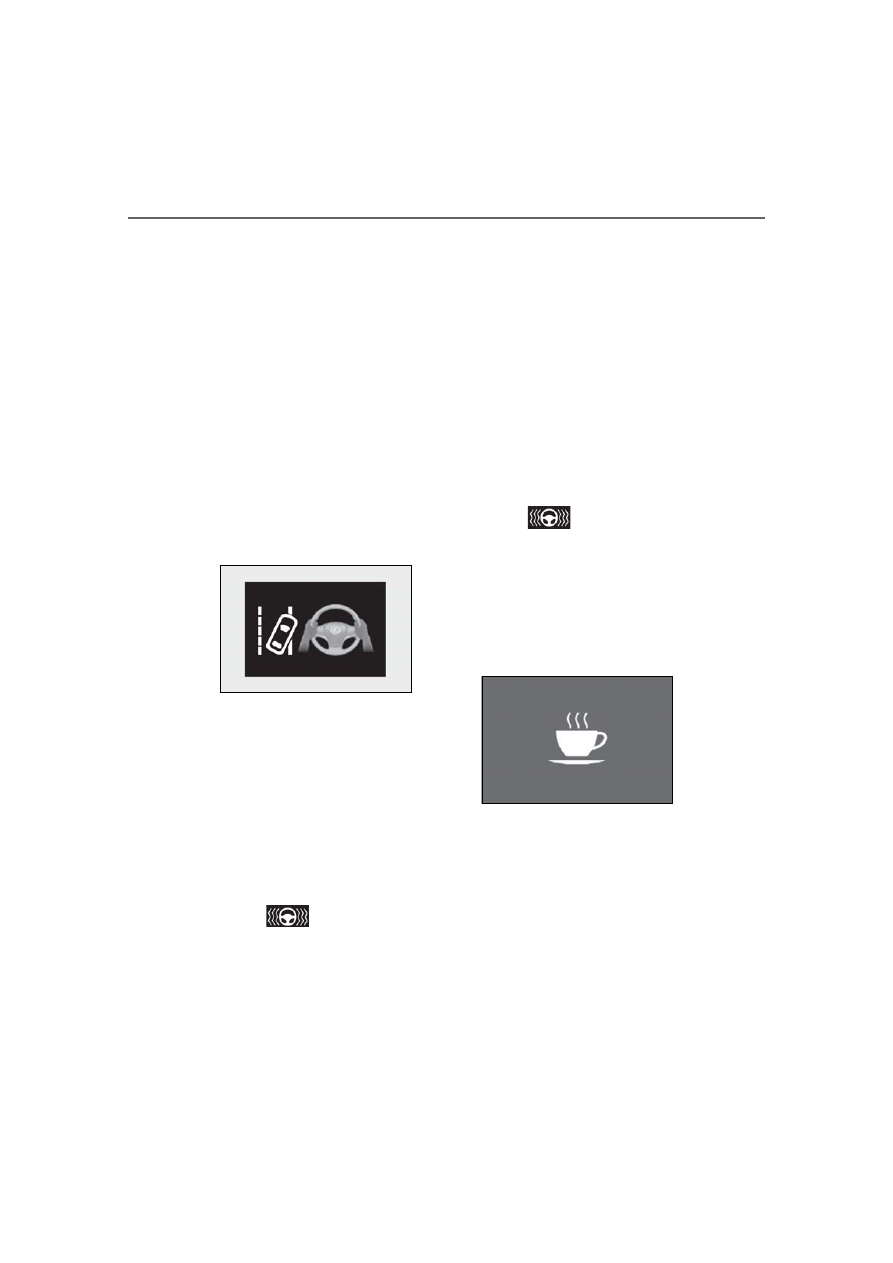

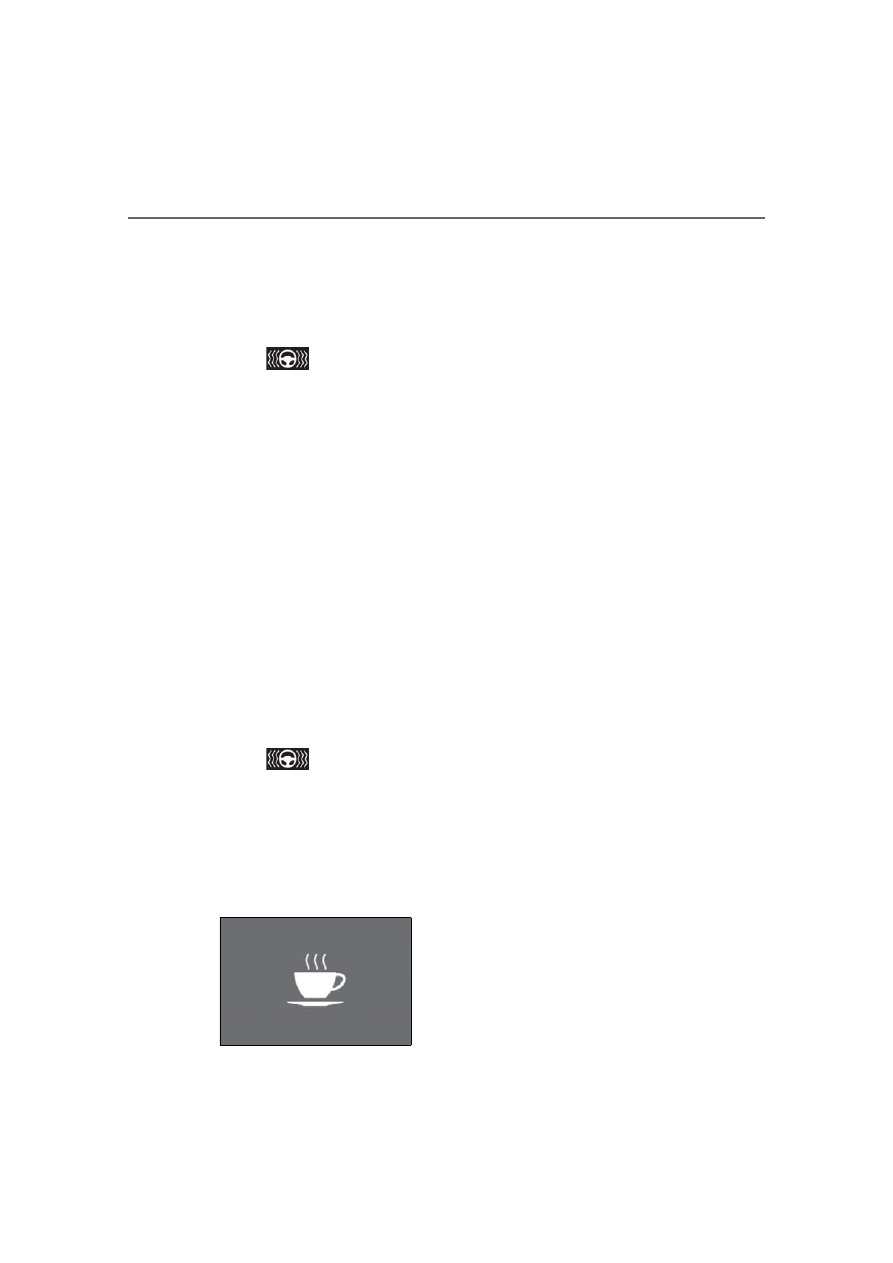

Vehicle sway warning function

When the system determines that the vehi-

cle is swaying while the vehicle sway warn-

ing function is operating, a buzzer sounds

and a warning message urging the driver to

rest and the symbol shown in the illustration

are simultaneously displayed on the multi-

information display.

Depending on the vehicle and road condi-

tions, the warning may not operate.

■

Warning message

If the following warning message is dis-

played on the multi-information display and

the LTA indicator illuminates in orange, fol-

low the appropriate troubleshooting proce-

dure. Also, if a different warning message is

displayed, follow the instructions displayed

on the screen.

●

“LTA Malfunction Visit Your Dealer”

The system may not be operating properly.
Have the vehicle inspected by your Lexus

227

4-5. Using the driving support systems

Driving

dealer.

●

“LTA Unavailable”

The system is temporarily canceled due to a
malfunction in a sensor other than the front
camera. Turn the LTA system off, wait for a
little while, and then turn the LTA system
back on.

●

“LTA Unavailable at Current Speed”

The function cannot be used as the vehicle
speed exceeds the LTA operation range.
Drive slower.

■

Customization

Function settings can be changed. (Cus-

tomizable features:

P.443)

: If equipped

When driving on highways and free-
ways with white (yellow) lane lines, this
function alerts the driver when the
vehicle might depart from its lane or
course

and provides assistance by

operating the steering wheel to keep
the vehicle in its lane or course

The LDA system recognizes white (yel-
low) lane lines or a course

using the

front camera. Additionally, it detects
preceding vehicles using the front
camera and radar.

: Boundary between asphalt and the side

of the road, such as grass, soil, or a curb

LDA (Lane Departure Alert
with steering control)

Summary of functions

228

4-5. Using the driving support systems

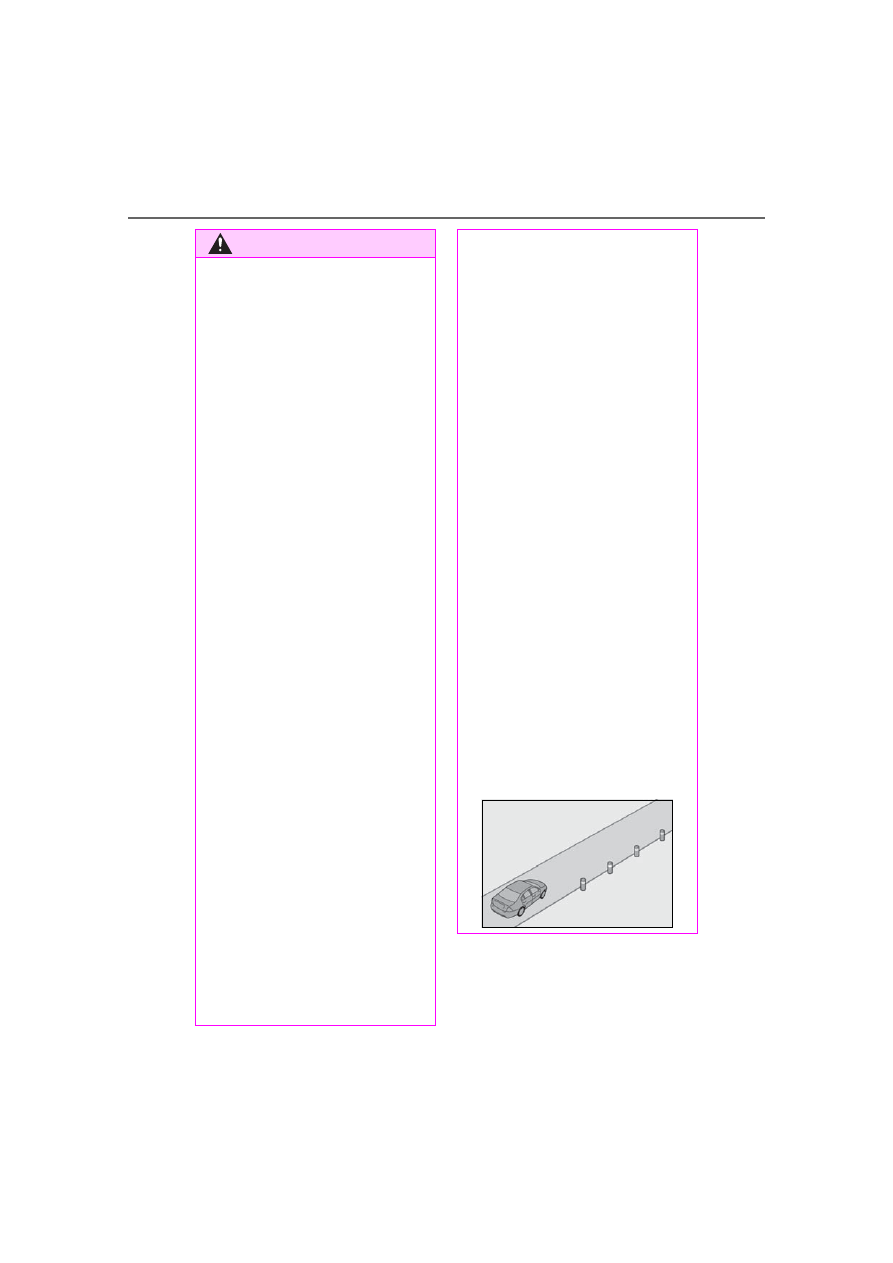

WARNING

■

Before using LDA system

●

Do not rely solely upon the LDA sys-

tem. The LDA system does not auto-

matically drive the vehicle or reduce

the amount of attention that must be

paid to the area in front of the vehicle.

The driver must always assume full

responsibility for driving safely by pay-

ing careful attention to the surround-

ing conditions and operating the

steering wheel to correct the path of

the vehicle. Also, the driver must take

adequate breaks when fatigued, such

as from driving for a long period of

time.

●

Failure to perform appropriate driving

operations and pay careful attention

may lead to an accident, resulting in

death or serious injury.

●

When not using the LDA system, use

the LDA switch to turn the system off.

■

Situations unsuitable for LDA system

In the following situations, use the LDA

switch to turn the system off. Failure to do

so may lead to an accident, resulting in

death or serious injury.

●

Vehicle is driven on a road surface

which is slippery due to rainy weather,

fallen snow, freezing, etc.

●

Vehicle is driven on a snow-covered

road.

●

White (yellow) lines are difficult to see

due to rain, snow, fog, dust, etc.

●

A spare tire, tire chains, etc. are

equipped.

●

When the tires have been excessively

worn, or when the tire inflation pres-

sure is low.

●

When tires of a size other than speci-

fied are installed.

●

Vehicle is driven in traffic lanes other

than that highways and freeways.

●

When your vehicle is towing a trailer

or during emergency towing.

■

Preventing LDA system malfunctions

and operations performed by mistake

●

Do not modify the headlights or place

stickers, etc. on the surface of the

lights.

●

Do not modify the suspension, etc. If

the suspension, etc. needs to be

replaced, contact your Lexus dealer.

●

Do not install or place anything on the

hood or grille. Also, do not install a

grille guard (bull bars, kangaroo bar,

etc.).

●

If your windshield needs repairs, con-

tact your Lexus dealer.

■

Conditions in which functions may

not operate properly

In the following situations, the functions

may not operate properly and the vehicle

may depart from its lane. Drive safely by

always paying careful attention to your

surroundings and operate the steering

wheel to correct the path of the vehicle

without relying solely on the functions.

●

Vehicle is being driven around a sharp

curve.

●

Objects or patterns that could be mis-

taken for white (yellow) lines are pres-

ent on the side of the road (guardrails,

reflective poles, etc.).

229

4-5. Using the driving support systems

Driving

WARNING

●

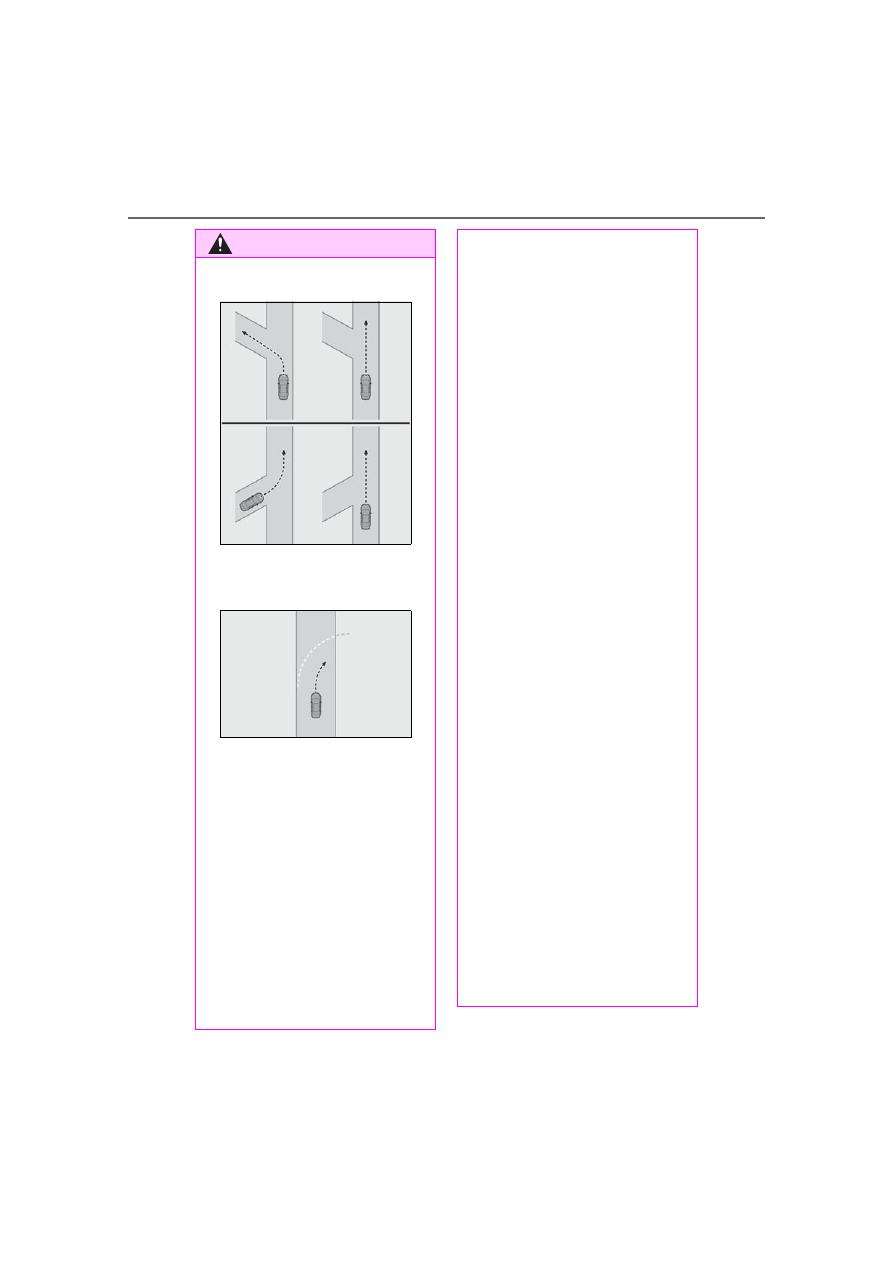

Vehicle is driven where the road

diverges, merges, etc.

●

Repair marks of asphalt, white (yellow)

lines, etc. are present due to road

repair.

●

There are shadows on the road that

run parallel with, or cover, the white

(yellow) lines.

●

The vehicle is driven in an area without

white (yellow) lines, such as in front of a

tollgate or checkpoint, or at an inter-

section, etc.

●

The white (yellow) lines are cracked,

“Botts’ dots”, “Raised pavement

marker” or stones are present.

●

The white (yellow) lines cannot be

seen or are difficult to see due to sand,

etc.

●

The vehicle is driven on a road surface

that is wet due to rain, puddles, etc.

●

The traffic lines are yellow (which may

be more difficult to recognize than

lines that are white).

●

The white (yellow) lines cross over a

curb, etc.

●

The vehicle is driven on a bright sur-

face, such as concrete.

●

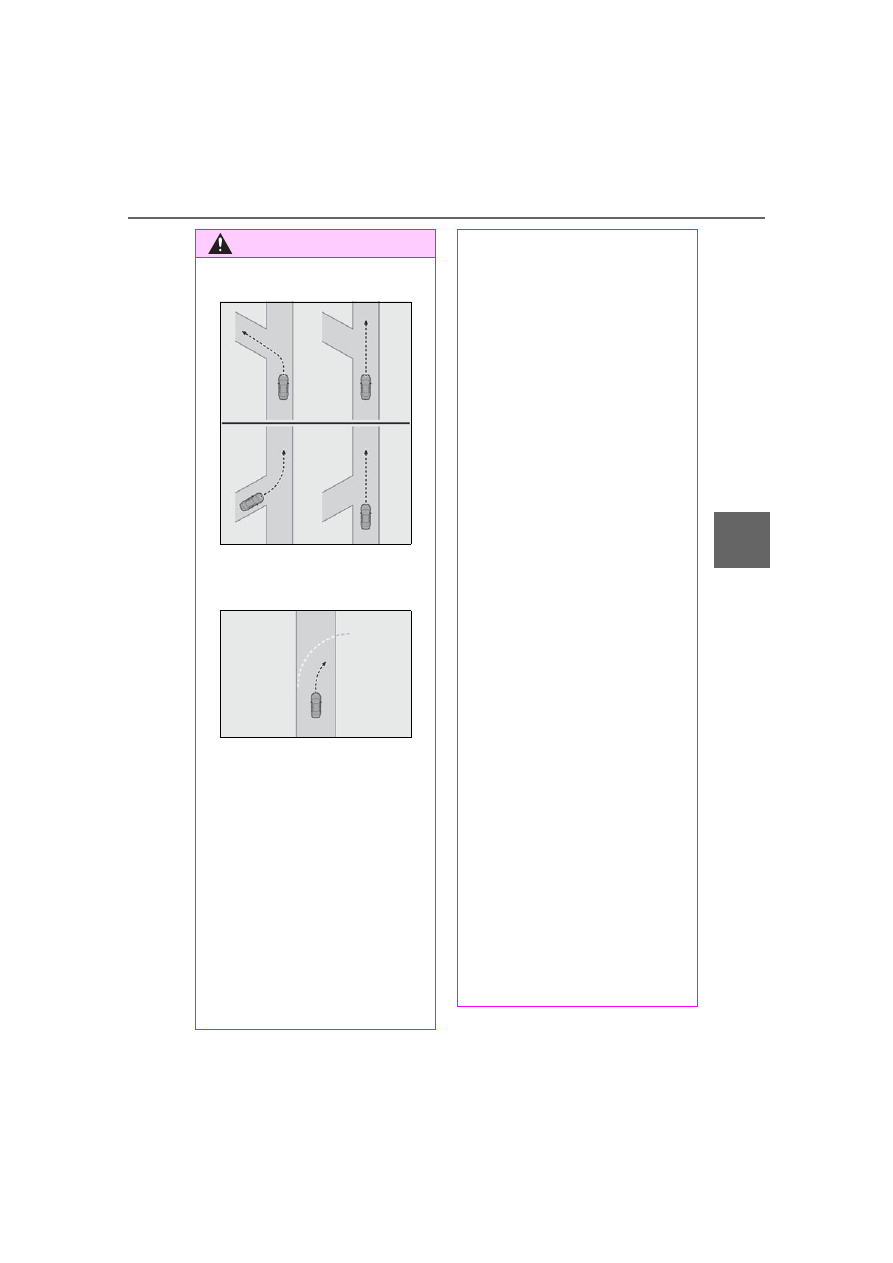

If the edge of the road is not clear or

straight.

●

The vehicle is driven on a surface that

is bright due to reflected light, etc.

●

The vehicle is driven in an area where

the brightness changes suddenly, such

as at the entrances and exits of tunnels,

etc.

●

Light from the headlights of an oncom-

ing vehicle, the sun, etc. enters the

camera.

●

The vehicle is driven on a slope.

●

The vehicle is driven on a road which

tilts left or right, or a winding road.

●

The vehicle is driven on an unpaved or

rough road.

●

The traffic lane is excessively narrow

or wide.

●

The vehicle is extremely tilted due to

carrying heavy luggage or having

improper tire pressure.

●

The distance to the preceding vehicle

is extremely short.

●

The vehicle is moving up and down a

large amount due to road conditions

during driving (poor roads or road

seams).

●

When driving in a tunnel or at night

with the headlights off or when a head-

light is dim due to its lens being dirty or

it being misaligned.

●

The vehicle is struck by a crosswind.

230

4-5. Using the driving support systems

■

Lane departure alert function

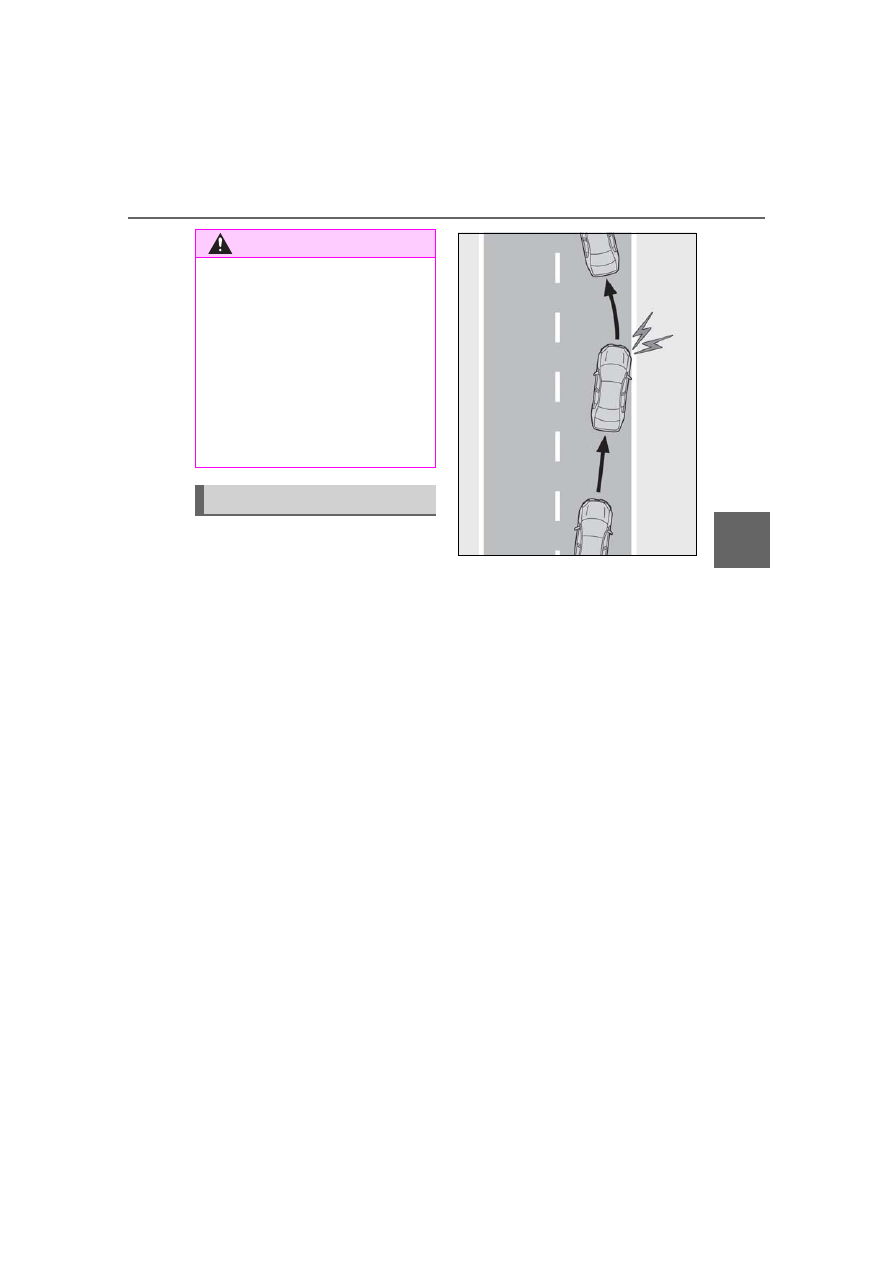

When the system determines that the
vehicle might depart from its lane or
course

, a warning is displayed on the

multi-information display, and either a
warning buzzer will sound or the steer-
ing wheel will vibrate to alert the driver.

When the warning buzzer sounds or the
steering wheel vibrates, check the area
around your vehicle and carefully operate
the steering wheel to move the vehicle
back to the center of the lane.

: Boundary between asphalt and the side

of the road, such as grass, soil, or a curb

■

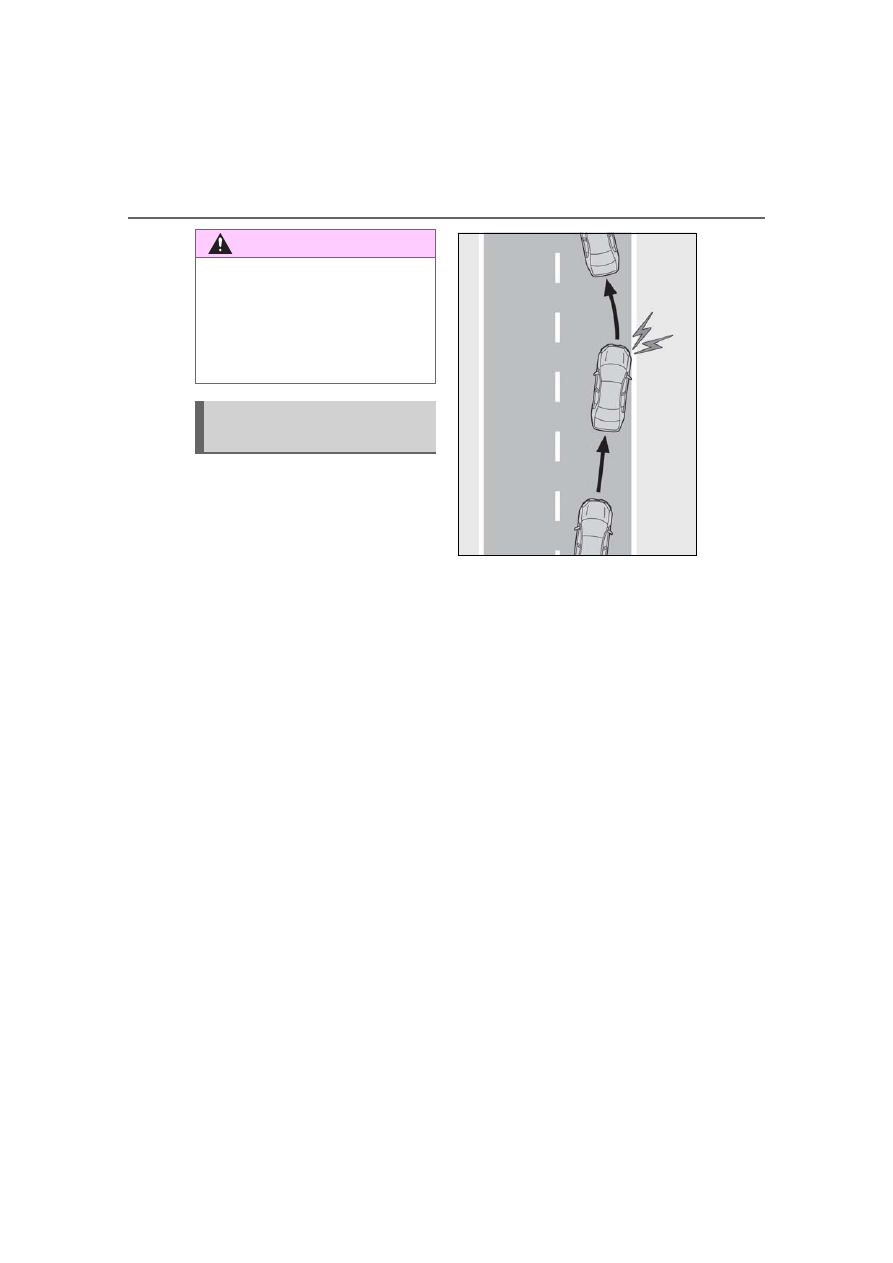

Steering assist function

When the system determines that the
vehicle might depart from its lane or
course

, the system provides assis-

tance as necessary by operating the
steering wheel in small amounts for a
short period of time to keep the vehicle
in its lane.

: Boundary between asphalt and the side

of the road, such as grass, soil, or a curb

WARNING

●

The vehicle has just changed lanes or

crossed an intersection.

●

Tires which differ by structure, manu-

facturer, brand or tread pattern are

used.

●

Snow tires, etc. are equipped.

Functions included in LDA sys-
tem

231

4-5. Using the driving support systems

Driving

■

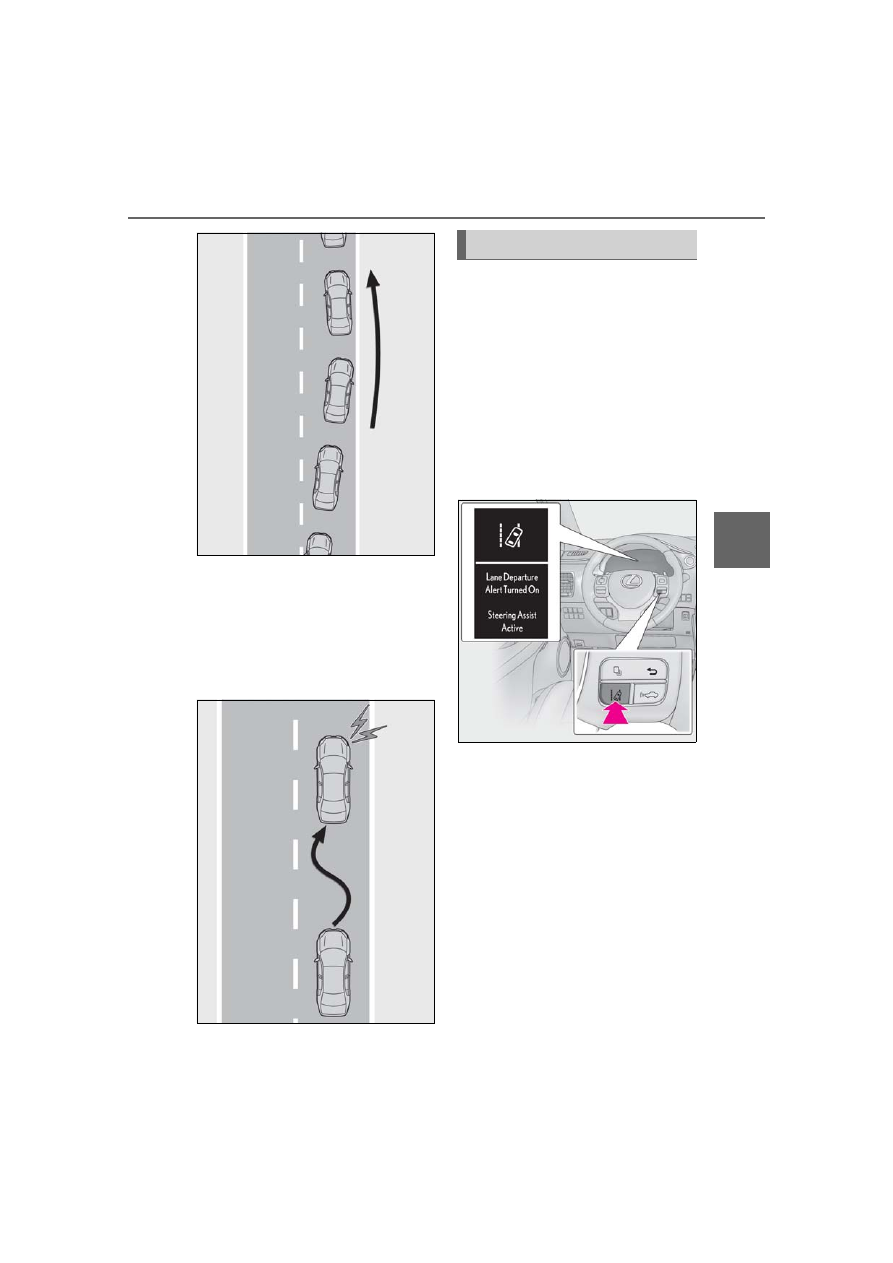

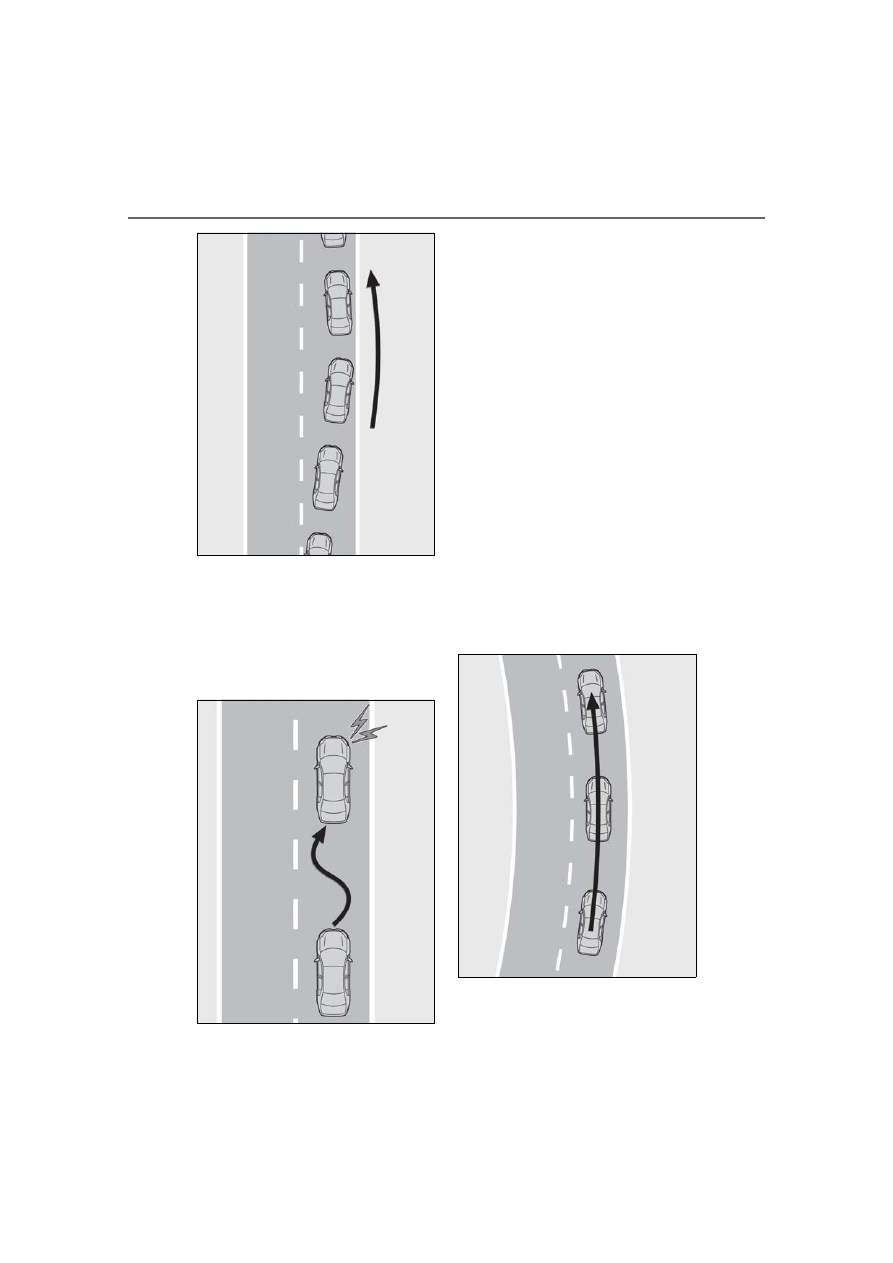

Vehicle sway warning function

When the vehicle is swaying within a
lane, the warning buzzer will sound and
a message will be displayed on the
multi-information display to alert the
driver.

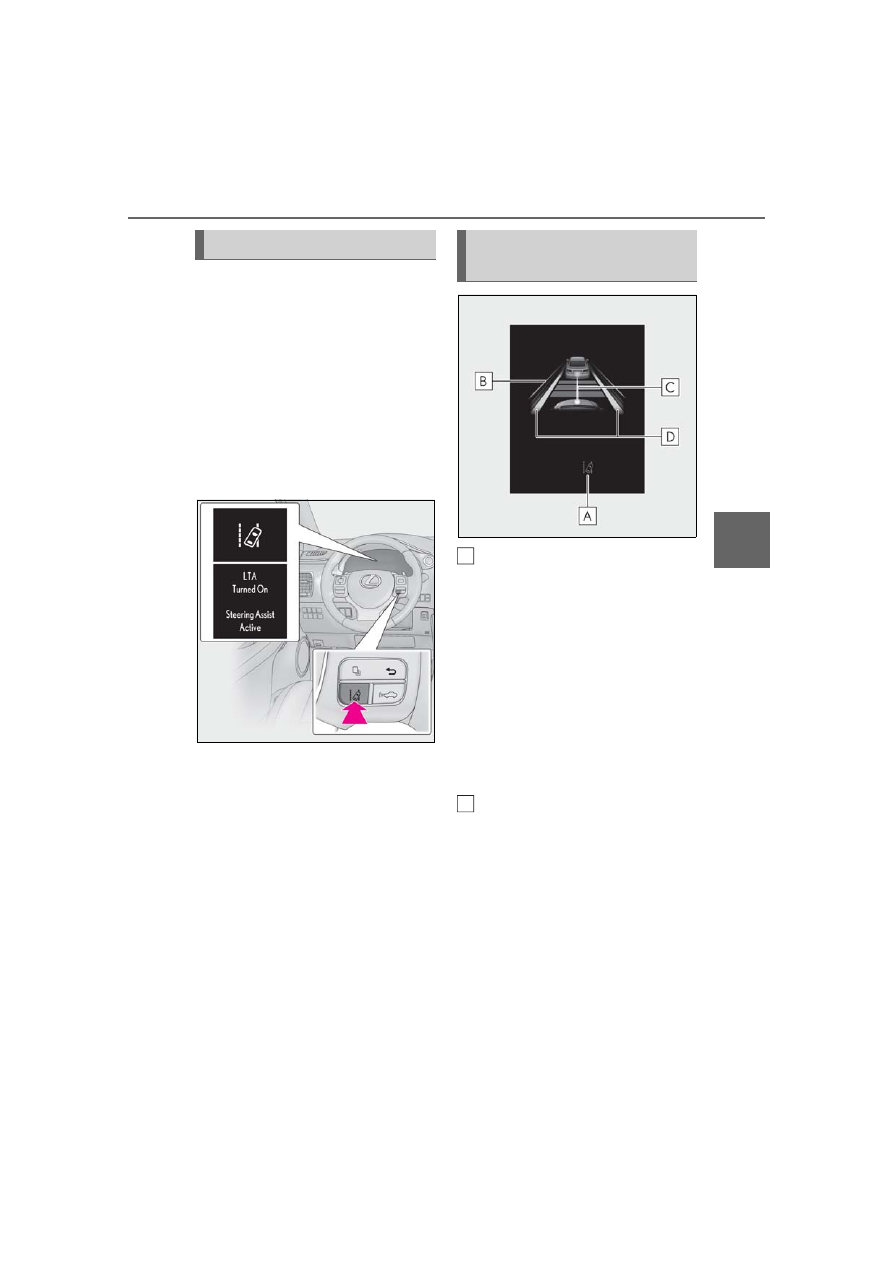

Press the LDA switch to turn the LDA
system on.

The LDA indicator illuminates and a mes-
sage is displayed on the multi-information
display.
Press the LDA switch again to turn the
LDA system off.
When the LDA system is turned on or off,
operation of the LDA system continues in
the same condition the next time the hybrid
system is started.

Turning LDA system on

232

4-5. Using the driving support systems

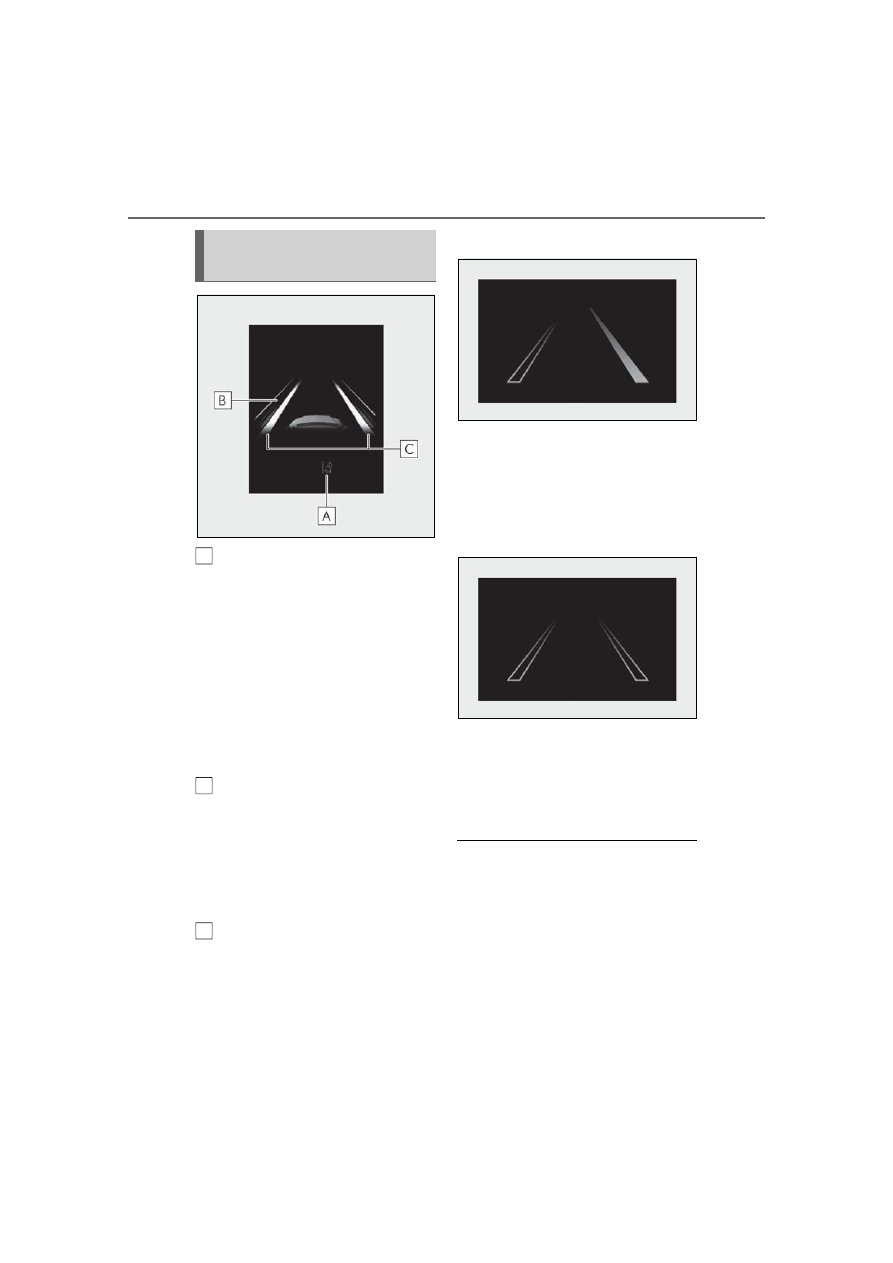

LDA indicator

The illumination condition of the indicator
informs the driver of the system operation
status.
Illuminated in white:
LDA system is operating.
Illuminated in green:
Steering wheel assistance of the steering
assist function is operating.
Flashing in orange:
Lane departure alert function is operating.

Operation display of steering
wheel operation support

Displayed when the multi-information dis-
play is switched to the driving assist system
information screen.
Indicates that steering wheel assistance of
the steering assist function is operating.

Lane departure alert function dis-
play

Displayed when the multi-information dis-
play is switched to the driving assist system
information screen.



Inside of displayed lines is white

Indicates that the system is recognizing
white (yellow) lines or a course

. When the

vehicle departs from its lane, the white line
displayed on the side the vehicle departs
from flashes orange.



Inside of displayed lines is black

Indicates that the system is not able to rec-
ognize white (yellow) lines or a course

is temporarily canceled.

: Boundary between asphalt and the side

of the road, such as grass, soil, or a curb

■

Operation conditions of each function

●

Lane departure alert function

This function operates when all of the fol-
lowing conditions are met.
• LDA is turned on.

• Vehicle speed is approximately 32 mph

(50 km/h) or more.

• System recognizes white (yellow) lane

lines or a course

. (When a white [yellow]

line or course

is recognized on only one

side, the system will operate only for the

Indications on multi-information
display

233

4-5. Using the driving support systems

Driving

recognized side.)

• Width of traffic lane is approximately 9.8

ft. (3 m) or more.

• Turn signal lever is not operated.

• Vehicle is not being driven around a

sharp curve.

• No system malfunctions are detected.

(

P.234)

: Boundary between asphalt and the side

of the road, such as grass, soil, or a curb

●

Steering assist function

This function operates when all of the fol-
lowing conditions are met in addition to the
operation conditions for the lane departure
alert function.

• Setting for “Steering Assist” in

of the

multi-information display is set to “On”.
(

• Vehicle is not accelerated or decelerated

by a fixed amount or more.

• Steering wheel is not operated with a

steering force level suitable for changing

lanes.

• ABS, VSC, TRAC and PCS are not oper-

ating.

• TRAC or VSC is not turned off.

• Hands off steering wheel warning is not

displayed. (



P.233)

●

Vehicle sway warning function

This function operates when all of the fol-
lowing conditions are met.

• Setting for “Sway Warning” in

of the

multi-information display is set to “On”.
(

• Vehicle speed is approximately 32 mph

(50 km/h) or more.

• Width of traffic lane is approximately 9.8

ft. (3 m) or more.

• No system malfunctions are detected.

(

P.234)

■

Temporary cancelation of functions

When operation conditions are no longer

met, a function may be temporarily can-

celed. However, when the operation condi-

tions are met again, operation of the

function is automatically restored.

(



P.232)

■

Steering assist function

●

Depending on the vehicle speed, lane

departure situation, road conditions, etc.,

the driver may not feel the function is

operating or the function may not oper-

ate at all.

●

The steering control of the function is

overridden by the driver’s steering wheel

operation.

●

Do not attempt to test the operation of

the steering assist function.

■

Lane departure alert function

●

The warning buzzer may be difficult to

hear due to external noise, audio play-

back, etc. Also, it may be difficult to feel

steering wheel vibrations due to the road

conditions, etc.

●

If the edge of the course

is not clear or

straight, the lane departure alert function

may not operate.

●

Do not attempt to test the operation of

the lane departure alert function.

: Boundary between asphalt and the side

of the road, such as grass, soil, or a curb

■

Hands off steering wheel warning

In the following situations, a warning mes-

sage urging the driver to hold the steering

wheel and the symbol shown in the illustra-

tion are displayed on the multi-information

display to warn the driver.The warning stops

when the system determines that the driver

holds the steering wheel. Always keep your

hands on the steering wheel when using this

system, regardless of warnings.

●

When the system determines that the

driver is driving without holding the steer-

ing wheel while the system is operating

If the driver continues to keep their hands
off of the steering wheel, the buzzer sounds,

234

4-5. Using the driving support systems

the driver is warned and the function is tem-
porarily canceled. This warning also oper-
ates in the same way when the driver
continuously operates the steering wheel
only a small amount.

The buzzer also sounds even if the alert
type is set to

●

When the system determines that the

vehicle may not turn and instead depart

from its lane while driving around a curve

Depending on the vehicle condition and
road conditions, the warning may not oper-
ate. Also, if the system determines that the
vehicle is driving around a curve, warnings
will occur earlier than during straight-lane
driving.

●

When the system determines that the

driver is driving without holding the steer-

ing wheel while the steering wheel assist

of the steering assist function is operating

The buzzer also sounds even if the alert
type is set to

■

Vehicle sway warning function

When the system determines that the vehi-

cle is swaying while the vehicle sway warn-

ing function is operating, a buzzer sounds

and a warning message urging the driver to

rest and the symbol shown in the illustration

are simultaneously displayed on the multi-

information display.

Depending on the vehicle and road condi-

tions, the warning may not operate.

■

Warning message

If the following warning message is dis-

played on the multi-information display and

the LDA indicator illuminates in orange, fol-

low the appropriate troubleshooting proce-

dure. Also, if a different warning message is

displayed, follow the instructions displayed

on the screen.

●

“Lane Departure Alert Malfunction Visit

Your Dealer”

The system may not be operating properly.
Have the vehicle inspected by your Lexus
dealer.

●

“Lane Departure Alert Unavailable”

The system is temporarily canceled due to a
malfunction in a sensor other than the front
camera. Turn the LDA system off, wait for a
little while, and then turn the LDA system
back on.

●

“Lane Departure Alert Unavailable at

Current Speed”

The function cannot be used as the vehicle
speed exceeds the LDA operation range.
Drive slower.

●

“Lane Departure Alert Unavailable

Below Approx 50km/h”

The LDA system cannot be used as the
vehicle speed is less than approximately 32
mph (50 km/h). Drive the vehicle at
approximately 32 mph (50 km/h) or more.

■

Customization

Function settings can be changed. (Cus-

tomizable features:



P.443)

235

4-5. Using the driving support systems

Driving

: If equipped

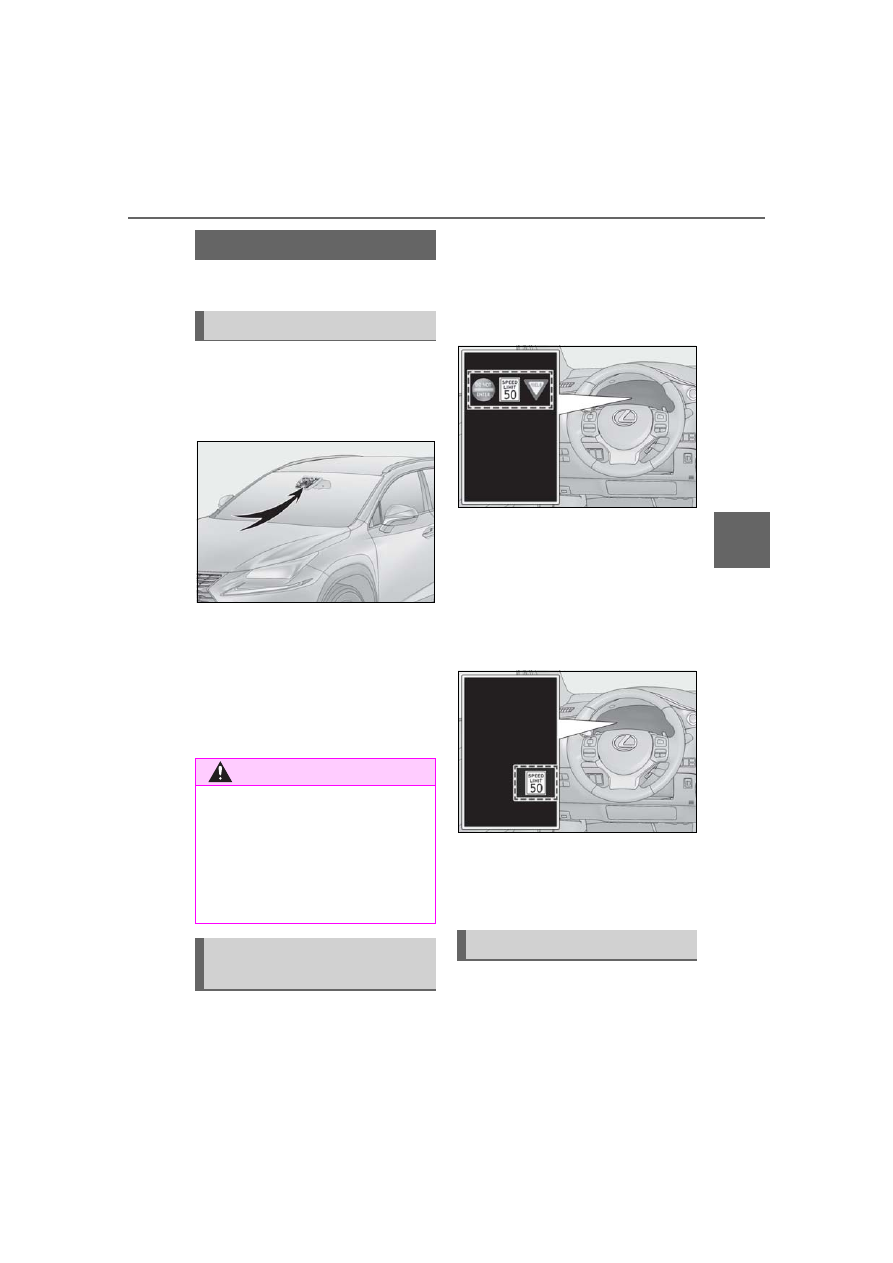

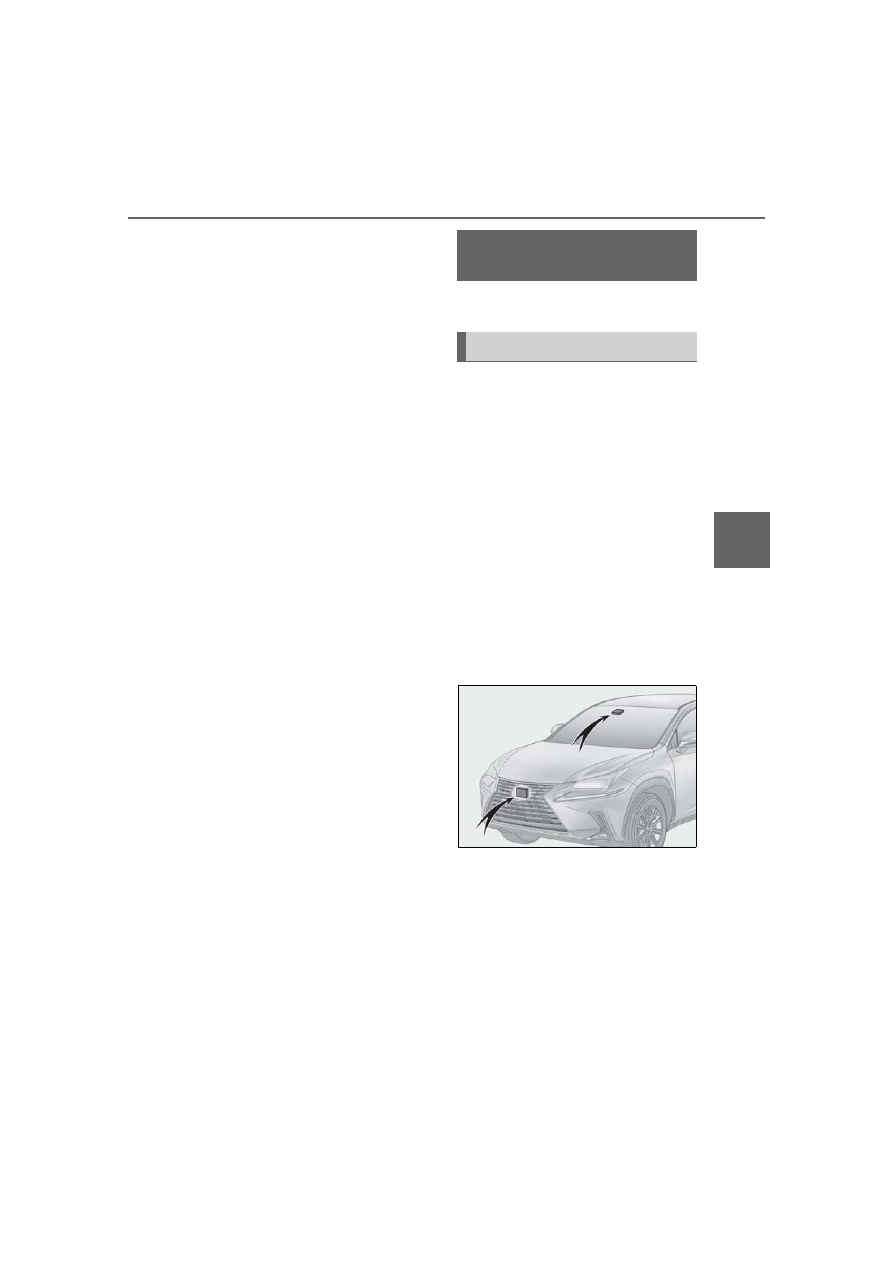

The RSA system recognizes specific
road signs using the front camera to
provide information to the driver via
the display.

If the system judges that the vehicle is
being driven over the speed limit, per-
forming prohibited actions, etc.,
according to the recognized road
signs, it notifies the driver through a
visual notification and notification
buzzer.

When the front camera recognizes a
sign, the sign will be displayed on the

multi-information display.



When the driving assist system
information is selected, a maximum
of 3 signs can be displayed.
(



When a tab other than the driving
assist system information is selected,
the following types of road signs will
be displayed.(


