2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

■

Display

■

Menu icons

■

Liquid crystal display



P.87

The multi-information display is oper-
ated using the meter control switches.

Select an item/change pages

Enter/set

Return to the previous screen

Press: Displays the screen regis-

tered to

. When no screen has

been registered, the drive informa-
tion screen will be displayed. Press
and hold: Registers the currently

displayed screen to

The registration confirmation screen is dis-
played. If the selected screen cannot be
registered, a registration failure message

Multi-information display

The multi-information display pres-
ents the driver with a variety of
vehicle data.

Display and menu icons

Drive information (



P.90)

Navigation system-linked dis-
play (if equipped) (



P.91)

Audio system-linked display
(



P.91)

Driving assist system informa-
tion (



P.91)

Warning message display
(



P.92)

Settings display (



P.92)

NOTICE

■

The multi-information display at low

temperatures

Allow the interior of the vehicle to warm

up before using the liquid crystal infor-

mation display. At extremely low tem-

peratures, the information display

monitor may respond slowly, and display

changes may be delayed.

Changing the meter display

A
B
C
D

2-1. Instrument cluster

will be shown.

Call sending/receiving and history
display

Linked with the hands-free system, sending
or receiving call is displayed. For details
regarding the hands-free system, refer to
the “NAVIGATION AND MULTIMEDIA
SYSTEM OWNER’S MANUAL”.

■

Content displayed as drive infor-
mation

Select to display various drive data.

Items displayed can be switched by
pressing

of the meter con-

trol switches to select

and pressing



Current fuel consumption

Displays the current rate of fuel consump-
tion



Average fuel consumption (after
reset

/after start/after refuel)

Displays the average fuel consumption
since the function was reset, the hybrid sys-
tem was started, and the vehicle was refu-
eled, respectively
Use the displayed average fuel consump-
tion as a reference.



Average vehicle speed (after
reset

/after start)

Displays the average vehicle speed since
the function was reset and the hybrid sys-
tem was started, respectively



Elapsed time (after reset

/after

start)

Displays the elapsed time since the func-
tion was reset and the hybrid system was
started, respectively



Distance (driving range/after start)

Displays the estimated maximum distance
that can be driven with the quantity of fuel
remaining and the distance driven after the
hybrid system was started respectively.
• This distance is computed based on your

average fuel consumption. As a result,
the actual distance that can be driven
may differ from that displayed.

• When only a small amount of fuel is

added to the tank, the display may not be
updated.
When refueling, turn the power switch
off. If the vehicle is refueled without turn-
ing the power switch off, the display may
not be updated.

: Displayed when the item is set in “Drive

Info 1”, “Drive Info 2” and “Drive Info 3”.

: The function can be reset by pressing

the

of the meter control switches

for longer than 1 second when the item
to reset is displayed.
If there is more than one item that can
be reset, the item selection screen will
appear.

■

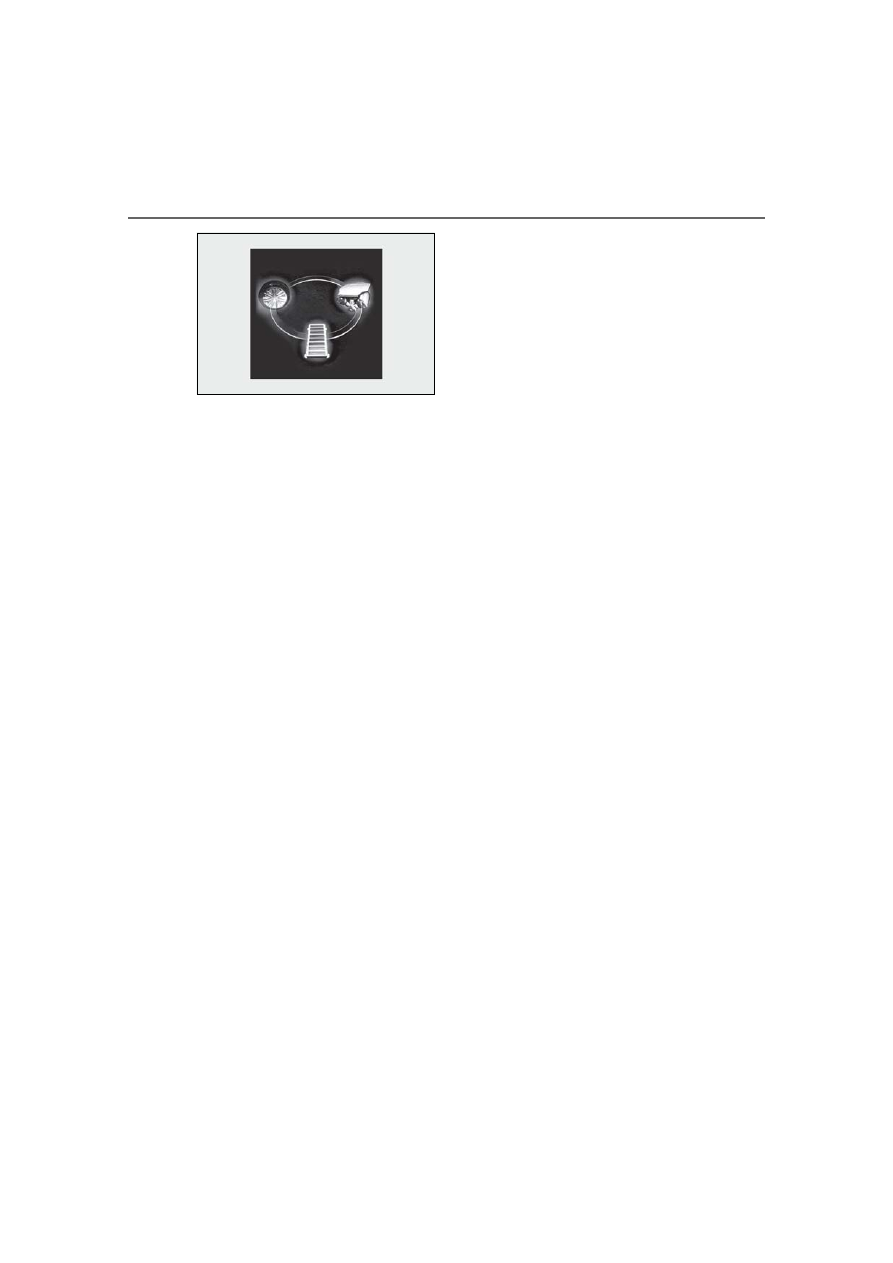

Energy monitor



P.99

■

G monitor (if equipped)

Displays the acceleration forces of the
front, back, left and right of the vehicle.
Also displays the turning angle of the
steering wheel, brake oil pressure,
accelerator opening.



The actual vehicle conditions may
differ from those on the display

Drive information

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

screen, depending on the road con-
ditions, outside temperature, vehicle
speed, etc. Use the display screen
as a reference.



If a 12-volt battery terminal is dis-
connected and reconnected, the
steering amount display may be dis-
abled temporarily. After driving the
vehicle for a while, the display will be
enabled.

■

Speedometer

Displays the vehicle speed.

■

Tire inflation pressure

Displays inflation pressure of each tire.

The inflation pressure of the spare tire will
not be displayed.

■

Vehicle sway warning

Detects the sway of the vehicle within a
lane, which is often associated with a
decrease in the driver’s attention level
and alerts the driver.
This display is a part of the LTA (Lane
Tracing Assist) system or LDA (Lane
Departure Alert with steering control)
system. The display is enabled when
the operating conditions of the vehicle
sway warning are met. (



P.222, 231)

■

Display off

A blank screen is displayed.

■

Tire inflation pressure

●

It may take a few minutes to display the

tire inflation pressure after the power

switch is turned to ON mode. It may also

take a few minutes to display the tire infla-

tion pressure after inflation pressure has

been adjusted.

●

“--” may be displayed if the tire informa-

tion cannot be determined due to unfa-

vorable radio wave conditions.

●

Tire inflation pressure changes with tem-

perature. The displayed values may also

be different from the values measured

using a tire pressure gauge.

■

When disconnecting and reconnecting

12-volt battery terminals

The drive information will be reset.

Select to display the following naviga-
tion system-linked information.



Route guidance



Compass display (heading-up dis-
play)

Select to enable selection of an audio
source or track on the display using the
meter control switches.

Select to display the operational status
of the following systems:



LTA (Lane Tracing Assist) (if
equipped) (



P.218)



LDA (Lane Departure Alert with
steering control) (if equipped)
(



P.227)



Dynamic radar cruise control with
full-speed range (



P.237)



RSA (Road Sign Assist) (if
equipped) (



P.235)

The displayed icon changes depending
on the system used.

Navigation system-linked dis-
play (if equipped)

Audio system-linked display

Driving assist system information

2-1. Instrument cluster

Select to display warning messages
and measures to be taken if a malfunc-
tion is detected. (



P.398)

The settings of the following items can
be changed using the meter control
switches.
For functions that can be enabled or
disabled, the function switches
between on and off each time

pressed.

■

LTA (Lane Tracing Assist) (if

equipped) (



P.218)

Select to set up the following items.



Lane centering

Select to enable/disable the lane centering
function.



Steering Assist

Select to enable/disable steering wheel
assistance.



Alert

Select to change the alert types.



Alert sensitivity

Select to set the warning sensitivity.



Sway warning

Select to enable/disable the vehicle sway
warning.



Sway sensitivity

Select to set the vehicle sway warning sen-
sitivity.

■

LDA (Lane Departure Alert

with steering control) (if equipped)
(



P.227)

Select to set up the following items.



Steering Assist

Select to enable/disable steering wheel
assistance.



Alert

Select to change the alert types.



Alert sensitivity

Select to set the warning sensitivity.



Sway warning

Select to enable/disable the vehicle sway
warning.



Sway sensitivity

Select to set the vehicle sway warning sen-
sitivity.

■

PCS (Pre-Collision System)

(



P.211)

Select to set up the following items.



PCS on/off

Select to enable/disable the pre-collision
system.



PCS sensitivity

Select to change the warning timing.

■

PKSA (Parking Support Alert) (if
equipped) (



P.247)

Select to set up the following items.



Intuitive parking assist sensor

Select to enable/disable the intuitive park-
ing assist sensor.



Volume

Select to set the volume of the buzzer

Warning message display

Settings display

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

which sounds when the parking support
alert is operated.

■

PKSB (Parking Support

Brake function) (if equipped)
(



P.253)



PKSB on/off

Select to enable/disable the parking sup-
port brake function (for static objects).

■

RSA (Road Sign Assist) (if

equipped) (



P.235)

Select to set up the following items.



Road Sign Assist

Select to enable/disable road sign assist.



Over Speed

Select to set the over speed alert on/off.



Level of Over Speed

Select to set the over speed alert level.



Others

Select to set the other road sign assist.

■

Clock

Select to switch between 12-hour dis-
play and 24-hour display.

■

Vehicle Settings



PBD (Power Back Door)

(



P.114)

Select to set up the following items.
• System settings
Select to enable/disable the power back
door system.
• Volume
Select to set the volume of the buzzer
which sounds when the power back door
system.

• Kick Sensor

Select to enable/disable the kick sensor.

: Vehicles with power back door

: Vehicles with Hands Free Power Back

Door



TPMS (Tire Pressure Warning Sys-
tem) (



P.359)

Select to initialize the tire pressure warning
system.



Scheduled Maintenance (



P.339)

Select to initialize the scheduled mainte-
nance.



Oil maintenance (



P.350)

Select to reset the engine oil maintenance
information (message indicating mainte-
nance is required and distance until the
next oil change) after engine oil mainte-
nance is performed.

■

Meter settings



Language

Select to change the language on the dis-
play.



Units

Select to change the unit of measure for
fuel consumption.



EV Indicator (



P.68)

Select to set the EV indicator on/off.



Switch settings (



P.89)

Displays a procedure to register a desired
screen to

You can register 1 screen as a shortcut,
which can be displayed by pressing



Drive information screen (



P.90)

2-1. Instrument cluster

Select to choose between 2 items that will
be displayed on each drive information
screen (“

Drive info 1”, “Drive info 2” and

“Drive info 3

”) respectively.



Pop-up display (



P.87)

Select to set the following pop-up displays,
which may appear in some situations,
on/off.
• Intersection guidance display of the nav-

igation system-linked system

• Incoming call display of the hands-free

phone system

• Instrument panel brightness adjustment

display



Accent color

Select to change the accent colors on the
screen, such as the cursor color.



Tachometer settings

Select to set the display of the tachometer
or Hybrid System Indicator to automati-
cally change according to the driving
mode or static.



Initialization

Select to reset the meter display settings.

■

Suspension of the settings display

In the following situations, the settings dis-

play using the meter control switches will be

suspended.

●

When a warning message appears on the

multi-information display

●

When the vehicle begins to move

Automatically displayed when the sys-
tem is used. (



P.248)

WARNING

■

Cautions during setting up the dis-

play

As the hybrid system needs to be operat-

ing during setting up the display, ensure

that the vehicle is parked in a place with

adequate ventilation. In a closed area

such as a garage, exhaust gases includ-

ing harmful carbon monoxide (CO) may

collect and enter the vehicle. This may

lead to death or a serious health hazard.

NOTICE

■

During setting up the display

To prevent 12-volt battery discharge,

ensure that the hybrid system is operat-

ing while setting up the display features.

Intuitive parking assist (if
equipped)

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

: If equipped

Head-up display

Display brightness will change automati-
cally according to the brightness of the sur-
rounding area.

Display position adjustment switch

Display brightness adjustment
switch

Display brightness can be adjusted to the
desired level.

“HUD” button

“DISP” button



Vehicle speed



Hybrid System Indicator (



P.97)



Tachometer



Shift position and shift range

Displays the selected shift position or
selected shift range (



P.180)



Audio display

Displays audio information for approxi-
mately 3 seconds when the audio system is
operated



Route guidance display (vehicles
with navigation system) (



P.98)

When approaching an intersection while
the navigation system is giving route guid-
ance, an arrow will automatically be dis-
played to indicate the direction of travel.



Lane departure warning display
(LTA [Lane Tracing Assist]) (if
equipped) (



P.218)



Lane departure warning display
(LDA [Lane Departure Alert with
steering control]) (if equipped)
(



P.227)



Approach warning display
(Dynamic radar cruise control with
full speed range) (



P.243)



Road signs (RSA [Road Sign
Assist]) (if equipped) (



P.235)



Pre-collision warning message (Pre-
Collision System) (



P.211)



Speed limit display (vehicles with
navigation system) (



P.98)



Parking Support Brake function (for
static objects) (if equipped)
(



P.253)

Head-up display

The head-up display can be used to
project vehicle speed and other
information onto the windshield.

System components

B
C

Head-up display contents

2-1. Instrument cluster



G monitor (if equipped) (



P.90)



Brake Override System (



P.157)



Drive-Start Control (



P.157)

■

“HUD” button

Pressing the button turns the head-up
display on/off and changes the vehicle
speed display units as follows:



U.S.A.

OFF



ON (MPH)



(km/h)



OFF



Canada

OFF



ON (km/h)



(MPH)



OFF

■

“DISP” button

Pressing the button changes the dis-
play items (except vehicle speed) as
follows:

• Off
• Hybrid System Indicator
• Tachometer
• G monitor (if equipped)

■

Head-up display

●

The head-up display may seem dark and

hard to see when viewed through sun-

glasses, especially polarized sunglasses.

Adjust the brightness of the head-up dis-

play or remove your sunglasses.

●

When the head-up display is turned off, it

will not display anything until it is turned

on again.

Switching the head-up display

WARNING

■

Before using the head-up display

Check that the position and brightness of

the head-up display image does not

interfere with safe driving. Incorrect

adjustment of the image’s position or

brightness may obstruct the driver’s view

and lead to an accident, resulting in

death or serious injury.

■

Caution for changing settings of the

head-up display

As the hybrid system needs to be operat-

ing while changing the settings of the

head-up display, ensure that the vehicle

is parked in a place with adequate venti-

lation. In a closed area such as a garage,

exhaust gases including harmful carbon

monoxide (CO) may collect and enter

the vehicle. This may lead to death or a

serious health hazard.

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

■

Adjusting the display position

Higher

Lower

■

Setting the brightness

The brightness of the display is auto-
matically adjusted in accordance with
the brightness of the surrounding envi-
ronment. However, the brightness can
also be manually adjusted in 9 stages.

Brighter

Darker

Charge area

Shows regenerative charging.

Hybrid Eco area

Shows that gasoline engine power is not
being used very often.
The gasoline engine will automatically stop
and restart under various conditions.

Eco area

Shows that the vehicle is being driven in an

NOTICE

■

To prevent damage to components

●

Do not place any drinks near the head-

up display projector. If the projector

gets wet, electrical malfunctions may

result.

●

Do not place anything on or put stick-

ers onto the head-up display projector.

Doing so could interrupt head-up dis-

play indications.

●

Do not touch the inside of the head-up

display projector or thrust sharp edges

or the like into the projector.

Doing so could cause mechanical mal-

functions.

■

When changing the settings of the

head-up display

To prevent 12-volt battery discharge,

ensure that the hybrid system is operat-

ing while changing the settings of the

head-up display.

Making the display easier to see

Hybrid System Indicator

2-1. Instrument cluster

Eco-friendly manner.

Power area

Shows that an Eco-friendly driving range is
being exceeded (during full power driving,
etc.)

When the vehicle approaches an inter-
section, the direction the vehicle
should go is guided by the arrow.
When the vehicle approaches an inter-
section, the route guidance will start
and the distance

to the intersection

will also be displayed.

: The distance indication will disappear

when the vehicle passes through the
intersection.

Displays the speed limit for the current
road.

Select to display/non-display the fol-
lowing items:
• Route guidance to destination
• Driving assist system information
• Audio system operation status
• Lane display
When customizing vehicle features,
ensure that the vehicle is parked in a
safe place with the shift lever in P and
the parking brake set.

Until the screen changes, continue
pressing the “DISP” button, and it
will repeat until the item desired to
be changed is displayed.

Customization can be performed when

the head-up display is on.

Press the “DISP” button to switch
between on and off.

On and off will be switched between each

time the button is pressed.

Route guidance display (vehicles
with navigation system)

Speed limit display (vehicles with
navigation system)

Display customization

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

If the button is left alone without being

operated for a short time, setting will be

finished automatically.

■

When the 12-volt battery is discon-

nected

The customize settings of the head-up dis-

play will be reset.

Multi-information display

Navigation/multimedia system dis-
play

Meter control switches

“MENU” button

Touchpad

Energy monitor/fuel con-
sumption screen

You can view the status of your
hybrid system on the multi-informa-
tion display and the navigation/mul-
timedia system display.
The energy monitor or fuel con-
sumption screen can be displayed
and operated on the side display.

System components

A
B

C
D

100

2-1. Instrument cluster



Navigation/multimedia system display

Press the “MENU” button on the Remote Touch, then select

on the screen.

If the “Trip Information” or “History” screen is displayed, select “Energy”.



Multi-information display

Press

of the meter control switches and select

, and then

to select the energy monitor display.

Energy monitor

When the vehicle is powered by the electric motor (traction motor)

Navigation/multimedia system display

Multi-information display

When the vehicle is powered by both the gasoline engine and the electric motor (traction
motor)

Navigation/multimedia system display

Multi-information display

When the vehicle is powered by the gasoline engine

Navigation/multimedia system display

Multi-information display

101

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

These images are examples only, and may vary slightly from actual conditions.

■

Hybrid battery (traction battery)
status



Navigation/multimedia system dis-
play

Low

High



Multi-information display

Low

High

These images are examples only, and may
vary slightly from actual conditions.

When the vehicle is charging the hybrid battery (traction battery)

Navigation/multimedia system display

Multi-information display

When there is no energy flow

Navigation/multimedia system display

Multi-information display

A
B

102

2-1. Instrument cluster

■

Trip information

Press the “MENU” button on the
Remote Touch, then select

on the

screen.

If a screen other than “Trip Information” is
displayed, select “Trip Information”.

Resetting the consumption data

Fuel consumption in the past 15
minutes

Current fuel consumption

Regenerated energy in the past 15
minutes
One symbol indicates 50 Wh. Up
to 5 symbols are shown.

Average vehicle speed since the
hybrid system was started.

Elapsed time since the hybrid sys-
tem was started.

Cruising range (



P.103)

Average fuel consumption for the past
15 minutes is divided by color into past
averages and averages attained since
the power switch was last turned to
ON mode. Use the displayed average
fuel consumption as a reference.

The image is an example only, and may
vary slightly from actual conditions.

■

History

Press the “MENU” button on the
Remote Touch, then select

on the

screen.

If a screen other than “History” is dis-
played, select “History”.

Best recorded fuel consumption

Latest fuel consumption

Previous fuel consumption record

Resetting the history data

Updating the latest fuel consump-
tion data

The average fuel consumption history
is divided by color into past averages
and the average fuel consumption
since the last updated. Use the dis-
played average fuel consumption as a
reference.
The image is an example only, and may
vary slightly from actual conditions.

■

Updating the history data

Update the latest fuel consumption by

selecting “Clip” to measure the current fuel

consumption again.

Fuel consumption

A
B

C
D

A
B
C
D

103

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

■

Resetting the data

The fuel consumption data can be deleted

by selecting “Clear”.

■

Cruising range

Displays the estimated maximum distance

that can be driven with the quantity of fuel

remaining.

This distance is computed based on your

average fuel consumption.

As a result, the actual distance that can be

driven may differ from that displayed.

Display the vehicle information on the
side display (



P.289), and then select

to display the desired

screen.

■

Trip information (type A)

Displays the average fuel consumption
and regenerated energy for the past 10
minutes in 1 minute intervals, as well as
the cruising range.

The image is an example only, and may
vary slightly from actual conditions.
Use the displayed average fuel consump-
tion as a reference.

■

Trip information (type B)

Displays the cruising range, latest fuel
consumption and the amount of time

elapsed since the hybrid system was
started.

The image is an example only, and may
vary slightly from actual conditions.
Use the displayed average fuel consump-
tion as a reference.

■

History

Displays the average fuel consumption
and highest fuel consumption.

The image is an example only, and may
vary slightly from actual conditions.
Use the displayed average fuel consump-
tion as a reference.

■

Energy monitor

Displays the hybrid system operation
and energy recovery states.

Displayed content is the same as that dis-
played on the multi-information display.
(



P.100)

Using the side display (vehicles
with navigation system)

Lexus NX300h (2021 year). Manual in english - page 5
