73

1-4. Hybrid system

1

For safety and security

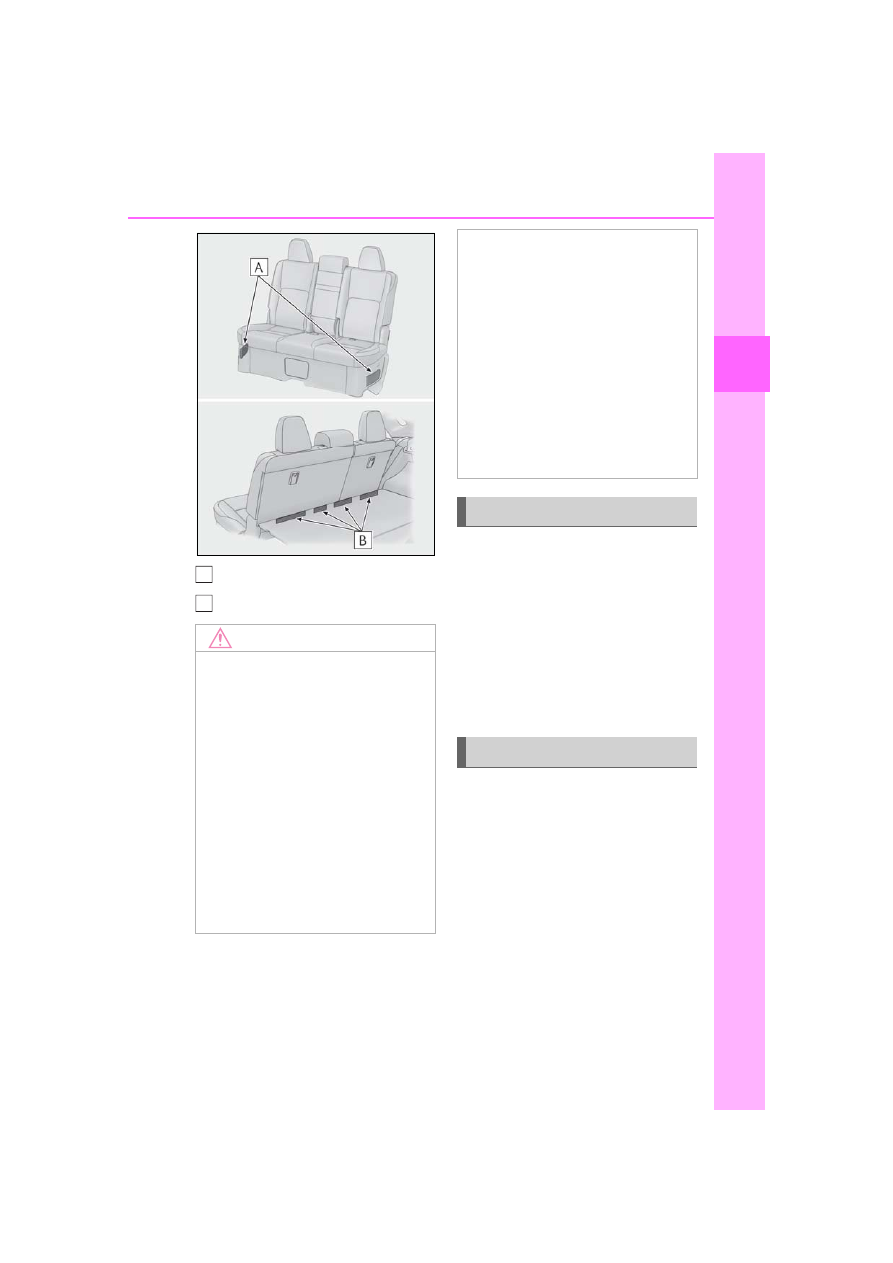

Air intake vents

Air discharge vents

When a certain level of impact is
detected by the impact sensor, the
emergency shut off system blocks the
high voltage current and stops the fuel
pump to minimize the risk of electrocu-
tion and fuel leakage. If the emergency
shut off system activates, your vehicle
will not restart. To restart the hybrid
system, contact your Lexus dealer.

A message is automatically displayed
when a malfunction occurs in the
hybrid system or an improper opera-
tion is attempted.
If a warning message is shown on the
multi-information display, read the
message and follow the instructions.

NOTICE

■

Hybrid battery (traction battery) air

intake and discharge vents

●

Do not place objects that will block the

air intake vents. The hybrid battery

(traction battery) may have a reduc-

tion in hybrid battery (traction battery)

output as well as be damaged.

●

Clean the air intake and discharge

vents regularly to prevent the hybrid

battery (traction battery) from over-

heating.

●

Do not get water or foreign materials

in either the air intake and discharge

vents as this may cause a short circuit

and damage the hybrid battery (trac-

tion battery).

A
B

●

If “Maintenance required for Traction

battery cooling parts See owner’s

manual” is shown on the multi-informa-

tion display, clean the air intake vents

(



P.337). If the message is still dis-

played after cleaning the air intake

vents, have the vehicle inspected by

your Lexus dealer.

●

A filter is installed to the air intake vent.

When the filter remains noticeably

dirty even after cleaning the air intake

vent, filter cleaning or replacement is

recommended. For information

regarding filter cleaning or replace-

ment, contact your Lexus dealer.

Emergency shut off system

Hybrid warning message

74

1-4. Hybrid system

■

If a warning light comes on, a warning

message is displayed, or the 12-volt bat-

tery is disconnected

The hybrid system may not start. In this

case, try to start the system again. If the

“READY” indicator does not come on, con-

tact your Lexus dealer.

75

1-5. Theft deterrent system

1

For safety and security

1-5.Theft deterrent system

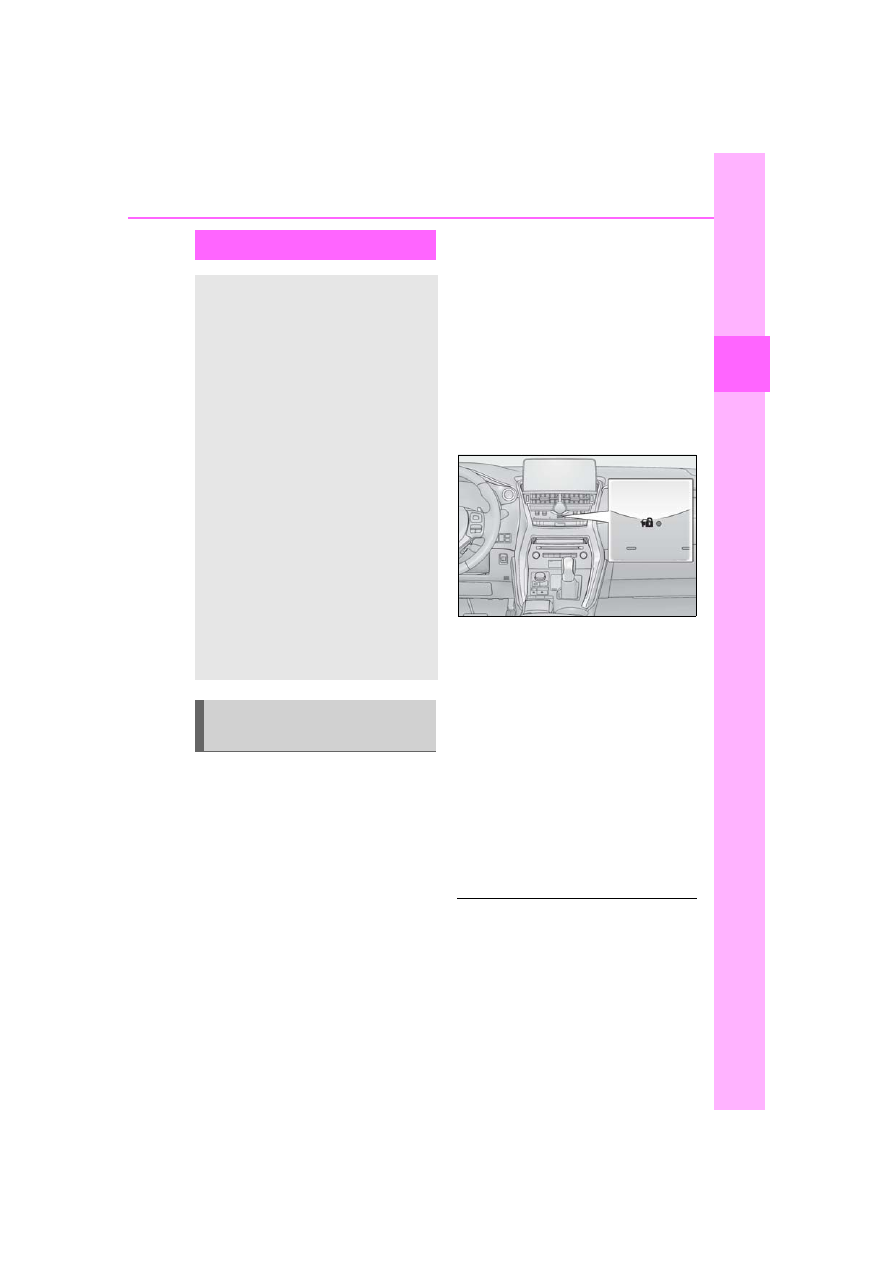

The indicator light flashes after the
power switch has been turned off to
indicate that the system is operating.
The indicator light stops flashing after
the power switch has been turned to

ACCESSORY or ON mode to indi-
cate that the system has been can-
celed.

■

System maintenance

The vehicle has a maintenance-free type

immobilizer system.

■

Conditions that may cause the system to

malfunction

●

If the grip portion of the key is in contact

with a metallic object

●

If the key is in close proximity to or touch-

ing a key registered to the security sys-

tem (key with a built-in transponder chip)

of another vehicle

■

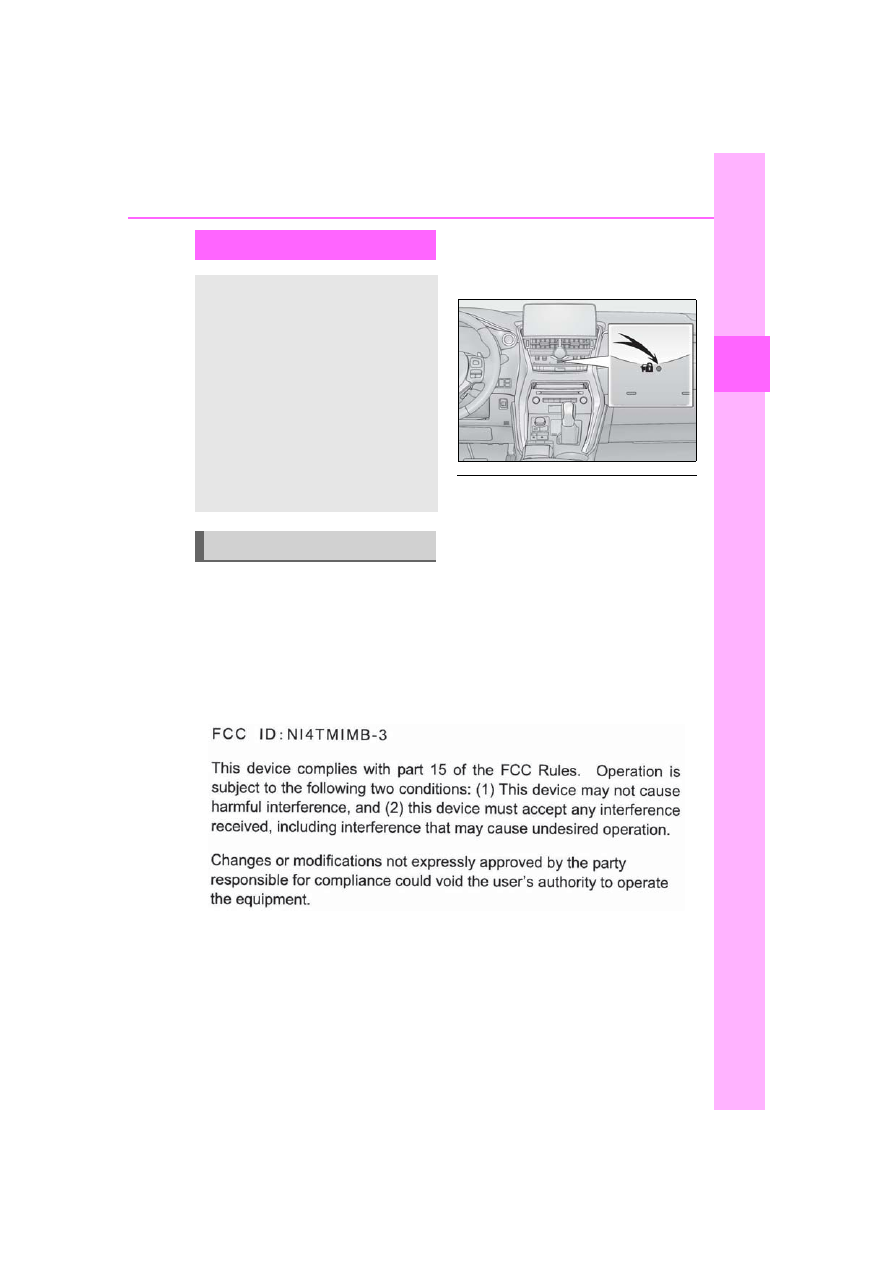

Certification for the immobilizer system



For vehicles sold in the U.S.A.

Immobilizer system

The vehicle’s keys have built-in tran-
sponder chips that prevent the
hybrid system from starting if a key
has not been previously registered
in the vehicle’s on-board computer.
Never leave the keys inside the
vehicle when you leave the vehicle.

This system is designed to help pre-
vent vehicle theft but does not guar-
antee absolute security against all
vehicle thefts.

Operating the system

76

1-5. Theft deterrent system



For vehicles sold in Canada

WARNING

■

Certifications for the immobilizer

system

Changes or modifications not expressly

approved by the party responsible for

compliance could void the user’s author-

ity to operate the equipment.

NOTICE

■

To ensure the system operates cor-

rectly

Do not modify or remove the system. If

modified or removed, the proper opera-

tion of the system cannot be guaranteed.

77

1-5. Theft deterrent system

1

For safety and security

■

Items to check before locking the
vehicle

To prevent unexpected triggering of
the alarm and vehicle theft, make sure
of the following:



Nobody is in the vehicle.



The windows and moon roof (if
equipped) are closed before the
alarm is set.



No valuables or other personal
items are left in the vehicle.

■

Setting

Close the doors and hood, and lock all
the doors using the entry function or
wireless remote control. The system
will be set automatically after 30 sec-
onds.
Except for Canada, the alarm can also
be set using the mechanical key.

The indicator light changes from being on
to flashing when the system is set.

■

Canceling or stopping

Do one of the following to deactivate
or stop the alarms:



Unlock the doors using the entry
function or wireless remote control.
(Except for Canada, the mechanical
key can also be used.)



Turn the power switch to ACCES-
SORY or ON mode, or start the
hybrid system. (The alarm will be
deactivated or stopped after a few
seconds.)

■

System maintenance

The vehicle has a maintenance-free type

alarm system.

■

Triggering of the alarm

The alarm may be triggered in the following

situations:

(Stopping the alarm deactivates the alarm

system.)

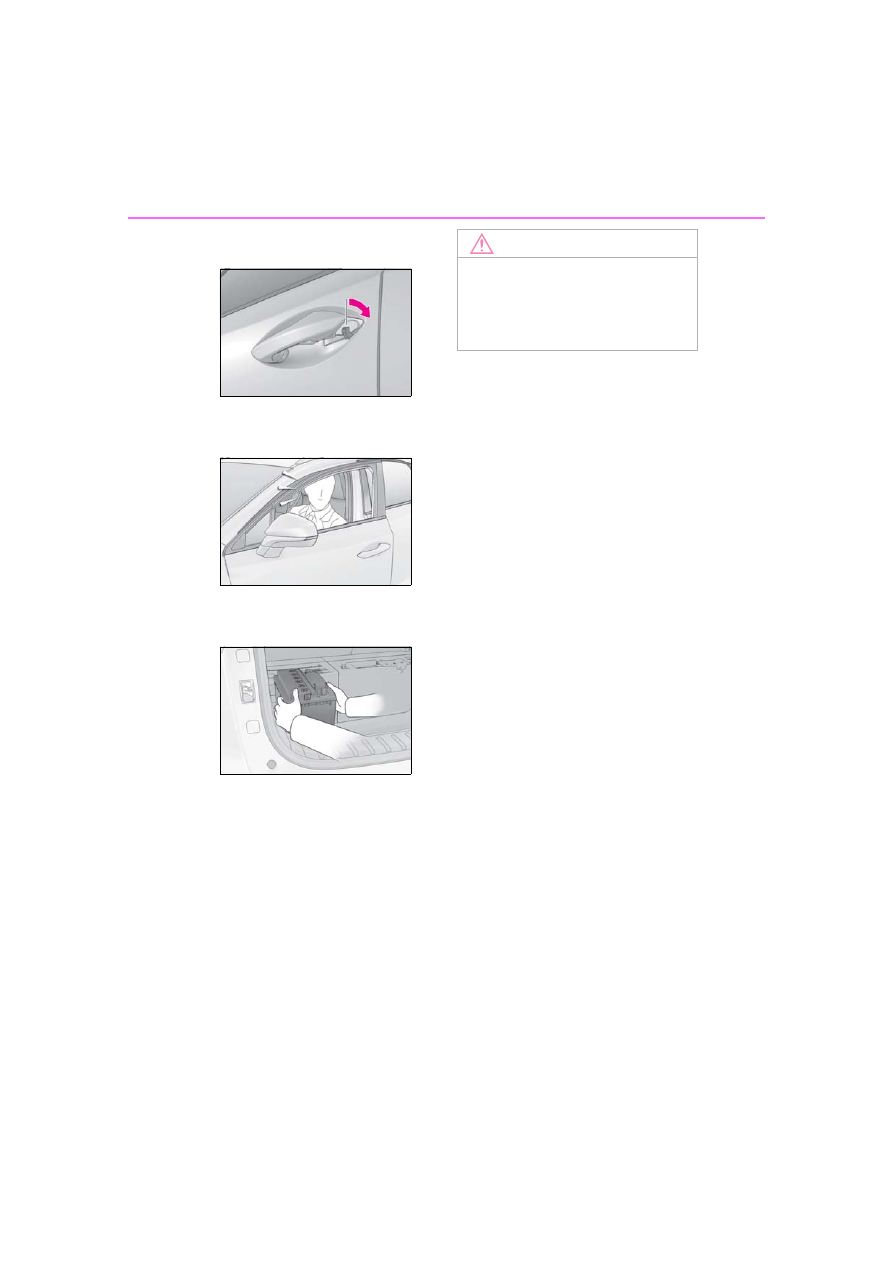

Alarm

The alarm uses light and sound to
give an alert when an intrusion is
detected.

The alarm is triggered in the follow-
ing situations when the alarm is set:



Except for Canada: A locked
door is unlocked or opened in any
way other than using the entry
function, wireless remote control
or mechanical key. (The doors will
lock again automatically.)



For Canada: A locked door is
unlocked or opened in any way
other than using the entry func-
tion or wireless remote control.
(The doors will lock again auto-
matically.)



The hood is opened.

Setting/canceling/stopping the
alarm system

78

1-5. Theft deterrent system

●

For Canada: The doors are unlocked

using the mechanical key.

●

A person inside the vehicle opens a door

or hood, or unlocks the vehicle using an

inside lock button.

●

The 12-volt battery is recharged or

replaced when the vehicle is locked.

(



P.416)

■

Alarm-operated door lock

In the following cases, depending on the sit-

uation, the door may automatically lock to

prevent improper entry into the vehicle:

●

When a person remaining in the vehicle

unlocks the door and the alarm is acti-

vated.

●

While the alarm is activated, a person

remaining in the vehicle unlocks the door.

●

When recharging or replacing the 12-volt

battery.

NOTICE

■

To ensure the system operates cor-

rectly

Do not modify or remove the system. If

modified or removed, the proper opera-

tion of the system cannot be guaranteed.

79

2

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

Vehicle status information

and indicators

2-1. Instrument cluster

Warning lights and indicators.

80

Gauges and meters ....................

84

Multi-information display..........

89

Head-up display ...........................

95

Energy monitor/fuel consumption

screen ............................................

99

80

2-1. Instrument cluster

2-1.Instrument cluster

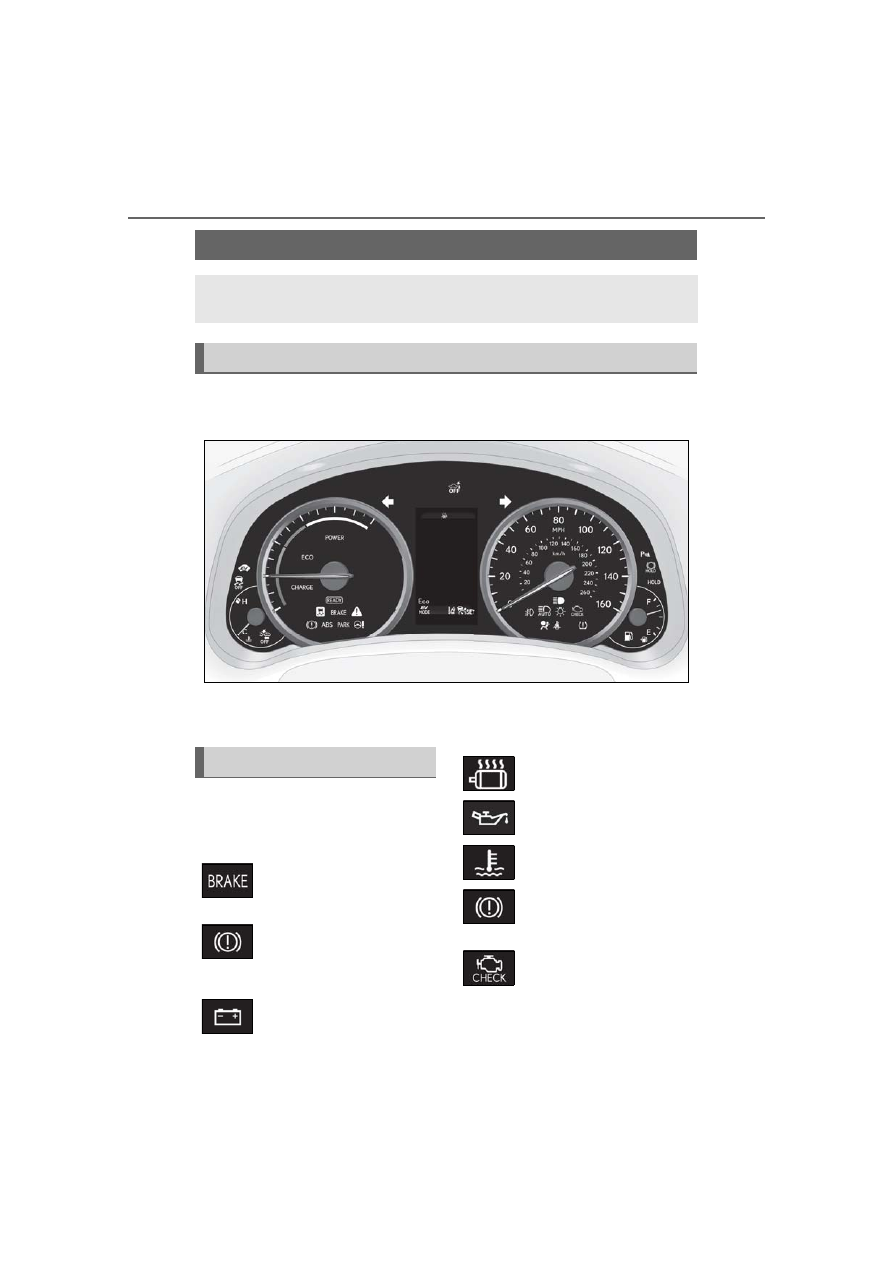

For the purpose of explanation, the following illustration displays all warning lights
and indicators illuminated.

The units used on the meter and some indicators may differ depending on the tar-
get region.

Warning lights inform the driver of mal-
functions in any of the vehicle’s sys-
tems.

Warning lights and indicators

The warning lights and indicators inform the driver of the status of the vehicle’s
various systems.

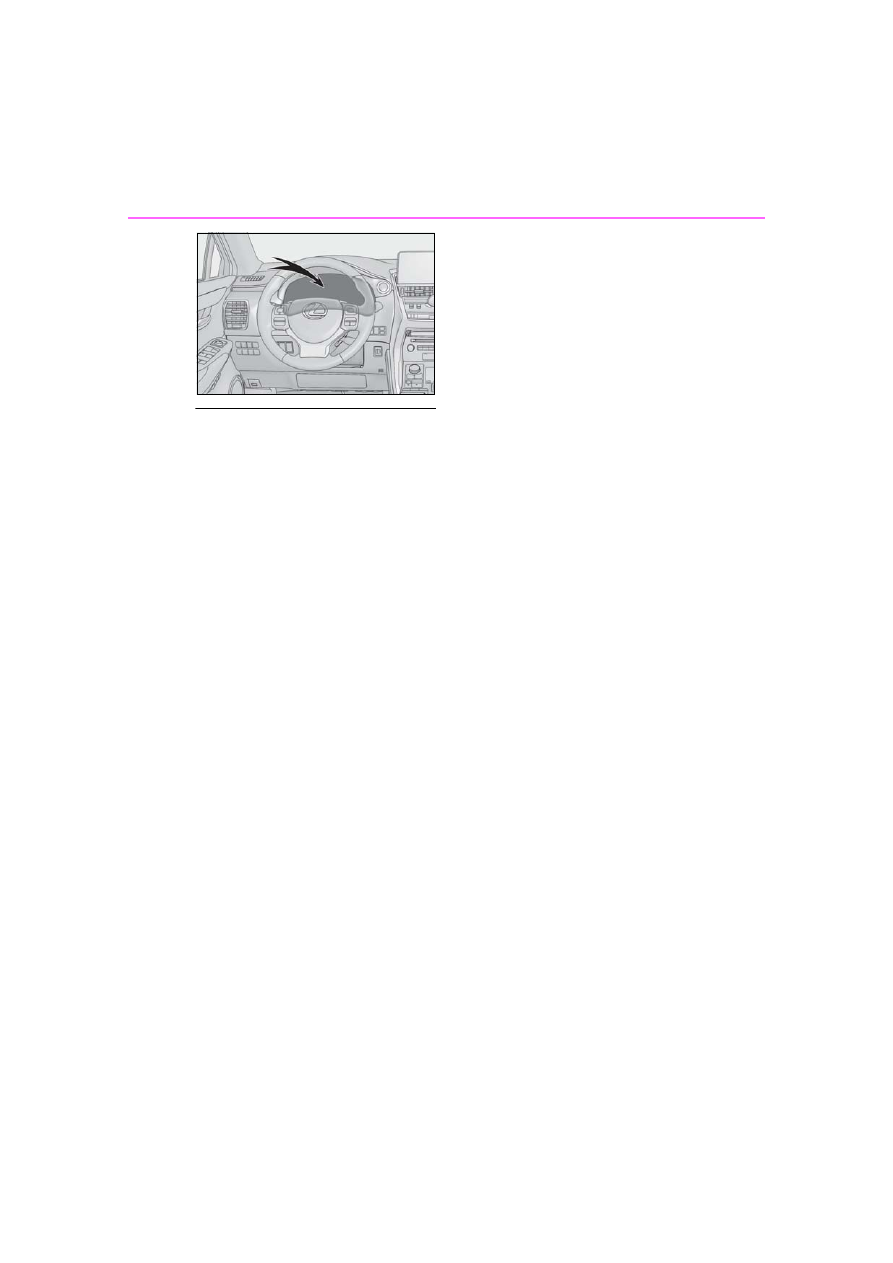

Instrument cluster

Warning lights

(U.S.A.)

Brake system warning light

*1



(



P.388)

(Red)

(Canada)

Brake system warning light

*1



(



P.388)

Charging system warning
light

*2

 (



P.388)

Output control warning light

*2



(



P.388, 399)

Low engine oil pressure warn-
ing light

*2

 (



P.389)

High coolant temperature
warning light

*2

 (



P.389)

(Yellow)

Brake system warning light

*1



(



P.389)

(U.S.A.)

Malfunction indicator lamp

*1



(



P.389)

81

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

*1

: These lights turn on when the power

switch is turned to ON mode to indi-
cate that a system check is being per-
formed. They will turn off after the
hybrid system is on, or after a few sec-
onds. There may be a malfunction in a
system if the lights do not turn on, or
turn off. Have the vehicle inspected by
your Lexus dealer.

*2

: This light illuminates on the multi-infor-

mation display.

*3

: The light flashes to indicate a malfunc-

tion.

*4

: This light illuminates on the center

panel.

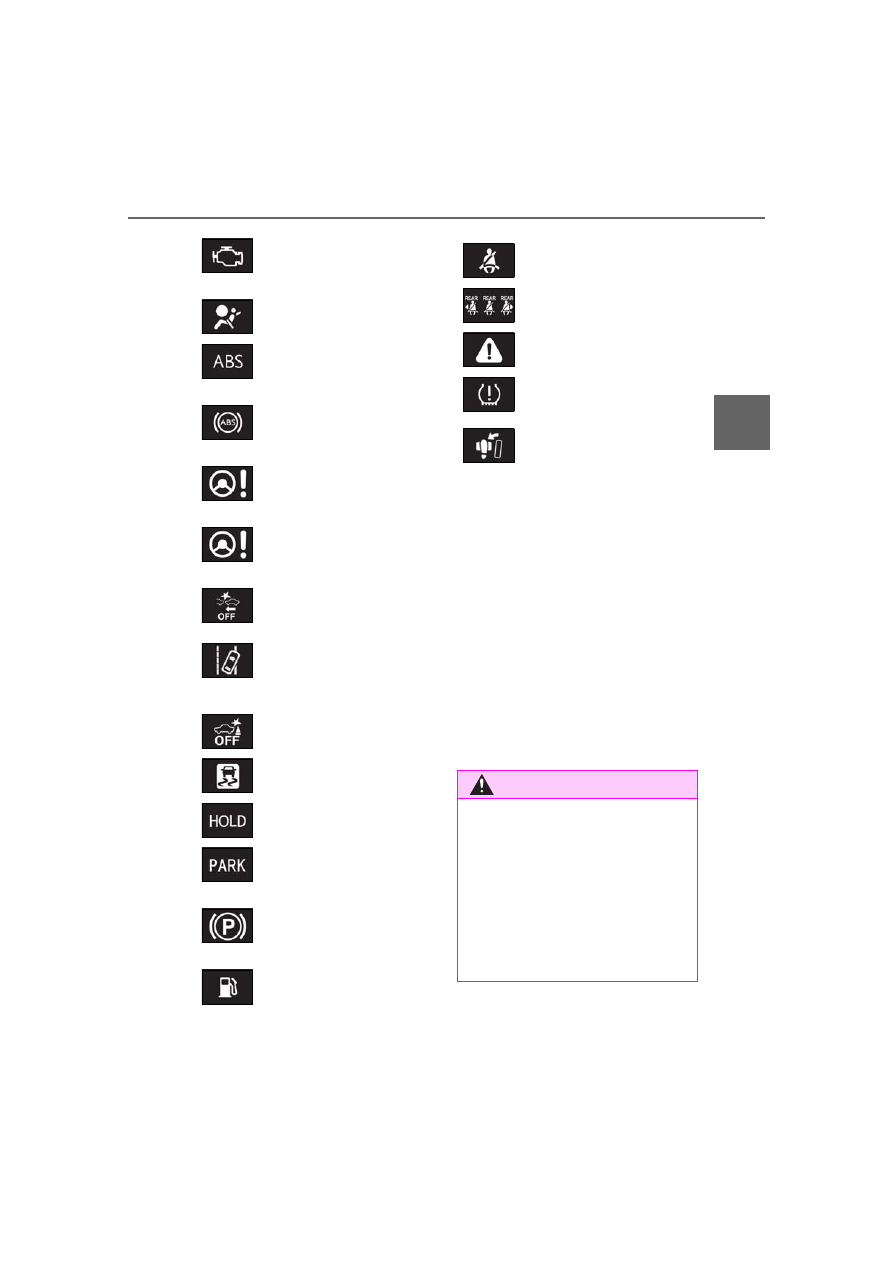

(Canada)

Malfunction indicator lamp

*1



(



P.389)

SRS warning light

*1

 (



P.390)

(U.S.A.)

ABS warning light

*1

 (



P.390)

(Canada)

ABS warning light

*1

 (



P.390)

(Yellow)

Electric power steering sys-
tem warning light

*1

 (



P.390)

(Red)

Electric power steering sys-
tem warning light

*1

 (



P.390)

PCS warning light

*1

 (



P.391)

(Orange)

LTA indicator

*2

 (if equipped)

(



P.391)

LDA indicator

*2

 (if equipped)

(



P.391)

PKSB OFF indicator

*1, 3

 (if

equipped) (



P.392)

Slip indicator light

*1

 (



P.392)

Brake hold operated indica-
tor

*1, 3

 (



P.392)

(U.S.A.)

Parking brake indicator

*3



(



P.392)

(Canada)

Parking brake indicator

*3



(



P.392)

Low fuel level warning light
(



P.393)

Driver’s and front passenger’s
seat belt reminder light
(



P.393)

Rear passengers’ seat belt
reminder light

*4

 (



P.393)

Master warning light

*1



(



P.394)

Tire pressure warning light

*1



(



P.394)

Brake Override Sys-
tem/Drive-Start Control warn-
ing light

*2

 (



P.395)

WARNING

■

If a safety system warning light does

not come on

Should a safety system light such as the

ABS and SRS airbag warning light not

come on when you start the hybrid sys-

tem, this could mean that these systems

are not available to help protect you in an

accident, which could result in death or

serious injury. Have the vehicle inspected

by your Lexus dealer immediately if this

occurs.

82

2-1. Instrument cluster

The indicators inform the driver of the
operating state of the vehicle’s various
systems.

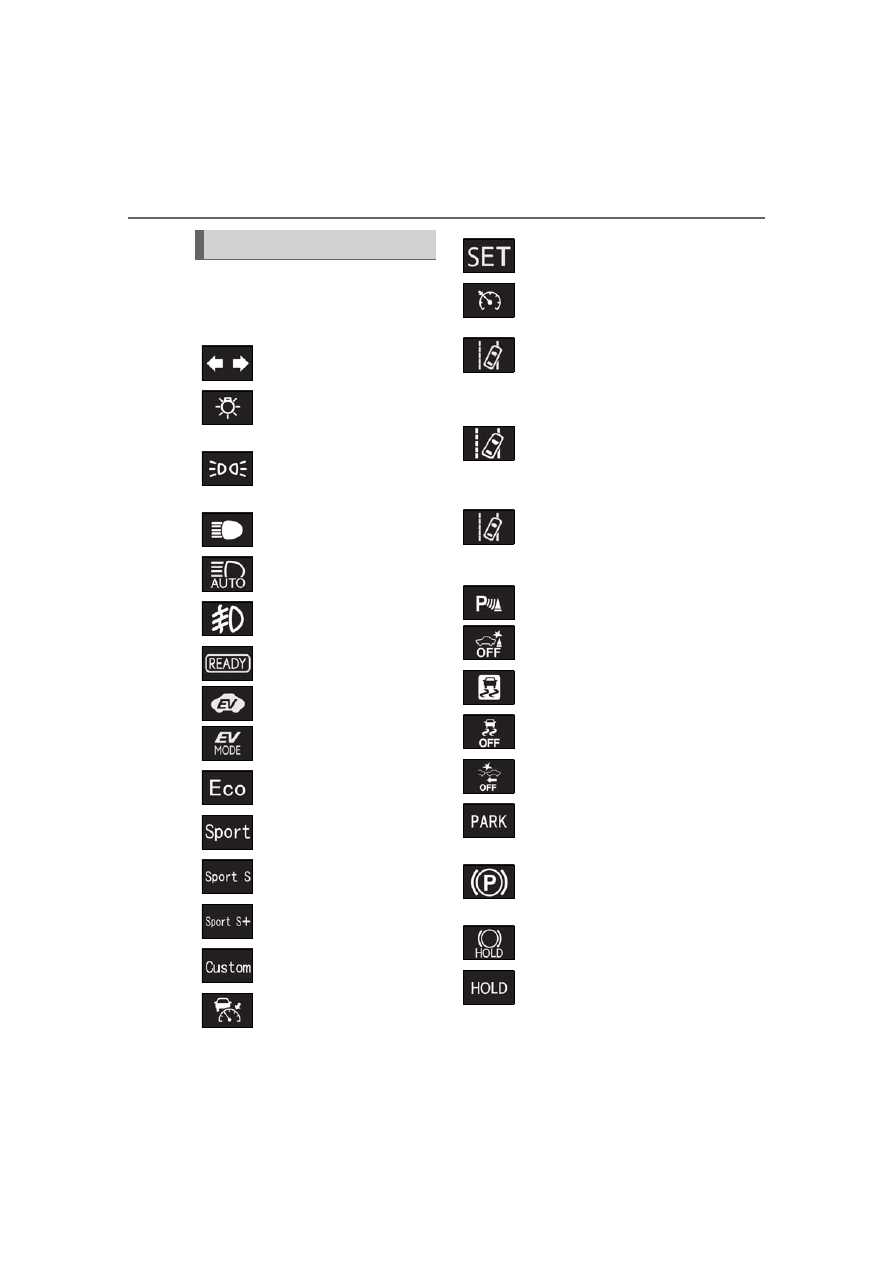

Indicators

Turn signal indicator (



P.183)

(U.S.A.)

Headlight indicator (



P.190)

(Canada)

Tail light indicator (



P.190)

Headlight high beam indicator
(



P.192)

Automatic High Beam indica-
tor (



P.193)

Fog light indicator (



P.196)

“READY” indicator (



P.174)

EV indicator (



P.68)

EV drive mode indicator

*2



(



P.178)

“Eco” indicator

*2

 (



P.270)

“Sport” indicator

*2

 (if

equipped) (



P.270)

“Sport S” indicator

*2

 (if

equipped) (



P.270)

“Sport S+” indicator

*2

 (if

equipped) (



P.270)

“Custom” indicator

*2

 (if

equipped) (



P.270)

Dynamic radar cruise control
indicator

*2

 (



P.237)

Cruise control “SET” indica-
tor

*2

 (



P.237)

Cruise control indicator

*2



(



P.237)

(White)

LTA indicator

*2

 (if equipped)

(



P.223)

LDA indicator

*2

 (if equipped)

(



P.232)

(Green)

LTA indicator

*2

 (if equipped)

(



P.223)

LDA indicator

*2

 (if equipped)

(



P.232)

(Orange)

LTA indicator

*2, 3

 (if equipped)

(



P.223)

LDA indicator

*2, 3

 (if

equipped) (



P.232)

Intuitive parking assist indica-
tor (if equipped) (



P.248)

PKSB OFF indicator

*1, 4

 (if

equipped) (



P.254)

Slip indicator light

*1, 3



(



P.273)

VSC off indicator

*1, 4



(



P.274)

PCS warning light

*1, 4



(



P.213)

(U.S.A.)

Parking brake indicator
(



P.184)

(Canada)

Parking brake indicator
(



P.184)

Brake hold standby indicator

*1



(



P.187)

Brake hold operated indica-
tor

*1

 (



P.187)

83

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

*1

: These lights turn on when the power

switch is turned to the ON mode to
indicate that a system check is being
performed. They will turn off after the
hybrid system is on, or after a few sec-
onds. There may be a malfunction in a
system if the lights do not turn on, or
turn off. Have the vehicle inspected by
your Lexus dealer.

*2

: This light illuminates on the multi-infor-

mation display.

*3

: The light flashes to indicate that the sys-

tem is operating.

*4

: The light comes on when the system is

turned off.

*5

: When the outside temperature is

approximately 37°F (3°C) or lower, the
indicator will flash for approximately 10
seconds, then stay on.

*6

: In order to confirm operation, the BSM

outside rear view mirror indicators illu-
minate in the following situations:
When the power switch is turned to
ON mode while the BSM main switch is
set to ON.
When the BSM main switch is set to
ON while the power switch is in ON
mode.

If the system is functioning correctly, the
BSM outside rear view mirror indica-
tors will turn off after a few seconds.
If the BSM outside rear view mirror indi-
cators do not illuminate or do not turn
off, there may be a malfunction in the
system.
If this occurs, have the vehicle inspected
by your Lexus dealer.

*7

: This light illuminates on the outside rear

view mirrors.

*8

: This light illuminates on the center

panel.

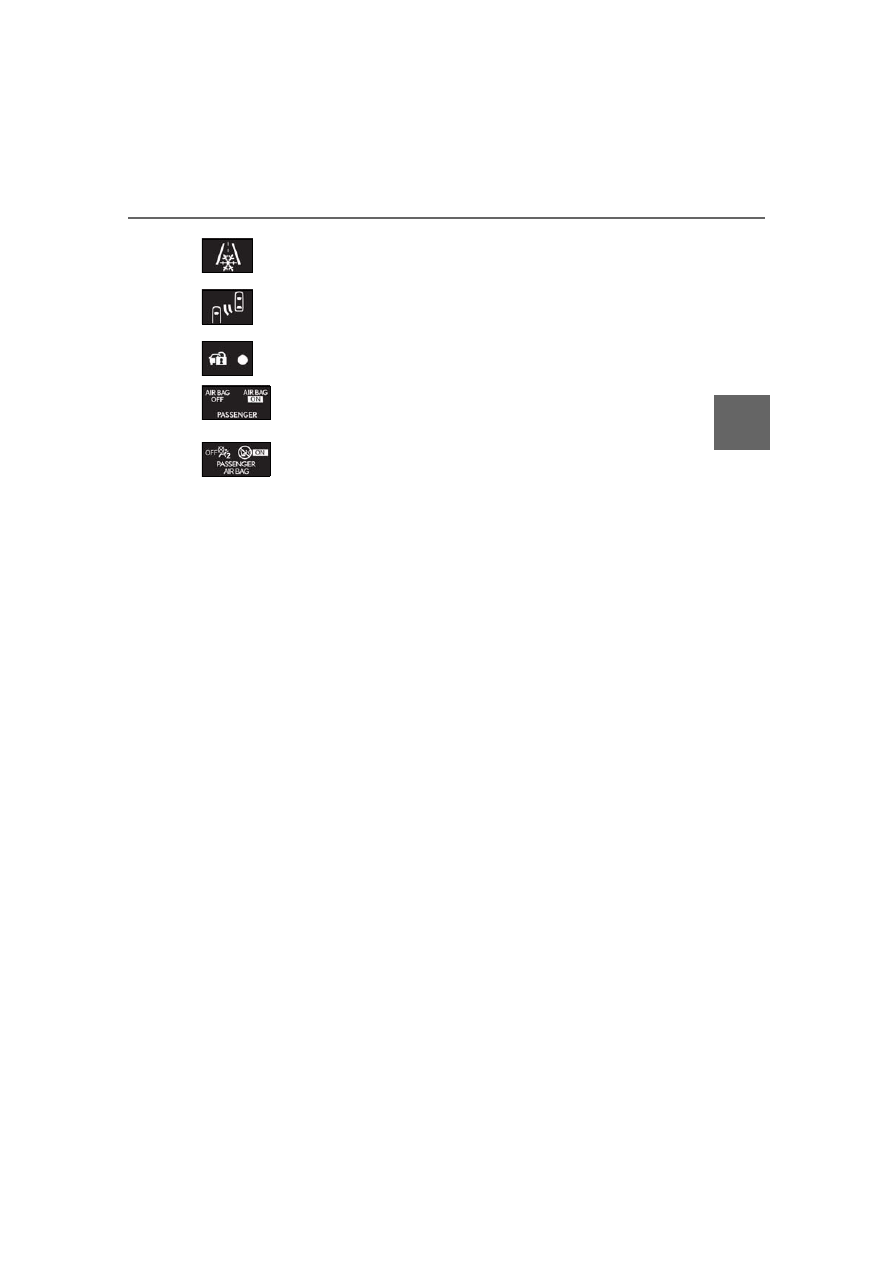

Low outside temperature indi-
cator

*2, 5

 (



P.84)

BSM outside rear view mirror
indicators

*6, 7

 (if equipped)

(



P.262)

Security indicator

*8

 (



P.75,

77)

(U.S.A.)

“AIR BAG ON/OFF” indi-
cator

*8

 (



P.41)

(Canada)

“AIR BAG ON/OFF” indi-
cator

*8

 (



P.41)

84

2-1. Instrument cluster



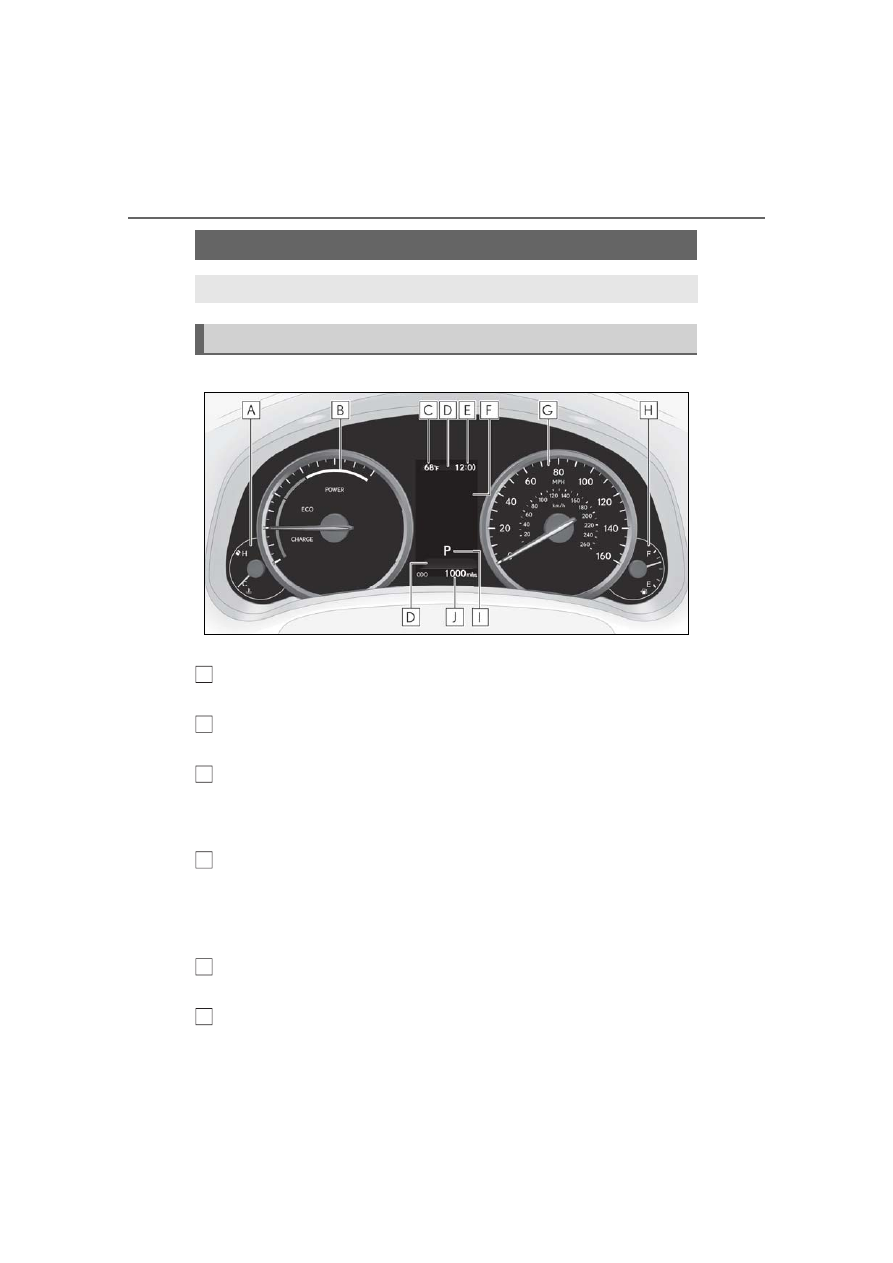

When driving mode is in other than Sport mode (



P.270)

The units used on the meters may differ depending on the target region.

Engine coolant temperature gauge

Displays the engine coolant temperature

Hybrid System Indicator

Displays hybrid system output or regeneration level (



P.87)

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C). Low
outside temperature indicator comes on when the ambient temperature is 37°F (3°C) or
lower.

Background color of driving mode

Background color changes according to the driving mode. (



P.270)

• Sport  mode:  Red
• Eco  mode:  Blue
When in Normal mode, the background color is black.

Clock

Time displayed is linked to the analog clock on the instrument panel. (



P.312)

Multi-information display

Gauges and meters

The meters display various drive information.

Meter display

A

B

C

D

E

F

85

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

Presents the driver with a variety of vehicle data (



P.89)

Displays warning messages in case of a malfunction (



P.398)

Speedometer

Displays the vehicle speed

Fuel gauge

Displays the quantity of fuel remaining in the tank

Shift position and shift range

Displays the selected shift position or selected shift range (



P.180)

Odometer, trip meter and maintenance required information display

Odometer:
Displays the total distance the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last reset.
Trip meters “A” and “B” can be used to record and display different distances inde-
pendently.
Maintenance required information:
Displays the remaining distance until the engine oil should be changed.
• Displays the maintenance required information when the power switch is ON mode.

• It can be reset on

 of the multi-information display. (



P.92)



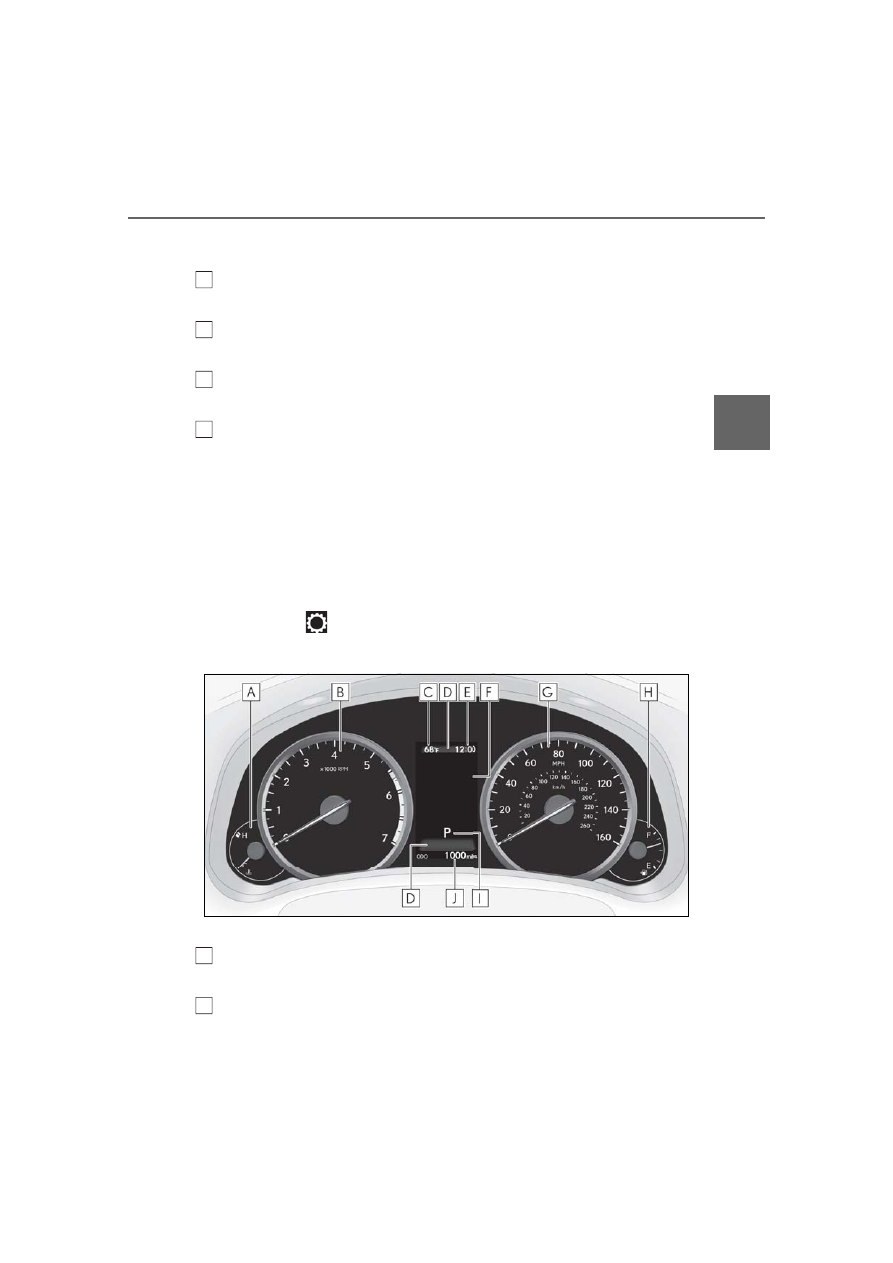

When driving mode is in Sport mode (



P.270)

The units used on the meters may differ depending on the target region.

Engine coolant temperature gauge

Displays the engine coolant temperature

Tachometer

Displays the engine speed in revolutions per minute

G

H

I

J

A

B

86

2-1. Instrument cluster

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C). Low
outside temperature indicator comes on when the ambient temperature is 37°F (3°C) or
lower.

Background color of driving mode

Background color changes according to the driving mode. (



P.270)

• Sport  mode:  Red
• Eco  mode:  Blue
When in Normal mode, the background color is black.

Clock

Time displayed is linked to the analog clock on the instrument panel. (



P.312)

Multi-information display

Presents the driver with a variety of vehicle data (



P.89)

Displays warning messages in case of a malfunction (



P.398)

Speedometer

Displays the vehicle speed

Fuel gauge

Displays the quantity of fuel remaining in the tank

Shift position and shift range

Displays the selected shift position or selected shift range (



P.180)

Odometer, trip meter and maintenance required information display

Odometer:
Displays the total distance the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last reset.
Trip meters “A” and “B” can be used to record and display different distances inde-
pendently.
Maintenance required information:
Displays the remaining distance until the engine oil should be changed.
• Displays the maintenance required information when the power switch is ON mode.

• It can be reset on

 of the multi-information display. (



P.92)

■

Operating condition

The power switch is in ON mode.

C

D

E

F

G

H

I

J

87

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

■

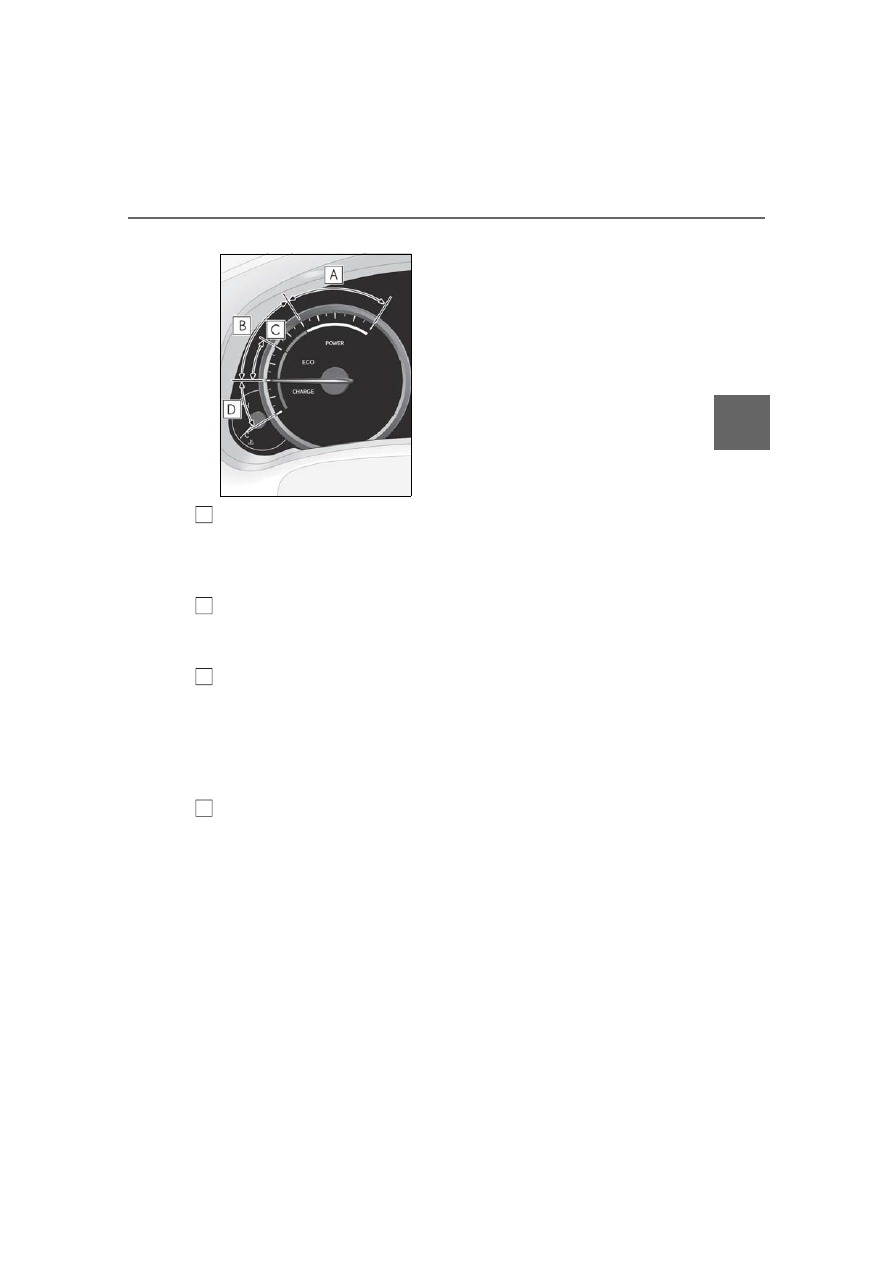

Hybrid System Indicator

Power area
Shows that an Eco-friendly driving
range is being exceeded (during full
power driving etc.)

Eco area
Shows that the vehicle is being driven in
an Eco-friendly manner.

Hybrid Eco area
Shows that gasoline engine power is not
being used very often.
The gasoline engine will automatically
stop and restart under various condi-
tions.

Charge area
Shows that energy is being recovered
via the regenerative brake.

●

Hybrid System Indicator is displayed

when the driving mode is in other than

the Sport mode.

●

By keeping the indicator needle within

Eco area, more Eco-friendly driving can

be achieved.

●

Charge area indicates regeneration

*

 sta-

tus. Regenerated energy will be used to

charge the hybrid battery (traction bat-

tery).

*

: When used in this manual, “regeneration”

refers to the conversion of energy cre-
ated by the movement of the vehicle into
electrical energy.

■

Tachometer

Hybrid System Indicator switches to the

tachometer when driving mode is in Sport

mode. The settings of the tachometer dis-

play can be changed on the multi-informa-

tion display.

■

Engine speed

On hybrid vehicles, engine speed is pre-

cisely controlled in order to help improve

fuel efficiency and reduce exhaust emis-

sions, etc.

There are times when the engine speed that

is displayed may differ even when vehicle

operation and driving conditions are the

same.

■

Outside temperature display

●

In the following situations, the correct

outside temperature may not be dis-

played, or the display may take longer

than normal to change.

• When stopped, or driving at low speeds

(less than 12 mph [20 km/h])

• When the outside temperature has

changed suddenly (at the entrance/exit of

a garage, tunnel, etc.)

●

When “--” or “E” is displayed, the system

may be malfunctioning.

Take your vehicle to your Lexus dealer.

■

Pop-up display

In some situations, a pop-up display will be

temporarily displayed on the multi-informa-

tion display or the odometer/trip

meter/maintenance required information

screen.

The pop-up display function can be set

on/off. (



P.93)

■

Liquid crystal display

Small spots or light spots may appear on the

display. This phenomenon is characteristic

of liquid crystal displays, and there is no

problem continuing to use the display.

■

Customization

The meter display can be customized on

A

B

C

D

88

2-1. Instrument cluster

the multi-information display.

(Customizable features:



P.443)

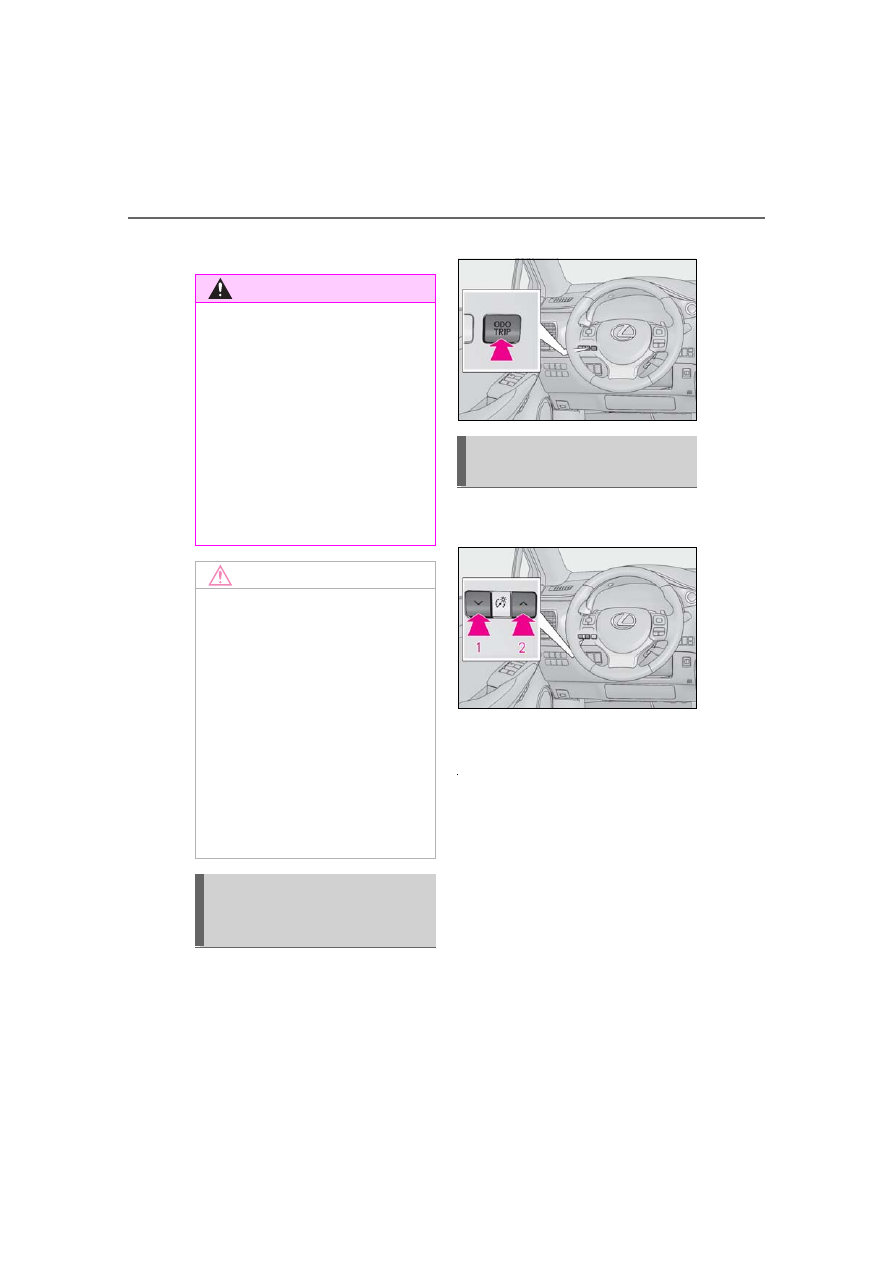

Switches between odometer, trip
meter and maintenance required infor-
mation displays. When the trip meter is
displayed, pressing and holding the

button will reset the trip meter.

The brightness of the instrument panel
lights can be adjusted.

1

Darker

2

Brighter

■

Instrument panel brightness adjustment

The instrument panel brightness levels

when the tail lights are on and off can be

adjusted individually. However, when the

surroundings are bright (daytime, etc.),

turning on the tail lights will not change the

instrument panel brightness. At this time,

any adjustments made to the instrument

panel brightness levels will be applied to

both settings at once.

WARNING

■

The information display at low tem-

peratures

Allow the interior of the vehicle to warm

up before using the liquid crystal infor-

mation display. At extremely low tem-

peratures, the information display

monitor may respond slowly, and display

changes may be delayed.

For example, there is a lag between the

driver’s shifting and the new gear number

appearing on the display. This lag could

cause the driver to downshift again,

causing rapid and excessive engine brak-

ing and possibly an accident resulting in

personal death or injury.

NOTICE

■

To prevent damage to the engine and

its components

●

When the tachometer is displayed, do

not let the indicator needle of the

tachometer enter the red zone, which

indicates the maximum engine speed.

●

The engine may be overheating if the

engine coolant temperature gauge is

in the red zone (H); or “Engine Cool-

ant Temp High” or “Hybrid System

Overheated” is shown on the multi-

information display. In this case, imme-

diately stop the vehicle in a safe place,

and check the engine or hybrid system

after it has cooled completely.

(



P.418)

Changing between the odome-
ter, trip meter and maintenance
required information

Changing the Instrument panel
light brightness
