4-3. Operating the lights and wipers

Driving

When the windshield wipers are not
being used, they retract to below the
hood. To enable the windshield wipers
to be lifted when parking in cold condi-
tions or when replacing a windshield
wiper insert, change the rest position of
the windshield wipers to the service
position using the wiper lever.

■

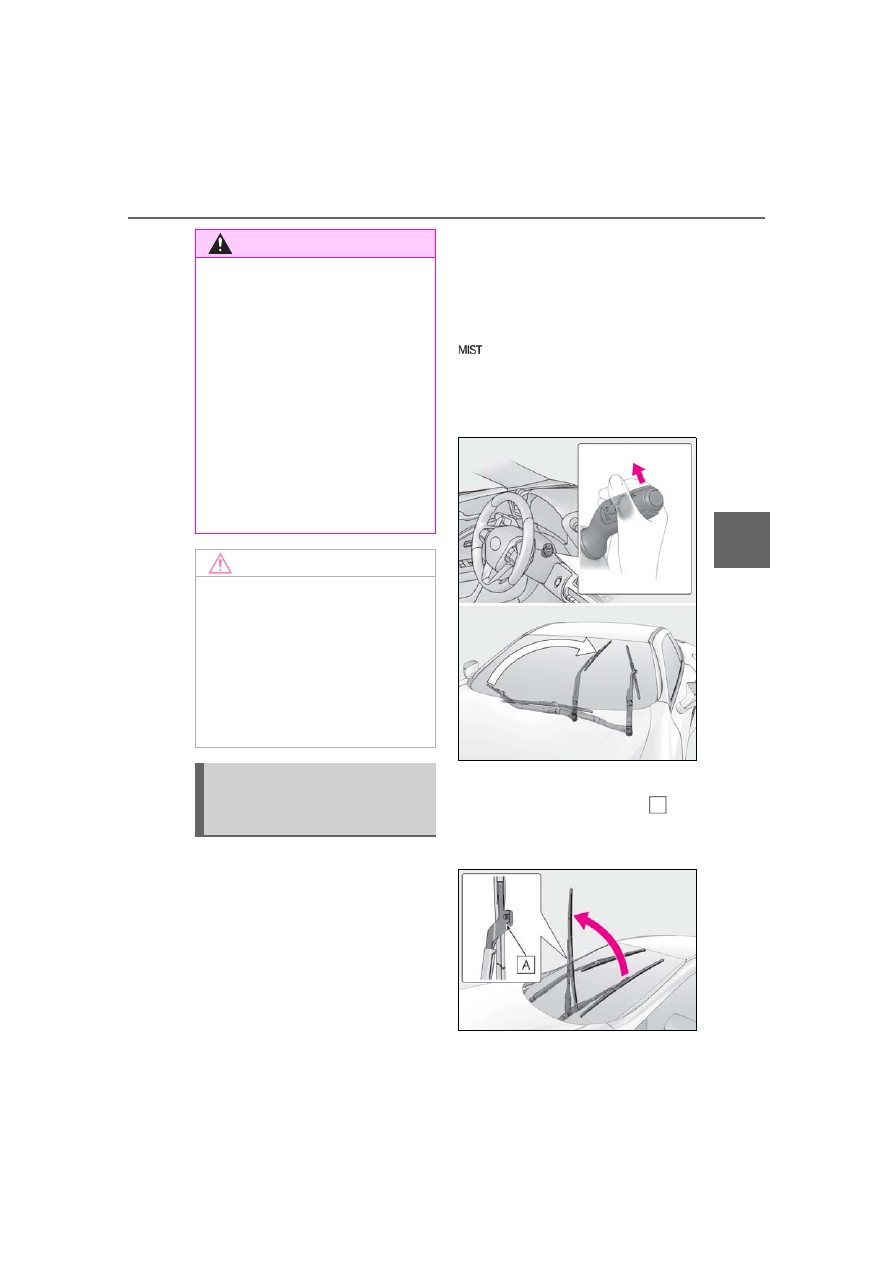

Raising the wipers to the service
position

Within approximately 45 seconds of
turning the engine switch <power
switch> off, move the wiper lever to the

position and hold it for approxi-

mately 2 seconds or more.

The wipers will move to the service posi-
tion.

■

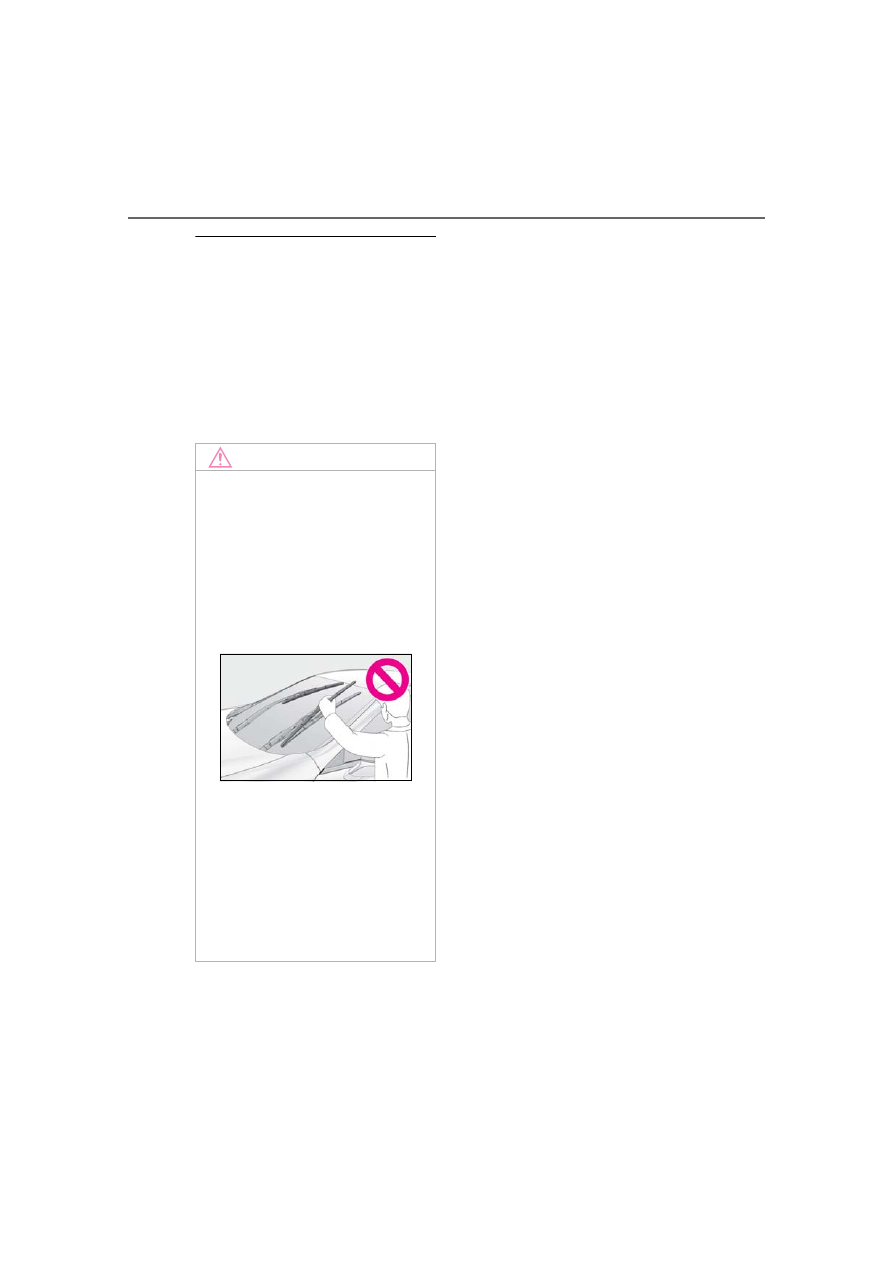

Lifting the windshield wipers

While holding the hook portion

the wiper arm, lift the windshield wiper
from the windshield.

WARNING

■

Caution regarding the use of wind-

shield wipers in “AUTO” mode

The windshield wipers may operate

unexpectedly if the sensor is touched or

the windshield is subject to vibration in

“AUTO” mode. Take care that your fin-

gers or anything else do not become

caught in the windshield wipers.

■

Caution regarding the use of washer

fluid

When it is cold, do not use the washer

fluid until the windshield becomes warm.

The fluid may freeze on the windshield

and cause low visibility. This may lead to

an accident, resulting in death or serious

injury.

NOTICE

■

When there is no washer fluid spray

from the nozzle

Damage to the washer fluid pump may

be caused if the lever is pulled toward

you and held continually.

■

When a nozzle becomes blocked

In this case, contact your Lexus dealer.

Do not try to clear it with a pin or other

object. The nozzle will be damaged.

Changing the windshield wiper
rest position/Lifting the wind-
shield wipers

190

4-3. Operating the lights and wipers

■

Lowering the windshield wipers to the

retracted position

With the windshield wipers placed on the

windshield, turn the engine switch <power

switch> to IGNITION ON mode <ON

mode> and then move the wiper lever to an

operating position. When the wiper switch

is turned off, the windshield wipers will stop

at the retracted position. Even if the wipers

deviate while the engine switch <power

switch> is off, the wipers will return to the

normal position.

NOTICE

■

When lifting the windshield wipers

●

Do not lift the windshield wipers when

they are in the retracted position

below the hood. Otherwise, they may

contact the hood, possibly resulting in

damage to a windshield wiper and/or

the hood.

●

Do not lift a windshield wiper by the

wiper blade. Otherwise, the wiper

blade may be deformed.

●

Do not operate the wiper lever when

the windshield wipers are lifted. Oth-

erwise, the windshield wipers may

contact the hood, possibly resulting in

damage to the windshield wipers

and/or hood.

●

Make sure that the wiper arms do not

overlap each other when returning

them. Failure to do so may cause dam-

age to the windshield wipers.

191

4-4. Refueling

Driving

4-4.Refueling



Turn the engine switch <power
switch> off and ensure that both side
doors and windows are closed.



Confirm the type of fuel.

■

Fuel types



P.395

■

Fuel tank opening for unleaded gasoline

To help prevent incorrect fueling, your vehi-

cle has a fuel tank opening that only accom-

modates the special nozzle on unleaded

fuel pumps.

■

LC500: If the malfunction indicator

lamp illuminates

The malfunction indicator lamp may illumi-

nate erroneously if refueling is performed

repeatedly when the fuel tank is nearly full.

Opening the fuel tank cap

LC500h: The fuel tank of your vehi-
cle has a special structure, which
requires a reduction in fuel tank
pressure before refueling. After the
opener switch has been pressed, it
will take several seconds until the
vehicle is ready for refueling.

Before refueling the vehicle

WARNING

■

When refueling the vehicle

Observe the following precautions while

refueling the vehicle. Failure to do so may

result in death or serious injury.

●

After exiting the vehicle and before

opening the fuel door, touch an

unpainted metal surface to discharge

any static electricity. It is important to

discharge static electricity before refu-

eling because sparks resulting from

static electricity can cause fuel vapors

to ignite while refueling.

●

Always hold the grips on the fuel tank

cap and turn it slowly to remove it.

A whooshing sound may be heard

when the fuel tank cap is loosened.

Wait until the sound cannot be heard

before fully removing the cap. In hot

weather, pressurized fuel may spray

out the filler neck and cause injury.

●

Do not allow anyone that has not dis-

charged static electricity from their

body to come close to an open fuel

tank.

●

Do not inhale vaporized fuel.

Fuel contains substances that are

harmful if inhaled.

●

Do not smoke while refueling the vehi-

cle.

Doing so may cause the fuel to ignite

and cause a fire.

●

Do not return to the vehicle or touch

any person or object that is statically

charged.

This may cause static electricity to

build up, resulting in a possible ignition

hazard.

■

When refueling

Observe the following precautions to

prevent fuel overflowing from the fuel

tank:

●

Securely insert the fuel nozzle into the

fuel filler neck.

●

Stop filling the tank after the fuel noz-

zle automatically clicks off.

●

Do not top off the fuel tank.

192

4-4. Refueling

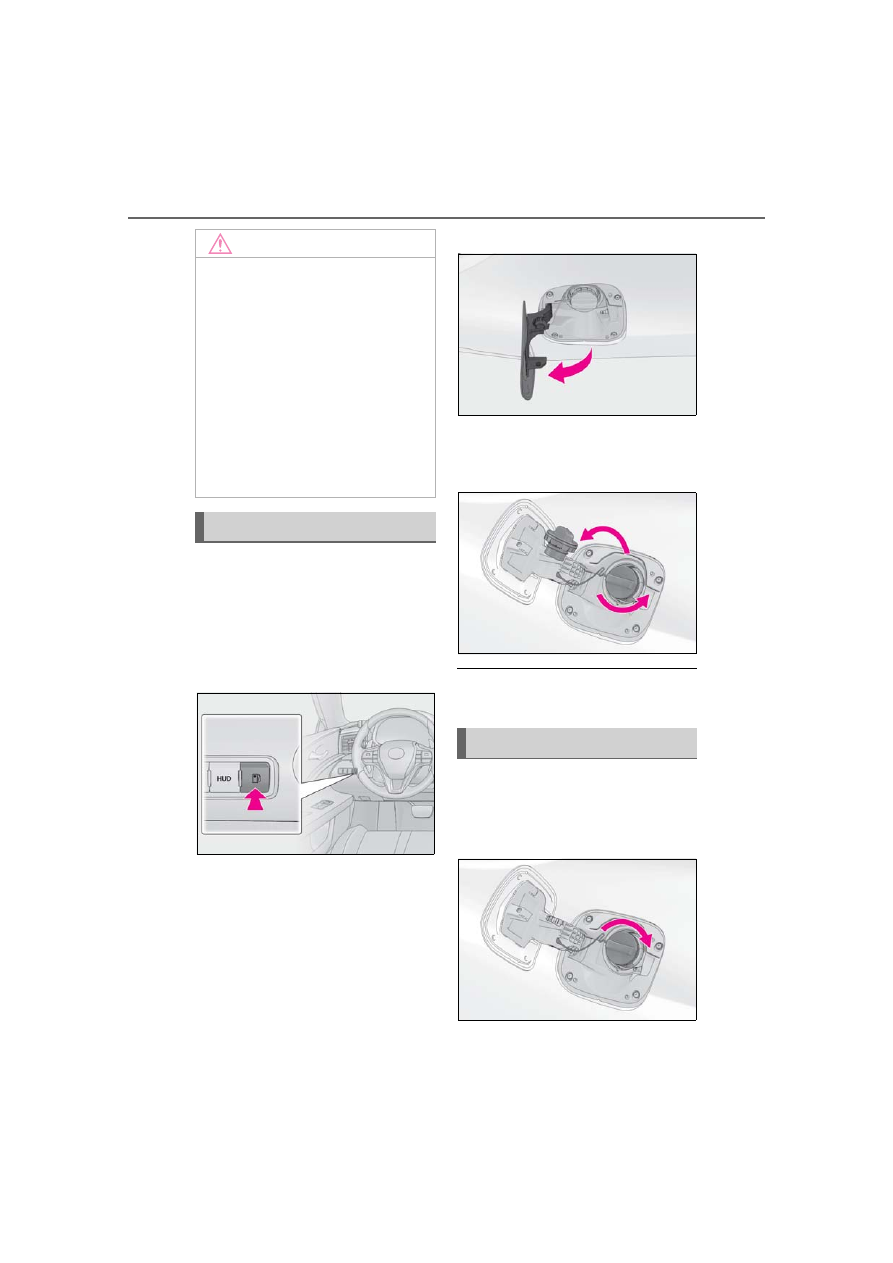

Press the opener.

LC500h: The fuel filler door will open

within about 10 seconds of the switch

being pressed. Before refueling is possible,

a message will be shown on the multi-infor-

mation display in the instrument cluster to

indicate the progress of the fuel filler door

opener.

Open the fuel filler door until it is
securely locked.

The fuel filler door will be locked when it is

opened until it becomes perpendicular to

the base.

Turn the fuel tank cap slowly and
remove it, then put it into the holder
on the fuel filler door.

■

If the fuel filler door cannot be opened



P.366

After refueling, turn the fuel tank cap
until you hear a click. Once the cap is
released, it will turn slightly in the oppo-
site direction.

NOTICE

■

Refueling

●

LC500h: Finish refueling within 30

minutes. If more than 30 minutes

passes, the internal valve closes. In this

condition, fuel may overflow during the

refueling process.

Press the fuel filler door opener switch

again.

●

Do not spill fuel during refueling.

Doing so may damage the vehicle,

such as causing the emission control

system to operate abnormally or dam-

aging fuel system components or the

vehicle’s painted surface.

Opening the fuel tank cap

Closing the fuel tank cap

193

4-4. Refueling

Driving

WARNING

■

When replacing the fuel tank cap

Do not use anything but a genuine Lexus

fuel tank cap designed for your vehicle.

Doing so may cause a fire or other inci-

dent which may result in death or serious

injury.

194

4-5. Using the driving support systems

4-5.Using the driving support systems

■

PCS (Pre-Collision System)



P.200

■

LKA (Lane-Keeping Assist)



P.207

■

Automatic High Beam



P.184

■

Dynamic radar cruise control with
full-speed range



P.214

Two types of sensors, located behind
the front grille and windshield, detect
information necessary to operate the

drive assist systems.

Radar sensor

Front camera

Lexus Safety System +

The Lexus Safety System + consists
of the following drive assist systems
and contributes to a safe and com-
fortable driving experience:

Driving assist system

WARNING

■

Lexus Safety System +

The Lexus Safety System + is designed to

operate under the assumption that the

driver will drive safely, and is designed to

help reduce the impact to the occupants

and the vehicle in the case of a collision

or assist the driver in normal driving con-

ditions.
As there is a limit to the degree of recog-

nition accuracy and control performance

that this system can provide, do not

overly rely on this system. The driver is

always responsible for paying attention

to the vehicle’s surroundings and driving

safely.

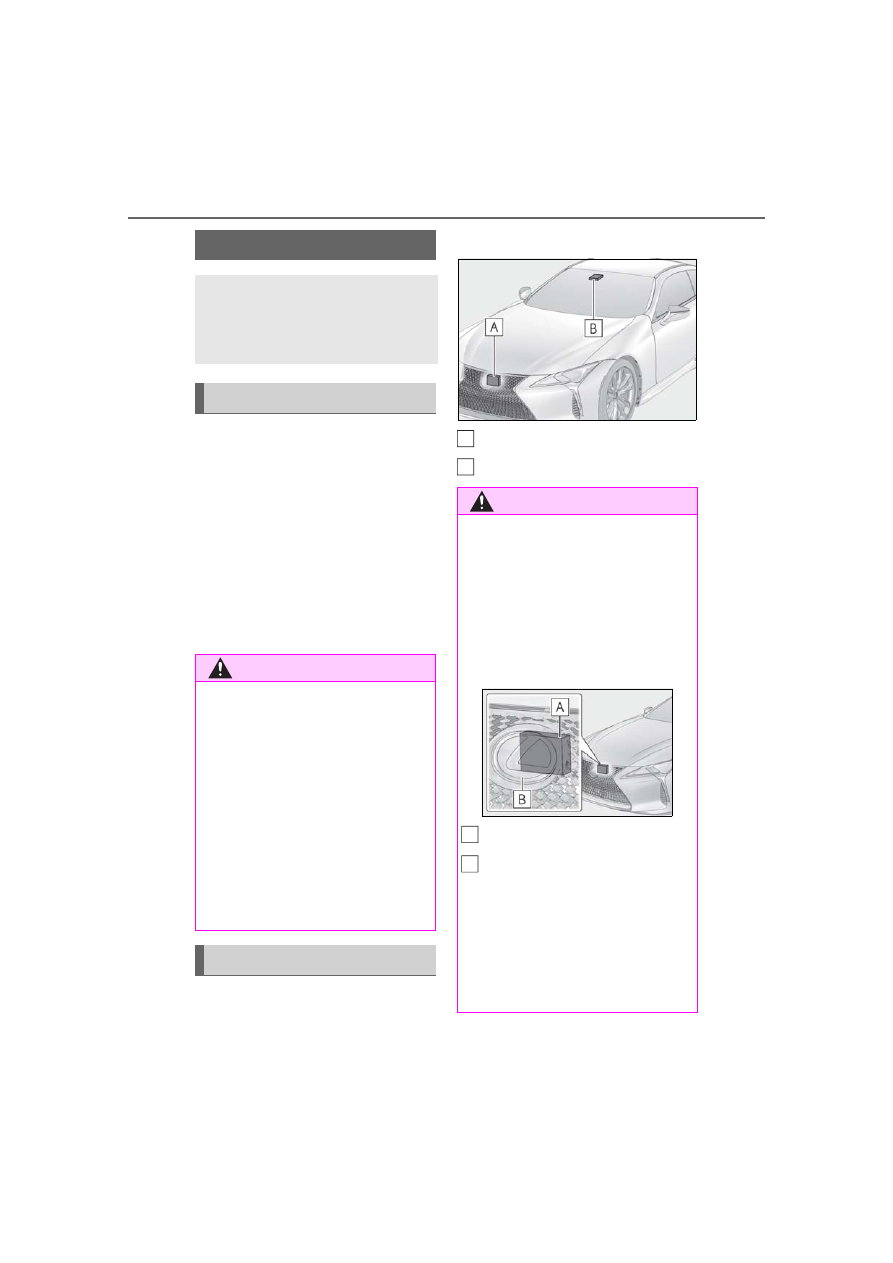

Sensors

WARNING

■

To avoid malfunction of the radar sen-

sor

Observe the following precautions.
Otherwise, the radar sensor may not

operate properly, possibly leading to an

accident resulting in death or serious

injury.

●

Keep the radar sensor and the radar

sensor cover clean at all times.

Radar sensor

Radar sensor cover

If the front of the radar sensor or the front
or back of the radar sensor cover is dirty
or covered with water droplets, snow,
etc., clean it.
Clean the radar sensor and radar sensor
cover with a soft cloth to avoid damaging
them.

A
B

195

4-5. Using the driving support systems

Driving

WARNING

●

Do not attach accessories, stickers

(including transparent stickers) or

other items to the radar sensor, radar

sensor cover or surrounding area.

●

Do not subject the radar sensor or its

surrounding area to a strong impact.

If the radar sensor, front grille, or front

bumper has been subjected to a

strong impact, have the vehicle

inspected by your Lexus dealer.

●

Do not disassemble the radar sensor.

●

Do not modify or paint the radar sen-

sor or radar sensor cover.

●

In the following cases, the radar sensor

must be recalibrated. Contact your

Lexus dealer for details.

• When the radar sensor or front grille

are removed and installed, or replaced

• When the front bumper is replaced

■

To avoid malfunction of the front cam-

era

Observe the following precautions.
Otherwise, the front camera may not

operate properly, possibly leading to an

accident resulting in death or serious

injury.

●

Keep the windshield clean at all times.

• If the windshield is dirty or covered

with an oily film, water droplets, snow,

etc., clean the windshield.

• If a glass coating agent is applied to the

windshield, it will still be necessary to

use the windshield wipers to remove

water droplets, etc. from the area of

the windshield in front of the front

camera.

• If the inner side of the windshield

where the front camera is installed is

dirty, contact your Lexus dealer.

●

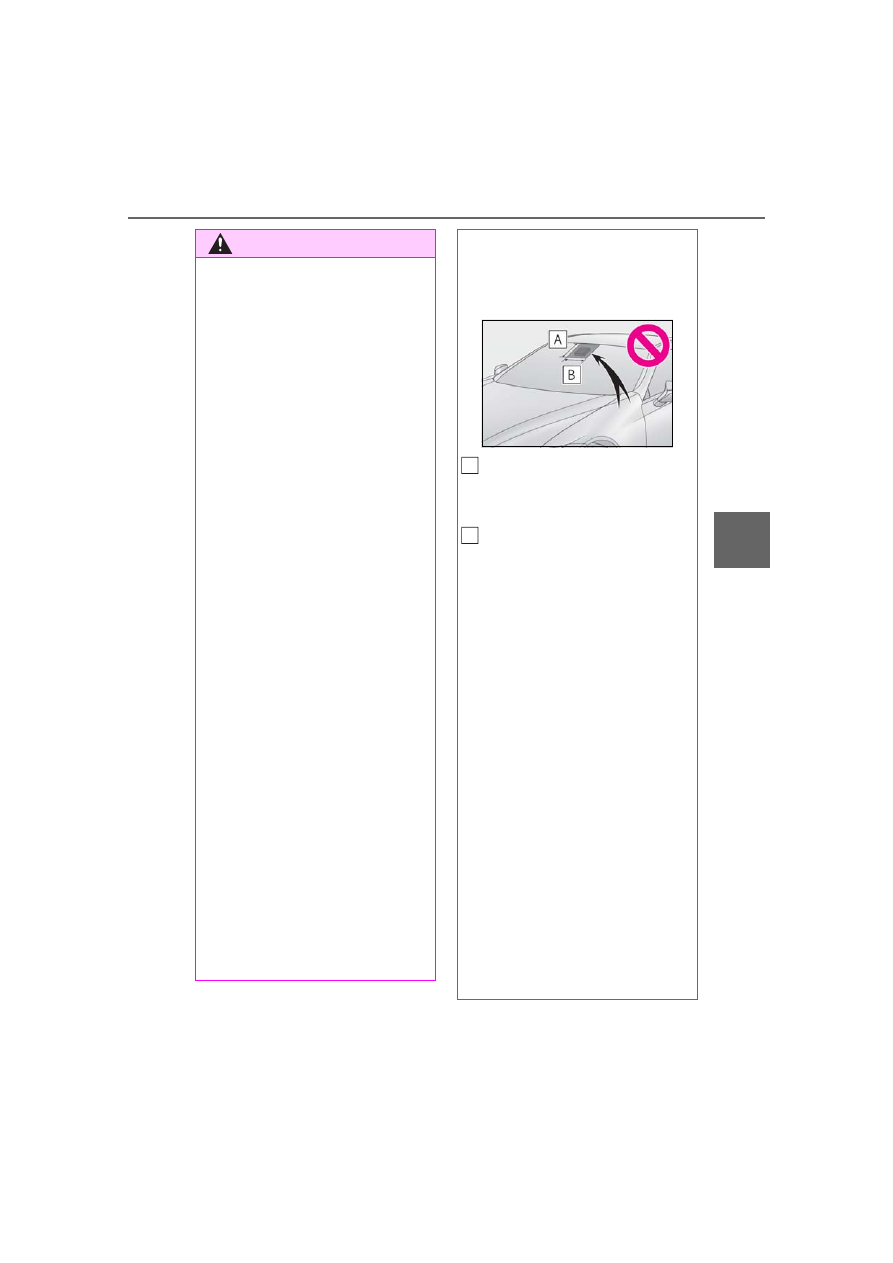

Do not attach objects, such as stickers,

transparent stickers, etc., to the outer

side of the windshield in front of the

front camera (shaded area in the illus-

tration).

From the top of the windshield to
approximately 0.4 in. (1 cm) below
the bottom of the front camera

Approximately 7.9 in. (20 cm)
(Approximately 4.0 in. [10 cm] to the
right and left from the center of the
front camera)

●

If the part of the windshield in front of

the front camera is fogged up or cov-

ered with condensation, or ice, use the

windshield defogger to remove the

fog, condensation, or ice. (



P.261)

●

If water droplets cannot be properly

removed from the area of the wind-

shield in front of the front camera by

the windshield wipers, replace the

wiper insert or wiper blade.

●

Do not attach window tint to the wind-

shield.

●

Replace the windshield if it is damaged

or cracked.

After replacing the windshield, the

front camera must be recalibrated.

Contact your Lexus dealer for details.

●

Do not allow liquids to contact the

front camera.

●

Do not allow bright lights to shine into

the front camera.

196

4-5. Using the driving support systems

WARNING

●

Do not dirty or damage the front cam-

era.

When cleaning the inside of the wind-

shield, do not allow glass cleaner to

contact the lens of the front camera.

Also, do not touch the lens.

If the lens is dirty or damaged, contact

your Lexus dealer.

●

Do not subject the front camera to a

strong impact.

●

Do not change the installation position

or direction of the front camera or

remove it.

●

Do not disassemble the front camera.

●

Do not modify any components of the

vehicle around the front camera

(inside rear view mirror, etc.) or ceiling.

●

Do not attach any accessories to the

hood, front grille or front bumper that

may obstruct the front camera. Con-

tact your Lexus dealer for details.

●

If a surfboard or other long object is to

be mounted on the roof, make sure

that it will not obstruct the front cam-

era.

●

Do not modify the headlights or other

lights.

198

4-5. Using the driving support systems

■

If a warning message is displayed on the multi-information display

A system may be temporarily unavailable or there may be a malfunction in the system.

●

In the following situations, perform the actions specified in the table. When the normal

operating conditions are detected, the message will disappear and the system will

become operational.

If the message does not disappear, contact your Lexus dealer.

Situation

Actions

When the area around a sensor is covered
with dirt, moisture (fogged up, covered with
condensation, ice, etc.), or other foreign
matter

To clean the part of the windshield in front of
the front camera, use the windshield wipers
or the windshield defogger of the air condi-
tioning system (



P.261).

199

4-5. Using the driving support systems

Driving

●

In the following situations, if the situation has changed (or the vehicle has been driven for

some time) and the normal operating conditions are detected, the message will disappear

and the system will become operational.

If the message does not disappear, contact your Lexus dealer.

• When the temperature around the radar sensor is outside of the operational range, such

as when the vehicle is in the sun or in an extremely cold environment

• When the front camera cannot detect objects in front of the vehicle, such as when driving

in the dark, snow, or fog, or when bright lights are shining into the front camera

When the temperature around the front
camera is outside of the operational range,
such as when the vehicle is in the sun or in an
extremely cold environment

If the front camera is hot, such as after the
vehicle had been parked in the sun, use the
air conditioning system to decrease the tem-
perature around the front camera.
If a sunshade was used when the vehicle was
parked, depending on its type, the sunlight
reflected from the surface of the sunshade
may cause the temperature of the front cam-
era to become excessively high.

If the front camera is cold, such after the
vehicle is parked in an extremely cold envi-
ronment, use the air conditioning system to
increase the temperature around the front
camera.

The area in front of the front camera is
obstructed, such as when the hood is open
or a sticker is attached to the part of the
windshield in front of the front camera.

Close the hood, remove the sticker, etc. to
clear the obstruction.

Situation

Actions

200

4-5. Using the driving support systems

■

Pre-collision warning

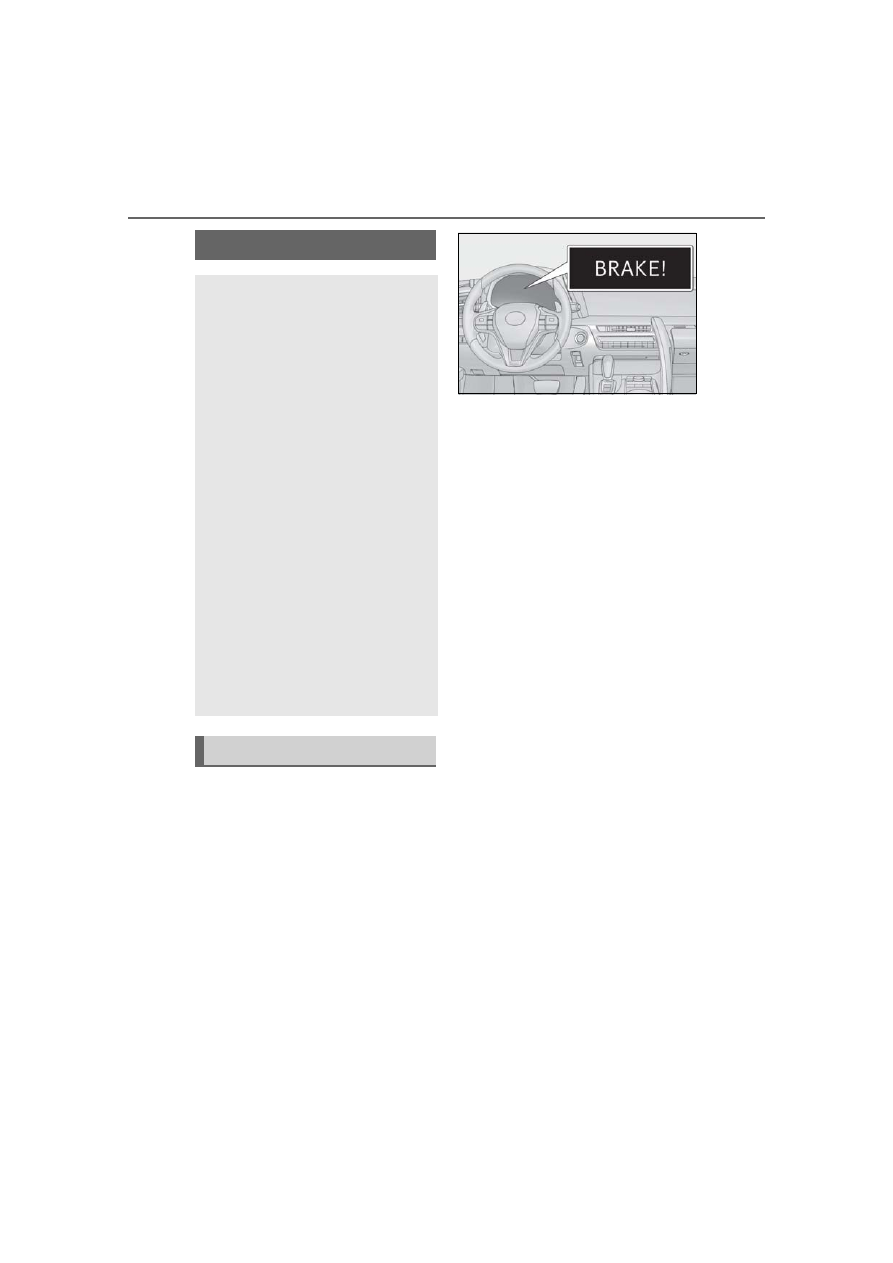

When the system determines that the
possibility of a frontal collision is high, a
buzzer will sound and a warning mes-
sage will be displayed on the multi-
information display to urge the driver
to take evasive action.

■

Pre-collision brake assist

When the system determines that the
possibility of a frontal collision is high,
the system applies greater braking
force in relation to how strongly the
brake pedal is depressed.

■

Pre-collision braking

When the system determines that the
possibility of a frontal collision is high,
the system warns the driver. If the sys-
tem determines that the possibility of a
frontal collision is extremely high, the
brakes are automatically applied to
help avoid the collision or reduce the
collision speed.

■

Suspension control

When the system determines that the
possibility of a frontal collision is high,
the Adaptive Variable Suspension Sys-
tem (



P.243) will control the damp-

ing force of the shock absorbers to
help maintain an appropriate vehicle
posture.

■

Steering control (if equipped)

When the system determines that the
possibility of a frontal collision is high
and the driver is operating the steering
wheel, the LDH system (



P.244) will

control the turning angle of the front

PCS (Pre-Collision System)

The pre-collision system uses a
radar sensor and front camera to
detect vehicles and pedestrians in
front of your vehicle. When the sys-
tem determines that the possibility
of a frontal collision with a vehicle
or pedestrian is high, a warning
operates to urge the driver to take
evasive action and the potential
brake pressure is increased to help
the driver avoid the collision. If the
system determines that the possi-
bility of a frontal collision with a
vehicle or pedestrian is extremely
high, the brakes are automatically
applied to help avoid the collision or
help reduce the impact of the colli-
sion.

The pre-collision system can be dis-
abled/enabled and the warning tim-
ing can be changed. (



P.202)

System functions

201

4-5. Using the driving support systems

Driving

and rear wheels and effort necessary
to turn the steering wheel to help
enhance steering responsiveness.

WARNING

■

Limitations of the pre-collision system

●

The driver is solely responsible for safe

driving. Always drive safely, taking

care to observe your surroundings.

Do not use the pre-collision system

instead of normal braking operations

under any circumstances. This system

will not prevent collisions or lessen col-

lision damage or injury in every situa-

tion. Do not overly rely on this system.

Failure to do so may lead to an acci-

dent, resulting in death or serious

injury.

●

Although this system is designed to

help avoid a collision or help reduce

the impact of the collision, its effective-

ness may change according to various

conditions, therefore the system may

not always be able to achieve the same

level of performance.

Read the following conditions care-

fully. Do not overly rely on this system

and always drive carefully.

• Conditions under which the system

may operate even if there is no possi-

bility of a collision:



P.203

• Conditions under which the system

may not operate properly:



P.205

●

Do not attempt to test the operation of

the pre-collision system yourself.

Depending on the objects used for

testing (dummies, cardboard objects

imitating detectable objects, etc.), the

system may not operate properly, pos-

sibly leading to an accident.

■

Pre-collision braking

●

When the pre-collision braking func-

tion is operating, a large amount of

braking force will be applied.

●

If the vehicle is stopped by the opera-

tion of the pre-collision braking func-

tion, the pre-collision braking function

operation will be canceled after

approximately 2 seconds.

Depress the brake pedal as necessary.

●

The pre-collision braking function may

not operate if certain operations are

performed by the driver. If the acceler-

ator pedal is being depressed strongly

or the steering wheel is being turned,

the system may determine that the

driver is taking evasive action and pos-

sibly prevent the pre-collision braking

function from operating.

●

In some situations, while the pre-colli-

sion braking function is operating,

operation of the function may be can-

celed if the accelerator pedal is

depressed strongly or the steering

wheel is turned and the system deter-

mines that the driver is taking evasive

action.

●

If the brake pedal is being depressed,

the system may determine that the

driver is taking evasive action and pos-

sibly delay the operation timing of the

pre-collision braking function.

■

When to disable the pre-collision sys-

tem

In the following situations, disable the

system, as it may not operate properly,

possibly leading to an accident resulting

in death or serious injury:

●

When the vehicle is being towed

●

When your vehicle is towing another

vehicle

●

When transporting the vehicle via

truck, boat, train or similar means of

transportation

●

When the vehicle is raised on a lift with

the engine running <hybrid system on>

and the tires are allowed to rotate

freely

202

4-5. Using the driving support systems

■

Enabling/disabling the pre-colli-
sion system

The pre-collision system can be
enabled/disabled on

(



P.86) of

the multi-information display.

The system is automatically enabled each
time the engine switch <power switch> is
turned to IGNITION ON mode <ON

mode>.

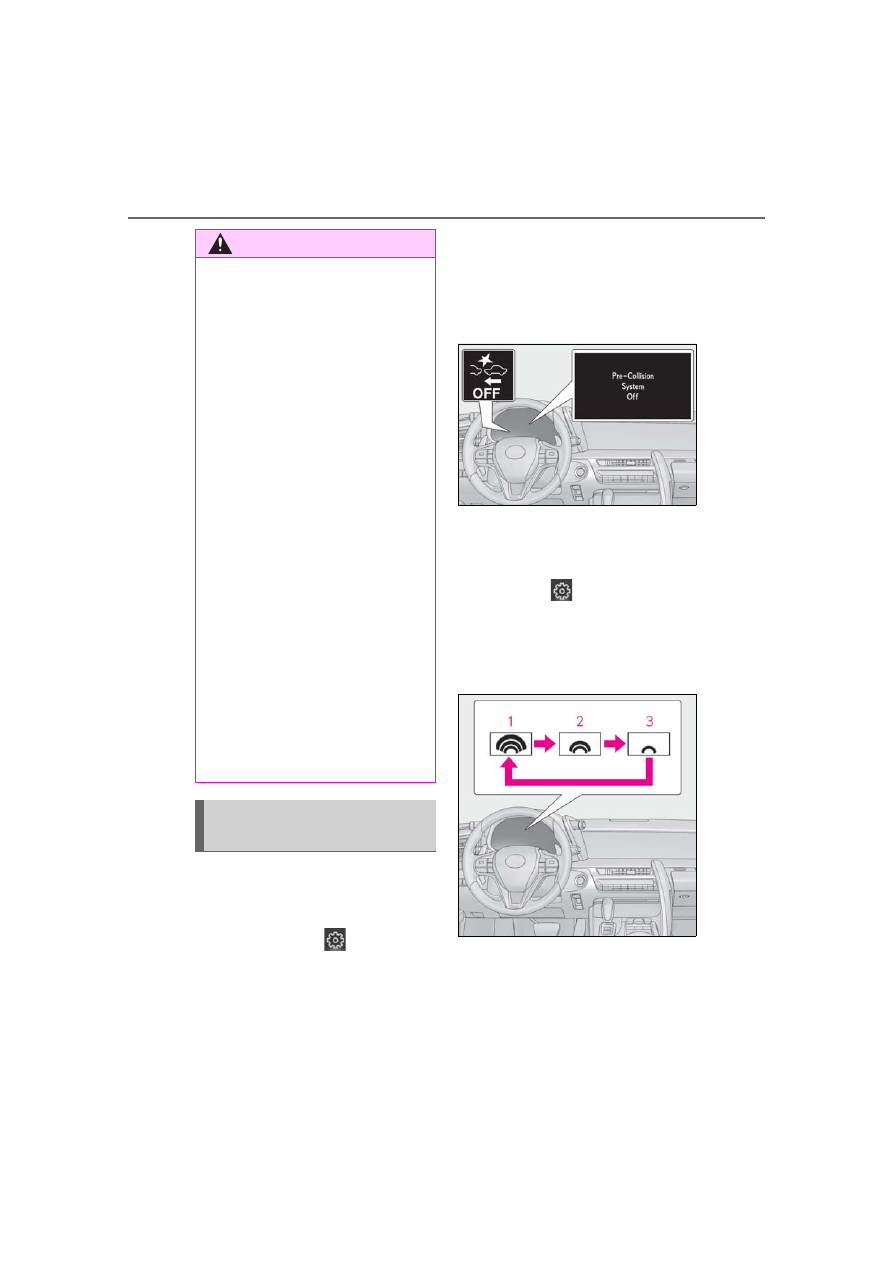

If the system is disabled, the PCS warn-
ing light will turn on and a message will
be displayed on the multi-information
display.

■

Changing the pre-collision warn-
ing timing

The pre-collision warning timing can
be changed on

(



P.86) of the

multi-information display.

The operation timing setting is retained
when the engine switch <power switch> is
turned off.

Far

The warning will begin to operate earlier
than with the default timing.

Middle

This is the default setting.

WARNING

●

When inspecting the vehicle using a

drum tester such as a chassis dyna-

mometer or speedometer tester, or

when using an on vehicle wheel bal-

ancer

●

When a strong impact is applied to the

front bumper or front grille, due to an

accident or other reasons

●

If the vehicle cannot be driven in a sta-

ble manner, such as when the vehicle

has been in an accident or is malfunc-

tioning

●

When the vehicle is driven in a sporty

manner or off-road

●

When the tires are not properly

inflated

●

When the tires are very worn

●

When tires of a size other than speci-

fied are installed

●

When tire chains are installed

●

When a compact spare tire or an

emergency tire puncture repair kit is

used

●

If equipment (snow plow, etc.) that may

obstruct the radar sensor or front cam-

era is temporarily installed to the vehi-

cle

Changing settings of the pre-col-
lision system

203

4-5. Using the driving support systems

Driving

Near

The warning will begin to operate later
than with the default timing.

■

Operational conditions

The pre-collision system is enabled and the

system determines that the possibility of a

frontal collision with a vehicle or pedestrian

is high.
Each function is operational at the following

speeds:

●

Pre-collision warning:

• Vehicle speed is between approximately

7 and 110 mph (10 and 180 km/h). (For

detecting a pedestrian, vehicle speed is

between approximately 7 and 50 mph

[10 and 80 km/h].)

• The relative speed between your vehicle

and the vehicle or pedestrian ahead is

approximately 7 mph (10 km/h) or more.

●

Pre-collision brake assist:

• Vehicle speed is between approximately

20 and 110 mph (30 and 180 km/h). (For

detecting a pedestrian, vehicle speed is

between approximately 20 and 50 mph

[30 and 80 km/h].)

• The relative speed between your vehicle

and the vehicle or pedestrian ahead is

approximately 20 mph (30 km/h) or

more.

●

Pre-collision braking:

• Vehicle speed is between approximately

7 and 110 mph (10 and 180 km/h). (For

detecting a pedestrian, vehicle speed is

between approximately 7 and 50 mph

[10 and 80 km/h].)

• The relative speed between your vehicle

and the vehicle or pedestrian ahead is

approximately 7 mph (10 km/h) or more.

The system may not operate in the following

situations:

●

If a 12-volt battery terminal has been dis-

connected and reconnected and then the

vehicle has not been driven for a certain

amount of time

●

If the shift position is in R

●

If VSC is disabled (only the pre-collision

warning function will be operational)

■

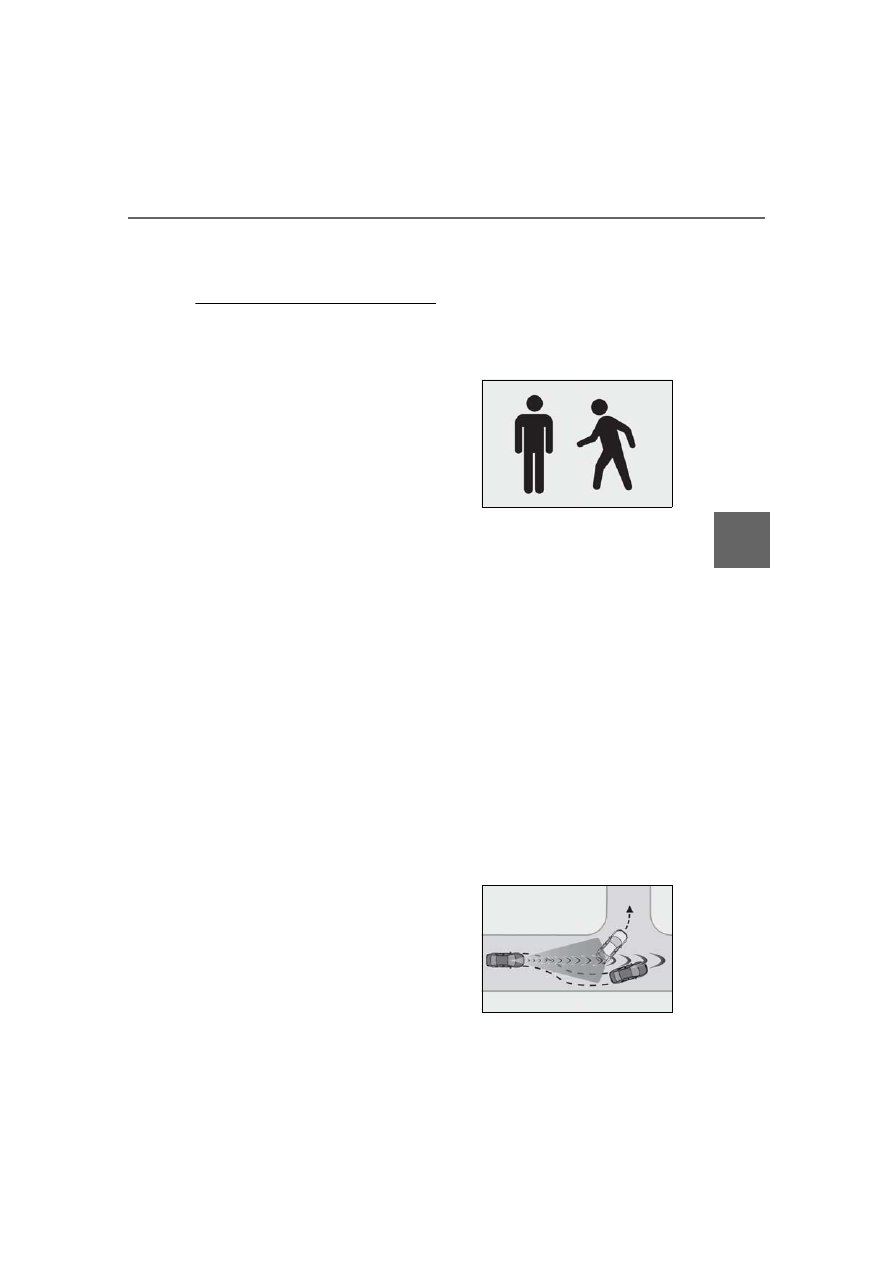

Pedestrian detection function

The pre-collision system detects pedestri-

ans based on the size, profile, and motion of

a detected object. However, a pedestrian

may not be detected depending on the sur-

rounding brightness and the motion, pos-

ture, and angle of the detected object,

preventing the system from operating prop-

erly. (



P.205)

■

Cancelation of the pre-collision braking

If either of the following occur while the

pre-collision braking function is operating, it

will be canceled:

●

The accelerator pedal is depressed

strongly.

●

The steering wheel is turned sharply or

abruptly.

■

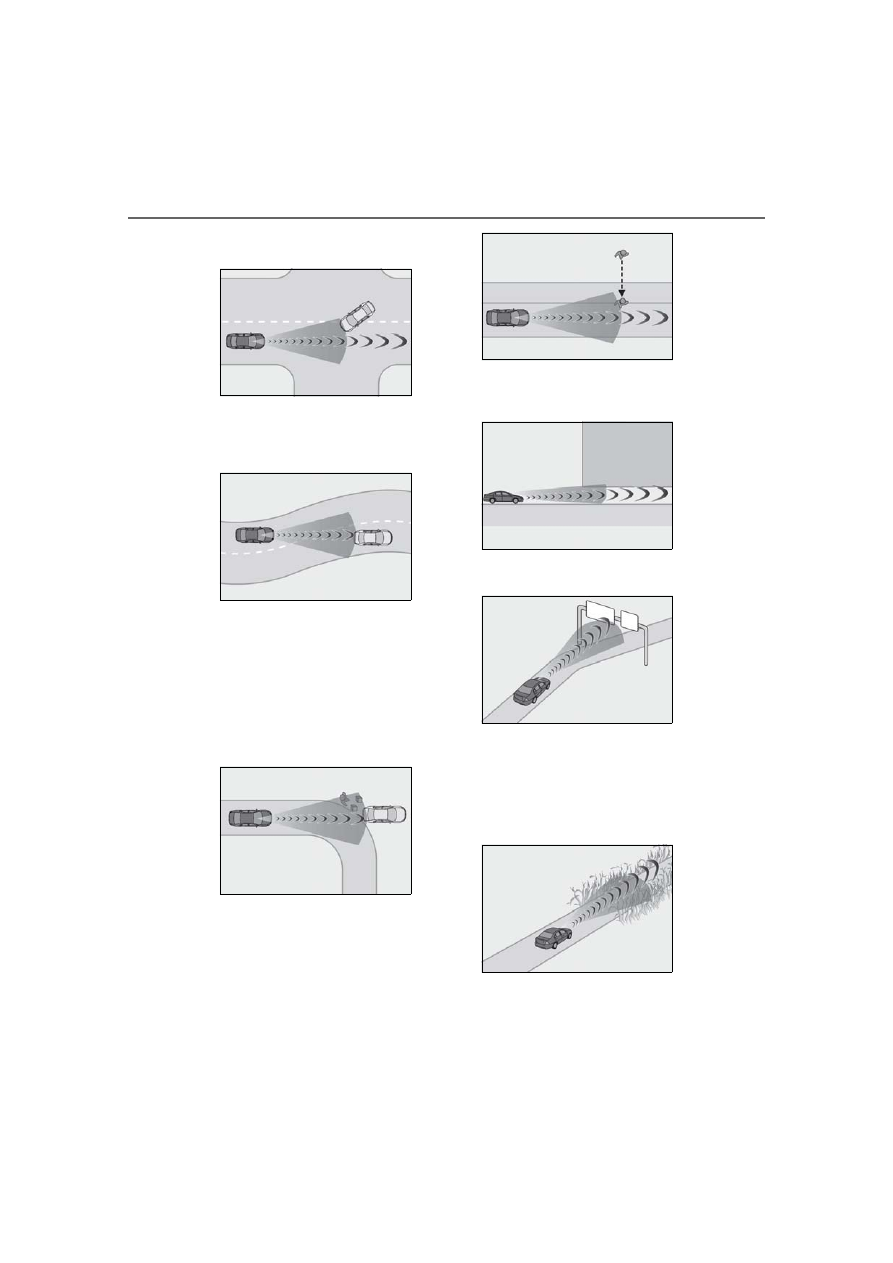

Conditions under which the system may

operate even if there is no possibility of a

collision

●

In some situations such as the following,

the system may determine that there is a

possibility of a frontal collision and oper-

ate.

• When passing a vehicle or pedestrian

• When changing lanes while overtaking a

preceding vehicle

• When overtaking a preceding vehicle

that is changing lanes

• When overtaking a preceding vehicle

that is making a left/right turn

• When passing a vehicle in an oncoming

204

4-5. Using the driving support systems

lane that is stopped to make a right/left

turn

• When driving on a road where relative

location to vehicle ahead in an adjacent

lane may change, such as on a winding

road

• When rapidly closing on a vehicle ahead

• If the front of the vehicle is raised or low-

ered, such as when the road surface is

uneven or undulating

• When approaching objects on the road-

side, such as guardrails, utility poles,

trees, or walls

• When there is a vehicle, pedestrian, or

object by the roadside at the entrance of

a curve

• When driving on a narrow path sur-

rounded by a structure, such as in a tun-

nel or on an iron bridge

• When there is a metal object (manhole

cover, steel plate, etc.), steps, or a protru-

sion on the road surface or roadside

• When a crossing pedestrian approaches

very close to the vehicle

• When passing through a place with a low

structure above the road (low ceiling,

traffic sign, etc.)

• When passing under an object (billboard,

etc.) at the top of an uphill road

• When rapidly closing on an electric toll

gate barrier, parking area barrier, or

other barrier that opens and closes

• When using an automatic car wash

• When driving through or under objects

that may contact the vehicle, such as thick

grass, tree branches, or a banner

• When the vehicle is hit by water, snow,

dust, etc. from a vehicle ahead

• When driving through steam or smoke

• When there are patterns or paint on the

205

4-5. Using the driving support systems

Driving

road or a wall that may be mistaken for a

vehicle or pedestrian

• When driving near an object that reflects

radio waves, such as a large truck or

guardrail

• When driving near a TV tower, broad-

casting station, electric power plant, or

other location where strong radio waves

or electrical noise may be present

■

Situations in which the system may not

operate properly

●

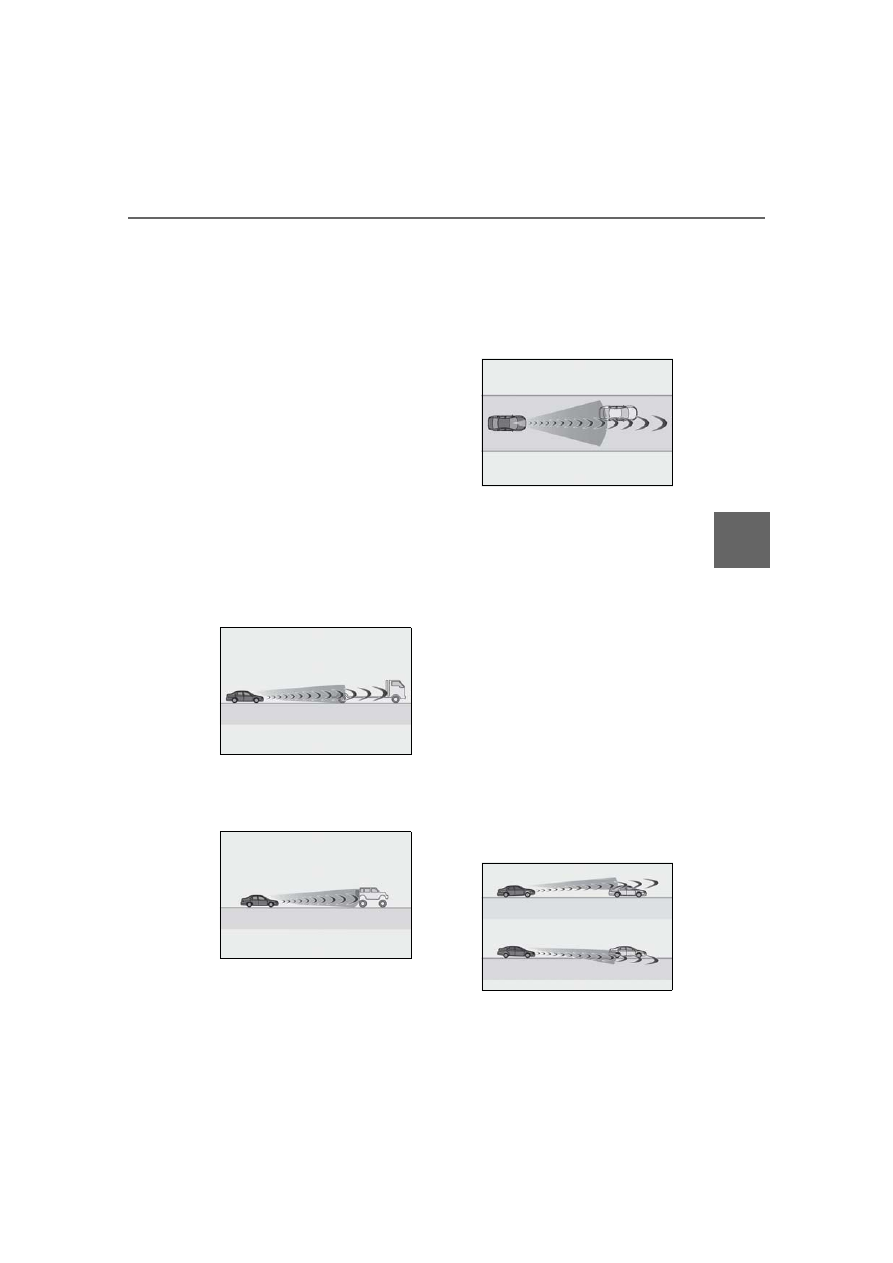

In some situations such as the following, a

vehicle may not be detected by the radar

sensor and front camera, preventing the

system from operating properly:

• If an oncoming vehicle is approaching

your vehicle

• If a vehicle ahead is a motorcycle or bicy-

cle

• When approaching the side or front of a

vehicle

• If a preceding vehicle has a small rear

end, such as an unloaded truck

• If a preceding vehicle has a low rear end,

such as a low bed trailer

• If a vehicle ahead is carrying a load which

protrudes past its rear bumper

• If a vehicle ahead has extremely high

ground clearance

• If a vehicle ahead is irregularly shaped,

such as a tractor or side car

• If the sun or other light is shining directly

on a vehicle ahead

• If a vehicle cuts in front of your vehicle or

emerges from beside a vehicle

• If a vehicle ahead makes an abrupt

maneuver (such as sudden swerving,

acceleration or deceleration)

• When suddenly cutting behind a preced-

ing vehicle

• When a vehicle ahead is not directly in

front of your vehicle

• When driving in inclement weather such

as heavy rain, fog, snow or a sandstorm

• When the vehicle is hit by water, snow,

dust, etc. from a vehicle ahead

• When driving through steam or smoke

• When driving in a place where the sur-

rounding brightness changes suddenly,

such as at the entrance or exit of a tunnel

• When a very bright light, such as the sun

or the headlights of oncoming traffic,

shines directly into the front camera

• When the surrounding area is dim, such

as at dawn or dusk, or while at night or in

a tunnel

• After the engine <hybrid system> has

started the vehicle has not been driven

for a certain amount of time

• While making a left/right turn and for a

few seconds after making a left/right turn

• While driving on a curve and for a few

seconds after driving on a curve

• If your vehicle is skidding

• If the front of the vehicle is raised or low-

ered

• If the wheels are misaligned

• If a wiper blade is blocking the front cam-

era

Content .. 9 10 11 12 ..
