Lexus LC Cabriolet (2021 year). Manual in english

2-1. Instrument cluster

icle

ion
an

d i

ica

tor

The units used on the meters may differ depending on the target region.

Engine oil temperature gauge/Eco Driving Indicator

Displays the engine oil temperature or Eco Driving Indicator (



P.87)

Outside temperature

Displays the outside temperature within the range of -40°C (-40°F) to 50°C (122°F)
Low outside temperature indicator comes on when the ambient temperature is 3°C
(37°F) or lower

Tachometer

Displays the engine speed in revolutions per minute

Speedometer

Shift position/shift range/gear position (



P.195)

Shift position indicator (



P.197)

Clock

Time displayed is linked to the analog clock on the instrument panel. (



P.323)

Engine coolant temperature gauge

Displays the engine coolant temperature

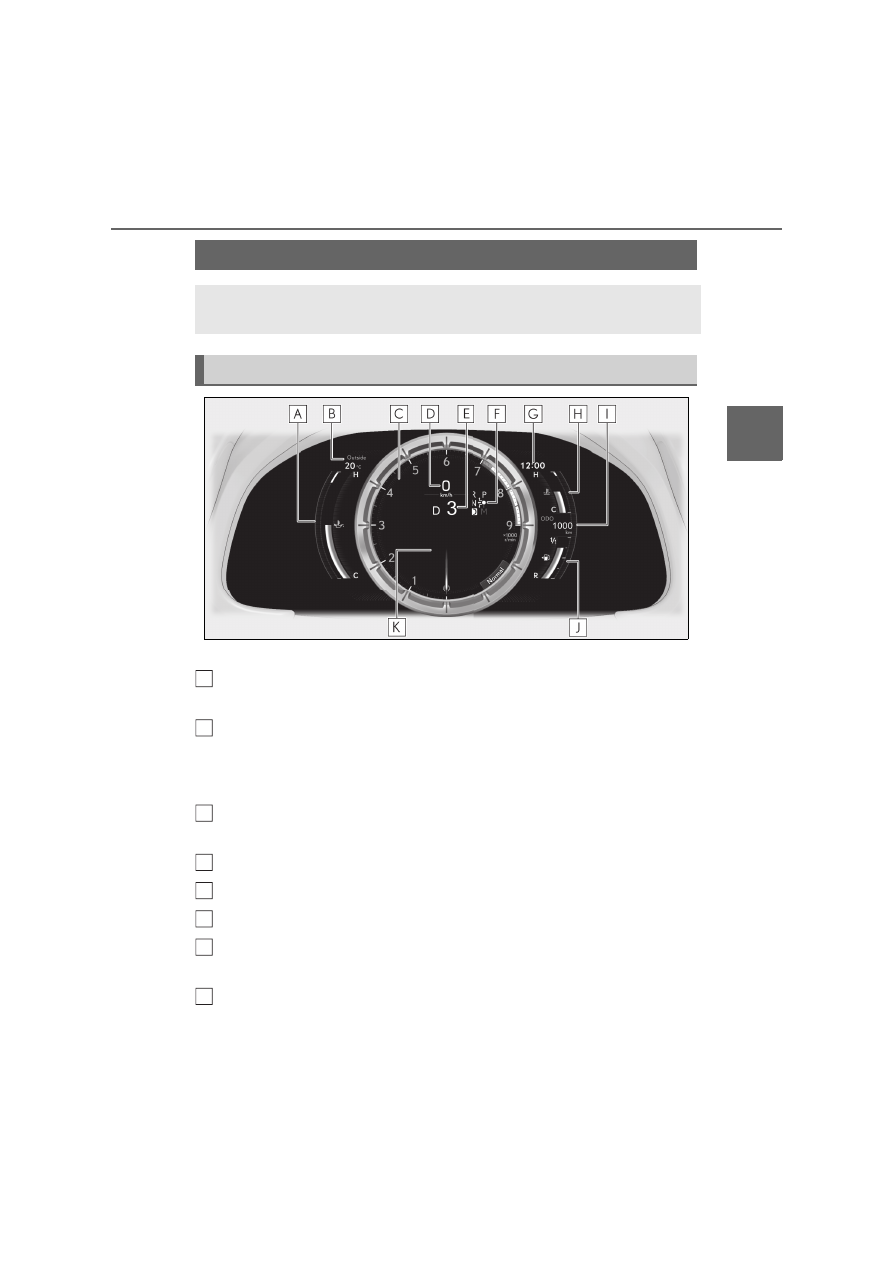

Gauges and meters

When the main meter is in the side position, some of the meter displays and the
gauge layout will be changed.

Meter display

E
F

2-1. Instrument cluster

If the engine coolant temperature gauge indicator enters the red zone, a buzzer sounds
and the high coolant temperature warning light comes on

Odometer and trip meter display

Odometer:
Displays the total distance the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last reset
Trip meters “A” and “B” can be used to record and display different distances inde-
pendently

Fuel gauge

Displays the quantity of fuel remaining in the tank

Multi-information display

Presents the driver with a variety of vehicle data (



P.93)

Displays warning messages in case of a malfunction (



P.396)

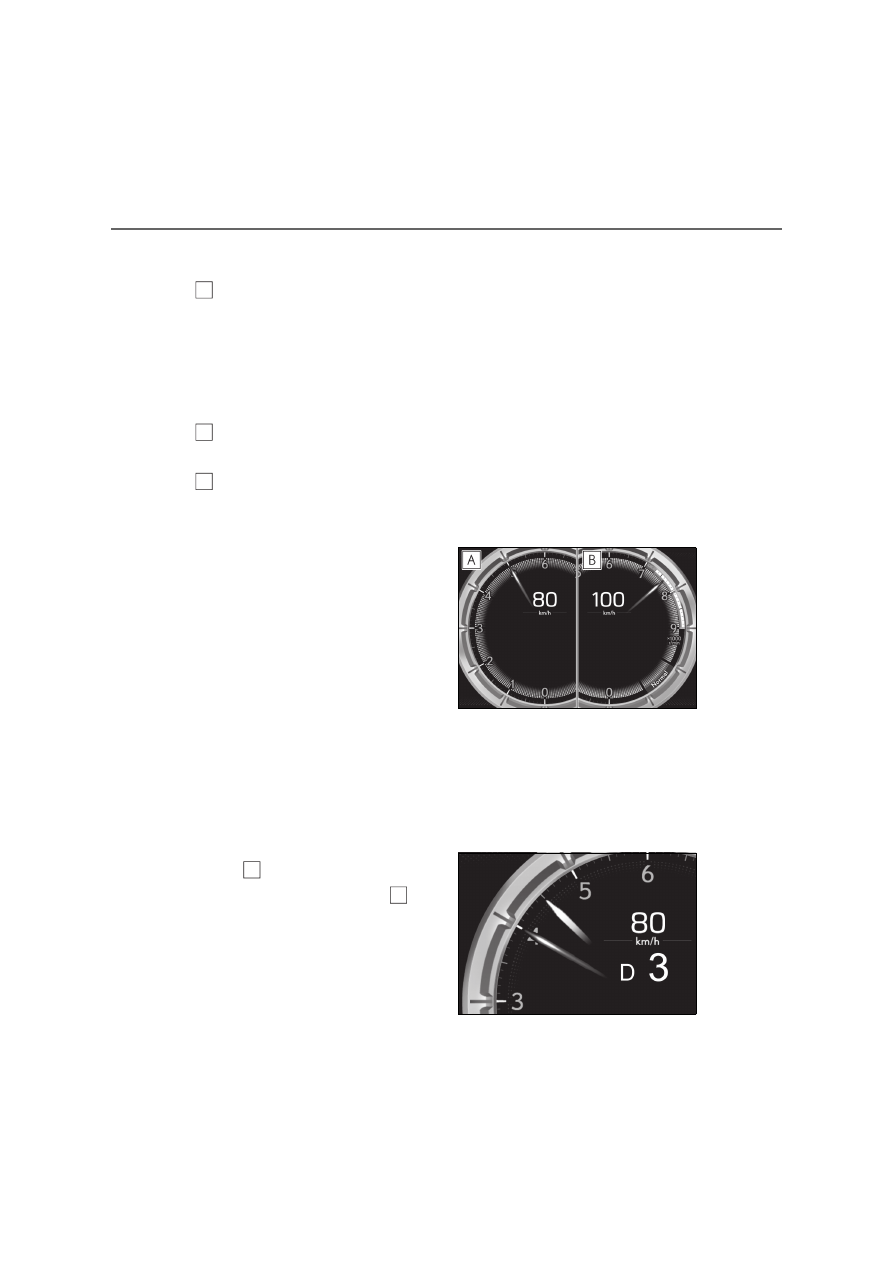

Speed warning

When the vehicle reaches the set
speed, the speed warning display will
flash.
This setting can be enabled on the
multi-information display. (



P.93)

Always observe the legal speed limit when
driving on public roads.

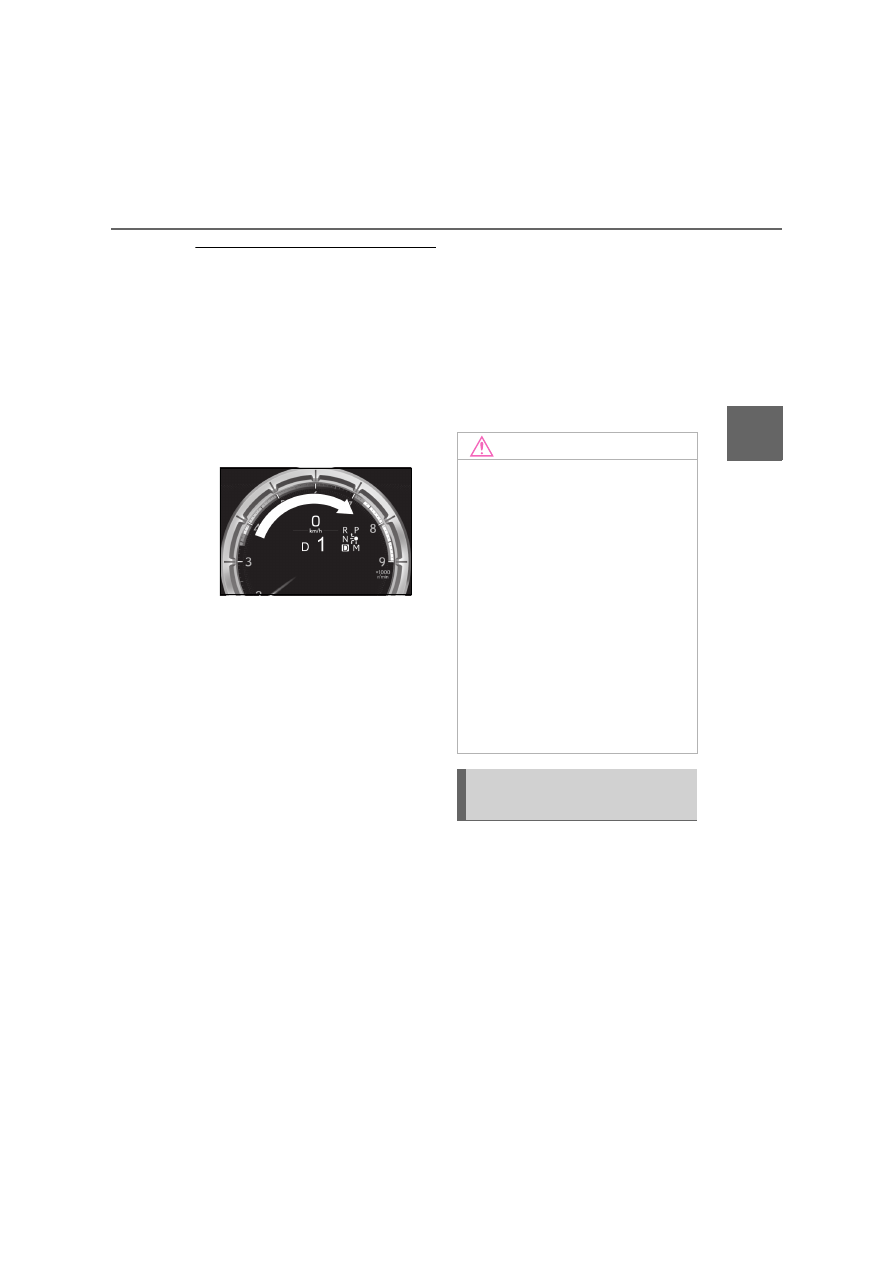

Rev indicator

When the engine reaches a set speed
or the red zone, a ring-shaped indica-
tor will be displayed on the tachome-
ter.
The indicator will be displayed in
amber (

) when the engine speed

reaches a set speed, and in red (

)

when the engine speed reaches the
red zone. This setting can be enabled
on the multi-information display.
(



P.97)

Rev peak

When the engine speed reaches or
exceeds 3600 r/min, an afterimage of
the tachometer will be displayed at the
highest engine speed for approxi-
mately 1 second.

2-1. Instrument cluster

icle

ion
an

d i

ica

tor

The meters and display illuminate when

The engine switch is in ON.

Variable red zone

To help protect the engine, the engine

speed is controlled by starting the red zone

of the tachometer at different engine

speeds ranging from 3700 r/min to 7300

r/min depending on the engine coolant

temperature.
Before driving under extremely high load

conditions, make sure to sufficiently warm

up the engine.

Instrument panel brightness adjustment

The brightness of the instrument panel

lights is automatically adjusted based on the

light sensor detecting how bright the sur-

roundings are.

Outside temperature display

In the following situations, the correct

outside temperature may not be dis-

played, or the display may take longer

than normal to change.

• When stopped, or driving at low speeds

(less than 20 km/h [12 mph])

• When the outside temperature has

changed suddenly (at the entrance/exit

of a garage, tunnel, etc.)

When “- -” or “E” is displayed, the system

may be malfunctioning.

Take your vehicle to any authorized

Lexus retailer or Lexus authorized

repairer, or any reliable repairer.

Pop-up display

In some situations, such as when a switch

operation is performed, a pop-up display

will be temporarily displayed on the

multi-information display.

Some pop-up displays can be set on/off.

(



P.97)

Liquid crystal display

Small spots or light spots may appear on the

display. This phenomenon is characteristic

of liquid crystal displays, and there is no

problem continuing to use the display.

Customization

The meter display can be customized on

the multi-information display. (



P.435)

The odometer and trip meter displays
can be switched. When the trip meter
is displayed, pressing and holding the
button will reset the trip meter.

NOTICE

To prevent damage to the engine and

its components

Do not let the indicator of the tachom-

eter enter the red zone, as it rep-

resents the engine speed range which

exceeds the maximum safe engine

speed.

In the following situations, the engine

may be overheating. In this case,

immediately stop the vehicle in a safe

place, and check the engine after it has

cooled completely. (



P.420)

• The engine coolant temperature

gauge is in the red zone (H).

• The engine oil temperature gauge is in

the red zone (H).

Changing between the odome-
ter and trip meter

2-1. Instrument cluster

icle

ion
an

d i

ica

tor

Display



When the main meter is in the cen-
ter position

Displays various drive information on
the main meter.

Some of the content which are displayed
when the main meter is in the side position
cannot be displayed.



When the main meter is in the side
position

Selecting a menu icon displays a vari-
ety of vehicle data or allows vehicle
settings to be customized.

Menu icons

Opening image display

When the engine switch is in ACC or ON,

the opening image is displayed on the multi-

information display.

While the opening image is being dis-

played, the meter display cannot be

changed even if the drive mode is changed.

When the opening image is finished, the

meter display for the currently selected

mode will be displayed.

When disconnecting and reconnecting

battery terminals

Record of the maximum G-forces will be

reset.

Liquid crystal display



P.91

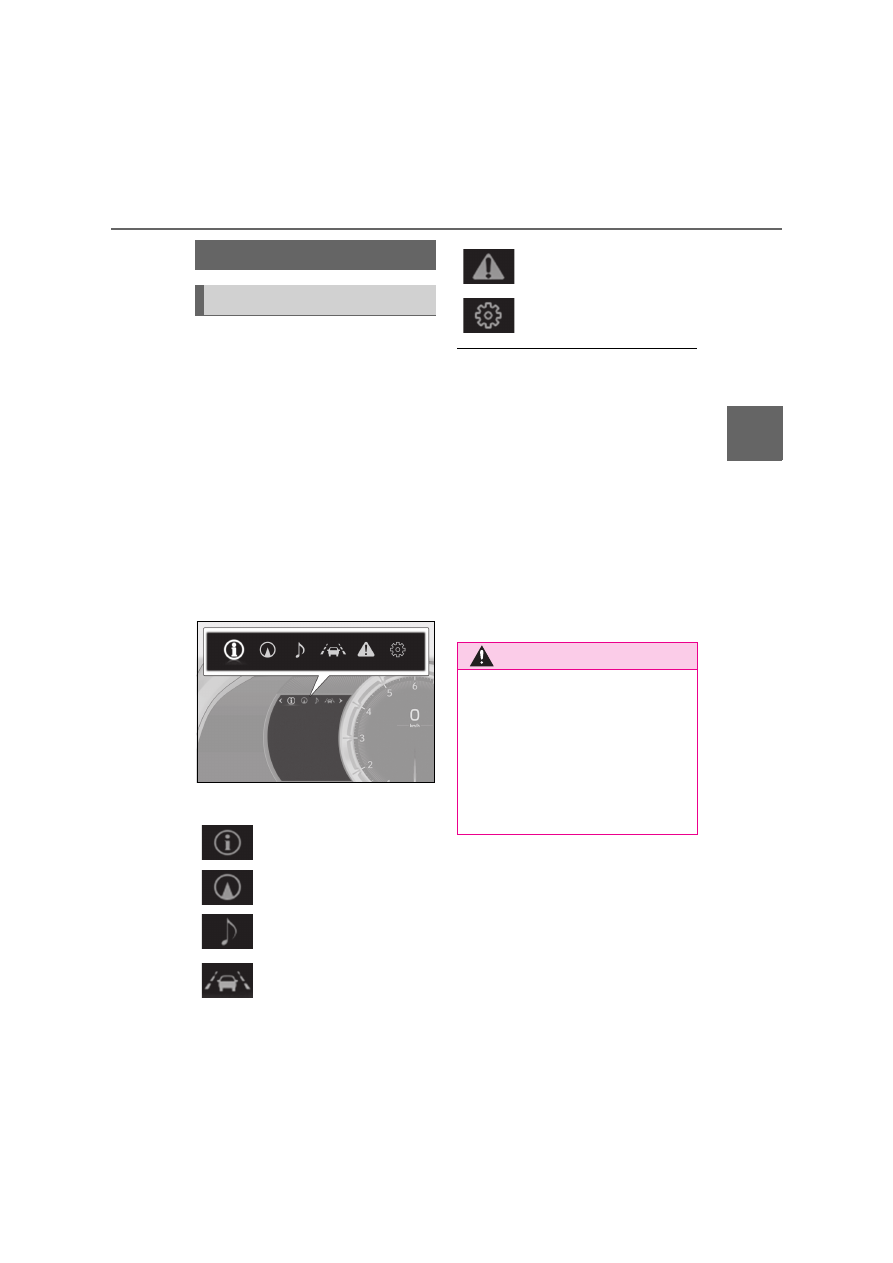

Multi-information display

Display and menu icons

Drive information (



P.94)

Navigation system-linked dis-
play (if equipped) (



P.96)

Audio system-linked display
(



P.97)

Driving assist system informa-
tion (



P.97)

Warning message display
(



P.396)

Settings display (



P.97)

WARNING

Caution for use while driving

When operating the multi-information

display while driving, pay extra atten-

tion to the safety of the area around

the vehicle.

Do not look continuously at the multi-

information display while driving as

you may fail to see pedestrians, objects

on the road, etc. ahead of the vehicle.

2-1. Instrument cluster

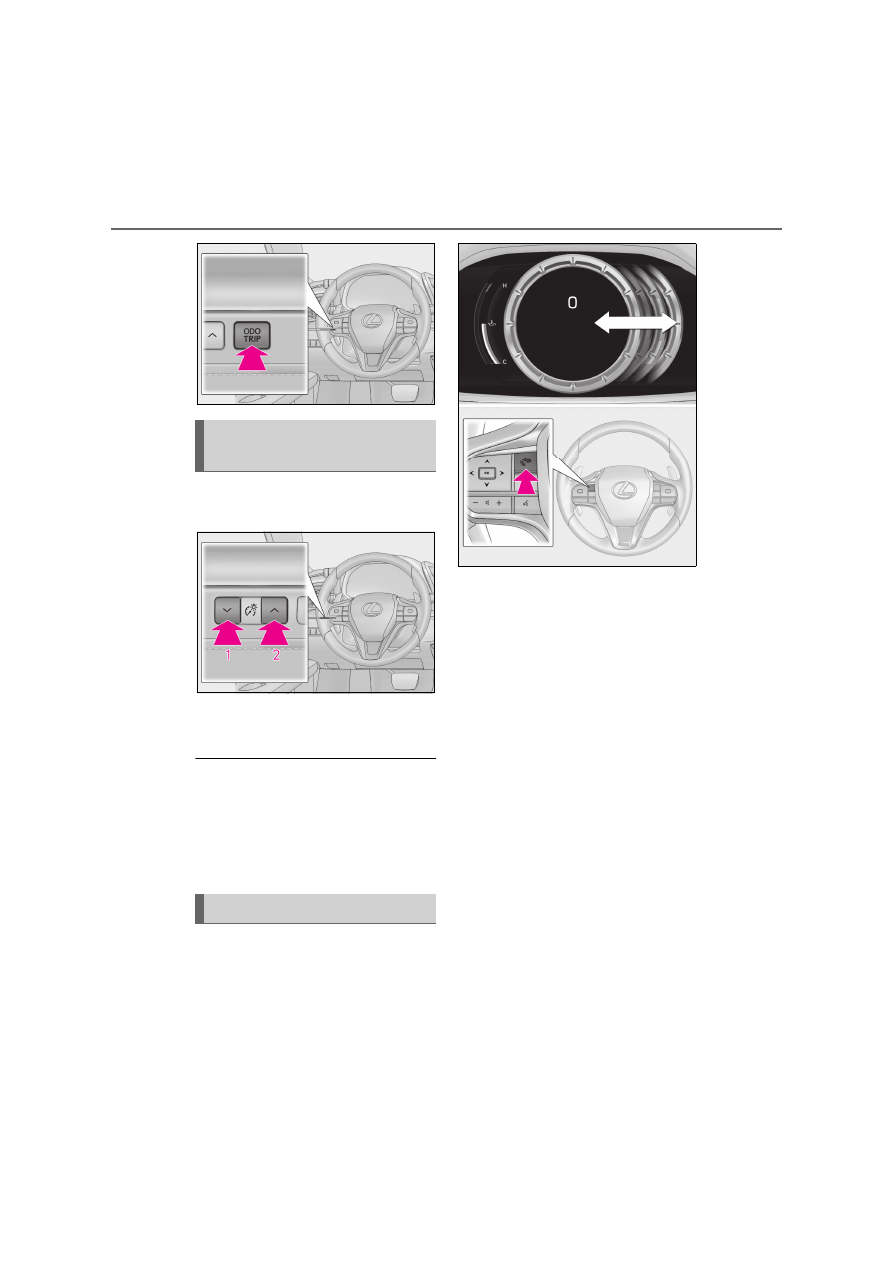

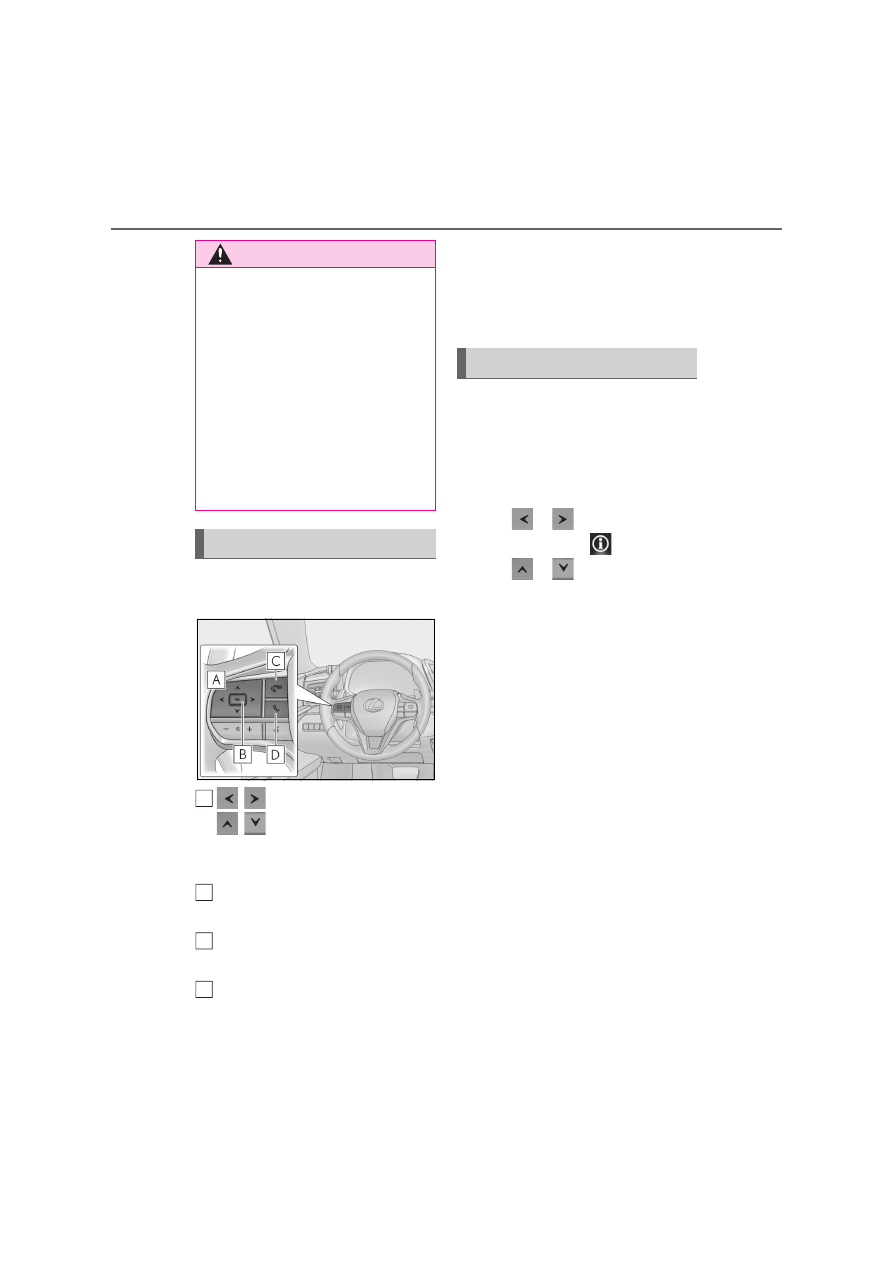

The multi-information display is oper-
ated using the meter control switches.

: Switch menu

: Change displayed con-

tent, scroll up/down the screen and
move the cursor up/down

Press: Enter/Set
Press and hold: Reset

Return to the previous screen and
move the main meter

Call sending/receiving and history
display

Linked with the hands-free system, sending
or receiving call is displayed. For details
regarding the hands-free system, refer to
“NAVIGATION SYSTEM OWNER’S
MANUAL”.

Content of drive information

Select to display various drive data.
Up to 2 of the following items can be
selected.
Items displayed can be switched by
pressing

of the meter con-

trol switches to select

and then

pressing

or .



Current fuel consumption

Displays the current rate of fuel consump-
tion



Average fuel economy (after
reset

/after start/after refuel)

Displays the average fuel consumption
since the function was reset, the engine
was started, and the vehicle was refueled,
respectively
Use the displayed average fuel consump-
tion as a reference.



Average speed (after reset

/after

start)

Displays the average vehicle speed since
the function was reset and the engine was
started, respectively



Elapsed time (after reset

/after

start)

Displays the elapsed time since the func-

WARNING

The information display at low tem-

peratures

Allow the interior of the vehicle to warm

up before using the liquid crystal infor-

mation display. At extremely low tem-

peratures, the information display

monitor may respond slowly, and display

changes may be delayed.

For example, there is a lag between the

driver’s shifting and the new gear num-

ber appearing on the display. This lag

could cause the driver to downshift

again, causing rapid and excessive

engine braking and possibly an accident

resulting in death or injury.

Changing the meter display

Drive information

2-1. Instrument cluster

icle

ion
an

d i

ica

tor

tion was reset and the engine was started,
respectively



Distance (range/after start)

Displays the estimated maximum distance
that can be driven with the quantity of fuel
remaining and the distance driven after the
engine was started respectively.
• This distance is computed based on your

average fuel consumption. As a result,
the actual distance that can be driven
may differ from that displayed.

• When only a small amount of fuel is

added to the tank, the display may not be
updated.
When refueling, turn the engine switch
off. If the vehicle is refueled without turn-
ing the engine switch off, the display may
not be updated.

: Displayed when the item is set in “Drive

Info 1” and “Drive Info 2”.

: The function can be reset by pressing

“OK” of the meter control switches for
longer than 1 second when the item to
reset is displayed.
If there is more than one item that can
be reset, the item selection screen will
appear.

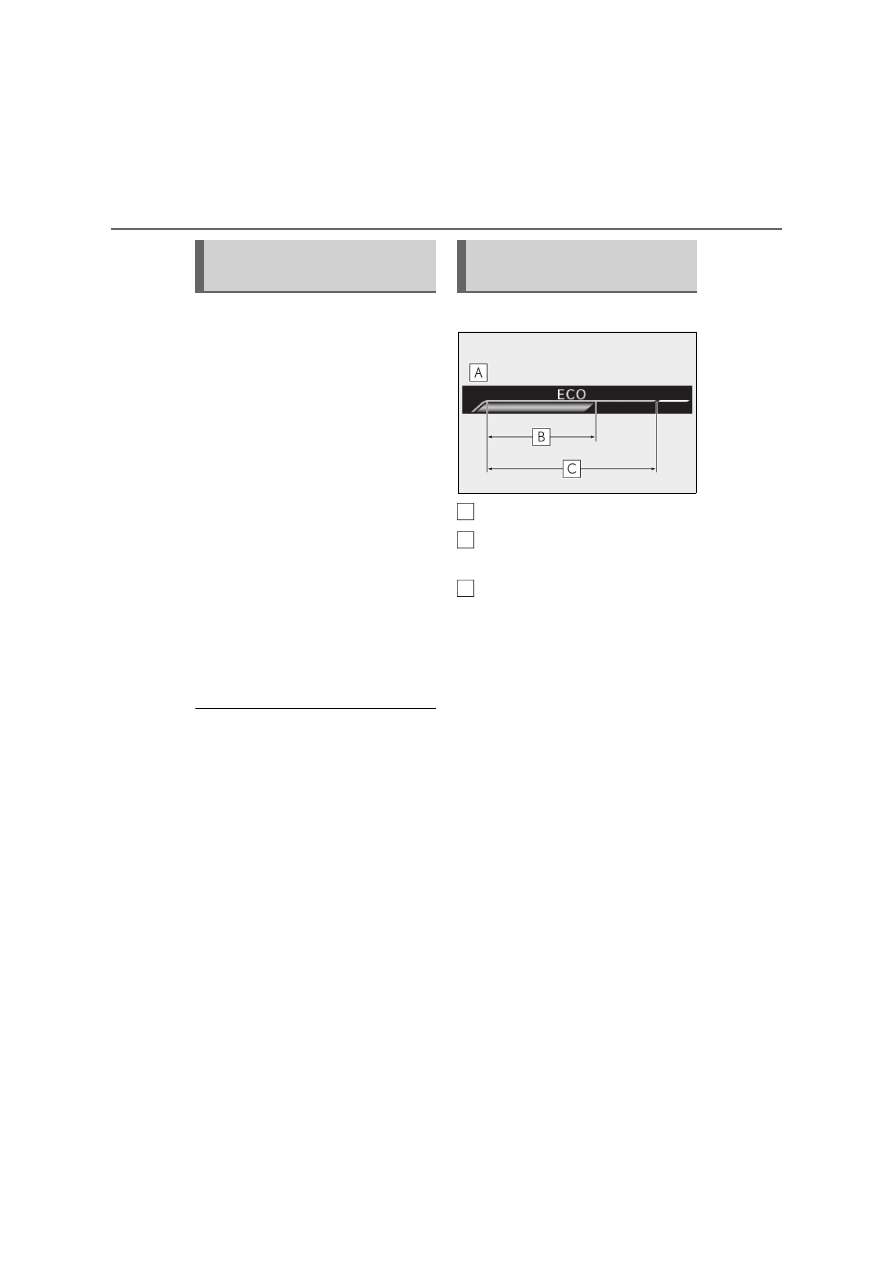

Eco Driving Indicator/engine oil
temperature gauge



P.87, 89

Tire pressure



P.346

Gear positions

Displays the current shift range or gear
position when the shift position is in D
or M.

Units (if equipped)

The units of measure used can be
changed while driving.

Unlike the units setting performed on the
settings display, the units setting per-
formed on the drive information menu can
be changed while driving.

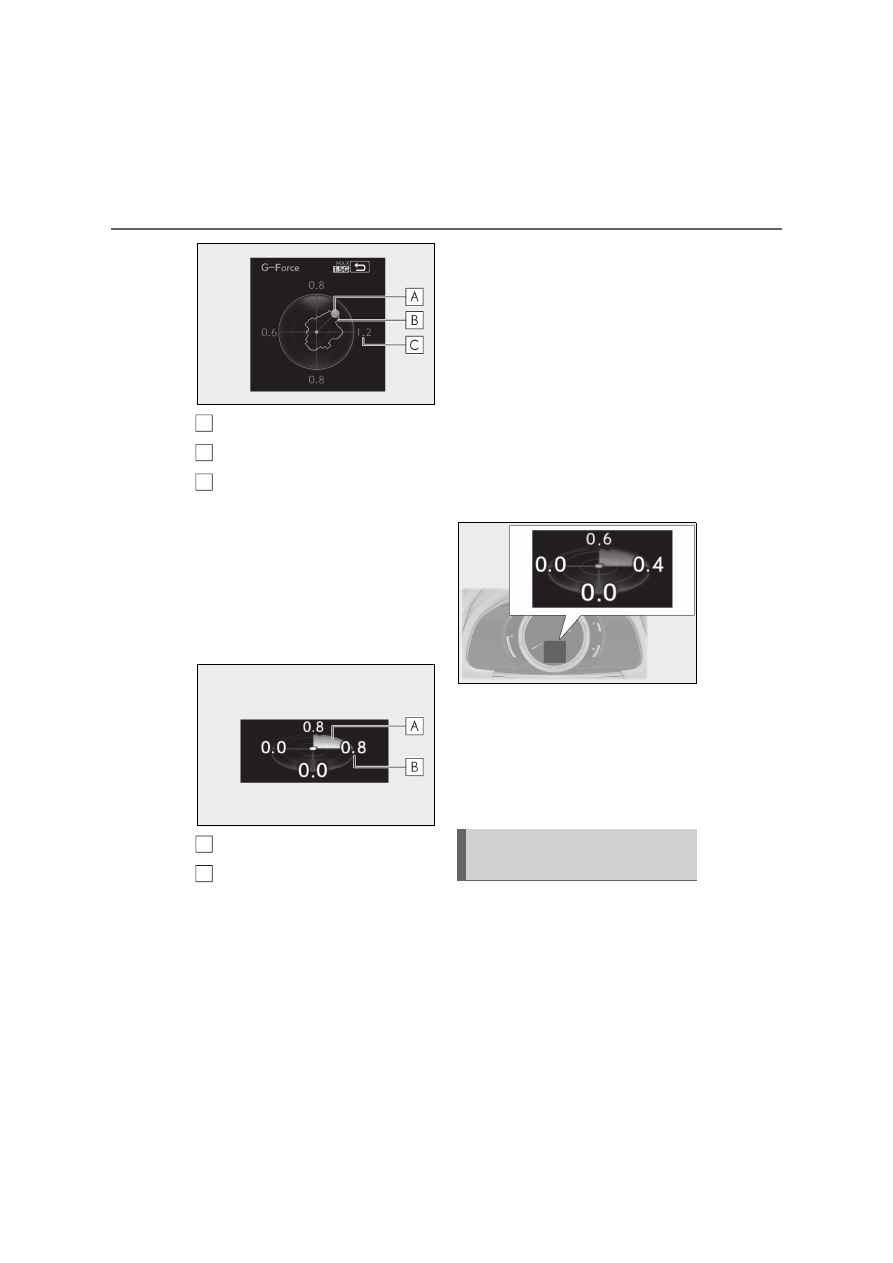

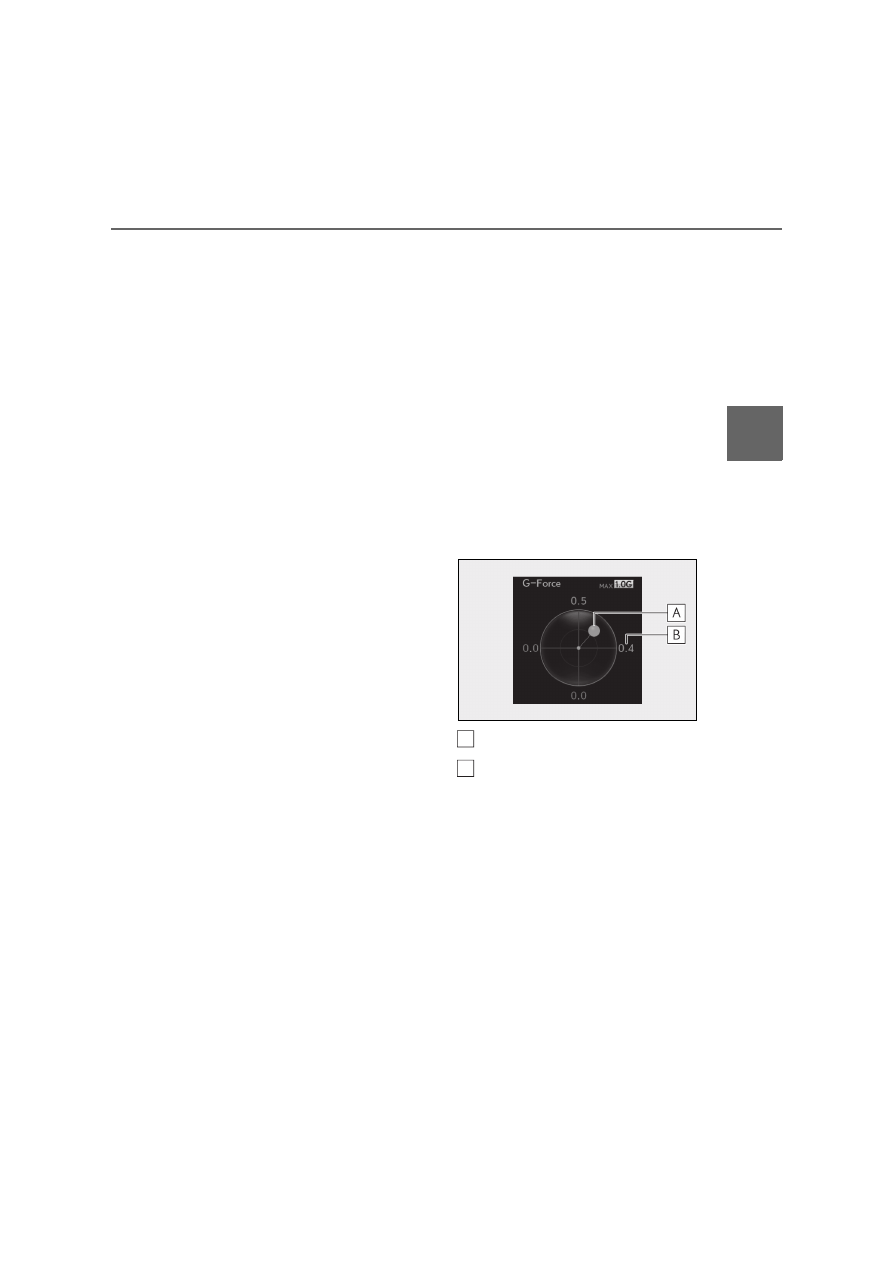

G-force

Displays lateral G-forces on the vehi-
cle



Reading the display

• Normal display
Displays the following on the multi-infor-
mation display

Acceleration G-force on the vehicle

Current G-force value (analyzed value
of front/rear and left/right G-forces)

• Advanced display
Displays the following on the multi-infor-
mation display and main meter
Multi-information display:

2-1. Instrument cluster

Acceleration G-force on the vehicle

Record of the maximum G-forces

Value of the maximum G-force since
display reset (analyzed value of
front/rear and left/right G-forces)

This display is intended for use as a guide-
line. Depending on factors such as the
road surface condition, temperature and
vehicle speed, the display may not show
the actual condition of the vehicle.
Main meter:

G-force direction

Current G-force value (analyzed value
of front/rear and left/right G-forces)



Switching the display

To switch to advanced display, press “OK”.
To return to normal display, press “OK”.



Resetting the record of maximum
G-forces

With the record of maximum G-forces dis-
played, press and hold “OK” to reset the
display.



Peak hold function (advanced dis-
play only)

If lateral G-forces of 0.5 G or greater are
generated, the G-force value displayed on
the main meter will turn yellow and be held
for 3 seconds.

LKA (Lane-Keeping Assist) vehi-
cle sway warning



P.241

Display off

A blank screen is displayed

Select to display the following naviga-
tion system-linked information.



Route guidance



Compass display

Navigation system-linked dis-
play (if equipped)

2-1. Instrument cluster

icle

ion
an

d i

ica

tor

Select to enable selection of an audio
source etc. on the meter using the
meter control switches.

Select to display the dynamic radar
cruise control with full-speed range
(



P.252)/LKA (Lane-Keeping

Assist) (



P.240) information, when

the system is used.

Select to display warning messages
and measures to be taken if a malfunc-
tion is detected. (



P.396)

Select to change the meter display set-
tings.

Language

Select to change the language on the
display.

Units

Select to change the unit of measure
for fuel consumption.

Eco Driving Indicator Light

Select to activate/deactivate the Eco
Driving Indicator Light.

Drive information 1/Drive informa-
tion 2

Select up to 2 items that will be dis-

played on the “Drive Info 1” screen and
“Drive Info 2” screen respectively.
(



P.94)

Pop-up display

Select to set the following pop-up dis-
plays, which may appear in some situa-
tions, on/off.
• Route guidance display of the navi-

gation system-linked system (if
equipped)

• Making call display of the hands-

free phone system

• Audio system operation display
• Instrument panel brightness adjust-

ment display

Ring position memory

Select to change the meter ring posi-
tion when the engine is started.
The position before the engine is
stopped or the center position can be
selected.

Accent color

Select to change the accent color on
the screen, such as the cursor color.

Rev indicator

Select to set the rev indicator on/off.
When set to on, proceed to select the
engine speed at which the rev indica-
tor will be displayed.

Rev peak

Select to set the rev peak on/off.

Clock

Select to switch between 24-hour dis-
play and 12-hour display.

Audio system-linked display

Driving assist system informa-
tion

Warning message display

Settings display

2-1. Instrument cluster

Initialization

Select to reset the meter display set-
tings.

Suspension of the settings display

In the following situations, operation of the

settings display will be temporarily sus-

pended.

When a warning message appears on the

multi-information display

When the vehicle begins to move

Customization

The settings can be changed on

of the

multi-information display.

Settings of the driving assist systems

(



P.435)

Vehicle settings (



P.100, 357, 358,

435)

Displays suggestions to the driver in
the following situations. For some sug-
gestions, a response to a displayed

suggestion can be selected. To select a
response, use the meter control
switches.

The suggestion function can be turned
on/off.

Suggestion to turn on the head-
lights

If the headlight switch is in other than

, and the vehicle speed is 5

km/h (3 mph) or higher for a certain
amount of time when the surroundings
are dark, a suggestion message will be
displayed.

Suggestion to close the power win-
dows (linked to windshield wiper
operation)

If the windshield wipers are operated
with a power window open, a sugges-
tion message will be displayed asking if
you wish to close the power windows.
To close all of the power windows,
select “Yes”.

Suggestion to unlock the power
windows

If it is attempt to close the passenger’s
side window using the power window
switch on the driver’s door or all win-
dow control switch, a suggestion mes-
sage will be displayed.

Customization

The suggestion function can be turned

on/off. (Customizable features:



P.435)

WARNING

Cautions during setting up the dis-

play

As the engine needs to be running

during setting up the display, ensure that

the vehicle is parked in a place with ade-

quate ventilation. In a closed area such as

a garage, exhaust gases including harm-

ful carbon monoxide (CO) may collect

and enter the vehicle. This may lead to

death or a serious health hazard.

NOTICE

While setting up the display

To prevent battery discharge, ensure

that the engine is running while setting up

the display features.

Suggestion function

2-1. Instrument cluster

icle

ion
an

d i

ica

tor

: If equipped

Navigation system-linked display
area (if equipped)

Displays the following items, which are
linked to the navigation system:
• Speed limit
• Street name
• Route guidance to destination
• Compass

Driving assist system status display
area

Displays the current shift position, and shift
range/gear position, or the operational
status of the following systems:
• Pre-collision warning (Pre-Collision

System) (



P.232)

• Dynamic radar cruise control with full-

speed range (



P.252)

• LKA (Lane-Keeping Assist) (



P.232)

• Lexus parking assist-sensor (



P.263)

Displayed content is the same as that dis-
played on the multi-information display.
For details, refer to the explanations of
each system.

Vehicle speed display

Information display area (



P.101)

Displays the following items:
• Warning/message
•

icon (



P.101)

• Audio system operation status
• Dynamic radar cruise control with full-

speed range status (



P.252)

• Hands-free system status (



P.101) (if

equipped)

• Eco Driving Indicator/tachometer

(



P.102)

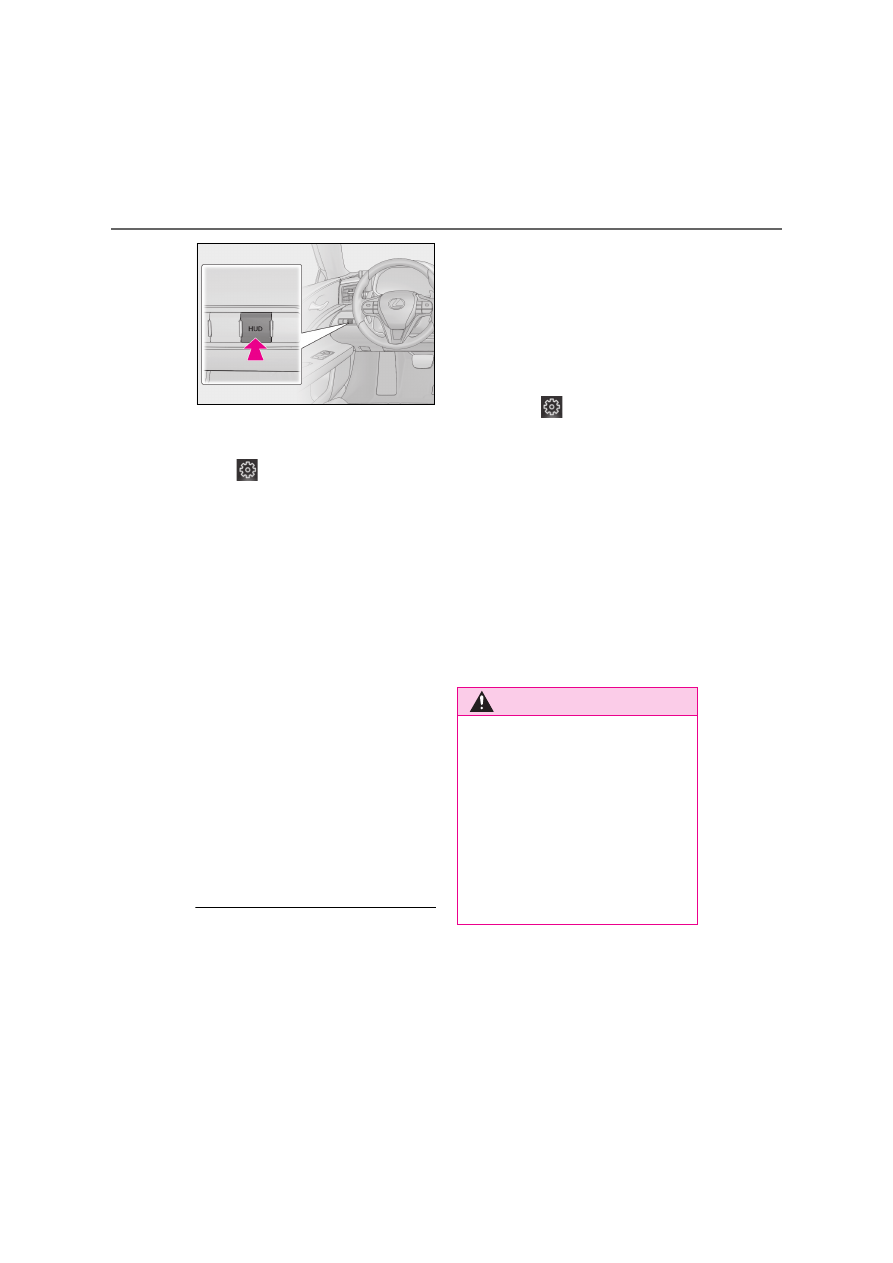

HUD (Head-up display) switch

Enabling/Disabling the head-up
display

Pressing the switch turns the head-up
display on/off.

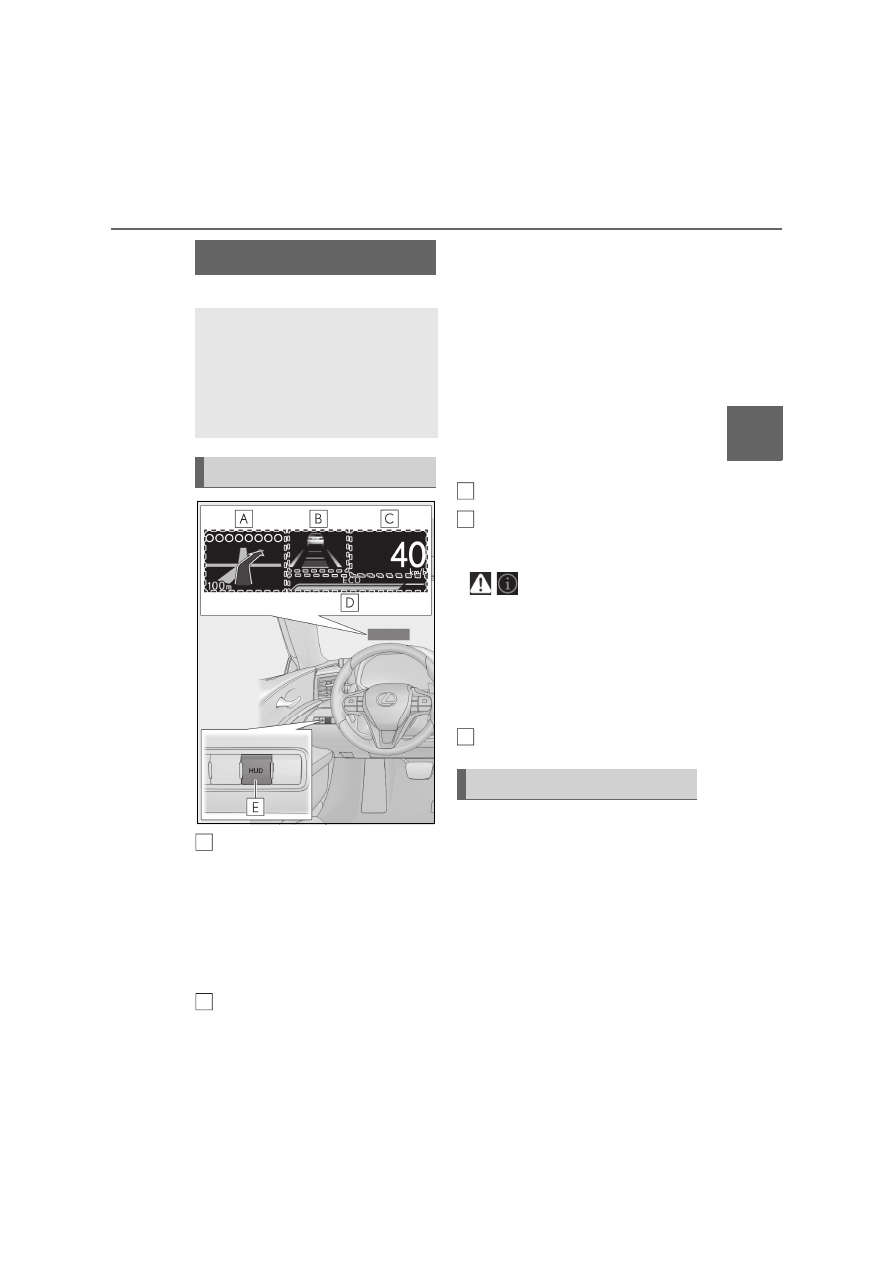

Head-up display

The head-up display is linked to the
meters and navigation system and
projects a variety of information in
front of the driver, such as the cur-
rent vehicle speed and route guid-
ance to a set destination.

System components

Using the head-up display

C
D

100

2-1. Instrument cluster

Changing settings of the head-up
display

Select

on the multi-information dis-

play (



P.93) to change the following

settings:



Display brightness/position

Select to adjust the brightness and position
of the head-up display.



Eco Driving Indicator/tachometer

Select to display Eco Driving Indicator,
tachometer or no content.



Display content

Select to enable/disable the following
items:
• Route guidance to destination
• Driving assist system status
• Compass
• Audio system operation status



Display angle

Select to adjust the angle of the head-up
display.

Head-up display

The head-up display may seem dark and

hard to see when viewed through sun-

glasses, especially polarized sunglasses.

Adjust the brightness of the head-up dis-

play or remove your sunglasses.

When the head-up display is turned off, it

will remain off even if the engine switch is

turned to ACC or ON after the engine

switch has been turned off.

The startup image will be displayed on

the head-up display after the engine

switch has been turned to ON while the

head-up display switch is set to on.

Display brightness

The brightness of the head-up display can
be adjusted on

of the multi-information

display. Also, it is automatically adjusted

according to the ambient brightness.

Head-up display automatic position

adjustment

If the display position is recorded into mem-

ory, the head-up display will be automati-

cally adjusted to the desired position.

(



P.161)

When the battery is disconnected

The customize settings of the head-up dis-

play will be reset.

Customization

Settings (e.g. display) can be changed.

(Customizable features:



P.435)

WARNING

Before using the head-up display

Check that the position and brightness

of the head-up display image does not

interfere with safe driving. Incorrect

adjustment of the image’s position or

brightness may obstruct the driver’s

view and lead to an accident, resulting

in death or serious injury.

Do not continuously look at the head-

up display while driving as you may fail

to see pedestrians, objects on the

road, etc. ahead of the vehicle.

101

2-1. Instrument cluster

icle

ion
an

d i

ica

tor

Displays the following items in the
appropriate situation:

Warning/message

Displays the following warning/mes-
sages:
• Master warning message
• Notification message (Dynamic

radar cruise control with full-speed
range)

• Other messages

icons

Displays the following multi-informa-
tion display linked icons:

: Master warning icon

Displayed when a warning message is
displayed on the multi-information dis-
play. (



P.396)

: Information icon

Displayed when a suggestion/advice
pop-up display is displayed on the
multi-information display. (



P.98)

Hands-free system status

Displayed when the hands-free system
is operated.

Audio system operation status

Displayed when the audio system is
operated.

Eco Driving Indicator/tachometer

Displays either of Eco Driving Indica-
tor or the tachometer.

WARNING

Caution for changing settings of the

head-up display

As the engine needs to be running while

changing the settings of the head-up dis-

play, ensure that the vehicle is parked in a

place with adequate ventilation. In a

closed area such as a garage, exhaust

gases including harmful carbon monox-

ide (CO) may collect and enter the vehi-

cle. This may lead to death or a serious

health hazard.

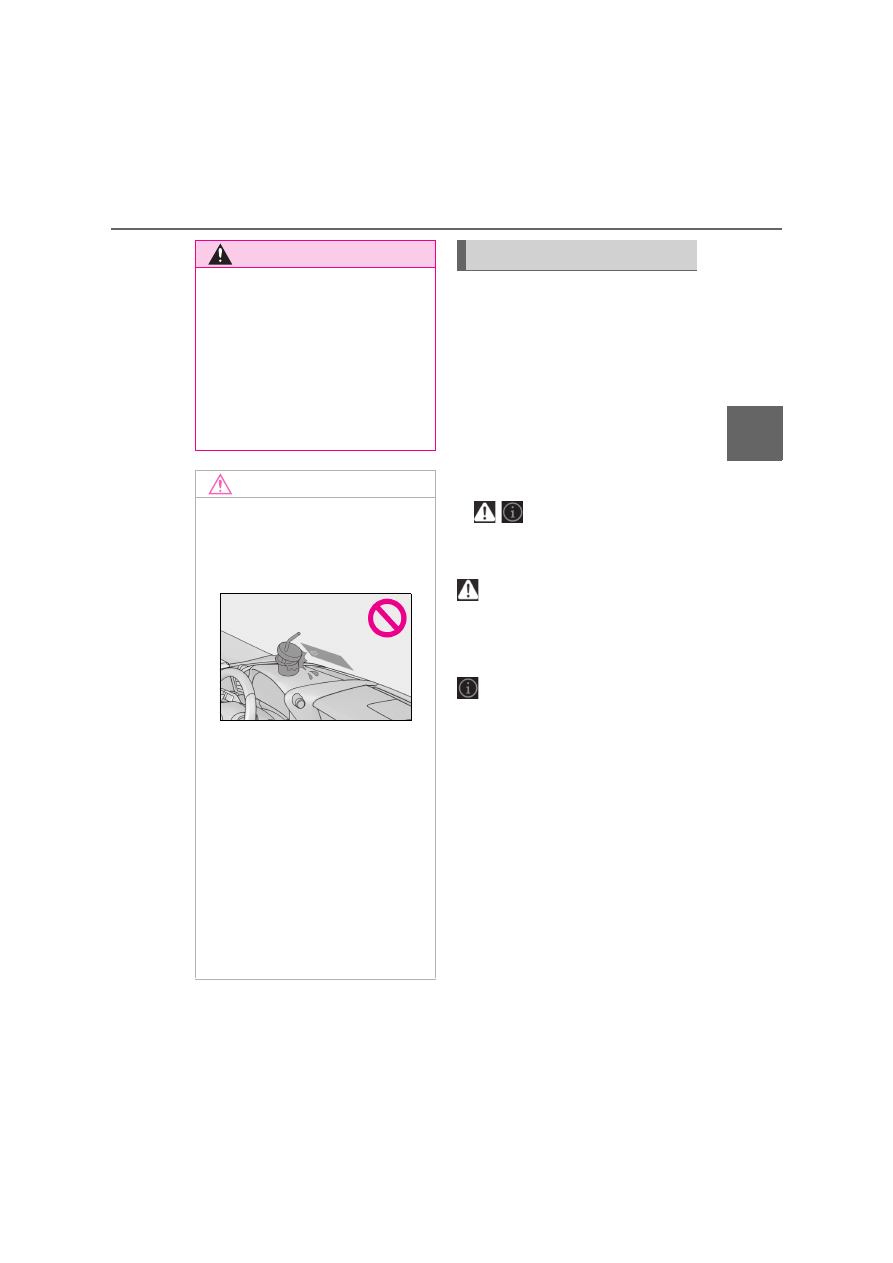

NOTICE

To prevent damage to components

Do not place any drinks near the head-

up display projector. If the projector

gets wet, electrical malfunctions may

result.

Do not place anything on or put stick-

ers onto the head-up display projector.

Doing so could interrupt head-up dis-

play indications.

Do not touch the inside of the head-up

display projector or thrust sharp edges

or the like into the projector.

Doing so could cause mechanical mal-

functions.

When changing the settings of the

head-up display

To prevent battery discharge, ensure

that the engine is running while changing

the settings of the head-up display.

Information display area

102

2-1. Instrument cluster

Displays the following items which are
linked to the navigation system:

Speed limit

The speed limit on the current road.

Street name

When the navigation system is per-
forming route guidance, the name of
the next street will be displayed on the
top of the display area.

Route guidance to destination

Displayed when the navigation system
is performing route guidance. When
approaching an intersection, an arrow
will be displayed to indicate the sug-
gested direction of travel.

Compass

Displays the direction of travel.

Street name display

Only street names which are included in the

map data will be displayed.

Eco Driving Indicator

Eco Driving Indicator Zone Display

Eco driving ratio based on acceler-
ation

Zone of Eco driving

Displayed content is the same as that dis-
played on the multi-information display
(Eco Driving Indicator). For details, refer to
P.87.

Tachometer

Displays the engine speed in revolu-
tions per minute.

Navigation system-linked dis-
play area (if equipped)

Eco Driving Indicator/tachome-
ter

A
B

103

2-1. Instrument cluster

icle

ion
an

d i

ica

tor

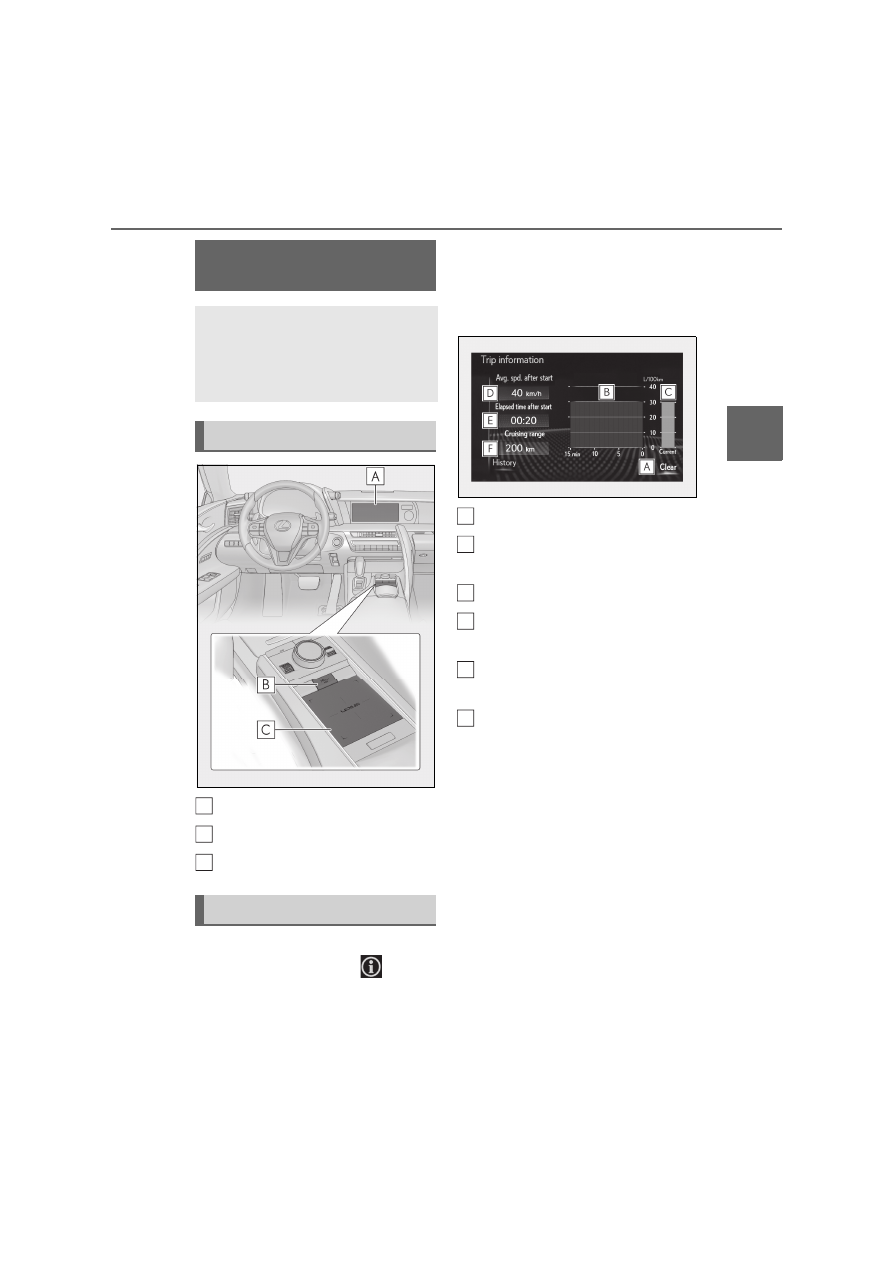

Center Display

“MENU” button

Touchpad

Press the “MENU” button on the
Remote Touch, then select

on the

menu screen, and then select “Trip
information” or “History”.

Trip information

If a screen other than “Trip informa-
tion” is displayed, select “Trip informa-
tion”.

Resetting the consumption data

Fuel consumption in the past 15
minutes

Current fuel consumption

Average vehicle speed since the
engine was started.

Elapsed time since the engine was
started.

Cruising range

Average fuel consumption for the past 15
minutes is divided by color into past aver-
ages and averages attained since the
engine switch was last turned to ON. Use
the displayed average fuel consumption as
a reference.
The image is an example only, and may
vary slightly from actual conditions.

History

If a screen other than “History” is dis-
played, select “History”.

Fuel consumption informa-
tion

Fuel consumption information can
be displayed on the Center Display.
The consumption screen can be
displayed on the side display.

System components

Consumption

A
B
C

A
B

C
D

104

2-1. Instrument cluster

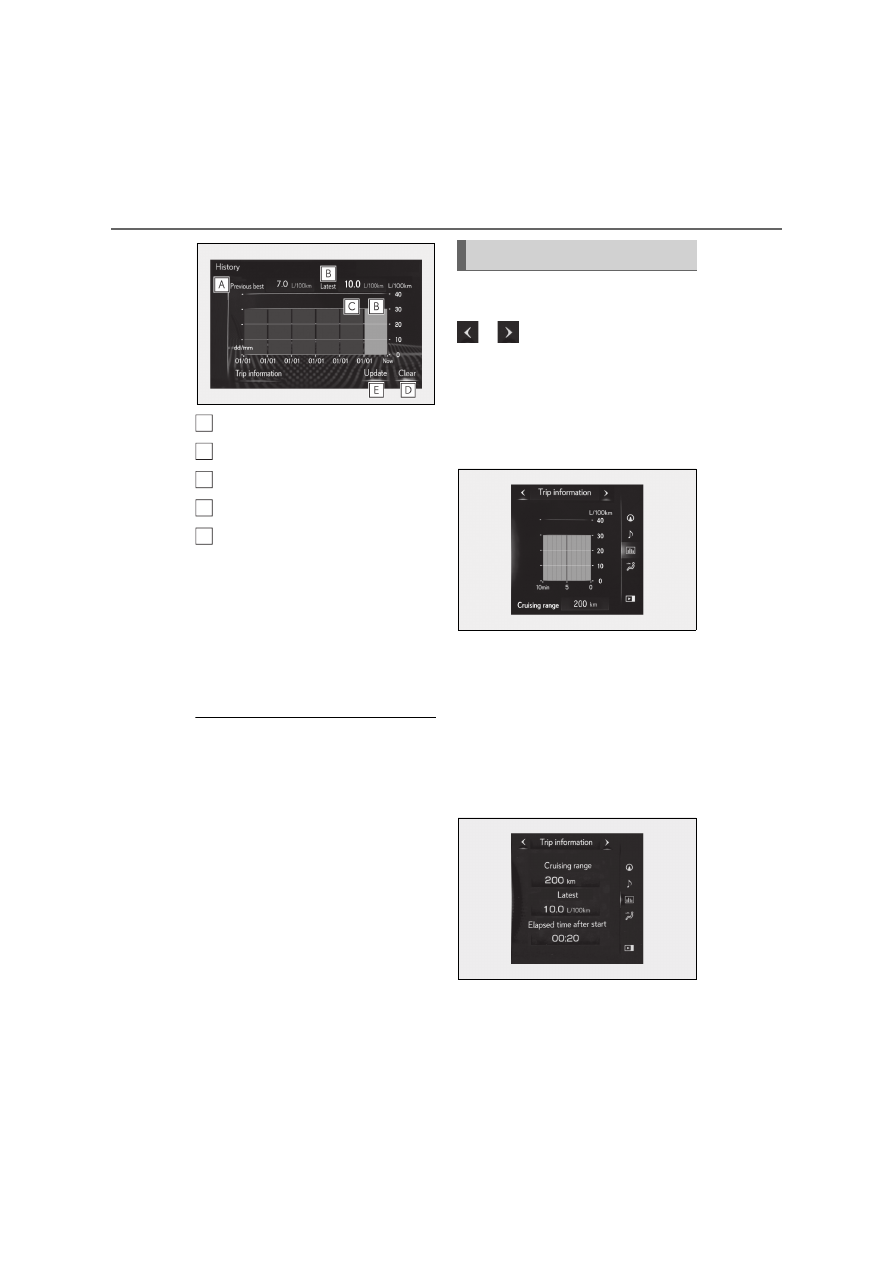

Best recorded fuel consumption

Latest fuel consumption

Previous fuel consumption record

Resetting the History data

Updating the latest fuel consump-
tion data

The latest fuel consumption history is
divided by color into past averages and the
average fuel consumption since the last
updated. Use the displayed average fuel
consumption as a reference.
The image is an example only, and may
vary slightly from actual conditions.

Updating the History data

Update the latest fuel consumption by

selecting “Update” to measure the current

fuel consumption again.

Resetting the data

The fuel consumption data can be deleted

by selecting “Clear”.

Cruising range

Displays the estimated maximum distance

that can be driven with the quantity of fuel

remaining.
This distance is computed based on your

average fuel consumption. As a result, the

actual distance that can be driven may differ

from that displayed.

Display the vehicle information on the
side display (



P.303) and then select

to display the desired

screen.

Trip information (type A)

Displays the average fuel consumption
for the past 10 minutes in 1 minute
intervals, as well as the cruising range.

The image is an example only, and may
vary slightly from actual conditions.
Use the displayed average fuel consump-
tion as a reference.

Trip information (type B)

Displays the cruising range, latest fuel
consumption and the amount of time
elapsed since the engine was started.

The image is an example only, and may
vary slightly from actual conditions.

A
B
C
D

Using the side display

Lexus LC Cabriolet (2021 year). Manual in english - page 4
