LEXUS RX 450HL (2019 year). Instruction - part 7

112

2. Instrument cluster

RX450h_RX450hL_U

■

Vehicle settings

Item

Settings

Details

PBD (Power back door) (

P. 142)

The following power back door settings can be changed:

System settings

All On

Select to enable the power back door

system.

Touchless Sensor

Off (if equipped)

Select to disable the touchless sensor.

(Other power back door functions

remain enabled.)

All Off

Select to disable the power back door

system.

Open position adjust-

ment

Select to set the open position at

which the power back door will stop

when opened automatically.

Volume

3 (Loud)

Select to set the volume of the buzzer

which sounds when the power back

door is operated.

2 (Medium)

1 (Low)

TPMS (Tire pressure warning system) (

P. 612)

Tire pressure warning system initialization

Select to initialize the tire pressure

warning system. To perform initializa-
tion, press and hold the
switch.

Before performing initialization, make

sure to adjust the inflation pressure of

each tire to the specified level.

(

P. 613)

Scheduled maintenance (U.S.A. only)

Maintenance data reset

Select to reset the message indicating

maintenance is required, after the

required maintenance is performed.

(

P. 588)

113

2. Instrument cluster

Instrument cl

uste
r

RX450h_RX450hL_U

■

Meter settings

Oil maintenance

Engine oil maintenance data reset

Select to reset the engine oil mainte-

nance information (message indicat-

ing maintenance is required and

distance until the next oil change)

after engine oil maintenance is per-

formed. (

P. 600)

Item

Settings

Details

Item

Settings

Details

Language

Select to change the language dis-

played.

Units

Select to change the units of measure

displayed.

(EV indicator)

Select to enable/disable the EV indi-

cator. (

P. 76)

Off

Switch settings

Select to display how to change the

top screen.

Drive information 1

Select to select up to 2 items that will

be displayed on each Drive informa-

tion screen (Drive information 1

screen, Drive information 2 screen,

and Drive information 3 screen)

respectively.

(Selectable items:

P. 105)

Drive information 2

Drive information 3

Pop-up display

Intersection guid-

ance

Select to enable/disable the pop-up

display.

Incoming calls

Brightness adjust-

ment

Color (except F

SPORT models)

2 available colors

Select to set the color of the cursor on

the multi-information display.

Needle (F SPORT

models)

3 available colors

Select to set the tachometer needle

color.

114

2. Instrument cluster

RX450h_RX450hL_U

Tachometer setting

Change according

to driving mode

Select to set the tachometer or

Hybrid System Indicator to always be

displayed or be changed to automati-

cally according to the driving mode.

Always tachometer

Always Hybrid Sys-

tem Indicator

Rev indicator (F

SPORT models)

Select to enable/disable the Rev indi-

cator. (

P. 98)

Off

Rev setting

Select to set the desired engine speed

at which the Rev indicator will begin

to be displayed.

Selectable engine speed range:

2000 rpm to 6000 rpm

Rev peak (F SPORT

models)

Select to enable/disable the Rev peak.

(

P. 98)

Off

Default setting

Select to reset the meter display set-

tings to the default setting.

Item

Settings

Details

115

2. Instrument cluster

Instrument cl

uste
r

RX450h_RX450hL_U

◆

Display items

■

Odometer
Displays the total distance the vehicle has been driven.

■

Trip meter A/trip meter B
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters A and B can be used to record and display different dis-
tances independently.

To reset, display the desired trip meter and press and hold the “ODO/TRIP”

switch.

■

Distance until next engine oil change

Displays the distance the vehicle can be driven until an oil change is neces-
sary.

◆

Pop-up display

In some situations the following will be temporarily displayed:

■

Distance until next engine oil change

Displays the distance until the next engine oil change. This display will be dis-
played in the following situations:

• When the power switch is turned to ON mode.

• When a warning message indicating that oil maintenance should be performed

soon or is required is displayed.

Odometer/trip meter display area

116

2. Instrument cluster

RX450h_RX450hL_U

Displays suggestions to the driver in the following situations. To select a response
to a displayed suggestion, use the meter control switches.

The suggestion function can be turned on/off. (Customizable features:

P. 737)

■

Suggestion to enable the power back door
If the power back door system is disabled (setting on

set to off) and the

power back door switch on the instrument panel is operated, a suggestion
message will be displayed asking if you wish to enable the power back door
system. To enable the power back door system, select “Yes”.

After enabling the power back door system, press the power back door switch

again to open or close the power back door.

■

Suggestion to turn off the headlights
If the headlights are left on for a certain amount of time after the power switch
has been turned off, a suggestion message will be displayed asking if you wish
to turn the headlights off. To turn the headlights off, select “Yes”.

If a front door is opened after the power switch is turned off, this suggestion mes-

sage will not be displayed.

■

Background color of the indicator/shift position display area (except F SPORT models)
The background color of the indicator/shift position display area is changed according to

the driving mode as follows (

P. 379):

●

Eco drive mode: Blue

●

Sport mode: Red

■

G-force display (if equipped)

●

The G-force values may not be zero even when the vehicle is parked, such as when it is

parked on an incline.

●

Depending on the vehicle usage conditions, the brake fluid pressure display may not

reach its maximum reading even though the brake pedal is fully depressed.

●

If a 12-volt battery terminal is disconnected and reconnected, the steering amount dis-

play may be disabled temporarily. After driving the vehicle for a while, the display will

be enabled.

■

Suspension of the settings display

●

Some settings cannot be changed while driving. When changing settings, park the

vehicle in a safe place.

●

If a warning message is displayed, operation of the settings display will be suspended.

Suggestion function

117

2. Instrument cluster

Instrument cl

uste
r

RX450h_RX450hL_U

■

Tire pressure

●

It may take a few minutes to display the tire inflation pressure after the power switch is

turned to ON mode. It may also take a few minutes to display the tire inflation pressure

after inflation pressure has been adjusted.

●

“---” may be displayed if the tire position information cannot be determined due to

unfavorable radio wave conditions.

●

Tire inflation pressure changes with temperature. The displayed values may also be dif-

ferent from the values measured using a tire pressure gauge.

■

Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is characteristic

of liquid crystal displays, and there is no problem continuing to use the display.

■

Customization
Some functions can be customized. (

P. 108, 73 6)

WARNING

■

Caution for use while driving

●

When operating the multi-information display while driving, pay extra attention to the

safety of the area around the vehicle.

●

Do not look continuously at the multi-information display while driving as you may fail

to see pedestrians, objects on the road, etc. ahead of the vehicle.

■

The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal information

display. At extremely low temperatures, the information display monitor may respond

slowly, and display changes may be delayed.

For example, there is a lag between the driver’s shifting and the new gear number

appearing on the display. This lag could cause the driver to downshift again, causing

rapid and excessive engine braking and possibly an accident resulting in death or

injury.

■

Cautions during setting up the display
As the hybrid system needs to be operating during setting up the display, ensure that

the vehicle is parked in a place with adequate ventilation. In a closed area such as a

garage, exhaust gases including harmful carbon monoxide (CO) may collect and enter

the vehicle. This may lead to death or a serious health hazard.

NOTICE

■

While setting up the display
To prevent 12-volt battery discharge, ensure that the hybrid system is operating while

setting up the display features.

118

2. Instrument cluster

RX450h_RX450hL_U

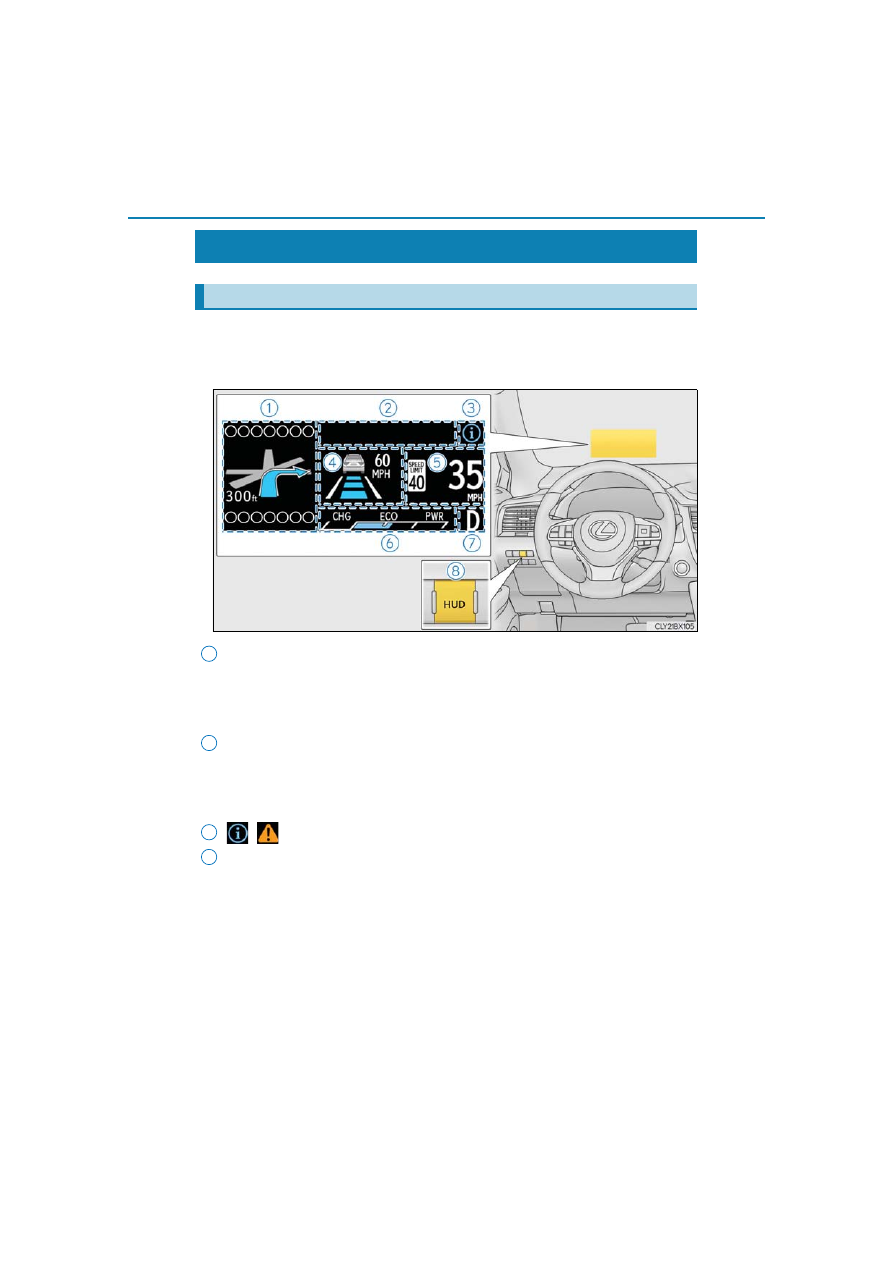

The head-up display is linked to the meters and navigation system (if equipped)
and projects a variety of information in front of the driver, such as the current
vehicle speed and route guidance to a set destination.

Navigation system-linked display area (if equipped) (

P. 121)

Displays the following items, which are linked to the navigation system:

• Street name

• Route guidance to destination

• Compass

Message display area (

P. 120)

Displays the following items:

• Warning/Message (if equipped)

• Audio system operation status

• Outside temperature

icon (

P. 120)

Driving assist system status display area (if equipped)

Displays the operational status of the following systems:

• Dynamic radar cruise control with full-speed range (

P. 306)

• LKA (Lane-Keeping Assist) (

P. 297)

• Intuitive parking assist (

P. 332)

• Intelligent Clearance Sonar (ICS) (

P. 342)

Displayed content is the same as that displayed on the multi-information display. For

details, refer to the explanations of each system.

Head-up display



: If equipped

Summary of functions

3
4

119

2. Instrument cluster

Instrument cl

uste
r

RX450h_RX450hL_U

Vehicle speed display area

Displays the following items:

• Vehicle speed

• Speed limit (vehicles with a navigation system) (U.S.A. only)

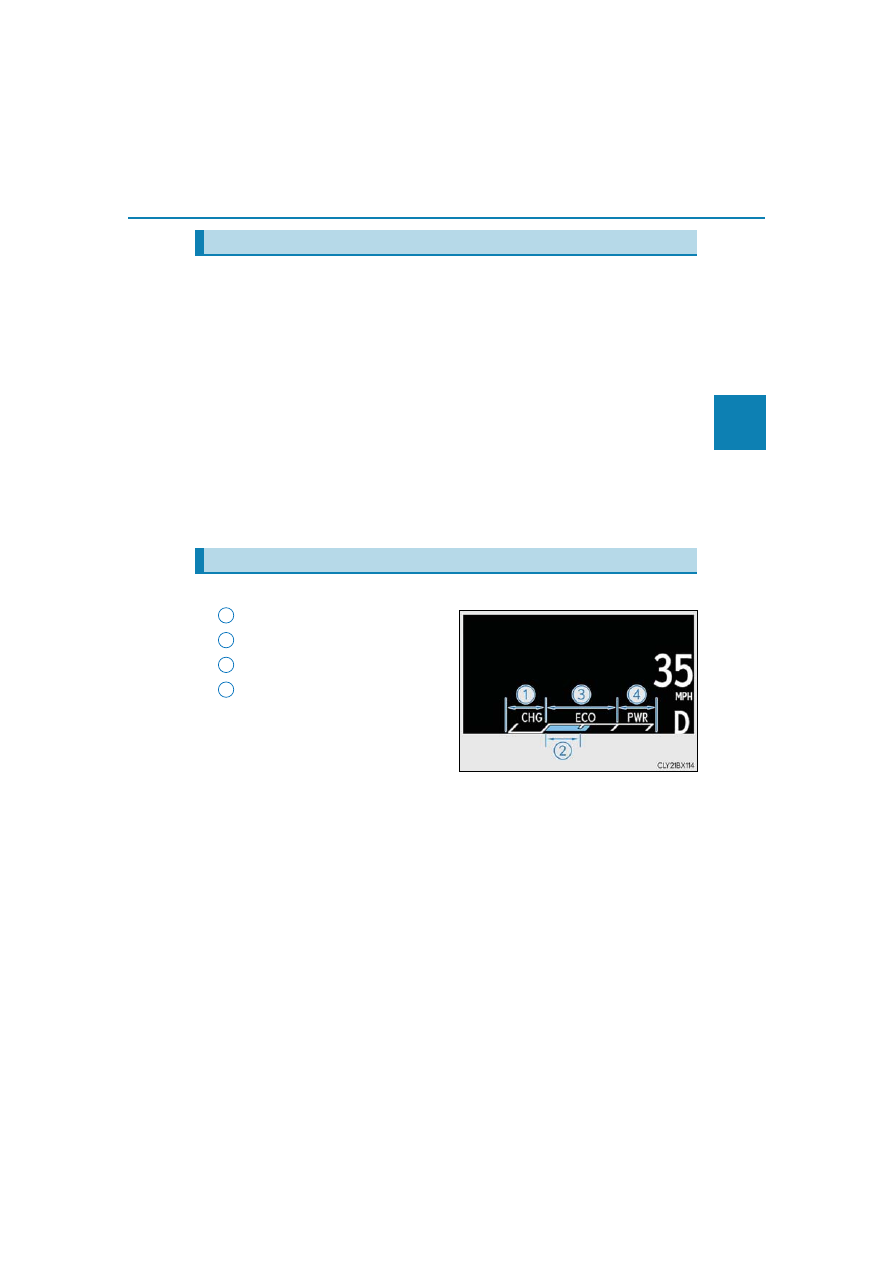

Hybrid System Indicator/Tachometer (

P. 121)

Shift position display (

P. 246)

HUD (Head-up display) switch (

P. 119)

◆

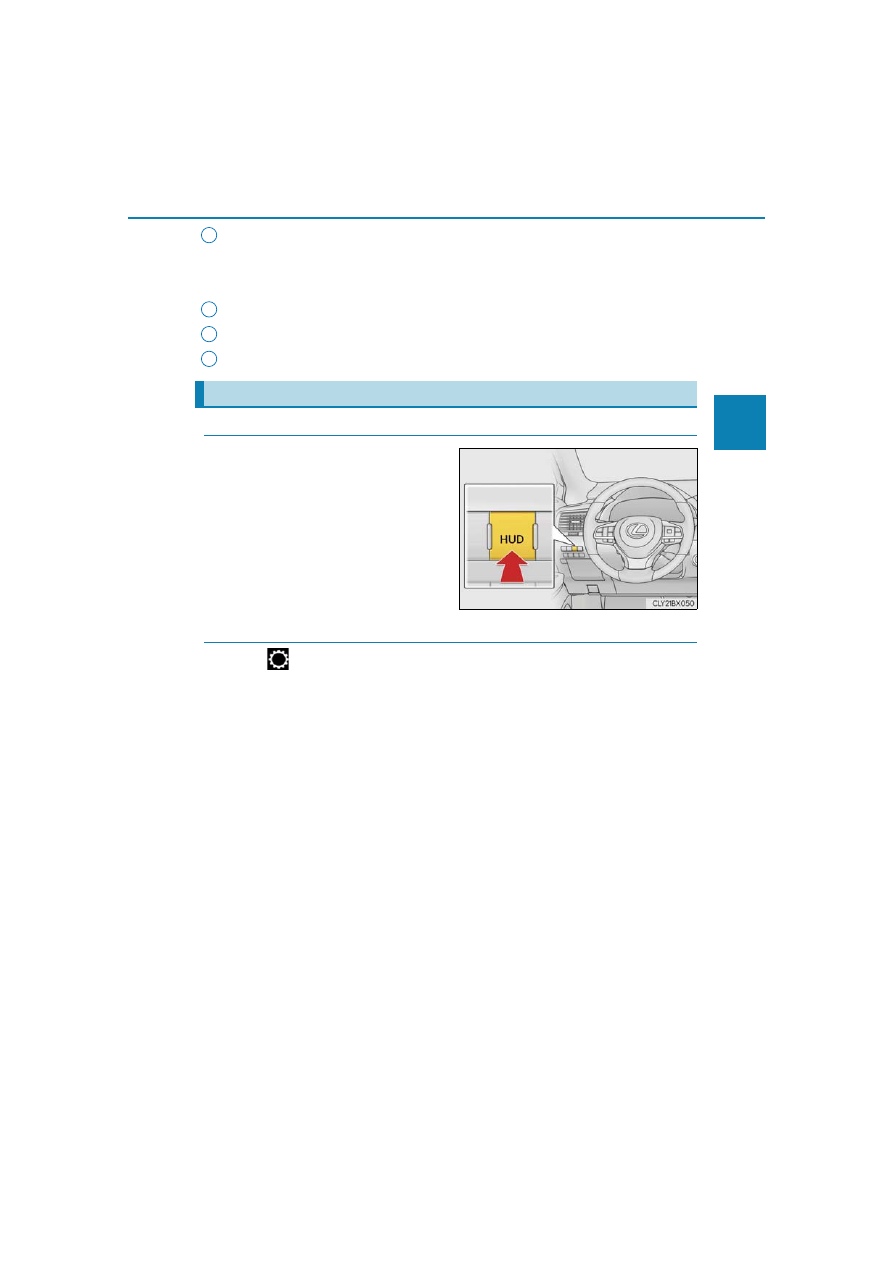

Enabling/Disabling the head-up display

Press the HUD (Head-up display)
switch.

◆

Changing settings of the head-up display

Select

on the multi-information display (

P. 108) to change the following

settings:

■

Display brightness/position
Select to adjust the brightness and position of the head-up display.

■

Display content
Select to enable/disable the following items:

• Route guidance to destination (if equipped)

• Driving assist system status (if equipped)

• Compass (if equipped)

• Audio system operation status

■

Hybrid System Indicator/Tachometer
Select to display Hybrid System Indicator/tachometer/no content.

Using the head-up display

6
7
8

120

2. Instrument cluster

RX450h_RX450hL_U

Displays the following multi-information display linked icons:

: Master warning icon

Displayed when a warning message is displayed on the multi-information
display. (

P. 667)

: Information icon

Displayed when a suggestion/advice pop-up display is displayed on the
multi-information display. (

P. 116)

Displays the following items in the appropriate situation:

■

Warning/Message (if equipped)
Displays the following system warning/messages:

• Pre-collision warning (pre-collision system)

• Alert from the Intelligent Clearance Sonar system

• Notification message (Dynamic radar cruise control with full-speed range)

■

Audio system operation status
Displayed when the audio system is operated.

■

Outside temperature
Displayed in the following situations:

• When the power switch is turned to ON mode

• When the low outside temperature indicator is flashing

Displayed content is the same as that displayed on the multi-information display. For

details, refer to the explanation of the outside temperature display on the multi-infor-

mation display. (

P. 96)

icons

Message display area

121

2. Instrument cluster

Instrument cl

uste
r

RX450h_RX450hL_U

Displays the following items which are linked to the navigation system:

■

Street name
The name of the street that the vehicle is currently driving on is displayed on
the bottom of the display area.
When the navigation system is performing route guidance, the name of the
next street will be displayed on the top of the display area.

■

Route guidance to destination
Displayed when the navigation system is performing route guidance. When
approaching an intersection, an arrow will be displayed to indicate the sug-
gested direction of travel.

■

Compass
Displays the direction of travel.

■

Hybrid System Indicator

Charge area
Hybrid Eco area
Eco area
Power area

Displayed content is the same as that

displayed on the meter (Hybrid Sys-

tem Indicator). For details, refer to

P. 99.

■

Tachometer
Displays the engine speed in revolutions per minute.

Navigation system-linked display area (if equipped)

Hybrid System Indicator/Tachometer

2
3
4

122

2. Instrument cluster

RX450h_RX450hL_U

■

Head-up display
The head-up display may seem dark or hard to see when viewed through sunglasses,

especially polarized sunglasses.

Adjust the brightness of the head-up display or remove your sunglasses.

■

When the 12-volt battery is disconnected
The customize settings of the head-up display will be reset.

■

Display brightness
The brightness of the head-up display can be adjusted on

of the multi-information

display. Also, it is automatically adjusted according to the ambient brightness.

■

Enabling/disabling of the head-up display
If the head-up display is disabled, it will remain disabled when the power switch is turned

off then back to ON mode.

■

Automatic adjustment of the head-up display position
A desired head-up display position can be entered to memory and recalled automati-

cally by the driving position memory system. (

P. 181)

■

Street name display (vehicles with a navigation system)
Only street names which are included in the map data will be displayed.

WARNING

■

Before using the head-up display

●

Check that the position and brightness of the head-up display image does not inter-

fere with safe driving. Incorrect adjustment of the image’s position or brightness may

obstruct the driver’s view and lead to an accident, resulting in death or serious injury.

●

Do not continuously look at the head-up display while driving as you may fail to see

pedestrians, objects on the road, etc. ahead of the vehicle.

■

Caution for changing settings of the head-up display
As the hybrid system needs to be operating while changing the settings of the head-up

display, ensure that the vehicle is parked in a place with adequate ventilation. In a

closed area such as a garage, exhaust gases including harmful carbon monoxide (CO)

may collect and enter the vehicle. This may lead to death or a serious health hazard.

123

2. Instrument cluster

Instrument cl

uste
r

RX450h_RX450hL_U

NOTICE

■

To prevent damage to components

■

When changing the settings of the head-up display
To prevent 12-volt battery discharge, ensure that the hybrid system is operating while

the changing the settings of the head-up display.

●

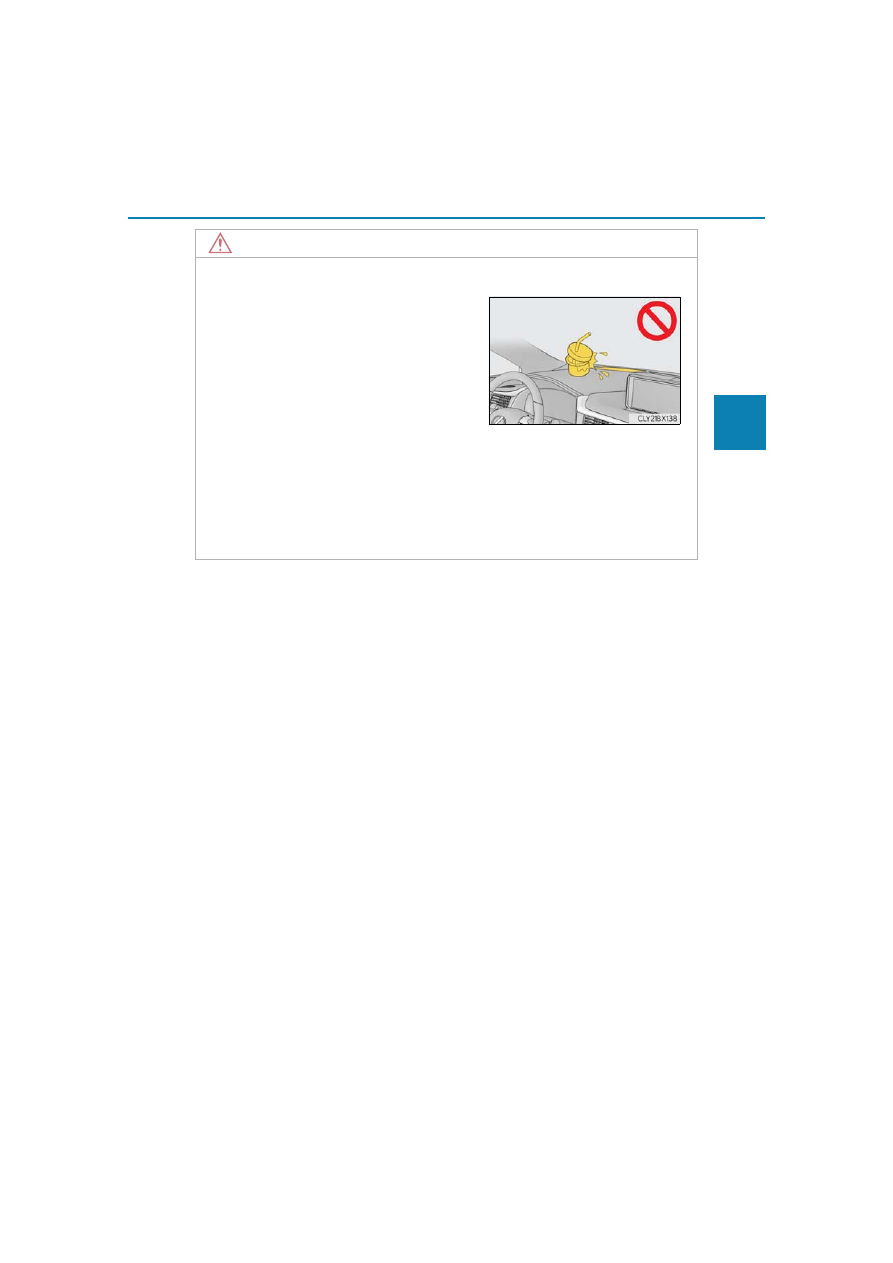

Do not place any drinks near the head-up dis-

play projector. If the projector gets wet, elec-

trical malfunctions may result.

●

Do not place anything on or put stickers onto

the head-up display projector.

Doing so could interrupt head-up display

indications.

●

Do not touch the inside of the head-up display

projector or thrust sharp edges or the like into

the projector.

Doing so could cause mechanical malfunc-

tions.

124

2. Instrument cluster

RX450h_RX450hL_U

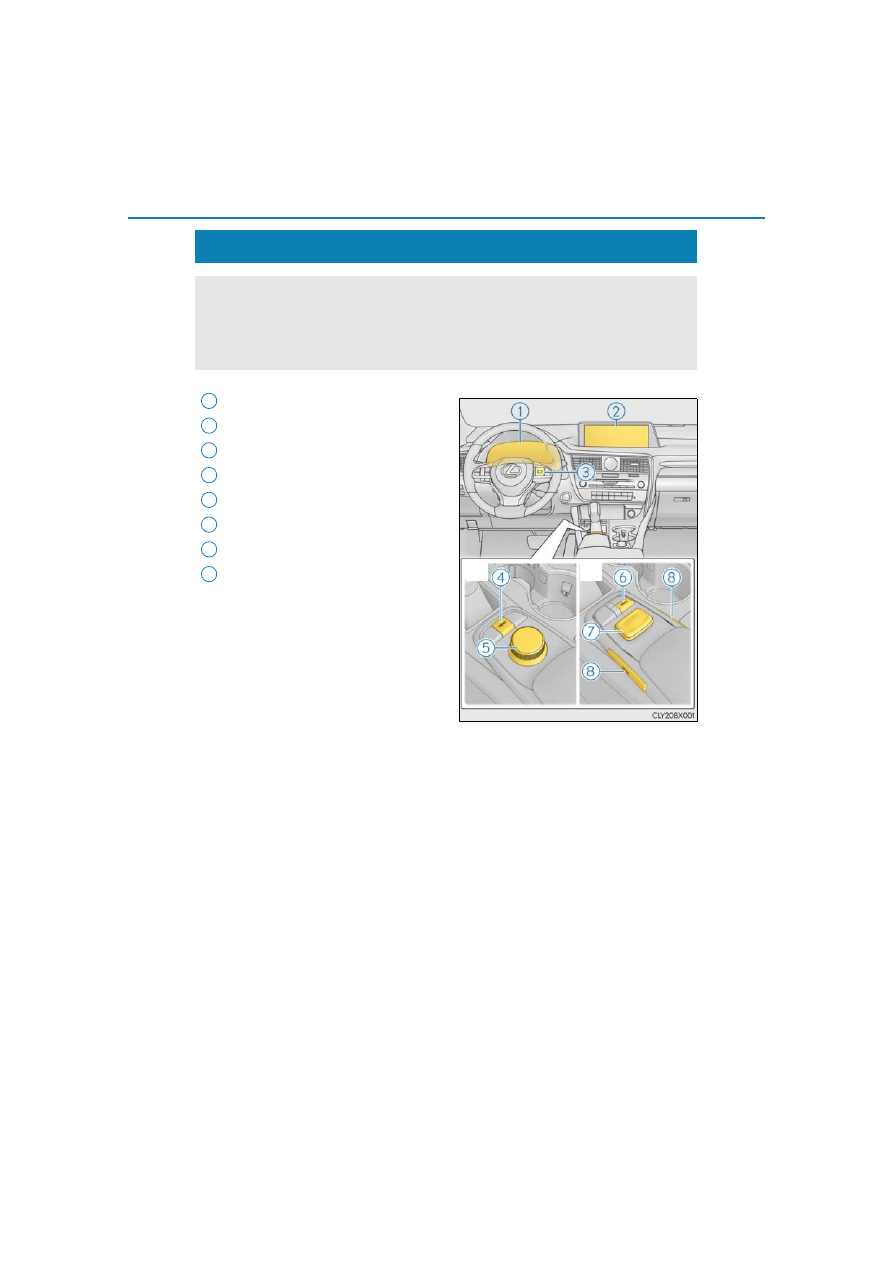

Energy monitor/consumption screen

You can view the status of your hybrid system on the multi-information display
and the audio system screen.
Vehicles with a navigation system (12.3-inch display): The energy monitor or
consumption screen can be displayed and operated on the side display.

Multi-information display
Audio system screen
Meter control switches
“MENU” button
Lexus Display Audio controller
“MENU” button
Remote Touch knob
“ENTER” button

: Vehicles with a Lexus Display Audio sys-

tem

: Vehicles with a navigation system

2
3
4
5
6
7
8

125

2. Instrument cluster

Instrument cl

uste
r

RX450h_RX450hL_U



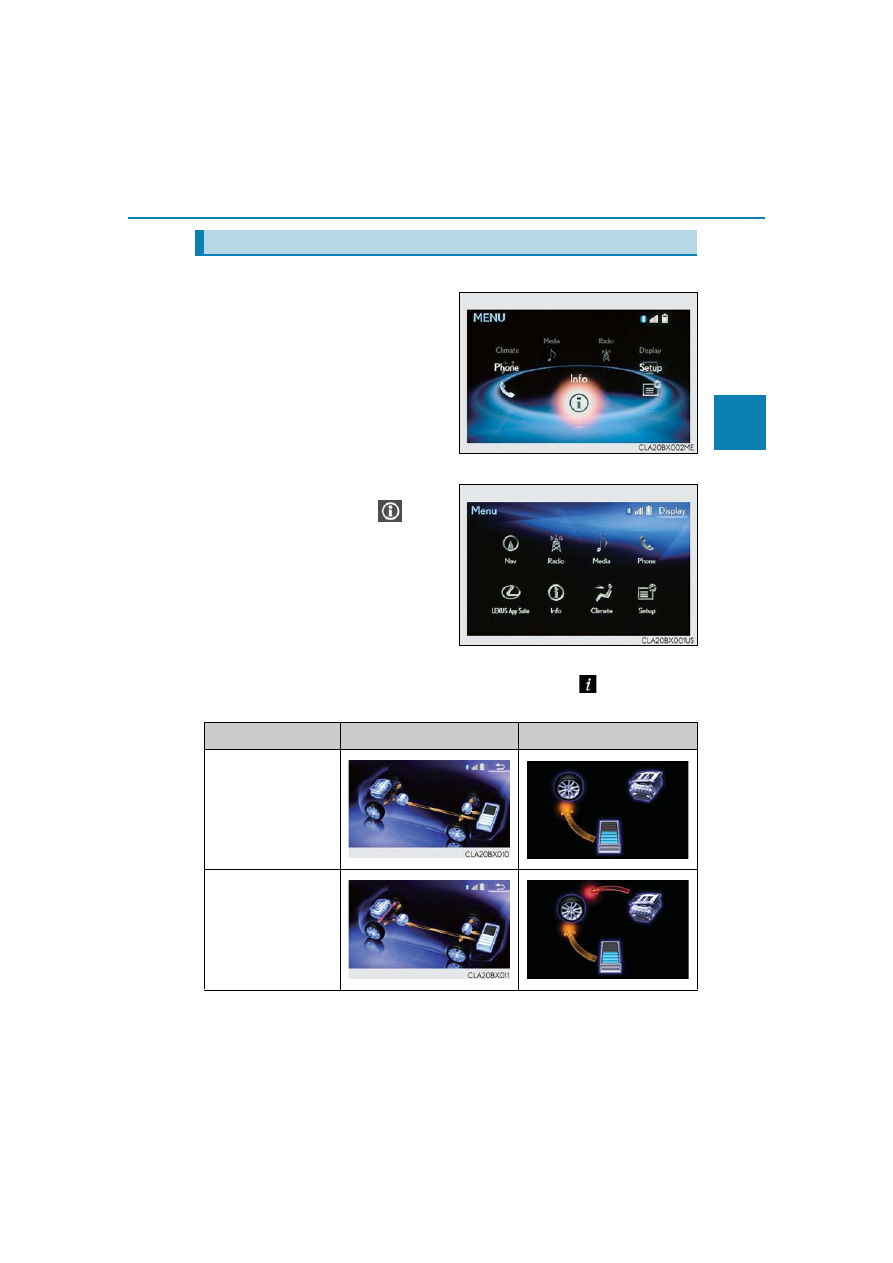

Lexus Display Audio screen

Press the “MENU” button on the Lexus
Display Audio controller, then select
“Info” on the “Menu” screen, and then
select “Fuel Consumption”.

If the “Energy Monitor” screen does not

appear, move the controller to the right

and select “Energy”.



Navigation system screen

Press the “MENU” button on the
Remote Touch, then select

on the

“Menu” screen, and then select “Fuel
Consumption”.

If the “Trip Information” or “Past Record”

screen is displayed, select “Energy”.



Multi-information display

Press the “

” or “” of the meter control switches and select , and then press

the “

” or “” to select the energy monitor display.

Energy monitor

Audio system screen

Multi-information display

When the vehicle is

tric motor (traction

motor)

When the vehicle is

gasoline engine and

the electric motor

(traction motor)

126

2. Instrument cluster

RX450h_RX450hL_U

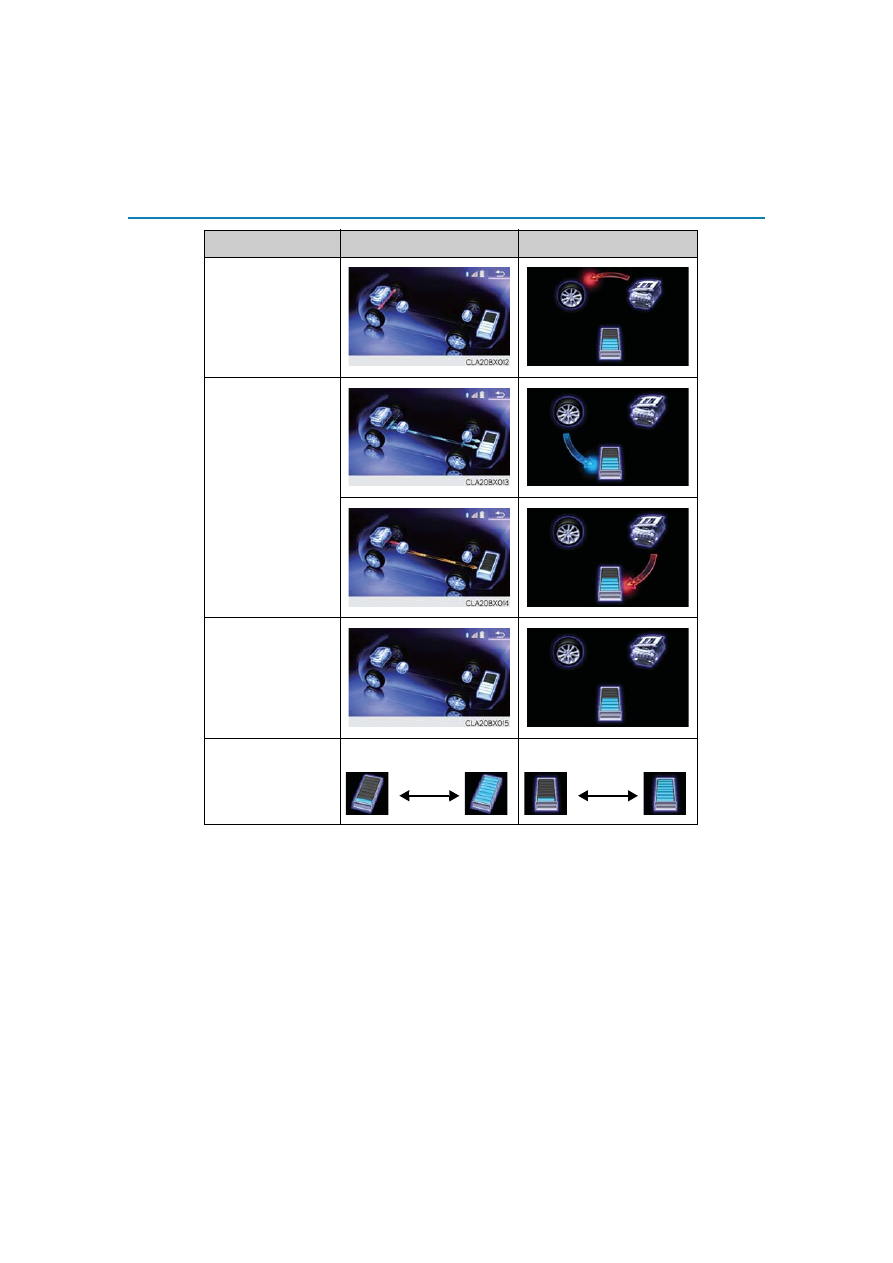

These images are examples only, and may vary slightly from actual conditions.

When the vehicle is

line engine

When the vehicle is

charging the hybrid

battery (traction bat-

tery)

When there is no

energy flow

Hybrid battery (trac-

tion battery) status

Low

Full

Low

Full

Audio system screen

Multi-information display

127

2. Instrument cluster

Instrument cl

uste
r

RX450h_RX450hL_U

■

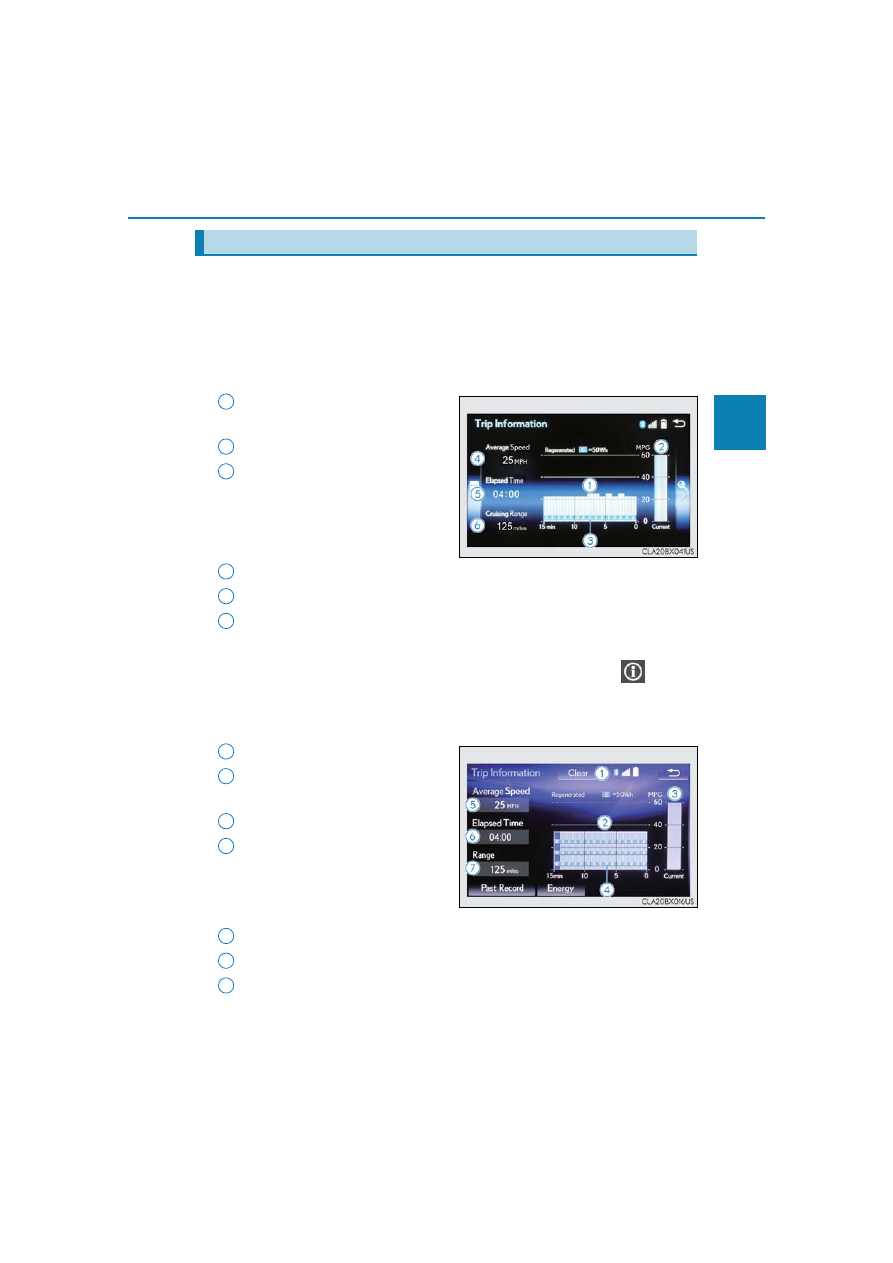

Trip information



Lexus Display Audio screen

Press the “MENU” button on the Lexus Display Audio controller, then select
“Info” on the “Menu” screen, and then select “Fuel Consumption”.

If the “Trip Information” screen does not appear, move the controller to the right

and select “Trip Information”.

Fuel consumption in the past 15
minutes
Current fuel consumption
Regenerated energy in the past
15 minutes
One symbol indicates 50 Wh.
Up to 5 symbols are shown.

Average vehicle speed since the hybrid system was started.
Elapsed time since the hybrid system was started.
Cruising range (

P. 129)



Navigation system screen

Press the “MENU” button on the Remote Touch, then select

on the

“Menu” screen, and then select “Fuel Consumption”.

If the “Energy Monitor” or “Past Record” screen is displayed, select “Trip Informa-

tion”.

Resetting the consumption data
Fuel consumption in the past 15
minutes
Current fuel consumption
Regenerated energy in the past
15 minutes
One symbol indicates 50 Wh.
Up to 5 symbols are shown.
Average vehicle speed since the hybrid system was started.
Elapsed time since the hybrid system was started.
Cruising range (

P. 129)

Fuel consumption

2
3

4
5
6

3
4

5
6
7

Content .. 5 6 7 8 ..
