LEXUS RC F (2019 year). Instruction - part 21

334

5-1. Using the air conditioning system

RC F_U

■

Adjusting the temperature setting
To adjust the temperature setting,
touch and slide your finger up or
down on the sensor.

The temperature setting can also be

adjusted by touching on the sensor.
When the temperature setting is

changed, a buzzer sounds.

If

 is not pressed, the system

will blow ambient temperature air or

heated air.

■

Fan speed setting

Press

 to increase the fan speed.

Press

 to decrease the fan speed.

■

Change the airflow mode
To change the airflow, press

.

The air outlets used are switched

each time the button is pressed.

Air flows to the upper body.
Air flows to the upper body and
feet.
Air flows to the feet.
Air flows to the feet and the wind-
shield defogger operates.

■

Other functions

●

Switching between outside air and recirculated air modes (

P. 338)

●

Defogging the windshield (

P. 338)

●

Defogging the rear window and outside rear view mirrors (

P. 338)

1

2

3
4

335

5-1. Using the air conditioning system

5

Inte
rior fe

ature

s

RC F_U

Display the air conditioning control
screen
Display the option control screen
(

P. 335)

Adjust the left-hand side tempera-
ture setting
Adjust the fan speed setting
Select the air flow mode
Adjust the right-hand side temperature setting
Function on/off indicators

When the function is on, the indicator illuminates on the control screen.

Display the sub function menu

Using the Remote Touch, select the button on the screen and activate it by press-
ing on or double tapping the Remote Touch Pad.

■

Option control screen
Select

 on the air conditioning control screen to display the option control

screen. The functions can be switched on and off.
Adjusting the temperature for driver
and passenger seats separately
(“DUAL” mode) (

P. 337)

Select to set eco mode on/off
(

P. 342)

Set cooling and dehumidification
function on/off

If the “A/C” indicator is turned off, the
system will blow ambient temperature
air or heated air.

Removing pollen from the air (Micro dust and pollen filter)
(

P. 338)

Air conditioning control screen

1

2

3

4
5
6
7

8

1

2

3

4

336

5-1. Using the air conditioning system

RC F_U

■

Sub function menu
When the sub function button on the
Remote Touch is pressed, the follow-
ing functions can be switched on and
off.

Set automatic mode on/off
(

P. 337)

Turn the fan off
Set cooling and dehumidification
function on/off

If the “A/C” indicator is turned off, the system will blow ambient temperature air or

heated air.

Adjust the temperature for driver and passenger seats separately (“DUAL”
mode) (

P. 337)

Select to set eco mode on/off (

P. 342)

■

Side display (vehicle with a navigation system)

Adjust the left-hand side tem-
perature setting
Adjust the fan speed setting
Adjust the right-hand side tem-
perature setting
Set cooling and dehumidification
function on/off

If the “A/C” indicator is turned off, the

system will blow ambient tempera-

ture air or heated air.

Adjust the temperature for the driver’s and front passenger’s seats sepa-
rately (“DUAL” mode) (

P. 337)

Select the air flow mode

1

2
3

4

5

1

2
3

4

5

6

337

5-1. Using the air conditioning system

5

Inte
rior fe

ature

s

RC F_U

Press

, or select “AUTO” on the air conditioning control screen.

Press

 to switch to automatic air intake mode.

The air conditioning system automatically switches between outside air and recir-

culated air modes.

Adjust the temperature setting.

To stop the operation, press

 or select “Off” on the sub function menu.

■

Automatic mode indicator
If the fan speed setting or air flow modes are operated, the automatic mode
indicator goes off. However, automatic mode for functions other than that
operated is maintained.

■

Adjusting the temperature for driver and passenger seats separately
(“DUAL” mode)
To turn on the “DUAL” mode, perform any of the following procedures:

●

Press .

●

Select “DUAL” on the air conditioning control screen.

●

Adjust the passenger’s side temperature setting.

The indicator comes on when the “DUAL” mode is on.
While in “DUAL” mode, the temperature of the rear air outlets is set at the right-

hand side temperature setting.

Using automatic mode

1

2

3

4

338

5-1. Using the air conditioning system

RC F_U

■

Switching between outside air and recirculated air modes

Press

.

The mode switches among

 (recirculated air mode), automatic and

 (outside air mode) modes each time the button is pressed.

When the system is switched to automatic mode, the air conditioning system

operates automatically.

The indicator above the selected button comes on.

■

Micro dust and pollen filter
Pollen is removed from the air and the air flows to the upper part of the body.
Select

 on the option control screen.

When the micro dust and pollen filter is on,

 is displayed on the air condition-

ing control screen.
In order to prevent the windshield from fogging up when the outside air is cold, the

dehumidification function may operate.
Pollen is filtered even if the micro dust and pollen filter is turned off.

■

Defogging the windshield
Defoggers are used to defog the windshield and side windows.

Press .

Set the outside/recirculated air mode button to outside air mode if the recirculated

air mode is used. (It may switch automatically.)
To defog the windshield and the side windows early, turn the air flow and tempera-

ture up.
To return to the previous mode, press



again when the windshield is

defogged.

■

Defogging the rear window and outside rear view mirrors
Defoggers are used to defog the rear window, and to remove raindrops, dew
and frost from the outside rear view mirrors.

Press .

The defoggers will automatically turn off after a period of time.

Other functions

339

5-1. Using the air conditioning system

5

Inte
rior fe

ature

s

RC F_U

■

Windshield wiper de-icer (if equipped)
This feature is used to prevent ice from building up on the windshield and
wiper blades.

Turns on/off.

The indicator comes on when the

windshield wiper de-icer is on.
The windshield de-icer will automati-

cally turn off after a period of time.

■

Location of air outlets
The air outlets and air volume
changes according to the selected
airflow mode.

Air outlets

340

5-1. Using the air conditioning system

RC F_U

■

Adjusting the position of and opening and closing the air outlets

Direct air flow to the left or right, up or down

To close the vent, move the knob to the most outside position. (rear outlets only)

Turn the knob to open or close the vent



Front



Rear

1

2

341

5-1. Using the air conditioning system

5

Inte
rior fe

ature

s

RC F_U

■

Registering air conditioning settings to electronic keys (vehicles with driving position

memory)

●

Unlocking the vehicle using an electronic key and turning the engine switch to IGNI-

TION ON mode will recall that key's registered air conditioning settings.

●

When the engine switch is turned off, the current air conditioning settings will automat-

ically be registered to the electronic key that was used to unlock the vehicle.

●

The system may not operate correctly if more than one electronic key is in the vicinity or

if the smart access system with push-button start is used to unlock a passenger door.

●

The doors that can recall the air conditioning setting* when unlocked using the smart

access system with push-button start can be changed. For details, contact your Lexus

dealer.

*: The doors that can recall the driving position memory are changed at the same time.

■

Using automatic mode
Fan speed is adjusted automatically according to the temperature setting and the ambi-

ent conditions.
Therefore, the fan may stop for a while until warm or cool air is ready to flow immediately
after

 is pressed or “AUTO” is selected.

■

Using the voice command system
Air conditioning system can be operated using voice commands. For details, refer to the

“NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.

■

Fogging up of the windows
The windows will easily fog up when the humidity in the vehicle is high. Turning

(“A/C”) on will dehumidify the air from the outlets and defog the windshield effectively.

●

If you turn

 (“A/C”) off, the windows may fog up more easily.

●

The windows may fog up if the recirculated air mode is used.

■

Outside/recirculated air mode

●

When driving on dusty roads such as tunnels or in heavy traffic, set the outside/recircu-

lated air mode button to the recirculated air mode. This is effective in preventing out-

side air from entering the vehicle interior. During cooling operation, setting the

recirculated air mode will also cool the vehicle interior effectively.

●

Outside/recirculated air mode may automatically switch depending on the tempera-

ture setting or the inside temperature.

■

When the outside temperature exceeds 75

F (24C) and the air conditioning system

is on

●

In order to reduce the air conditioning power consumption, the air conditioning system

may switch to recirculated air mode automatically. This may also reduce fuel consump-

tion.

●

Recirculated air mode is selected as a default mode when the engine switch is turned to

IGNITION ON mode.

●

It is possible to switch to outside air mode at any time by pressing

.

342

5-1. Using the air conditioning system

RC F_U

■

Automatic mode for air intake control
In automatic mode, the system detects exhaust gas and other pollutants and auto-
matically switches between outside air and recirculated air modes.
When the dehumidification function is off, and the fan is operating, turning automatic
mode on will activate the dehumidification function.

■

Operation of the air conditioning system in Eco drive mode
In Eco drive mode, the air conditioning system is controlled as follows to prioritize fuel

efficiency:

●

Engine speed and compressor operation controlled to restrict heating/cooling capac-

ity

●

Fan speed restricted when automatic mode is selected

To improve air conditioning performance, perform the following operations:

●

Adjust the fan speed

●

Turn off Eco drive mode

■

When the outside temperature falls to nearly 32

F (0C)

The dehumidification function may not operate even when

 is pressed or “A/C” is

selected.

■

Ventilation and air conditioning odors

●

To let fresh air in, set the air conditioning system to the outside air mode.

●

During use, various odors from inside and outside the vehicle may enter into and accu-

mulate in the air conditioning system. This may then cause odor to be emitted from the

vents.

●

To reduce potential odors from occurring:
• It is recommended that the air conditioning system be set to outside air mode prior

to turning the vehicle off.

• The start timing of the blower may be delayed for a short period of time immediately

after the air conditioning system is started in automatic mode.

■

Air conditioning filter
P. 425

■

Customization
Settings (e.g. A/C Auto switch operation) can be changed.

(Customizable features:

P. 575)

343

5-1. Using the air conditioning system

5

Inte
rior fe

ature

s

RC F_U

WARNING

■

To prevent the windshield from fogging up

●

Do not use

 during cool air operation in extremely humid weather. The differ-

ence between the temperature of the outside air and that of the windshield can cause

the outer surface of the windshield to fog up, blocking your vision.

■

To prevent burns

●

Do not touch the rear view mirror surfaces when the outside rear view mirror defog-

gers are on.

●

Do not touch the glass at lower part of the windshield or to the side of the front pillars

when the windshield wiper de-icer is on.

NOTICE

■

To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the engine is

stopped.

●

Do not place anything on the instrument

panel which may cover the air outlets. Other-

wise, air flow may be obstructed, preventing

the windshield defoggers from defogging.

344

5-1. Using the air conditioning system

RC F_U

Turn the heated steering wheel on/off

The indicator light comes on when the

heated steering wheel is operating.

●

The heated steering wheel can be used when the engine switch is in IGNITION ON

mode.

●

The heated steering wheel will automatically turn off after about 30 minutes.

Heated steering wheel



/seat heaters



/seat ventila-

tors





: If equipped

Heated steering wheel and seat heaters heat the side grips of the steering
wheel and seats, respectively. Seat ventilators maintain good ventilation using
a fan built into the seat.

WARNING

●

Care should be taken to prevent injury if anyone in the following categories comes in

contact with the steering wheel or seats when the heater is on:
• Babies, small children, the elderly, the sick and the physically challenged

• Persons with sensitive skin

• Persons who are fatigued

• Persons who have taken alcohol or drugs that induce sleep (sleeping drugs, cold

remedies, etc.)

●

Observe the following precautions to prevent the minor burns or overheating
• Do not cover the seat with a blanket or cushion when using the seat heater.

• Do not use seat heater more than necessary.

NOTICE

●

Do not put heavy objects that have an uneven surface on the seat and do not stick

sharp objects (needles, nails, etc.) into the seat.

●

To prevent battery discharge, do not use the functions when the engine is off.

Heated steering wheel

345

5-1. Using the air conditioning system

5

Inte
rior fe

ature

s

RC F_U

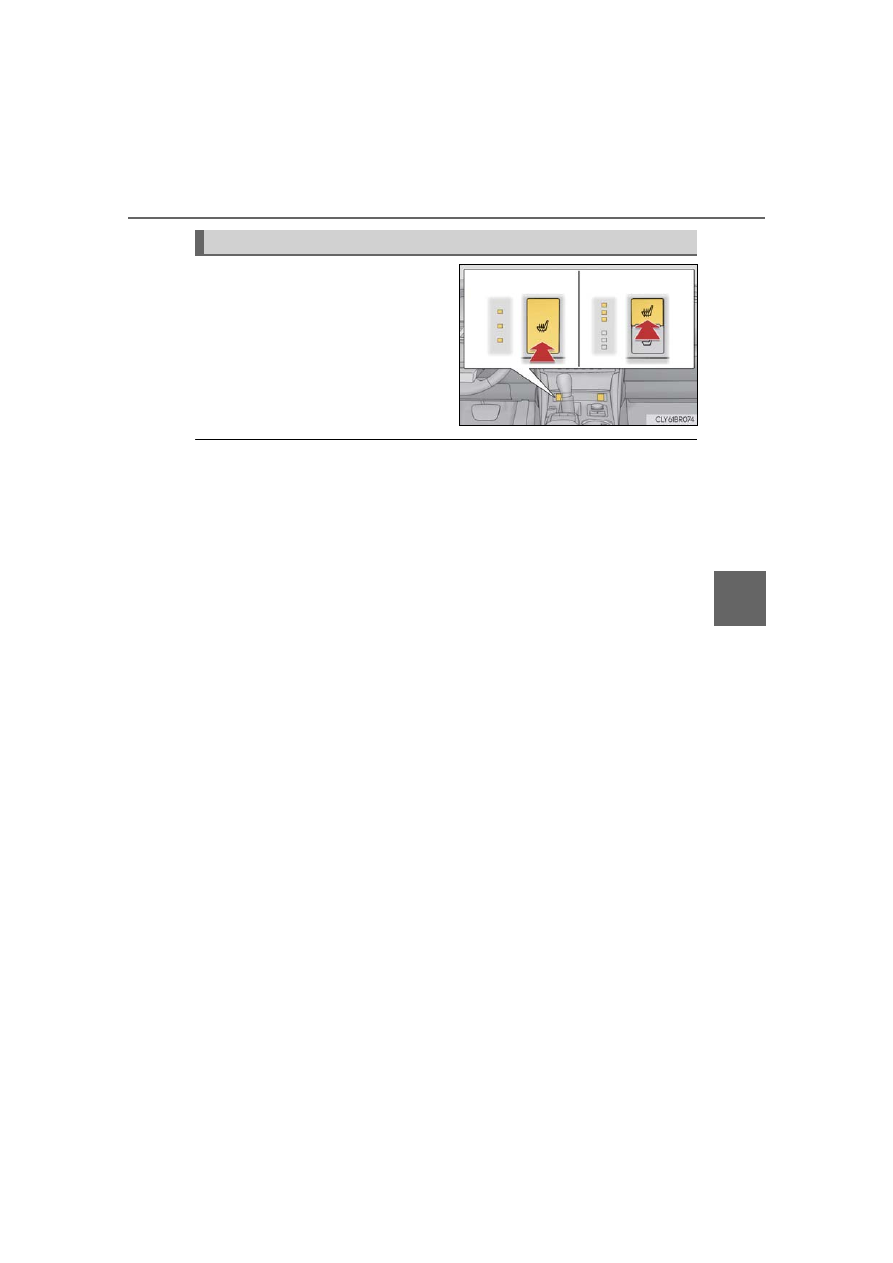

Each time the switch is pressed, the
intensity of the seat heater changes and
the level indicator lights (amber) light
as follows:
Hi (3 segments lit)

 Mid (2 segments

lit)

 Lo (1 segment lit)  Off

■

The seat heaters can be used when
The engine switch is in IGNITION ON mode.

■

Seat heater timer control
To enable seat heater timer control, press and hold the driver and front passenger seat

heater switches at the same time when the vehicle is stopped until a buzzer sounds once.

If a seat heater is turned on while seat heater timer control is enabled, the intensity of the

seat heater will automatically change from Hi

MidLo.

The timing of the change in seat heater intensity differs depending on the temperature

inside the cabin, etc. when the seat heater is operating.
To disable seat heater timer control, press and hold the driver and front passenger seat

heater switches at the same time until a buzzer sounds twice.

Seat heaters

Type A

Type B

346

5-1. Using the air conditioning system

RC F_U

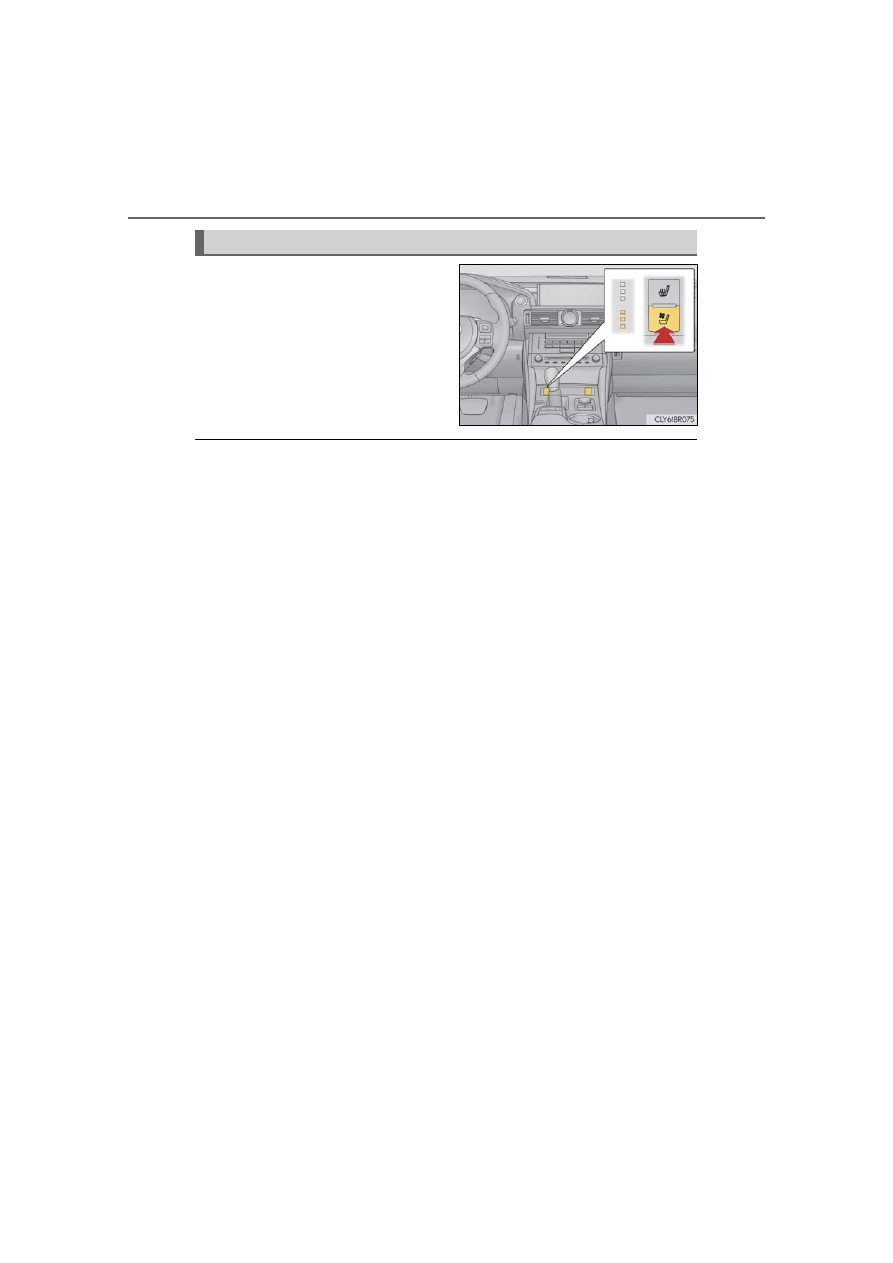

Each time the switch is pressed, the
intensity of the seat ventilator changes
and the level indicator lights (green)
light as follows:
Hi (3 segments lit)

 Mid (2 segments

lit)

 Lo (1 segment lit)  Off

■

The seat ventilators can be used when
The engine switch is in IGNITION ON mode.

■

Air conditioning system-linked control mode (RC350/RC300)
When a seat ventilator is set to Hi, the fan speed of the seat ventilator may increase

according to the fan speed of the air conditioning system.

Seat ventilators

347

RC F_U

5

Inte
rior fe

ature

s

5-2. Using the interior lights

Interior lights list

Outer foot lights
Personal lights

(

P. 349)

Front interior light

 (

P. 348)

Ambient lights

Rear interior light

(

P. 348)

Door courtesy lights
Footwell lights

1

2
3
4

5
6
7

348

5-2. Using the interior lights

RC F_U

The rear interior light turns on/off together with the front interior light.



Front

Turns the light on/off (touch the light)

Turns the door position on/off

On
Off



Rear

Turns the light on/off

If the front interior light is off, the rear

light can be turned on/off separately.

Interior lights

1

2

349

5-2. Using the interior lights

RC F_U

5

Inte
rior fe

ature

s

Turns the lights on/off (touch the lights)

●

Illuminated entry system: The lights automatically turn on/off according to engine

switch mode, the presence of the electronic key, whether the doors are locked/

unlocked, and whether the doors are opened/closed.

●

If the interior lights remain on when the engine switch is turned off, the lights will go off

automatically after 20 minutes.

●

In the following cases, the front interior lights and personal lights may not respond as

normal.
• When water, dirt, etc., have adhered to the lens surface

• When operated with a wet hand

• When wearing gloves, etc.

●

Setting (e.g. the time elapsed before lights turn off) can be changed.

(Customizable features:

P. 576)

Personal lights

NOTICE

●

Never remove the lens for the front interior light and personal lights. Otherwise, the

lights will be damaged.

●

To prevent battery discharge, do not leave the lights on longer than necessary when

the engine is off.
