LEXUS NX 300H (2019 year). Instruction - part 6

2-1. Instrument cluster

LEXUS NX300h Owners Manu-

al_USA_M78287_en

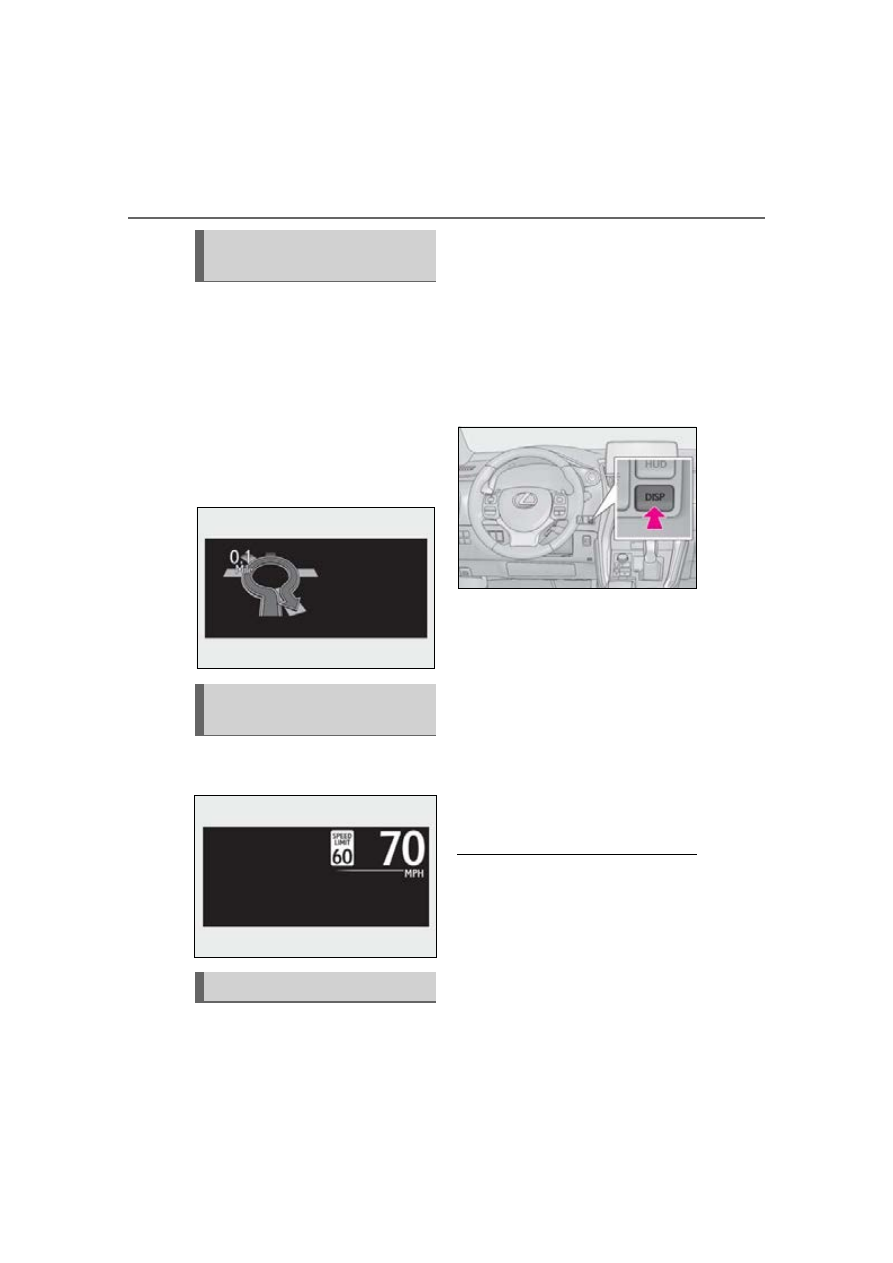

When the vehicle approaches an inter-
section, the direction the vehicle
should go is guided by the arrow.
When the vehicle approaches an inter-
section, the route guidance will start
and the distance

to the intersection

will also be displayed.

: The distance indication will disappear

when the vehicle passes through the
intersection.

Displays the speed limit for the current
road.

Select to display/non-display the fol-

lowing items:
• Route guidance to destination
• Driving assist system information
• Audio system operation status
• Lane display
When customizing vehicle features,
ensure that the vehicle is parked in a
safe place with the shift lever in P and
the parking brake set.

Until the screen changes, continue
pressing the “DISP” button, and it
will repeat until the item desired to
be changed is displayed.

Customization can be performed when

the head-up display is on.

Press the “DISP” button to switch
between on and off.

On and off will be switched between each

time the button is pressed.

If the button is left alone without being

operated for a short time, setting will be

finished automatically.

■

When the 12-volt battery is discon-

nected

The customize settings of the head-up dis-

play will be reset.

Route guidance display (vehicles
with navigation system)

Speed limit display (vehicles with
navigation system)

Display customization

2-1. Instrument cluster

LEXUS NX300h Owners Manu-

al_USA_M78287_en

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

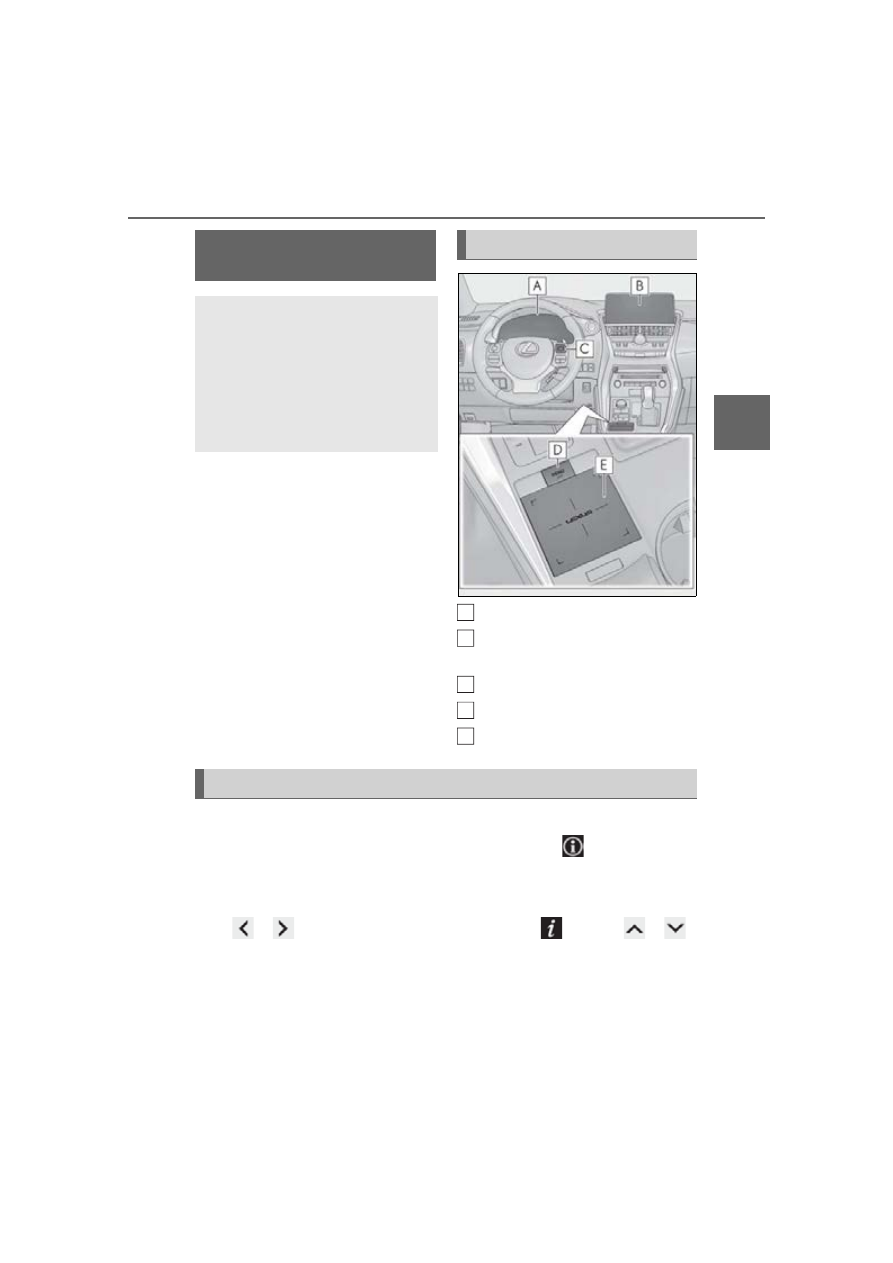

Multi-information display
Navigation/multimedia system dis-
play
Meter control switches
“MENU” button
Touchpad



Navigation/multimedia system display

Press the “MENU” button on the Remote Touch, then select

on the screen.

If the “Trip Information” or “History” screen is displayed, select “Energy”.



Multi-information display

Press

of the meter control switches and select

, and then

to select the energy monitor display.

Energy monitor/fuel con-
sumption screen

You can view the status of your
hybrid system on the multi-informa-
tion display and the navigation/
multimedia system display.
The energy monitor or fuel con-
sumption screen can be displayed
and operated on the side display.

System components

A
B

C
D

Energy monitor

2-1. Instrument cluster

LEXUS NX300h Owners Manu-

al_USA_M78287_en

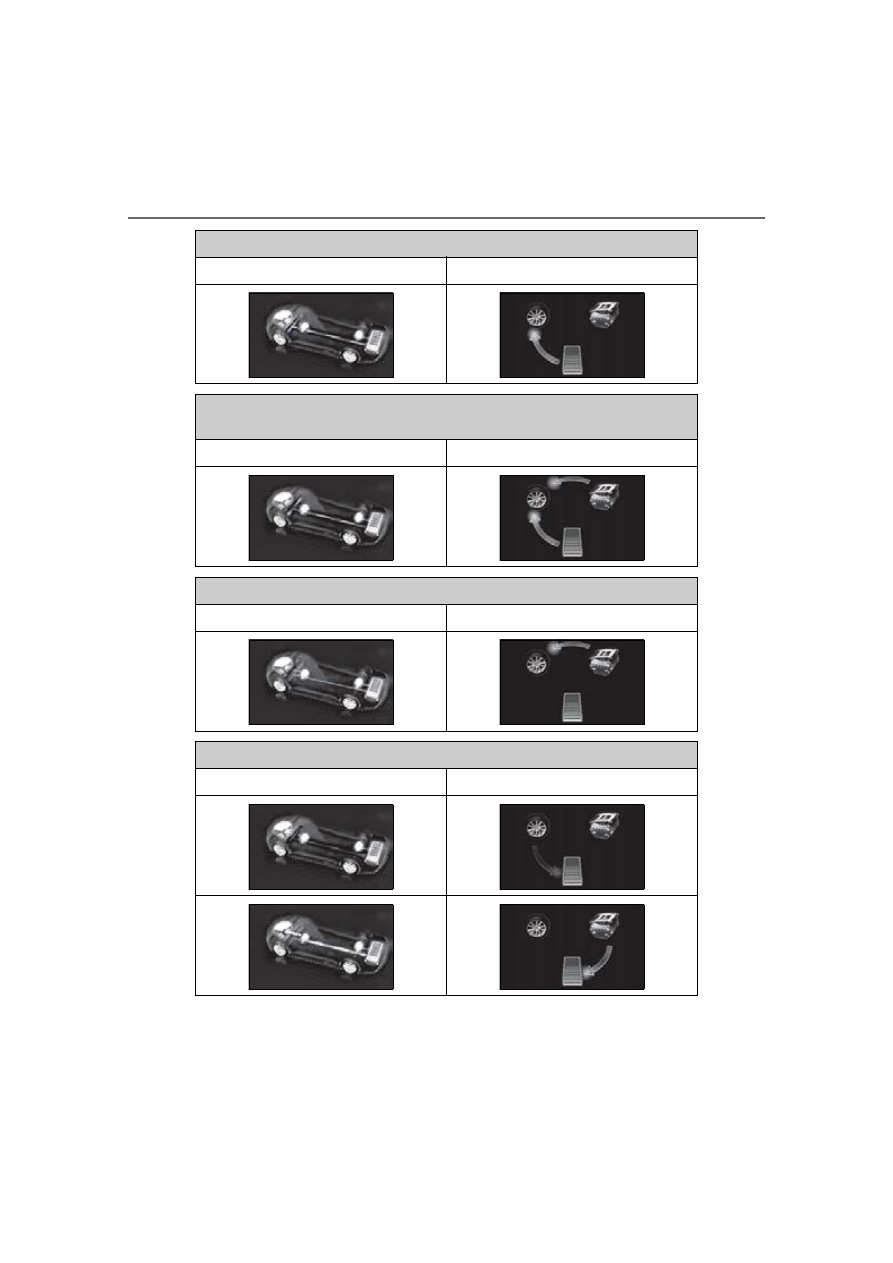

When the vehicle is powered by the electric motor (traction motor)

Navigation/multimedia system display

Multi-information display

When the vehicle is powered by both the gasoline engine and the electric motor (traction
motor)

Navigation/multimedia system display

Multi-information display

When the vehicle is powered by the gasoline engine

Navigation/multimedia system display

Multi-information display

When the vehicle is charging the hybrid battery (traction battery)

Navigation/multimedia system display

Multi-information display

2-1. Instrument cluster

LEXUS NX300h Owners Manu-

al_USA_M78287_en

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

These images are examples only, and may vary slightly from actual conditions.

■

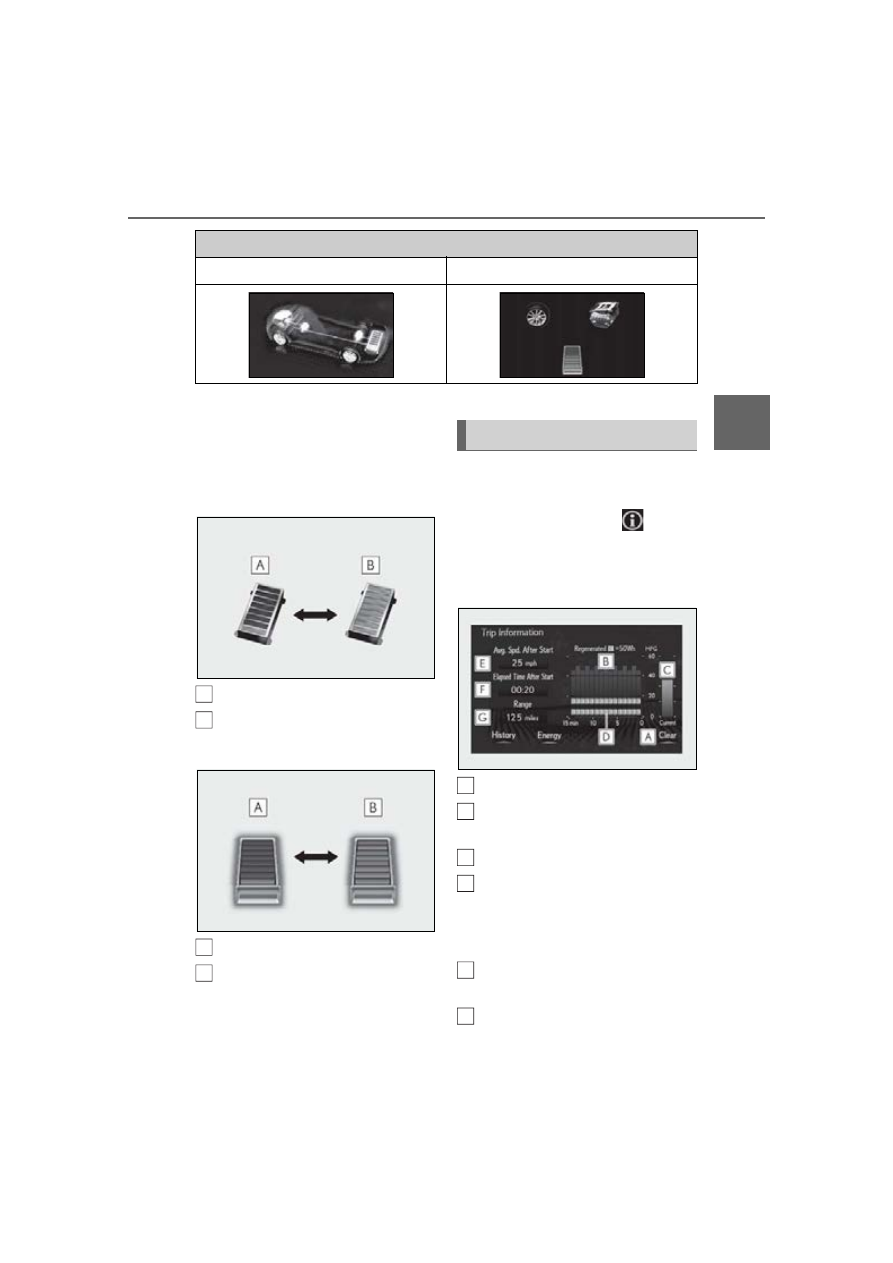

Hybrid battery (traction battery)
status



Navigation/multimedia system dis-
play

Low
High



Multi-information display

Low
High

These images are examples only, and may
vary slightly from actual conditions.

■

Trip information

Press the “MENU” button on the
Remote Touch, then select

on the

screen.

If a screen other than “Trip Information” is
displayed, select “Trip Information”.

Resetting the consumption data
Fuel consumption in the past 15
minutes
Current fuel consumption
Regenerated energy in the past 15
minutes
One symbol indicates 50 Wh. Up
to 5 symbols are shown.
Average vehicle speed since the
hybrid system was started.
Elapsed time since the hybrid sys-

When there is no energy flow

Navigation/multimedia system display

Multi-information display

A
B

Fuel consumption

A
B

C
D

2-1. Instrument cluster

LEXUS NX300h Owners Manu-

al_USA_M78287_en

tem was started.
Cruising range (

P.96)

Average fuel consumption for the past
15 minutes is divided by color into past
averages and averages attained since
the power switch was last turned to
ON mode. Use the displayed average
fuel consumption as a reference.

The image is an example only, and may
vary slightly from actual conditions.

■

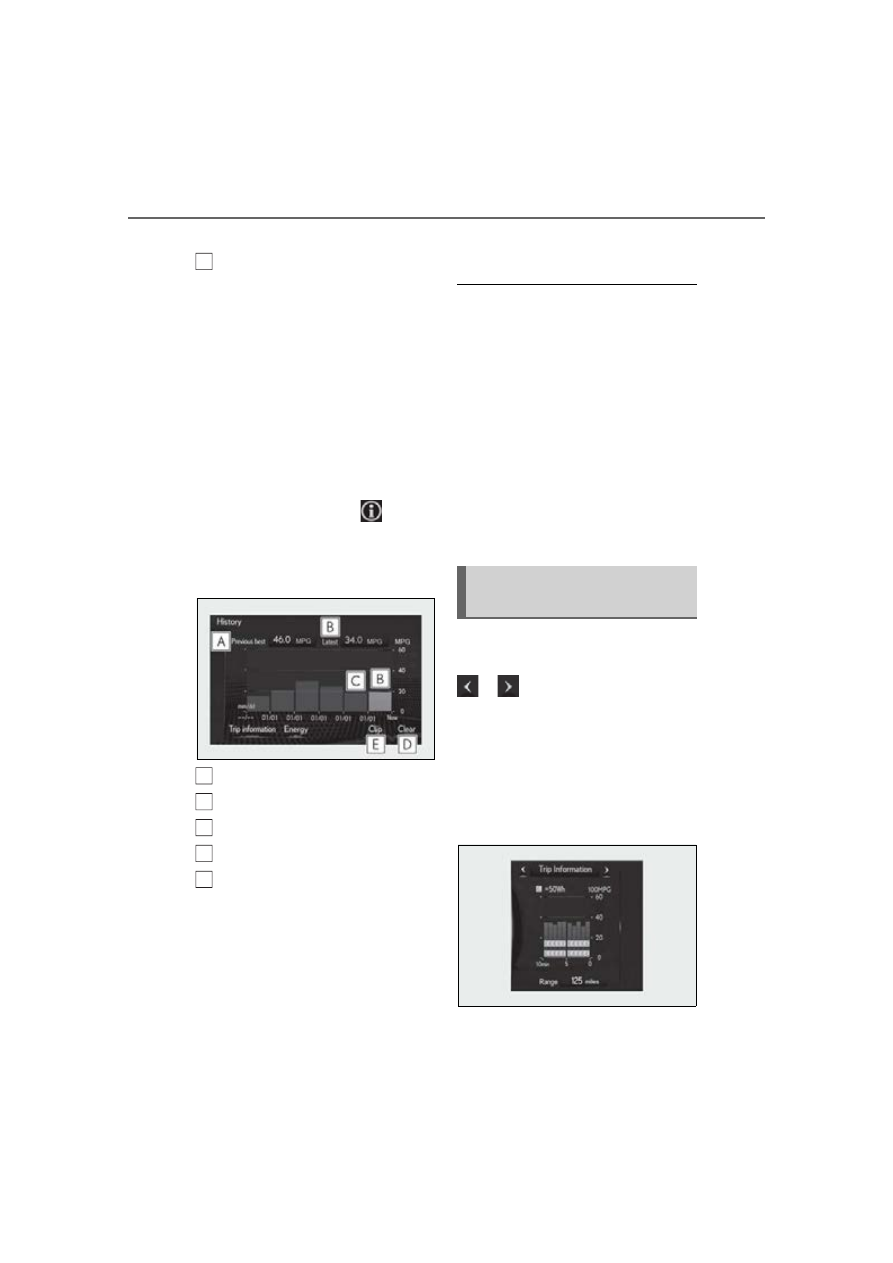

History

Press the “MENU” button on the
Remote Touch, then select

on the

screen.

If a screen other than “History” is dis-
played, select “History”.

Best recorded fuel consumption
Latest fuel consumption
Previous fuel consumption record
Resetting the history data
Updating the latest fuel consump-
tion data

The average fuel consumption history
is divided by color into past averages
and the average fuel consumption
since the last updated. Use the dis-
played average fuel consumption as a
reference.

The image is an example only, and may
vary slightly from actual conditions.

■

Updating the history data

Update the latest fuel consumption by

selecting “Clip” to measure the current fuel

consumption again.

■

Resetting the data

The fuel consumption data can be deleted

by selecting “Clear”.

■

Cruising range

Displays the estimated maximum distance

that can be driven with the quantity of fuel

remaining.

This distance is computed based on your

average fuel consumption.

As a result, the actual distance that can be

driven may differ from that displayed.

Display the vehicle information on the
side display (

P.264), and then select

to display the desired

screen.

■

Trip information (type A)

Displays the average fuel consumption
and regenerated energy for the past 10
minutes in 1 minute intervals, as well as
the cruising range.

The image is an example only, and may

A
B
C
D

Using the side display (vehicles
with navigation system)

2-1. Instrument cluster

LEXUS NX300h Owners Manu-

al_USA_M78287_en

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

vary slightly from actual conditions.
Use the displayed average fuel consump-
tion as a reference.

■

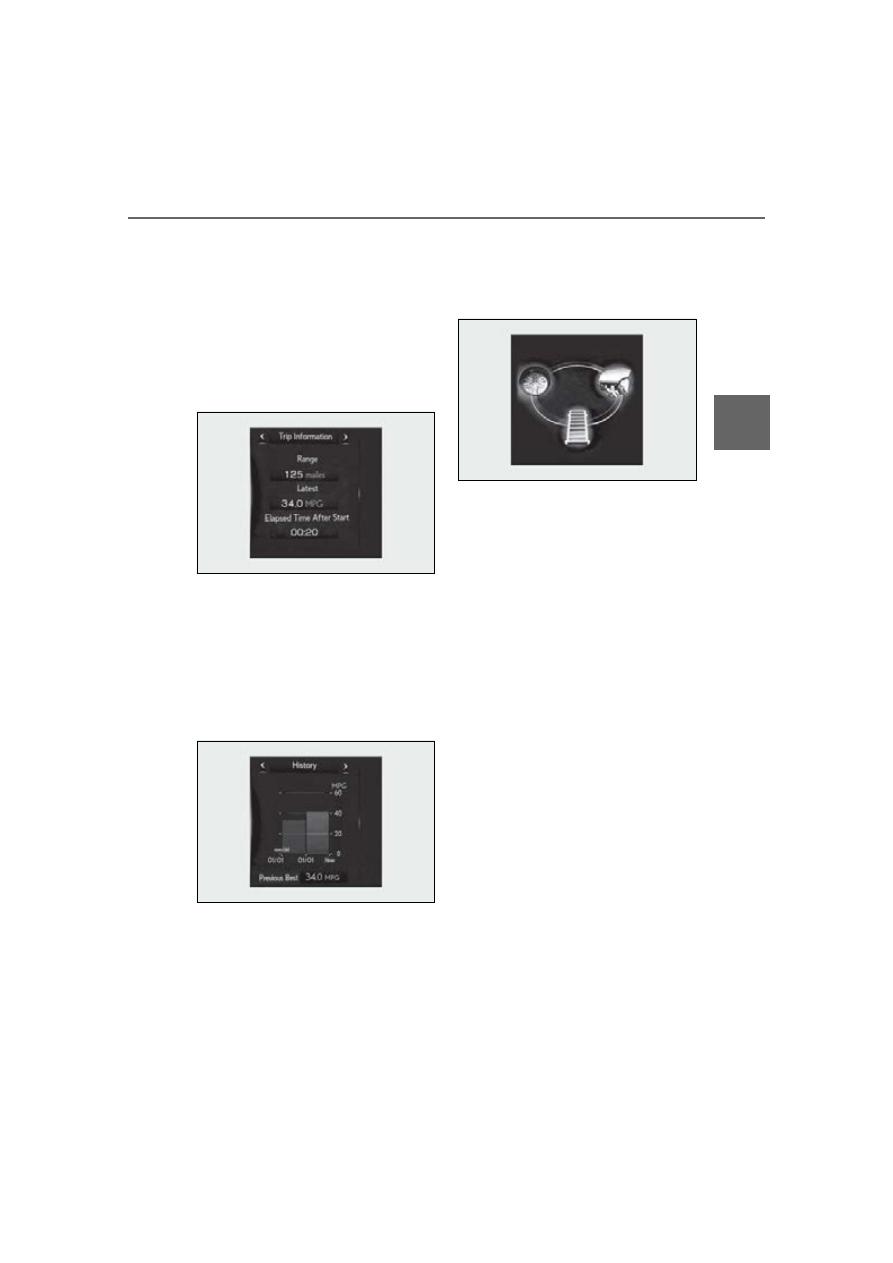

Trip information (type B)

Displays the cruising range, latest fuel
consumption and the amount of time
elapsed since the hybrid system was
started.

The image is an example only, and may
vary slightly from actual conditions.
Use the displayed average fuel consump-
tion as a reference.

■

History

Displays the average fuel consumption
and highest fuel consumption.

The image is an example only, and may
vary slightly from actual conditions.
Use the displayed average fuel consump-
tion as a reference.

■

Energy monitor

Displays the hybrid system operation

and energy recovery states.

Displayed content is the same as that dis-
played on the multi-information display.
(

P.93)

The image is an example only, and may
vary slightly from actual conditions.

2-1. Instrument cluster

LEXUS NX300h Owners Manu-

al_USA_M78287_en

LEXUS NX300h Owners Manu-

al_USA_M78287_en

fore
dri
ving

Before driving

3-1. Key information

Keys .................................................

100

3-2. Opening, closing and locking the

doors

Side doors .....................................

104

Back door......................................

108

Smart access system with push-

button start.................................

120

3-3. Adjusting the seats

Front seats.....................................

126

Rear seats......................................

127

Driving position memory ........

132

Head restraints............................

135

3-4. Adjusting the steering wheel and

mirrors

Steering wheel.............................

137

Inside rear view mirror.............

138

Outside rear view mirrors......

140

3-5. Opening, closing the windows

and moon roof

Power windows...........................

142

Moon roof .....................................

144

100

3-1. Key information

LEXUS NX300h Owners Manu-

al_USA_M78287_en

3-1.Key information

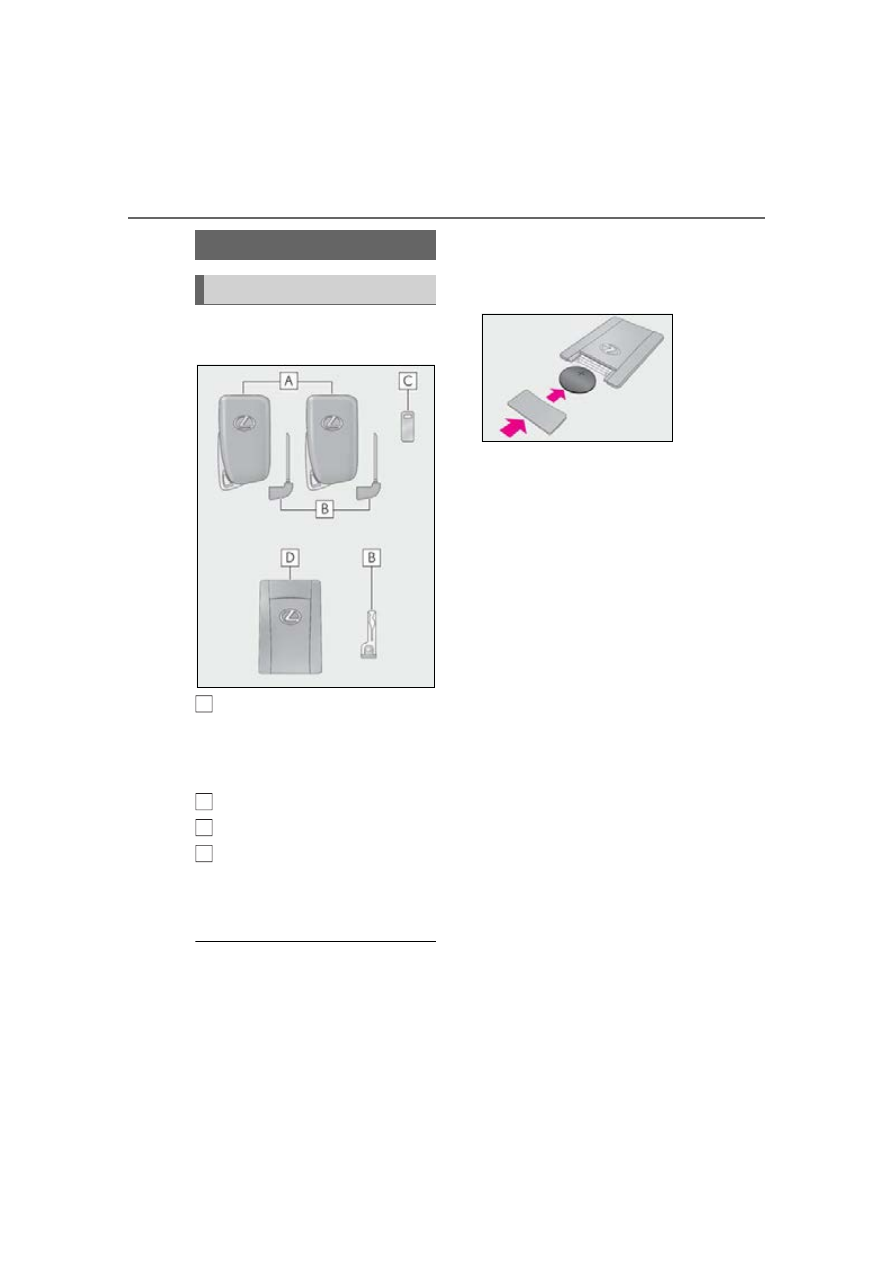

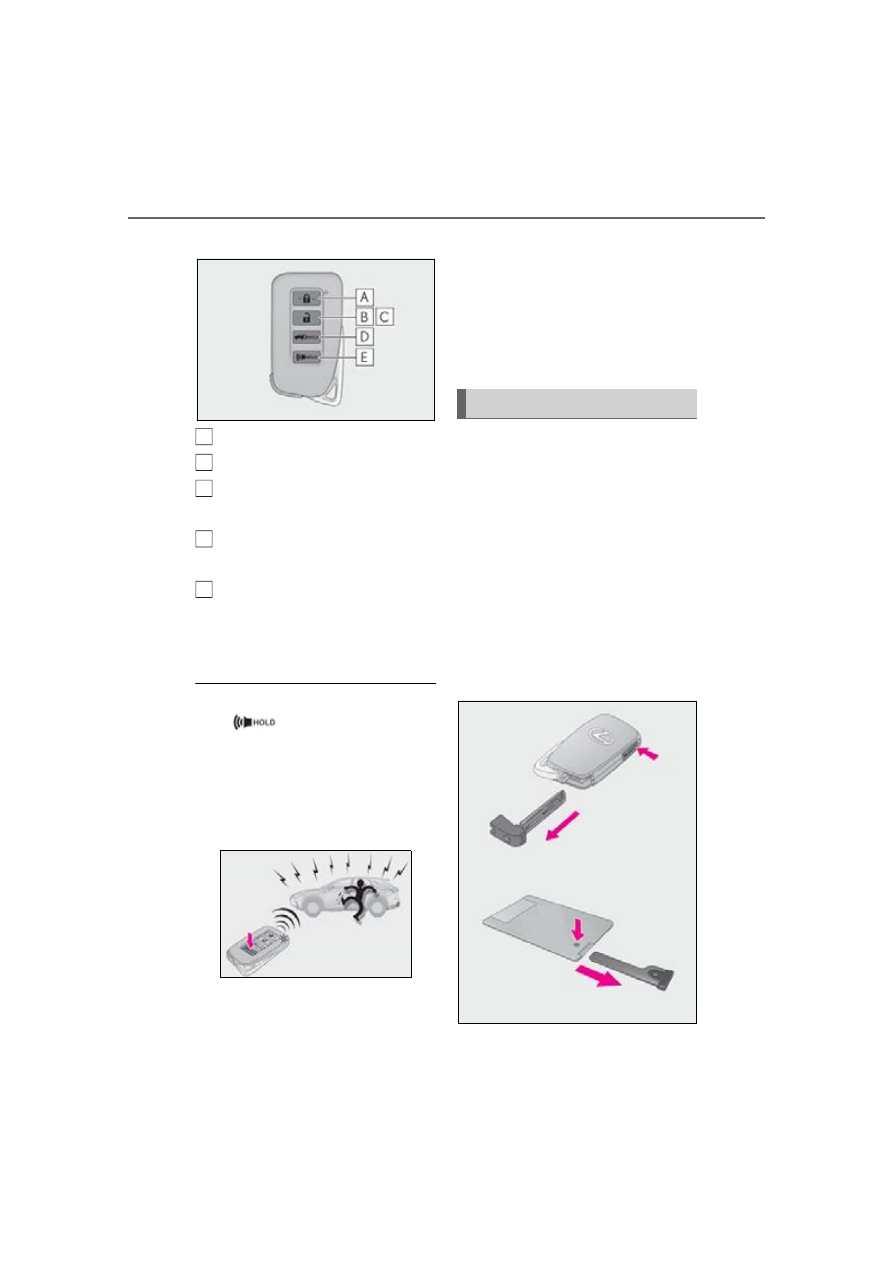

The following keys are provided with
the vehicle.

Electronic keys

• Operating the smart access system with

push-button start (



P.120

)

• Operating the wireless remote control

function

Mechanical keys
Key number plate
Card key (electronic key) (if
equipped)

Operating the smart access system with
push-button start (

P.120)

■

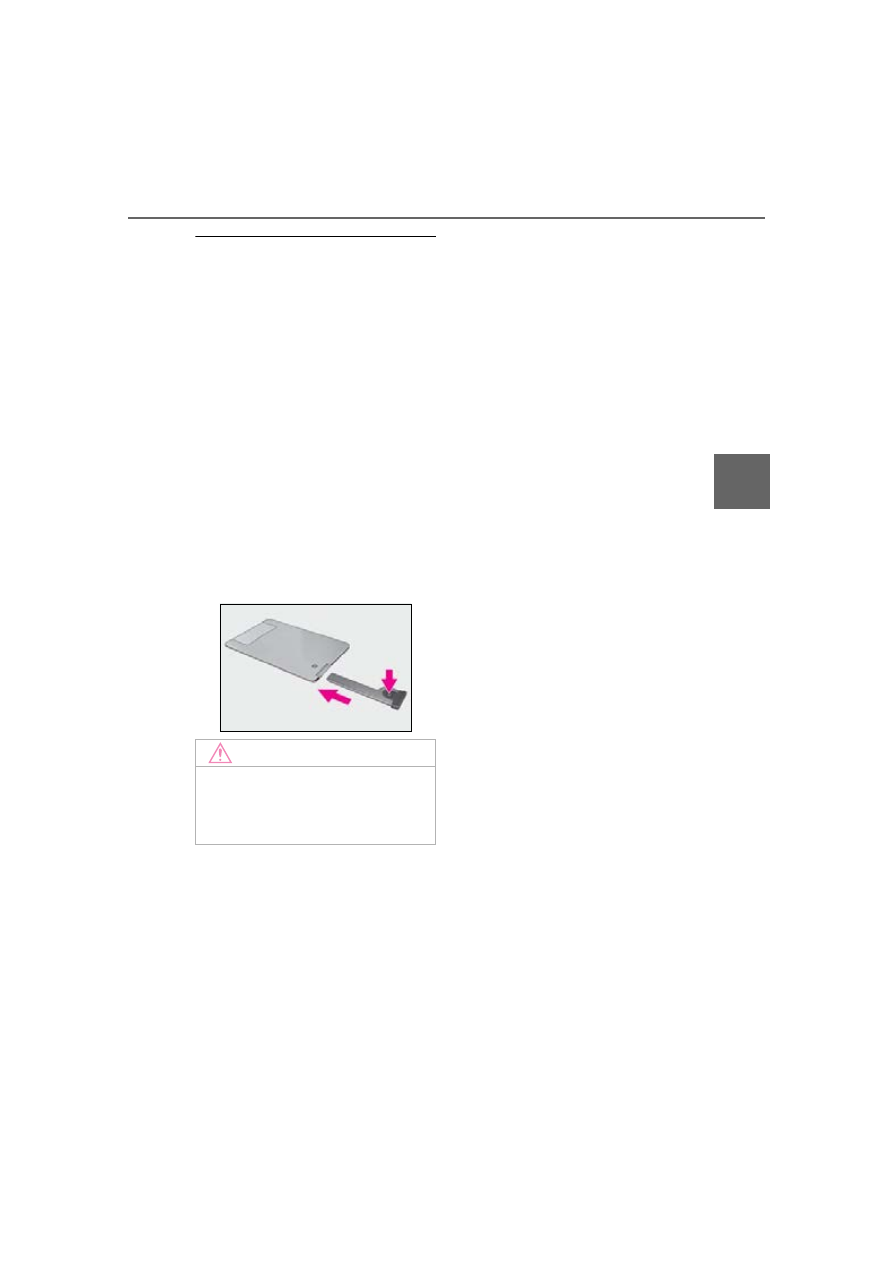

Card key (if equipped)

●

The mechanical key that is stored inside

the card key should be used only if a

problem arises, such as when the card

key does not operate properly.

●

If the battery cover is not installed and the

battery falls out or if the battery was

removed because the key got wet, rein-

stall the battery with the positive terminal

facing the Lexus emblem.

●

The card key is not waterproof.

■

When riding in an aircraft

When bringing an electronic key onto an

aircraft, make sure you do not press any

buttons on the electronic key while inside

the aircraft cabin. If you are carrying an

electronic key in your bag, etc., ensure that

the buttons are not likely to be pressed acci-

dentally. Pressing a button may cause the

electronic key to emit radio waves that

could interfere with the operation of the air-

craft.

■

Electronic key battery depletion

●

The standard battery life is 1 to 2 years.

(The card key battery life is about a year

and a half.)

●

If the battery becomes low, an alarm will

sound in the cabin when the hybrid sys-

tem stops.

●

As the electronic key always receives

radio waves, the battery will become

depleted even if the electronic key is not

used. The following symptoms indicate

that the electronic key battery may be

depleted. Replace the battery when nec-

essary.

• The smart access system with push-but-

ton start or the wireless remote control

does not operate.

• The detection area becomes smaller.

• The LED indicator on the key surface

does not turn on.

●

To avoid serious deterioration, do not

leave the electronic key within 3 ft. (1 m)

of the following electrical appliances that

produce a magnetic field:

Keys

Key types

B
C
D

101

3-1. Key information

LEXUS NX300h Owners Manu-

al_USA_M78287_en

fore
dri
ving

• TVs

• Personal computers

• Cellular phones, cordless phones and

battery chargers

• Recharging cellular phones or cordless

phones

• Induction cookers

• Table lamps

■

Replacing the battery

P.349

■

Confirmation of the registered key

number

The number of keys already registered to

the vehicle can be confirmed. Ask your

Lexus dealer for details.

The electronic keys are equipped with

NOTICE

■

To prevent key damage

●

Do not drop the keys, subject them to

strong shocks or bend them.

●

Do not expose the keys to high tem-

peratures for long periods of time.

●

Do not get the keys wet or wash them

in an ultrasonic washer, etc.

●

Do not attach metallic or magnetic

materials to the keys or place the keys

close to such materials.

●

Do not disassemble the keys.

●

Do not attach a sticker or anything else

to the surface of the electronic key.

●

Do not place the keys near objects that

produce magnetic fields, such as TVs,

audio systems and induction cookers,

or medical electrical equipment, such

as low-frequency therapy equipment.

■

Carrying the electronic key on your

person

Carry the electronic key 3.9 in. (10 cm)

or more away from electric appliances

that are turned on. Radio waves emitted

from electric appliances within 3.9 in. (10

cm) of the electronic key may interfere

with the key, causing the key to not func-

tion properly.

■

In case of a smart access system with

push-button start malfunction or

other key related problems

P.389

■

When an electronic key is lost

P.388

■

Handling the card key

●

If the battery or card key terminals get

wet, the battery may corrode and the

card key may stop working.

If the key is dropped into water, or if

drinking water, etc., is spilled on the

key, immediately remove the battery

cover and wipe the battery and termi-

nals. (To remove the battery cover,

lightly grasp and pull it.) If the battery is

corroded, have your Lexus dealer

replace the battery.

●

Do not crush the battery cover or use

a screwdriver to remove the battery

cover.

Forcibly removing the battery cover

may bend or damage the key.

●

If the battery cover is frequently

removed, the battery cover may

become loose.

●

When installing the battery, make sure

to check the direction of the battery.

Installing the battery in the wrong

direction may cause the battery to

deplete rapidly.

●

The surface of the card key may be

damaged, or its coating may peel off in

the following situations:

• The card key is carried together with

hard objects, such as coins and keys.

• The card key is scraped with a sharp

object, such as the tip of a mechanical

pencil.

• The surface of the card key is wiped

with thinner or benzene.

Wireless remote control

102

3-1. Key information

LEXUS NX300h Owners Manu-

al_USA_M78287_en

the following wireless remote control:

Locks all the doors (

P.104)

Unlocks all the doors (

P.104)

Opens the windows and moon
roof

*1, 2

(

P.104)

Opens and closes the power back
door

(

P.111)

Sounds the alarm (

P.102)

: If equipped

: This setting must be customized at your

Lexus dealer.

■

Theft deterrent panic mode

When

is pressed for longer than

about 1 second, an alarm will sound inter-
mittently and the vehicle lights will flash to
deter any person from trying to break into
or damage your vehicle.
To stop the alarm, press any button on the
electronic key.

■

Back door reserve lock function (vehi-

cles with power back door)

This function is a function which reserves

locking of all doors, beforehand, when the

back door is open. When the follow is done,

all the doors except the back door are

locked and then back door will also be

locked at the same time it is closed.

Close all doors, except the back door.

Push the wireless lock button during the

automatic closing operation of the back

door.

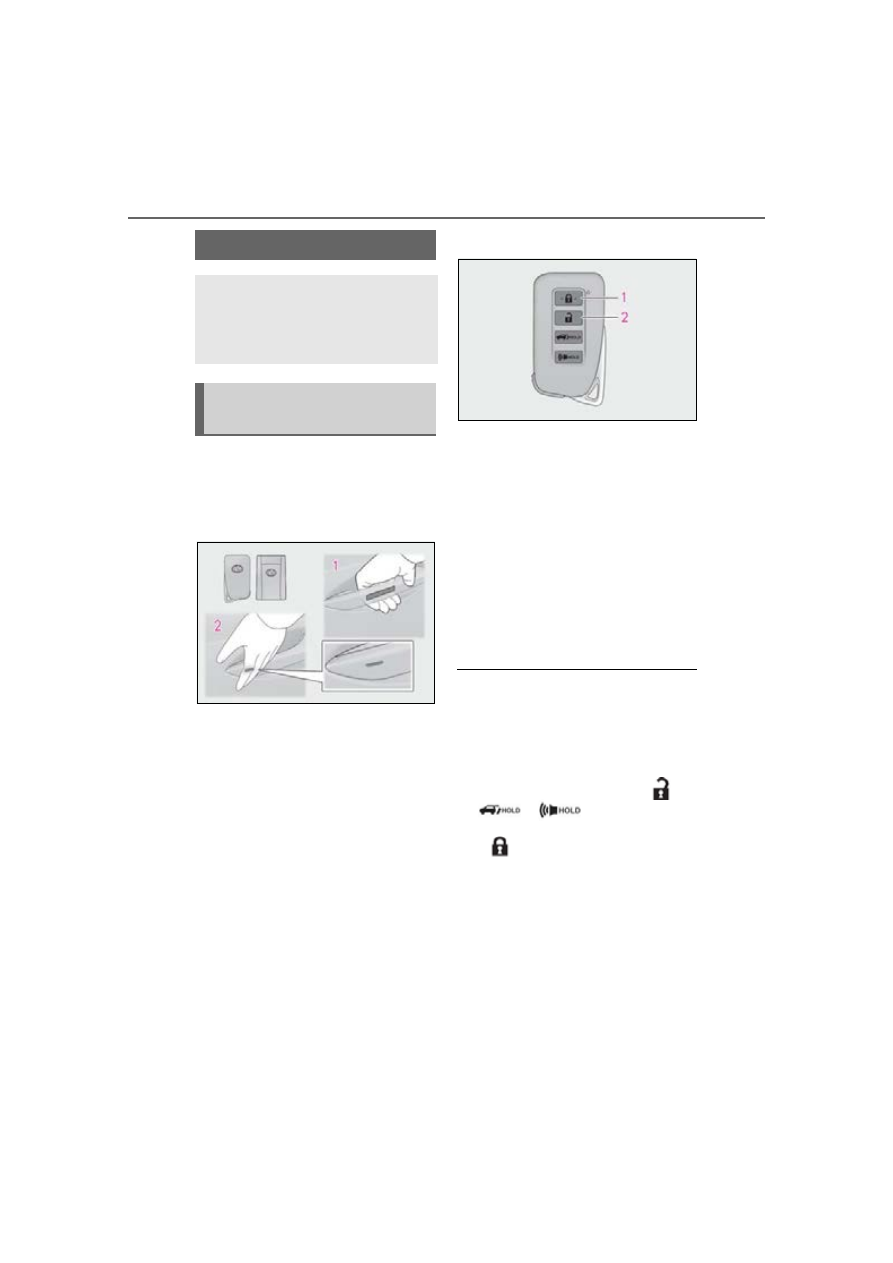

To take out the mechanical key, push
the release button and take the key out.

The mechanical key can only be inserted in
one direction, as the key only has grooves
on one side. If the key cannot be inserted in
a lock cylinder, turn it over and re-attempt
to insert it.
After using the mechanical key, store it in
the electronic key. Carry the mechanical
key together with the electronic key. If the
electronic key battery is depleted or the
entry function does not operate properly,
you will need the mechanical key.
(

P.389)

A
B
C

Using the mechanical key

103

3-1. Key information

LEXUS NX300h Owners Manu-

al_USA_M78287_en

fore
dri
ving

■

When required to leave the vehicle’s

key with a parking attendant

Lock the glove box as circumstances

demand. (

P.280)

Remove the mechanical key for your own

use and provide the attendant with the elec-

tronic key only.

■

If you lose your mechanical keys

P.388

■

If a wrong key is used

The key cylinder rotates freely to isolate

inside mechanism.

■

Card key

●

If it is difficult to take out the mechanical

key, push down the release button using a

pen tip, etc. If it is still difficult to pull it out,

use a coin, etc.

●

To store the mechanical key in the card

key, insert it while pressing the release

button.

NOTICE

■

Handling the card key

Do not apply excess force when inserting

the mechanical key into the card key.

Doing so may damage the card key.

104

3-2. Opening, closing and locking the doors

LEXUS NX300h Owners Manu-

al_USA_M78287_en

3-2.Opening, closing and locking the doors

■

Using the smart access system with
push-button start

Carry the electronic key to enable this
function.

Grip the driver’s door handle to
unlock the door. Grip any passen-
ger door handle to unlock all the
doors.

Make sure to touch the sensor on the back
of the handle.
The doors cannot be unlocked for 3 sec-
onds after the doors are locked.

: The door unlock settings can be

changed.

Touch the lock sensor (the indenta-
tion on the surface of the door han-
dle) to lock all the doors.

Check that the door is securely locked.

■

Using the wireless remote control

Locks all the doors

Check that the door is securely locked.

Unlocks all the doors

Pressing the button unlocks the driver’s
door. Pressing the button again within 3
seconds unlocks the other doors.
Press and hold to open the windows and
moon roof

*1, 2

: If equipped

: This setting must be customized at your

Lexus dealer.

■

Switching the door unlock function

It is possible to set which doors the entry

function unlocks using the wireless remote

control.

Turn the power switch off.

When the indicator light on the key sur-
face is not on, press and hold

for approximately 5

seconds while pressing and holding

The setting changes each time an operation
is performed, as shown below. (When
changing the setting continuously, release
the buttons, wait for at least 5 seconds, and
repeat step

Side doors

The vehicle can be locked and
unlocked using the entry function,
wireless remote control or door
lock switch.

Unlocking and locking the doors
from the outside

105

3-2. Opening, closing and locking the doors

LEXUS NX300h Owners Manu-

al_USA_M78287_en

fore
dri
ving

For vehicles with alarm: To prevent unin-
tended triggering of the alarm, unlock the
doors using the wireless remote control and
open and close a door once after the set-
tings have been changed. (If a door is not
opened within 60 seconds after

pressed, the doors will be locked again and
the alarm will automatically be set.)
In a case that the alarm is triggered, imme-
diately stop the alarm. (

P.71)

■

Locking the doors from the outside with-

out a key

Move the inside lock button to the lock

position.

Close the door.

The door cannot be locked if the power

switch is in ACCESSORY or ON mode, or

the electronic key is left inside the vehicle.
The key may not be detected correctly and
the door may be locked.

■

Impact detection door lock release sys-

tem

In the event that the vehicle is subject to a

strong impact, all the doors are unlocked.

Depending on the force of the impact or the

type of accident, however, the system may

not operate.

■

Operation signals

Doors:
A buzzer sounds and the emergency flash-

ers flash to indicate that the doors have

been locked/unlocked. (Locked: Once;

Unlocked: Twice)
Windows and moon roof:
A buzzer sounds to indicate that all win-

dows and moon roof are opening.

■

Security feature

If a door is not opened within approximately

60 seconds after the vehicle is unlocked,

the security feature automatically locks the

vehicle again.

■

Open door warning buzzer

If the vehicle speed reaches 3 mph (5 km/

h), the master warning light flashes and a

buzzer sounds to indicate that door(s) or

the hood in not fully closed.

The open door(s) or hood is displayed on

the multi-information display.

■

Welcome light illumination control

The side marker, parking, tail and license

plate lights automatically turn on at night

when the doors are unlocked using the

entry function or wireless remote control if

the light switch is in the “AUTO” position.

■

When the door cannot be locked by the

lock sensor on the surface of the door

handle

When the door cannot be locked even if the

lock sensor on the surface of the door han-

dle is touched by a finger, touch the lock

sensor with the palm.

When gloves are being worn, remove the

gloves.

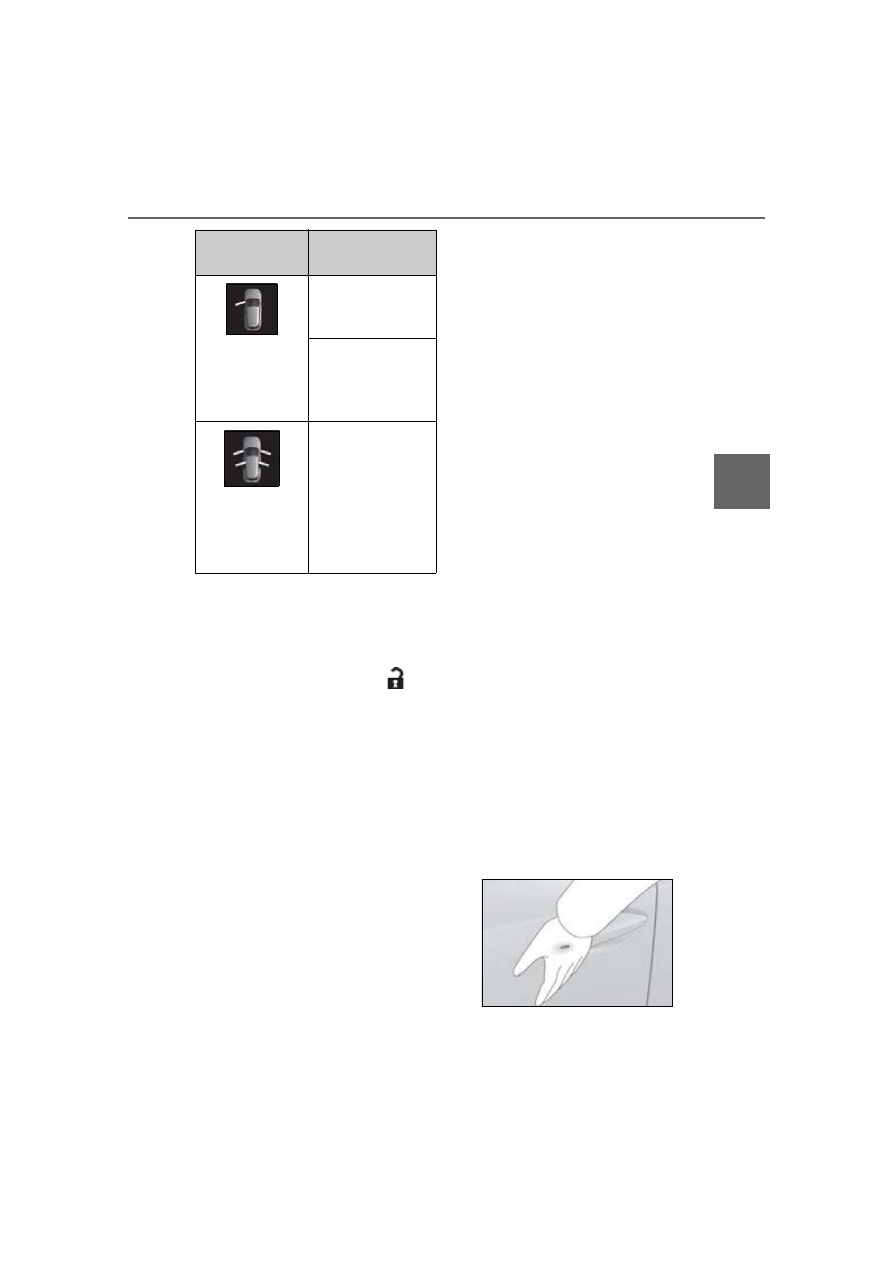

Multi-information

display/Beep

Unlocking function

Exterior: Beeps 3

times

Interior: Pings

once

Holding the driver’s

door handle unlocks

only the driver’s door.

Holding any of the

passenger door han-

dles unlocks all the

doors.

Exterior: Beeps

twice

Interior: Pings

once

Holding a door han-

dle unlocks all the

doors.

106

3-2. Opening, closing and locking the doors

LEXUS NX300h Owners Manu-

al_USA_M78287_en

■

Door lock buzzer

If an attempt to lock the doors is made when

a door is not fully closed, a buzzer sounds

continuously for 5 seconds. Fully close the

door to stop the buzzer, and lock the vehi-

cle once more.

■

Setting the alarm

Locking the doors will set the alarm system.

(

P.71)

■

Conditions affecting the operation of

the smart access system with push-but-

ton start or wireless remote control

P.121

■

If the smart access system with push-

button start or the wireless remote con-

trol does not operate properly

●

Use the mechanical key to lock and

unlock the doors. (

P.389)

●

Replace the key battery with a new one if

it is depleted.

■

Customization

Settings (e.g. unlocking function using a

key) can be changed. (Customizable fea-

tures:

P.421)

■

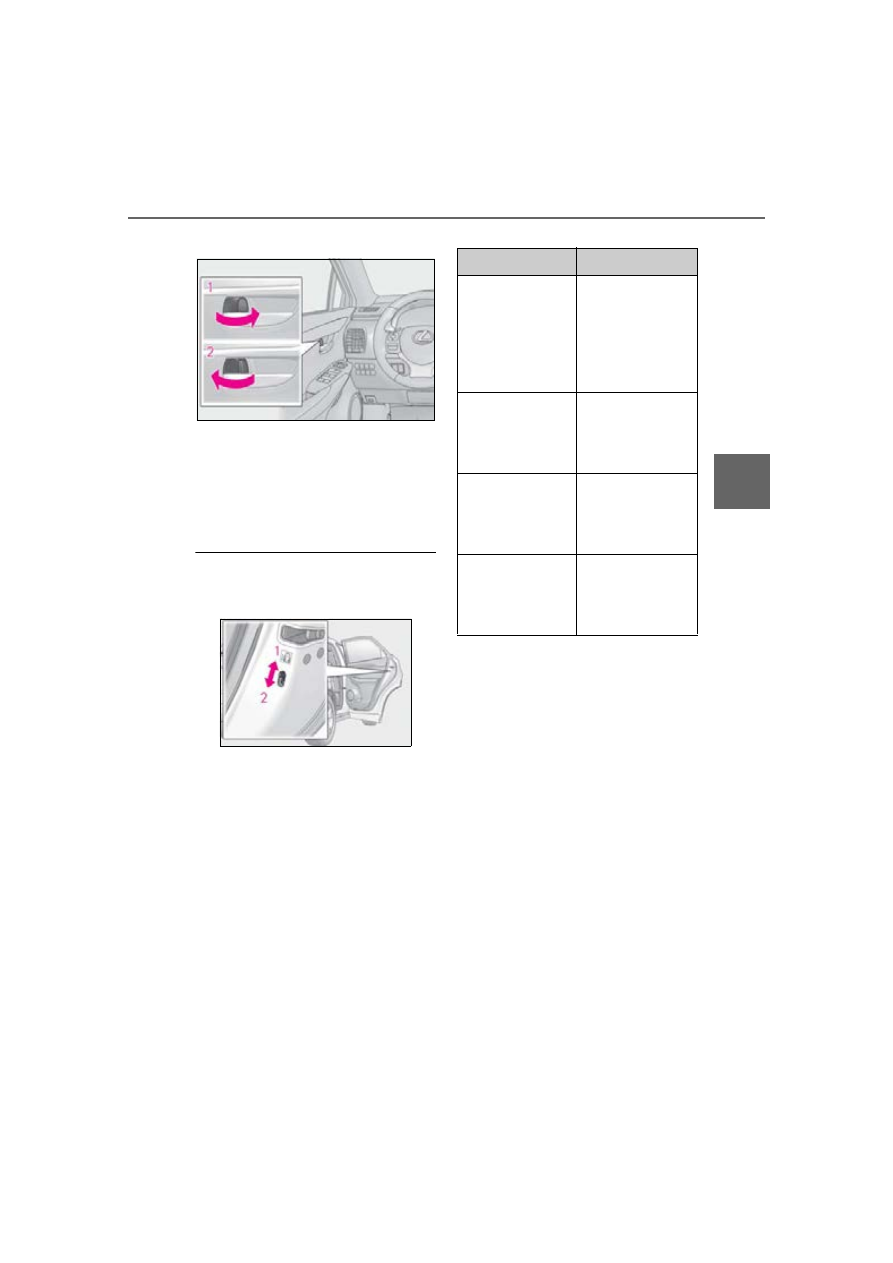

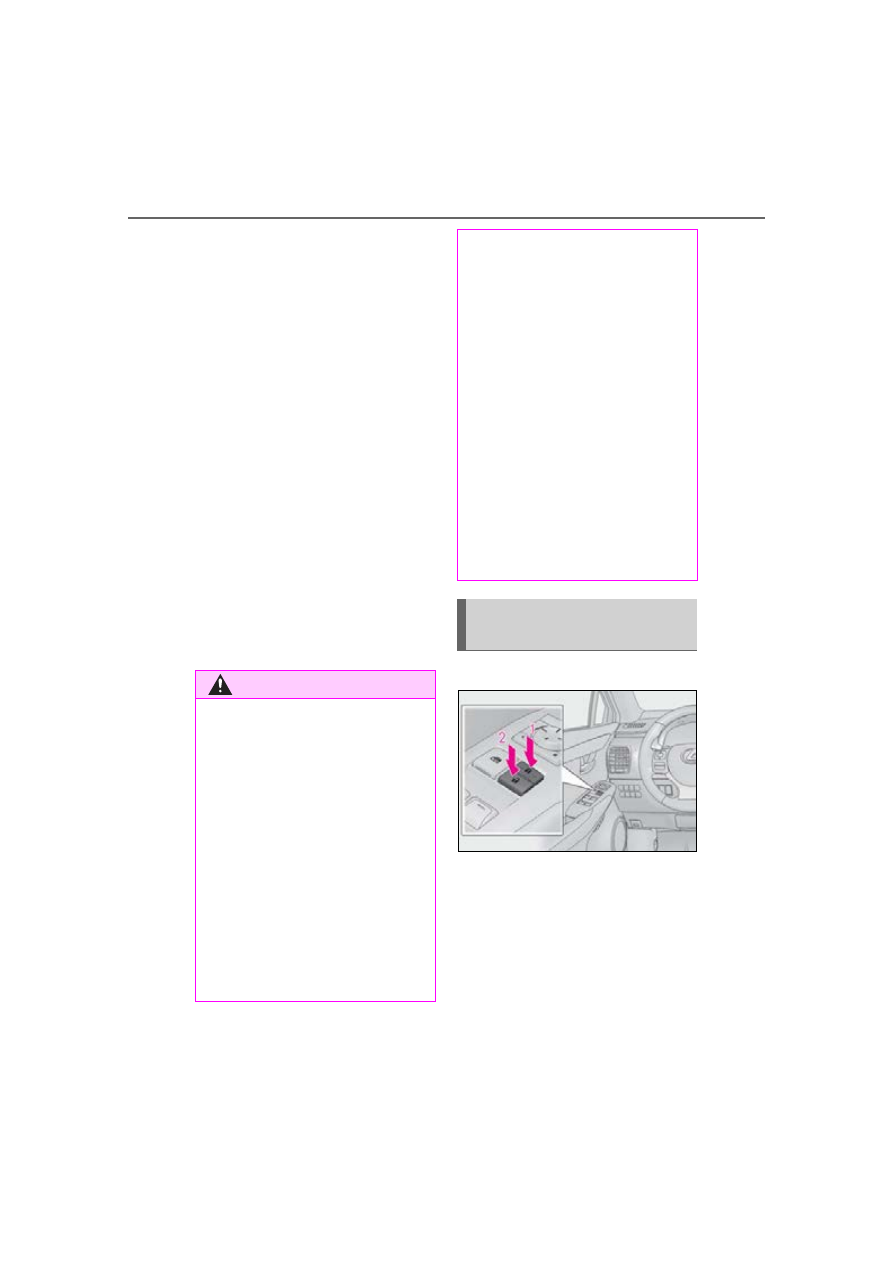

Using the door lock switch

Locks all the doors

Unlocks all the doors

WARNING

■

To prevent an accident

Observe the following precautions while

driving the vehicle.

Failure to do so may result in a door

opening and an occupant falling out,

resulting in death or serious injury.

●

Ensure that all doors are properly

closed and locked.

●

Do not pull the inside handle of the

doors while driving.

Be especially careful for the front

doors, as the doors may be opened

even if the inside lock buttons are in

locked position.

●

Set the rear door child-protector locks

when children are seated in the rear

seats.

■

When opening or closing a door

Check the surroundings of the vehicle

such as whether the vehicle is on an

incline, whether there is enough space

for a door to open and whether a strong

wind is blowing. When opening or clos-

ing the door, hold the door handle tightly

to prepare for any unpredictable move-

ment.

■

When using the wireless remote con-

trol and operating the power windows

or moon roof (if equipped)

Operate the power window or moon

roof after checking to make sure that

there is no possibility of any passenger

having any of their body parts caught in

the window or moon roof. Also do not let

a child operate window by the mechani-

cal key. It is possible for children and

other passengers to get caught in the

power window or moon roof.

Unlocking and locking the doors
from the inside

107

3-2. Opening, closing and locking the doors

LEXUS NX300h Owners Manu-

al_USA_M78287_en

fore
dri
ving

■

Using the inside lock buttons

Locks the door

Unlocks the door

The front doors can be opened by pull-
ing the inside handle even if the lock
buttons are in the lock position.

■

Rear door child-protector lock

The door cannot be opened from inside the

vehicle when the lock is set.

Unlock

Lock

These locks can be set to prevent children
from opening the rear doors. Push down on
each rear door switch to lock both rear
doors.

■

Automatic door locking and unlocking

systems

The following functions can be set or can-

celed:
For instructions on customizing, refer to
P.422.

Function

Operation

Speed linked door

locking function

All doors are auto-

matically locked

when vehicle speed

is approximately 12

mph (20 km/h) or

higher.

Shift position linked

door locking func-

tion

All doors are auto-

matically locked

when shifting the

shift lever out of P.

Shift position linked

door unlocking

function

All doors are auto-

matically unlocked

when shifting the

shift lever to P.

Driver’s door linked

door unlocking

function

All doors are auto-

matically unlocked

when driver’s door is

opened.

Content .. 4 5 6 7 ..
