LEXUS LX 570 (2019 year). Instruction

555

When trouble

If your vehicle overheats

Stop the vehicle in a safe place and turn off the air conditioning system, and
then stop the engine.
If you see steam:
Carefully lift the hood after the steam subsides.
If you do not see steam:
Carefully lift the hood.

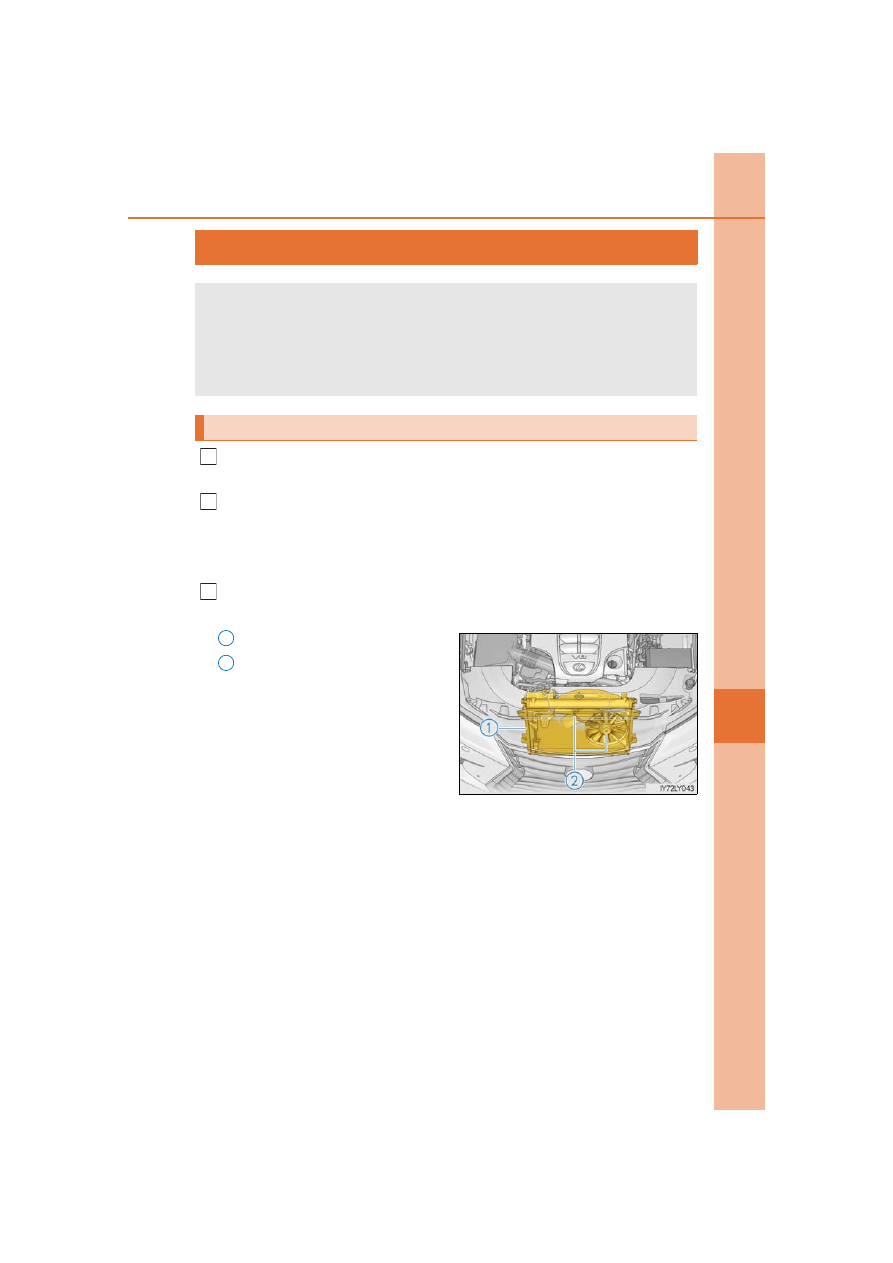

After the engine has cooled down sufficiently, inspect the hoses and radiator
core (radiator) for any leaks.

Radiator
Cooling fans

If a large amount of coolant leaks,

immediately contact your Lexus

dealer.

The following may indicate that your vehicle is overheating.

●

The needle of the engine coolant temperature gauge (

P. 92) enters the

red zone or a loss of engine power is experienced. (For example, the vehicle
speed does not increase.)

●

Steam is coming from under the hood.

Correction procedures

556

7-2. Steps to take in an emergency

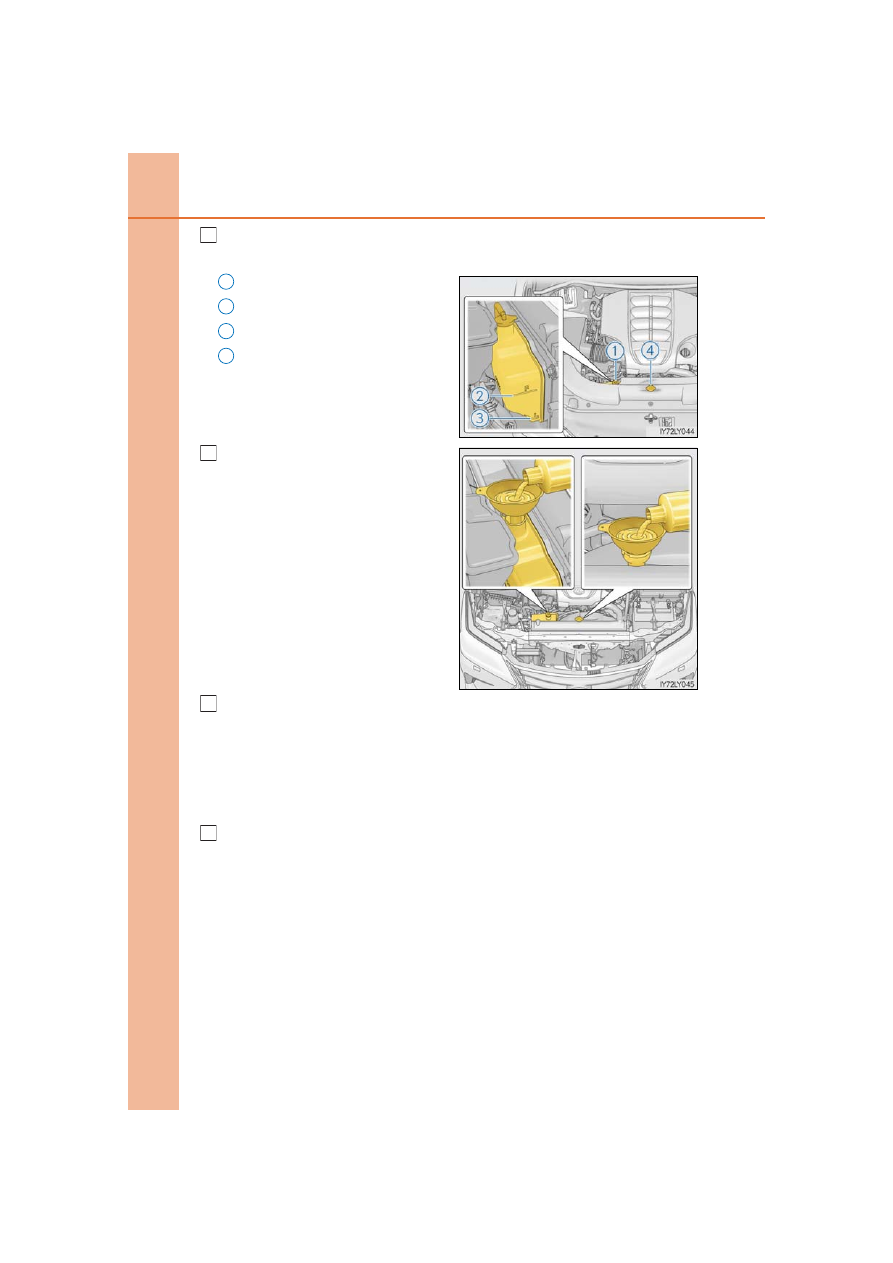

The coolant level is satisfactory if it is between the “F” and “L” lines on the res-
ervoir.

Reservoir
“F” line
“L” line
Radiator cap

Add coolant if necessary.

Water can be used in an emergency if

coolant is unavailable.

Start the engine and turn the air conditioning system on to check that the air
conditioning condenser cooling fans operate and to check for coolant leaks
from the radiator or hoses.

The fans operate when the air conditioning system is turned on immediately after a

cold start. Confirm that the fans are operating by checking the fan sound and air flow.

If it is difficult to check these, turn the air conditioning system on and off repeatedly.

(The fans may not operate in freezing temperatures.)

If the fans are not operating:
Stop the engine immediately and contact your Lexus dealer.
If the fans are operating:
Have the vehicle inspected at the nearest Lexus dealer.

2
3
4

557

7-2. Steps to take in an emergency

When trouble

ari

ses

WARNING

■

When inspecting under the hood of your vehicle
Observe the following precautions.

Failure to do so may result in serious injury such as burns.

●

If steam is seen coming from under the hood, do not open the hood until the steam

has subsided. The engine compartment may be very hot.

●

Keep hands and clothing (especially a tie, a scarf or a muffler) away from the fans and

belts. Failure to do so may cause the hands or clothing to be caught, resulting in seri-

ous injury.

●

Do not loosen the radiator cap or the coolant reservoir cap while the engine and radi-

ator are hot. High temperature steam or coolant could spray out.

NOTICE

■

When adding engine coolant
Add coolant slowly after the engine has cooled down sufficiently. Adding cool coolant

to a hot engine too quickly can cause damage to the engine.

■

To prevent damage to the cooling system
Observe the following precautions:

●

Avoid contaminating the coolant with foreign matter (such as sand or dust etc.).

●

Do not use any coolant additive.

558

7-2. Steps to take in an emergency

If the vehicle becomes stuck

Stop the engine. Set the parking brake and shift the shift lever to P.
Remove the mud, snow or sand from around the rear wheels.
Place wood, stones or some other material under the rear wheels to help pro-
vide traction.
Restart the engine.
Shift the shift lever to the D or R position and release the parking brake. Then,
while exercising caution, depress the accelerator pedal.

■

When it is difficult to free the vehicle

■

Extra high mode
P. 305

Carry out the following procedures if the tires spin or the vehicle becomes
stuck in mud, dirt, or snow:

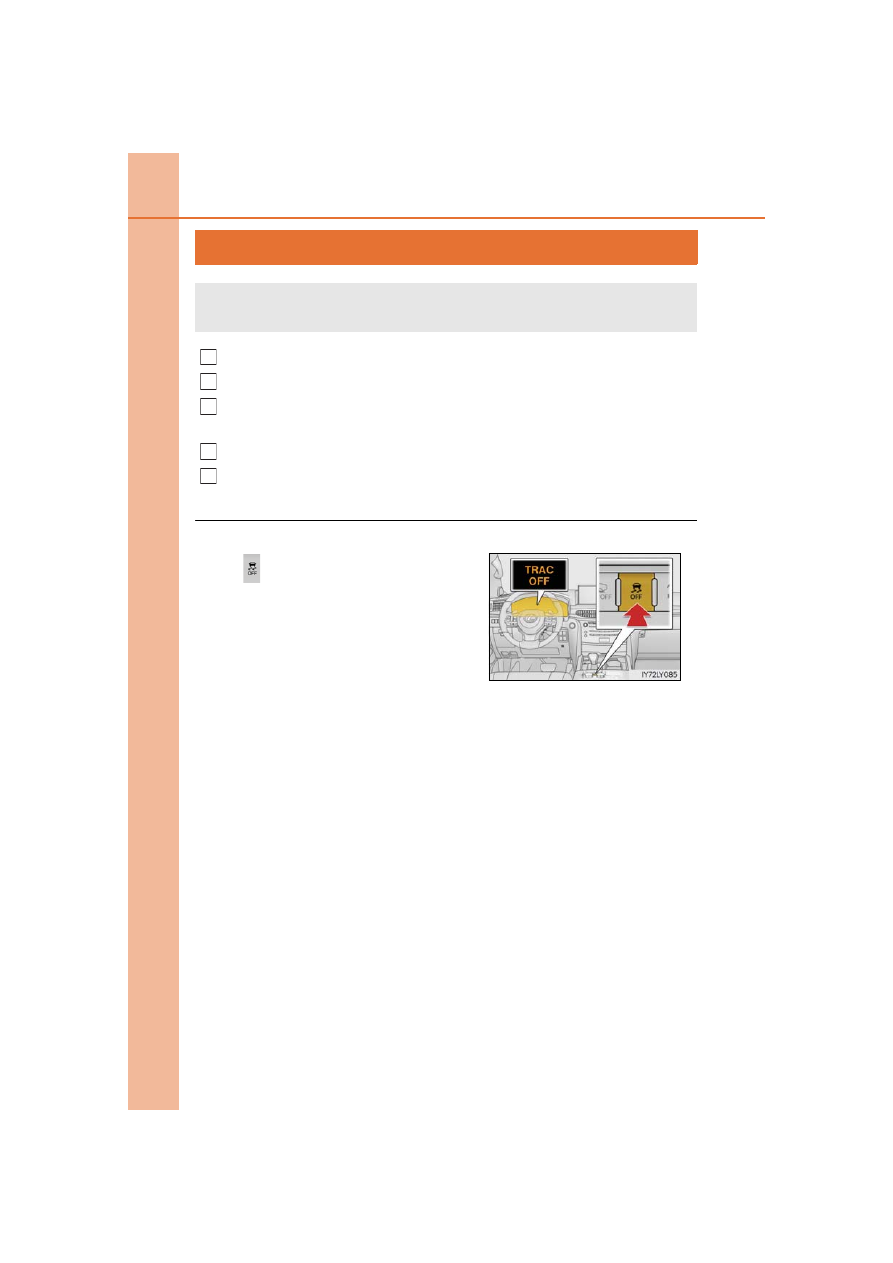

Press

to turn off Active TRAC.

2
3

4
5

559

7-2. Steps to take in an emergency

When trouble

ari

ses

WARNING

■

When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the surrounding

area is clear, to avoid striking other vehicles, objects or people. The vehicle may also

lunge forward or lunge back suddenly as it becomes free. Use extreme caution.

■

When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.

This may lead to unexpected rapid acceleration of the vehicle that may cause an acci-

dent and result in death or serious injury.

NOTICE

■

To avoid damaging the transmission and other components

●

Avoid spinning the rear wheels and depressing the accelerator pedal more than nec-

essary.

●

If the vehicle remains stuck even after these procedures are performed, the vehicle

may require towing to be freed.

●

When a warning message for the automatic transmission fluid temperature is dis-

played while attempting to free a stuck vehicle, immediately remove your foot from

the accelerator pedal and wait until the warning message disappears. Otherwise, the

transmission may become damaged. (

P. 531)

562

8-1. Specifications

Maintenance data (fuel, oil level, etc.)

: Unladen vehicles

: Vehicles with roof antenna

: Vehicles with 20-inch tires

: Vehicles with 21-inch tires

Dimensions and weights

Overall length

200.0 in. (5080 mm)

Overall width

78.0 in. (1980 mm)

Overall height

73.4 in. (1865 mm)

75.2 in. (1910 mm)

Wheelbase

112.2 in. (2850 mm)

Tread

Front

64.8 in. (1645 mm)

65.0 in. (1650 mm)

Rear

64.6 in. (1640 mm)

65.0 in. (1650 mm)

Vehicle capacity weight

(Occupants + luggage)

1285 lb. (580 kg)

TWR

(trailer weight +

cargo weight)

With brake

7000 lb. (3175 kg)

Without

brake

1000 lb. (454 kg)

563

■

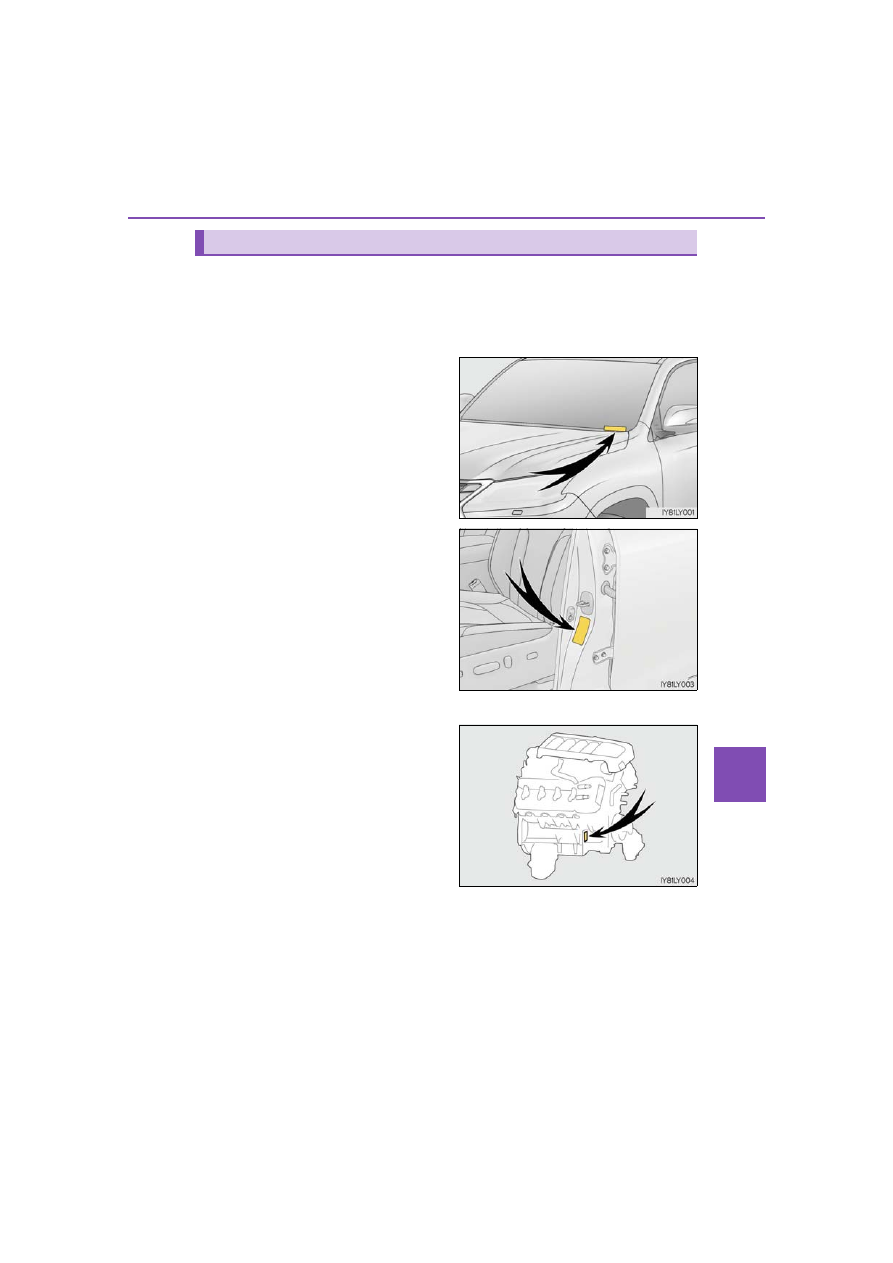

Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your vehicle.
This is the primary identification number for your Lexus. It is used in register-
ing the ownership of your vehicle.
This number is stamped on the top
left of the instrument panel.

This number is also on the Certifica-
tion Label.

■

Engine number
The engine number is stamped on
the engine block as shown.

Vehicle identification

564

8-1. Specifications

: The engine oil capacity is a reference quantity to be used when changing the engine

oil. Warm up and turn off the engine, wait more than 5 minutes, and check the oil level
on the dipstick.

Engine

Model

5.7L V8 (3UR-FE)

Type

8-cylinder V type, 4-cycle, gasoline

Bore and stroke

3.70

 4.02 in. (94.0  102.0 mm)

Displacement

345.6 cu.in. (5663 cm

)

Valve clearance

Automatic adjustment

Drive belt tension

Fuel

Fuel type

Unleaded gasoline only

Octane rating

91 (Research Octane Number 96) or higher

Fuel tank capacity

(Reference)

24.5 gal. (93 L, 20.4 Imp.gal.)

Lubrication system

Oil capacity

(Drain and refill — reference

)

With filter

Without filter

7.9 qt. (7.5 L, 6.6 Imp.qt.)

7.5 qt. (7.1 L, 6.2 Imp.qt.)

565

■

Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the following
grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good start-
ing in cold weather.
If SAE 0W-20 is not available, SAE
5W-20 oil may be used. However, it
must be replaced with SAE 0W-20
at the next oil change.

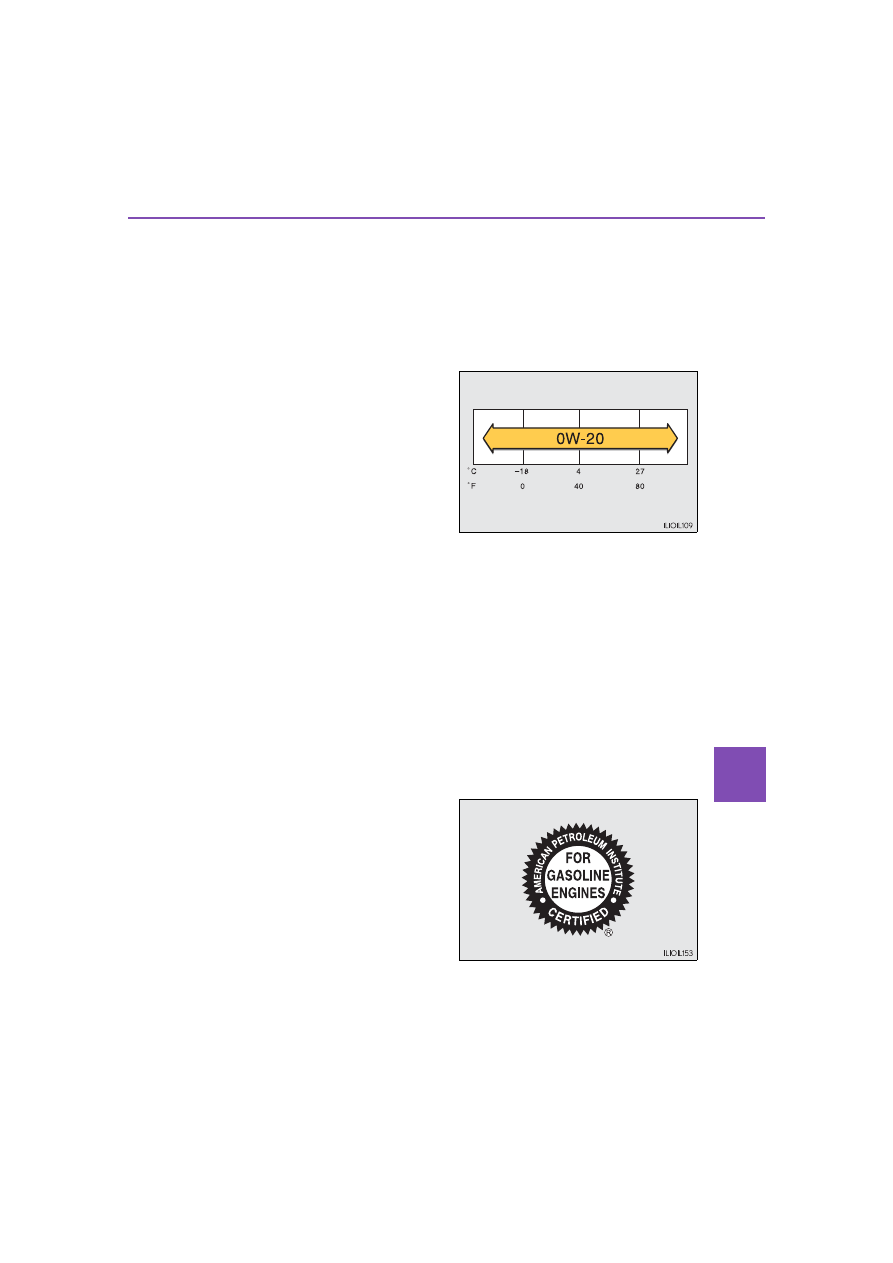

Oil viscosity (0W-20 is explained here as an example):

• The 0W in 0W-20 indicates the characteristic of the oil which allows cold

startability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.

• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the

oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.

How to read oil container label:
The International Lubricant Specification Advisory Committee (ILSAC) Cer-
tification Mark is added to some oil containers to help you select the oil you
should use.

Outside temperature

566

8-1. Specifications

Cooling system

Capacity (Reference)

17.1 qt. (16.2 L, 14.3 Imp.qt.)

Coolant type

Use either of the following.

• “Toyota Super Long Life Coolant”

• Similar high-quality ethylene glycol-based

non-silicate, non-amine, non-nitrite, and non-

borate coolant with long-life hybrid organic

acid technology

Do not use plain water alone.

Ignition system

Spark plug

Make

Gap

DENSO SK20HR11

0.043 in. (1.1 mm)

NOTICE

■

Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust gap when tuning engine.

Electrical system

Battery

Open voltage at 68

F

(20

C):

12.6

 12.8 V Fully charged

12.2

 12.4 V Half charged

11.8

 12.0 V Discharged

(Voltage is checked 20 minutes after the engine

and all lights are turned off.)

Charging rates

5 A max.

567

Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the
factory.
Use Lexus approved “Toyota Genuine Differential Gear Oil” or an equivalent of
matching quality to satisfy the above specification. Please contact your Lexus
dealer for further details.

The fluid capacity is the quantity of reference. If replacement is necessary, con-
tact your Lexus dealer.

Differential

Oil capacity

Front

Rear

2.01 qt. (1.90 L, 1.67 Imp.qt.)

4.44 qt. (4.20 L, 3.70 Imp.qt.)

Oil type and viscosity

Toyota Genuine Differential Gear Oil LT 75W-85

GL-5 or equivalent

Automatic transmission

Fluid capacity

10.7 qt. (10.1 L, 8.9 Imp.qt.)

Fluid type

Toyota Genuine ATF WS

NOTICE

■

Automatic transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause deterioration

in shift quality, locking up of your transmission accompanied by vibration, and ulti-

mately damage the transmission of your vehicle.

568

8-1. Specifications

: Your Lexus vehicle is filled with “Toyota Genuine Transfer Gear oil LF” at the factory.

Use Lexus approved “Toyota Genuine Transfer Gear oil LF” or an equivalent of
matching quality to satisfy the above specification. Please contact your Lexus dealer
for further details.

: Minimum pedal clearance when depressed with a force of 110 lbf (490 N, 50 kgf)

while the engine is running

Transfer

Oil capacity

1.53 qt. (1.45 L, 1.28 Imp.qt.)

Oil type

Toyota Genuine Transfer Gear oil LF or equivalent

Recommended oil viscosity

SAE 75W

Brakes

Pedal clearance

4.5 in. (114 mm) Min.

Pedal free play

0.04

 0.24 in. (1.0  6.0 mm)

Brake pad wear limit

0.04 in. (1.0 mm)

Parking brake lining wear limit

0.04 in. (1.0 mm)

Fluid type

SAE J1703 or FMVSS No. 116 DOT 3

Chassis lubrication

Propeller shafts

Spider

Lithium base chassis grease, NLGI No.2

Slide yoke

Molybdenum-disulfide lithium base chassis

grease, NLGI No.2 or Lithium base chassis

grease, NLGI No.2

Steering

Free play

Less than 1.18 in. (30 mm)

Power steering fluid type

Automatic transmission fluid DEXRON

II or III

569



20-inch tires



21-inch tires

Suspension

Fluid type

Suspension fluid AHC

Tires and wheels

Tire size

285/50R20 112V

Tire inflation pressure

(Recommended cold tire

inflation pressure)

Normal driving

Front:

33 psi (230 kPa, 2.3 kgf/cm

or bar)

Rear:

33 psi (230 kPa, 2.3 kgf/cm

or bar)

Spare:

33 psi (230 kPa, 2.3 kgf/cm

or bar)

Trailer towing

Add 2 psi (10 kPa, 0.1 kgf/cm

or bar) to the rear

tires.

Wheel size

 8 1/2J

Wheel nut torque

97 ft•lbf (131 N•m, 13.4 kgf•m)

Tire size

275/50R21 113V XL

Tire inflation pressure

(Recommended cold tire

inflation pressure)

Normal driving

Front:

33 psi (230 kPa, 2.3 kgf/cm

or bar)

Rear:

33 psi (230 kPa, 2.3 kgf/cm

or bar)

Spare:

33 psi (230 kPa, 2.3 kgf/cm

or bar)

Trailer towing

Add 6 psi (40 kPa, 0.4 kgf/cm

or bar) to the

rear tires.

Wheel size

21 X 8 1/2J

Wheel nut torque

97 ft•lbf (131 N•m, 13.4 kgf•m)

570

8-1. Specifications

Fuel information

■

Gasoline quality
In very few cases, driveability problems may be caused by the brand of gasoline you are

using. If driveability problems persist, try changing the brand of gasoline. If this does not

correct the problem, consult your Lexus dealer.

■

Recommendation of the use of gasoline containing detergent additives

●

Lexus recommends the use of gasoline that contains detergent additives to avoid the

build-up of engine deposits.

●

All gasoline sold in the U.S.A. contains minimum detergent additives to clean and/or

keep clean intake systems, per EPA’s lowest additives concentration program.

●

Lexus strongly recommends the use of Top Tier Detergent Gasoline. For more informa-

tion on Top Tier Detergent Gasoline and a list of marketers, please go to the official

website www.toptiergas.com.

■

Recommendation of the use of low emissions gasoline
Gasolines containing oxygenates such as ethers and ethanol, as well as reformulated

gasolines, are available in some cities. These fuels are typically acceptable for use, pro-

viding they meet other fuel requirements.
Lexus recommends these fuels, since the formulations allow for reduced vehicle emis-

sions.

You must only use unleaded gasoline.
Select premium unleaded gasoline with an octane rating of 91 (Research
Octane Number 96) or higher required for optimum engine performance
and fuel economy. If the octane rating is less than 91, damage to the engine
may occur and may void the vehicle warranty.
At minimum, the gasoline you use should meet the specifications of ASTM
D4814 in the U.S.A. .

LEXUS LX 570 (2019 year). Instruction - part 35
