LEXUS LX 570 (2019 year). Instruction - part 9

■

Effective range (areas within which the electronic key is detected)

When starting the engine or changing engine switch modes

The system can be operated when the electronic key is inside the vehicle.

■

Alarms and warning indicators
A combination of exterior and interior alarms as well as warning messages shown on the

multi-information display are used to prevent theft of the vehicle and accidents resulting

from erroneous operation. Take appropriate measures in response to any warning mes-

sage on the multi-information display.
The following table describes circumstances and correction procedures when only

alarms are sounded.

When locking or unlocking the doors

The system can be operated when the elec-

tronic key is within about 2.3 ft. (0.7 m) of

either of the outside front door handle.

(Only the doors detecting the key can be

operated.)

Alarm

Situation

Correction procedure

Exterior alarm

sounds once for 5

seconds

An attempt was made to lock the

vehicle while a door is open

Close all of the doors and

lock the doors again

Interior alarm pings

continuously

The engine switch was turned to

ACCESSORY mode while the

driver’s door was open (or the

driver’s door was opened while

the engine switch was in ACCES-

SORY mode)

Turn the engine switch off

and close the driver’s door

The engine switch was turned off

while the driver’s door was open

Close the driver’s door

140

■

Battery-saving function
The battery-saving function will be activated in order to prevent the electronic key bat-

tery and the battery from being discharged while the vehicle is not in operation for a long

time.

●

In the following situations, the smart access system with push-button start may take

some time to unlock the doors.
• The electronic key has been left in an area of approximately 6 ft. (2 m) of the outside

of the vehicle for 10 minutes or longer.

• The smart access system with push-button start has not been used for 5 days or lon-

ger.

●

If the smart access system with push-button start has not been used for 14 days or lon-

ger, the doors cannot be unlocked at any doors except the driver’s door. In this case,

take hold of the driver’s door handle, or use the wireless remote control or the mechan-

ical key, to unlock the doors.

■

Electronic Key Battery-Saving Function
When battery-saving mode is set, battery depletion is minimized by stopping the elec-

tronic key from receiving radio waves.

The smart access system with push-button start uses weak radio waves. In the following

situations, the communication between the electronic key and the vehicle may be

affected, preventing the smart access system with push-button start, wireless remote

control and engine immobilizer system from operating properly.

(Ways of coping:

P. 549)

●

When the electronic key battery is depleted

●

Near a TV tower, electric power plant, gas station, radio station, large display, airport or

other facility that generates strong radio waves or electrical noise

●

When the electronic key is in contact with, or is covered by the following metallic

objects
• Portable radio, cellular phone, cordless phone or other wireless communication

device

• Cards to which aluminum foil is attached

• Cigarette boxes that have aluminum foil inside

• Metallic wallets or bags

• Coins

• Hand warmers made of metal

• Media such as CDs and DVDs

●

When other wireless keys (that emit radio waves) are being used nearby

Press

twice while pressing and holding

. Confirm that the electronic key indica-

tor flashes 4 times.
While the battery-saving mode is set, the smart

access system with push-button start cannot be

used. To cancel the function, press any of the

electronic key buttons.

141

●

When carrying the electronic key together with the following devices that emit radio

waves
• Another vehicle’s electronic key or a wireless key that emits radio waves

• Personal computers or personal digital assistants (PDAs)

• Digital audio players

• Portable game systems

●

If window tint with a metallic content or metallic objects are attached to the rear win-

dow

●

When the electronic key is placed near a battery charger or electronic devices

■

Note for the entry function

●

Even when the electronic key is within the effective range (detection areas), the system

may not operate properly in the following cases:
• The electronic key is too close to the window or outside door handle, near the

ground, or in a high place when the doors are locked or unlocked.

• The electronic key is on the instrument panel, luggage cover (if equipped) or floor,

or in the door pockets or glove box when the engine is started or engine switch

modes are changed.

●

Do not leave the electronic key on top of the instrument panel or near the door pockets

when exiting the vehicle. Depending on the radio wave reception conditions, it may be

detected by the antenna outside the cabin and the doors will become lockable from the

outside, possibly trapping the electronic key inside the vehicle.

●

As long as the electronic key is within the effective range, the doors may be locked or

unlocked by anyone. However, only the doors detecting the electronic key can be used

to unlock the vehicle.

●

Even if the electronic key is not inside the vehicle, it may be possible to start the engine

if the electronic key is near the window.

●

The doors may unlock or lock if a large amount of water splashes on the door handle,

such as in the rain or in a car wash, when the electronic key is within the effective range.

(The doors will automatically be locked after approximately 60 seconds if the doors

are not opened and closed.)

●

Touching the door lock or unlock sensor while wearing gloves may prevent lock or

unlock operation.

●

If the wireless remote control is used to lock the doors when the electronic key is near

the vehicle, there is a possibility that the door may not be unlocked by the entry func-

tion. (Use the wireless remote control to unlock the doors.)

●

When the lock operation is performed using the lock sensor, recognition signals will be

shown up to two consecutive times. After this, no recognition signals will be given.

●

If the door handle becomes wet while the electronic key is within the effective range,

the door may lock and unlock repeatedly. In this case, follow the following correction

procedures to wash the vehicle.
• Place the electronic key in a location 6 ft. (2 m) or more away from the vehicle. (Take

care to ensure that the key is not stolen.)

• Set electronic key to battery-saving mode to disable the smart access system with

push-button start. (

P. 140)

142

●

If the electronic key is inside the vehicle and a door handle becomes wet during a car

wash, a message may be shown on the multi-information display and a buzzer will

sound outside the vehicle. To turn off the alarm, lock all the doors.

●

The lock sensor may not work properly if it comes into contact with ice, snow, mud, etc.

Clean the lock sensor and attempt to operate it again, or use the lock sensor on the

lower part of the door handle.

●

If there is another electronic key in the detection area, it may take slightly longer to

unlock the doors after the door handle is gripped or back door unlock switch is

pressed.

●

A sudden approach to the effective range or door handle may prevent the doors from

being unlocked. In this case, return the door handle to the original position and check

that the doors unlock before pulling the door handle again.

■

When the vehicle is not driven for extended periods

●

To prevent theft of the vehicle, do not leave the electronic key within 6 ft. (2 m) of the

vehicle.

●

The smart access system with push-button start can be deactivated in advance.

(

P. 584)

■

To operate the system properly
Make sure to carry the electronic key when operating the system. Do not get the elec-

tronic key too close to the vehicle when operating the system from the outside of the

vehicle.
Depending on the position and holding condition of the electronic key, the key may not

be detected correctly and the system may not operate properly. (The alarm may go off

accidentally, or the door lock prevention function may not operate.)

■

If the smart access system with push-button start does not operate properly

●

Locking and unlocking the doors: Use the mechanical key. (

P. 549)

●

Starting the engine:

P. 550

■

Customization
Settings (e. g. smart access system with push-button start) can be changed.

(Customizable features:

P. 584)

■

If the smart access system with push-button start has been deactivated in a customized

setting

●

Locking and unlocking the doors:
Use the wireless remote control or mechanical key. (

P. 121, 549)

●

Starting the engine and changing engine switch modes:

P. 550

●

Stopping the engine:

P. 212

143

■

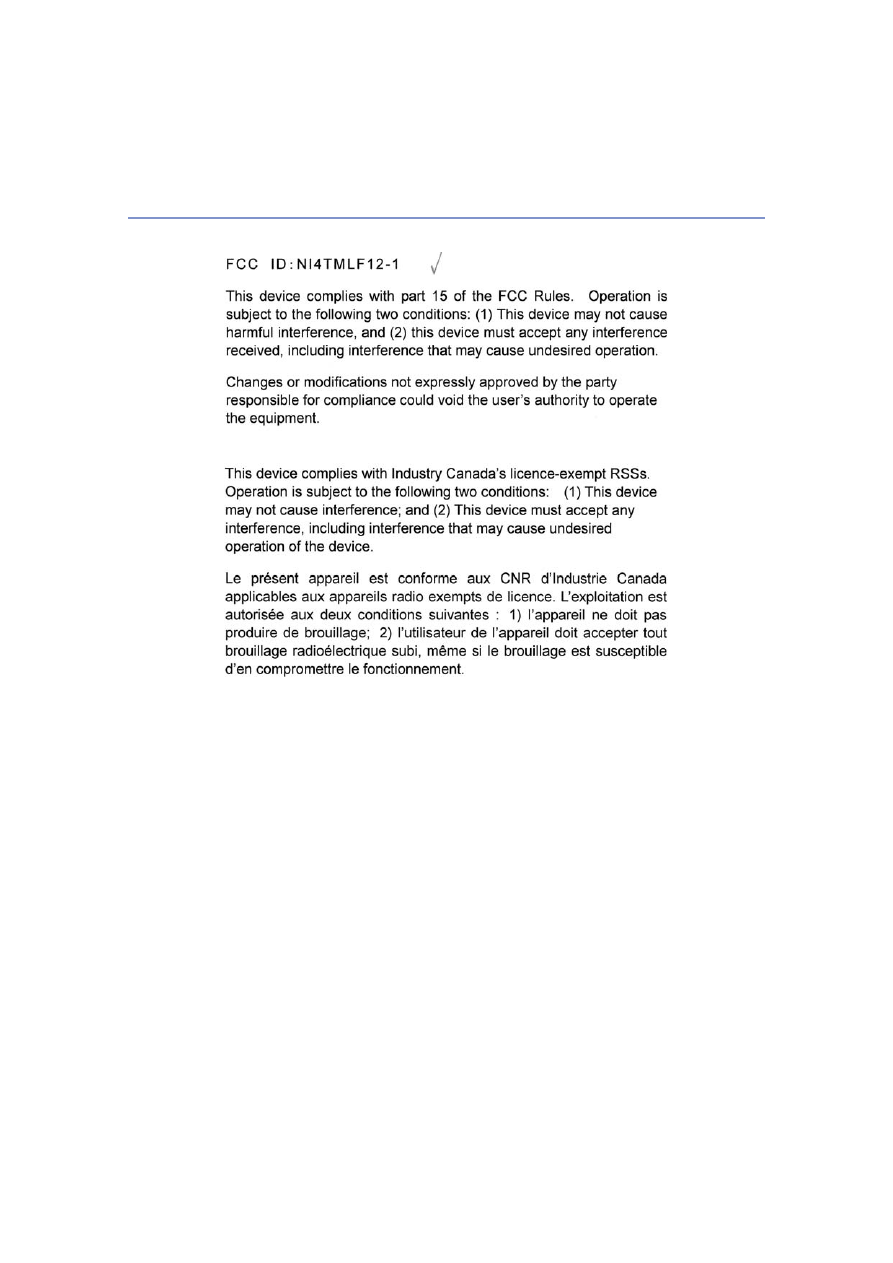

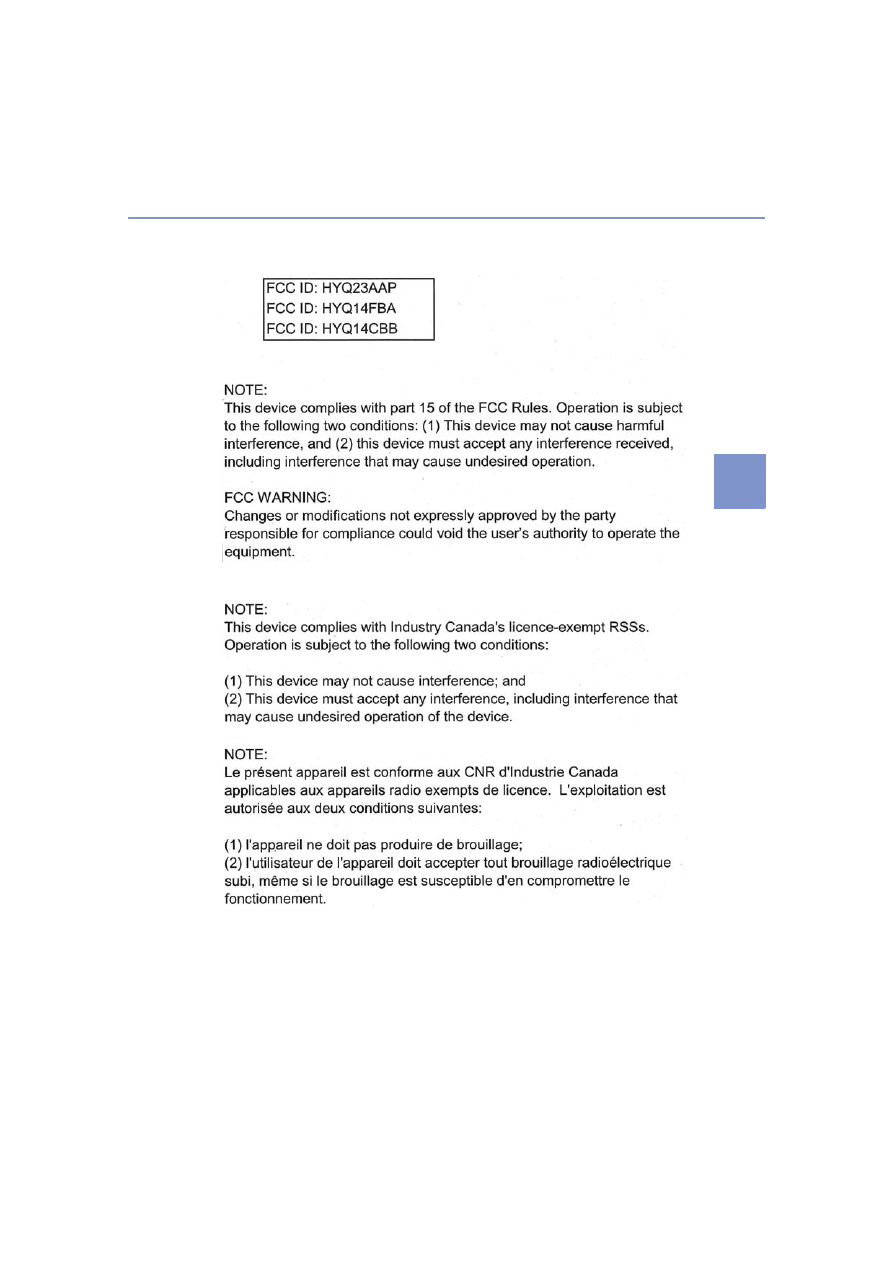

Certification for the smart access system with push-button start



For vehicles sold in the U.S.A., Hawaii, Guam and Puerto Rico



For vehicles sold in Canada

144



For vehicles sold in the U.S.A., Hawaii, Guam and Puerto Rico



For vehicles sold in Canada

145

WARNING

■

Caution regarding interference with electronic devices

●

People with implantable cardiac pacemakers, cardiac resynchronization therapy-

pacemakers or implantable cardioverter defibrillators should keep away from the

smart access system antennas. (

P. 138)

The radio waves may affect the operation of such devices. If necessary, the entry

function can be disabled. Ask your Lexus dealer for details, such as the frequency of

radio waves and timing of the emitted radio waves. Then, consult your doctor to see if

you should disable the entry function.

●

Users of any electrical medical device other than implantable cardiac pacemakers,

cardiac resynchronization therapy-pacemakers or implantable cardioverter defibril-

lators should consult the manufacturer of the device for information about its opera-

tion under the influence of radio waves.

Radio waves could have unexpected effects on the operation of such medical

devices.

Ask your Lexus dealer for details on disabling the entry function.

146

Front seats

Seat position adjustment switch
Seatback angle adjustment switch
Seat cushion (front) angle adjustment switch
Vertical height adjustment switch
Lumber support adjustment switch
Seat cushion length adjustment switch (driver’s side only)

When the occupant’s lower back
presses against the seatback during a
rear-end collision, the head restraint
moves slightly forward and upward to
help reduce the risk of whiplash on the
seat occupant.

Adjustment procedure

Active head restraints

2
3
4
5
6

147

■

Power easy access system
The driver’s seat and steering wheel move in accordance with engine switch mode and

the driver’s seat belt condition. (

P. 157)

■

Active head restraints
Even small forces applied to the seatback may cause the head restraint to move. Pushing

up a locked head restraint forcibly may appear the head restraint inner structure. These

do not indicate problems.

WARNING

■

When adjusting the seat position

●

Take care when adjusting the seat position to ensure that other passengers are not

injured by the moving seat.

●

Do not put your hands under the seat or near the moving parts to avoid injury.

Fingers or hands may become jammed in the seat mechanism.

■

Seat adjustment
To reduce the risk of sliding under the lap belt during a collision, do not recline the seat

more than necessary.

If the seat is too reclined, the lap belt may slide past the hips and apply restraint forces

directly to the abdomen, or your neck may contact the shoulder belt, increasing the risk

of death or serious injury in the event of an accident.

Adjustments should not be made while driving as the seat may unexpectedly move and

cause the driver to lose control of the vehicle.

Inner
structure

During rear-end collision

148

Rear seats



Second seats
Seatback angle adjustment lever
Seat position adjustment switch



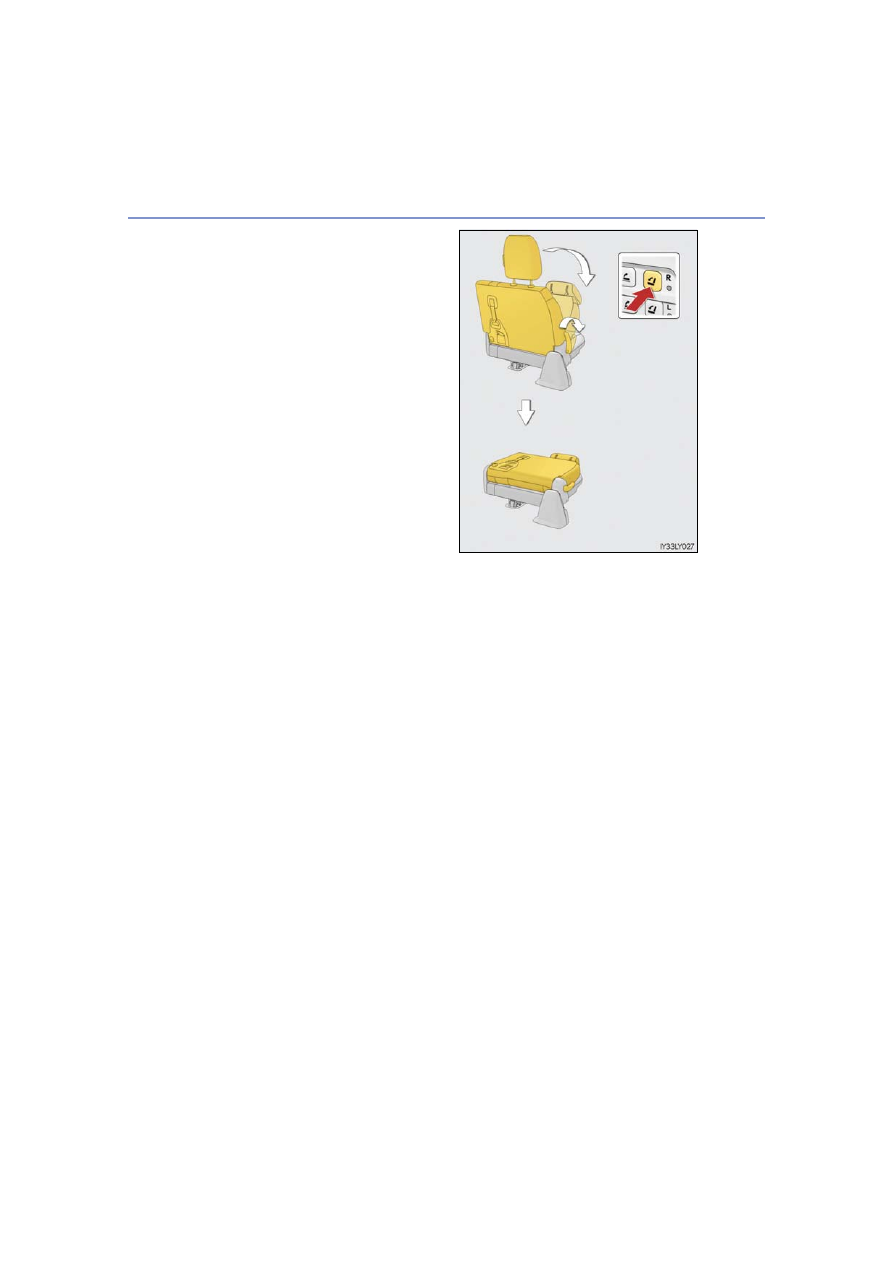

Third seats (if equipped)
Seatback angle adjustment lever

Adjustment procedure

149

For easy access to the third seat (if equipped), perform in “Tumbling the sec-
ond seats” (

P. 150).

■

Before tumbling the second seats

Stow the seat belt buckles and
lower the head restraints to the
lowest position.

Pass the outer seat belts through
the seat belt hangers and secure
the seat belt plates.

This prevents the shoulder belt from

being damaged.
Make sure that the seat belts are

removed from the hangers before

using them.

Vehicles with rear seat entertain-
ment system: Install the display
cover for the rear seat entertain-
ment system.
Pass the cover belt under the dis-
play and slide the cover up.

Slide the cover down from the top
of the display to cover it.

Tumbling the second seats and third seat entry

150

■

Tumbling the second seats

Fold down the seatback while
pulling the seatback angle adjust-
ment lever, and swing the whole
seat up and forward.

Hook the holding strap to the
assist grip and secure the seat by
pulling its free end.

When returning the second seat to

its original position, stow the holding

strap.

Remove the seat hook covers
from the back of the seat cushion,
and install them on the seat
hooks.

When returning the second seat to

its original position, remove the seat

hook covers from the floor and install

them in the back of the seat cushion.

151

■

Before folding the third seats

Stow the seat belts buckles.

Stow the center head restraint in the seatback. (

P. 163)

Pass the outer seat belts through
the seat belt hangers and secure
the seat belt plates.

This prevents the shoulder belt from

being damaged.
Make sure that the seat belts are

removed from the hangers before

using them.

Stow the center seat belt tabs in the cover set in the roof. (

P. 32)

■

Folding down the third seatback

For right side
For left side

Folding the third seats (if equipped)

152

The seat will automatically fold when
the switch is pressed.

153

■

Folding up the third seats

Perform following steps in “Before folding the third seats”. (

P. 151)

If the switch is pressed and held,
the seat will automatically fold
and lift sideward. (The buzzer
sounds twice when the seat is
about to lift.)

If the switch is released while the seat

is lifting sideward, operation will stop

and a buzzer will sound continuously.
Before operating, make sure that the

handle on the rear of the seatback is

secure.

Remove the seat hook covers
from the underside of the seat
cushion, and install them on the
seat hooks.

■

Returning the third seats

Remove the seat hook covers
from the floor and install them
into the underside of the seat
cushion.

154
