380

6-3. Do-it-yourself maintenance

LS500_OM_(U)_1809

The battery is located in the trunk
under the luggage mat.

Removing the luggage mat:

P.340

■

Before recharging

When recharging, the battery produces

hydrogen gas which is flammable and

explosive. Therefore, observe the following

precautions before recharging:

●

If recharging with the battery installed on

the vehicle, be sure to disconnect the

ground cable.

●

Make sure the engine switch on the char-

ger is off when connecting and discon-

necting the charger cables to the battery.

■

After recharging/reconnecting the bat-

tery

●

Unlocking the doors using the smart

access system with push-button start may

not be possible immediately after recon-

necting the battery. If this happens, use

the wireless remote control or the

mechanical key to lock/unlock the doors.

●

Start the engine with the engine switch in

ACCESSORY mode. The engine may

not start with the engine switch turned off.

However, the engine will operate nor-

mally from the second attempt.

●

The engine switch mode is recorded by

the vehicle. If the battery is reconnected,

the vehicle will return the engine switch

mode to the status it was in before the

NOTICE

■

Do not use any fluid other than

washer fluid

Do not use soapy water or engine anti-

freeze instead of washer fluid.

Doing so may cause streaking on the

vehicle’s painted surfaces, as well as

damaging the pump leading to problems

of the washer fluid not spraying.

■

Diluting washer fluid

Dilute washer fluid with water as neces-

sary.

Refer to the freezing temperatures listed

on the label of the washer fluid bottle.

Battery

Location

381

6-3. Do-it-yourself maintenance

LS500_OM_(U)_1809

6

Mai
nte

na

nc

e a

nd

 c

are

battery was disconnected. Make sure to

turn off the engine before disconnecting

the battery. Take extra care when con-

necting the battery if the engine switch

mode prior to discharge is unknown.

If the system will not start even after multiple

attempts, contact your Lexus dealer.

Make sure that the battery terminals
are not corroded and that there are no
loose connections, cracks, or loose
clamps.

WARNING

■

Chemicals in the battery

The battery contains poisonous and cor-

rosive sulfuric acid and may produce

hydrogen gas which is flammable and

explosive. To reduce the risk of death or

serious injury, take the following precau-

tions while working on or near the bat-

tery:

●

Do not cause sparks by touching the

battery terminals with tools.

●

Do not smoke or light a match near the

battery.

●

Avoid contact with eyes, skin and

clothes.

●

Never inhale or swallow electrolyte.

●

Wear protective safety glasses when

working near the battery.

●

Keep children away from the battery.

■

Where to safely charge the battery

Always charge the battery in an open

area. Do not charge the battery in a

garage or closed room where there is

insufficient ventilation.

■

Emergency measures regarding

electrolyte

●

If electrolyte gets in your eyes

Flush your eyes with clean water for at

least 15 minutes and get immediate

medical attention. If possible, continue

to apply water with a sponge or cloth

while traveling to the nearest medical

facility.

●

If electrolyte gets on your skin

Wash the affected area thoroughly. If

you feel pain or burning, get medical

attention immediately.

●

If electrolyte gets on your clothes

It can soak through clothing on to your

skin. Immediately take off the clothing

and follow the procedure above if nec-

essary.

●

If you accidentally swallow electrolyte

Drink a large quantity of water or milk.

Get emergency medical attention

immediately.

■

When replacing the battery

Use a battery designed for this vehicle.

Failure to do so may cause gas (hydro-

gen) to enter the passenger compart-

ment, causing a fire or explosion.
For replacement of the battery, contact

your Lexus dealer.

NOTICE

■

When recharging the battery

Never recharge the battery while the

engine is running. Also, be sure all acces-

sories are turned off.

Exterior

382

6-3. Do-it-yourself maintenance

LS500_OM_(U)_1809

Terminals
Hold-down clamp

Check the battery condition by indica-
tor color.

Blue: Good condition
Red: Charging is necessary.
Have the vehicle inspected by your
Lexus dealer.
Clear: Replacement is necessary.
Have the battery checked by your
Lexus dealer.

Check if the treadwear indicators are
showing on the tires. Also check the
tires for uneven wear, such as excessive
wear on one side of the tread.

New tread
Worn tread
Treadwear indicator

The location of treadwear indicators is
shown by a “TWI” or “

” mark, etc.,

molded into the sidewall of each tire.
Replace the tires if the treadwear indica-
tors are showing on a tire.

Checking the battery condition

A
B

A
B

C

Tires

Replace or rotate tires in accor-
dance with maintenance schedules
and treadwear.

Checking tires

A
B
C

383

6-3. Do-it-yourself maintenance

LS500_OM_(U)_1809

6

Mai
nte

na

nc

e a

nd

 c

are

■

When to replace your vehicle’s tires

Tires should be replaced if:

●

The treadwear indicators are showing on

a tire.

●

You have tire damage such as cuts, splits,

cracks deep enough to expose the fabric,

and bulges indicating internal damage

●

A tire goes flat repeatedly or cannot be

properly repaired due to the size or loca-

tion of a cut or other damage

If you are not sure, consult with your Lexus

dealer.

■

Tire life

Any tire over 6 years old must be checked

by a qualified technician even if it has sel-

dom or never been used or damage is not

obvious.

■

Maximum load of tire

Check that the maximum load of the

replacement tire is greater than 1/2 of the

Gross Axle Weight Ratings (GAWR) of

either the front axle or the rear axle, which-

ever is greater.
For the GAWR, see the Certification Label.

For the maximum load of the tire, see the

load limit at maximum cold tire inflation

pressure mentioned on the sidewall of the

tire. (

P.457)

■

Tire types

●

Summer tires

Summer tires are high-speed performance
tires best suited to highway driving under
dry conditions. Since summer tires do not
have the same traction performance as
snow tires, summer tires are inadequate for
driving on snow-covered or icy roads. For
driving on snow-covered roads or icy

roads, the use of snow tires is recom-
mended. When installing snow tires, be
sure to replace all four tires.

●

All season tires

All season tires are designed to provide
better traction in snow and to be adequate
for driving in most winter conditions as well
as for use year-round. All season tires,
however, do not have adequate traction
performance compared with snow tires in
heavy or loose snow. Also, all season tires
fall short in acceleration and handling per-
formance compared with summer tires in
highway driving.

●

Snow tires

For driving on snow-covered roads or icy
roads, we recommend using snow tires. If
you need snow tires, select tires of the
same size, construction and load capacity
as the originally installed tires. Since your
vehicle has radial tires as original equip-
ment, make sure your snow tires also have
radial construction. Do not install studded
tires without first checking local regula-
tions for possible restrictions. Snow tires
should be installed on all wheels.
(

P.300)

■

If the tread on snow tires wears down

below 0.16 in. (4 mm)

The effectiveness of the tires as snow tires is

lost.

WARNING

■

When inspecting or replacing tires

Observe the following precautions to

prevent accidents.

Failure to do so may cause damage to

parts of the drive train as well as danger-

ous handling characteristics, which may

lead to an accident resulting in death or

serious injury.

384

6-3. Do-it-yourself maintenance

LS500_OM_(U)_1809



Vehicles with front and rear tires of
the same size

Rotate the tires in the order shown.

To equalize tire wear and extend tire life,
Lexus recommends that tire rotation is car-
ried out at the same interval as tire inspec-
tion.
Do not fail to initialize the tire pressure
warning system after tire rotation.



Vehicles with front and rear tires of
differing sizes

Tires cannot be rotated.

When run-flat tires are installed, the
vehicle can be driven for a maximum of
100 miles (160 km) at a speed below
50 mph (80 km/h) after any tire goes
flat. (However, the vehicle speed may
not increase to near 50 mph [80
km/h] depending on weather or driv-
ing conditions.)

A run-flat tire has a

 mark on

the side wall.

Make sure to replace the flat tire before the
vehicle has been driven for near 100 miles
(160 km). Also, do not use a repaired tire.

■

Run-flat tires

●

The run-flat tires are for only this vehicle.

Do not use the tires on other vehicles.

●

Do not mix run-flat tires and normal tires.

●

If non-genuine Lexus wheels are used, it

may be impossible to sufficiently demon-

strate the performance of run-flat tires.

Your vehicle is equipped with a tire
pressure warning system that uses tire
pressure warning valves and transmit-
ters to detect low tire inflation pressure

WARNING

●

Do not mix tires of different makes,

models or tread patterns.

Also, do not mix tires of remarkably

different treadwear.

●

Do not use tire sizes other than those

recommended by Lexus.

●

Do not mix differently constructed

tires (radial, bias-belted or bias-ply

tires).

●

Do not mix summer, all season and

snow tires.

●

Do not use tires that have been used

on another vehicle.

Do not use tires if you do not know

how they were used previously.

NOTICE

■

Driving on rough roads

Take particular care when driving on

roads with loose surfaces or potholes.

These conditions may cause losses in tire

inflation pressure, reducing the cushion-

ing ability of the tires. In addition, driving

on rough roads may cause damage to

the tires themselves, as well as the vehi-

cle’s wheels and body.

Tire rotation

Run-flat tires

Tire pressure warning system

385

6-3. Do-it-yourself maintenance

LS500_OM_(U)_1809

6

Mai
nte

na

nc

e a

nd

 c

are

before serious problems arise.
 The tire pressure detected by the

tire pressure warning system can be
displayed on the multi-information
display. (

P.80)

 If the tire pressure drops below a

predetermined level, the driver is
warned by a screen display and a
warning light. (

P.419)

■

Routine tire inflation pressure checks

The tire pressure warning system does not

replace routine tire inflation pressure

checks. Make sure to check tire inflation

pressure as part of your routine of daily

vehicle checks.

■

Tire inflation pressure

●

It may take a few minutes to display the

tire inflation pressure after the engine

switch is turned to IGNITION ON mode.

It may also take a few minutes to display

the tire inflation pressure after inflation

pressure has been adjusted.

●

Tire inflation pressure changes with tem-

perature. The displayed values may also

be different from the values measured

using a tire pressure gauge.

■

Situations in which the tire pressure

warning system may not operate prop-

erly

●

In the following cases, the tire pressure

warning system may not operate prop-

erly.

• If non-genuine Lexus wheels are used.

• If a tire has been replaced with a tire that

is not an OE (Original Equipment) tire.

• If a tire has been replaced with a tire that

is not of the specified size.

• If tire chains, etc. are installed.

• An auxiliary-supported run-flat tire is

equipped.

• If a window tint that affects the radio wave

signals is installed.

• If there is a lot of snow or ice on the vehi-

cle, particularly around the wheels or

wheel housings.

• If the tire inflation pressure is much higher

than the specified level.

• If wheels not equipped with tire pressure

warning valves and transmitter are used.

• If the ID code on the tire pressure warn-

ing valves and transmitters is not regis-

tered in the tire pressure warning

computer.

●

Performance may be affected in the fol-

lowing situations.

• When driving near a TV tower, electric

power plant, gas station, radio station,

large display, airport or other facility that

generates strong radio waves or electri-

cal noise

• When carrying a portable radio, cellular

phone, cordless phone or other wireless

communication device

If tire position information is not correctly

displayed due to the radio wave conditions,

the display may be corrected by changing

the location of the vehicle as the radio wave

conditions may change.

●

When the vehicle is stopped, the time

taken for the warning to start or turn off

may be longer.

●

When the inflation pressure of a tire

drops rapidly, for example when a tire has

burst, the warning may not operate.

386

6-3. Do-it-yourself maintenance

LS500_OM_(U)_1809

■

Warning performance of the tire pres-

sure warning system

The warning of the tire pressure warning

system will change in accordance with driv-

ing conditions. For this reason, the system

may give a warning even if the tire pressure

does not reach a low enough level, or if the

pressure is higher than the pressure that

was adjusted to when the system was initial-

ized.

■

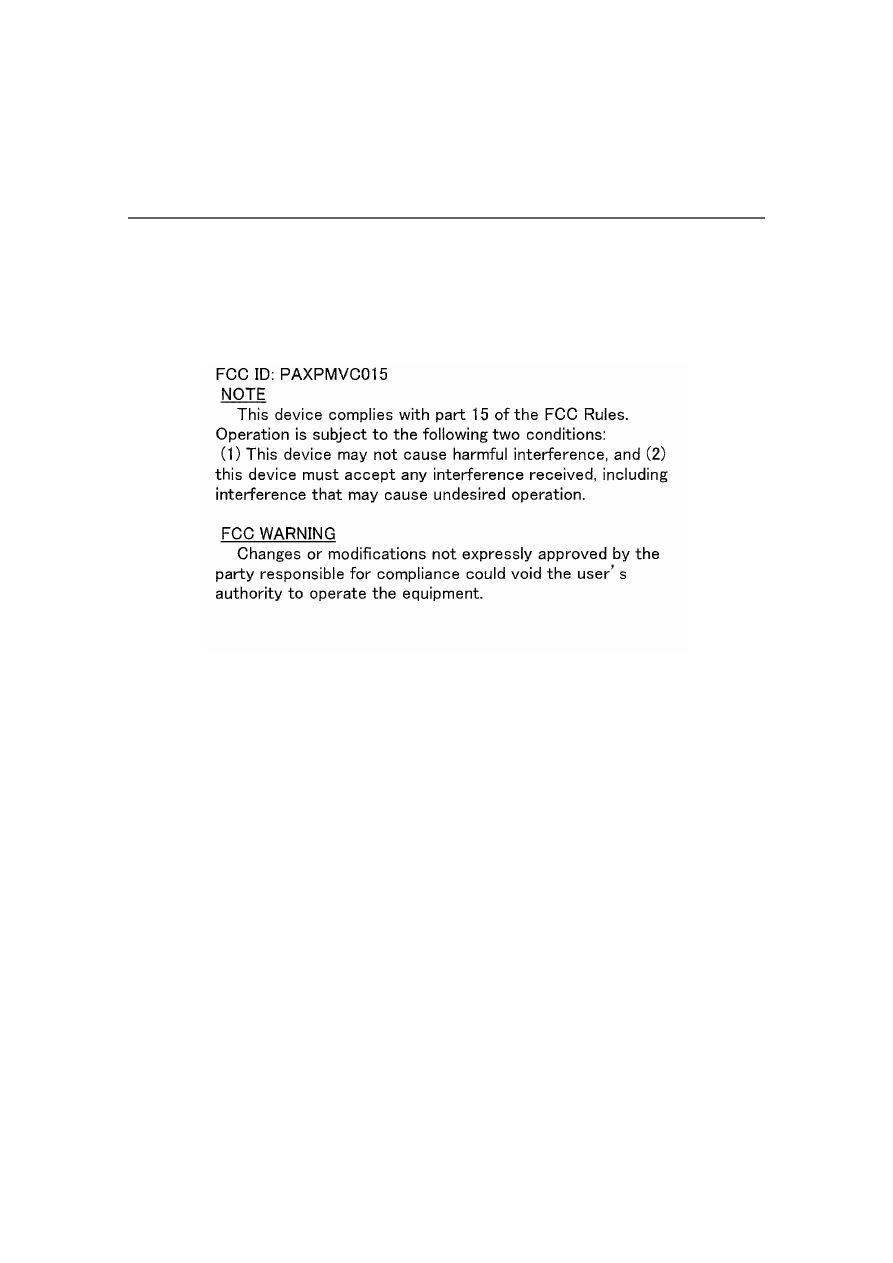

Tire pressure warning system certification



For vehicles sold in the U.S.A., Hawaii, Guam and Puerto Rico

387

6-3. Do-it-yourself maintenance

LS500_OM_(U)_1809

6

Mai
nte

na

nc

e a

nd

 c

are



For vehicles sold in Canada

When replacing the tires or wheels, the
tire pressure warning valve and trans-
mitters must be installed to the wheels
which will be installed to the vehicle.
When new tire pressure warning
valves and transmitters are installed,
new ID codes must be registered in the
tire pressure warning computer and
the tire pressure warning system must
be initialized. (

P.389)

■

Replacing tires and wheels

If the ID codes of the tire pressure warning

valve and transmitters are not registered,

the tire pressure warning system will not

work properly. In this case, after driving for

about 20 minutes, the tire pressure warning

light will blink for approximately 1 minute

and then illuminate to indicate a system

malfunction.

Installing tire pressure warning
valves and transmitters

NOTICE

■

Repairing or replacing tires, wheels,

tire pressure warning valves, trans-

mitters and tire valve caps

●

When removing or fitting the wheels,

tires or the tire pressure warning

valves and transmitters, contact your

Lexus dealer as the tire pressure warn-

ing valves and transmitters may be

damaged if not handled correctly.

●

Make sure to install the tire valve caps.

If the tire valve caps are not installed,

water may enter the valves of the tire

pressure warning valve and transmit-

ters and the valves may become stuck.

●

When replacing tire valve caps, do not

use tire valve caps other than those

specified. The cap may become stuck.

388

6-3. Do-it-yourself maintenance

LS500_OM_(U)_1809

■

The tire pressure warning system
must be initialized in the following
circumstances:

 When the tire inflation pressure is

changed such as when changing
traveling speed or load weight.

 When the tire inflation pressure is

changed such as when the tire size
is changed.

 When rotating the tires.
 After performing the transmitter ID

code registration procedure.
(

P.389)

When the tire pressure warning system
is initialized, the current tire inflation
pressure is set as the benchmark pres-
sure.

■

How to initialize the tire pressure
warning system

1

Park the vehicle in a safe place, turn
the engine switch off and wait 20
minutes or more.

The initialization procedure cannot be

started while the vehicle is moving.

2

Adjust the tire inflation pressure to
the specified cold tire inflation pres-
sure level.

Make sure to adjust the tire pressure to the

specified cold tire inflation pressure level.

The tire pressure warning system will oper-

ate based on this pressure level.

3

Start the engine.

4

Press

 or

 of the meter con-

trol switch to select

.

5

Press

 or

 to select “Vehicle

Settings” and then press

.

6

Press

 or

 to select “TPWS”

and then press

.

7

Press

 or

 to select “Set

Pressure”. Then press and hold



until the tire pressure warning light
blinks 3 times.

Then a message will be displayed on the

multi-information display.
“---” will be displayed on the multi-informa-

tion display for the inflation pressure of

each tire while initialization is being per-

formed.

8

Drive straight (with occasional left
and right turns) at approximately
25 mph (40 km/h) or more for
approximately 10 to 30 minutes.

Initialization is complete when the position

of each tire is determined and the inflation

pressure of each tire is displayed on the

multi-information display.
Initialization may take longer than normal

to complete if the vehicle speed cannot be

maintained at approximately 25 mph (40

km/h) or more. If initialization cannot be

completed after driving for 1 hour or more,

park the vehicle in a safe place, turn the

engine switch off and wait 20 minutes or

more before performing the driving proce-

dure again. (

P.389)

Initializing the tire pressure
warning system

389

6-3. Do-it-yourself maintenance

LS500_OM_(U)_1809

6

Mai
nte

na

nc

e a

nd

 c

are

■

Initialization procedure

●

Make sure to perform the initialization

procedure after adjusting the tire inflation

pressure.

Also, make sure the tires are cold before

performing the initialization procedure or

adjusting the tire inflation pressure.

●

If the engine switch is turned off during

initialization, it is not necessary to restart

the initialization procedure from the

beginning as it will begin automatically

when the engine switch is turned back to

IGNITION ON mode.

●

If initialization has accidentally been

started when it is not necessary, adjust

the tire inflation pressure to the specified

level when the tires are cold and then

perform the initialization procedure

again.

●

While the position of each tire is being

determined and the inflation pressures

are not being displayed on the

multi-information display, if the inflation

pressure of a tire drops, the tire pressure

warning light will come on.

■

If the tire pressure warning system is not

initialized properly

●

In the following situations, initialization

may take longer than usual to be com-

pleted or may not be possible. (Usually,

the vehicle will need to be driven for

approximately 10 to 30 minutes to com-

plete initialization.) If initialization is not

complete after driving approximately 30

minutes, continue driving for a while.

• If the vehicle is driven on an unpaved

road, it may take longer to complete ini-

tialization.

• If the vehicle is backed up while perform-

ing initialization, data collected during ini-

tialization will be cleared and it will take

longer than normal to complete.

• If the vehicle is driven in heavy traffic or

another situation where other vehicles

are driven close by, it may take time for

the system to recognize the tire pressure

warning valve and transmitters of your

vehicle over those of other vehicles.

If initialization is not complete after driving

for approximately 1 hour, park the vehicle in

a safe place for approximately 20 minutes

and then drive the vehicle again.

●

In the following situations, initialization

will not be started or was not completed

properly and the system will not operate

properly. Perform the initialization proce-

dure again.

• If, when attempting to start initialization,

the tire pressure warning light does not

blink 3 times.

• If, when the vehicle has been driven for

about 20 minutes after performing ini-

tialization, the tire pressure warning light

blinks for approximately 1 minute and

then illuminates.

●

If initialization cannot be completed after

performing the above procedure, con-

tact your Lexus dealer.

Every tire pressure warning valve and
transmitter has a unique ID code.
When replacing a tire pressure warn-
ing valve and transmitter, it is necessary
to register the ID codes.
The ID codes can be registered on



of the multi-information display.

1

Park the vehicle in a safe place, turn
the engine switch off, wait 20 min-
utes or more, and then start the
engine.

WARNING

■

When initializing the tire pressure

warning system

Do not initialize the tire pressure warning

system without first adjusting the tire

inflation pressure to the specified level.

Otherwise, the tire pressure warning

light may not come on even if the tire

inflation pressure is low, or it may come

on when the tire inflation pressure is

actually normal.

Registering ID codes

390

6-3. Do-it-yourself maintenance

LS500_OM_(U)_1809

2

Press

 or

 of the meter con-

trol switch to select

.

3

Press

 or

 to select “Vehicle

Settings” and then press

.

4

Press

 or

 to select “TPWS”

and then press

.

5

Press

 or

 to select “Change

Wheel Set”. Then press and hold

 until the tire pressure warning

light blinks slowly 3 times.

Then a message will be displayed on the

multi-information display.
When registration is being performed, the

tire pressure warning light will blink for

approximately 1 minute then illuminate and

“---” will be displayed for the inflation pres-

sure of each tire on the multi-information

display.

6

Drive straight (with occasional left
and right turns) at approximately
25 mph (40 km/h) or more for
approximately 10 to 30 minutes.

Registration is complete when the tire

pressure warning light turns off and the

inflation pressure of each tire is displayed

on the multi-information display.
Registration may take longer than normal

to complete if the vehicle speed cannot be

maintained at approximately 25 mph (40

km/h) or more. If registration cannot be

completed after driving for 1 hour or more,

perform the registration procedure again

from the beginning.  (

P.390)

After registering the ID codes, make sure

to initialize the tire pressure warning sys-

tem. (

P.388)

■

When registering ID codes

●

Before performing ID code registration,

make sure that no wheels with tire pres-

sure warning valve and transmitters

installed are near the vehicle.

●

Make sure to initialize the tire pressure

warning system after registering the ID

codes. If the system is initialized before

registering the ID codes, the initialized

values will be invalid.

●

As the tires will be warm when registra-

tion is completed, make sure to allow the

tires to cool before performing initializa-

tion.

■

Canceling ID code registration

●

To cancel ID code registration after it has

been started, turn the engine switch off

before driving the vehicle.

If the vehicle is driven after ID code regis-

tration is started, to cancel registration,

perform the ID code registration start

procedure again and turn the engine

switch off before driving.

●

If ID code registration has been canceled,

the tire pressure warning light will blink

for approximately 1 minute when the

engine switch is turned to IGNITION

ON mode and then illuminate. The tire

pressure warning system will be opera-

tional when the tire pressure warning

light turns off.

●

If the warning light does not turn off even

after several minutes have elapsed, ID

code registration may not have been can-

celled correctly. To cancel registration,

perform the ID code registration start

procedure again and then turn the engine

switch off before driving.

■

If ID codes are not registered properly

●

In the following situations, ID code regis-

tration may take longer than usual to be

completed or may not be possible. (Usu-

ally, the vehicle will need to be driven for

391

6-3. Do-it-yourself maintenance

LS500_OM_(U)_1809

6

Mai
nte

na

nc

e a

nd

 c

are

approximately 10 to 30 minutes to com-

plete ID code registration.)

If ID code registration is not complete

after driving for approximately 30 min-

utes, continue driving for a while.

• If the vehicle is driven on an unpaved

road, it may take longer than normal to

complete registration.

• If the vehicle is backed up while perform-

ing registration, data collected during

registration will be cleared, and it will take

longer than normal to complete.

• If the vehicle is driven in heavy traffic or

another situation where other vehicles

are driven close by, it may take time for

the system to recognize the tire pressure

warning valve and transmitters of your

vehicle over those of other vehicles.

• If a wheel with a tire pressure warning

valve and transmitter installed is inside or

near the vehicle, registration of the ID

codes for the installed wheels may not be

possible.

If ID registration is not complete after driv-

ing for approximately 1 hour, park the vehi-

cle in a safe place for approximately 20

minutes and then perform the ID code reg-

istration procedure again.

●

In the following situations, ID code regis-

tration will not be started or was not com-

pleted properly and the system will not

operate properly. Perform the ID code

registration procedure again.

• If, when attempting to start ID code regis-

tration, the tire pressure warning light

does not blink slowly 3 times.

• If, when the vehicle has been driven for

about 20 minutes after performing ID

code registration, the tire pressure warn-

ing light blinks for approximately 1 minute

and then illuminates.

●

If ID code registration cannot be com-

pleted after performing the above proce-

dure, contact your Lexus dealer.

 Stop the vehicle in a safe place on a

hard, flat surface.

 Set the parking brake.
 Shift the shift position to P.
 Disabling the height control. (if

equipped) (

P.293)

 Stop the engine.

■

Jack and tools

As your vehicle is equipped with run-flat

tires, the following tools for replacing a tire

are not included with your vehicle. They can

be purchased at your Lexus dealer.

●

Wheel nut wrench

●

Jack

●

Jack handle

Replacing the tire

When raising your vehicle with a
jack, position the jack correctly.
Improper placement may damage
your vehicle or cause injury.
If necessary tire replacement
seems difficult to perform, contact
your Lexus dealer.

Before jacking up the vehicle

392

6-3. Do-it-yourself maintenance

LS500_OM_(U)_1809

1

Chock the tires.

WARNING

■

Using the tire jack

Observe the following precautions.

Improper use of the tire jack may cause

the vehicle to suddenly fall off the jack,

leading to death or serious injury.

●

Do not use the tire jack for any pur-

pose other than replacing tires or

installing and removing tire chains.

●

Do not use other tire jacks for replac-

ing tires on this vehicle.

●

Put the jack properly in its jack point.

●

Do not put any part of your body under

the vehicle while it is supported by the

jack.

●

Do not start the engine or drive the

vehicle while the vehicle is supported

by the jack.

●

Do not raise the vehicle while some-

one is inside.

●

When raising the vehicle, do not put an

object on or under the jack.

●

Do not raise the vehicle to a height

greater than that required to replace

the tire.

●

Use a jack stand if it is necessary to get

under the vehicle.

●

Make sure to disable all functions of

the vehicle height control of the elec-

tronically modulated air suspension

and then stopping the engine.

(

P.293)

●

When lowering the vehicle, make sure

that there is no-one near the vehicle. If

there are people nearby, warn them

vocally before lowering.

■

Replacing a flat tire for vehicles with

power trunk opener and closer (if

equipped)

In cases such as when replacing tires,

make sure to turn off the trunk opener

main switch (

P.110). Failure to do so

may cause the trunk lid to operate unin-

tentionally if the power trunk opener and

closer switch is accidentally touched,

resulting in hands and fingers being

caught and injured.

Removing a tire

Tire

Wheel chock posi-
tions

Front left-hand side

Behind the rear
right-hand side tire

Front right-hand
side

Behind the rear
left-hand side tire

Rear left-hand side

In front of the front
right-hand side tire

Rear right-hand side

In front of the front
left-hand side tire

393

6-3. Do-it-yourself maintenance

LS500_OM_(U)_1809

6

Mai
nte

na

nc

e a

nd

 c

are

2

Slightly loosen the wheel nuts (one
turn).

3

Turn the tire jack portion   by
hand until the notch of the jack is in
contact with the jack point.

The jack point guides are located under

the rocker panel. They indicate the jack

point positions.

4

Raise the vehicle until the tire is
slightly raised off the ground.

5

Remove all the wheel nuts and the
tire.

When resting the tire on the ground, place

the tire so that the wheel design faces up to

avoid scratching the wheel surface.

1

Remove any dirt or foreign matter
from the wheel contact surface.

If foreign matter is on the wheel contact

surface, the wheel nuts may loosen while

the vehicle is in motion, causing the tire to

come off.

2

Install the tire and loosely tighten
each wheel nut by hand by approxi-
mately the same amount.

Turn the wheel nuts until the washers come

A

WARNING

■

Replacing a tire

Do not touch the disc wheels or the area

around the brakes immediately after the

vehicle has been driven.
After the vehicle has been driven the disc

wheels and the area around the brakes

will be extremely hot. Touching these

areas with hands, feet or other body

parts while changing a tire, etc. may

result in burns.

Installing the tire

394

6-3. Do-it-yourself maintenance

LS500_OM_(U)_1809

into contact with the disc wheel.

Disc wheel
Washer

3

Lower the vehicle.

4

Firmly tighten each wheel nut two
or three times in the order shown in
the illustration.
Tightening torque:
103 ft•lbf (140 N•m, 14.3 kgf•m)

A
B

WARNING

■

When installing the tire

Failure to follow these precautions could

cause the wheel nuts to loosen and the

tire to fall off, resulting in death or serious

injury.

●

Never use oil or grease on the wheel

bolts or wheel nuts.

Oil and grease may cause the wheel

nuts to be excessively tightened, lead-

ing to bolt or disc wheel damage. In

addition, the oil or grease can cause

the wheel nuts to loosen and the wheel

may fall off, causing a serious accident.

Remove any oil or grease from the

wheel bolts or wheel nuts.

●

Have the wheel nuts tightened with a

torque wrench to 103 ft•lbf (140 N•m,

14.3 kgf•m) as soon as possible after

changing wheels.

●

Do not attach a heavily damaged

wheel ornament, as it may fly off the

wheel while the vehicle is moving.

●

When installing a tire, only use wheel

nuts that have been specifically

designed for that wheel.

●

If there are any cracks or deformations

in the bolt screws, nut threads or bolt

holes of the wheel, have the vehicle

inspected by your Lexus dealer.

NOTICE

■

Repairing or replacing tires, wheels,

tire pressure warning valves, trans-

mitters and tire valve caps

P.387

395

6-3. Do-it-yourself maintenance

LS500_OM_(U)_1809

6

Mai
nte

na

nc

e a

nd

 c

are

The recommended cold tire inflation
pressure and tire size are displayed on
the tire and loading information label.
(

P.452)

Tire valve
Tire pressure gauge

1

Remove the tire valve cap.

2

Press the tip of the tire pressure
gauge onto the tire valve.

3

Read the pressure using the gauge
gradations.

4

If the tire inflation pressure is not at
the recommended level, adjust the
pressure.
If you add too much air, press the
center of the valve to deflate.

5

After completing the tire inflation
pressure measurement and adjust-
ment, apply soapy water to the
valve and check for leakage.

6

Put the tire valve cap back on.

■

Tire inflation pressure check interval

You should check tire inflation pressure

every two weeks, or at least once a month.

Do not forget to check the spare.

■

Effects of incorrect tire inflation pres-

sure

Driving with incorrect tire inflation pressure

may result in the following:

●

Reduced fuel economy

●

Reduced driving comfort and poor han-

dling

●

Reduced tire life due to wear

●

Reduced safety

●

Damage to the drive train

If a tire needs frequent inflating, have it

checked by your Lexus dealer.

■

Instructions for checking tire inflation

pressure

When checking tire inflation pressure,

observe the following:

●

Check only when the tires are cold.

If your vehicle has been parked for at

least 3 hours or has not been driven for

more than 1 mile or 1.5 km, you will get an

accurate cold tire inflation pressure read-

Tire inflation pressure

Checking the specified tire infla-
tion pressure

Inspection and adjustment pro-
cedure

A
B
