LEXUS LS 500 (2019 year). Instruction - part 20

316

5-3. Using the air conditioning system and defogger

LS500_OM_(U)_1809

■

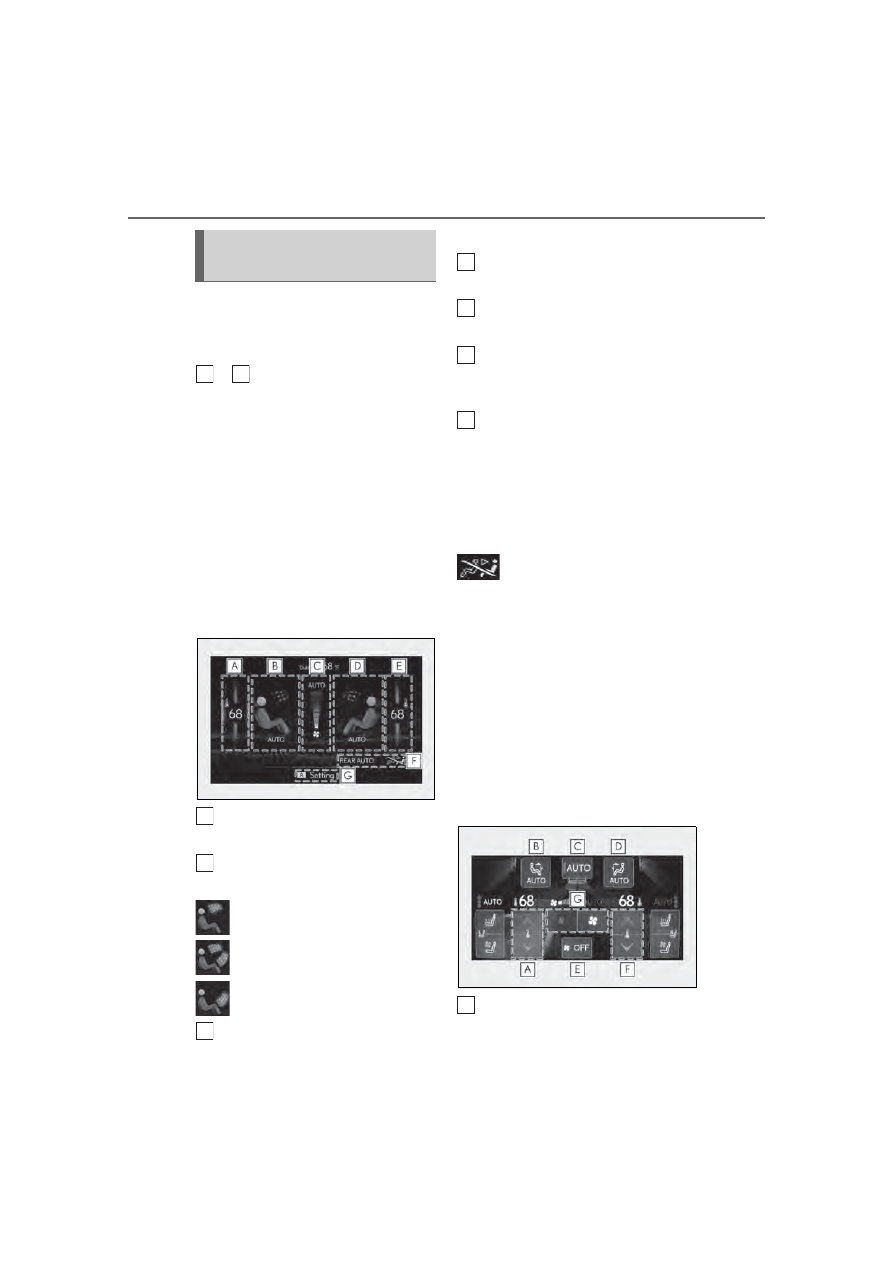

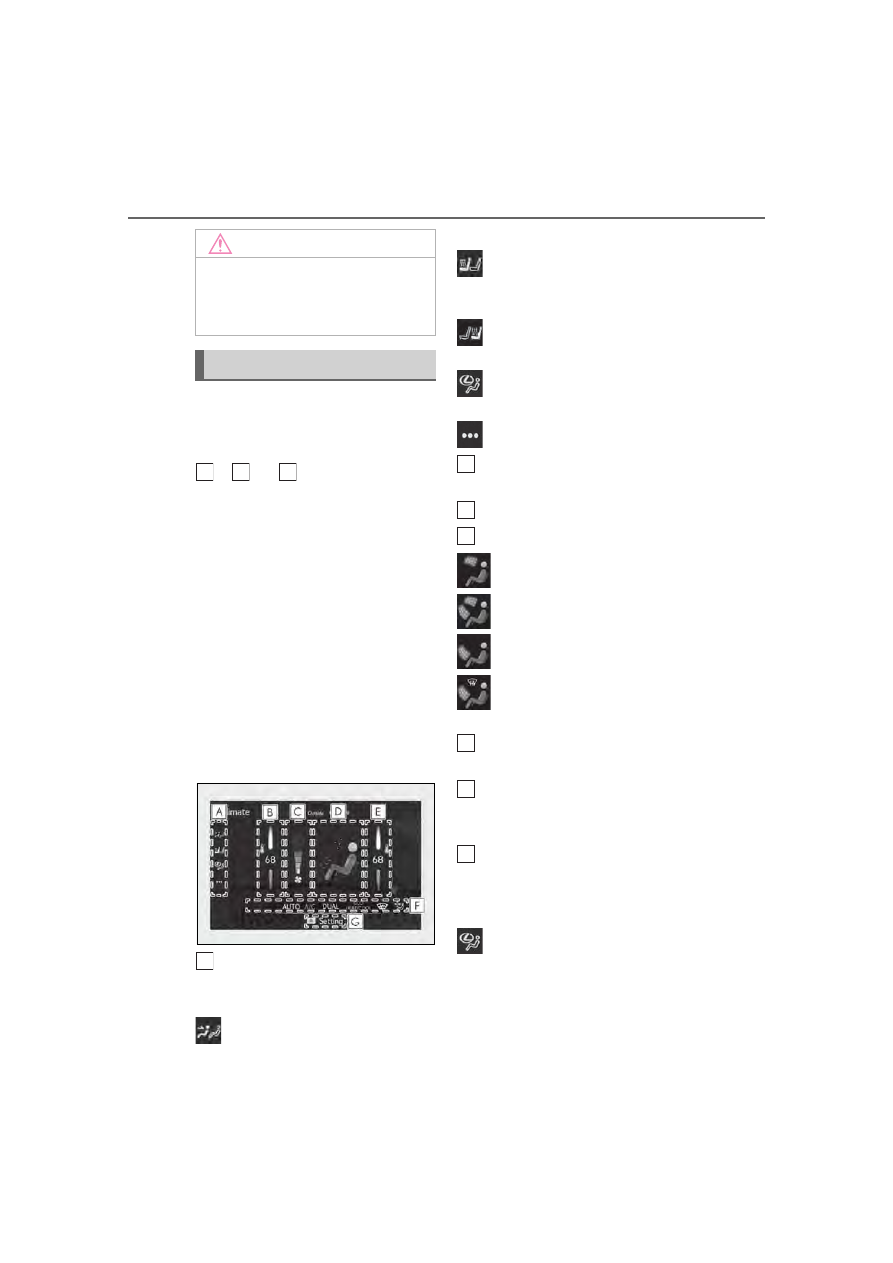

Main control screen

Using the touchpad of the Remote
Touch, select the button on the screen.

to and can be adjusted by

performing the following operations.
Flick operation: Move the pointer to
the desired item and flick the touchpad
up or down.

The item can be adjusted by one level.

Trace operation: After selecting the
desired item, trace the pad surface.

The item can be adjusted by the amount
that you trace.
Trace operation cannot be used while driv-
ing.



Vehicles with DUAL-ZONE climate
control

Sub menu

Selecting the sub menu item to switch the
main screen.

: Display the air conditioning control

screen

: Display the heated steering

wheel/front seat heater/front seat ventila-
tor control screen (if equipped)

: Display the rear seat heater/rear seat

ventilator control screen (if equipped)

: Display the Lexus Climate Con-

cierge control screen

: Display the option control screen

Adjust the left side seat tempera-
ture setting
Adjust the fan speed setting
Select the air flow mode

: Air flows to the upper body

: Air flows to the upper body and feet

: Air flows to the feet

: Air flows to the feet and the wind-

shield defogger operates

Adjust the right side seat tempera-
ture setting
Function on/off indicators

When the function is on, the indicator illu-
minates on the control screen.

Sub function menu

When the sub function button on the
Remote Touch is pressed, the following
functions can be switched on and off.

: Set Lexus Climate Concierge

(

P.311)

“AUTO”: Set automatic mode on/off
(

P.320)

“OFF”: Turn the fan off

NOTICE

■

To prevent battery discharge

Do not leave the air conditioning system

on longer than necessary when the

engine is off.

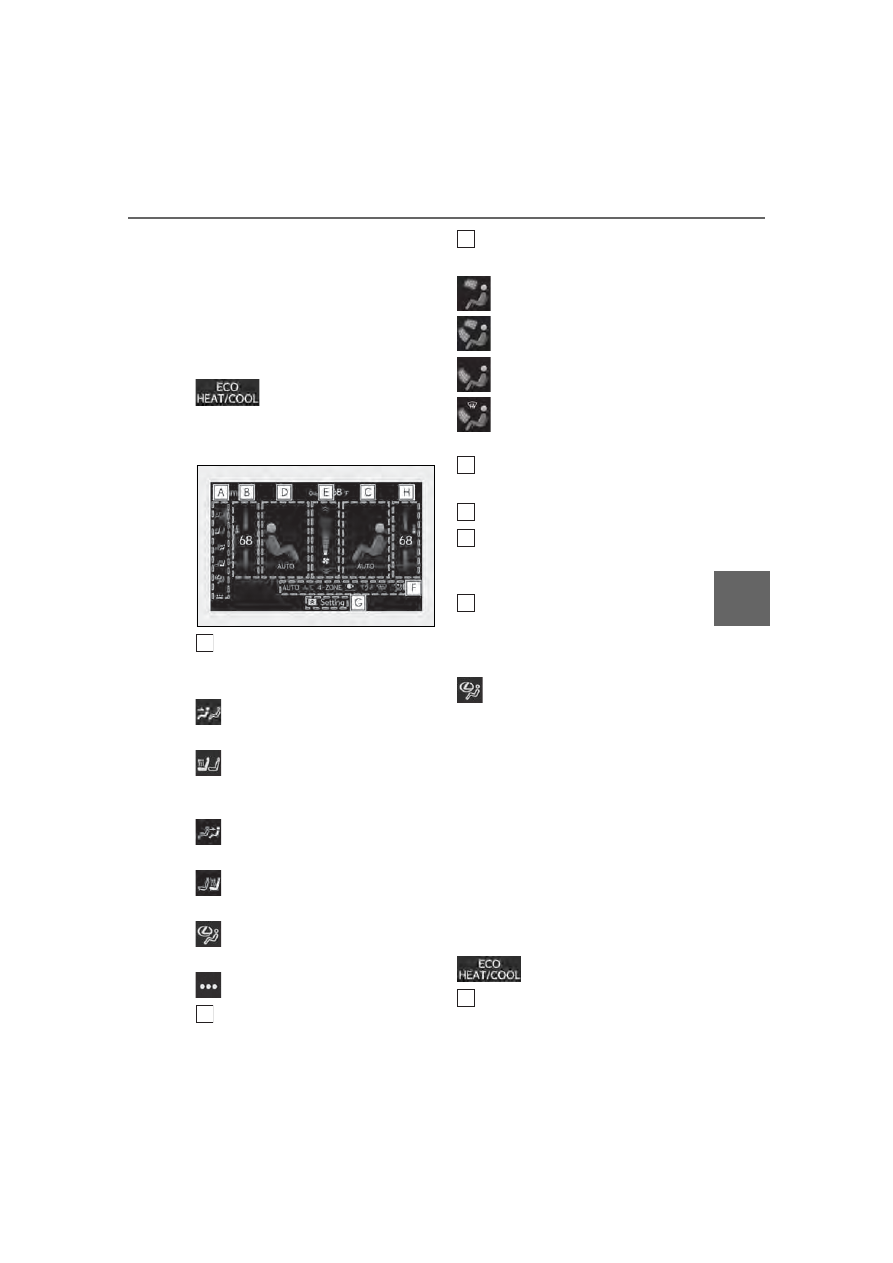

Air conditioning control screen

C
D

317

5-3. Using the air conditioning system and defogger

LS500_OM_(U)_1809

Interio

r fe

atures

“A/C”: Set cooling and dehumidification
function
If the “A/C” display is turned off, the system
will blow ambient temperature airor
heated air.
“DUAL”: Adjust the temperature for driver
and passenger seats separately (“DUAL”
mode) (

P.322)

: Set eco air conditioning mode



Vehicles with 4-ZONE climate con-
trol

Sub menu

Selecting the sub menu item to switch the
main screen.

: Display the front air conditioning

control screen

: Display the heated steering

wheel/front seat heater/front seat ventila-
tor control screen

: Display the rear air conditioning con-

trol screen

: Display the rear seat heater/rear seat

ventilator control screen

: Display the Lexus Climate Con-

cierge control screen

: Display the option control screen

Adjust the left side seat tempera-
ture setting

Select the right side seat air flow
mode

: Air flows to the upper body

: Air flows to the upper body and feet

: Air flows to the feet

: Air flows to the feet and the wind-

shield defogger operates

Select the left side seat air flow
mode
Adjust the fan speed setting
Function on/off indicators

When the function is on, the indicator illu-
minates on the control screen.

Sub function menu

When the sub function button on the
Remote Touch is pressed, the following
functions can be switched on and off.

: Set Lexus Climate Concierge

(

P.311)

“AUTO”: Set automatic mode on/off
(

P.320)

“OFF”: Turn the fan off
“A/C”: Set cooling and dehumidification
function
If the “A/C” display is turned off, the system
will blow ambient temperature airor
heated air.
“4-ZONE”: Adjust the temperature for the
driver, front passenger and left and right
rear passenger seats separately
(“4-ZONE” mode) (

P.322)

: Set eco air conditioning mode

Adjust the right side seat tempera-
ture setting

E
F

318

5-3. Using the air conditioning system and defogger

LS500_OM_(U)_1809

■

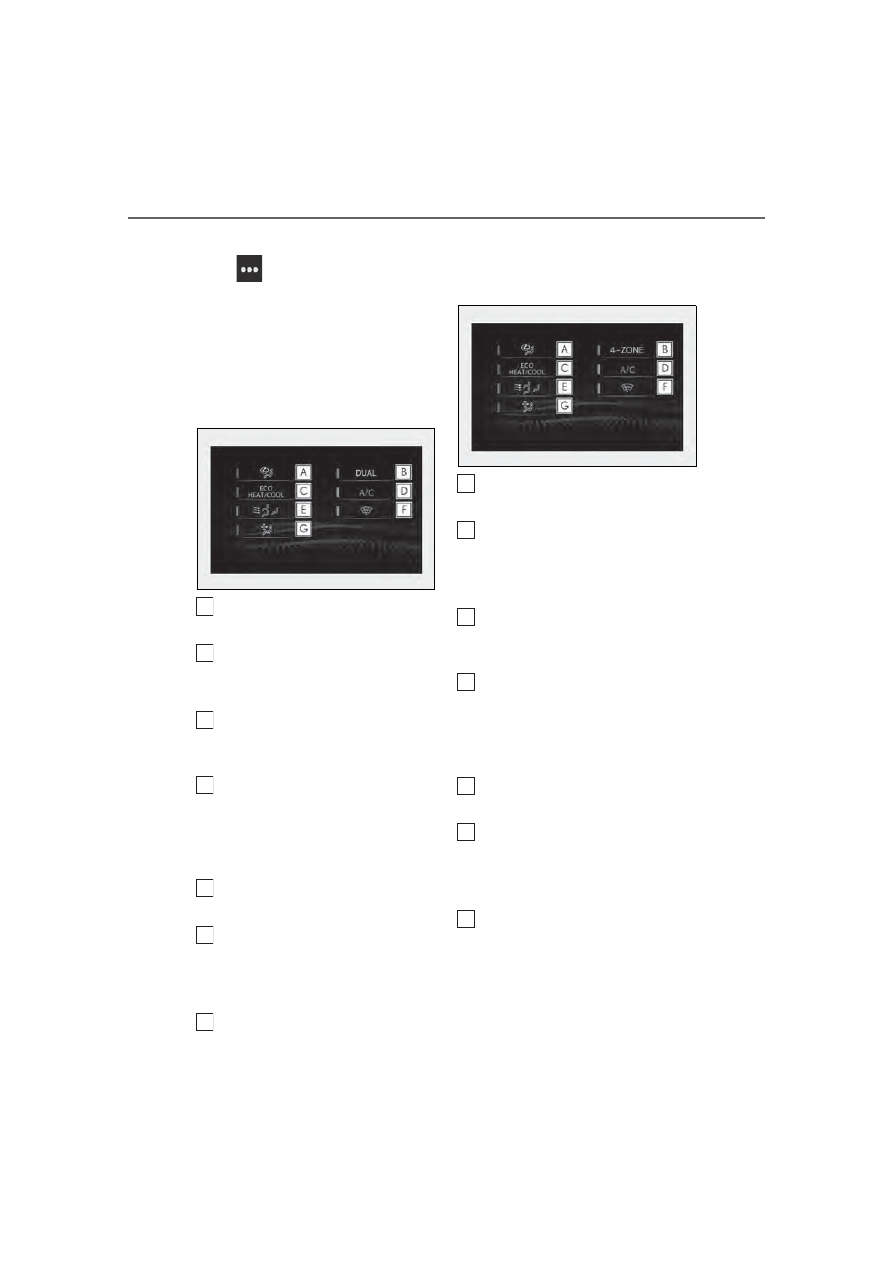

Option control screen

Select

on the sub menu to display

the option control screen.

The functions can be switched on and off.
When the function is on, the indicator illu-
minates on the screen.



Vehicles with DUAL-ZONE climate
control

Set Lexus Climate Concierge
(

P.311)

Adjusting the temperature for
driver and passenger seats sepa-
rately (“DUAL” mode) (

P.322)

Set eco air conditioning mode

Air conditioning and heater output is lim-
ited to prioritize fuel economy.

Cooling and dehumidification func-
tion

If the “A/C” indicator is turned off, the sys-
tem will blow ambient temperature airor
heated air.

Select the S-FLOW mode
(

P.320)

Prevent ice from building up on the
windshield and wiper blades
(Windshield wiper de-icer) (if
equipped)
Removing pollen from the air

(Micro dust and pollen filter)



Vehicles with 4-ZONE climate con-
trol

Set Lexus Climate Concierge
(

P.311)

Adjust the temperature for driver,
passenger and rear seats sepa-
rately (“4-ZONE” mode)
(

P.322)

Set eco air conditioning mode

Air conditioning and heater output is lim-
ited to prioritize fuel economy.

Cooling and dehumidification func-
tion

If the “A/C” indicator is turned off, the sys-
tem will blow ambient temperature airor
heated air.

Select the S-FLOW mode
(

P.320)

Prevent ice from building up on the
windshield and wiper blades
(Windshield wiper de-icer) (if
equipped)
Removing pollen from the air
(Micro dust and pollen filter)

319

5-3. Using the air conditioning system and defogger

LS500_OM_(U)_1809

Interio

r fe

atures

■

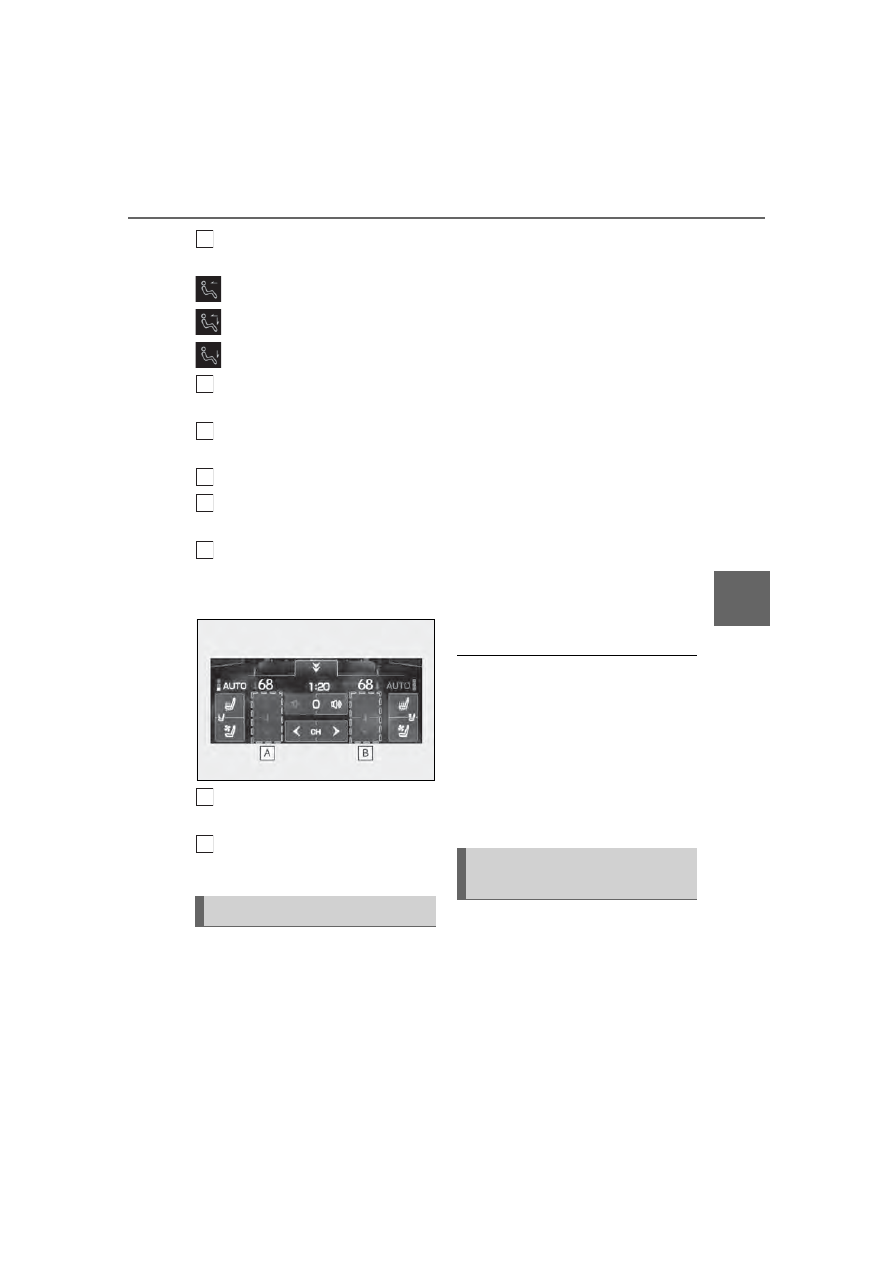

Side display



Vehicles with DUAL-ZONE climate
control

Display the front seat heaters/front
seat ventilators control screen
(

P.327)

Adjust the left side seat tempera-
ture setting
Adjust the fan speed setting
Adjust the right side seat tempera-
ture setting
Set cooling and dehumidification
function on/off
Adjusting the temperature for
driver and passenger seats sepa-
rately (“DUAL” mode) (

P.322)

Select the air flow mode



Vehicles with 4-ZONE climate con-
trol

Display the front seat heaters/front

seat ventilators control screen
(

P.327)

Adjust the left side seat tempera-
ture setting
Adjust the fan speed setting
Adjust the right side seat tempera-
ture setting
Select the left side seat air flow
mode
Set cooling and dehumidification
function on/off

If the “A/C” indicator is turned off, the sys-
tem will blow ambient temperature airor
heated air.

Adjust the temperature for driver,
passenger and rear seats sepa-
rately (“4-ZONE” mode)
(

P.322)

Select the right side seat air flow
mode

■

Windshield wiper de-icer (if equipped)

This feature is used to prevent ice from

building up on the windshield and wiper

blades.
The windshield de-icer will automatically

turn off after a while.

■

Eco air conditioning mode

When Eco drive mode is selected using the

driving mode select switch, eco air condi-

tioning mode turns on.
When a drive mode other than Eco drive

mode is selected, eco air conditioning

mode may turn off.

■

Micro dust and pollen filter

Outside air mode switches to

(recirculated air) mode. Pollen is removed

from the air and the air flows to the upper

part of the body.
Usually the system will automatically turn

C
D

320

5-3. Using the air conditioning system and defogger

LS500_OM_(U)_1809

off after a while.
In order to prevent the windshield from fog-

ging up when the outside air is cold, the

dehumidification function may operate or

the outside/recirculated air mode may not
switch to

(recirculated air) mode.

Pollen is filtered even if the micro dust and

pollen filter is turned off.

Press the automatic mode switch or
select “AUTO” on the sub function
menu. (

P.316)

Press the outside/recirculated air
mode switch to switch to automatic
air intake mode.

The air conditioning system automatically

switches between outside air and recircu-

lated air modes.

Adjust the temperature setting.

To stop the operation, press the off
switch or select “OFF” on the sub
function menu. (

P.316)

If the fan speed setting or air flow modes

are operated, the automatic mode indica-

tor goes off. However, automatic mode for

functions other than that operated is main-

tained.

■

Using automatic mode

Fan speed is adjusted automatically accord-

ing to the temperature setting and the

ambient conditions.
Therefore, the fan may stop for a while until

warm or cool air is ready to flow immedi-

ately after the automatic mode switch is

pressed or “AUTO” is selected.
Cool air may blow around the upper body

even when the heater is on due to sunlight.

■

Automatic mode for air intake control

In automatic mode, the system detects

exhaust gas and other pollutants and auto-

matically switches between outside air and

recirculated air modes.
When the dehumidification function is off,

and the fan is operating, turning automatic

mode on will activate the dehumidification

function.

In S-FLOW mode, priority for the air-
flow is given to the front seats, reducing
the airflow and air conditioning effect
on the rear seats. When in S-FLOW
mode, airflow from the rear air condi-
tioning system is stopped.
Operation in S-FLOW mode differs
according to the following conditions:
 Priority is given to the driver’s seat

only when:
Manual S-FLOW mode: When no
passenger is judged to be in the
front passenger seat.
Automatic S-FLOW mode: When
no passengers are judged to be in
the front passenger seat or rear
seats.

 Priority is given to the front seats

when: Manual S-FLOW mode is
selected or no passengers are
judged to be in the rear seats when
in automatic S-FLOW mode.

 S-FLOW mode will be disabled

when: A passenger is judged to be

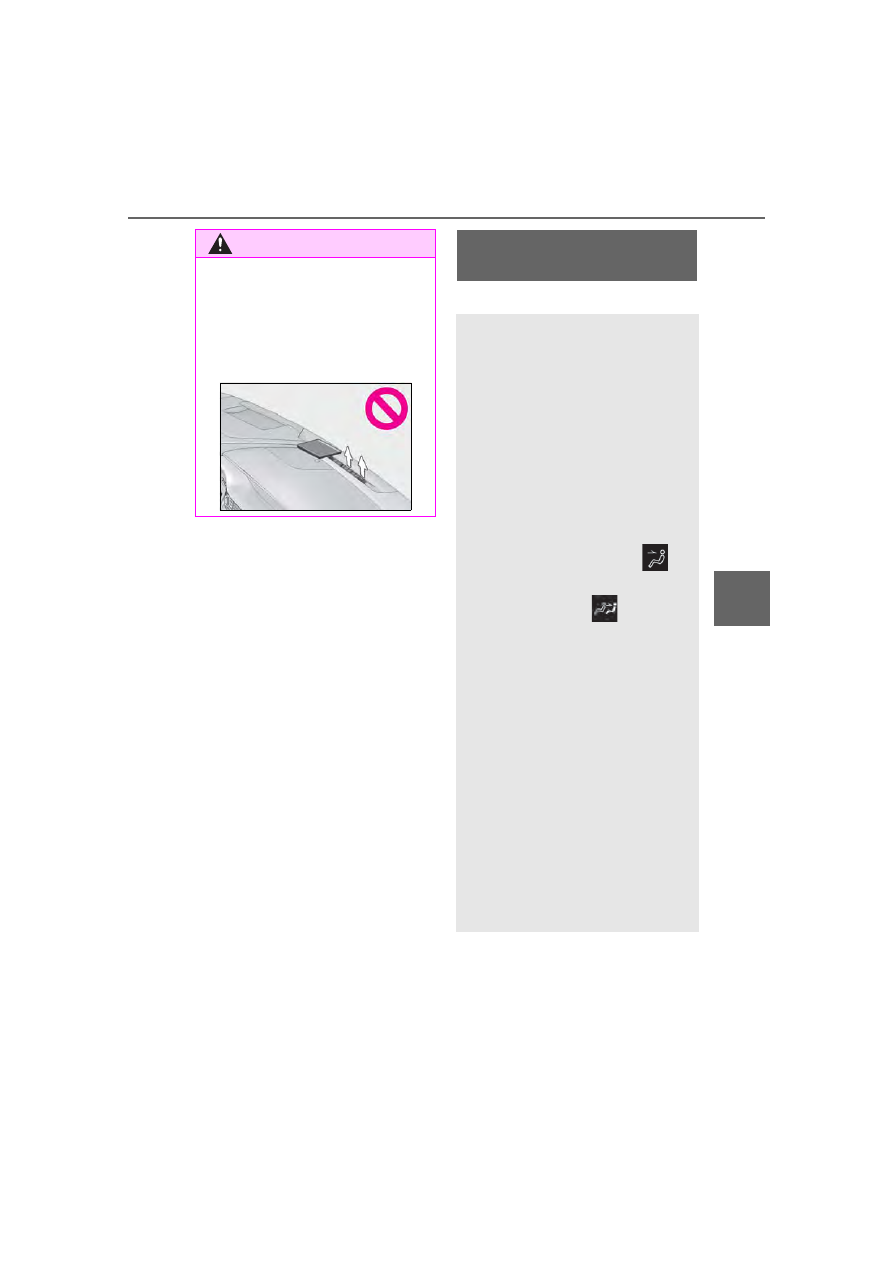

WARNING

■

To prevent burns (vehicles with wind-

shield wiper de-icer)

Do not touch the glass at lower part of

the windshield or to the side of the front

pillars when the windshield wiper de-icer

is on.

Using automatic mode

S-FLOW mode

321

5-3. Using the air conditioning system and defogger

LS500_OM_(U)_1809

Interio

r fe

atures

in a rear seat when in automatic
S-FLOW mode.

Depending on the set temperature, opera-
tion in S-FLOW mode may not change as
described above.
When certain conditions are met and pri-
ority is given to the driver’s seat only, the
temperature indicator for the front passen-
ger side will turn off.
How the system judges if a passenger is in
the vehicle: P.321

The following S-FLOW modes are
available:



Automatic S-FLOW mode

In this mode, when a passenger is
judged to be in a rear seat, S-FLOW
mode will be automatically disabled.
(

P.321)

The indicator will illuminate on the air con-
ditioning control screen when S-FLOW
mode is enabled.
To enable/disable S-FLOW mode and
enter manual S-FLOW mode, select the
S-FLOW mode switch.
How the system judges if a passenger is in
the vehicle: P.321



Manual S-FLOW mode

When the S-FLOW mode switch is
selected, S-FLOW mode will be manu-
ally enabled/ disabled.

The indicator will illuminate on the air con-
ditioning control screen when S-FLOW
mode is enabled.
In manual S-FLOW mode, as the system
does not judge if a passenger is in a rear
seat.
If the rear air conditioning control screen
on the Rear Multi Operation Panel (if
equipped) is operated, S-FLOW mode will

automatically be disabled

■

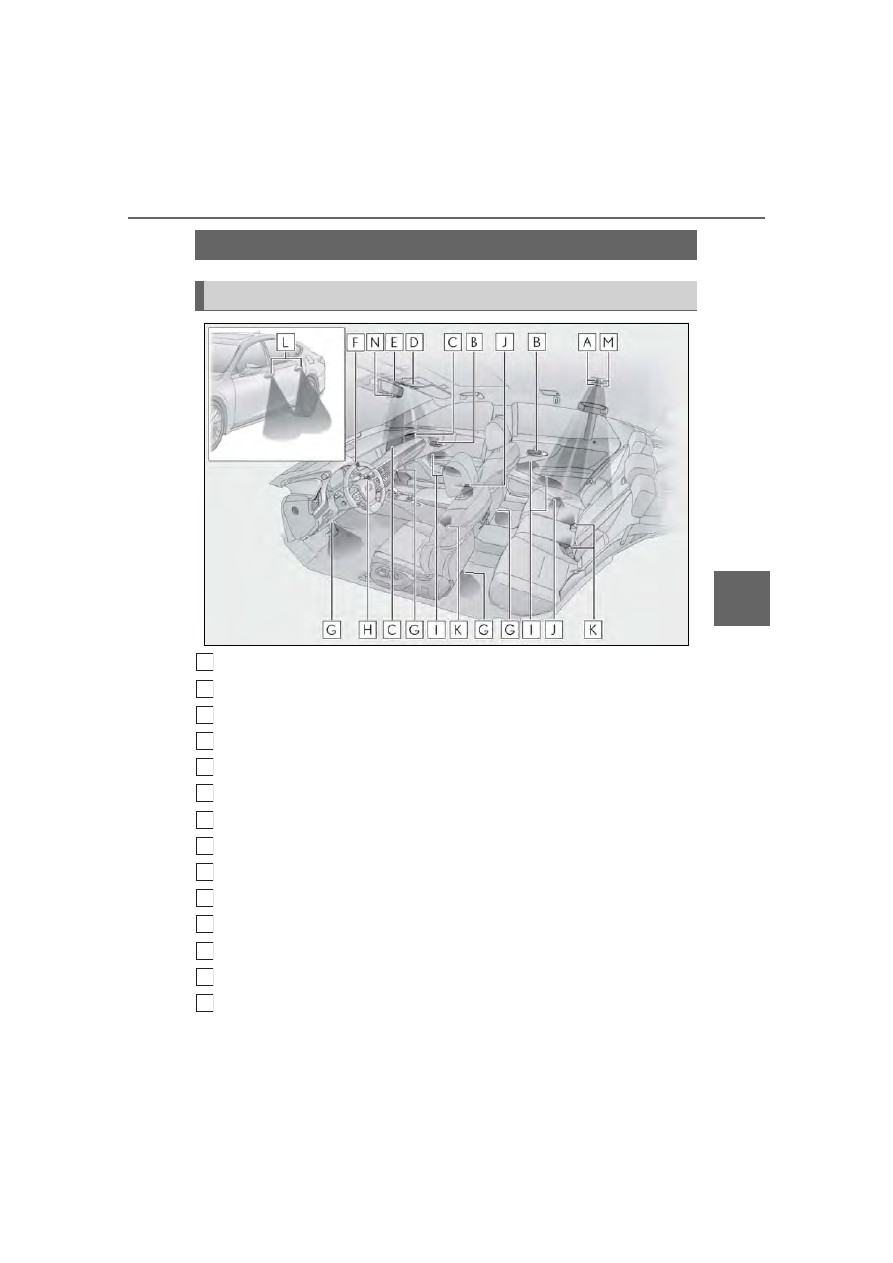

How the system judges if a passenger is

in the vehicle when in S-FLOW mode

In S-FLOW mode, the system judges if a

passenger is in the vehicle as follows:

●

Front passenger seat: A passenger is

judged to be in the front passenger seat

when the system detects an object on the

front passenger seat, fastening of the

front passenger seat belt, changing of the

set temperature for the front passenger

seat, changing of the air outlets for the

front passenger seat or the opening and

closing of the front passenger door.

(However, when only opening and clos-

ing of the front passenger door is

detected, the system will judge that a pas-

senger is not in the front passenger seat

after the vehicle speed reaches approxi-

mately 12 mph (20 km/h) or more.)

●

Rear seats: A passenger is judged to be in

a rear seat when the system detects the

opening and closing of a rear door (auto-

matic S-FLOW mode only) or the opera-

tion of the rear air conditioning control

screen on the Rear Multi Operation

Panel.

■

Operation of automatic S-FLOW mode

When the system is operating in automatic

S-FLOW mode, if the system detects the

opening and closing of a rear door or the

operation of the rear air conditioning con-

trol screen on the Rear Multi Operation

Panel, S-FLOW mode will be disabled. To

enable S-FLOW mode, select the S-FLOW

mode switch. (In this case, the system will

operate in manual S-FLOW mode.)

■

Changing from manual S-FLOW mode

to automatic S-FLOW mode

Select the S-FLOW mode switch to dis-

able S-FLOW mode.

Turn the engine switch off.

After 60 minutes have elapsed, change

the engine switch to ON mode.

322

5-3. Using the air conditioning system and defogger

LS500_OM_(U)_1809



Vehicles with DUAL-ZONE climate
control

To turn on the “DUAL” mode, perform
any of the following procedures:
 Select “DUAL” on the sub function

menu. (

P.316)

 Select “DUAL” on the option con-

trol screen.

 Adjust the passenger’s side tem-

perature setting.

The indicator on the main control screen
comes on when the “DUAL” mode is on.



Vehicles with 4-ZONE climate con-
trol

To turn on the “4-ZONE” mode, per-
form any of the following procedures:
 Select “4-ZONE” on the sub func-

tion menu. (

P.316)

 Select “4-ZONE” on the option

control screen.

 Adjust a passenger seat tempera-

ture setting.

The indicator on the main control screen
comes on when the “4-ZONE” mode is on.

■

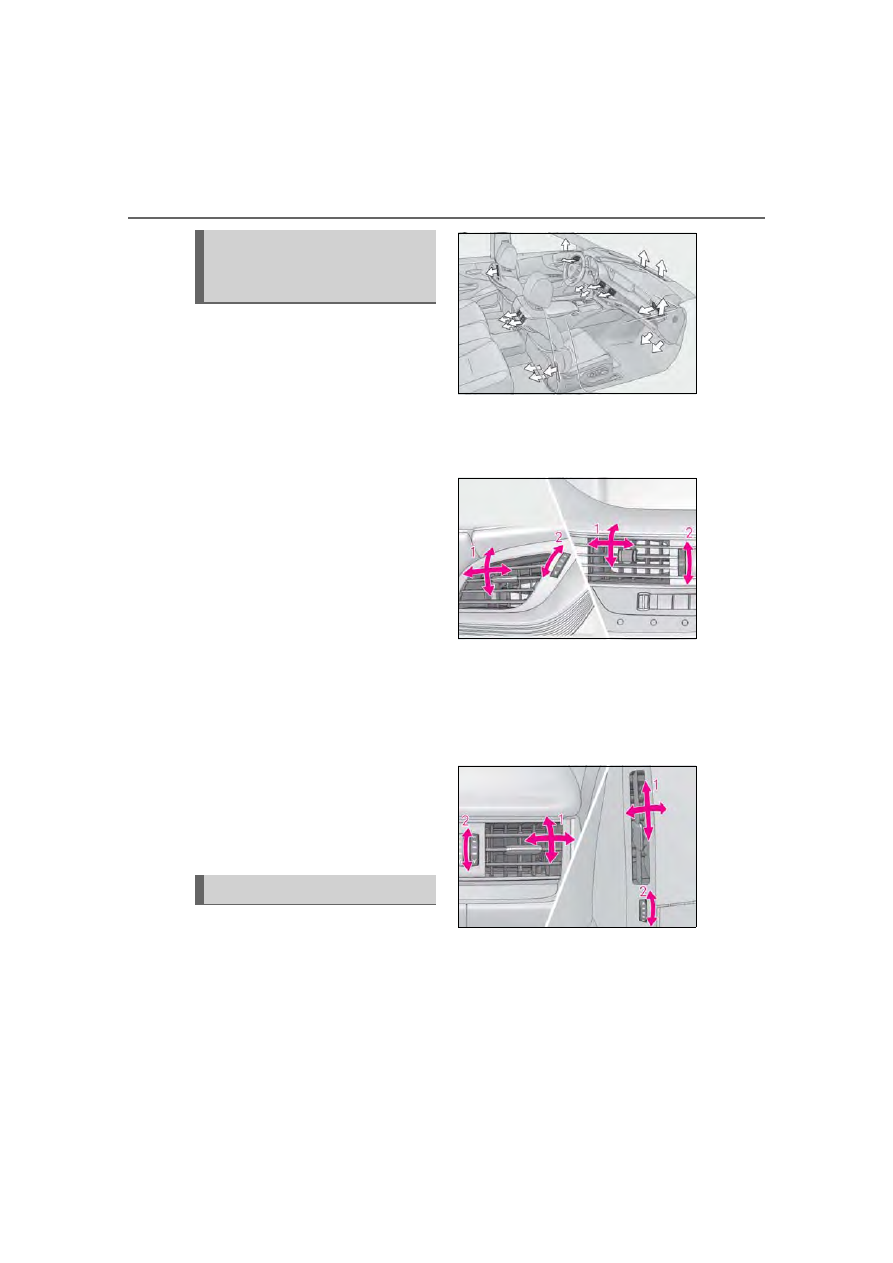

Location of air outlets

The air outlets and air volume changes
according to the selected air flow
mode.

■

Adjusting the position of and open-
ing and closing the air outlets



Front center/front side

Direct air flow to the left or right, up
or down

Turn the knob to open or close the
vent



Rear center/rear side

Direct air flow to the left or right, up
or down

Turn the knob to open or close the
vent

Adjusting the temperature for
the driver and passenger seats
separately

Air outlet layout and operations

323

5-3. Using the air conditioning system and defogger

LS500_OM_(U)_1809

Interio

r fe

atures

: If equipped

WARNING

■

To prevent the windshield defogger

from operating improperly

Do not place anything on the instrument

panel which may cover the air outlets.

Otherwise, air flow may be obstructed,

preventing the windshield defoggers

from defogging.

Rear automatic air condi-
tioning system

The air outlets and fan speed are
automatically adjusted according
to the temperature setting.

The rear air conditioning system
can be operated using the Center
Display and Rear Multi Operation
Panel.

 Center Display
Press the “MENU” button on the
Remote Touch to display the main

menu and move the cursor to

display the climate control shortcut

buttons. Then, select

to display

the rear air conditioning control
screen.

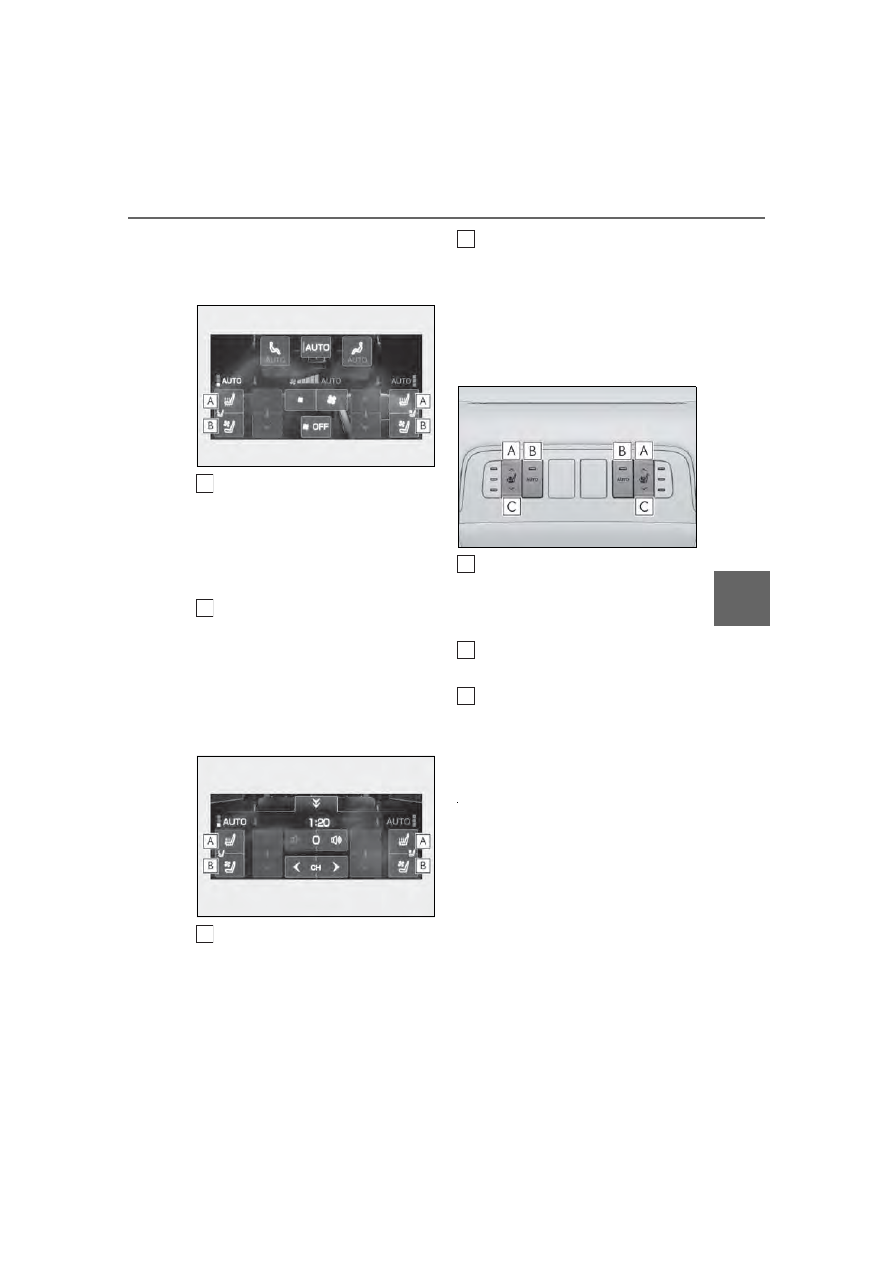

 Rear Multi Operation Panel

Touch “Climate” on the home screen
to display the rear air conditioning
control screen.(

P.308)

Touching the shortcut button on the
home screen will also display opera-
tion buttons for some of the rear air
conditioning system functions.

: The Rear Multi Operation Panel can-

not be used to operate the rear air
conditioning system if the function is
disabled. (

P.324)

324

5-3. Using the air conditioning system and defogger

LS500_OM_(U)_1809

■

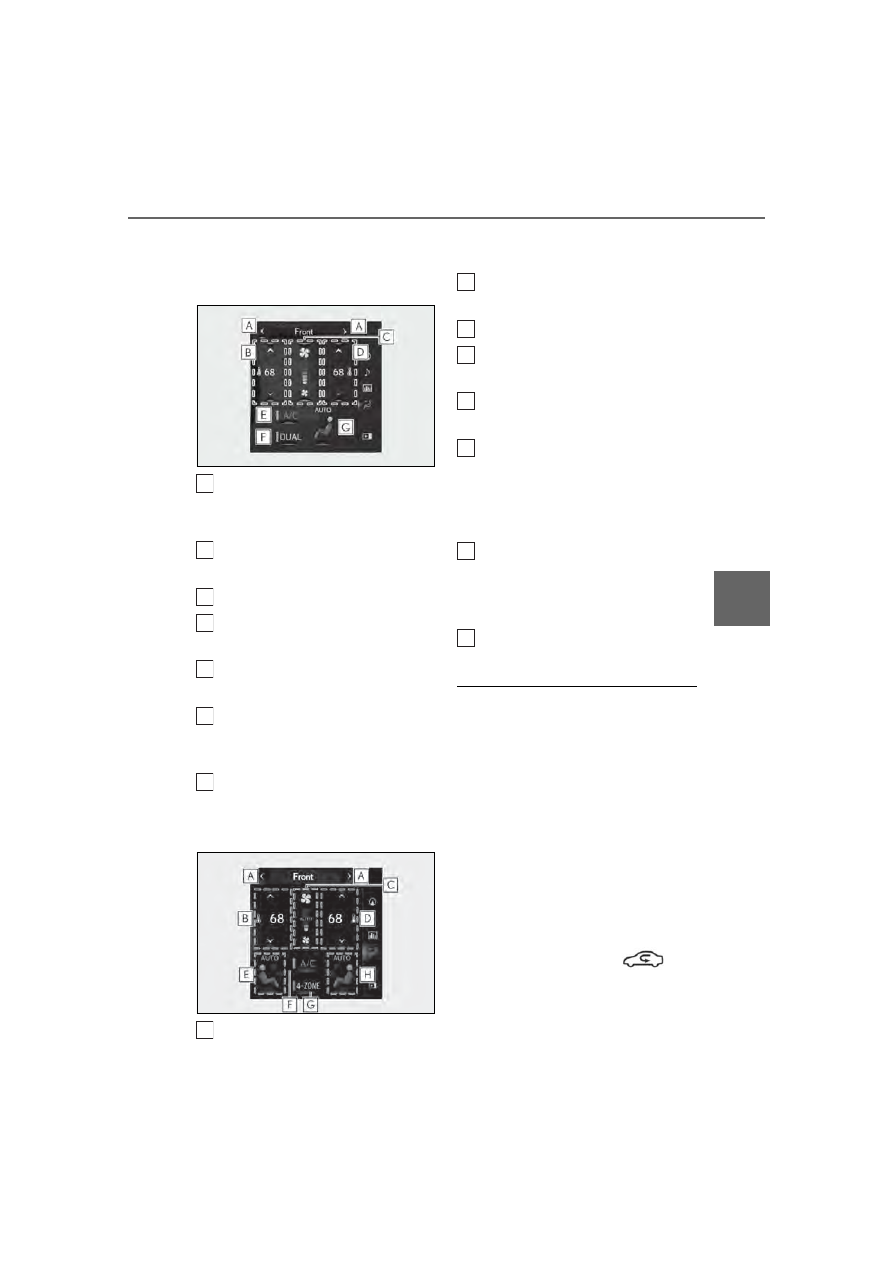

Center Display

Using the touchpad of the Remote
Touch, select the button on the screen.

to can be adjusted by perform-

ing the following operations.
Flick operation: Move the pointer to
the desired item and flick the touchpad
up or down.

The item can be adjusted by one level.

Trace operation: After selecting the
desired item, trace the pad surface.

The item can be adjusted by the amount
that you trace.
Trace operation cannot be used while driv-
ing.

Adjust the left side rear seat tem-
perature setting
Select the left side rear seat air flow
mode

: Air flows to the upper body

: Air flows to the upper body and feet

: Air flows to the feet

Adjust the rear seats fan speed set-

ting
Select the right side rear seat air
flow mode
Adjust the right side rear seat tem-
perature setting
Function on/off indicators

When the function is on, the indicator illu-
minates on the control screen.

Sub function menu

When the sub function button on the
Remote Touch is pressed, the following
functions can be switched on and off.
“Rear off”: Turn the rear seats fan off
“Rear AUTO”: Set the rear seats automatic
mode on/off (

P.325)

: Disables operation of the rear air

conditioning system using the Rear Multi
Operation Panel

■

Rear Multi Operation Panel

Various functions can be operated by
touching the displayed buttons on the
Rear Multi Operation Panel.

: The Rear Multi Operation Panel cannot

be used to operate the rear air condi-
tioning system if the function is disabled.
(

P.324)



Rear air conditioning control screen

Adjust the left side rear seat tem-
perature setting

Rear air conditioning control
screen

325

5-3. Using the air conditioning system and defogger

LS500_OM_(U)_1809

Interio

r fe

atures

Select the left side rear seat air flow
mode

: Air flows to the upper body

: Air flows to the upper body and feet

: Air flows to the feet

Set the rear seats automatic mode
on/off (

P.325)

Select the right side rear seat air
flow mode
Turn the rear seats fan off
Adjust the right side rear seat tem-
perature setting
Adjust the rear seats fan speed set-
ting



Shortcut screen

Adjust the left side rear seat tem-
perature setting
Adjust the right side rear seat tem-
perature setting



Center Display

Select “Rear AUTO” on the sub
function menu. (

P.324)

To stop the operation, select “Rear
off” on the sub function menu.
(

P.324)

If the fan speed setting or air flow
modes are operated, the automatic
mode indicator goes off. However,
automatic mode for functions other
than that operated is maintained.



Rear Multi Operation Panel

Select “AUTO” on the rear air con-
ditioning control screen. (

P.324)

To stop the operation, select “OFF”
on the rear air conditioning control
screen. (

P.324)

If the fan speed setting or air flow
modes are operated, the automatic
mode indicator goes off. However,
automatic mode for functions other
than that operated is maintained.

■

Using automatic mode

Fan speed is adjusted automatically accord-

ing to the temperature setting and the

ambient conditions.
Therefore, the fan may stop for a while until

warm or cool air is ready to flow immedi-

ately after “Rear AUTO” is selected or

“AUTO” is touched.
Cool air may blow around the upper body

even when the heater is on due to sunlight.

The temperature setting of the rear
seats can be adjusted using the follow-
ing methods:
 When the “4-ZONE” indicator is

off: Adjust the driver’s seat tempera-
ture.

Using automatic mode

E
F

Adjusting the temperature set-
ting of the rear seats

326

5-3. Using the air conditioning system and defogger

LS500_OM_(U)_1809

Adjust the temperature setting of each
rear seat using the Center Display or Rear
Multi Operation Panel.

 Adjust the temperature setting of

each rear seat using the Center Dis-
play (rear air conditioning control
screen) or Rear Multi Operation
Panel.

The temperature setting of each rear seat
can be changed independently.

■

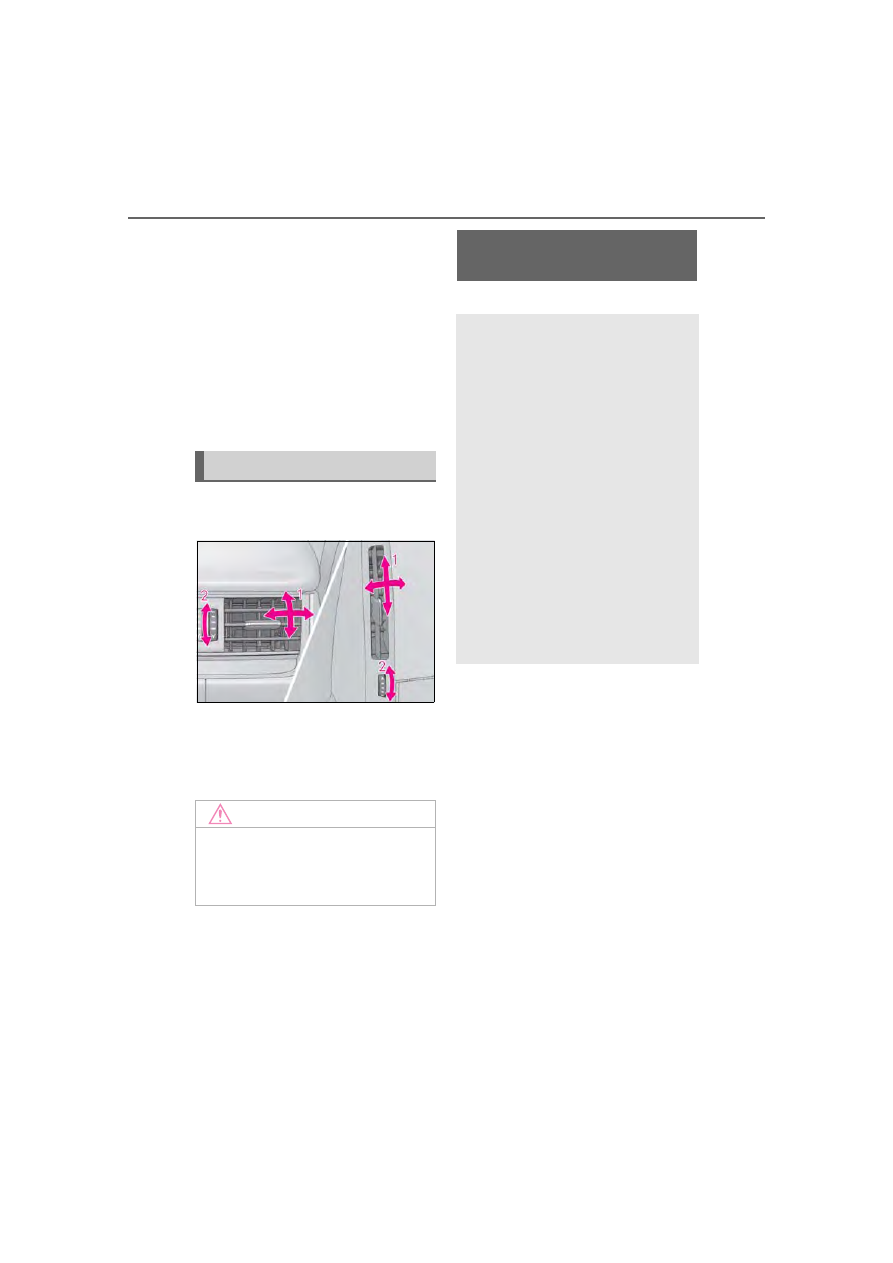

Rear center outlets and rear side
outlets

Direct air flow to the left or right, up
or down

Turn the knob to open or close the
vent

: If equipped

Air outlet layout and operations

NOTICE

■

To prevent battery discharge

Do not leave the air conditioning system

on longer than necessary when the

engine is off.

Heated steering wheel

/seat

heaters

/seat ventilators

 Heated steering wheel
Warms up the grip of the steering
wheel
 Front seat heaters/Rear seat

heaters

Warm up the seat upholstery
 Front seat ventilators/Rear seat

ventilators

Maintain good ventilation by pulling
air through the seat upholstery

The Center Display and Rear Multi
Operation Panel/rear control
panel can be used to operate the
heated steering wheel, seat heaters
and seat ventilators as follows:

327

5-3. Using the air conditioning system and defogger

LS500_OM_(U)_1809

Interio

r fe

atures

■

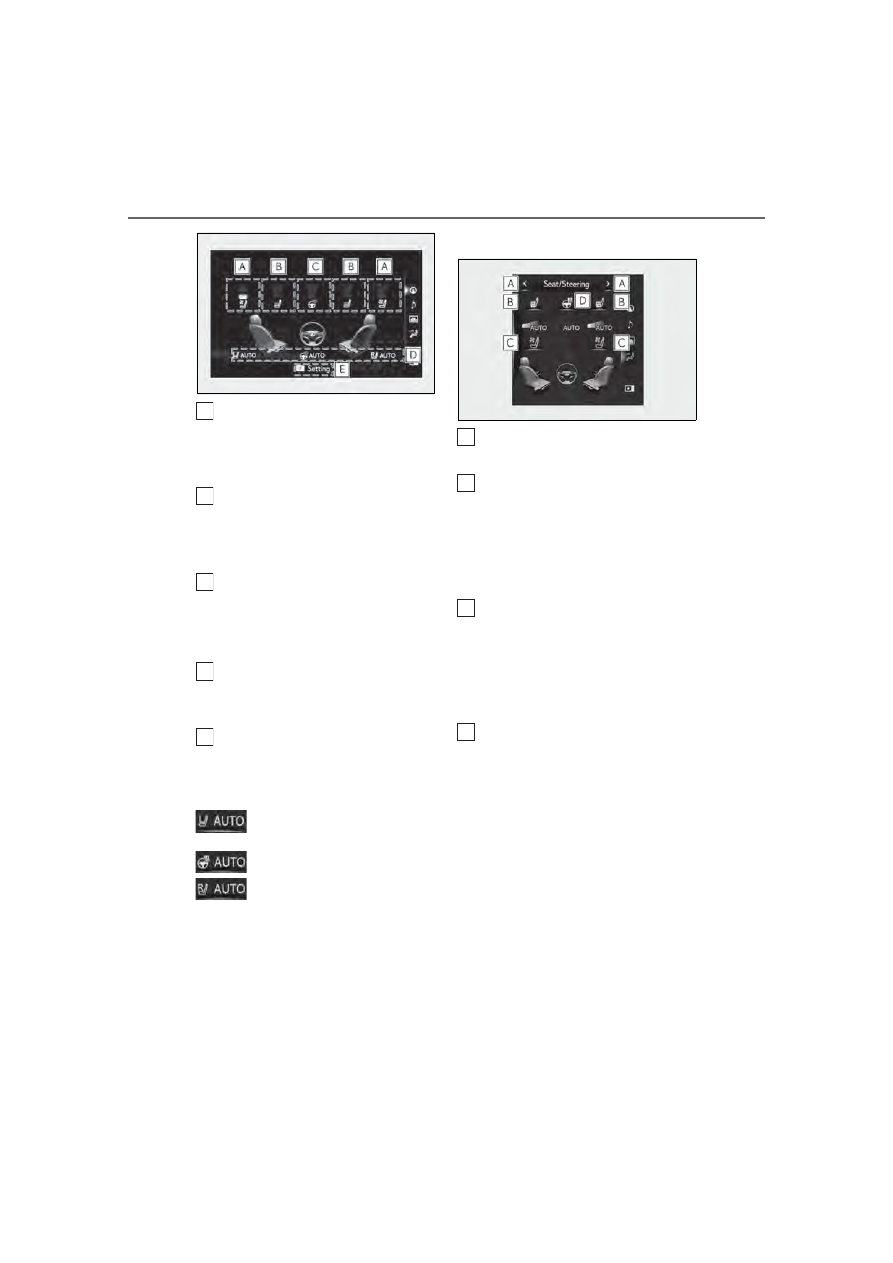

Center Display



Main screen

Using the touchpad of the Remote
Touch, select the button on the screen.

to can be adjusted by perform-

ing the following operations.
Flick operation: Move the pointer to
the desired item and flick the touchpad
up or down.

The item can be adjusted by one level.

Trace operation: After selecting the
desired item, trace the touchpad sur-
face.

The item can be adjusted by the amount
that you trace.
Trace operation cannot be used while driv-
ing.

 Center Display
Press the “MENU” button on the
Remote Touch to display the main

menu and move the cursor to

display the shortcut buttons. Then,

select

to display the heated

steering wheel/front seat
heater/front seat ventilator control
screen.
To display the rear seat heater/rear
seat ventilator control screen, select

. (if equipped)

 Rear Multi Operation Panel
Touch “Climate” on the home screen
to display the air conditioning con-
trol screen.(

P.308)

Touching the shortcut button on the
home screen will display operation
buttons for the rear seat heaters and
rear seat ventilators.
 Rear control panel
The rear seat heaters can be oper-
ated.

WARNING

■

To prevent minor burn injuries

Care should be taken if anyone in the fol-

lowing categories comes in contact with

the steering wheel or seats when the

heater is on:

●

Babies, small children, the elderly, the

sick and the physically challenged

●

Persons with sensitive skin

●

Persons who are fatigued

●

Persons who have taken alcohol or

drugs that induce sleep (sleeping

drugs, cold remedies, etc.)

NOTICE

■

To prevent damage to the seat heat-

ers and seat ventilators

Do not put heavy objects that have an

uneven surface on the seat and do not

stick sharp objects (needles, nails, etc.)

into the seat.

■

To prevent battery discharge

Do not use the functions when the

engine is off.

Control screen

328

5-3. Using the air conditioning system and defogger

LS500_OM_(U)_1809

Adjust the seat ventilator fan speed
level

The seat ventilator can be adjusted in 3 lev-
els. (Low, Mid or Hi)

Adjust the seat heater temperature
level

The seat heater can be adjusted in 3 levels.
(Low, Mid or Hi)

Adjust the heated steering wheel
temperature level

The heated steering wheel can be adjusted
in 2 levels. (Low or Hi)

Automatic mode on/off indicators

When the automatic mode is on, the indi-
cator illuminates on the screen.

Sub function menu

When the sub function button on the
Remote Touch is pressed, the following
functions can be set to automatic mode.

: Left-hand side seat heater/seat

ventilator

: Heated steering wheel

: Right-hand side seat heater/seat

ventilator

: Available on the front seat control

screen only



Side screen

Display the air conditioning control
screen:

P.319

Adjust the front seat heater tem-
perature level

Each time the switch is selected, the tem-
perature level and level indicator (orange)
change as follows:
AUTO

HiMidLoOFF

Adjust the front seat ventilator fan
speed level

Each time the switch is selected, the fan
speed level and level indicator (blue)
change as follows:
AUTO

HiMidLoOFF

Adjust the heated steering wheel
temperature level

Each time the switch is selected, the tem-
perature level and level indicator change
as follows:
AUTO

HiLoOFF

329

5-3. Using the air conditioning system and defogger

LS500_OM_(U)_1809

Interio

r fe

atures

■

Rear Multi Operation Panel (if
equipped)



Rear air conditioning control screen

Adjust the rear seat heater tem-
perature level

Each time the switch is selected, the tem-
perature level and level indicator (orange)
change as follows:
AUTO

HiMidLoOFF

Adjust the rear seat ventilator fan
speed level

Each time the switch is selected, the fan
speed level and level indicator (blue)
change as follows:
AUTO

HiMidLoOFF



Shortcut screen

Adjust the rear seat heater tem-
perature level

Each time the switch is selected, the tem-
perature level and level indicator (orange)
change as follows:
AUTO

HiMidLoOFF

Adjust the rear seat ventilator fan
speed level

Each time the switch is selected, the fan
speed level and level indicator (blue)
change as follows:
AUTO

HiMidLoOFF

■

Rear control panel (if equipped)

Increases the rear seat heater tem-
perature level

The seat ventilator can be adjusted in 3 lev-
els. (Low, Mid or Hi)

Enables/Disables the automatic
mode of the rear seat heaters
Decreases the rear seat heater
temperature level

If this switch is selected when the rear seat
heater temperature level is set to Lo, the
rear seat heater will turn off.

■

The heated steering wheel, seat heaters

and seat ventilators can be used when

The engine switch is in IGNITION ON

mode.

■

Air conditioning system-linked control

mode

When the seat ventilator fan speed level is

Hi, the seat ventilator fan speed becomes

higher according to the fan speed of the air

conditioning system.

■

When the air conditioning system is

operating in S-FLOW mode

If a passenger is not detected in the front

330

5-3. Using the air conditioning system and defogger

LS500_OM_(U)_1809

passenger seat, the seat ventilator and seat

heater of the front passenger’s seat will be

turned off if on. (

P.320)

■

Customization

Some functions can be customized.

(

P.466)

WARNING

■

To prevent overheating and minor

burn injuries

Observe the following precautions when

using the seat heaters.

●

Do not cover the seat with a blanket or

cushion when using the seat heater.

●

Do not use seat heater more than nec-

essary.

331

5-4. Using the interior lights

LS500_OM_(U)_1809

Interio

r fe

atures

5-4.Using the interior lights

Rear personal lights (

P.333)

Inside door handle lights
Instrument panel ornament lights (if equipped)
Front personal lights (

P.333)

Front interior lights (

P.332)

Clock light
Footwell lights
Engine switch light
Door trim ornament lights
Door courtesy lights
Seat belt buckle lights
Outer foot lights
Rear interior light (

P.332)

Shift lever lights

Interior lights list

Location of the interior lights

A
B
C
D

E
F

Content .. 18 19 20 21 ..
