LEXUS IS 300 (2019 year). Instruction

584

8-2. Steps to take in an emergency

IS350 AWD/IS350/IS300 AWD/IS300_U

WARNING

■

When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the surrounding

area is clear to avoid striking other vehicles, objects or people. The vehicle may also

lunge forward or lunge back suddenly as it becomes free. Use extreme caution.

■

When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.

This may lead to unexpected rapid acceleration of the vehicle that may cause an acci-

dent resulting in death or serious injury.

NOTICE

■

To avoid damaging the transmission and other components

●

Avoid spinning the rear wheels and depressing the accelerator pedal more than nec-

essary.

●

If the vehicle remains stuck even after these procedures are performed, the vehicle

may require towing to be freed.

586

IS350 AWD/IS350/IS300 AWD/IS300_U

9-1. Specifications

: Unladen vehicle

: Vehicles with 255/35R18 tires

Maintenance data (fuel, oil level, etc.)

Dimensions and weight

Overall length

184.3 in. (4680 mm)

Overall width

71.3 in. (1810 mm)

Overall height

56.3 in. (1430 mm)

Wheelbase

110.2 in. (2800 mm)

Tread

Front

60.4 in. (1535 mm)

Rear

61.0 in. (1550 mm)

60.6 in. (1540 mm)

Vehicle capacity weight (Occupants + lug-

gage)

825 lb. (375 kg)

587

9-1. Specifications

icl

e spe

cif

atio

IS350 AWD/IS350/IS300 AWD/IS300_U

■

Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your vehicle.
This is the primary identification number for your Lexus. It is used in register-
ing the ownership of your vehicle.
This number is stamped on the top
left of the instrument panel and in the
engine compartment.

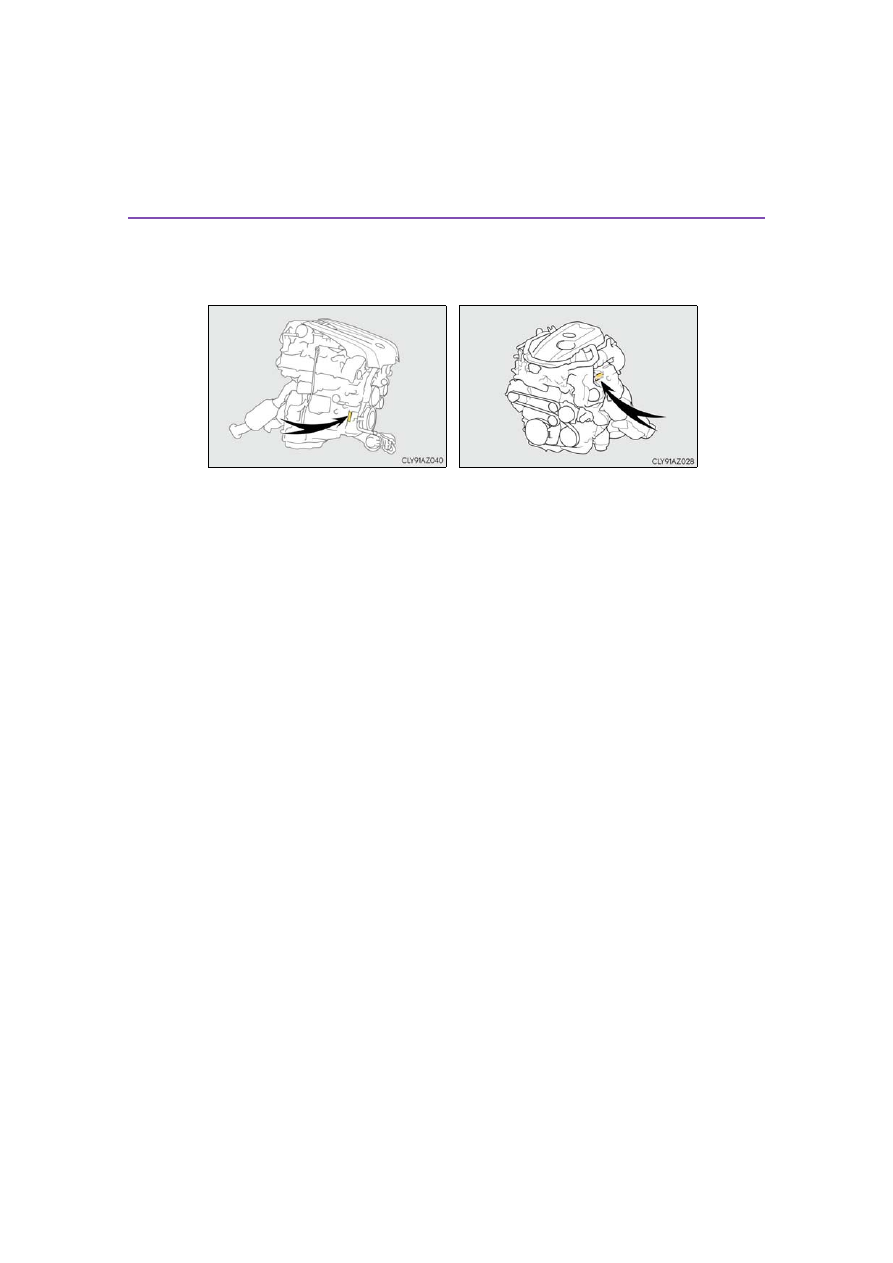

This number is also on the Certifica-
tion Label.

Vehicle identification



IS350 AWD/IS350/
IS300 AWD



IS300

589

9-1. Specifications

icl

e spe

cif

atio

IS350 AWD/IS350/IS300 AWD/IS300_U

Engine

IS350 AWD/IS350/

IS300 AWD

IS300

Model

3.5 L 6-cylinder (2GR-FKS)

engine

2.0 L 4-cylinder (8AR-FTS)

engine

Type

6-cylinder V type,

4-cycle, gasoline

4-cylinder in line,

4-cycle, gasoline

(with turbocharger)

Bore and stroke

3.70

 3.27 in.

(94.0

 83.0 mm)

3.39

 3.39 in.

(86.0

 86.0 mm)

Displacement

210.9 cu. in. (3456 cm

)

121.9 cu. in. (1998 cm

)

Valve clearance

(engine cold)

Automatic adjustment

Drive belt tension

Automatic adjustment

Fuel

Fuel type

Unleaded gasoline only

Octane Rating

91 (Research Octane Number 96) or higher

Fuel tank capacity

(Reference)

17.5 gal. (66.3 L, 14.6 Imp. gal.)

590

9-1. Specifications

IS350 AWD/IS350/IS300 AWD/IS300_U

■

Oil capacity (Drain and refill [Reference*])

: The engine oil capacity is a reference quantity to be used when changing the engine

oil. Warm up and turn off the engine, wait more than 5 minutes, and check the oil level
on the dipstick.

■

Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the following
grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good start-
ing in cold weather.
If SAE 0W-20 is not available, SAE
5W-20 oil may be used. However, it
must be replaced with SAE 0W-20
at the next oil change.

Lubrication system

IS350 (2WD)

IS350 AWD/IS300

AWD (AWD)

IS300

With filter

6.0 qt.

(5.7 L, 5.0 Imp. qt.)

6.8 qt.

(6.4 L, 5.6 Imp. qt.)

4.9 qt.

(4.6 L, 4.0 Imp. qt.)

Without filter

5.8 qt.

(5.5 L, 4.8 Imp. qt.)

6.3 qt.

(6.0 L, 5.3 Imp. qt.)

4.5 qt.

(4.3 L, 3.8 Imp. qt.)

Outside temperature

591

9-1. Specifications

icl

e spe

cif

atio

IS350 AWD/IS350/IS300 AWD/IS300_U

Oil viscosity (0W-20 is explained here as an example):

• The 0W in 0W-20 indicates the characteristic of the oil which allows cold

startability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.

• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the

oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.

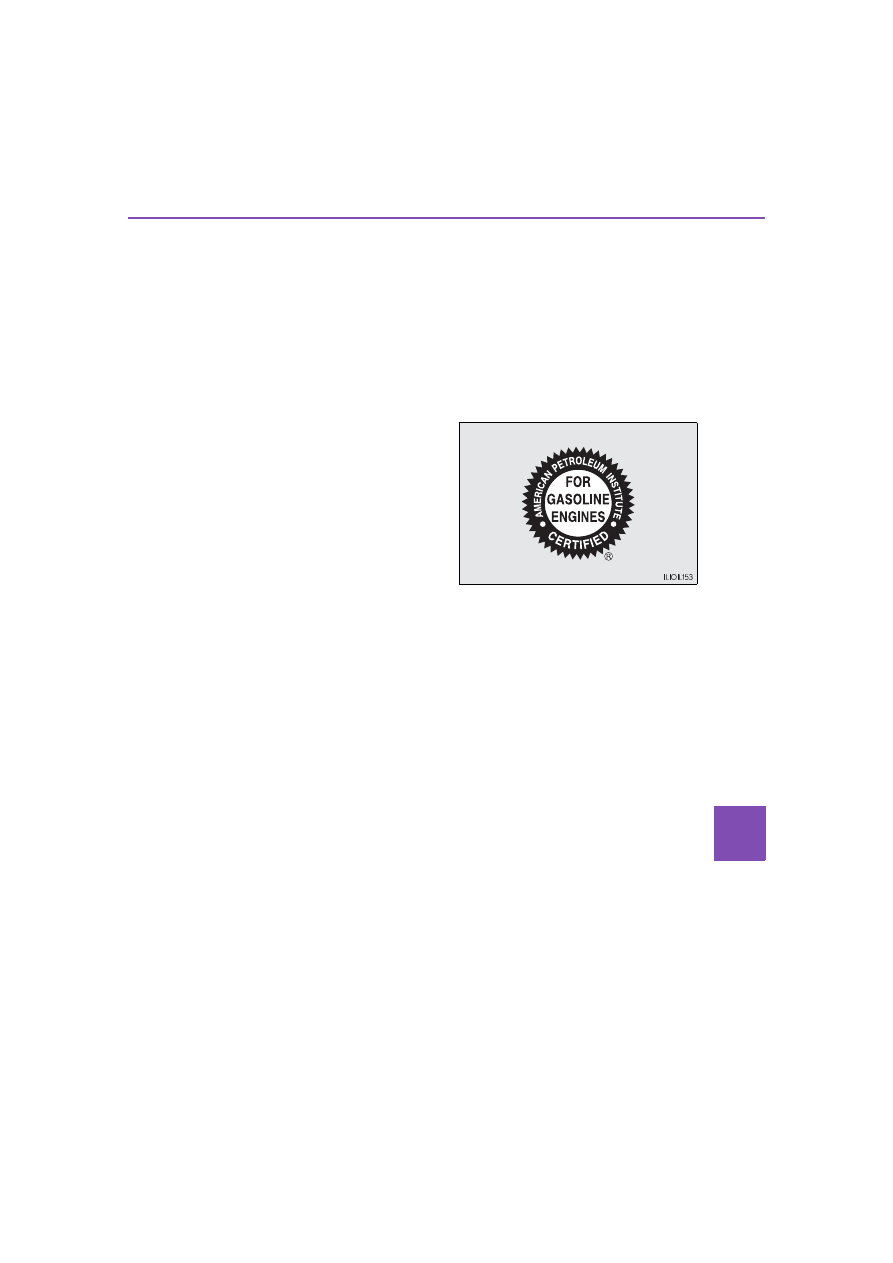

How to read oil container label:
The International Lubricant Specifi-
cation Advisory Committee
(ILSAC) Certification Mark is added
to some oil containers to help you
select the oil you should use.

592

9-1. Specifications

IS350 AWD/IS350/IS300 AWD/IS300_U

: The fluid capacity is a reference quantity.

If replacement is necessary, contact your Lexus dealer.

Cooling system

Capacity

IS350 AWD/

IS350/IS300

AWD

9.9 qt. (9.4 L, 8.3 Imp. qt.)

IS300



Engine

8.2 qt. (7.8 L, 6.9 Imp. qt.)



Intercooler

3.2 qt. (3.0 L, 2.6 Imp. qt.)

Coolant type

Use either of the following:

• “Toyota Super Long Life Coolant”

• Similar high-quality ethylene glycol-based non-

silicate, non-amine, non-nitrite, and non-borate

coolant with long-life hybrid organic acid tech-

nology

Do not use plain water alone.

Ignition system (Spark plug)

IS350 AWD/IS350/

IS300 AWD

IS300

Make

DENSO FK20HBR8

NGK DILFR7K9G

Gap

0.031 in. (0.8 mm)

0.035 in. (0.9 mm)

NOTICE

■

Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

Electrical system

Battery

Open voltage at 68

F

(20

C):

12.3 V or higher

(Check the voltage 20 minutes after the engine and all

lights are turned off.)

If the voltage is lower than the standard value, charge

the battery.

Charging rates

5 A max.

593

9-1. Specifications

icl

e spe

cif

atio

IS350 AWD/IS350/IS300 AWD/IS300_U

: The fluid capacity is a reference quantity.

If replacement is necessary, contact your Lexus dealer.

Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the factory.

Use Lexus approved “Toyota Genuine Differential Gear Oil” or an equivalent oil of

matching quality to satisfy the above specification. Please contact your Lexus dealer for

further details.

Automatic transmission

Fluid capacity

IS350 (2WD)

10.0 qt. (9.5 L, 8.4 Imp. qt.)

IS350 AWD/

IS300 AWD

(AWD)

10.6 qt. (10.0 L, 8.8 Imp. qt.)

IS300

9.2 qt. (8.7 L, 7.7 Imp. qt.)

Fluid type

Toyota Genuine ATF WS

NOTICE

■

Automatic transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause deterioration

in shift quality, locking up of your transmission accompanied by vibration, and ulti-

mately damage the transmission of your vehicle.

Front differential (AWD models)

Oil capacity

0.74 qt. (0.70 L, 0.61 Imp. qt.)

Oil type and viscosity

Toyota Genuine Differential gear oil GL-5 or equivalent

Above 0

F (-18C): SAE90

Below 0

F (-18C): SAE80W or SAE80W-90

594

9-1. Specifications

IS350 AWD/IS350/IS300 AWD/IS300_U



IS350 AWD/IS350/IS300 AWD/IS300 (vehicles without LSD [Limited
Slip Differential])



IS350 (vehicles with LSD [Limited Slip Differential])

: Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the factory.

Use Lexus approved “Toyota Genuine Differential Gear Oil” or an equivalent oil of
matching quality to satisfy the above specification. Please contact your Lexus dealer
for further details.

: Minimum pedal clearance when depressed with a force of 112.4 lbf (500 N, 51.0 kgf)

while the engine is running.

: Parking brake pedal travel when depressed with a force of 67.4 lbf (300 N, 30.6 kgf)

Rear differential

Oil capacity

1.42 qt. (1.35 L, 1.19 Imp. qt.)

Oil type and viscosity

Toyota Genuine Differential gear oil LT
75W-85 GL-5 or equivalent

Oil capacity

1.42 qt. (1.35 L, 1.19 Imp. qt.)

Oil type and viscosity

Toyota Genuine Differential gear oil LX
75W-85 GL-5 or equivalent

Brakes

Pedal clearance

2WD

4.2 in. (107 mm) Min.

AWD

4.7 in. (118 mm) Min.

Pedal free play

0.04 — 0.24 in. (1.0 — 6.0 mm)

Brake pad wear limit

0.04 in. (1.0 mm)

Parking brake lining wear limit

0.04 in. (1.0 mm)

Parking brake pedal travel



10 clicks

Fluid type

SAE J1703 or FMVSS No. 116 DOT 3, or

SAE J1704 or FMVSS No. 116 DOT 4

Steering

Free play

Less than 1.2 in. (30 mm)

595

9-1. Specifications

icl

e spe

cif

atio

IS350 AWD/IS350/IS300 AWD/IS300_U



Type A



Type B

Tires and wheels

Tire size

225/45R17 91W, T125/70D17 98M (spare)

Tire inflation pressure

(Recommended cold tire

inflation pressure)

Front:

36 psi (250 kPa, 2.5 kgf/cm

or bar)

Rear:

36 psi (250 kPa, 2.5 kgf/cm

or bar)

Spare:

60 psi (420 kPa, 4.2 kgf/cm

or bar)

Driving at high speeds (above 118 mph [190 km/h]) (in

countries where such speeds are permitted by law)

Add 5 psi (30 kPa, 0.3 kgf/cm

or bar) to the front

tires and rear tires. Never exceed the maximum cold

tire inflation pressure indicated on the tire sidewall.

Wheel size

 7 1/2J, 17  4T (spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

Tire size

225/45R17 91V, T125/70D17 98M (spare)

Tire inflation pressure

(Recommended cold tire

inflation pressure)

Front:

36 psi (250 kPa, 2.5 kgf/cm

or bar)

Rear:

36 psi (250 kPa, 2.5 kgf/cm

or bar)

Spare:

60 psi (420 kPa, 4.2 kgf/cm

or bar)

Driving at high speeds (above 100 mph [160 km/h]) (in

countries where such speeds are permitted by law)

Add 5 psi (30 kPa, 0.3 kgf/cm

or bar) to the front

tires and rear tires. Never exceed the maximum cold

tire inflation pressure indicated on the tire sidewall.

Wheel size

 7 1/2J, 17  4T (spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

596

9-1. Specifications

IS350 AWD/IS350/IS300 AWD/IS300_U



Type C



Type D

Tire size

225/40R18 88Y, 255/35R18 90Y,

T125/70D17 98M (spare)

Tire inflation pressure

(Recommended cold tire

inflation pressure)

Front:

36 psi (250 kPa, 2.5 kgf/cm

or bar)

Rear:

36 psi (250 kPa, 2.5 kgf/cm

or bar)

Spare:

60 psi (420 kPa, 4.2 kgf/cm

or bar)

Driving at high speeds (above 137 mph [220 km/h]) (in

countries where such speeds are permitted by law)

Add 2 psi (10 kPa, 0.1 kgf/cm

or bar) to the front tires

and rear tires. Never exceed the maximum cold tire

inflation pressure indicated on the tire sidewall.

Wheel size

 8J (225/40R18), 18  8 1/2J (255/35R18),

 4T (spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

Tire size

225/40R18 88W, 255/35R18 90W,

T125/70D17 98M (spare)

Tire inflation pressure

(Recommended cold tire

inflation pressure)

Front:

36 psi (250 kPa, 2.5 kgf/cm

or bar)

Rear:

36 psi (250 kPa, 2.5 kgf/cm

or bar)

Spare:

60 psi (420 kPa, 4.2 kgf/cm

or bar)

Driving at high speeds (above 118 mph [190 km/h]) (in

countries where such speeds are permitted by law)

Add 6 psi (40 kPa, 0.4 kgf/cm

or bar) to the front

tires and rear tires. Never exceed the maximum cold

tire inflation pressure indicated on the tire sidewall.

Wheel size

 8J (225/40R18), 18  8 1/2J (255/35R18),

 4T (spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

597

9-1. Specifications

icl

e spe

cif

atio

IS350 AWD/IS350/IS300 AWD/IS300_U

Light bulbs

Bulb No.

Type

Exterior

Front turn signal lights (bulb type)

7444NA

28/8

Rear turn signal lights



Outer foot lights



Interior

Door courtesy lights

168

Vanity lights



Interior light



Personal lights



Footwell lights

194

3.8

Trunk light



A: Wedge base bulbs (amber)

B: Wedge base bulbs (clear)

: Light bulbs not listed in this table are LED bulbs.

598

9-1. Specifications

IS350 AWD/IS350/IS300 AWD/IS300_U

■

Gasoline quality
In very few cases, driveability problems may be caused by the brand of gasoline you are

using. If driveability problems persist, try changing the brand of gasoline. If this does not

correct the problem, consult your Lexus dealer.

■

Recommendation of the use of gasoline containing detergent additives

●

Lexus recommends the use of gasoline that contains detergent additives to avoid the

build-up of engine deposits.

●

All gasoline sold in the U.S.A. contains minimum detergent additives to clean and/or

keep clean intake systems, per EPA’s lowest additives concentration program.

●

Lexus strongly recommends the use of Top Tier Detergent Gasoline. For more informa-

tion on Top Tier Detergent Gasoline and a list of marketers, please go to the official

website www.toptiergas.com.

■

Recommendation of the use of low emission gasoline
Gasolines containing oxygenates such as ethers and ethanol, as well as reformulated

gasolines, are available in some cities. These fuels are typically acceptable for use, pro-

viding they meet other fuel requirements.
Lexus recommends these fuels, since the formulations allow for reduced vehicle emis-

sions.

Fuel information

You must only use unleaded gasoline.
Select premium unleaded gasoline with an octane rating of 91 (Research
Octane Number 96) or higher required for optimum engine performance
and fuel economy.
If the octane rating is less than 91, damage to the engine may occur and may
void the vehicle warranty.

At minimum, the gasoline you use should meet the specifications of ASTM
D4814 in the U.S.A..

599

9-1. Specifications

icl

e spe

cif

atio

IS350 AWD/IS350/IS300 AWD/IS300_U

■

Non-recommendation of the use of blended gasoline

●

If you use gasohol in your vehicle, be sure that it has an octane rating no lower than 91.

●

Lexus does not recommend the use of gasoline containing methanol.

■

Non-recommendation of the use of gasoline containing MMT
Some gasoline contains an octane enhancing additive called MMT (Methylcyclopenta-

dienyl Manganese Tricarbonyl).
Lexus does not recommend the use of gasoline that contains MMT. If fuel containing

MMT is used, your emission control system may be adversely affected.
The malfunction indicator lamp on the instrument cluster may come on. If this happens,

contact your Lexus dealer for service.

■

If your engine knocks

●

Consult your Lexus dealer.

●

You may occasionally notice light knocking for a short time while accelerating or driv-

ing uphill. This is normal and there is no need for concern.

●

Use only gasoline containing up to 15% etha-

nol.

DO NOT use any flex-fuel or gasoline that

could contain more than 15% ethanol, includ-

ing from any pump labeled E30, E50, E85

(which are only some examples of fuel con-

taining more than 15% ethanol).

DO NOT use gasoline con-
taining more than 15% ethanol.

(30% ethanol)

(50% ethanol)

(85% ethanol)

LEXUS IS 300 (2019 year). Instruction - part 37
