LEXUS IS 300 (2019 year). Instruction

344

IS350 AWD/IS350/IS300 AWD/IS300_U

5-5. Playing an audio CD and MP3/WMA/AAC discs

Pressing the “MEDIA” button displays the CD top screen from any screen of the
selected source.

■

Menu screen
P. 335

■

Selecting a track/file
Press the “

 PRST” or “TRACK ” button or turn the “TUNE•SCROLL” knob

to select the desired track/file number.
To fast-forward or rewind, press and hold the “

 PRST” or “TRACK ” button.

■

Selecting the track by the list (CD)
Move the controller to the right and then select the desired track.

■

Selecting a folder (MP3/WMA/AAC disc)

Move the controller to the right and then select “Folders”.
Select the desired folder. Then select a file to begin using the selected
folder.

■

Selecting a file by the selected folder (MP3/WMA/AAC disc)

Move the controller to the right and then select “Files”.
Select the desired file.

CD player operation

Insert a disc, press the “MEDIA” button or select “DISC” on the “Source”
screen with a disc inserted to begin listening to a CD.

CD top screen

345

5-5. Playing an audio CD and MP3/WMA/AAC discs

xus
Dis
play Audi

o syst

IS350 AWD/IS350/IS300 AWD/IS300_U

■

Error messages
If the following error messages appear on the screen, refer to the table and take the

appropriate measures. If the problem is not rectified, take the vehicle to your Lexus

dealer.

■

Discs that can be used
Discs with the marks shown below can be used.

Playback may not be possible depending on recording format or disc features, or due to

scratches, dirt or deterioration.

CDs with copy-protection features may not play correctly.

■

CD player protection feature
To protect the internal components, playback is automatically stopped when a problem is

detected.

■

If a disc is left inside the CD player or in the ejected position for extended periods
Disc may be damaged and may not play properly.

■

Lens cleaners
Do not use lens cleaners. Doing so may damage the CD player.

■

MP3, WMA and AAC files
MP3 (MPEG Audio LAYER3) is a standard audio compression format.
Files can be compressed to approximately 1/10 of their original size by using MP3 com-

pression.
WMA (Windows Media Audio) is a Microsoft audio compression format.
This format compresses audio data to a size smaller than that of the MP3 format.
AAC is short for Advanced Audio Coding and refers to an audio compression technol-

ogy standard used with MPEG2 and MPEG4.
MP3, WMA and AAC file and media/formats compatibility are limited.

Message

Cause

Correction procedures

“Check disc”

• The disc is dirty or dam-

aged.

• The disc is inserted

upside down.

• The disc is not playable

with the player.

• Clean the disc.

• Insert the disc correctly.

• Confirm the disc is play-

able with the player.

“DISC Error”

There is a malfunction

within the system.

Eject the disc.

“No music files found.”

No playable data is

included on the disc.

Eject the disc.

346

5-5. Playing an audio CD and MP3/WMA/AAC discs

IS350 AWD/IS350/IS300 AWD/IS300_U

●

MP3 file compatibility
• Compatible standards

MP3 (MPEG1 LAYER3, MPEG2 LSF LAYER3)

• Compatible sampling frequencies

MPEG1 LAYER3: 32, 44.1, 48 (kHz)

MPEG2 LSF LAYER3: 16, 22.05, 24 (kHz)

• Compatible bit rates (compatible with VBR)

MPEG1 LAYER3: 32-320 (kbps)

MPEG2 LSF LAYER3: 8-160 (kbps)

• Compatible channel modes: stereo, joint stereo, dual channel and monaural

●

WMA file compatibility
• Compatible standards

WMA Ver. 7, 8, 9 (only compatible with Window Media Audio Standard)

• Compatible sampling frequencies

32, 44.1, 48 (kHz)

• Compatible bit rates (only compatible with 2-channel playback)

Ver. 7, 8: CBR 48-192 (kbps)

Ver. 9: CBR 48-320 (kbps)

●

AAC file compatibility
• Compatible standards

MPEG4/AAC-LC

• Compatible sampling frequencies

11.025/12/16/22.05/24/32/44.1/48 (kHz)

• Compatible bit rates

16-320 (kbps)

• Compatible channel modes: 1 ch and 2 ch

●

Compatible media
Media that can be used for MP3, WMA and AAC playback are CD-Rs and CD-RWs.
Playback in some instances may not be possible if the CD-R or CD-RW is not final-

ized. Playback may not be possible or the audio may jump if the disc is scratched or

marked with fingerprints.

●

Compatible disc formats
The following disc formats can be used.
• Disc formats: CD-ROM Mode 1 and Mode 2

CD-ROM XA Mode 2, Form 1 and Form 2

• File formats: ISO9660 Level 1, Level 2, (Romeo, Joliet)

UDF (2.01 or lower)

MP3, WMA and AAC files written in any format other than those listed above may

not play correctly, and their file names and folder names may not be displayed cor-

rectly.

Items related to standards and limitations are as follows.
• Maximum directory hierarchy: 8 levels (including the root)

• Maximum length of folder names/file names: 32 characters

• Maximum number of folders: 192 (including the root)

• Maximum number of files per disc: 255

347

5-5. Playing an audio CD and MP3/WMA/AAC discs

xus
Dis
play Audi

o syst

IS350 AWD/IS350/IS300 AWD/IS300_U

●

File names
The only files that can be recognized as MP3/WMA/AAC and played are those with

the extension .mp3, .wma or .m4a.

●

Discs containing multi-session recordings
As the audio system is compatible with multi session discs, it is possible to play discs

that contain MP3, WMA and AAC files. However, only the first session can be played.

●

ID3, WMA and AAC tags
ID3 tags can be added to MP3 files, making it possible to record the track title, artist

name, etc.
The system is compatible with ID3 Ver. 1.0, 1.1, and Ver. 2.2, 2.3 ID3 tags. (The number

of characters is based on ID3 Ver. 1.0 and 1.1.)
WMA tags can be added to WMA files, making it possible to record the track title and

artist name in the same way as with ID3 tags.
AAC tags can be added to AAC files, making it possible to record the track title and

artist name in the same way as with ID3 tags.

●

MP3, WMA and AAC playback
When a disc containing MP3, WMA or AAC files is inserted, all files on the disc are

first checked. Once the file check is finished, the first MP3, WMA or AAC file is

played. To make the file check finish more quickly, we recommend you do not write any

files to the disc other than MP3, WMA or AAC files or create any unnecessary fold-

ers.
Discs that contain a mixture of music data and MP3, WMA or AAC format data can-

not be played.

●

Extensions
If the file extensions .mp3, .wma and .m4a are used for files other than MP3, WMA

and AAC files, they may be mistakenly recognized and played as MP3, WMA and

AAC files. This may result in large amounts of interference and damage to the speak-

ers.

●

Playback
• To play MP3 files with steady sound quality, we recommend a fixed bit rate of at least

128 kbps and a sampling frequency of 44.1 kHz.

• CD-R or CD-RW playback may not be possible in some instances, depending on

the characteristics of the disc.

• There is a wide variety of freeware and other encoding software for MP3, WMA

and AAC files on the market, and depending on the status of the encoding and the

file format, poor sound quality or noise at the start of playback may result. In some

cases, playback may not be possible at all.

• When files other than MP3, WMA or AAC files are recorded on a disc, it may take

more time to recognize the disc and in some cases, playback may not be possible at

all.

• Microsoft, Windows, and Windows Media are the registered trademarks of Micro-

soft Corporation in the U.S.A. and other countries.

348

5-5. Playing an audio CD and MP3/WMA/AAC discs

IS350 AWD/IS350/IS300 AWD/IS300_U

■

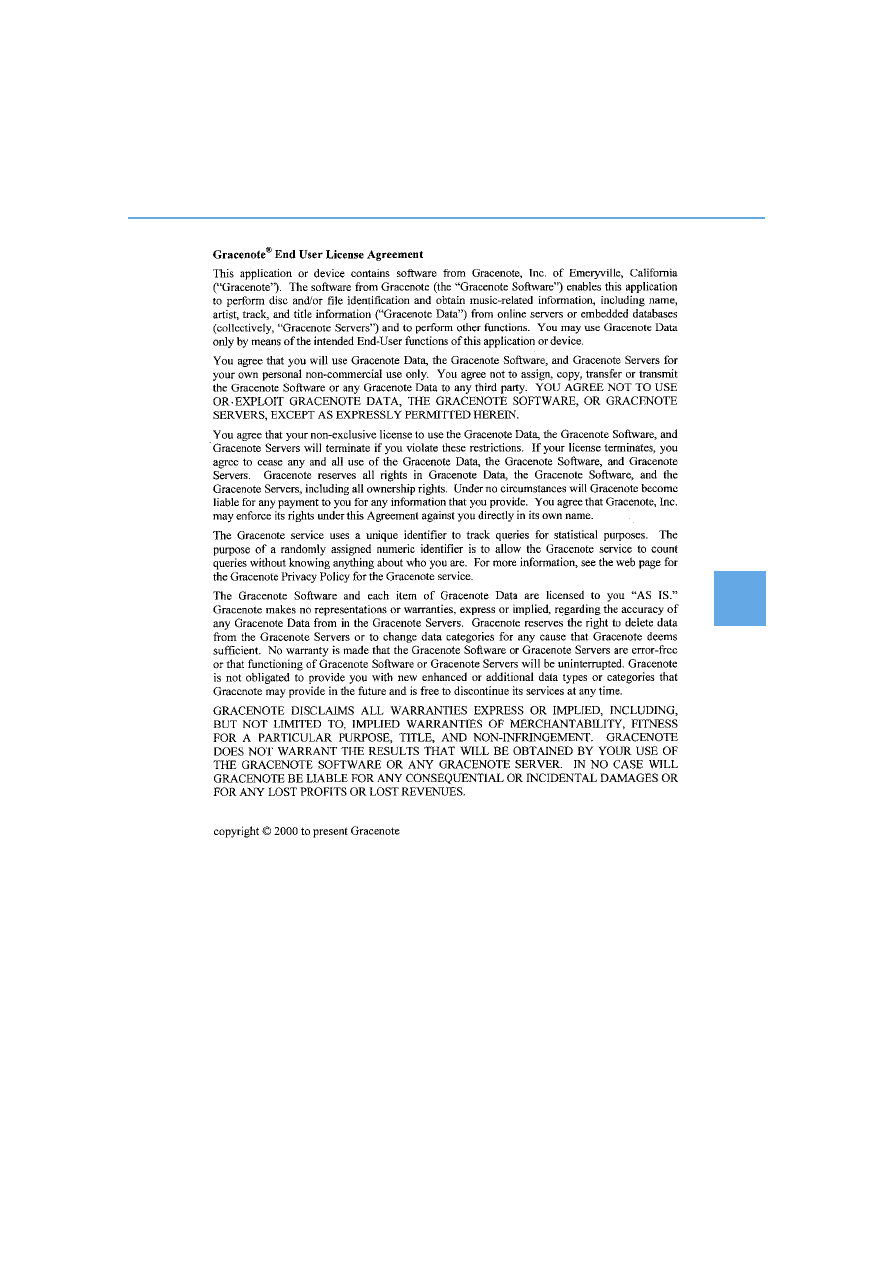

The Gracenote

media database

●

Music recognition technology and related data are provided by Gracenote

Gracenote is the industry standard in music recognition technology and related
content delivery. For more information visit www.gracenote.com.

●

CD and music-related data from Gracenote, Inc., copyright © 2000 to present
Gracenote. Gracenote Software, copyright © 2000 to present Gracenote. One
or more patents owned by Gracenote apply to this product and service. See the
Gracenote website for a non-exhaustive list of applicable Gracenote patents. Gra-
cenote, CDDB, MusicID, MediaVOCS, the Gracenote logo and logotype, and the
“Powered by Gracenote” logo are either registered trademarks or trademarks of
Gracenote in the United States and/or other countries.

350

5-5. Playing an audio CD and MP3/WMA/AAC discs

IS350 AWD/IS350/IS300 AWD/IS300_U

NOTICE

■

Discs and adapters that cannot be used
Do not use the following types of discs.
Also, do not use 3 in. (8 cm) disc adapters, DualDiscs or printable discs.
Doing so may damage the player and/or disc insert/eject function.

●

Discs that have a diameter that is not 4.7 in. (12 cm).

●

Low-quality or deformed discs.

●

Discs with a transparent or translucent recording area.

●

Discs that have tape, stickers or labels attached to them, or that have had the label

peeled off.

■

Player precautions
Failure to follow the precautions below may result in damage to the discs or the player

itself.

●

Do not insert anything other than discs into the disc slot.

●

Do not apply oil to the player.

●

Store discs away from direct sunlight.

●

Never try to disassemble any part of the player.

351

xus
Dis
play Audi

o syst

IS350 AWD/IS350/IS300 AWD/IS300_U

5-6. Using an external device

P. 321

Pressing the “MEDIA” button displays the iPod top screen from any screen of the
selected source.

■

Menu screen
P. 335

■

Selecting a song
Press the “

 PRST” or “TRACK ” button or turn the “TUNE•SCROLL” knob

to select the desired song number.
To fast-forward or rewind, press and hold the “

 PRST” or “TRACK ” button.

■

Selecting a play mode

Move the controller to the right and then select “Browse”.
Select the desired play mode, and then select a song to begin using the
selected play mode.

■

Displaying the now playing list
Move the controller to the right and then select “Now Playing List”.

Listening to an iPod

Connecting an iPod enables you to enjoy music from the vehicle speakers.
Press the “MEDIA” button or select “iPod” on the audio source selection
screen.

Connecting an iPod

iPod top screen

352

5-6. Using an external device

IS350 AWD/IS350/IS300 AWD/IS300_U

■

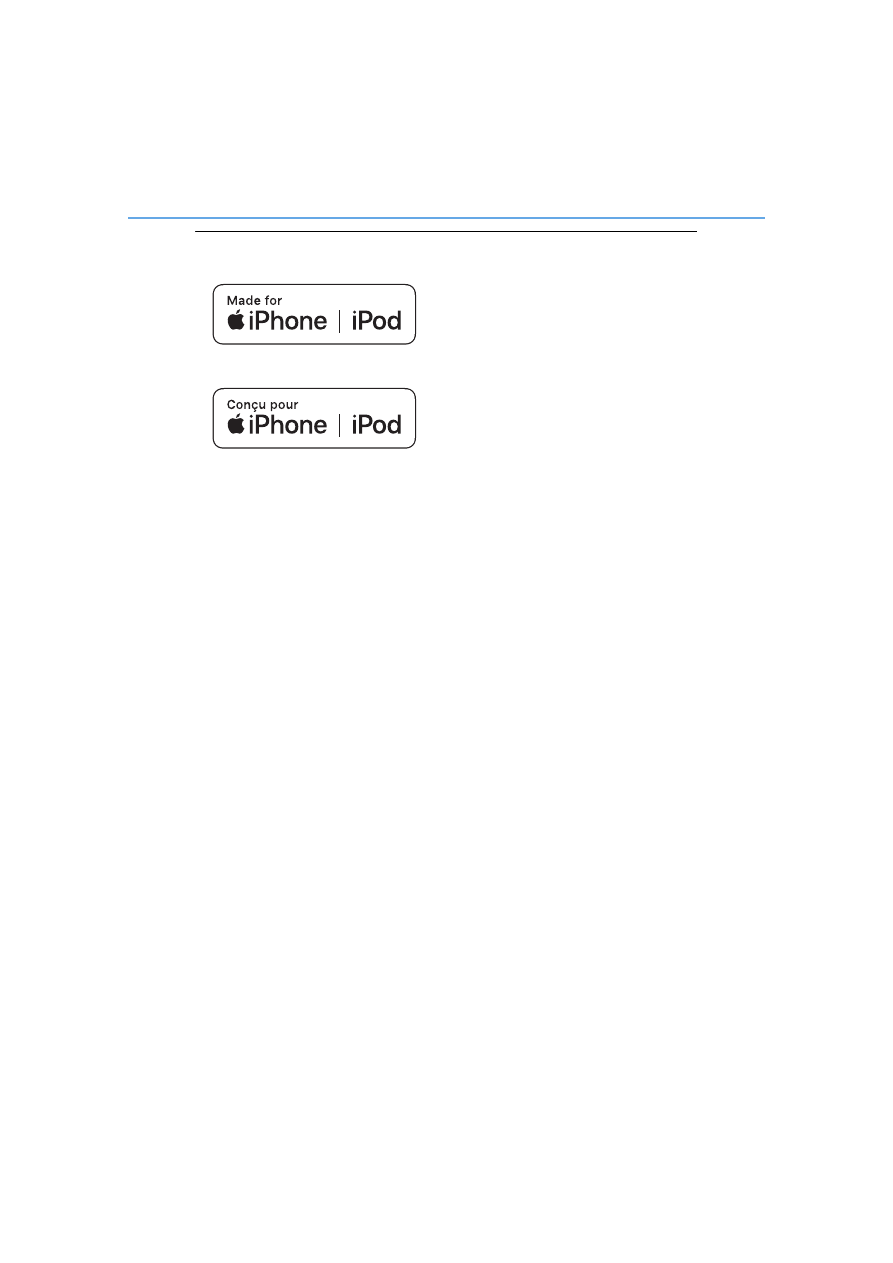

About iPod

●

Use of the Made for Apple badge means that an accessory has been designed to con-

nect specifically to the Apple product(s) identified in the badge, and has been certified

by the developer to meet Apple performance standards. Apple is not responsible for

the operation of this device or its compliance with safety and regulatory standards.

Please note that the use of this accessory with an Apple product may affect wireless

performance.

●

iPhone, iPod, iPod classic, iPod nano, iPod touch, and Lightning are trademarks of

Apple Inc., registered in the U.S. and other countries.

●

The Lightning connector works with iPhone 5s, iPhone 5c, iPhone 5, iPod touch (5th

generation), and iPod nano (7th generation).

●

The 30-pin connector works with iPhone 4s, iPhone 4, iPhone 3GS, iPhone 3G,

iPhone, iPod touch (1st through 4th generation), iPod classic, and iPod nano (1st

through 6th generation)

●

USB works with iPhone 5s, iPhone 5c, iPhone 5, iPhone 4s, iPhone 4, iPhone 3GS,

iPhone 3G, iPhone, iPod touch (1st through 5th generation), iPod classic, and iPod

nano (1st through 7th generation).

●

Bluetooth

technology works with iPhone 5s, iPhone 5c, iPhone 5, iPhone 4s, iPhone

4, iPhone 3GS, iPhone 3G, iPhone, iPod touch (2nd through 5th generation) and iPod

nano (7th generation).

■

iPod cover art

●

Depending on the iPod and songs in the iPod, iPod cover art may be displayed.

●

This function can be changed to on/off. (

P. 334)

●

It may take time to display iPod cover art, and the iPod may not be operated while the

cover art display is in process.

353

5-6. Using an external device

xus
Dis
play Audi

o syst

IS350 AWD/IS350/IS300 AWD/IS300_U

■

iPod functions

●

When an iPod is connected and the audio source is changed to iPod mode, the iPod will

resume play from the same point in which it was last used.

●

Depending on the iPod that is connected to the system, certain functions may not be

available. If a function is unavailable due to a malfunction (as opposed to a system spec-

ification), disconnecting the device and reconnecting it may resolve the problem.

●

Depending on the iPod, while connected to the system, the iPod cannot be operated

with its own controls. It is necessary to use the controls of the vehicle’s audio system

instead.

●

When the battery level of an iPod is very low, the iPod may not operate. If so, charge the

iPod before use.

●

Compatible models (

P. 354)

■

iPod problems
To resolve most problems encountered when using your iPod, disconnect your iPod from

the vehicle iPod connection and reset it. For instructions on how to reset your iPod, refer

to your iPod Owner’s Manual.

■

Error messages
If the following error messages appear on the screen, refer to the table and take the

appropriate measures. If the problem is not rectified, take the vehicle to your Lexus

dealer.

Message

Cause/Correction procedures

“Connection error.

Please consult your

Owner’s Manual for

instructions on how to

connect the iPod.”

This indicates a problem in the iPod or its connection.

“There are no songs

available for playback.

Please add compatible

files to your iPod.”

This indicates that there is no music data in the iPod.

“No items available.”

This indicates that songs are not found in a selected play-

list.

“Please check the iPod

firmware version.”

This indicates that the software version is not compatible.

Please check the compatible models. (

P. 354)

“Unable to authorize the

iPod.”

This indicates that the Lexus Display Audio system failed

to authorize the iPod.

Please check your iPod.

354

5-6. Using an external device

IS350 AWD/IS350/IS300 AWD/IS300_U

■

Compatible models
The following iPod

, iPod nano

, iPod classic

, iPod touch

and iPhone

devices can

be used with this system.

●

Made for
• iPod touch (5th generation)

• iPod touch (4th generation)

• iPod touch (3rd generation)

• iPod touch (2nd generation)

• iPod touch (1st generation)

• iPod classic

• iPod with video
• iPod nano (7th generation)

• iPod nano (6th generation)

• iPod nano (5th generation)

• iPod nano (4th generation)

• iPod nano (3rd generation)

• iPod nano (1st generation)
• iPhone 5s

• iPhone 5c

• iPhone 5

• iPhone 4S

• iPhone 4

• iPhone 3GS

• iPhone 3G

• iPhone

: iPod video not supported

Depending on differences between models or software versions, etc., some models

might be incompatible with this system.

NOTICE

■

To prevent damage to the iPod or its terminals

●

Depending on the size and shape of the iPod that is connected to the system, the con-

sole box may not close fully. In this case, do not forcibly close the console box as this

may damage the iPod or the terminal, etc.

●

Do not leave the iPod in the vehicle. The temperature inside the vehicle may become

high.

●

Do not push down on or apply unnecessary pressure to the iPod while it is connected.

●

Do not insert foreign objects into the port.

355

5-6. Using an external device

xus
Dis
play Audi

o syst

IS350 AWD/IS350/IS300 AWD/IS300_U

P. 321

Pressing the “MEDIA” button displays the USB top screen from any screen of the
selected source.

■

Menu screen
P. 335

■

Selecting a file
Press the “

 PRST” or “TRACK ” button or turn the “TUNE•SCROLL” knob

to select the desired file number.
To fast-forward or rewind, press and hold the “

 PRST” or “TRACK ” button.

■

Selecting a play mode

Move the controller to the right and select “Browse”.
Select the desired play mode, then select a file to begin the selected play
mode.

■

Displaying the now playing list
Move the controller to the right and select “Now Playing List”.

Using USB memory device

Connecting a USB memory device enables you to enjoy music from the vehi-
cle speakers.
Select “USB” or “USB2” on the audio source selection screen.

Connecting a USB memory device

USB top screen

356

5-6. Using an external device

IS350 AWD/IS350/IS300 AWD/IS300_U

■

USB memory functions

●

Depending on the USB memory device that is connected to the system, the device

itself may not be operable and certain functions may not be available. If the device is

inoperable or a function is unavailable due to a malfunction (as opposed to a system

specification), disconnecting the device and reconnecting it may resolve the problem.

●

If the USB memory device still does not begin operation after being disconnected and

reconnected, format the device.

■

Error messages for USB memory
If the following error messages appear on the screen, refer to the table and take the

appropriate measures. If the problem is not rectified, take the vehicle to your Lexus

dealer.

■

USB memory

●

Compatible devices
USB memory devices that can be used for MP3, WMA and AAC playback.

●

Compatible device formats
The following device format can be used:
• USB communication format: USB2.0 FS (480 Mbps)

• File system format: FAT16/32 (Windows)

• Correspondence class: Mass storage class

MP3, WMA and AAC files written to a device with any format other than those

listed above may not play correctly, and their file names and folder names may not

be displayed correctly.

Items related to standards and limitations are as follows:
• Maximum directory hierarchy: 8 levels

• Maximum number of folders in a device: 3000 (including the root)

• Maximum number of files in a device: 9999

• Maximum number of files per folder: 255

Message

Cause/Correction procedures

“Connection error. Please con-

sult your Owner’s Manual for

instructions on how to connect

the USB device.”

This indicates a problem with the USB memory

device or its connection.

“There are no files available for

playback. Please add compati-

ble files to your USB device.”

This indicates that no MP3/WMA/AAC files are

included on the USB memory device.

357

5-6. Using an external device

xus
Dis
play Audi

o syst

IS350 AWD/IS350/IS300 AWD/IS300_U

●

MP3, WMA and AAC files

MP3 (MPEG Audio LAYER 3) is a standard audio compression format.

Files can be compressed to approximately 1/10 of their original size using MP3 com-

pression.
WMA (Windows Media Audio) is a Microsoft audio compression format. This format

compresses audio data to a size smaller than that of the MP3 format.
AAC is short for Advanced Audio Coding and refers to an audio compression technol-

ogy standard used with MPEG2 and MPEG4.
MP3, WMA and AAC file and media/formats compatibility are limited.

●

MP3 file compatibility
• Compatible standards

MP3 (MPEG1 AUDIO LAYERIII, MPEG2 AUDIO LAYERIII)

• Compatible sampling frequencies

MPEG1 AUDIO LAYERIII: 32, 44.1, 48 (kHz)

MPEG2 AUDIO LAYERIII: 16, 22.05, 24 (kHz)

• Compatible bit rates (compatible with VBR)

MPEG1 AUDIO LAYERIII: 32-320 (kbps)

MPEG2 AUDIO LAYERIII: 8-160 (kbps)

• Compatible channel modes: stereo, joint stereo, dual channel and monaural

●

WMA file compatibility
• Compatible standards

WMA Ver. 7, 8, 9 (only compatible with Window Media Audio Standard)

• Compatible sampling frequencies

32, 44.1, 48 (kHz)

• Compatible bit rates (only compatible with 2-channel playback)

Ver. 7, 8: CBR 48-192 (kbps)

Ver. 9: CBR 48-320 (kbps)

●

AAC file compatibility
• Compatible standards

MPEG4/AAC-LC

• Compatible sampling frequencies

11.025/12/16/22.05/24/32/44.1/48 (kHz)

• Compatible bit rates

16-320 (kbps)

• Compatible channel modes: 1 ch and 2 ch

●

File names
The only files that can be recognized as MP3/WMA/AAC and played are those with

the extension .mp3, .wma or .m4a.

●

ID3, WMA and AAC tags
ID3 tags can be added to MP3 files, making it possible to record the track title, artist

name, etc.
The system is compatible with ID3 Ver. 1.0, 1.1, and Ver. 2.2, 2.3 ID3 tags. (The number

of characters is based on ID3 Ver. 1.0 and 1.1.)
WMA tags can be added to WMA files, making it possible to record the track title and

artist name in the same way as with ID3 tags.
AAC tags can be added to AAC files, making it possible to record the track title and

artist name in the same way as with ID3 tags.

358

5-6. Using an external device

IS350 AWD/IS350/IS300 AWD/IS300_U

●

MP3, WMA and AAC playback
• When a device containing MP3, WMA or AAC files is connected, all files in the

USB memory device are checked. Once the file check is finished, the first MP3,

WMA or AAC file is played. To make the file check finish more quickly, we recom-

mend that you do not include any files other than MP3, WMA or AAC files or cre-

ate any unnecessary folders.

• When a USB memory device is connected and the audio source is changed to USB

memory mode, the USB memory device will start playing the first file in the first

folder. If the same device is removed and reconnected (and the contents have not

been changed), the USB memory device will resume play from the same point in

which it was last used.

●

Extensions
If the file extensions .mp3, .wma and .m4a are used for files other than MP3, WMA

and AAC files, they will be skipped (not played).

●

Playback
• To play MP3 files with steady sound quality, we recommend a fixed bit rate of at least

128 kbps and a sampling frequency of 44.1 kHz.

• There is a wide variety of freeware and other encoding software for MP3, WMA

and AAC files on the market, and depending on the status of the encoding and the

file format, poor sound quality or noise at the start of playback may result. In some

cases, playback may not be possible at all.

• Microsoft, Windows, and Windows Media are the registered trademarks of Micro-

soft Corporation in the U.S.A. and other countries.

NOTICE

■

To prevent damage to the USB memory device or its terminals

●

Depending on the size and shape of the USB memory that is connected to the sys-

tem, the console box may not close fully. In this case, do not forcibly close the console

box as this may damage the USB memory or the terminal, etc.

●

Do not leave the USB memory device in the vehicle. The temperature inside the vehi-

cle may become high.

●

Do not push down on or apply unnecessary pressure to the USB memory device

while it is connected.

●

Do not insert foreign objects into the port.

359

5-6. Using an external device

xus
Dis
play Audi

o syst

IS350 AWD/IS350/IS300 AWD/IS300_U

P. 321

Pressing the “MEDIA” button displays the top screen from any screen of the
selected source.

■

Menu screen
P. 335

■

Operating portable players connected to the audio system
Volume can be adjusted using the vehicle’s audio controls. All other adjustments must be

made on the portable player itself.

■

When using a portable player connected to the power outlet
Noise may occur during playback. Use the power source of the portable player.

Using the AUX port

To use the AUX port, connect a portable player, press the “MEDIA” button or
select “AUX” or “External” on the “Source” screen.

Connecting a portable player

Top screen

NOTICE

■

To prevent damage to the portable player or its terminal

●

Depending on the size and shape of the portable player that is connected to the sys-

tem, the console box may not close fully. In this case, do not forcibly close the console

box as this may damage the portable player or the terminal, etc.

●

Do not leave portable player in the vehicle. The temperature inside the vehicle may

become high.

●

Do not push down on or apply unnecessary pressure to the portable player while it is

connected.

●

Do not insert foreign objects into the port.

LEXUS IS 300 (2019 year). Instruction - part 22
