8-1. Specifications

Maintenance data (fuel, oil level, etc.)

: Unladen vehicles

: Vehicles without roof rails and shark fin antenna

: Vehicles with roof rails and without shark fin antenna

: Vehicles with shark fin antenna

: Vehicles without rear height control air suspension

: Vehicles with rear height control air suspension

Dimensions and weights

Overall length

189.2 in. (4880 mm)

Overall width

74.2 in. (1885 mm)

Overall height

71.7 in. (1820 mm)

2, 6

72.0 in. (1830 mm)

2, 5

72.2 in. (1835 mm)

3, 6

72.6 in. (1845 mm)

3, 5

73.8 in. (1875 mm)

4, 6

74.2 in. (1885 mm)

4, 5

Wheelbase

109.8 in. (2790 mm)

Front and rear tread

62.4 in. (1585 mm)

Vehicle capacity weight

(Occupants + luggage)

1280 lb. (580 kg)

1315 lb. (595 kg)

TWR (trailer weight +

cargo weight) (With

towing hitch)

With brake

6500 lb. (2950 kg)

Without brake

1000 lb. (453 kg)

569

■

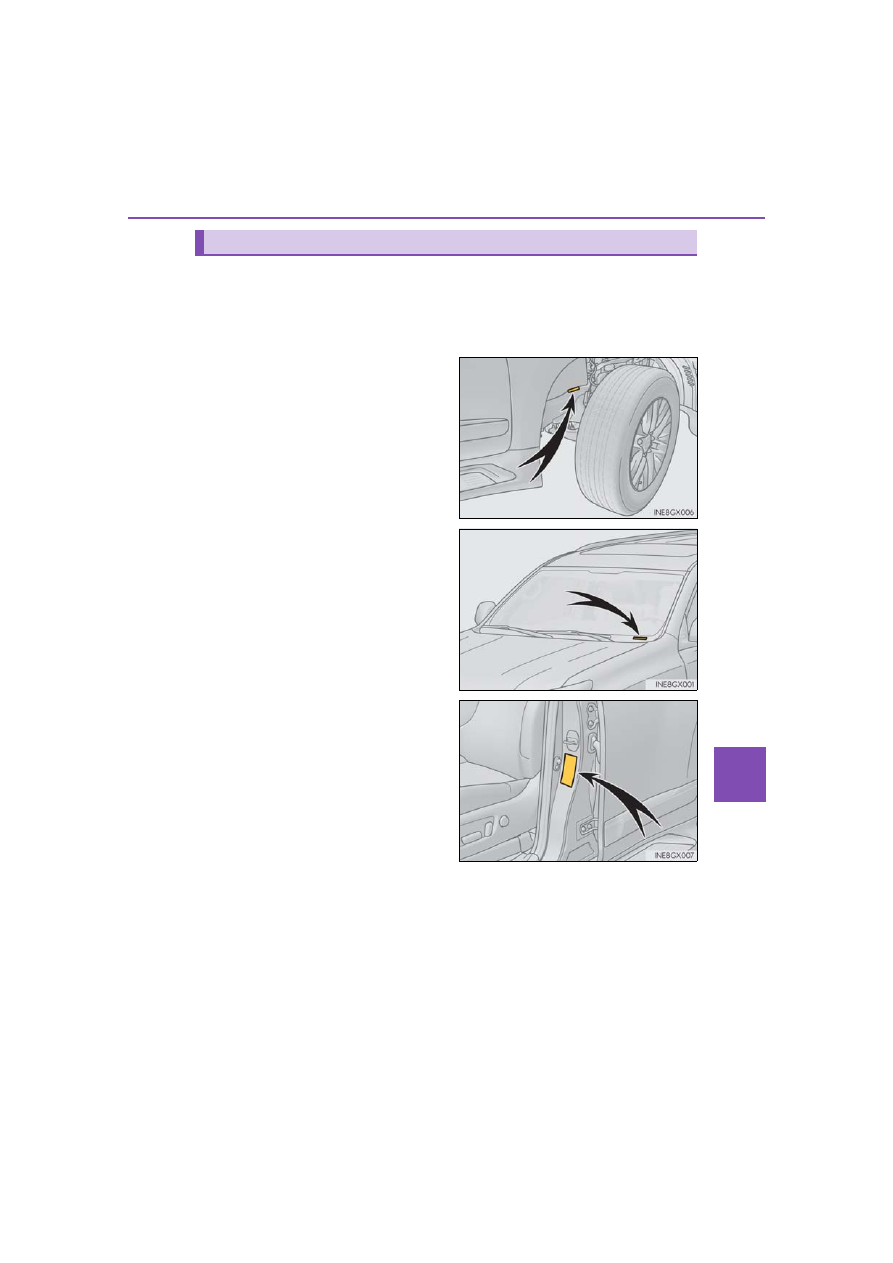

Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your vehicle.
This is the primary identification number for your Lexus. It is used in register-
ing the ownership of your vehicle.
This number is stamped on the front
right frame.

This number is also stamped on the
top left of the instrument panel.

This number is also on the Certifica-
tion label on the left-hand side cen-
ter pillar.

Vehicle identification

570

8-1. Specifications

■

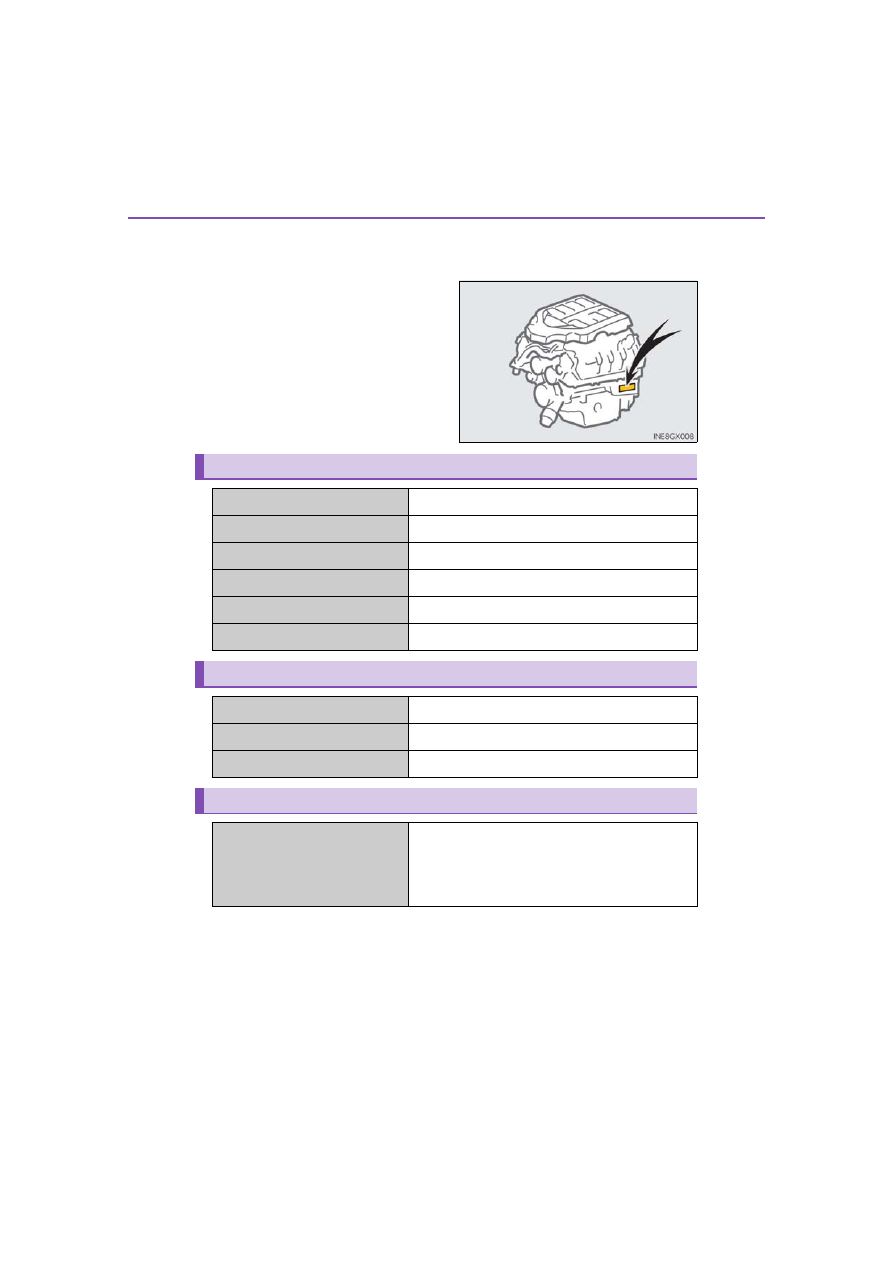

Engine number
The engine number is stamped on the engine block as shown.

: The engine oil capacity is a reference quantity to be used when changing the engine

oil. Warm up and turn off the engine, wait more than 5 minutes, and check the oil level
on the dipstick.

Engine

Model

4.6 L 8-cylinder (1UR-FE)

Type

8-cylinder V type, 4-cycle, gasoline

Bore and stroke

3.70

 3.27 in. (94.0  83.0 mm)

Displacement

281.2 cu.in. (4608 cm

)

Valve clearance

Automatic adjustment

Drive belt tension

Automatic adjustment

Fuel

Fuel type

Unleaded gasoline only

Octane rating

91 (Research Octane Number 96) or higher

Fuel tank capacity (Reference)

23.0 gal. (87 L, 19.1 Imp.gal.)

Lubrication system

Oil capacity

(Drain and refill — reference

)

With filter

Without filter

8.2 qt. (7.8 L, 6.9 Imp.qt.)

7.8 qt. (7.4 L, 6.5 Imp.qt.)

571

■

Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the following
grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good start-
ing in cold weather.
If SAE 0W-20 is not available, SAE
5W-20 oil may be used. However, it
must be replaced with SAE 0W-20
at the next oil change.

Oil viscosity (0W-20 is explained here as an example):

• The 0W in 0W-20 indicates the characteristic of the oil which allows cold

startability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.

• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the

oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.

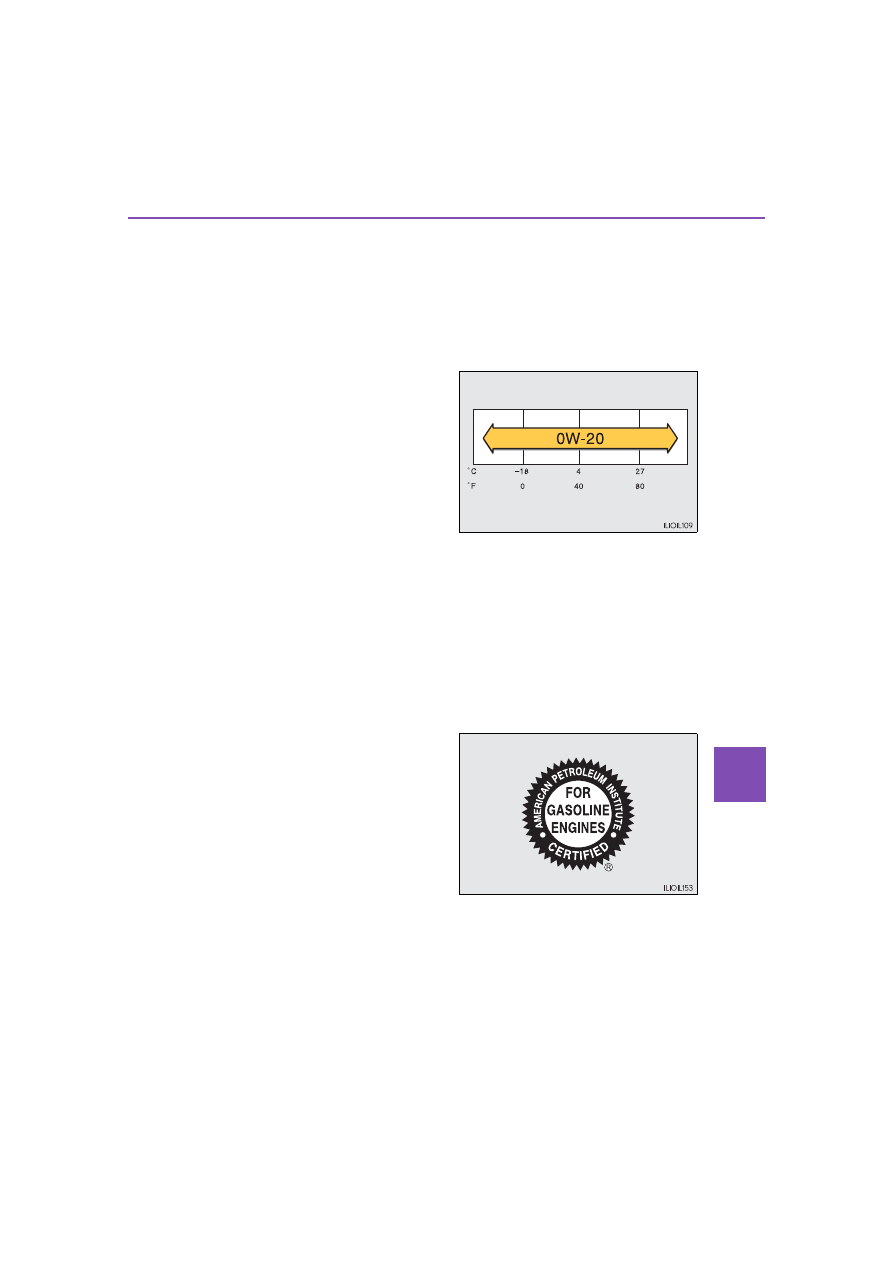

How to read oil container label:
The International Lubricant Specifi-
cation Advisory Committee (ILSAC)
Certification Mark is added to some
oil containers to help you select the
oil you should use.

Outside temperature

572

8-1. Specifications

Cooling system

Capacity

(reference)

With rear heater

16.3 qt. (15.4 L, 13.6 Imp.qt.)

Without rear heater 14.5 qt. (13.7 L, 12.1 Imp.qt.)

Coolant type

Use either of the following:

• “Toyota Super Long Life Coolant”

• A similar high-quality ethylene glycol-based

non-silicate, non-amine, non-nitrite, and

non-borate coolant with long-life hybrid

organic acid technology

Do not use plain water alone.

Ignition system (spark plug)

Make

DENSO SK20HR11

Gap

0.043 in. (1.1 mm)

NOTICE

■

Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

573

: Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the factory.

Use Lexus approved “Toyota Genuine Differential Gear Oil” or an equivalent of
matching quality to satisfy the above specification. Please contact your Lexus dealer
for further details.

*: Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the factory.

Use Lexus approved “Toyota Genuine Differential Gear Oil” or an equivalent of
matching quality to satisfy the above specification. Please contact your Lexus dealer
for further details.

Electrical system (battery)

Specific gravity reading at

F (20C):

12.6

 12.8 V Fully charged

12.2

 12.4 V Half charged

11.8

 12.0 V Discharged

Voltage is checked 20 minutes after the engine

and all the lights are turned off.

Charging rates

5 A max.

Front differential

Oil capacity

1.48 qt. (1.40 L, 1.23 Imp.qt.)

Oil type and viscosity

Toyota Genuine Differential Gear Oil LT 75W-85

GL-5 or equivalent

Rear differential

Oil capacity

2.85 qt. (2.70 L, 2.38 Imp.qt.)

Oil type and viscosity*

Toyota Genuine Differential Gear Oil LT 75W-85

GL-5 or equivalent

574

8-1. Specifications

: The fluid capacity is a reference quantity. If replacement is necessary, contact your

Lexus dealer.

: Your Lexus vehicle is filled with “Toyota Genuine Transfer Gear oil LF” at the factory.

Use Lexus approved “Toyota Genuine Transfer Gear oil LF” or an equivalent of
matching quality to satisfy the above specification. Please contact your Lexus dealer
for further details.

Automatic transmission

Fluid

capacity

With air-cooled type

ATF cooler

11.8 qt. (11.2 L, 9.9 Imp.qt.)

Without air-cooled

type ATF cooler

11.6qt. (11.0 L, 9.7 Imp.qt.)

Fluid type

Toyota Genuine ATF WS

NOTICE

■

Transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause deterioration

in shift quality, locking up of the transmission accompanied by vibration and, ultimately,

damage to the vehicle’s transmission.

Transfer

Oil capacity

1.5 qt. (1.4 L, 1.2 Imp.qt.)

Oil type

Toyota Genuine Transfer Gear oil LF or equivalent

Recommended oil viscosity

SAE 75W

575

: Minimum pedal clearance when depressed with a force of 110 lbf (490 N, 50 kgf)

while the engine is running

: Parking brake pedal travel when pulled up with a force of 44.1 lbf (196 N, 20.0 kgf)

Brakes

Pedal clearance

3.4 in. (86 mm) Min.

Pedal free play

0.04

 0.24 in. (1  6 mm)

Brake pad wear limit

0.04 in. (1.0 mm)

Parking brake lining wear limit 0.04 in. (1.0 mm)

Parking brake pedal
travel

 7 clicks

Fluid type

SAE J1703 or FMVSS No. 116 DOT 3

Chassis lubrication (Propeller shafts)

Spider

Lithium base chassis grease, NLGI No.2

Slide yoke

Molybdenum-disulfide lithium base chassis grease,

NLGI No.2 or lithium base chassis grease, NLGI No.2

576

8-1. Specifications

Steering

Free play

Less than 1.18 in. (30 mm)

Power steering fluid type

Automatic transmission fluid DEXRON

II or III

Tires and wheels

Tire size

P265/60R18 109H

Tire inflation pressure

(Recommended cold tire

inflation pressure)

Front tire

32 psi (220 kPa, 2.2 kgf/cm

or bar)

Rear tire

32 psi (220 kPa, 2.2 kgf/cm

or bar)

Spare tire

32 psi (220 kPa, 2.2 kgf/cm

or bar)

Wheel size

 7 1/2J

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

577

Light bulbs

Bulb No.

Type

Exterior

Headlights (High beam)

9703

Front turn signal lights



Rear turn signal lights



Back-up lights

921

Rear side marker lights



Running board lights



Interior

Personal/

Interior lights

Front



Rear



Vanity lights



Door courtesy lights



A: H9 halogen bulbs

B: Wedge base bulb (amber)

C: Wedge base bulb (clear)

578

8-1. Specifications

Fuel information

■

Gasoline quality
In very few cases, driveability problems may be caused by the brand of gasoline you are

using. If driveability problems persist, try changing the brand of gasoline. If this does not

correct the problem, consult your Lexus dealer.

■

Recommendation of the use of gasoline containing detergent additives

●

Lexus recommends the use of gasoline that contains detergent additives to avoid the

build-up of engine deposits.

●

All gasoline sold in the U.S.A. contains minimum detergent additives to clean and/or

keep clean intake systems, per EPA’s lowest additives concentration program.

●

Lexus strongly recommends the use of Top Tier Detergent Gasoline. For more informa-

tion on Top Tier Detergent Gasoline and a list of marketers, please go to the official

website www.toptiergas.com.

■

Recommendation of the use of low emissions gasoline
Gasolines containing oxygenates such as ethers and ethanol, as well as reformulated

gasolines, are available in some cities. These fuels are typically acceptable for use, pro-

viding they meet other fuel requirements.

Lexus recommends these fuels, since the formulations allow for reduced vehicle emis-

sions.

You must only use unleaded gasoline.
Select premium unleaded gasoline with an octane rating of 91 (Research
Octane Number 96) or higher required for optimum engine performance
and fuel economy. If the octane rating is less than 91, damage to the engine
may occur and may void the vehicle warranty.
At minimum, the gasoline you use should meet the specifications of ASTM
D4814 in the U.S.A..

579

■

Non-recommendation of the use of blended gasoline

●

If you use gasohol in your Lexus, be sure that it has an octane rating no lower than 91.

●

Lexus does not recommend the use of gasoline containing methanol.

■

Non-recommendation of the use of gasoline containing MMT
Some gasoline contains an octane enhancing additive called MMT (Methylcy clopenta-

dienyl Manganese Tricarbonyl).
Lexus does not recommend the use of gasoline that contains MMT. If fuel containing

MMT is used, your emission control system may be adversely affected.
The malfunction indicator lamp on the instrument cluster may come on. If this happens,

contact your Lexus dealer for service.

■

If your engine knocks

●

Consult your Lexus dealer.

●

You may occasionally notice light knocking for a short time while accelerating or driv-

ing uphill. This is normal and there is no need for concern.

●

Use only gasoline containing up to 15% etha-

nol.

DO NOT use any flex-fuel or gasoline that

could contain more than 15% ethanol, includ-

ing from any pump labeled E30, E50, E85

(which are only some examples of fuel con-

taining more than 15% ethanol).

DO NOT use gasoline con-
taining more than 15% ethanol.

(30% ethanol)

(50% ethanol)

(85% ethanol)

580

8-1. Specifications

NOTICE

■

Notice on fuel quality

●

Do not use improper fuels. If improper fuels are used, the engine will be damaged.

●

Do not use leaded gasoline.

Leaded gasoline can cause damage to your vehicle’s three-way catalytic converters

causing the emission control system to malfunction.

●

Do not use gasohol other than the type previously stated.

Other gasohol may cause fuel system damage or vehicle performance problems.

●

Using unleaded gasoline with an octane number or rating lower than the level previ-

ously stated may cause persistent heavy knocking.

At worst, this may lead to engine damage and will void the vehicle warranty.

■

Fuel-related poor driveability
If poor driveability (poor hot starting, vaporization, engine knocking, etc.) is encoun-

tered after using a different type of fuel, discontinue the use of that type of fuel.

■

When refueling with gasohol
Take care not to spill gasohol. It can damage your vehicle’s paint.

581

Tire information

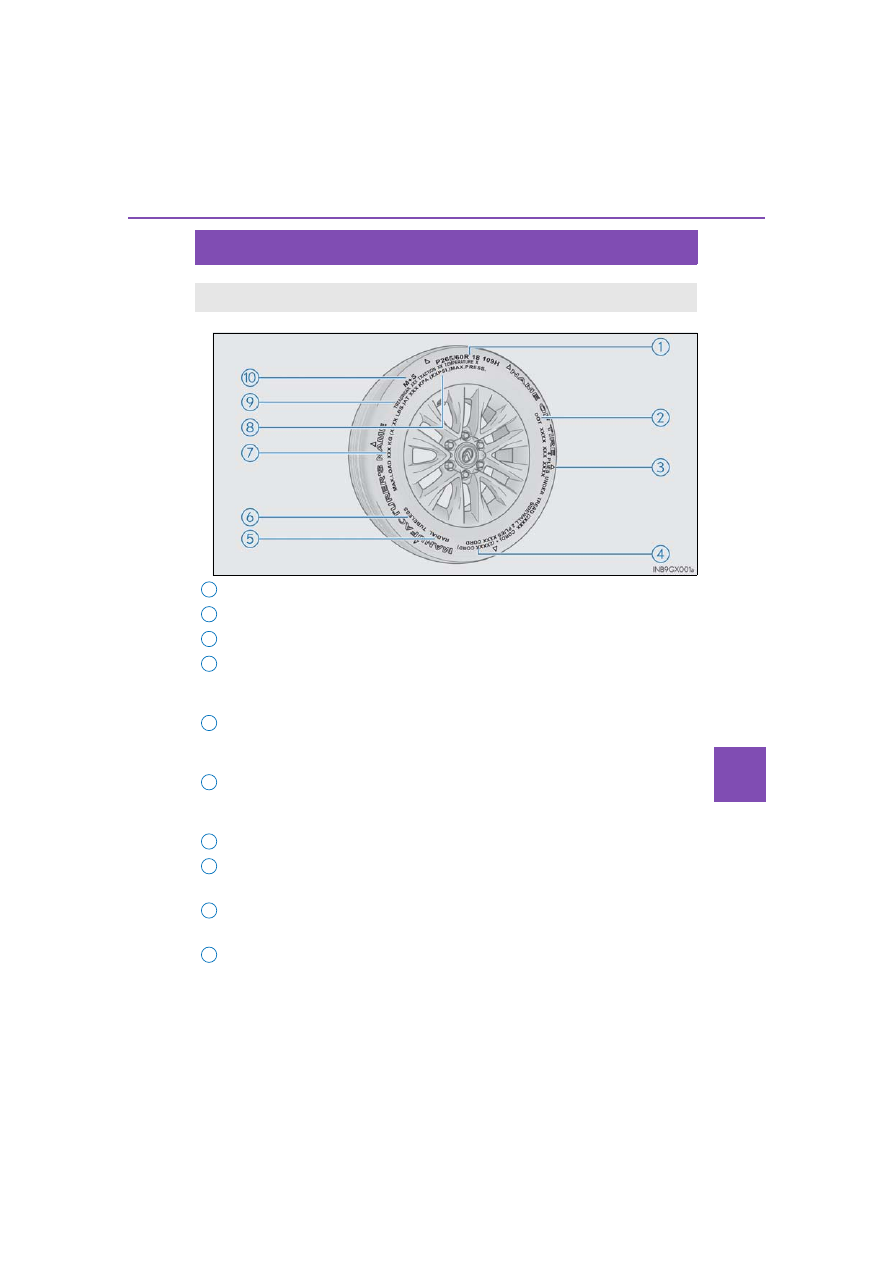

Tire size

(

P. 583)

DOT and Tire Identification Number (TIN)

(

P. 582)

Location of treadwear indicators

(

P. 474)

Tire ply composition and materials

Plies are layers of rubber-coated parallel cords. Cords are the strands which form the

plies in a tire.

Radial tires or bias-ply tires

A radial tire has “RADIAL” on the sidewall. A tire not marked “RADIAL” is a bias-ply

tire.

TUBELESS or TUBE TYPE

A tubeless tire does not have a tube and air is directly put into the tire. A tube type tire

has a tube inside the tire and the tube maintains the air pressure.

Load limit at maximum cold tire inflation pressure

(

P. 587)

Maximum cold tire inflation pressure

(

P. 587)

This means the pressure to which a tire may be inflated.

Uniform tire quality grading

For details, see “Uniform Tire Quality Grading” that follows.

Summer tires or all season tires

(

P. 477)

An all season tire has “M+S” on the sidewall. A tire not marked “M+S” is a summer

tire.

Typical tire symbols

2
3
4

582

8-1. Specifications

DOT symbol

Tire Identification Number (TIN)
Tire manufacturer’s identification mark
Tire size code
Manufacturer’s optional tire type code (3 or 4 letters)
Manufacturing week
Manufacturing year
Manufacturer’s code

: The DOT symbol certifies that the tire conforms to applicable Federal Motor Vehicle

Safety Standards.

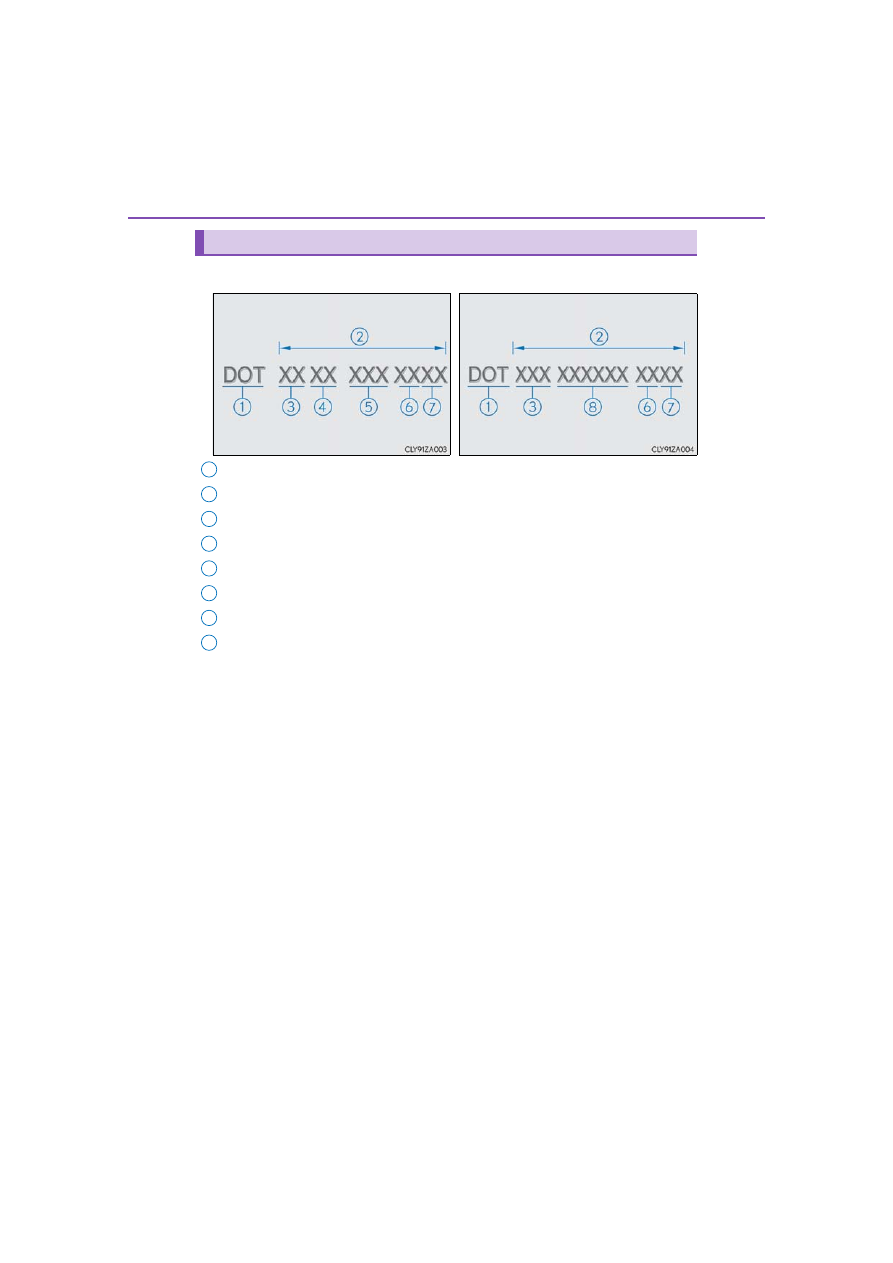

Typical DOT and Tire Identification Number (TIN)



Type A



Type B

2
3
4
5
6
7
8

583

■

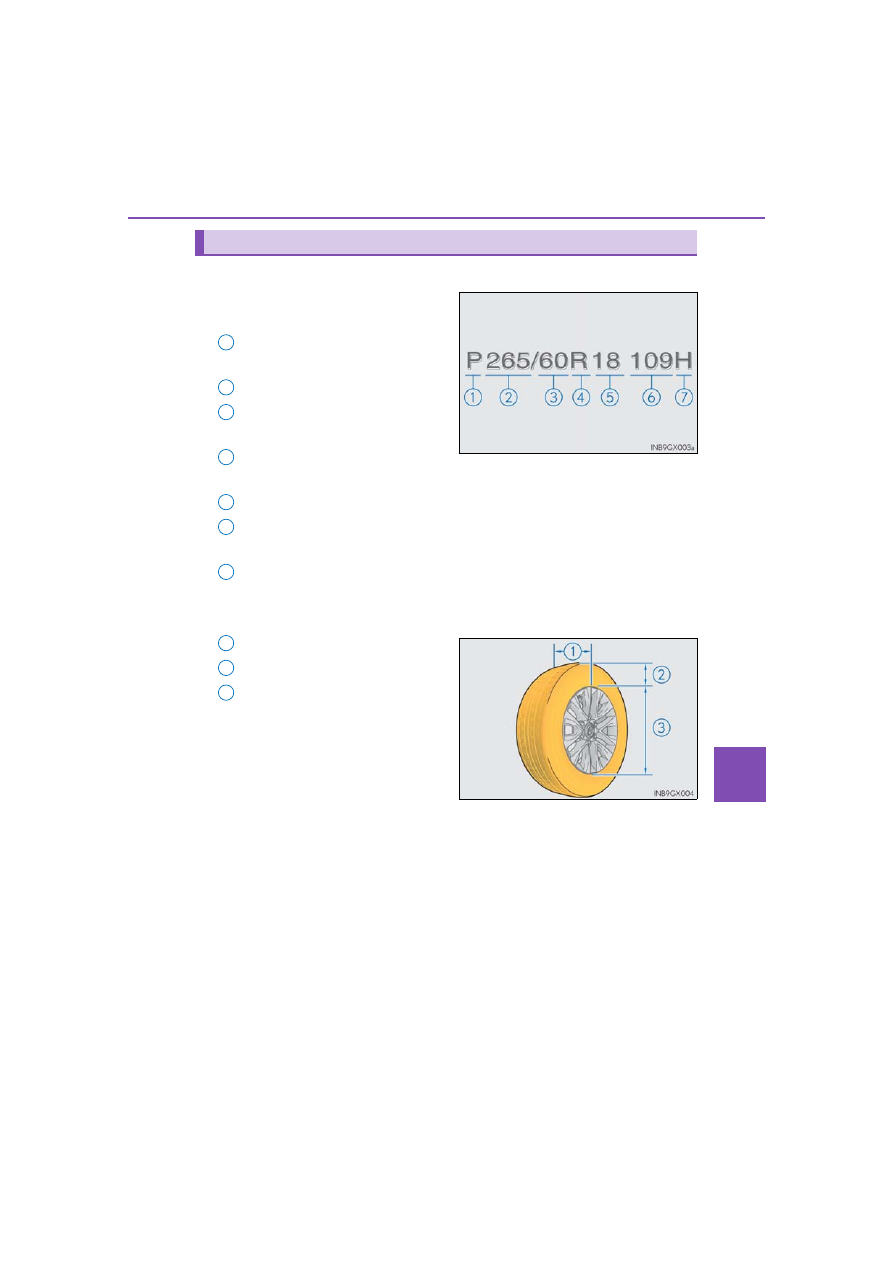

Typical tire size information
The illustration indicates typical tire
size.

Tire use (P = Passenger car,
T = Temporary use)
Section width (millimeters)
Aspect ratio
(tire height to section width)
Tire construction code
(R = Radial, D = Diagonal)
Wheel diameter (inches)
Load index
(2 digits or 3 digits)
Speed symbol
(alphabet with one letter)

■

Tire dimensions

Section width
Tire height
Wheel diameter

Tire size

2
3

5
6

2
3

LEXUS GX 460 (2019 year). Instruction - part 36
