294

5-6. Using the other interior features

when operating Lexus Enform Remote.

In some states, use of Lexus Enform

Remote may violate state or local laws.

Before using Lexus Enform Remote,

check your state and local laws.

●

Any malfunction of the Lexus should be

repaired by your Lexus dealer.

●

Lexus Enform Remote is designed to

work at temperatures above -22°F (-

30°C). This specification is related to the

Lexus Enform Remote operation, but is

dependent on the vehicle’s operating

temperature range which may be differ-

ent.

●

Content is subject to change without

notice.

●

Some features of the Lexus Enform

Remote may not be available on some

models.

●

Additional information can be found at

www.lexus.com/enform/.

●

Availability of functions of the Lexus

Enform service is dependent on network

reception level.

■

Safety information for Lexus Enform

Remote

Refer to the safety information for Safety

Connect:

P.291

*

: If equipped

■

Availability of service

Lexus Enform Service Connect is not avail-

able in some countries or areas.

■

Lexus Enform Service Connect Infor-

mation

Availability of functions of the Lexus Enform

Service Connect is dependent on network

reception level.

■

Safety information for Lexus Enform

Service Connect

Refer to the safety information for Safety

Connect:

P.291

Lexus Enform Service Con-
nect

*

Lexus Enform Service Connect
uses DCM (Data Communication
Module) to collect and transmit
vehicle data that allows Lexus to
provide:
 Vehicle Health Report (VHR)

(Safety Recalls, Service Cam-
paigns, Current Vehicle Alerts,
Required Maintenance, and Vehi-
cle Condition Status)

 Maintenance Notifications
 Vehicle Alert Notifications
For details about this service and
how to register, refer to
http://www.lexus.com/enform/.
The Lexus Enform Service Con-
nect is achieved by using a DCM
built in the vehicle.

295

6

6

Maintenance and

 care

Maintenance and care

6-1. Maintenance and care

Cleaning and protecting the vehi-

cle exterior................................

296

Cleaning and protecting the vehi-

cle interior .................................

299

6-2. Maintenance

Maintenance requirements ...

301

General maintenance.............

302

Emission inspection and mainte-

nance (I/M) programs .........

305

6-3. Do-it-yourself maintenance

Do-it-yourself service precautions

........................................................

306

Hood...............................................

308

Positioning a floor jack............

308

Engine compartment................

310

Tires .................................................

316

Tire inflation pressure..............

325

Wheels...........................................

327

Air conditioning filter...............

328

Electronic key battery.............

330

Checking and replacing fuses

331

Headlight aim..............................

333

Light bulbs....................................

335

296

6-1. Maintenance and care

6-1.Maintenance and care

 Working from top to bottom, liber-

ally apply water to the vehicle body,
wheel wells and underside of the
vehicle to remove any dirt and dust.

 Wash the vehicle body using a

sponge or soft cloth, such as a
chamois.

 For hard-to-remove marks, use car

wash soap and rinse thoroughly with
water.

 Wipe away any water.
 Wax the vehicle when the water-

proof coating deteriorates.

If water does not bead on a clean surface,
apply wax when the vehicle body is cool.

■

Self-restoring coat

The vehicle body has a self-restoring coat-

ing that is resistant to small surface

scratches caused in a car wash etc.

●

The coating lasts for 5 to 8 years from

when the vehicle is delivered from the

plant.

●

The restoration time differs depending on

the depth of the scratch and outside tem-

perature.

The restoration time may become

shorter when the coating is warmed by

applying warm water.

●

Deep scratches caused by keys, coins,

etc. cannot be restored.

●

Do not use wax that contain abrasives.

■

Automatic car washes

●

Fold the mirrors before washing the vehi-

cle. Start washing from the front of the

vehicle. Make sure to extend the mirrors

before driving.

●

Brushes used in automatic car washes

may scratch the vehicle body and dam-

age the paint.

●

Rear spoiler (if equipped) may not be

washable in some automatic car washes.

There may also be an increased risk of

damage to vehicle.

■

High pressure car washes

●

Do not allow the nozzles of the car wash

to come within close proximity of the win-

dows.

●

Before using the car wash, check that the

fuel filler door on your vehicle is closed

properly.

■

Notes for the smart access system with

push-button start

If the door handle becomes wet while the

electronic key is within the effective range,

the door may lock and unlock repeatedly. In

that case, follow the following correction

procedures to wash the vehicle:

●

Place the key in a position 6 ft. (2 m) or

more separate from the vehicle while the

vehicle is being washed. (Take care to

ensure that the key is not stolen.)

●

Set the electronic key to battery-saving

mode to disable the smart access system

with push-button start. (

P.101)

■

Aluminum wheels

●

Remove any dirt immediately by using a

neutral detergent.

●

Wash detergent off with water immedi-

ately after use.

●

To protect the paint from damage, make

sure to observe the following precau-

tions.

• Do not use acidic, alkaline or abrasive

detergent

• Do not use hard brushes

• Do not use detergent on the wheels when

they are hot, such as after driving or park-

ing in hot weather

Cleaning and protecting the
vehicle exterior

Perform cleaning in a manner
appropriate to each component
and its material.

Cleaning instructions

297

6-1. Maintenance and care

6

Maintenance and

 care

■

Bumpers

Do not scrub with abrasive cleaners.

■

Front side windows water-repellent

coating

●

The following precautions can extend the

effectiveness of the water-repellent coat-

ing.

• Remove any dirt, etc. from the front side

windows regularly.

• Do not allow dirt and dust to accumulate

on the windows for a long period.

Clean the windows with a soft, damp

cloth as soon as possible.

• Do not use wax or glass cleaners that

contain abrasives when cleaning the win-

dows.

• Do not use any metallic objects to

remove condensation build up.

●

When the water-repellent performance

has become insufficient, the coating can

be repaired. Contact your Lexus dealer.

WARNING

■

When washing the vehicle

Do not apply water to the inside of the

engine compartment. Doing so may

cause the electrical components etc. to

catch fire.

■

When cleaning the windshield (vehi-

cles with rain-sensing windshield wip-

ers)

Set the wiper switch to off.
If the wiper switch is in “AUTO”, the wip-

ers may operate unexpectedly in the fol-

lowing situations, and may result in hands

being caught or other serious injuries

and cause damage to the wiper blades.

Off

AUTO

●

When the upper part of the windshield

where the raindrop sensor is located is

touched by hand

●

When a wet rag or similar is held close

to the raindrop sensor

●

If something bumps against the wind-

shield

●

If you directly touch the raindrop sen-

sor body or if something bumps into

the raindrop sensor

■

Precautions regarding the exhaust

pipes and rear bumper diffusers

As exhaust gases cause the exhaust

pipes and rear bumper diffusers to

become quite hot, do not touch the

exhaust pipes and rear bumper diffusers

while the engine is running or immedi-

ately after the engine is turned off.
When washing the vehicle, be careful not

to touch the exhaust pipes and rear

bumper diffusers until they have cooled

sufficiently, as touching hot exhaust pipes

and rear bumper diffusers can cause

burns.

A

B

298

6-1. Maintenance and care

WARNING

■

Precaution regarding the rear

bumper with Blind Spot Monitor (if

equipped)

If the paint of the rear bumper is chipped

or scratched, the system may malfunc-

tion. If this occurs, consult your Lexus

dealer.

NOTICE

■

To prevent paint deterioration and

corrosion on the body and compo-

nents (aluminum wheels etc.)

●

Wash the vehicle immediately in the

following cases:

• After driving near the sea coast
• After driving on salted roads
• If coal tar, pollen or tree sap is present

on the paint surface

• If dead insects, insect droppings or

bird droppings are present on the

paint surface

• After driving in an area contaminated

with soot, oily smoke, mine dust, iron

powder or chemical substances

• If the vehicle becomes heavily soiled

with dust or mud

• If liquids such as benzene and gasoline

are spilled on the paint surface

●

If the paint is chipped or scratched,

have it repaired immediately.

●

To prevent the wheels from corroding,

remove any dirt and store in a place

with low humidity when storing the

wheels.

■

Cleaning the exterior lights

●

Wash carefully. Do not use organic

substances or scrub with a hard brush.

This may damage the surfaces of the

lights.

●

Do not apply wax to the surfaces of the

lights.

Wax may cause damage to the lenses.

■

When using an automatic car wash

(vehicles with rain-sensing windshield

wipers)

Set the wiper switch to the off position.
If the wiper switch is in “AUTO”, the wip-

ers may operate and the wiper blades

may be damaged.

■

When using a high-pressure car wash

●

When washing the vehicle, do not let

water of the high-pressure washer hit

directly or the vicinity of the camera.

Due to the shock from the high-pres-

sure water, it is possible the device may

not operate as normal.

●

Do not bring the nozzle tip close to

boots (rubber or resin manufactured

cover), connectors or the following

parts. The parts may be damaged if

they come into contact with high-pres-

sure water.

• Traction related parts
• Steering  parts
• Suspension parts
• Brake parts

●

Keep the cleaning nozzle at least 11.9

in. (30 cm) away from the vehicle

body. Otherwise resin section, such as

molding and bumpers, may be

deformed and damaged.

Also, do not continuously hold the

nozzle in the same place.

299

6-1. Maintenance and care

6

Maintenance and

 care

 Remove dirt and dust using a vac-

uum cleaner. Wipe dirty surfaces
with a cloth dampened with luke-
warm water.

 If dirt cannot be removed, wipe it off

with a soft cloth dampened with
neutral detergent diluted to approx-
imately 1%.
Wring out any excess water from
the cloth and thoroughly wipe off
remaining traces of detergent and
water.

■

Shampooing the carpets

There are several commercial foaming-type

cleaners available. Use a sponge or brush

to apply the foam. Rub in overlapping cir-

cles. Do not use water. Wipe dirty surfaces

and let them dry. Excellent results are

obtained by keeping the carpet as dry as

possible.

■

Handling the seat belts

Clean with mild soap and lukewarm water

using a cloth or sponge. Also check the

belts periodically for excessive wear, fraying

or cuts.

■

When cleaning the carpeted portions of

the glove box, console box, etc.

If a strong adhesive tape is used, there is a

possibility that the surface of the carpet

could be damaged.

Cleaning and protecting the
vehicle interior

Perform cleaning in a manner
appropriate to each component
and its material.

Protecting the vehicle interior

WARNING

■

Water in the vehicle

●

Do not splash or spill liquid in the vehi-

cle.

Doing so may cause electrical compo-

nents etc. to malfunction or catch fire.

●

Do not get any of the SRS components

or wiring in the vehicle interior wet.

(

P.28)

An electrical malfunction may cause

the airbags to deploy or not function

properly, resulting in death or serious

injury.

■

Cleaning the interior (especially

instrument panel)

Do not use polish wax or polish cleaner.

The instrument panel may reflect off the

windshield, obstructing the driver’s view

and leading to an accident, resulting in

death or serious injury.

NOTICE

■

Cleaning detergents

●

Do not use the following types of

detergent, as they may discolor the

vehicle interior or cause streaks or

damage to painted surfaces:

• Non-seat portions: Organic sub-

stances such as benzene or gasoline,

alkaline or acidic solutions, dye, and

bleach

• Seats: Alkaline or acidic solutions,

such as thinner, benzene, and alcohol

●

Do not use polish wax or polish

cleaner. The instrument panel’s or

other interior part’s painted surface

may be damaged.

■

Preventing damage to leather sur-

faces

Observe the following precautions to

avoid damage to and deterioration of

leather surfaces:

●

Remove any dust or dirt from leather

surfaces immediately.

300

6-1. Maintenance and care

 Remove dirt using a water-damp-

ened soft cloth or synthetic chamois.

 Wipe the surface with a dry soft

cloth to remove any remaining
moisture.

■

Cleaning the areas with satin-finish

metal accents

The metal areas use a layer of real metal for

the surface. It is necessary to clean them

regularly. If dirty areas are left uncleaned for

long periods of time, they may be difficult to

clean.

 Remove dirt and dust using a vac-

uum cleaner.

 Wipe off any excess dirt and dust

with a soft cloth dampened with
diluted detergent.

Use a diluted water solution of approxi-
mately 5% neutral wool detergent.

 Wring out any excess water from

the cloth and thoroughly wipe off all
remaining traces of detergent.

 Wipe the surface with a dry soft

cloth to remove any remaining
moisture. Allow the leather to dry in
a shaded and ventilated area.

■

Caring for leather areas

Lexus recommends cleaning the interior of

the vehicle at least twice a year to maintain

the quality of the vehicle’s interior.

 Remove dirt and dust using a vac-

uum cleaner.

 Wipe it off with a soft cloth damp-

ened with neutral detergent diluted
to approximately 1%.

 Wring out any excess water from

the cloth and thoroughly wipe off
remaining traces of detergent and
water.

NOTICE

●

Do not expose the vehicle to direct

sunlight for extended periods of time.

Park the vehicle in the shade, espe-

cially during summer.

●

Do not place items made of vinyl, plas-

tic, or containing wax on the uphol-

stery, as they may stick to the leather

surface if the vehicle interior heats up

significantly.

■

Water on the floor

Do not wash the vehicle floor with water.

Vehicle systems such as the audio system

may be damaged if water comes into

contact with electrical components such

as the audio system above or under the

floor of the vehicle. Water may also

cause the body to rust.

■

When cleaning the inside of the wind-

shield

Do not allow glass cleaner to contact the

lens. Also, do not touch the lens.

(

P.163)

■

Cleaning the inside of the rear win-

dow

●

Do not use glass cleaner to clean the

rear window, as this may cause dam-

age to the rear window defogger

heater wires or antenna. Use a cloth

dampened with lukewarm water to

gently wipe the window clean. Wipe

the window in strokes running parallel

to the heater wires or antenna.

●

Be careful not to scratch or damage

the heater wires or antenna.

Cleaning the areas with satin-fin-
ish metal accents

Cleaning the leather areas

Cleaning the synthetic leather
areas

301

6-2. Maintenance

6

Maintenance and

 care

6-2.Maintenance

■

Repair and replacement

It is recommended that genuine Lexus parts

be used for repairs to ensure performance

of each system. If non-Lexus parts are used

in replacement or if a repair shop other than

a Lexus dealer performs repairs, confirm

the warranty coverage.

■

Allow inspection and repairs to be per-

formed by a Lexus dealer

●

Lexus technicians are well-trained spe-

cialists and are kept up to date with the

latest service information. They are well

informed about the operations of all sys-

tems on your vehicle.

●

Keep a copy of the repair order. It proves

that the maintenance that has been per-

formed is under warranty coverage. If any

problem should arise while your vehicle is

under warranty, your Lexus dealer will

promptly take care of it.

General maintenance should be per-
formed on a daily basis. This can be
done by yourself or by a Lexus dealer.

Scheduled maintenance should be
performed at specified intervals
according to the maintenance sched-
ule.

For details about maintenance items and
schedules, refer to the “Warranty and Ser-
vice Guide”, “Owner’s Manual Supple-
ment” or “Scheduled Maintenance”.

■

Resetting the message indicating main-

tenance is required

After the required maintenance is per-

formed according to the maintenance

schedule, please reset the message.

To reset the message, follow the procedure

described below:

1

Press

 or

 of the meter control

switches and select

.

2

Press

 or

 of the meter control

switches and select “Vehicle Settings”.

Then press “OK”.

Maintenance requirements

To ensure safe and economical driv-
ing, day-to-day care and regular
maintenance are essential. It is the
owner’s responsibility to perform
regular checks. Lexus recommends
the following maintenance:

WARNING

■

If your vehicle is not properly main-

tained

Improper maintenance could result in

serious damage to the vehicle and possi-

ble death or serious injury.

■

Handling of the battery

●

Engine exhaust, some of its constitu-

ents, and a wide variety of automobile

components contain or emit chemicals

known to the State of California to

cause cancer and birth defects and

other reproductive harm. Work in a

well ventilated area.

●

Oils, fuels and fluids contained in vehi-

cles as well as waste produced by

component wear contain or emit

chemicals known to the State of Cali-

fornia to cause cancer and birth

defects or other reproductive harm.

Avoid exposure and wash any affected

area immediately.

●

Battery posts, terminals and related

accessories contain lead and lead

compounds which are known to cause

brain damage. Wash your hands after

handling. (

P.314)

General maintenance

Scheduled maintenance

302

6-2. Maintenance

3

Press

 or

 of the meter control

switches and select “Scheduled Mainte-

nance”. Then press “OK”.

4

Select “Yes” and press “OK”.

A message will be displayed when the reset

procedure has been completed.

You can perform some maintenance
procedures by yourself.
Please be aware that do-it-yourself
maintenance may affect warranty cov-
erage.

The use of Lexus repair manuals is recom-
mended.
For details about warranty coverage, refer
to the separate “Owner’s Guide”, “War-
ranty and Service Guide”, “Owner’s Man-
ual Supplement” or “Warranty Booklet”.

Do-it-yourself maintenance

General maintenance

Listed below are the general main-
tenance items that should be per-
formed at the intervals specified in
the “Warranty and Service Guide”
or “Owner’s Manual Supplement”.
It is recommended that any prob-
lem you notice should be brought to
the attention of your Lexus dealer
or qualified service shop for advice.

WARNING

■

If the engine is running

Turn the engine off and ensure that there

is adequate ventilation before perform-

ing maintenance checks.

Engine compartment

Items

Check points

Battery

Check the battery fluid
level and connections.
(

P.314)

Brake fluid

Is the brake fluid at the
correct level?
(

P.313)

Engine coolant

Is the engine coolant at
the correct level?
(

P.312)

Engine oil

Is the engine oil at the
correct level?
(

P.310)

Exhaust system

There should not be
any fumes or strange
sounds.

303

6-2. Maintenance

6

Maintenance and

 care

Radiator/con-
denser

The radiator and con-
denser should be free
from foreign objects.
(

P.313)

Washer fluid

Is there sufficient
washer fluid?
(

P.315)

Vehicle interior

Items

Check points

Accelerator
pedal

• The accelerator

pedal should move
smoothly (without
uneven pedal effort
or catching).

Automatic trans-
mission “Park”
mechanism

• When  parked  on  a

slope and the shift
lever is in P, is the
vehicle securely
stopped?

Brake pedal

• Does  the  brake

pedal move
smoothly?

• Does  the  brake

pedal have appro-
priate clearance
from the floor?

• Does  the  brake

pedal have the cor-
rect amount of free
play?

Items

Check points

Brakes

• The  vehicle  should

not pull to one side
when the brakes are
applied.

• The brakes should

work effectively.

• The brake pedal

should not feel
spongy.

• The brake pedal

should not get too
close to the floor
when the brakes are
applied.

Head restraints

• Do  the  head

restraints move
smoothly and lock
securely?

Indicators/buzz-
ers

• Do  the  indicators

and buzzers function
properly?

Lights

• Do all the lights

come on?

• Are the headlights

aimed correctly?

Parking brake

• Does the parking

brake operate nor-
mally?

• When parked on a

slope and the park-
ing brake is on, is the
vehicle securely
stopped?

Seat belts

• Do the seat belts

operate smoothly?

• The seat belts should

not be damaged.

Items

Check points

304

6-2. Maintenance

Seats

• Do the seat controls

operate properly?

Steering wheel

• Does the steering

wheel rotate
smoothly?

• Does the steering

wheel have the cor-
rect amount of free
play?

• There  should  not  be

any strange sounds
coming from the
steering wheel.

Vehicle exterior

Items

Check points

Doors/trunk

• Do the doors/trunk

operate smoothly?

Engine hood

• Does  the  engine

hood lock system
work properly?

Fluid leaks

• There  should  not  be

any signs of fluid
leakage after the
vehicle has been
parked.

Items

Check points

Tires

• Is the tire inflation

pressure correct?

• The tires should not

be damaged or
excessively worn.

• Have the tires been

rotated according to
the maintenance
schedule?

• The wheel nuts

should not be loose.

Windshield wip-
ers

• The wiper blades

should not show any
signs of cracking,
splitting, wear, con-
tamination or defor-
mation.

• The wiper blades

should clear the
windshield without
streaking or skip-
ping.

Items

Check points

305

6-2. Maintenance

6

Maintenance and

 care

The OBD system determines that a
problem exists somewhere in the emis-
sion control system. Your vehicle may
not pass the I/M test and may need to
be repaired. Contact your Lexus
dealer to service the vehicle.

 When the battery is disconnected

or discharged
Readiness codes that are set during
ordinary driving are erased.
Also, depending on your driving
habits, the readiness codes may not
be completely set.

 When the fuel tank cap is loose

The malfunction indicator lamp
comes on indicating a temporary
malfunction and your vehicle may
not pass the I/M test.

The error code in the OBD system will
not be cleared unless the vehicle is
driven 40 or more times.

Contact your Lexus dealer to prepare
the vehicle for re-testing.

Emission inspection and
maintenance (I/M) pro-
grams

Some states have vehicle emission
inspection programs which include
OBD (On Board Diagnostics)
checks. The OBD system monitors
the operation of the emission con-
trol system.

If the malfunction indicator lamp
comes on

Your vehicle may not pass the
I/M test in the following situa-
tions:

When the malfunction indicator
lamp still remains on after sev-
eral driving trips

If your vehicle does not pass the
I/M test

306

6-3. Do-it-yourself maintenance

6-3.Do-it-yourself maintenance

Do-it-yourself service pre-
cautions

If you perform maintenance by
yourself, be sure to follow the cor-
rect procedure as given in these
sections.

Maintenance

Items

Parts and tools

Battery condi-
tion (

P.314)

• Warm  water
• Baking  soda
• Grease
• Conventional wrench

(for terminal clamp
bolts)

Brake fluid
level (

P.313)

• FMVSS No.116 DOT 3

or SAE J1703 brake
fluid
FMVSS No.116 DOT 4
or SAE J1704 brake
fluid

• Rag or paper towel
• Funnel (used only for

adding brake fluid)

Engine coolant
level (

P.312)

• “Toyota Super Long Life

Coolant” or a similar
high quality ethylene
glycol-based non-sili-
cate, non-amine, non-
nitrite and non-borate
coolant with long-life
hybrid organic acid
technology
For the U.S.A.:
“Toyota Super Long Life
Coolant” is pre-mixed
with 50% coolant and
50% deionized water.
For Canada:
“Toyota Super Long Life
Coolant” is pre-mixed
with 55% coolant and
45% deionized water.

• Funnel (used only for

adding coolant)

Engine oil level
(

P.310)

• “Toyota Genuine Motor

Oil” or equivalent

• Rag  or  paper  towel
• Funnel (used only for

adding engine oil)

Fuses
(

P.331)

• Fuse with same amper-

age rating as original

Headlight aim

• Phillips-head screw-

driver

Light bulbs
(

P.335)

• Bulb  with  same  number

and wattage rating as
original

• Flathead screwdriver

Radiator and
condenser
(

P.313)



Items

Parts and tools

307

6-3. Do-it-yourself maintenance

6

Maintenance and

 care

Tire inflation
pressure
(

P.325)

• Tire pressure gauge
• Compressed air source

Washer fluid
(

P.315)

• Water or washer fluid

containing antifreeze
(for winter use)

• Funnel (used only for

adding water or washer
fluid)

WARNING

The engine compartment contains many

mechanisms and fluids that may move

suddenly, become hot, or become elec-

trically energized. To avoid death or seri-

ous injury, observe the following

precautions.

■

When working on the engine com-

partment

●

Keep hands, clothing and tools away

from the moving fan and engine drive

belt.

●

Be careful not to touch the engine,

radiator, exhaust manifold, etc. right

after driving as they may be hot. Oil

and other fluids may also be hot.

●

Do not leave anything that may burn

easily, such as paper and rags, in the

engine compartment.

●

Do not smoke, cause sparks or expose

an open flame to fuel or the battery.

Fuel and battery fumes are flammable.

■

When working near the electric cool-

ing fan or radiator grille

Be sure the engine switch is off.

With the engine switch in IGNITION

ON mode, the electric cooling fan may

automatically start to run if the air condi-

tioning is on and/or the coolant tempera-

ture is high. (

P.313)

Items

Parts and tools

■

Safety glasses

Wear safety glasses to prevent flying or

falling material, fluid spray, etc. from get-

ting in your eyes.

NOTICE

■

If you remove the air cleaner filter

Driving with the air cleaner filter

removed may cause excessive engine

wear due to dirt in the air.

308

6-3. Do-it-yourself maintenance

1

Pull the hood lock release lever.

The hood will pop up slightly.

2

Pull up the auxiliary catch lever and
lift the hood.

■

Front

Hood

Opening the hood

WARNING

■

Pre-driving check

Check that the hood is fully closed and

locked.

If the hood is not locked properly, it may

open while the vehicle is in motion and

cause an accident, which may result in

death or serious injury.

Positioning a floor jack

When using a floor jack, follow the
instructions in the manual provided
with the jack and perform the oper-
ation safely.
When raising your vehicle with a
floor jack, position the jack cor-
rectly. Improper placement may
damage your vehicle or cause
injury.

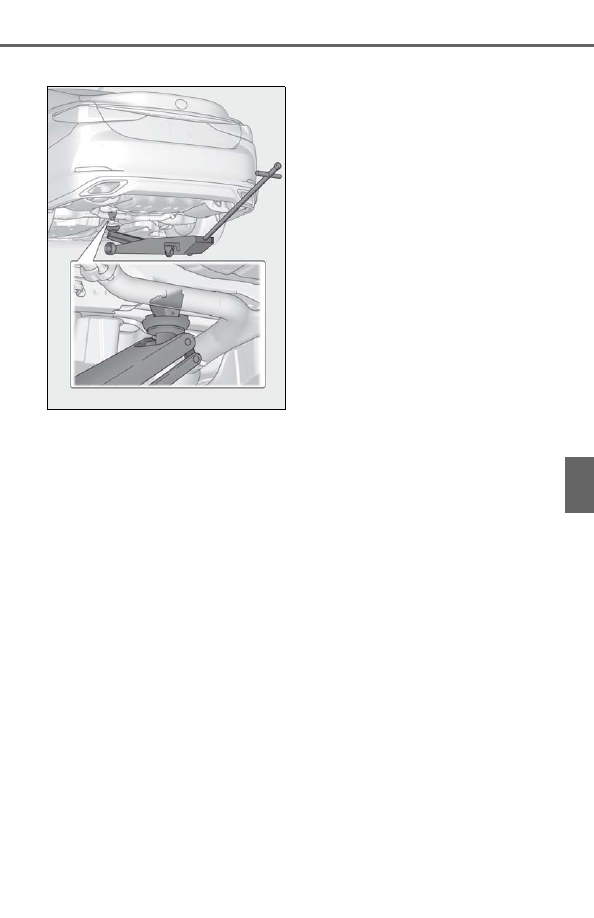

Location of the jack point

309

6-3. Do-it-yourself maintenance

6

Maintenance and

 care

■

Rear
