278

5-6. Using the other interior features

Fold down the armrest for use.

An assist grip installed on the ceiling
can be used to support your body
while sitting on the seat.

■

Rear sunshade

The rear sunshade can be raised and
lowered by operating the button shown
below.
Press the switch. (Raise/lower)

■

Rear door sunshades

Pull the tab of the rear door sunshade
and hook the sunshade on the anchors.

To retract the rear door sunshade, unhook
the sunshade and retract it slowly.

NOTICE

■

To prevent battery discharge

When the engine is stopped, do not use

the wireless charger for a long time.

Armrest

NOTICE

■

To prevent damage to the armrest

Do not apply too much load on the arm-

rest.

Assist grips

WARNING

■

Assist grips

Do not use the assist grip when getting in

or out of the vehicle or rising from your

seat.

NOTICE

■

To prevent damage to the assist grip

Do not hang any heavy object or put a

heavy load on the assist grip.

Rear sunshade (if
equipped)/rear door sunshades
(if equipped)

279

5-6. Using the other interior features

5

Inte
rior f
ea

tures

■

The rear sunshade can be used when

●

The engine switch is in IGNITION ON

mode.

●

The rear sunshade can be operated for

approximately 1 minute even after the

engine switch is turned to ACCESSORY

mode or turned off.

■

Reverse operation feature

To ensure adequate rear visibility, the rear

sunshade automatically lowers when the

shift lever is shifted to R.
However, the rear sunshade is raised again
if any of the following occurs:

●

The button is pressed again.*

●

Shift the shift lever to P.

●

The shift lever is shifted out of R, and the

vehicle reaches a speed of 9 mph (15

km/h). If the engine is not running when

the rear sunshade has been lowered due

to the reverse operation feature, it will not

be raised even when the engine is turned

on again and the vehicle reaches a speed

of 9 mph (15 km/h). To raise the sun-

shade again, press the button.

*

: Occasionally, the reverse function may

not be carried out after the switch has
been pressed. Repeat the above opera-
tion to operate the function.

Long objects can be loaded into the
vehicle by utilizing the trunk space and
rear seat area.

WARNING

■

When the rear sunshade is being

raised or lowered

When the rear sunshade is being oper-

ated not place fingers or other objects in

the fastener section or in the opening.

They may get caught, causing injury.

NOTICE

■

To prevent battery discharge

Do not operate the rear sunshade when

the engine is not running.

■

To ensure normal operation of the

sunshades

●

Do not operate the rear sunshade

when any objects are on top of its

opening/closing part. The rear sun-

shade may not operate properly.

●

To ensure normal operation of the rear

sunshade and rear door sunshades,

observe the following precautions:

• Do not place excessive load on the

motor or other components of the rear

sunshade.

• Do not attach items to the rear sun-

shade and rear door sunshades.

• Keep the opening clean and clear of

obstructions.

• Do not operate the rear sunshade con-

tinuously for long periods of time.

Trunk storage extension

280

5-6. Using the other interior features

1

Fold down the armrest.

2

Fold down the handle and open the
armrest door.

The armrest door can be locked and
unlocked using the mechanical key.

Unlock

Lock

The coat hooks are provided with the
rear assist grips.

WARNING

■

When not in use

Ensure that the armrest door is closed. In

the event of sudden braking, items stored

in the trunk may be thrown forward into

the cabin, resulting in injury.

Coat hooks

A
B

WARNING

■

Items that should not be hanged

Do not hang coat hangers or other hard

or sharp objects on the hook. If the SRS

curtain shield airbags deploy, these items

may become projectiles, causing death

or serious injury.

281

5-6. Using the other interior features

5

Inte
rior f
ea

tures

The HomeLink

®

 wireless control sys-

tem in your vehicle has 3 buttons which
can be programmed to operate 3 dif-
ferent devices. Refer to the program-
ming methods on the following pages
to determine the method which is
appropriate for the device.

HomeLink

®

 indicator light

Garage door operation indicators

HomeLink

®

 icon

Illuminates while HomeLink

®

 is operating.

Buttons

■

Codes stored in the HomeLink

®

 mem-

ory

●

The registered codes are not erased even

if the battery cable is disconnected.

●

If learning failed when registering a dif-
ferent code to a HomeLink

®

 button that

already has a code registered to it, the

already registered code will not be

erased.

■

Certification for the garage door opener

Garage door opener

The garage door opener can be
programmed using the Home-
Link

®

 to operate garage doors,

gates, entry doors, door locks,
home lighting systems, security sys-
tems, and other devices.

System components

A
B
C

D

282

5-6. Using the other interior features

■

When support is necessary

Visit on the web at www.home-

link.com/lexus or call 1-800-355-3515.

■

Before programming HomeLink

®

 During programming, it is possible

that garage doors, gates, or other

devices may operate. For this rea-
son, make sure that people and
objects are clear of the garage door
or other devices to prevent injury or
other potential harm.

 It is recommended that a new bat-

tery be placed in the remote control
transmitter for more accurate pro-
gramming.

 Garage door opener motors manu-

factured after 1995 may be
equipped with rolling code protec-
tion. If this is the case, you may need
a stepladder or other sturdy, safe
device to reach the “Learn” or
“Smart” button on the garage door
opener motor.

■

Programming HomeLink

®

Steps

1

 through

3

 must be performed

within 60 seconds, otherwise the indi-
cator light will stop flashing and pro-
gramming will not be able to be
completed.

1

Press and release the HomeLink

®



button you want to program and
check that the HomeLink

®

 indica-

tor light flashes (orange).

WARNING

■

When programming a garage door or

other remote control device

The garage door or other device may

operate, so ensure people and objects

are out of danger to prevent potential

harm.

■

Conforming to federal safety stan-

dards

Do not use the HomeLink

®

 compatible

transceiver with any garage door opener

or device that lacks safety stop and

reverse features as required by federal

safety standards.
This includes any garage door that can-

not detect an interfering object. A door

or device without these features

increases the risk of death or serious

injury.

■

When operating or programming
HomeLink

®

Never allow a child to operate or play
with the HomeLink

®

 buttons.

Programming the HomeLink

®

283

5-6. Using the other interior features

5

Inte
rior f
ea

tures

2

Point the remote control transmit-
ter for the device at the rear view
mirror, 1 to 3 in. (25 to 75 mm)
from the HomeLink

®

 buttons.

Keep the HomeLink

®

 indicator light in

view while programming.

3

Program a device.



Programming a device other than
an entry gate (for U.S.A. owners)

Press and hold the remote control
transmitter button until the Home-
Link

®

 indicator light changes from

slowly flashing orange to rapidly flash-
ing green (rolling code) or continu-
ously lit green (fixed code), then
release the button.



Programming an entry gate (for
U.S.A. owners)/Programming a
device in the Canadian market

Press and release the remote control
transmitter button at 2 second inter-

vals, repeatedly, until the HomeLink

®



indicator light changes from slowly
flashing (orange) to rapidly flashing
(green) (rolling code) or continuously
lit (green) (fixed code).

4

Test the HomeLink

®

 operation by

pressing the newly programmed
button and observing the indicator
light:

 Indicator light illuminates: Program-

ming of a fixed code device has
completed. The garage door or
other device should operate when a
HomeLink

®

 button is pressed and

released.

 Indicator light flashes rapidly: The

garage door opener motor or other
device is equipped with a rolling
code. To complete programming,
firmly press and hold the Home-
Link

®

 button for 2 seconds then

release it.

 If the garage door or other device

does not operate, proceed to “Pro-
gramming a rolling code system”.

5

Repeat the steps above to program
another device for any of the
remaining HomeLink

®

 buttons.

■

Programming a rolling code sys-
tem

2 or more people may be necessary to
complete rolling code programming.

1

Locate the “Learn” or “Smart” but-
ton on the garage door opener
motor in the garage.

This button can usually be found where the

hanging antenna wire is attached to the

284

5-6. Using the other interior features

unit. The name and color of the button may

vary by manufacturer. Refer to the owner’s

manual supplied with the garage door

opener motor for details.

2

Press and release the “Learn” or
“Smart” button.

Perform

3

 within 30 seconds after per-

forming

2

.

3

Press and hold the desired Home-
Link

®

 button (inside the vehicle)

for 2 seconds and release it. Repeat
this sequence (press/hold/release)
up to 3 times to complete pro-
gramming.
If the garage door opener motor
operates when the HomeLink

®



button is pressed, the garage door

opener motor recognizes the
HomeLink

®

 signal.

■

Enabling 2-way communication
with a garage door (only available
for compatible devices)

When enabled, 2-way communication
allows you to check the status of the
opening and closing of a garage door
through indicators in your vehicle.
2-way communication is only available
if the garage door opener motor used
is a compatible device. (To check
device compatibility, refer to
www.homelink.com.)

1

Within 5 seconds after program-
ming the garage door opener has
been completed, if the garage door
opener motor is trained to Home-
Link

®

, both garage door operation

indicators will flash rapidly (green)
and the light on the garage door
opener motor will blink twice, indi-
cating that 2-way communication is
enabled.

If the indicators do not flash, perform

2

 and

3

 within the first 10 presses of the Home-

Link

®

 button after programming has been

completed.

2

Press a programmed HomeLink

®



button to operate a garage door.

285

5-6. Using the other interior features

5

Inte
rior f
ea

tures

3

Within 1 minute of pressing the
HomeLink

®

 button, after the

garage door operation has
stopped, press the “Learn” or
“Smart” button on the garage door
opener motor. Within 5 seconds of
the establishment of 2-way com-
munication with the garage door
opener, both garage door opera-
tion indicators in the vehicle will
flash rapidly (green) and the light
on the garage door opener motor
will blink twice, indicating that 2-
way communication is enabled.

■

Reprogramming a single Home-
Link

®

 button

When the following procedure is per-
formed, buttons which already have
devices registered to them can be
overwritten:

1

With one hand, press and hold the
desired HomeLink

®

 button.

2

When the HomeLink

®

 indicator

starts flashing (orange), continue to
hold the HomeLink

®

 button and

perform “Programming Home-
Link

®

”

1

 (it takes 20 seconds for

the HomeLink

®

 indicator to start

flashing).

■

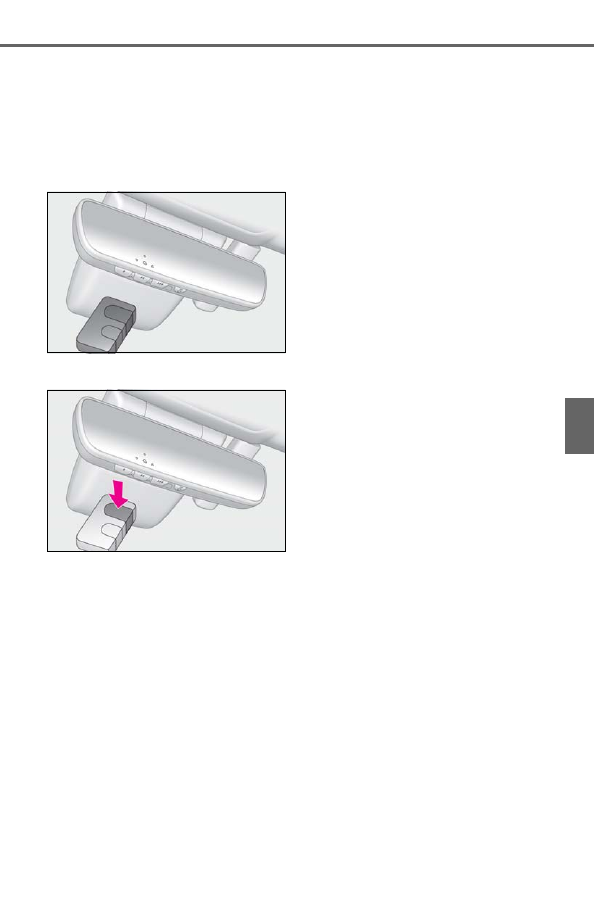

Before programming

●

Install a new battery in the transmitter.

●

The battery side of the transmitter must
be pointed away from the HomeLink

®

.

Press the appropriate HomeLink

®



button. The HomeLink

®

 indicator light

should turn on.
The status of the opening and closing
of a garage door is shown by the indi-
cators.

Opening

Closing

This function is only available if the garage
door opener motor used is a compatible
device. (To check device compatibility,
refer to www.homelink.com.)

The indicators can operate within
approximately 820 ft. (250 m) of the
garage door. However, if there are
obstructions between the garage door
and the vehicle, such as houses and
trees, feedback signals from the
garage door may not be received.

Operating HomeLink

®

Color

Status

Orange (flashing)

Currently open-

ing/closing

Green

Opening/closing

has completed

Red (flashing)

Feedback signals

cannot be received

A
B

286

5-6. Using the other interior features

To recall the previous door operation
status, press and release either Home-

Link

®

 buttons

 and

 or

 and

 simultaneously. The

last recorded status will be displayed
for 3 seconds.

Press and hold the 2 outside buttons
for 10 seconds until the HomeLink

®



indicator light changes from continu-
ously lit (orange) to rapidly flashing
(green).

If you sell your vehicle, be sure to erase the
programs stored in the HomeLink

®

 mem-

ory.

*

: If equipped

To turn the compass on or off, press
and hold the button for more than 3
seconds.

Directions are displayed as follows:

■

Conditions unfavorable to correct

operation

The compass may not show the correct

direction in the following conditions:

●

The vehicle is stopped immediately after

Erasing the entire HomeLink

®



memory (all three codes)

Compass

*

The compass on the inside rear
view mirror indicates the direction
in which the vehicle is heading.

Operation and displays

Display

Direction

“N”

North

“NE”

Northeast

“E”

East

“SE”

Southeast

“S”

South

“SW”

Southwest

“W”

West

“NW”

Northwest

287

5-6. Using the other interior features

5

Inte
rior f
ea

tures

turning.

●

The vehicle is on an inclined surface.

●

The vehicle is in a place where the earth’s

magnetic field is subject to interference

by artificial magnetic fields (under-

ground car park/parking lot, under a

steel tower, between buildings, roof car

park/parking lot, near an intersection,

near a large vehicle, etc.).

●

The vehicle has become magnetized.

(There is a magnet or metal object near

the inside rear view mirror.)

●

The battery has been disconnected.

●

A door is open.

■

Deviation

The direction display deviates from the
true direction determined by the
earth’s magnetic field. The amount of
deviation varies depending on the geo-
graphic position of the vehicle.

If you cross over one of the map boundar-

ies shown in illustration, the compass will
deviate.
To obtain higher precision or perfect cali-
bration, refer to “Deviation calibration”.

■

Deviation calibration

1

Stop the vehicle.

WARNING

■

While driving the vehicle

Do not adjust the display. Adjust the dis-

play only when the vehicle is stopped.

NOTICE

■

To avoid the compass malfunctions

Do not place magnets or any metal

objects near the inside rear view mirror.

Doing this may cause the compass sen-

sor to malfunction.

■

To ensure normal operation of the

compass

●

Do not perform a circling calibration of

the compass in a place where the

earth’s magnetic field is subject to

interference by artificial magnetic

fields.

●

During calibration, do not operate

electric systems (moon roof [if

equipped] or panoramic moon roof [if

equipped], power windows, etc.) as

they may interfere with the calibration.

Calibrating the compass

288

5-6. Using the other interior features

2

Press and hold the button for 6 sec-
onds. A number (1 to 15) appears
on the compass display.

3

Referring to the map above, press
the button to select the number of
the zone you are in.

If the direction is displayed several seconds

after adjustment, the calibration is com-

plete.

■

Circling calibration

1

Stop the vehicle in a place where it
is safe to drive in a circle.

2

Press and hold the button for 9 sec-
onds.

“C” appears on the compass display.

3

Drive the vehicle at 5 mph (8 km/
h) or less in a circle until a direction
is displayed.

If there is not enough space to drive in a

circle, drive around the block until a direc-

tion is displayed.

WARNING

■

When doing the circling calibration

Secure a wide space, and watch out for

people and vehicles in the vicinity. Do not

violate any local traffic rules while per-

forming circling calibration.

289

5-6. Using the other interior features

5

Inte
rior f
ea

tures

*

: If  equipped

“SOS” button

LED light indicators

Microphone

Lexus Enform Safety Con-
nect

*

Safety Connect is a subscription-
based telematics service that uses
Global Positioning System (GPS)
data and embedded cellular tech-
nology to provide safety and secu-
rity features to subscribers. Safety
Connect is supported by Lexus’
designated response center, which
operates 24 hours per day, 7 days
per week.
Safety Connect service is available
by subscription on select, telemat-
ics hardware-equipped vehicles.
By using the Safety Connect ser-
vice, you are agreeing to be bound
by the Telematics Subscription Ser-
vice Agreement and its Terms and
Conditions, as in effect and
amended from time to time, a cur-
rent copy of which is available at
Lexus.com. All use of the Safety
Connect service is subject to such
then-applicable Terms and Condi-
tions.

System components

A
B
C

290

5-6. Using the other interior features

■

Certification for Lexus Enform

Subscribers have the following Safety
Connect services available:

 Automatic Collision Notification

*

Helps drivers receive necessary response
from emergency service providers.

(



P.291

)

*

: U.S. Patent No. 7,508,298 B2

 Stolen Vehicle Location

Helps drivers in the event of vehicle theft.
(



P.291

)

 Emergency Assistance Button

(“SOS”)

Services

291

5-6. Using the other interior features

5

Inte
rior f
ea

tures

Connects drivers to response-center sup-
port. (



P.291

)

 Enhanced Roadside Assistance

Provides drivers various on-road assis-
tance. (



P.291

)

After you have signed the Telematics
Subscription Service Agreement and
are enrolled, you can begin receiving
services.
A variety of subscription terms is avail-
able for purchase. Contact your Lexus
dealer, call the following or push the
“SOS” button in your vehicle for fur-
ther subscription details.
 The United States

1-800-25-LEXUS (1-800-255-3987)

 Canada

1-800-26-LEXUS (1-800-265-3987)

 Puerto Rico

1-877-539-8777

■

Safety Connect Services Information

●

Phone calls using the vehicles Blue-
tooth

®

 technology will not be possible

during Safety Connect.

●

Safety Connect is available beginning Fall

2009 on select Lexus models (in the

contiguous United States only). Contact

with the Safety Connect response center

is dependent upon the telematics device

being in operative condition, cellular con-

nection availability, and GPS satellite sig-

nal reception, which can limit the ability to

reach the response center or receive

emergency service support. Enrollment

and Telematics Subscription Service

Agreement required. A variety of sub-

scription terms is available; charges vary

by subscription term selected and loca-

tion.

●

Automatic Collision Notification, Emer-

gency Assistance and Stolen Vehicle

Location will function in the United

States, including Hawaii and Alaska,

Puerto Rico and in Canada, and

Enhanced Roadside Assistance will func-

tion in the United States, Puerto Rico and

in Canada.

●

Automatic Collision Notification, Emer-

gency Assistance, Stolen Vehicle and

Enhanced Road Assistance will not func-

tion in the United States Virgin Islands.

For vehicles first sold in the USVI, no

Safety Connect services will function in

and outside the United States Virgin

Islands.

●

Safety Connect services are not subject

to section 255 of the Telecommunica-

tions Act and the device is not TTY com-

patible.

■

Languages

The Safety Connect response center will

offer support in multiple languages. The

Safety Connect system will offer voice

prompts in English, Spanish, and French.

Please indicate your language of choice

when enrolling.

■

When contacting the response center

You may be unable to contact the response

center if the network is busy.

When the engine switch is turned to
IGNITION ON mode, the red indica-
tor light comes on for 2 seconds then
turns off. Afterward, the green indica-
tor light comes on, indicating that the
service is active.
The following indicator light patterns
indicate specific system usage condi-
tions:
 Green indicator light on = Active

Subscription

Safety Connect LED light Indi-
cators

292

5-6. Using the other interior features

service

 Green indicator light flashing =

Safety Connect call in process

 Red indicator light (except at vehi-

cle start-up) = System malfunction
(contact your Lexus dealer)

 No indicator light (off) = Safety

Connect service not active

■

Automatic Collision Notification

In case of either airbag deployment or
severe rear-end collision, the system is
designed to automatically call the
response center. The responding agent
receives the vehicle’s location and
attempts to speak with the vehicle
occupants to assess the level of emer-
gency. If the occupants are unable to
communicate, the agent automatically
treats the call as an emergency, con-
tacts the nearest emergency services
provider to describe the situation, and
requests that assistance be sent to the
location.

■

Stolen Vehicle Location

If your vehicle is stolen, Safety Connect
can work with local authorities to assist
them in locating and recovering the
vehicle. After filing a police report, call
the Safety Connect response center at
1-800-25-LEXUS (1-800-255-
3987) in the United States, 1-877-
539-8777 in Puerto Rico or 1-800-
265-3987 in Canada, and follow the
prompts for Safety Connect to initiate
this service.

In addition to assisting law enforce-
ment with recovery of a stolen vehicle,
Safety-Connect-equipped vehicle
location data may, under certain cir-
cumstances, be shared with third par-
ties to locate your vehicle. Further
information is available at Lexus.com.

■

Emergency Assistance Button
(“SOS”)

In the event of an emergency on the
road, push the “SOS” button to reach
the Safety Connect response center.
The answering agent will determine
your vehicle’s location, assess the
emergency, and dispatch the neces-
sary assistance required.

If you accidentally press the “SOS” button,
tell the response-center agent that you are
not experiencing an emergency.

■

Enhanced Roadside Assistance

Enhanced Roadside Assistance adds
GPS data to the already included war-
ranty-based Lexus roadside service.
Subscribers can press the “SOS” but-
ton to reach a Safety Connect
response-center agent, who can help
with a wide range of needs, such as:
towing, flat tire, fuel delivery, etc. For a
description of the Roadside Assistance
services and their limitations, please
see the Safety Connect Terms and
Conditions, which are available at
Lexus.com.

Important! Read this information about
exposure to radio frequency signals

Safety Connect services

Safety information for Safety
Connect

293

5-6. Using the other interior features

5

Inte
rior f
ea

tures

before using Safety Connect;
The Safety Connect system installed in
your vehicle is a low-power radio trans-
mitter and receiver. It receives and also
sends out radio frequency (RF) signals.
In August 1996, the Federal Commu-
nications Commission (FCC) adopted
RF exposure guidelines with safety lev-
els for mobile wireless phones. Those
guidelines are consistent with the
safety standards previously set by the
following U.S. and international stan-
dards bodies.
 ANSI (American National Stan-

dards Institute) C95.1 [1992]

 NCRP (National Council on Radia-

tion Protection and Measurement)
Report 86 [1986]

 ICNIRP (International Commission

on Non-Ionizing Radiation Protec-
tion) [1996]

Those standards were based on com-
prehensive and periodic evaluations of
the relevant scientific literature. Over
120 scientists, engineers, and physi-
cians from universities, and govern-
ment health agencies and industries
reviewed the available body of
research to develop the ANSI Stan-
dard (C95.1).
The design of Safety Connect com-
plies with the FCC guidelines in addi-
tion to those standards.

*

: If equipped

After you sign the Telematics Subscrip-
tion Service Agreement, download the
Lexus Enform Remote app from your
cellular phone’s app store, and register
within the app (or enroll and complete
registration at the dealer), you can
begin using these services. (

P.288)

A variety of subscription terms are
available. Contact your Lexus dealer,
or call 1-800-25-LEXUS (1-800-
255-3987) for further subscription
details.

■

Availability of service

Lexus Enform Remote is available in the

contiguous United States, Washington D.C.

and Alaska.
Lexus Enform Remote is not available in

some countries or areas.

■

Lexus Enform Remote Information

●

Lexus Enform Remote should only be

used by authorized users.

●

Laws in some communities may require

that the vehicle be within view of the user

Lexus Enform Remote

*

Lexus Enform Remote is a cellular
phone application that lets you view
and remotely control certain
aspects of your vehicle.
For details about the functions and
services of this application, refer to
http://www.lexus.com/enform/.
Function of the Lexus Enform
Remote is achieved by using DCM
(Data Communication Module).

Subscription
