If you notice any symptoms
If you notice any of the following symptoms, refer to the likely cause and the
solution, and re-check.
If the symptom is not resolved by the solution, have the vehicle inspected by
your Lexus dealer.

Things you should know

Likely cause

Solution

 The image is difficult to see

• The vehicle is in a dark area

• The temperature around the lens is

either high or low

• The outside temperature is low

• There are water droplets on the cam-

era

• It is raining or humid

• Foreign matter (mud etc.) is adhering to

the camera

• There are scratches on the camera

• Sunlight or headlights are shining

directly into the camera

• The vehicle is under fluorescent lights,

sodium lights, mercury lights etc.

If this happens due to these causes, it

does not indicate a malfunction.

Back up while visually checking the vehi-

cle’s surroundings. (Use the monitor

again once conditions have been

improved.)

 The image is blurry

Dirt or foreign matter (such as water

droplets, snow, mud etc.) is adhering to

the camera.

Flush the camera with a large quantity of

water and wipe the camera lens clean

with a soft and wet cloth.

 The image is out of alignment

The camera or surrounding area has

received a strong impact.

Have the vehicle inspected by your Lexus

dealer.

 The fixed guide lines are very far out of alignment

The camera position is out of alignment.

Have the vehicle inspected by your Lexus

dealer.

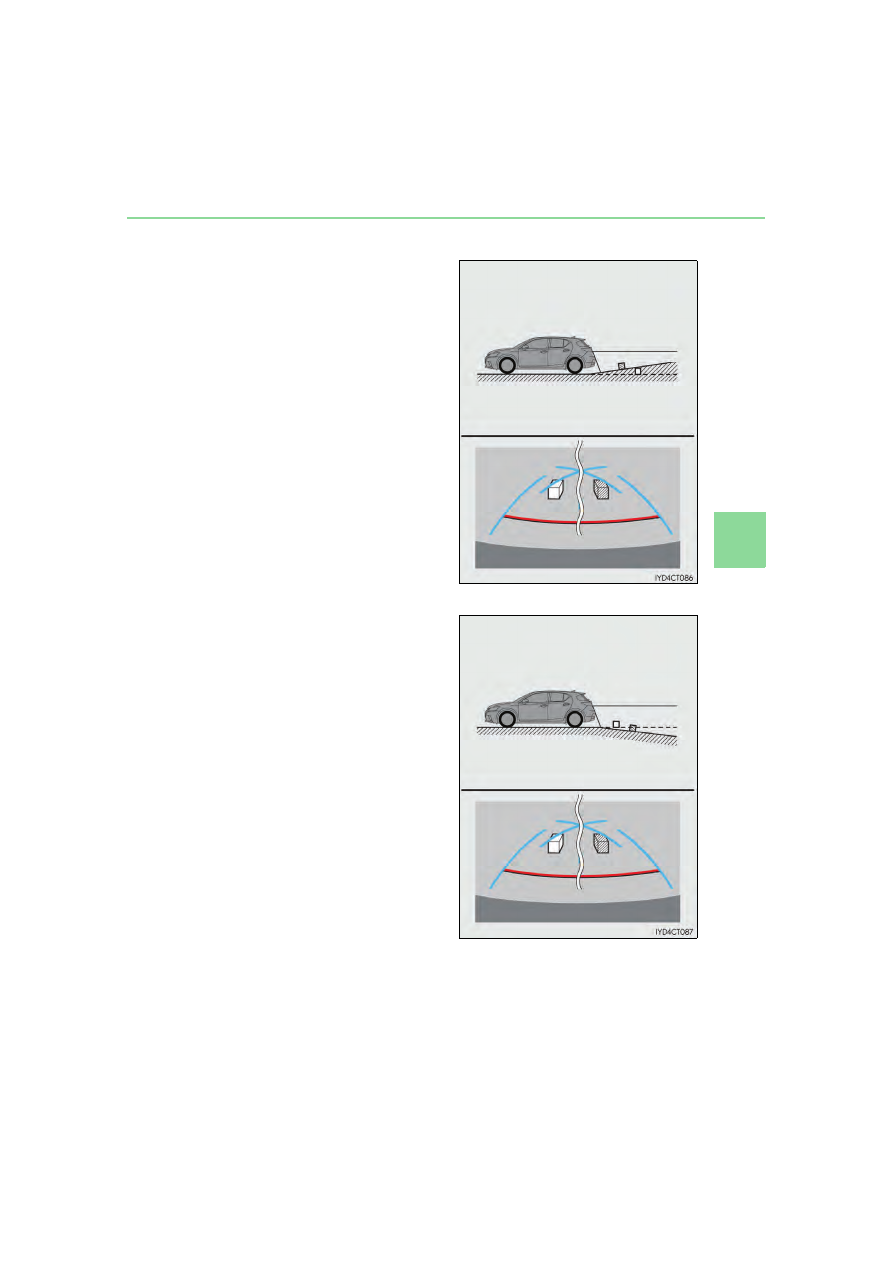

• The vehicle is tilted (there is a heavy

load on the vehicle, tire pressure is low

due to a tire puncture, etc.)

• The vehicle is used on an incline.

If this happens due to these causes, it

does not indicate a malfunction.

Back up while visually checking the vehi-

cle’s surroundings.

220

4-5. Using the driving support systems

WARNING

■

When using the rear view monitor system
The rear view monitor system is a supplemental device intended to assist the driver

when backing up. When backing up, be sure to check visually behind and all around

the vehicle before proceeding.
Observe the following precautions to avoid an accident that could result in death or

serious injuries.

●

Never depend on the rear view monitor system entirely when backing up. The image

and the position of the guide lines displayed on the screen may differ from the actual

state.

Use caution, just as you would when backing up any vehicle.

●

Be sure to back up slowly, depressing the brake pedal to control vehicle speed.

●

The instructions given are only guide lines.

When and how much to turn the steering wheel will vary according to traffic condi-

tions, road surface conditions, vehicle condition, etc. when parking. It is necessary to

be fully aware of this before using the rear view monitor system.

●

When parking, be sure to check that the parking space will accommodate your vehi-

cle before maneuvering into it.

●

Do not use the rear view monitor system in the following cases:
• On icy or slick road surfaces, or in snow

• When using tire chains or emergency tires

• When the back door is not closed completely

• On roads that are not flat or straight, such as curves or slopes.

●

In low temperatures, the screen may darken or the image may become faint. The

image could distort when the vehicle is moving, or you may become unable to see the

image on the screen. Be sure to check direct visually and with the mirrors all around

the vehicle before proceeding.

●

If the tire sizes are changed, the position of the fixed guide lines displayed on the

screen may change.

●

The camera uses a special lens. The distances between objects and pedestrians that

appear in the image displayed on the screen will differ from the actual distances.

(

P. 216)

221

4-5. Using the driving support systems

iving

NOTICE

■

How to use the camera

●

The rear view monitor system may not operate properly in the following cases.
• If the back of the vehicle is hit, the position and mounting angle of the camera may

change.

• As the camera has a water proof construction, do not detach, disassemble or

modify it. This may cause incorrect operation.

• When cleaning the camera lens, flush the camera with a large quantity of water

and wipe it with a soft and wet cloth. Strongly rubbing the camera lens may cause

the camera lens to be scratched and unable to transmit a clear image.

• Do not allow organic solvent, car wax, window cleaner or glass coat to adhere to

the camera. If this happens, wipe it off as soon as possible.

• If the temperature changes rapidly, such as when hot water is poured on the vehi-

cle in cold weather, the system may not operate normally.

• When washing the vehicle, do not apply intensive bursts of water to the camera or

camera area. Doing so may result in the camera malfunctioning.

• When the camera is used under fluorescent lights, sodium light or mercury light

etc., the lights and the illuminated areas may appear to flicker.

●

Do not expose the camera to strong impact as this could cause a malfunction. If this

happens, have the vehicle inspected by your Lexus dealer as soon as possible.

222

4-5. Using the driving support systems

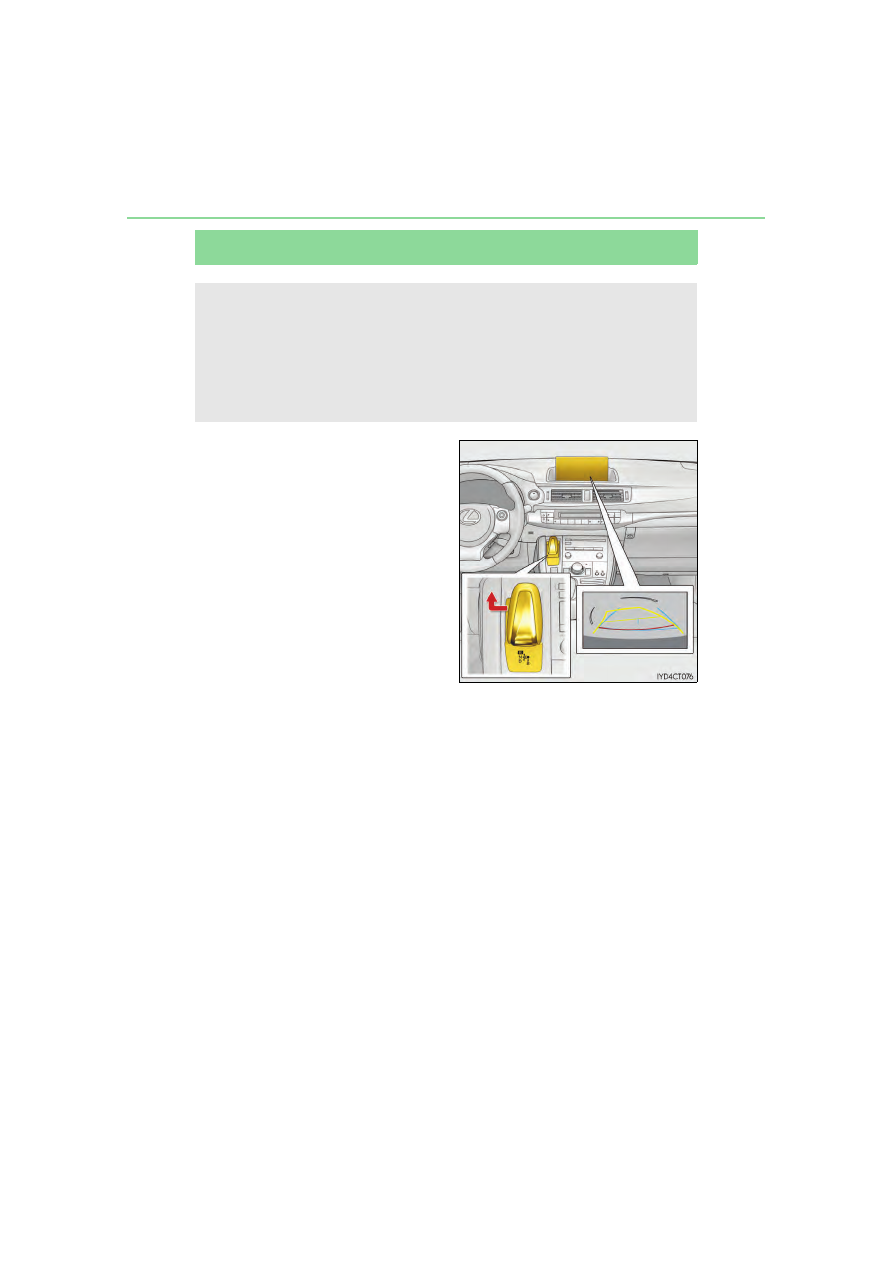

Lexus parking assist monitor



The rear view image is displayed when
the shift position is in R and the power
switch is in ON mode.

The parking assist monitor system will

be deactivated when the shift position is

in any position other than R.



: If equipped

The parking assist monitor assists the driver by displaying an image of the view
behind the vehicle while backing up, for example while parking.
Owners of models equipped with a navigation system should refer to the
“NAVIGATION SYSTEM OWNER’S MANUAL”.
The screen illustrations used in this text are intended as examples, and may
differ from the image that is actually displayed on the screen.

223

4-5. Using the driving support systems

iving

■

Screen display
The parking assist monitor screen
will be displayed if the shift position is
shifted to R while the power switch is
in ON mode.

Intuitive parking assist display (if
equipped)

If an obstacle is detected while the

intuitive parking assist is on, a display

is shown in the top right corner of the

screen.

■

Using the system
Use any of the following modes.

●

Estimated course line display mode (

P. 225)

Estimated course lines are dis-
played which move in accor-
dance with the operation of the
steering wheel.

Using the Lexus parking assist monitor

224

4-5. Using the driving support systems

●

Parking assist guide line display mode (

P. 227)

The steering wheel return points
(parking assist guide lines) are
displayed.

●

Distance guide line display mode
Distance guide lines only are dis-
played.

When the shift position is in any position other than R, the display mode can be
changed in the following procedure.

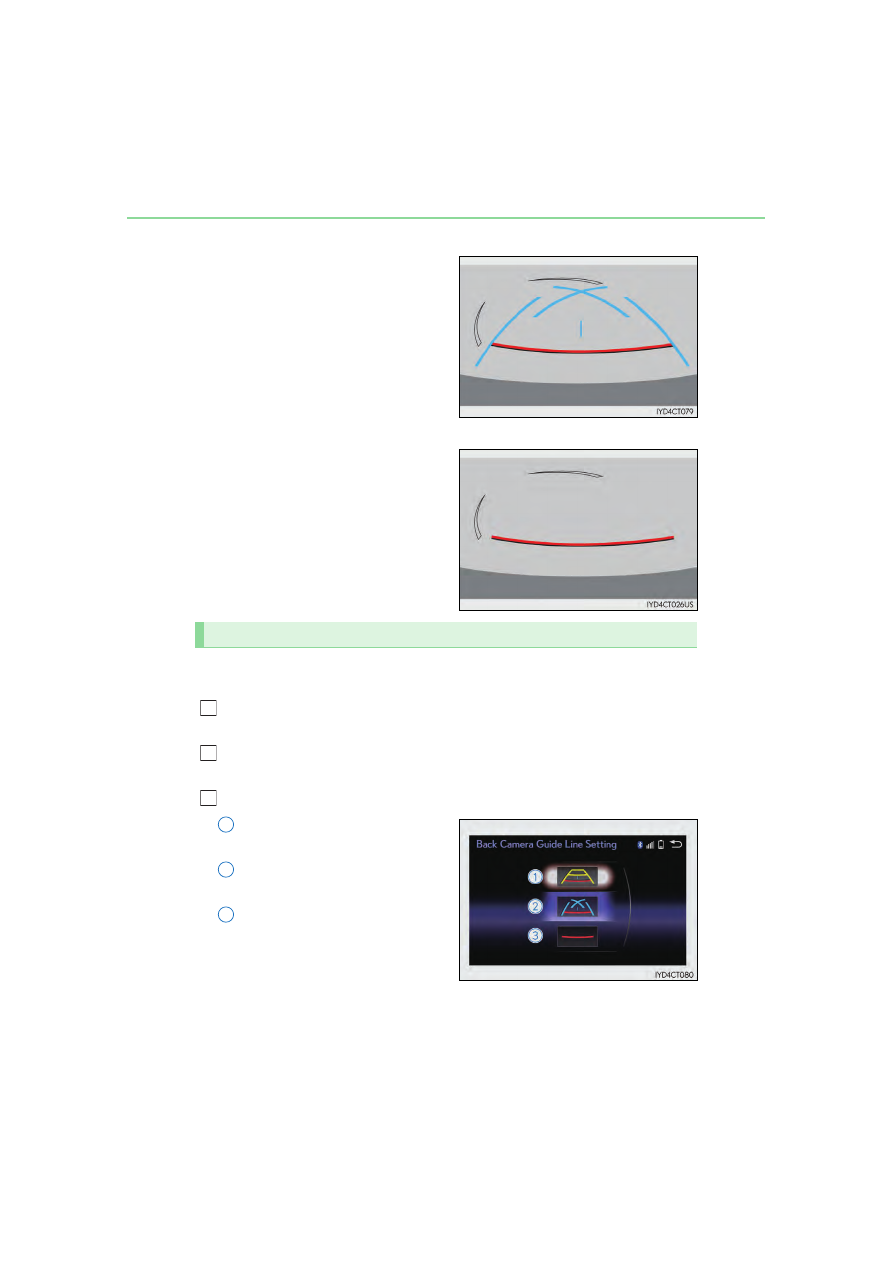

Press the “MENU” button on the Lexus Display Audio controller, and then
select “Setup” on the screen.
Select “Vehicle”, and then select “Back Camera Guide Line Setting” on the
screen.
Select the desired display mode.

Estimated course line display
mode (

P. 225)

Parking assist guide line display
mode (

P. 227)

Distance guide line display mode
Distance guide lines only are dis-
played.

Switching the display mode

225

4-5. Using the driving support systems

iving

■

Screen description

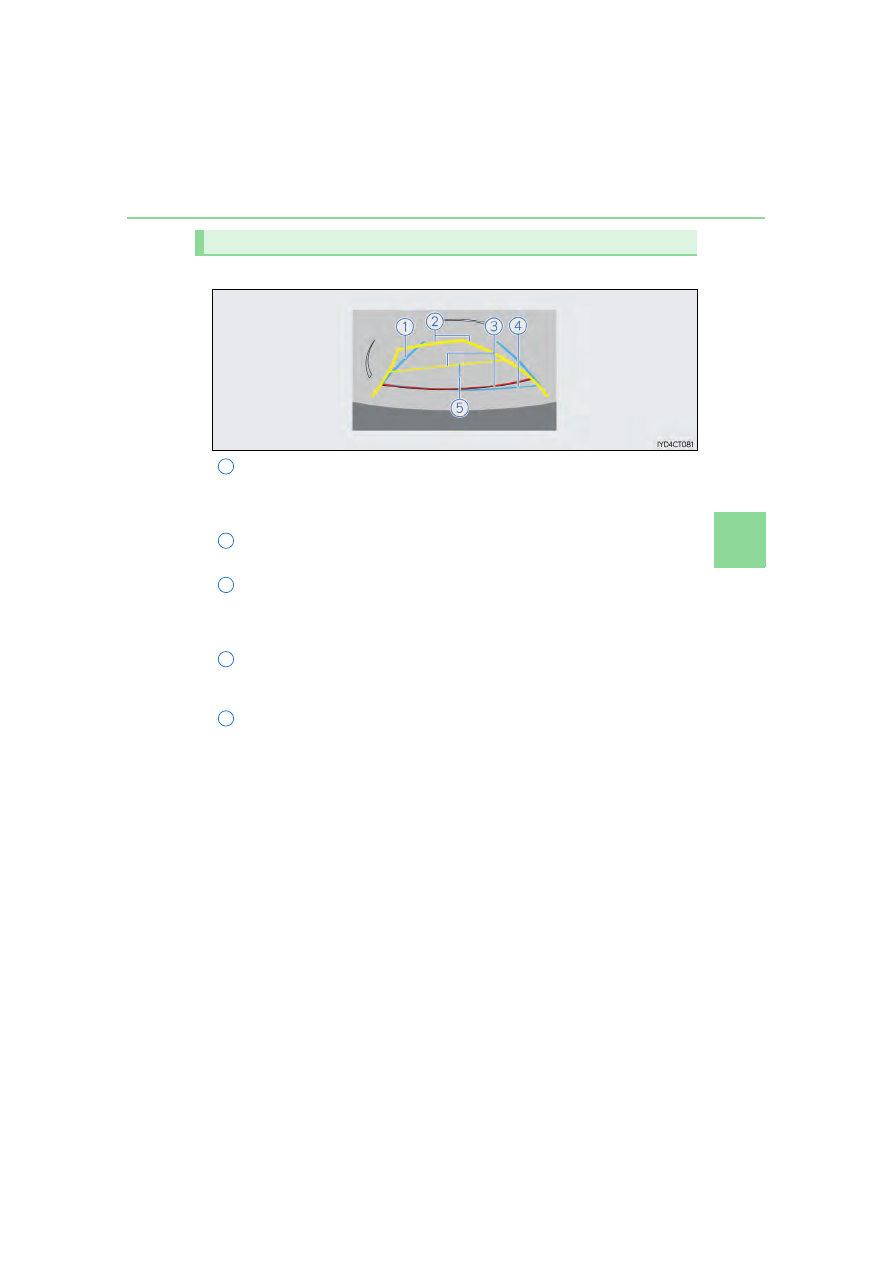

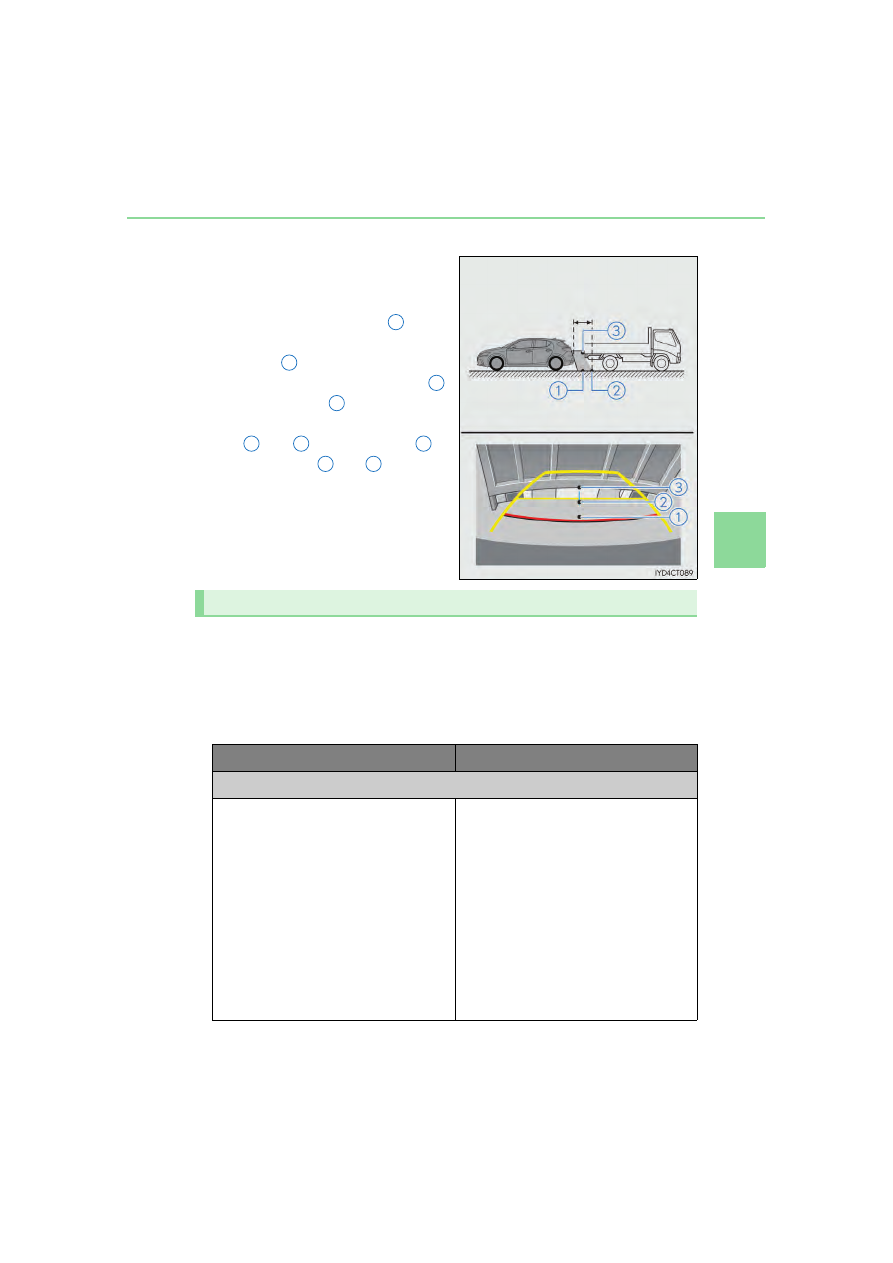

Vehicle width guide line

The line indicates a guide path when the vehicle is being backed straight up.

The displayed width is wider than the actual vehicle width.

The line aligns with the estimated course lines when the steering wheel is straight.

Estimated course lines

The lines show an estimated course when the steering wheel is turned.

Distance guide line

The line moves, together with the estimated course lines, in sync with the steering

wheel. The line shows points approximately 1.5 ft. (0.5 m) (red) and approximately

3 ft. (1 m) (yellow) from the center of the edge of the bumper.

Distance guide line

The line shows distance behind the vehicle, a point approximately 1.5 ft. (0.5 m)

(blue) from the edge of the bumper.

Vehicle center guide line

This line indicates the estimated vehicle center on the ground.

Estimated course line display mode

226

4-5. Using the driving support systems

■

Parking operation
When parking in a space which is in the reverse direction to the space
described in the procedure below, the steering directions will be reversed.

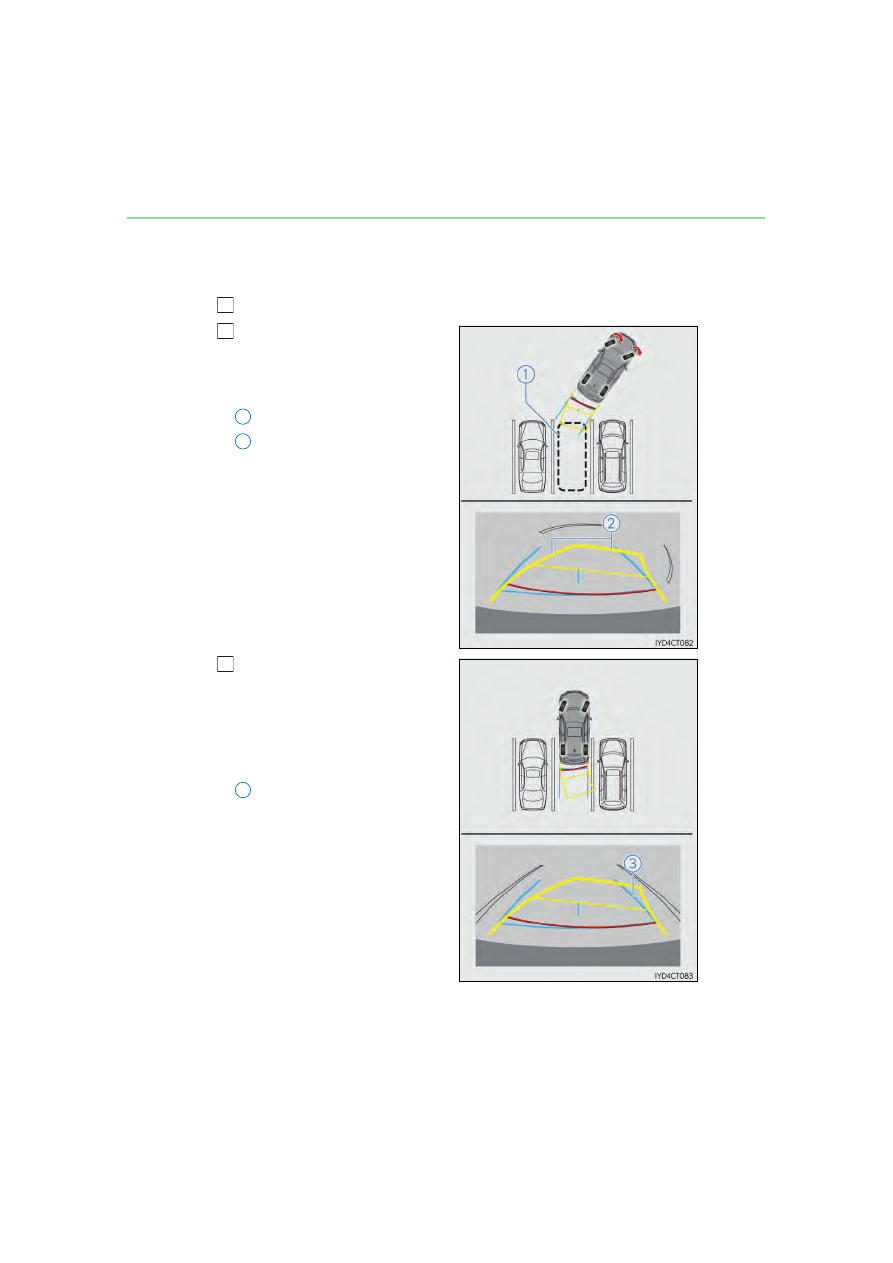

Shift the shift position to R position.

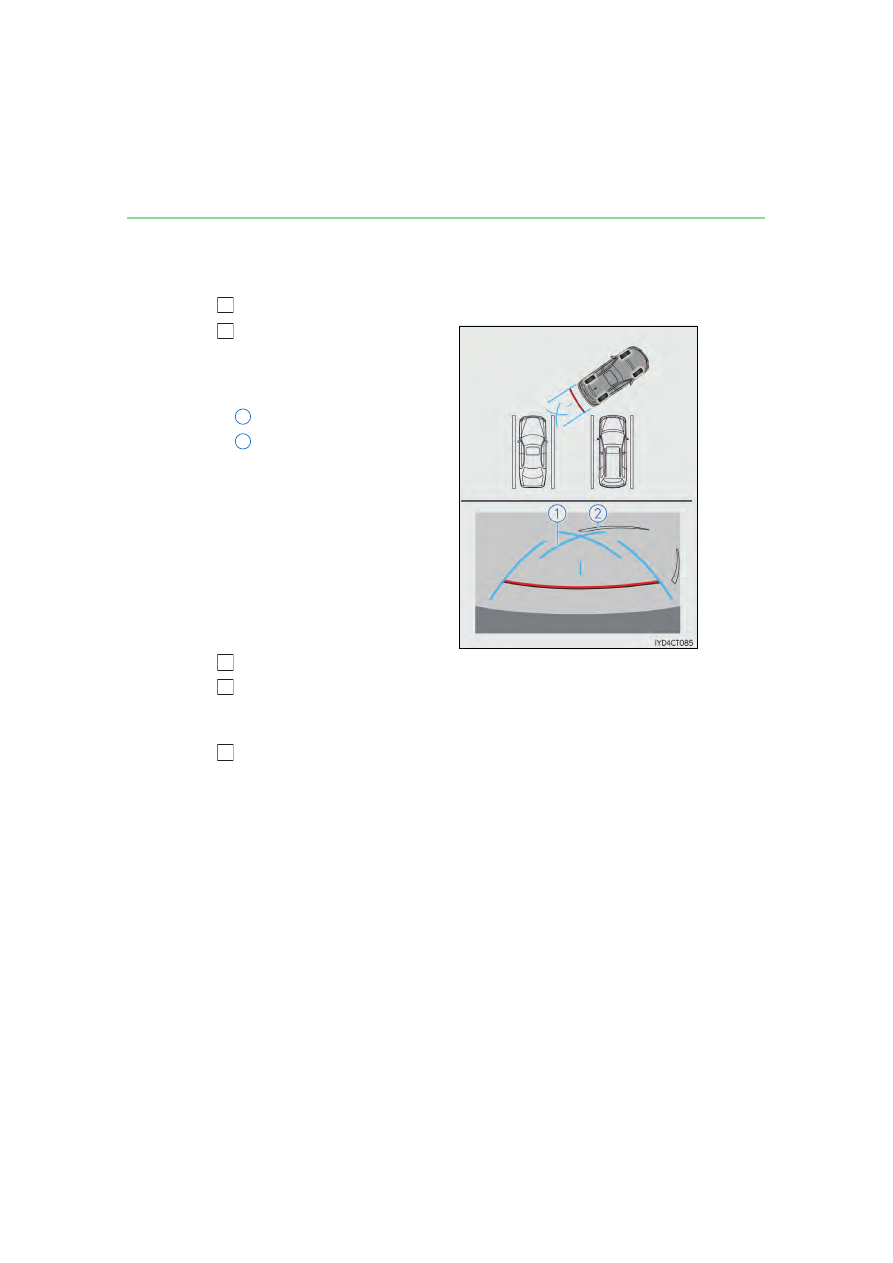

Turn the steering wheel so that
the estimated course lines are
within the parking space, and
back up slowly.

Parking space
Estimated course lines

When the rear position of the
vehicle has entered the parking
space, turn the steering wheel so
that the vehicle width guide lines
are within the left and right divid-
ing lines of the parking space.

Vehicle width guide line

227

4-5. Using the driving support systems

iving

Once the vehicle width guide lines and the parking space lines are parallel,
straighten the steering wheel and back up slowly until the vehicle has com-
pletely entered the parking space.
Stop the vehicle in an appropriate place, and finish parking.

■

Screen description

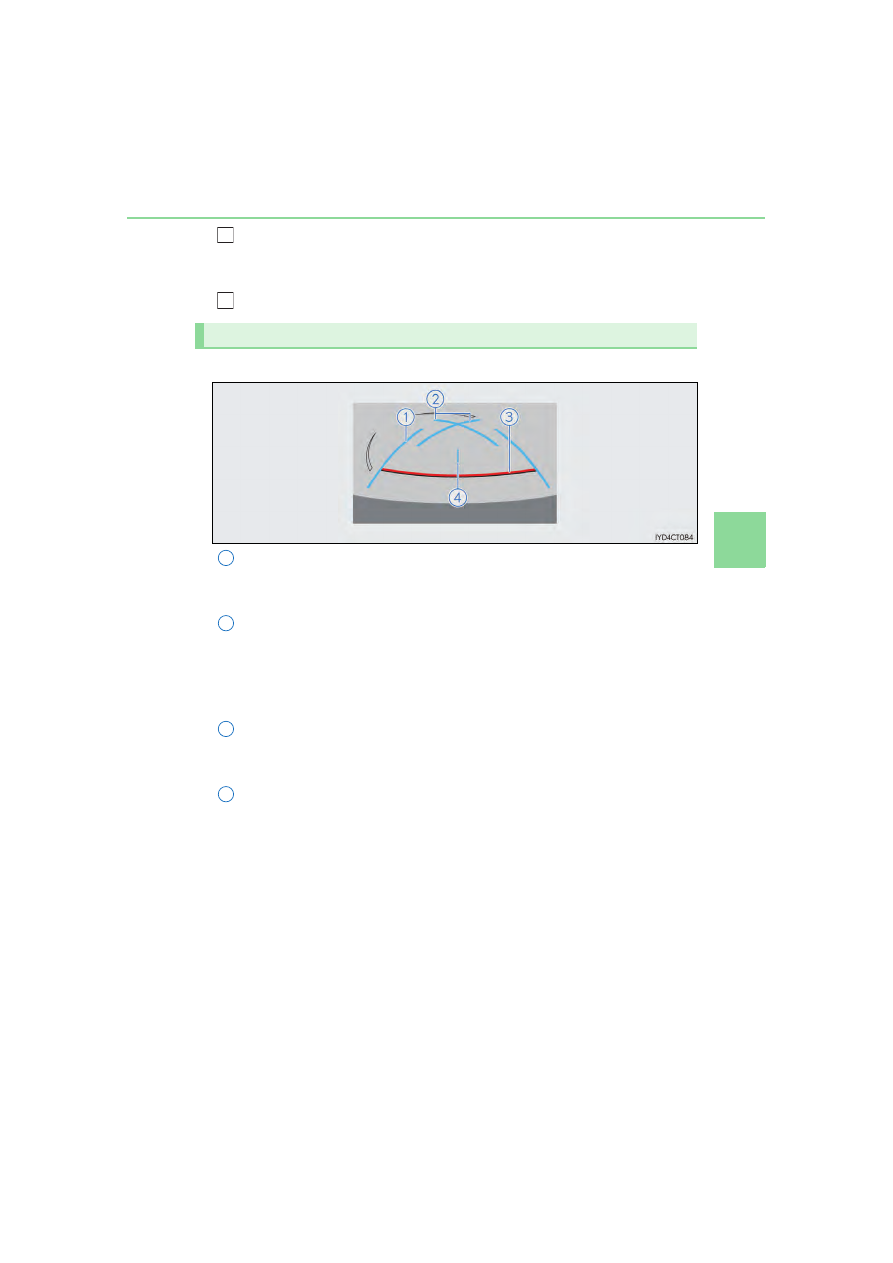

Vehicle width guide lines
These lines indicate a guide path when the vehicle is being backed straight
up. The displayed width is wider than the actual vehicle width.
Parking assist guide lines
These lines indicate the path of the smallest turn possible behind the vehi-
cle.
These lines also indicate the approximate position of the steering wheel
when parking.
Distance guide line
This line (red) indicates points approximately 1.5 ft. (0.5 m) behind the rear
bumper of your vehicle.
Vehicle center guide line
This line indicates the estimated vehicle center on the ground.

Parking assist guide line display mode

228

4-5. Using the driving support systems

■

Parking operation
When parking in a space which is in the reverse direction to the space
described in the procedure below, the steering directions will be reversed.

Shift the shift position to R position.
Back up until the parking assist
guide line meets the edge of the
left-hand dividing line of the park-
ing space.

Parking assist guide line
Parking space dividing line

Turn the steering wheel all the way to the right, and back up slowly.
Once the vehicle is parallel with the parking space, straighten the steering
wheel and back up slowly until the vehicle has completely entered the
parking space.
Stop the vehicle in an appropriate place, and finish parking.

3
4

229

4-5. Using the driving support systems

iving

■

Area displayed on screen
The parking assist monitor displays
an image of the view from the
bumper of the rear area of the vehi-
cle.
The image on the rear view monitor
system screen can be adjusted.
(

P. 337)

• The area displayed on the screen

may vary according to vehicle orien-

tation conditions.

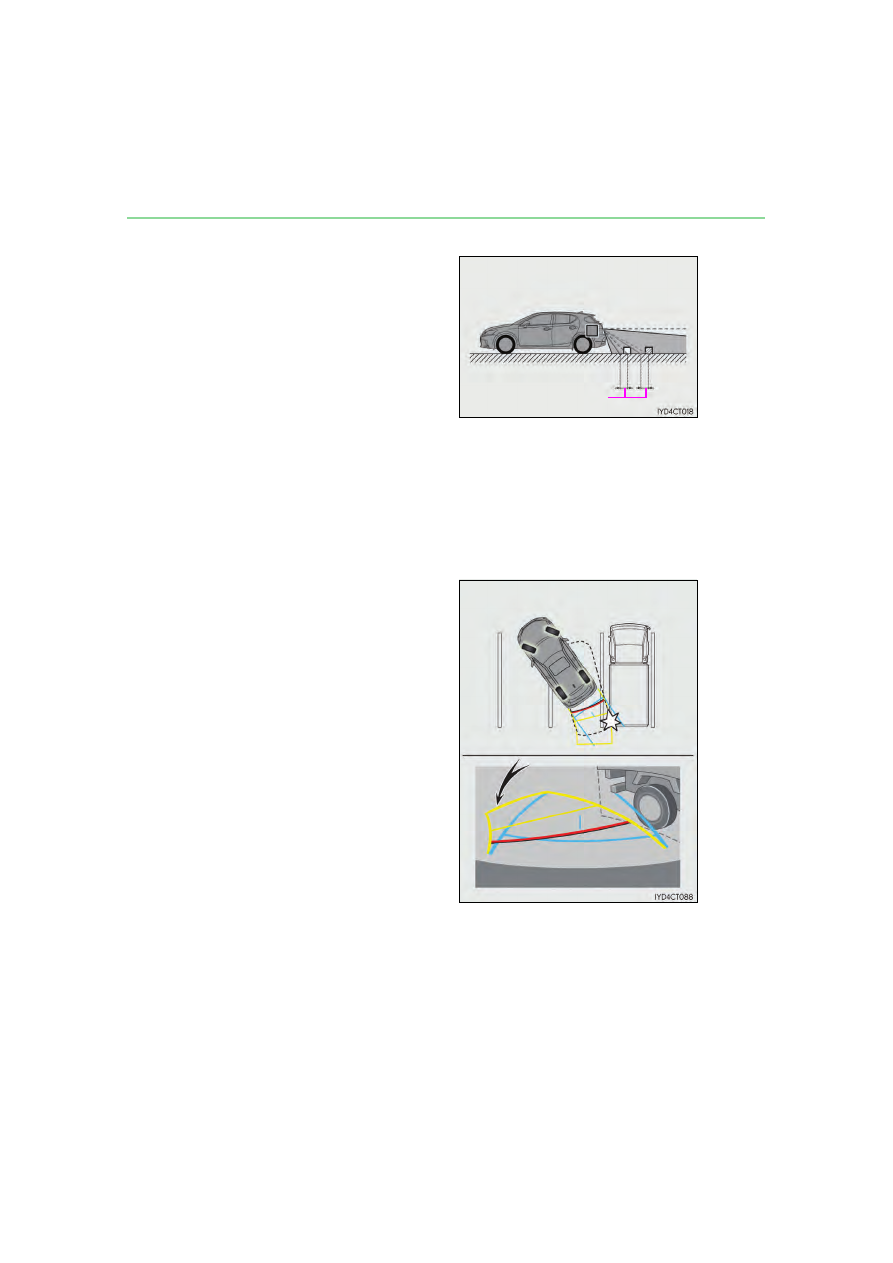

• Objects which are close to either

corner of the bumper or under the

bumper cannot be seen on the

screen.

• The camera uses a special lens. The

distance of the image that appears

on the screen differs from the actual

distance.

• Items which are located higher than

the camera may not be displayed on

the monitor.

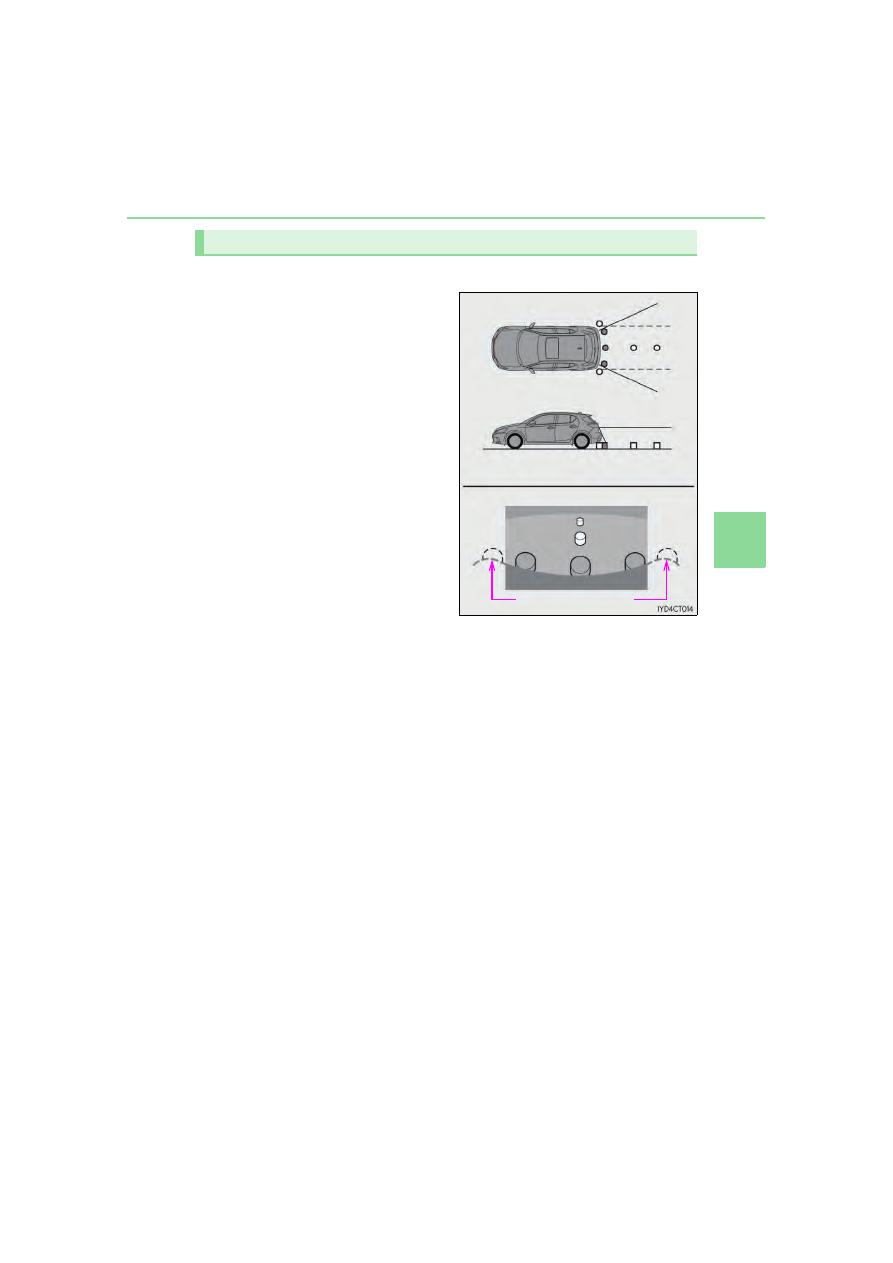

• If your vehicle is equipped with a backlit license plate, it may interfere with the dis-

play.

Lexus parking assist monitor precautions

Corners of bumper

230

4-5. Using the driving support systems

■

Lexus parking assist monitor camera

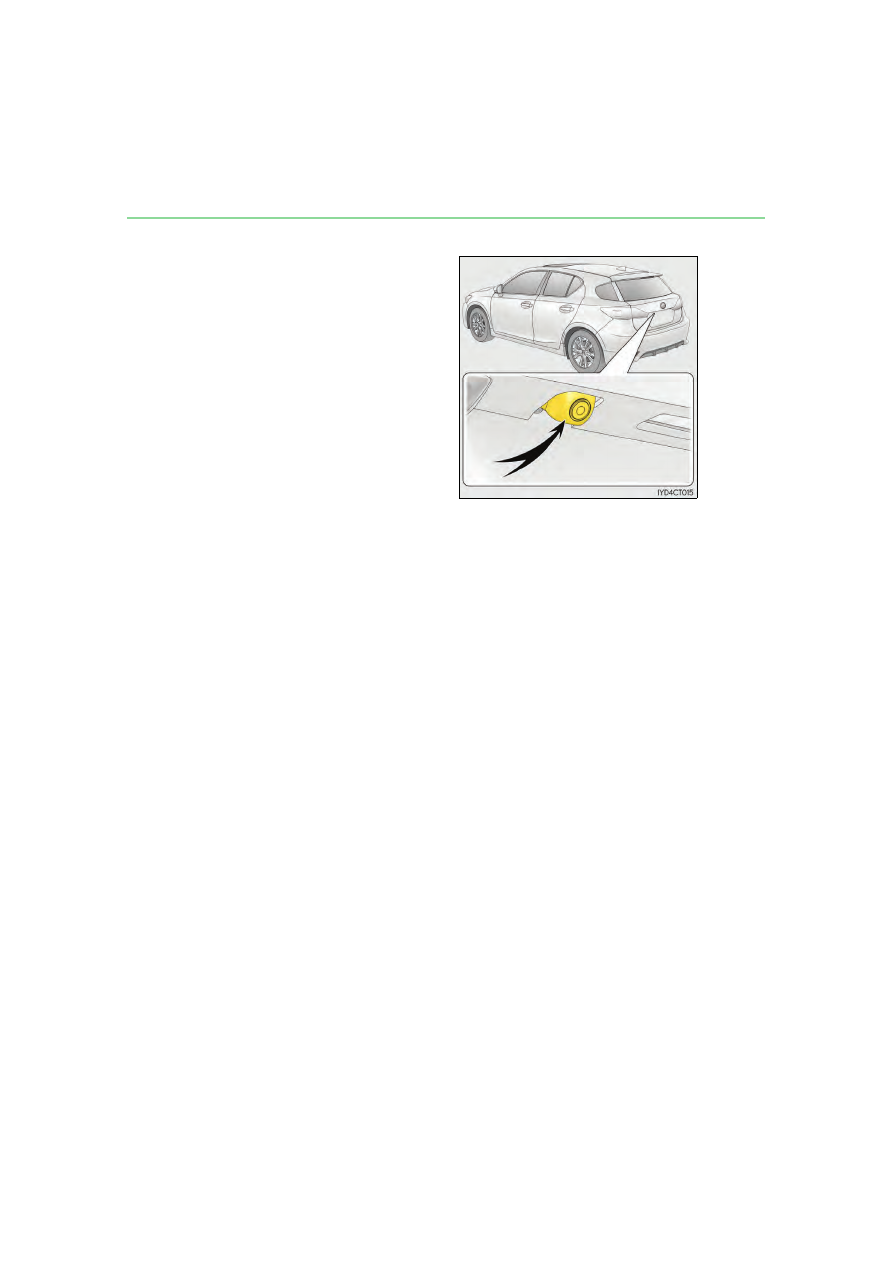

The camera for the parking assist
monitor is located above the license
plate.

●

Using the camera
If dirt or foreign matter (such as water droplets, snow, mud etc.) is adhering
to the camera, it cannot transmit a clear image. In this case, flush it with a
large quantity of water and wipe the camera lens clean with a soft and wet
cloth.

■

Differences between the screen and the actual road
The distance guide lines and the vehicle width guide lines may not actually be
parallel with the dividing lines of the parking space, even when they appear to
be so. Be sure to check visually.
The distances between the vehicle width guide lines and the left and right
dividing lines of the parking space may not be equal, even when they appear
to be so. Be sure to check visually.
The distance guide lines give a distance guide for flat road surfaces. In any of
the following situations, there is a margin of error between the guide lines on
the screen and the actual distance/course on the road.

231

4-5. Using the driving support systems

iving

●

When the ground behind the vehicle slopes up sharply

The distance guide lines will
appear to be closer to the vehicle
than the actual distance. Because
of this, objects will appear to be
farther away than they actually
are. In the same way, there will be
a margin of error between the
guidelines and the actual dis-
tance/course on the road.

●

When the ground behind the vehicle slopes down sharply
The distance guide lines will
appear to be further from the
vehicle than the actual distance.
Because of this, objects will
appear to be closer than they
actually are. In the same way,
there will be a margin of error
between the guidelines and the
actual distance/course on the
road.

232

4-5. Using the driving support systems

●

When any part of the vehicle sags
When any part of the vehicle sags
due to the number of passengers
or the distribution of the load,
there is a margin of error between
the guide lines on the screen and
the actual distance/course on the
road.

■

When approaching three-dimensional objects
The estimated course lines target a flat surfaced objects (such as the road). It
is not possible to determine the position of three-dimensional objects (such as
vehicles) using the estimated course lines and distance guide lines. When
approaching a three-dimensional object that extends outward (such as the
flatbed of a truck), be careful of the following.

●

Estimated course lines
Visually check the surroundings
and the area behind the vehicle.
In the case shown in the illustra-
tion, the truck appears to be out-
side of the estimated course lines
and the vehicle does not look as if
it will hits the truck. However, the
rear body of the truck may actu-
ally cross over the estimated
course lines. In reality if you back
up as guided by the estimated
course lines, the vehicle may hit
the truck.

A margin of error

233

4-5. Using the driving support systems

iving

●

Distance guidelines
Visually check the surroundings
and the area behind the vehicle.
On the screen, it appears that a
truck is parking at point

. How-

ever, in reality if you back up to
point

, you will hit the truck.

On the screen, it appears that
is closest and

is farthest away.

However, in reality, the distance to

and

is the same and

farther than

and

■

Things you should know

Likely cause

Solution

 The image is difficult to see

• The vehicle is in a dark area

• The temperature around the lens is

either high or low

• The outside temperature is low

• There are water droplets on the cam-

era

• It is raining or humid

• Foreign matter (mud etc.) is adhering to

the camera

• There are scratches on the camera

• Sunlight or headlights are shining

directly into the camera

• The vehicle is under fluorescent lights,

sodium lights, mercury lights etc.

If this happens due to these causes, it

does not indicate a malfunction.

Back up while visually checking the vehi-

cle’s surroundings. (Use the monitor

again once conditions have been

improved.)

The image on the Lexus parking assist

monitor system screen can be adjusted.

(

P. 337)

234

4-5. Using the driving support systems

 The image is blurry

Dirt or foreign matter (such as water

droplets, snow, mud etc.) is adhering to

the camera.

Flush the camera with a large quantity of

water and wipe the camera lens clean

with a soft and wet cloth.

 The image is out of alignment

The camera or surrounding area has

received a strong impact.

Have the vehicle inspected by your Lexus

dealer.

 The guide lines are very far out of alignment

The camera position is out of alignment.

Have the vehicle inspected by your Lexus

dealer.

• The vehicle is tilted (there is a heavy

load on the vehicle, tire pressure is low

due to a tire puncture, etc.)

• The vehicle is used on an incline.

If this happens due to these causes, it

does not indicate a malfunction.

Back up while visually checking the vehi-

cle’s surroundings.

 The estimated course lines move even though the steering wheel is straight

There is a malfunction in the signals being

output by the steering sensor.

Have the vehicle inspected by your Lexus

dealer.

 Guide lines are not displayed

The back door is open.

Close the back door.

If this does not resolve the symptom, have

the vehicle inspected by your Lexus

dealer.

 The estimated course lines are not displayed

• Battery power is low.

• The steering sensor has been rein-

stalled.

• There is a malfunction in the signals

being output by the steering sensor.

Stop the vehicle, and turn the steering

wheel as far as it will go to the left and

right.

If this does not resolve the symptom, have

the vehicle inspected by your Lexus

dealer.

Likely cause

Solution

Content .. 12 13 14 15 ..
