4-5. Using the driving support systems

iving

WARNING

■

Conditions under which the vehicle-to-vehicle distance control may not function cor-

rectly
Operate the brake pedal (or accelerator pedal operation depending on the situation)

as necessary in the following conditions as the radar sensor may not be able to cor-

rectly detect vehicles ahead, which may lead to an accident resulting in death or seri-

ous injury.

●

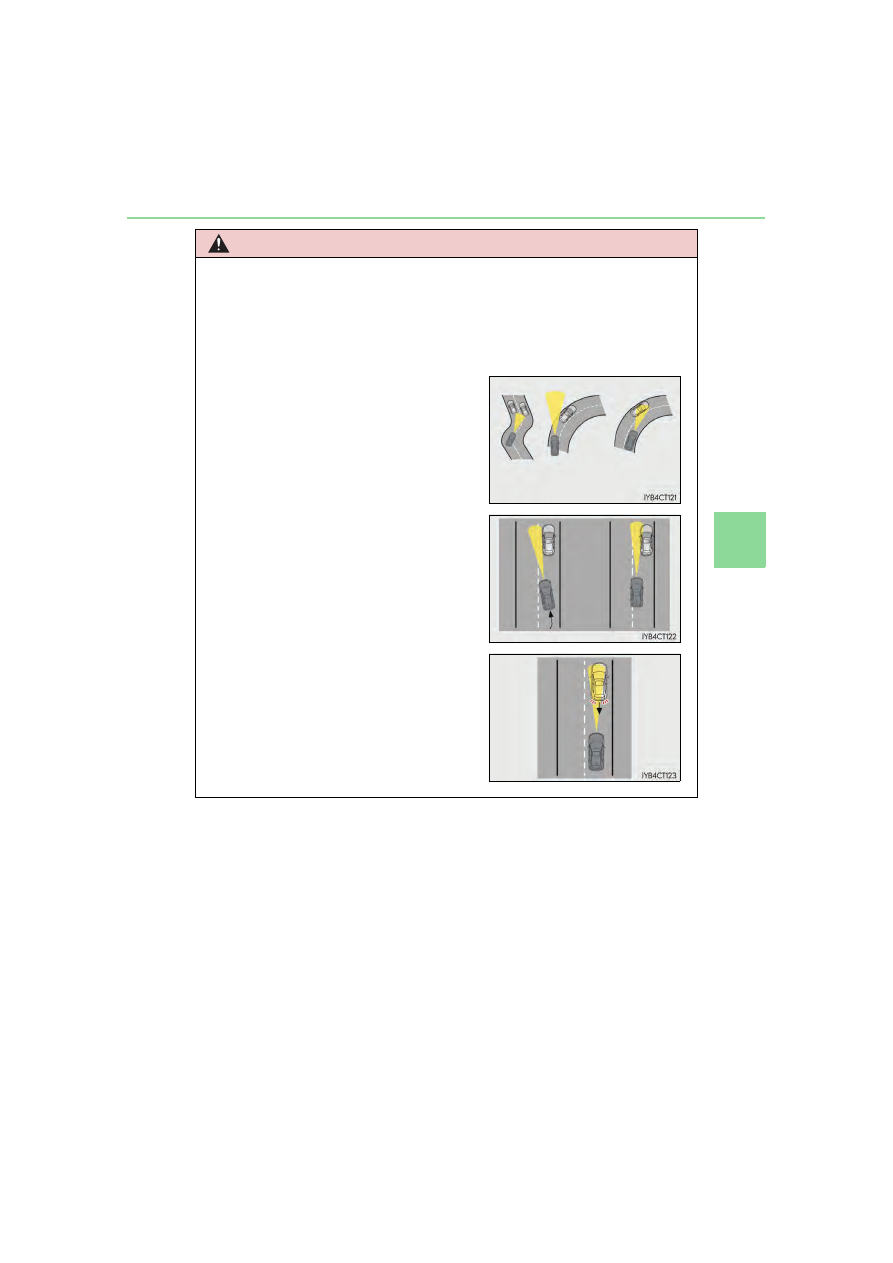

When the road curves or when the lanes are

narrow

●

When steering wheel operation or your posi-

tion in the lane is unstable

●

When the vehicle ahead of you decelerates

suddenly

Accelerate Accelerate Decelerate

204

4-5. Using the driving support systems

WARNING

■

Handling the radar sensor
Observe the following to ensure the cruise control system can function effectively.

Otherwise, the system may not detect correctly and could result in an accident.

●

Keep the sensor and grille cover clean at all times.

Clean the sensor and grille cover with a soft cloth so you do not mark or damage

them.

●

Do not subject the sensor or surrounding area to a strong impact.

If the sensor moves even slightly off position, the system may not work normally or

malfunction. If the sensor or surrounding area is subject to a strong impact, always

have the area inspected and adjusted by a Lexus dealer.

●

Do not disassemble the sensor.

●

Do not attach accessories or stickers to the sensor, grille cover or surrounding area.

●

Do not modify or paint the sensor and grille cover.

●

If the sensor needs to be replaced, contact your Lexus dealer.

205

4-5. Using the driving support systems

iving

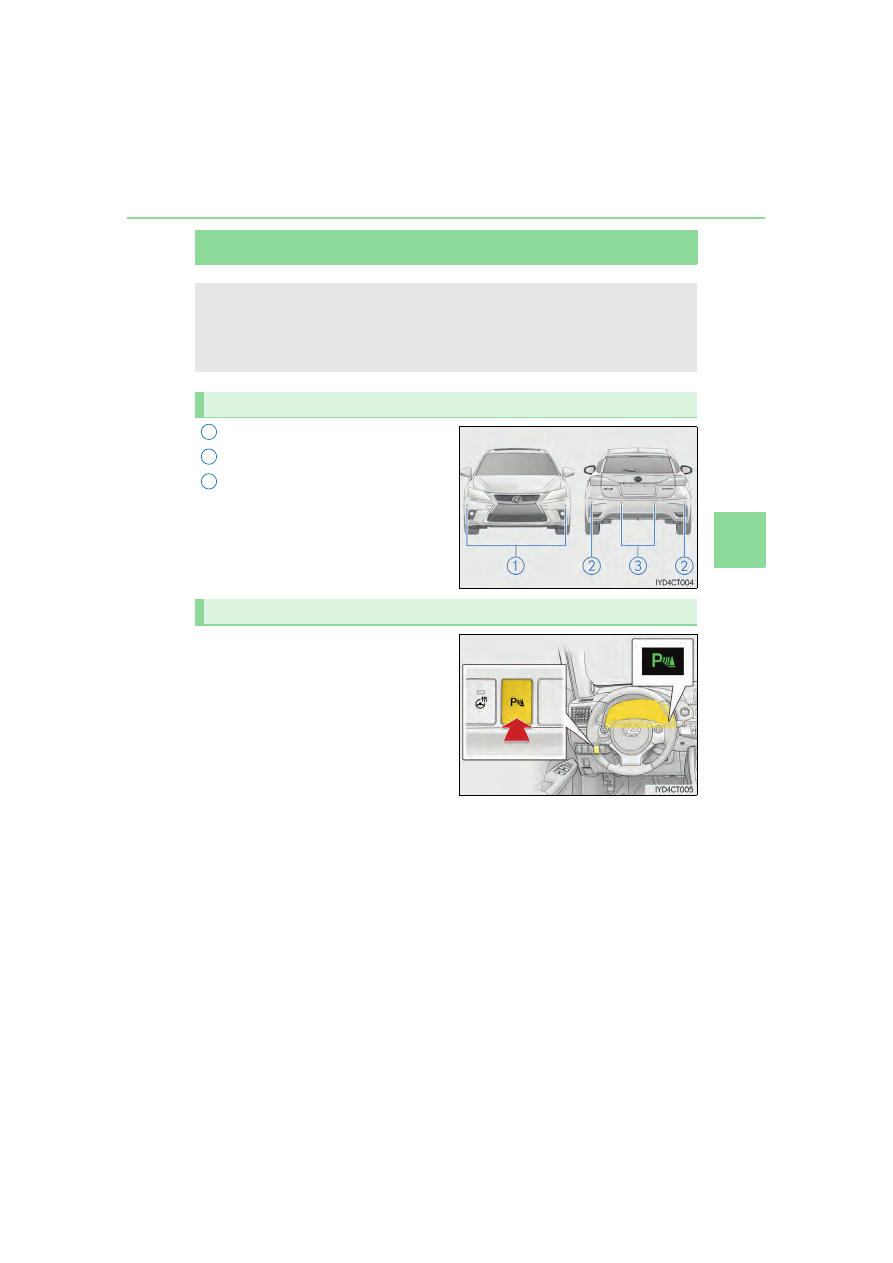

Intuitive parking assist



Front corner sensors
Rear corner sensors
Rear center sensors

Turns the intuitive parking assist on/off

When on, the indicator light comes on

to inform the driver that the system is

operational.



: If equipped

The distance from your vehicle to nearby obstacles when parallel parking or
maneuvering into a garage is measured by the sensors and communicated via
the displays and a buzzer. Always check the surrounding area when using this
system.

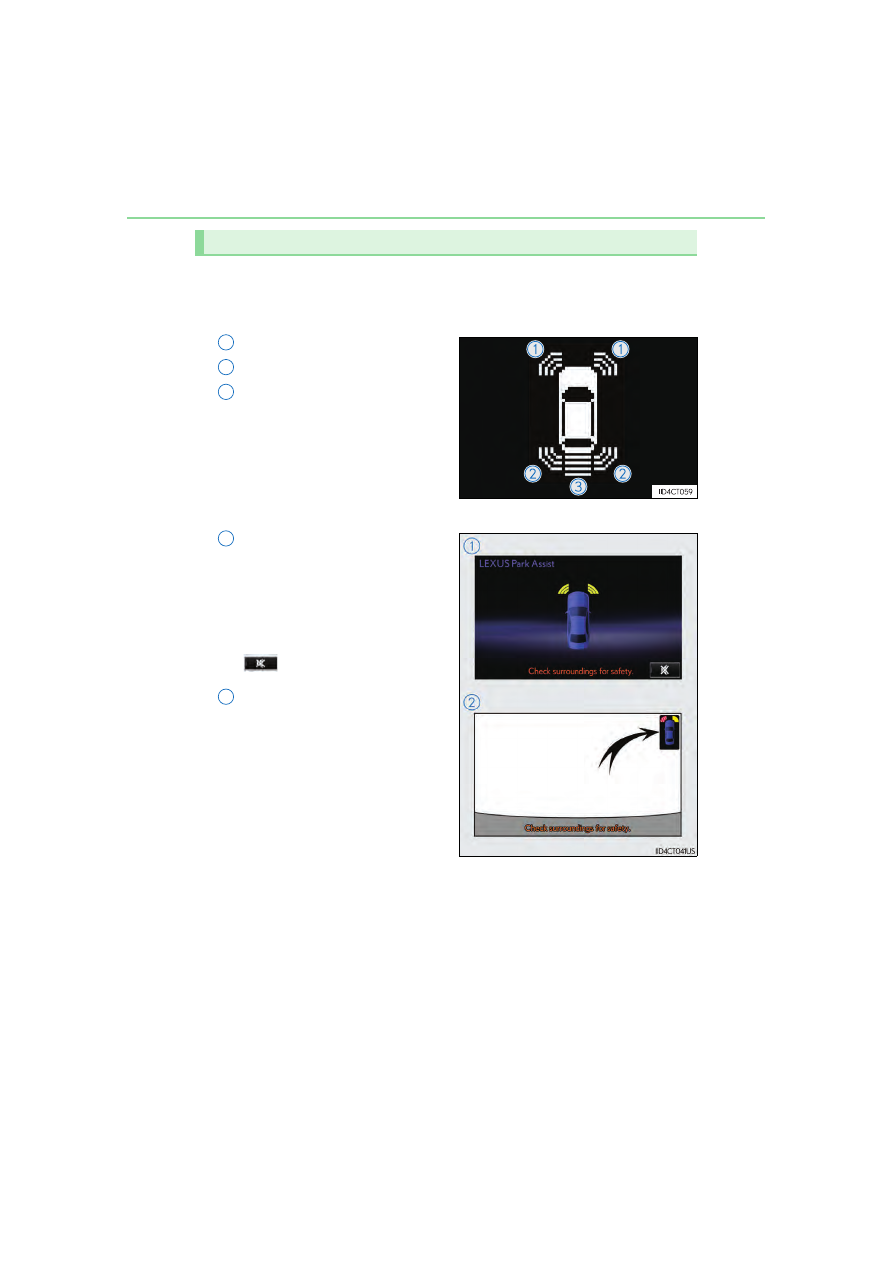

Types of sensors

2
3

Intuitive parking assist switch

206

4-5. Using the driving support systems

When the sensors detect an obstacle, the following displays inform the driver of
the position and distance to the obstacle.

■

Multi-information display

Front corner sensor operation
Rear corner sensor operation
Rear center sensor operation

■

Lexus Display Audio or navigation system screen (if equipped)

Intuitive parking assist display

When the Lexus parking assist moni-

tor

is not displayed.

A graphic is automatically displayed

when an obstacle is detected. The

screen can be set so that the graphic

is not displayed. (

P. 209)

: Select to mute the buzzer

sounds.

Insert display

When the Lexus parking assist moni-

tor

is displayed.

A simplified image is displayed on

the right upper corner of the naviga-

tion system screen when an obstacle

is detected.

: if equipped

Display

2
3

207

4-5. Using the driving support systems

iving

■

Distance display
Sensors that detect an obstacle will illuminate continuously or blink.

: The images may differ from that shown in the illustrations. (

P. 206)

: Multi-information display

: Lexus Display Audio or navigation system screen

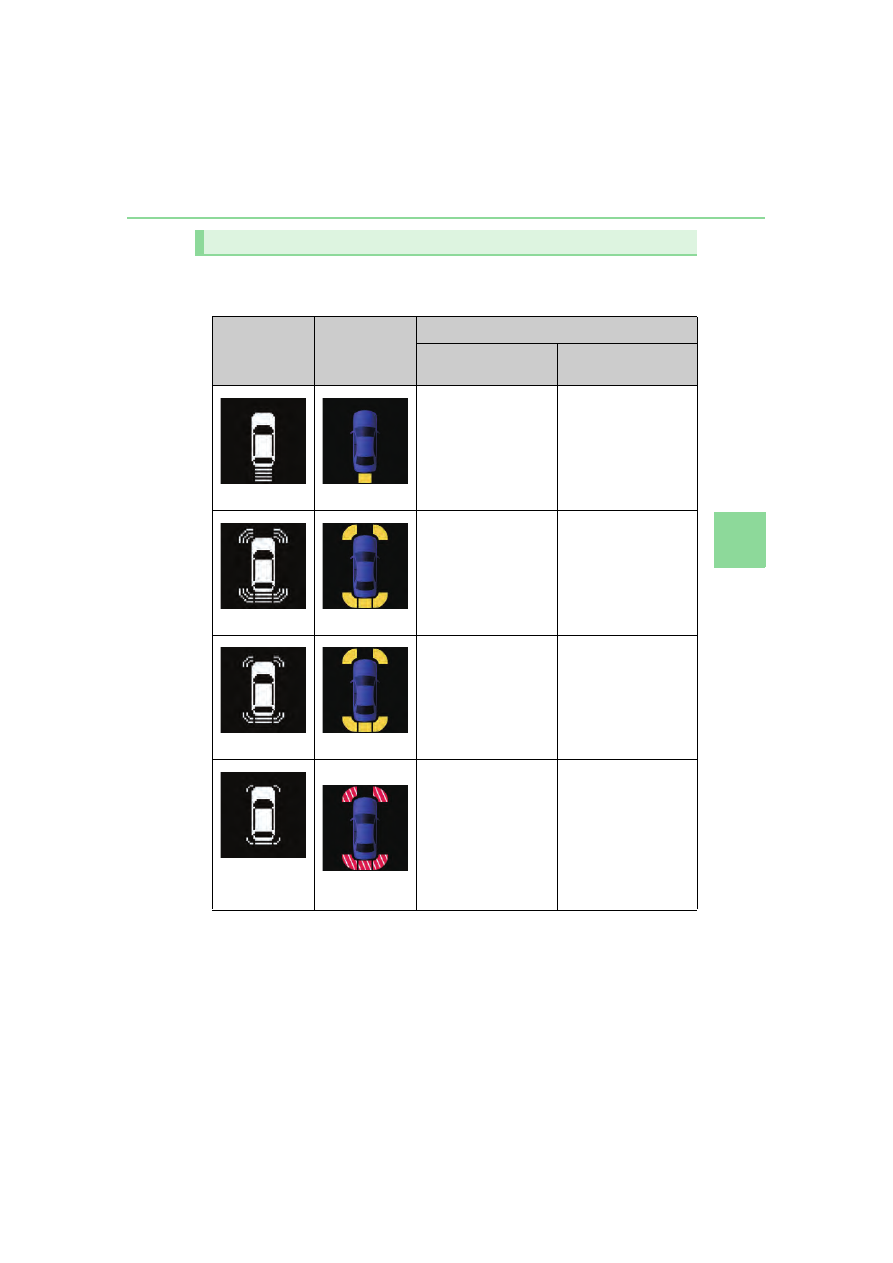

Sensor detection display, obstacle distance

Display

Insert

display

Approximate distance to obstacle

Front and rear

corner sensor

Rear center sensor

(continuous)

(blinking slowly)



4.9 ft. (150 cm) to

2.0 ft. (60 cm)

(continuous)

(blinking)

Front corner sensor:

1.6 ft. (50 cm) to

1.3 ft. (40 cm)

Rear corner sensor:

2.0 ft. (60 cm) to

1.5 ft. (45 cm)

2.0 ft. (60 cm) to

1.5 ft. (45 cm)

(continuous)

(blinking rapidly)

Front corner sensor:

1.3 ft. (40 cm) to

1.0 ft. (30 cm)

Rear corner sensor:

1.5 ft. (45 cm) to

1.0 ft. (30 cm)

1.5 ft. (45 cm) to

1.2 ft. (35 cm)

(blinking

continuous

)

(continuous)

Less than

1.0 ft. (30 cm)

Less than

1.2 ft. (35 cm)

208

4-5. Using the driving support systems

■

Buzzer operation and distance to an obstacle
A buzzer sounds when the sensors are operating.

●

The buzzer sounds faster as the vehicle approaches an obstacle.
When the vehicle comes within the following distance of the obstacle, the
buzzer sounds continuously.

• Front corner sensors: Approximately 1.0 ft. (30 cm)
• Rear corner sensors: Approximately 1.0 ft. (30 cm)
• Rear center sensors: Approximately 1.2 ft. (35 cm)

●

When 2 or more obstacles are detected simultaneously, the buzzer system
responds to the nearest obstacle. If one or both come within the above dis-
tances, the beep will repeat a long tone, followed by fast beeps.

Approximately 1.6 ft. (50 cm)
Approximately 2.0 ft. (60 cm)
Approximately 4.9 ft. (150 cm)

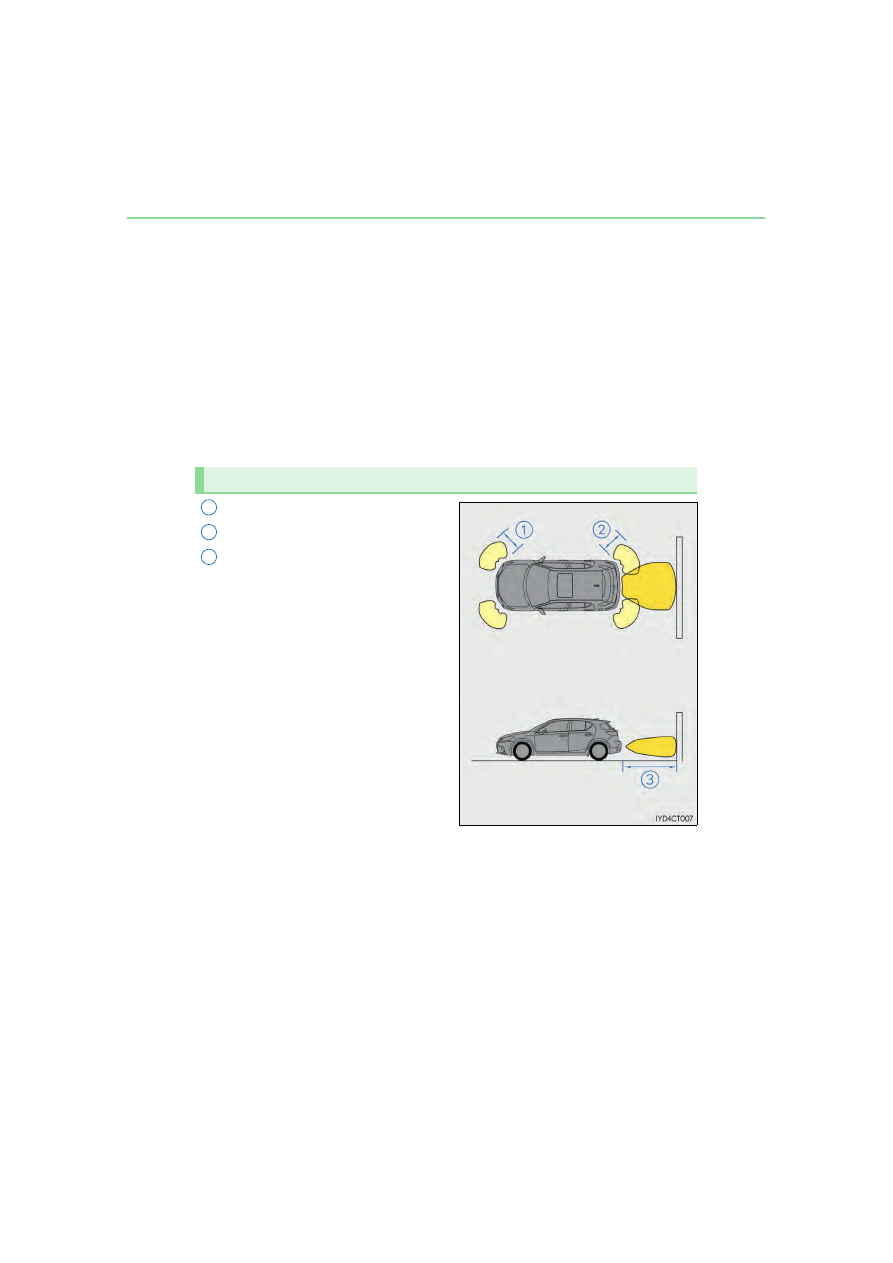

The diagram shows the detection range

of the sensors. Note that the sensors

cannot detect obstacles that are

extremely close to the vehicle.
The range of the sensors may change

depending on the shape of the object

etc.

Detection range of the sensors

2
3

209

4-5. Using the driving support systems

iving

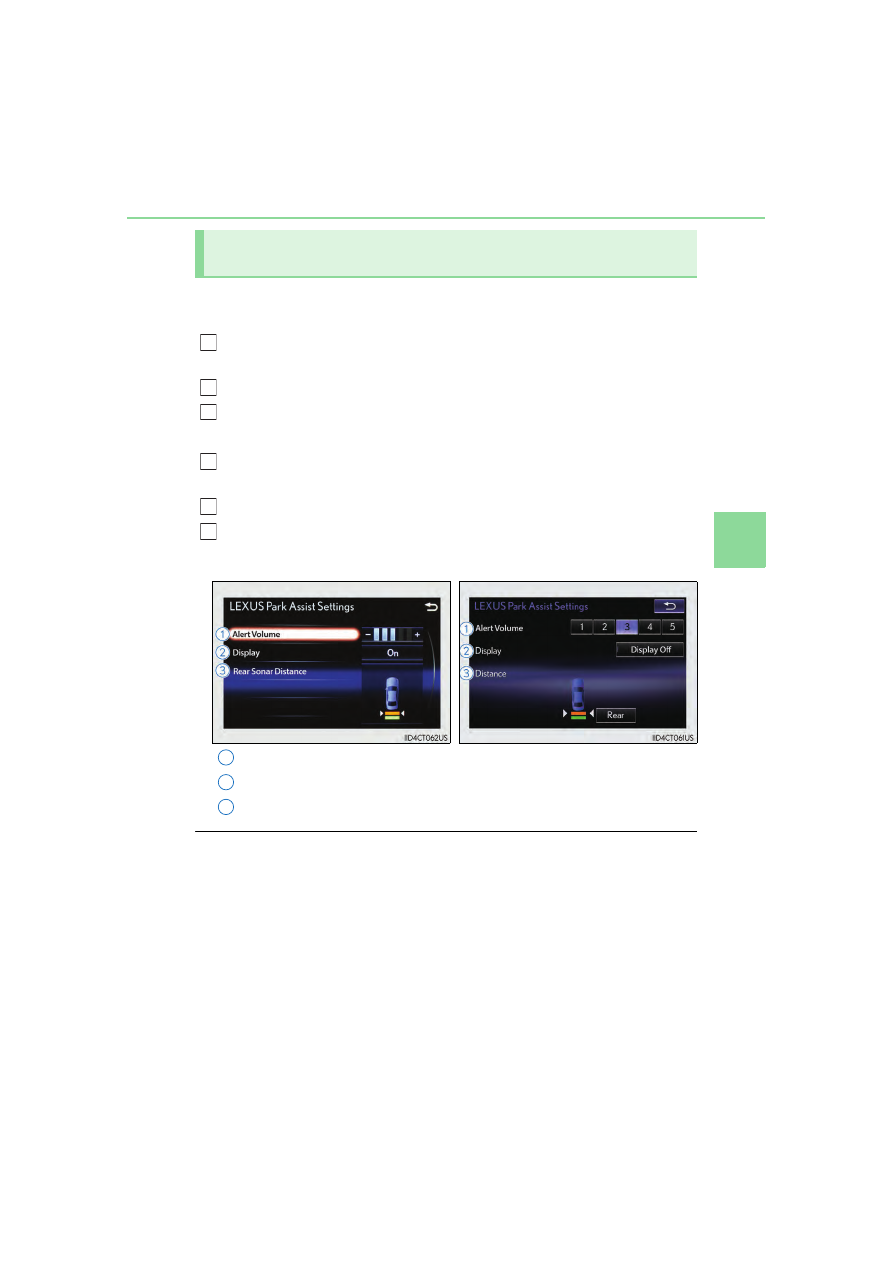

You can change the buzzer sounds volume and the screen operating conditions.



Lexus Display Audio system
Press the “MENU” button on the Lexus Display Audio controller, and then
select “Setup” on the screen.
Select “Vehicle”, and then select “LEXUS Park Assist” on the screen.
Select the desired item.



Navigation system
Press the “MENU” button on the Remote Touch, and then select “Setup” on
the screen.
Select “Vehicle”, and then select “LEXUS Park Assist Settings” on the screen.
Select the desired item.

The buzzer sounds volume can be adjusted.
On or off can be selected for intuitive parking assist display.
Rear center sensor display and tone indication can be set.

■

The intuitive parking assist can be operated when

●

Front corner sensors:
• The power switch is in ON mode.

• The shift position is in other than P.

• The vehicle speed is less than about 6 mph (10 km/h).

(At any speed when the shift position is in R)

●

Rear corner and rear center sensors:
• The power switch is in ON mode.

• The shift position is in R.

Setting up intuitive parking assist (vehicles with a Lexus Display Audio
or navigation system)

2
3



Lexus Display Audio screen



Navigation system screen

2
3

210

4-5. Using the driving support systems

■

Intuitive parking assist display
When an obstacle is detected while the Lexus parking assist monitor is in use, the warn-

ing indicator will appear in the upper corner of the screen even if the display setting has

been set to off.

■

Sensor detection information

●

The sensor’s detection areas are limited to the areas around the vehicle’s bumper.

●

Certain vehicle conditions and the surrounding environment may affect the ability of a

sensor to correctly detect an obstacle. Particular instances where this may occur are

listed below.
• There is dirt, snow or ice on the sensor. (Wiping the sensors will resolve this prob-

lem.)

• The sensor is frozen. (Thawing the area will resolve this problem.)

In especially cold weather, if a sensor is frozen the screen may show an abnormal

display, or obstacles may not be detected.

• The sensor is covered in any way.

• The vehicle is leaning considerably to one side.

• On an extremely bumpy road, on an incline, on gravel, or on grass.

• The vicinity of the vehicle is noisy due to vehicle horns, motorcycle engines, air

brakes of large vehicles, or other loud noises producing ultrasonic waves.

• There is another vehicle equipped with parking assist sensors in the vicinity.

• The sensor is coated with a sheet of spray or heavy rain.

• The vehicle is equipped with a fender pole or wireless antenna.

• Towing eyelets are installed.

• The bumper or sensor receives a strong impact.

• The vehicle is approaching a tall or curved curb.

• In harsh sunlight or intense cold weather.

• The area directly under the bumpers is not detected.

• If obstacles draw too close to the sensor.

• A non-genuine Lexus suspension (lowered suspension etc.) is installed.

• People may not be detected if they are wearing certain types of clothing.

In addition to the examples above, there are instances in which, because of their shape,

signs and other objects may be judged by a sensor to be closer than they are.

●

The shape of the obstacle may prevent a sensor from detecting it. Pay particular atten-

tion to the following obstacles:
• Wires, fences, ropes, etc.

• Cotton, snow and other materials that absorb sound waves

• Sharply-angled objects

• Low obstacles

• Tall obstacles with upper sections projecting outwards in the direction of your vehi-

cle

●

The following situations may occur during use.
• Depending on the shape of the obstacle and other factors, the detection distance

may shorten, or detection may be impossible.

• Obstacles may not be detected if they are too close to the sensor.

• There will be a short delay between obstacle detection and display. Even at slow

speeds, there is a possibility that the obstacle will come within the sensor’s detection

areas before the display is shown and the buzzer sounds.

• Thin posts or objects lower than the sensor may not be detected when approached,

even if they have been detected once.

• It might be difficult to hear beeps due to the volume of audio system or air flow noise

of the air conditioning system.

211

4-5. Using the driving support systems

iving

■

If a message is displayed on the multi-information display
P. 542

■

Certification



For vehicles sold in the U.S.A.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions; (1) This device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause undesired

operation.



For vehicles sold in Canada

This ISM device complies with Canadian ICES-001.
Cet appareil ISM est conforme à la norme NMB-001 du Canada.

■

Customization
Settings (e.g. buzzer sounds volume) can be changed.

(Customizable features:

P. 598)

WARNING

■

When using the intuitive parking assist
Observe the following precautions.

Failing to do so may result in the vehicle being unable to be driven safely and possibly

cause an accident.

●

Do not use the sensor at speeds in excess of 6 mph (10 km/h).

●

The sensors’ detection areas and reaction times are limited. When moving forward or

reversing, check the areas surrounding the vehicle (especially the sides of the vehi-

cle) for safety, and drive slowly, using the brake to control the vehicle’s speed.

●

Do not install accessories within the sensors’ detection areas.

NOTICE

■

When using intuitive parking assist
In the following situations, the system may not function correctly due to a sensor mal-

function etc. Have the vehicle checked by your Lexus dealer.

●

The intuitive parking assist operation display flashes, and a buzzer sounds when no

obstacles are detected.

●

If the area around a sensor collides with something, or is subjected to strong impact.

●

If the bumper collides with something.

●

If the display shows continuously without beeping, except when the buzzer mute

switch has been turned on.

●

If a display error occurs, first check the sensor.

If the error occurs even if there is no ice, snow or mud on the sensor, it is likely that the

sensor is malfunctioning.

■

Notes when washing the vehicle
Do not apply intensive bursts of water or steam to the sensor area.
Doing so may result in the sensor malfunctioning.

212

4-5. Using the driving support systems

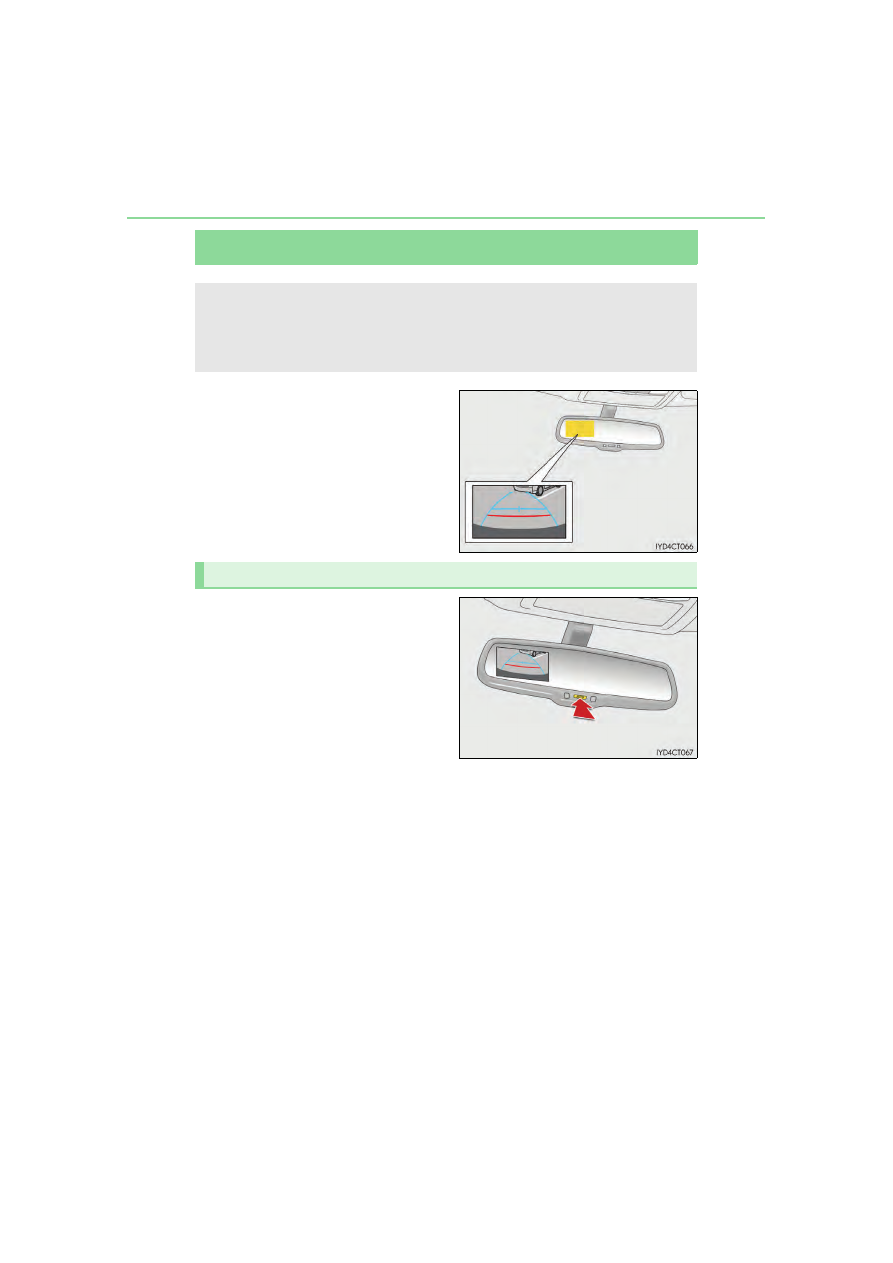

Rear view monitor system



The rear view image is displayed when
the shift position is in R and the power
switch is in ON mode.

This reversed image is a similar image to

the one on the inside rear view mirror.
If you shift the shift position to any posi-

tions other than R, the screen is turned

off.

●

To temporarily turn off the monitor
when it is on.
Push the “AUTO” button. The indica-
tor should turn orange.
The monitor will automatically turn
on again after the power switch is
turned off and ON mode.

●

To manually turn on the monitor
when it is turned off.
Push the “AUTO” button. The indica-
tor should turn green.



: If equipped

The rear view monitor system assists the driver by displaying an image of the
view behind the vehicle while reversing. The image is displayed in reverse on
the screen. This allows the image to appear in the same manner as that of the
rear view mirror.

Switching the screen

213

4-5. Using the driving support systems

iving

■

When using the rear view monitor system
The anti-glare function of the inside rear view mirror will be canceled.

■

Automatic shut off
The display will be turned off automatically after 5 minutes.

■

Display mode
The rear view monitor display mode can be adjusted when the power switch is
in ON mode and the shift position is in R.

●

To select a display language (English, French or Spanish).

Push and hold the “AUTO” button for 6 to 12 seconds.
The monitor should turn on and the indicator should turn green.

Push the “AUTO” button.

Each time the “AUTO” button is pushed and released, the language will
change.
The warning message should flash 5 seconds after the button is
released, indicating that the change has been completed.

●

To permanently disable the monitor.
Push and hold the “AUTO” button for 12 to 15 seconds.
The monitor will turn off and on after 6 seconds. Continue holding the but-
ton down until the display turns back off.
The indicator should flash orange.
The monitor will not automatically turn on again after the power switch is
turned off and ON mode.

●

To manually turn on the monitor when it is turned off.
Push the “AUTO” button.
The indicator should turn green.

214

4-5. Using the driving support systems

■

Screen description

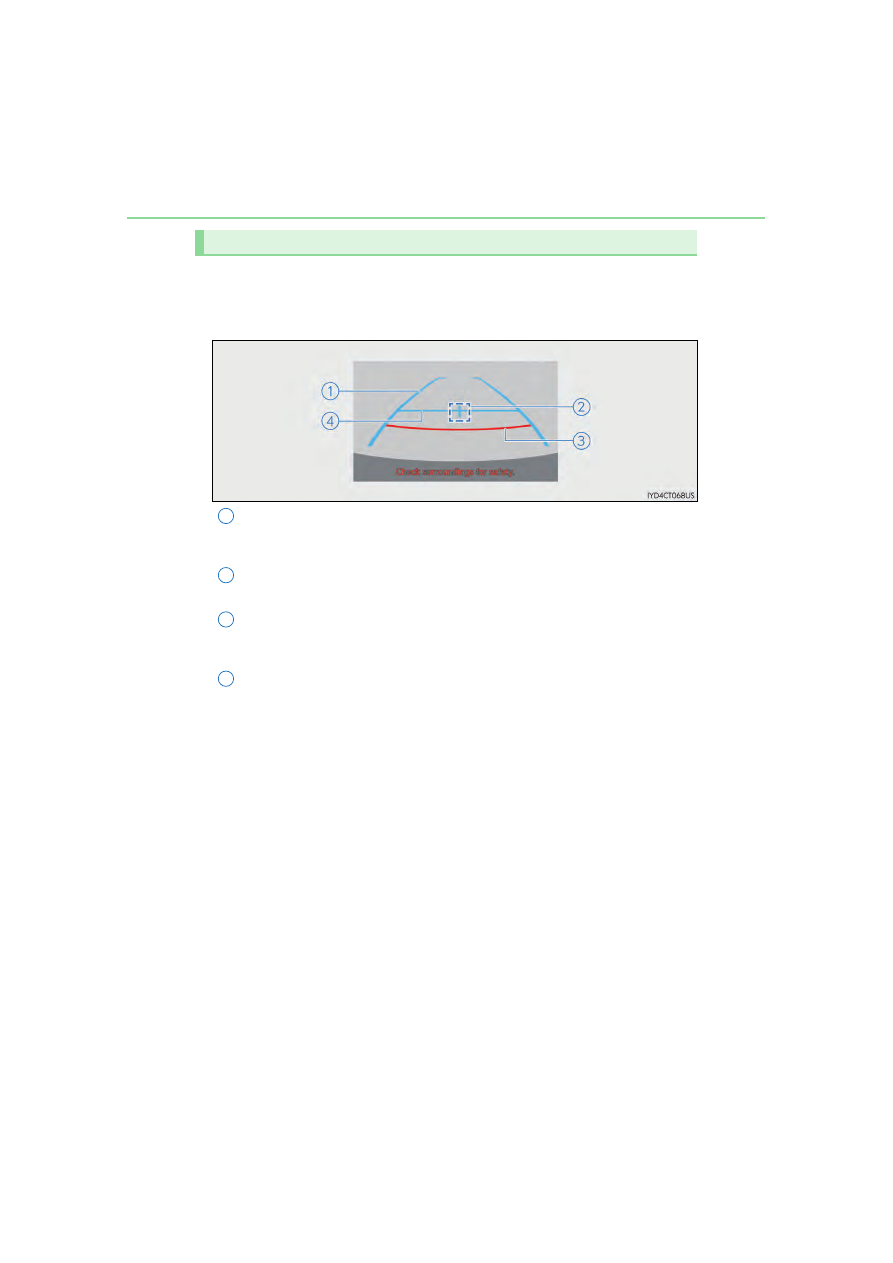

The rear view monitor system screen will be displayed if the shift position is
shifted to R while the power switch is in ON mode.

Vehicle width guide line

The line indicates a guide path when the vehicle is being backed straight up.

The displayed width is wider than the actual vehicle width.

Vehicle center guide line

These lines indicate the estimated vehicle center on the ground.

Distance guide line (red)

The line shows distance behind the vehicle, a point approximately 1.5 ft. (0.5 m)

from the edge of the bumper.

Distance guide line (blue)

The line shows distance behind the vehicle, a point approximately 3 ft. (1 m) from

the edge of the bumper.

Using the rear view monitor system

215

4-5. Using the driving support systems

iving

■

Area displayed on screen
The rear view monitor system dis-
plays an image of the view from the
bumper of the rear area of the vehi-
cle.

• The area displayed on the screen

may vary according to vehicle orien-

tation conditions.

• Objects which are close to either

corner of the bumper or under the

bumper cannot be displayed.

• The camera uses a special lens. The

distance of the image that appears

on the screen differs from the actual

distance.

• Items which are located higher than

the camera may not be displayed on

the monitor.

• If your vehicle is equipped with a

backlit license plate, it may interfere

with the display.

■

Rear view monitor system camera
The camera for the rear view moni-
tor system is located above the
license plate.

●

Using the camera
If dirt or foreign matter (such as water droplets, snow, mud etc.) is adhering
to the camera, it cannot transmit a clear image. In this case, flush it with a
large quantity of water and wipe the camera lens clean with a soft and wet
cloth.

Rear view monitor system precautions

Corners of bumper

216

4-5. Using the driving support systems

■

Differences between the screen and the actual road
The distance guide lines and the vehicle width guide lines may not actually be
parallel with the dividing lines of the parking space, even when they appear to
be so. Be sure to check visually.
The distances between the vehicle width guide lines and the left and right
dividing lines of the parking space may not be equal, even when they appear
to be so. Be sure to check visually.
The distance guide lines give a distance guide for flat road surfaces. In any of
the following situations, there is a margin of error between the fixation guide
lines on the screen and the actual distance/course on the road.

●

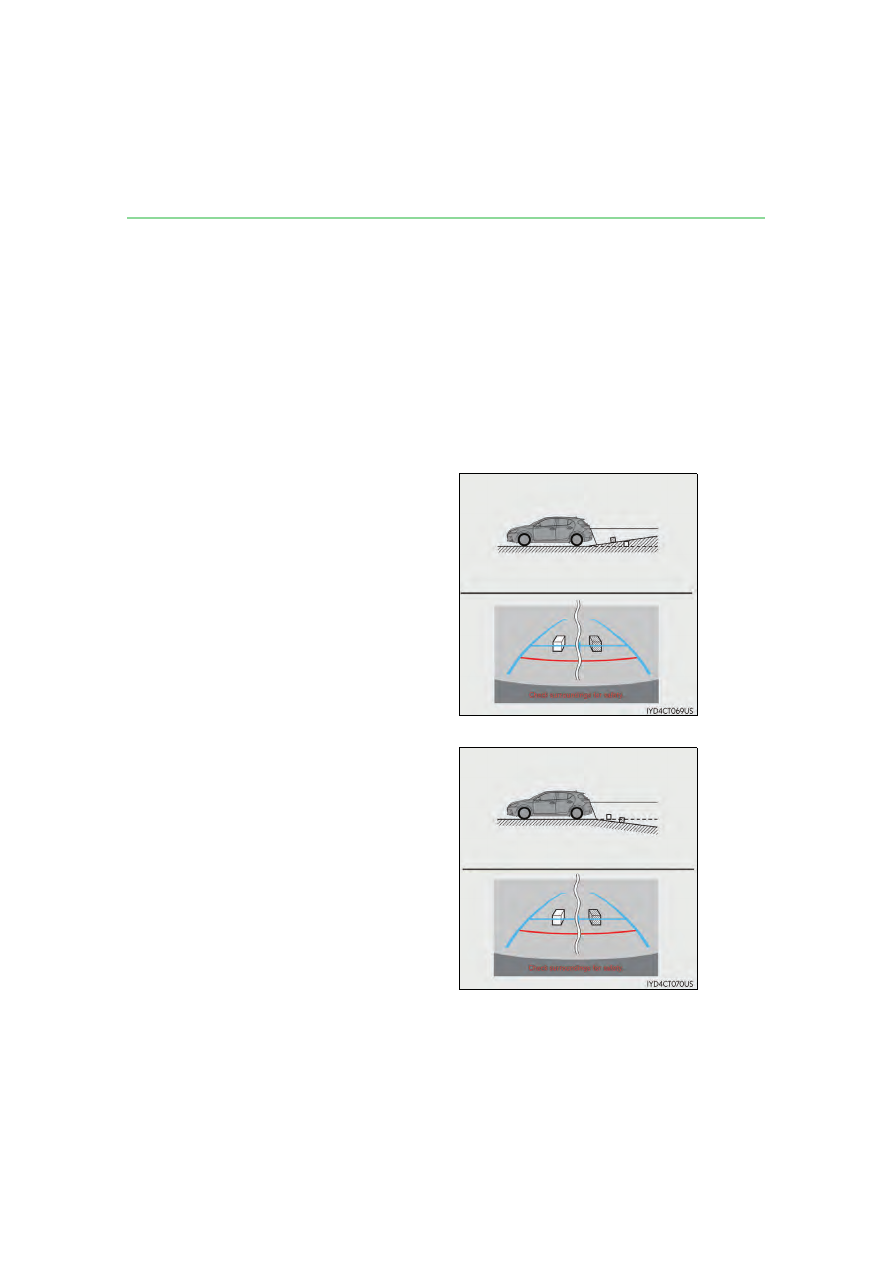

When the ground behind the vehicle slopes up sharply
The distance guide lines will
appear to be closer to the vehicle
than the actual distance. Because
of this, objects will appear to be
farther away than they actually
are. In the same way, there will be
a margin of error between the
guide lines and the actual dis-
tance/course on the road.

●

When the ground behind the vehicle slopes down sharply
The distance guide lines will
appear to be further from the
vehicle than the actual distance.
Because of this, objects will
appear to be closer than they
actually are. In the same way,
there will be a margin of error
between the guide lines and the
actual distance/course on the
road.

217

4-5. Using the driving support systems

iving

●

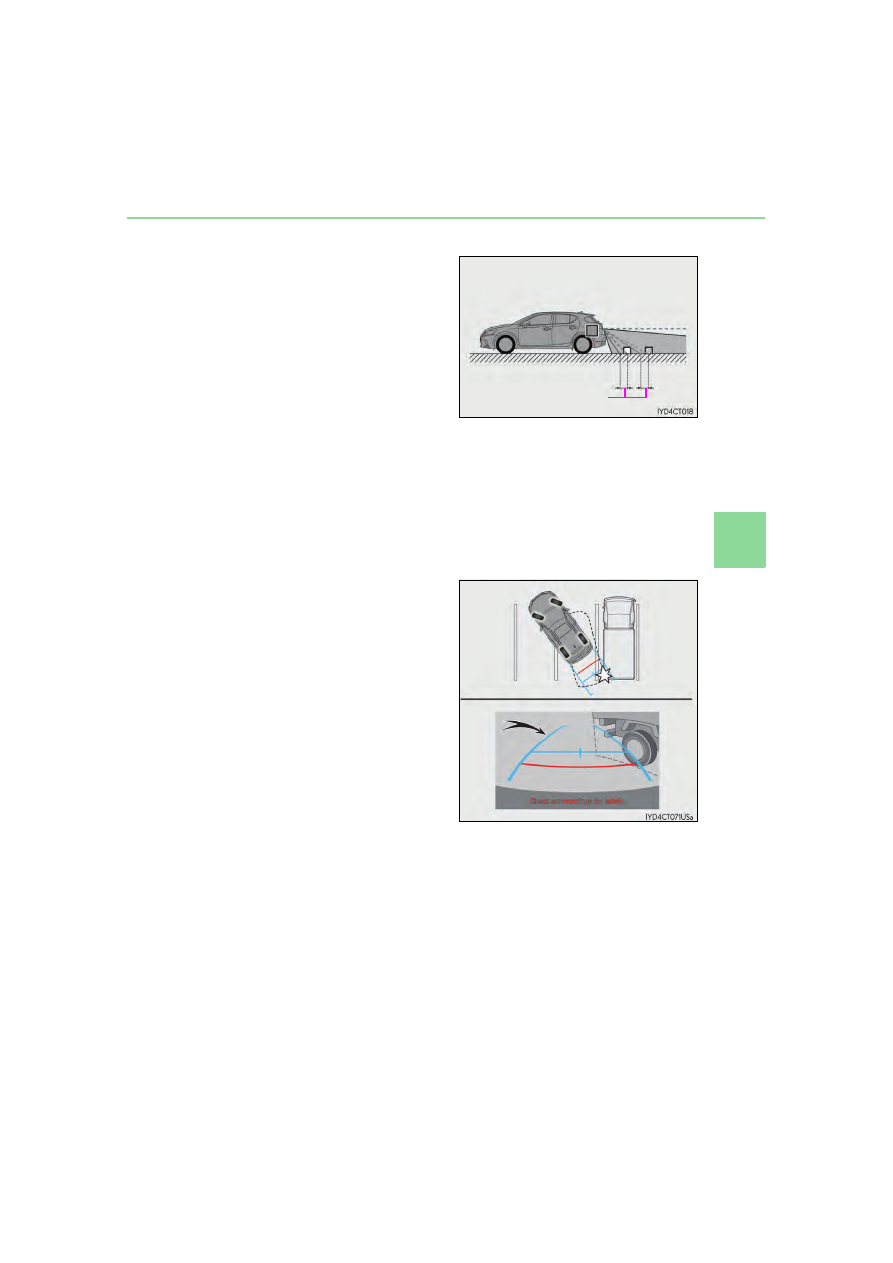

When any part of the vehicle sags
When any part of the vehicle sags
due to the number of passengers
or the distribution of the load,
there is a margin of error between
the fixation guide lines on the
screen and the actual distance/
course on the road.

■

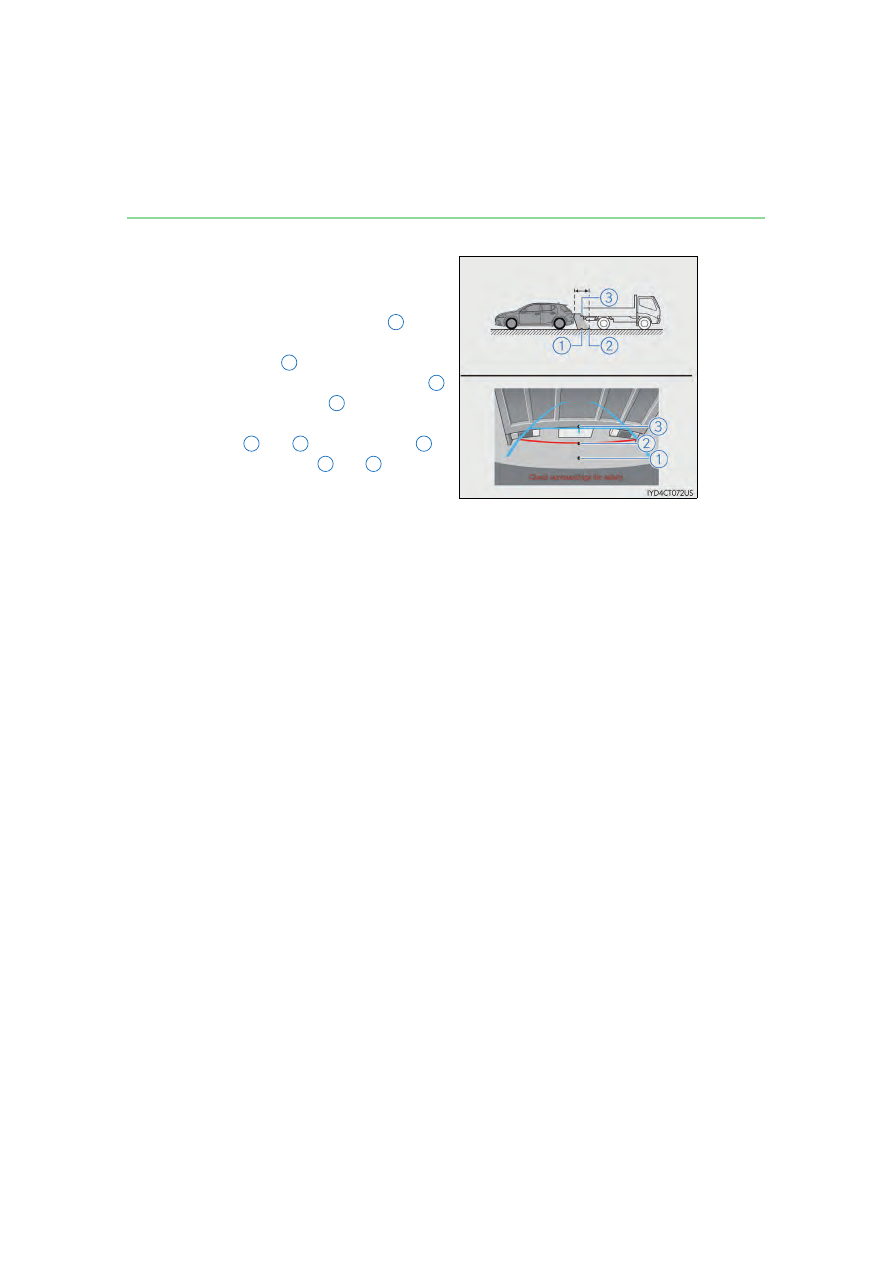

When approaching three-dimensional objects
The distance guide lines are displayed according to flat surfaced objects (such
as the road). It is not possible to determine the position of three-dimensional
objects (such as vehicles) using the distance guide lines. When approaching a
three-dimensional object that extends outward (such as the flatbed of a truck),
be careful of the following.

●

Vehicle width guide lines
Visually check the surroundings
and the area behind the vehicle.
In the case shown in the illustra-
tion, the truck appears to be out-
side of the vehicle width guide
lines and the vehicle does not
look as if it hits the truck. How-
ever, the rear body of the truck
may actually cross over the vehi-
cle width guide lines. In reality if
you back up as guided by the
vehicle width guide lines, the
vehicle may hit the truck.

A margin of error

218

4-5. Using the driving support systems

●

Distance guide lines
Visually check the surroundings
and the area behind the vehicle.
On the screen, it appears that a
truck is parking at point

. How-

ever, in reality if you back up to
point

, you will hit the truck.

On the screen, it appears that
is closest and

is farthest away.

However, in reality, the distance to

and

is the same, and

farther than

and

Content .. 11 12 13 14 ..
