LEXUS CT200H (2017 year). Instruction - part 6

2. Instrument cluster

Instrument cl

uste
r

■

Average fuel consumption
Displays the average fuel consumption since the function was reset.

• The function can be reset by pressing the “DISP” switch for longer than 1 second

when the average fuel consumption is displayed.

• Use the displayed average fuel consumption as a reference.

■

Cruising range
Displays the estimated maximum distance that can be driven with the quantity
of fuel remaining.

• This distance is computed based on your average fuel consumption.

As a result, the actual distance that can be driven may differ from that displayed.

• When only a small amount of fuel is added to the tank, the display may not be

updated.

When refueling, turn the power switch off. If the vehicle is refueled without turning

the power switch off, the display may not be updated.

■

Elapsed time
Displays the elapsed time since the hybrid system was started or the function
was reset.

The function can be reset by pressing the “DISP” switch for longer than 1 second

when the elapsed time is displayed.

■

Average vehicle speed
Displays the average vehicle speed since the function was reset

The function can be reset by pushing the “DISP” switch for longer than 1 second

when the average vehicle speed is displayed.

■

Setting
P. 598

■

Display off
A blank screen is displayed

■

System check display
After turning the power switch to ON mode, opening image is displayed while system

operation is checked. When the system check is complete, the normal screen will return.

■

When disconnecting and reconnecting 12-volt battery terminals
The drive information will be reset.

■

Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is characteristic

of liquid crystal displays, and there is no problem continuing to use the display.

2. Instrument cluster

NOTICE

■

The multi-information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal information

display. At extremely low temperatures, the information display monitor may respond

slowly, and display changes may be delayed.

2. Instrument cluster

Instrument cl

uste
r

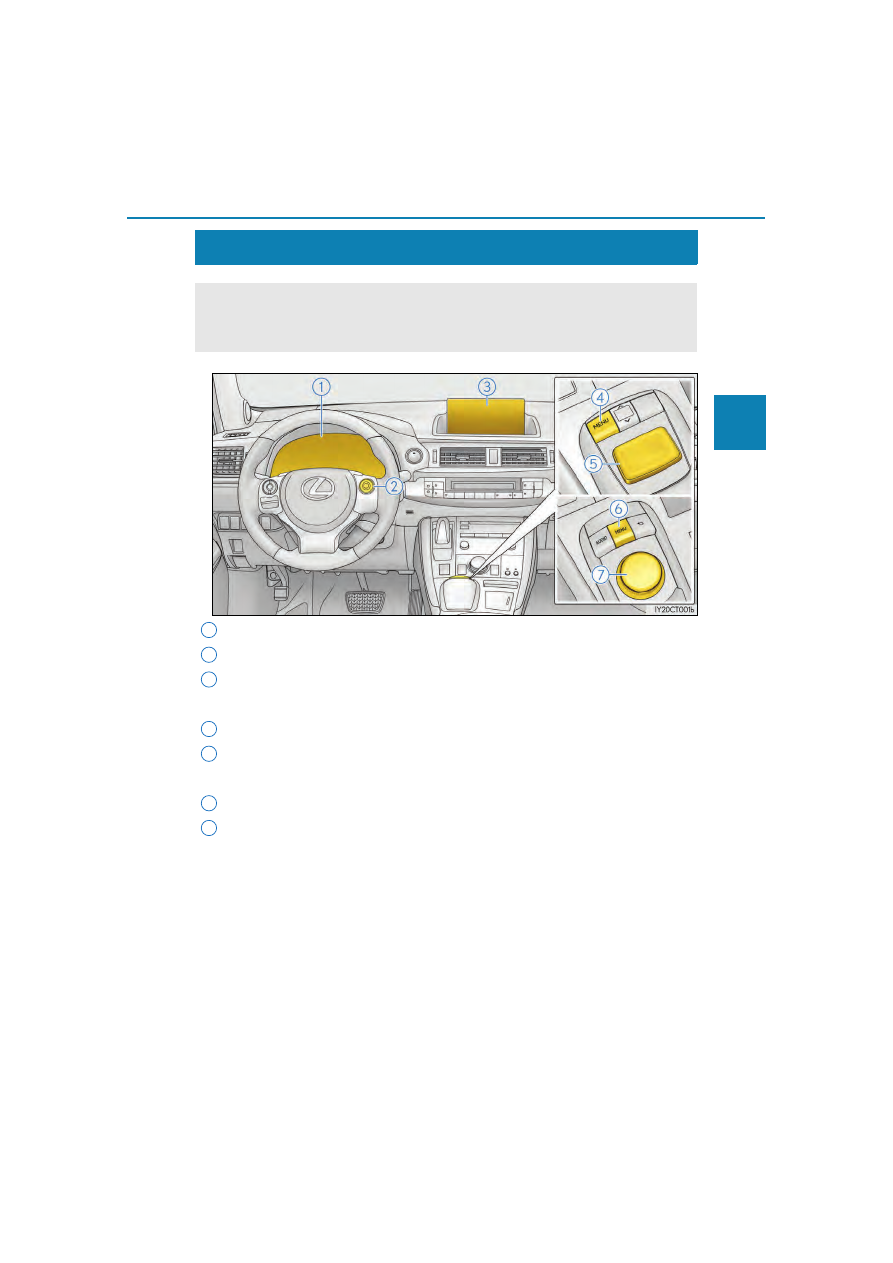

Energy monitor/consumption screen

Multi-information display
“DISP” switch
Navigation system screen/Lexus Display Audio screen (if equipped)



Vehicles with a navigation system
“MENU” button
Remote Touch knob



Vehicles with a Lexus Display Audio system
“MENU” button
Lexus Display Audio controller (

P. 326)

: For use of the Remote Touch, refer to “NAVIGATION SYSTEM OWNER’S

MANUAL”.

You can view the status of your hybrid system on the multi-information display
and the navigation system (if equipped)/Lexus Display Audio system (if
equipped).

2
3

4
5

6
7

2. Instrument cluster



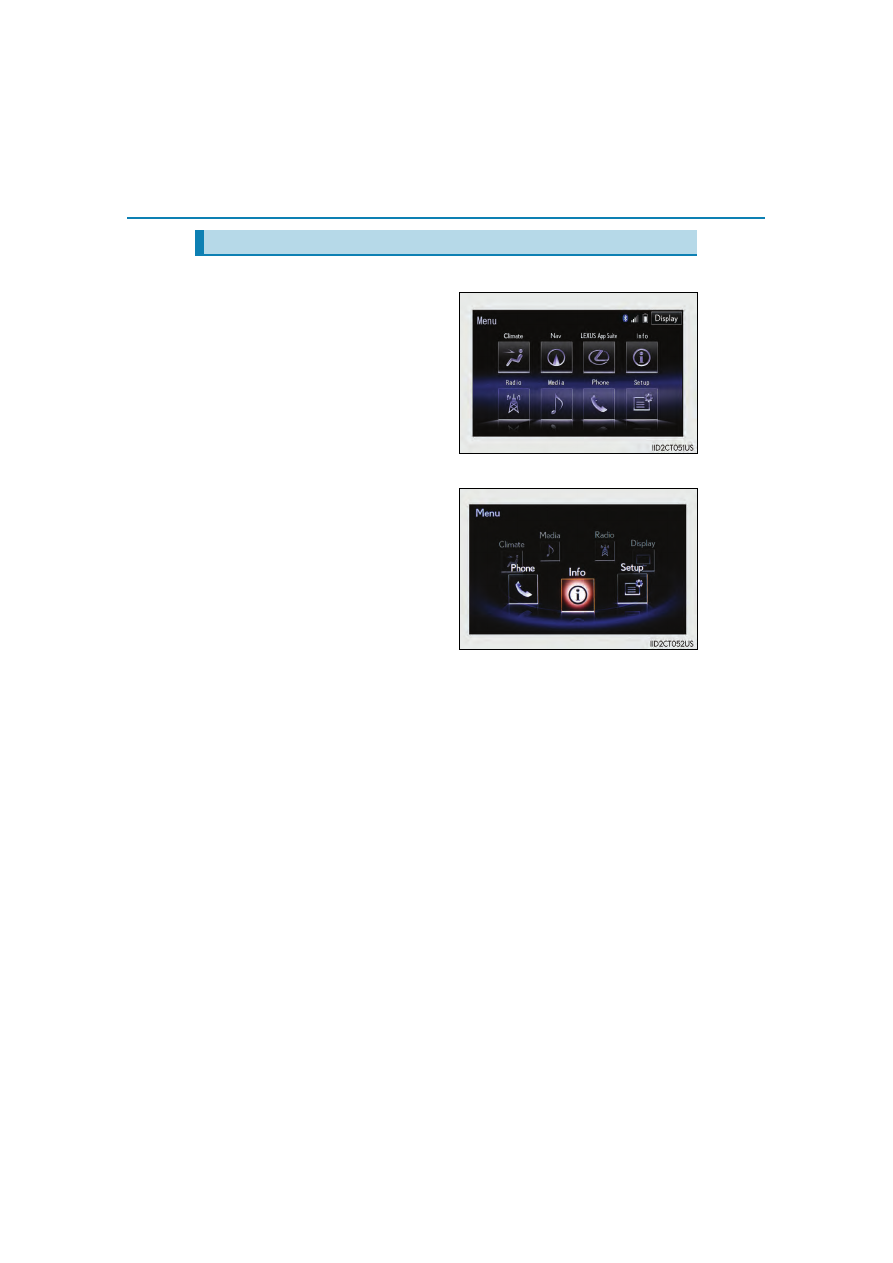

Navigation system screen

Press the “MENU” button on the
Remote Touch, then select “Info” on the
“Menu” screen, and then select “Fuel
Consumption”.

If the “Trip Information” or “Past Record”

screen is displayed, select “Energy”.



Lexus Display Audio screen

Press the “MENU” button on the Lexus
Display Audio controller, then select
“Info” on the “Menu” screen, and then
select “Fuel Consumption”.

If the “Energy Monitor” screen does not

appear, move the controller to the right

and select “Energy”.



Multi-information display

Press the “DISP” switch on the steering wheel several times to select the energy
monitor display.

Energy monitor

2. Instrument cluster

Instrument cl

uste
r

■

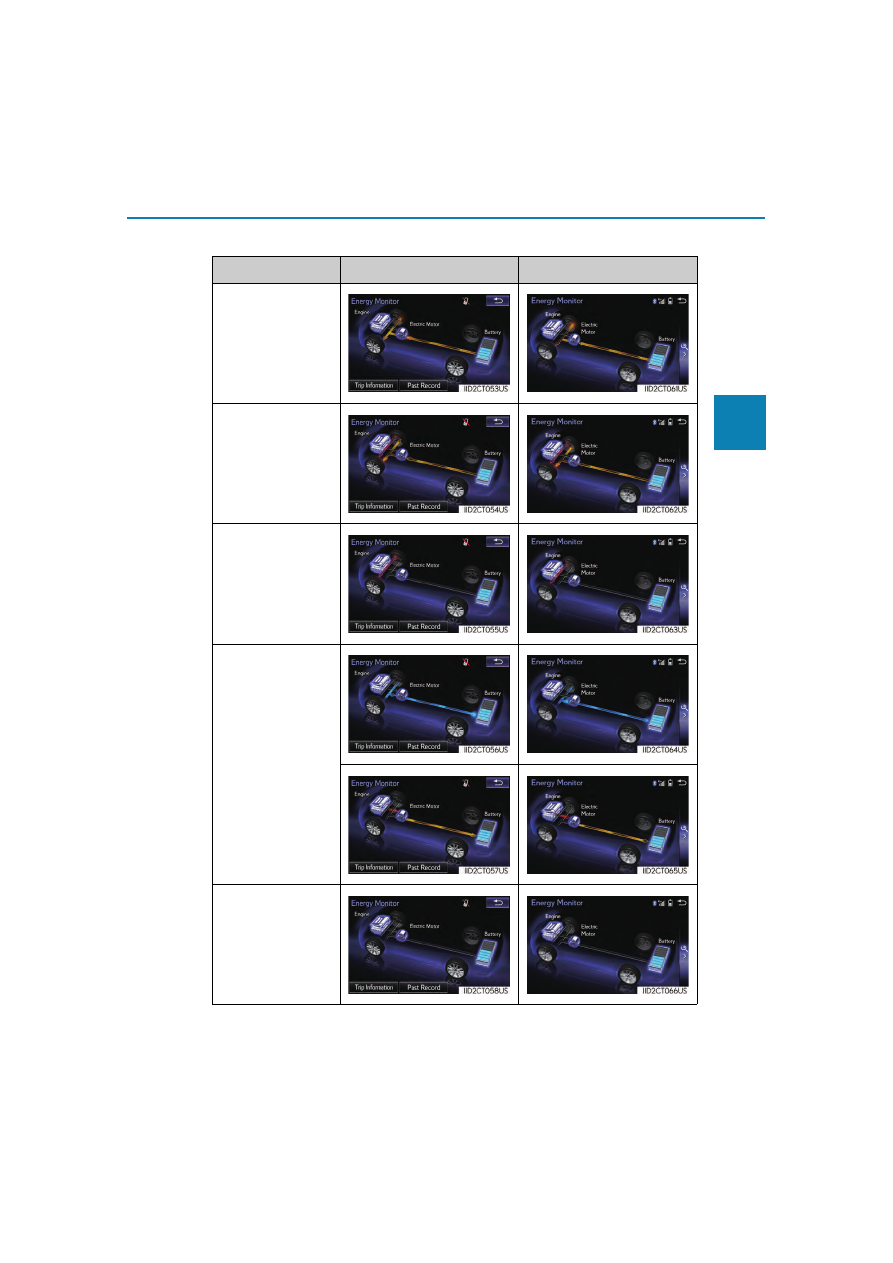

Navigation system screen/Lexus Display Audio screen

Navigation system screen

Lexus Display Audio screen

When the vehicle is

electric motor (trac-

tion motor)

When the vehicle is

gasoline engine and

the electric motor

(traction motor)

When the vehicle is

oline engine

When the vehicle is

charging the hybrid

battery (traction bat-

tery)

When there is no

energy flow

2. Instrument cluster

These images are examples only, and may vary slightly from actual conditions.

■

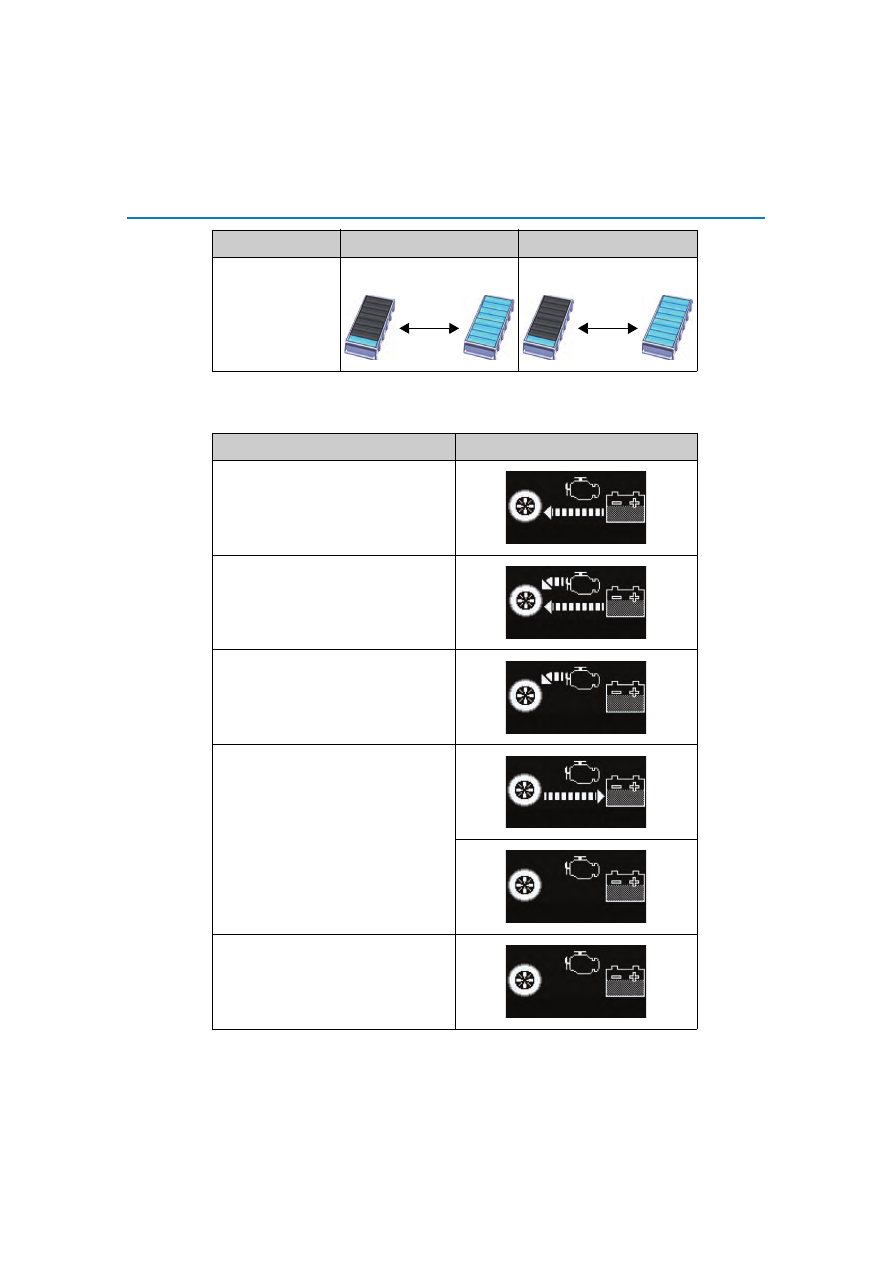

Multi-information display screen

Hybrid battery (trac-

tion battery) status

Low

Full

Low

Full

Navigation system screen

Lexus Display Audio screen

Multi-information display

When the vehicle is powered by the elec-

tric motor (traction motor)

When the vehicle is powered by both the

gasoline engine and the electric motor

(traction motor)

When the vehicle is powered by the gaso-

line engine

When the vehicle is charging the hybrid

battery (traction battery)

When there is no energy flow

2. Instrument cluster

Instrument cl

uste
r

These images are examples only, and may vary slightly from actual conditions.

■

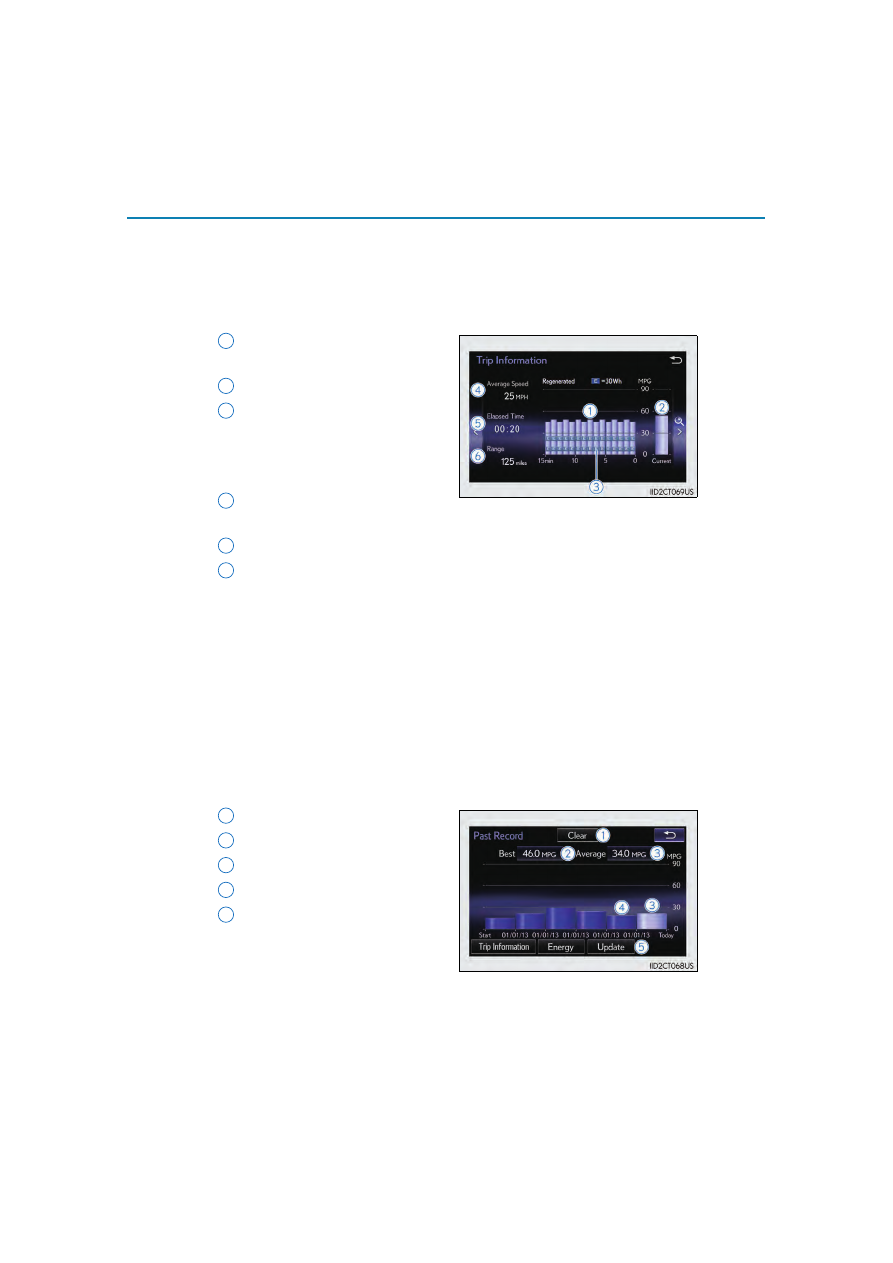

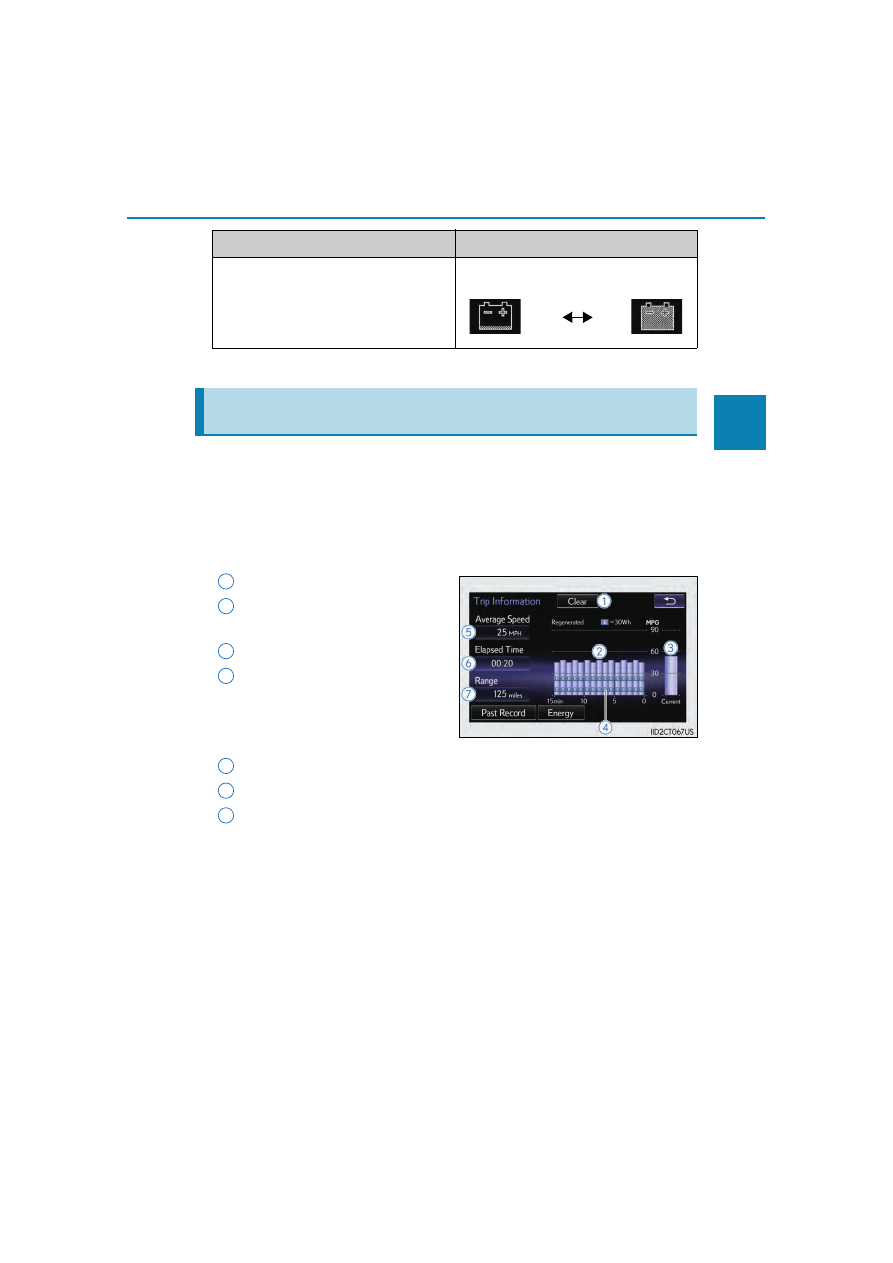

Trip information



Navigation system screen

Press the “MENU” button on the Remote Touch, then select “Info” on the
“Menu” screen, and then select “Fuel Consumption”.

If the “Energy Monitor” or “Past Record” screen is displayed, select “Trip Informa-

tion”.

Resetting the consumption data
Fuel consumption in the past 15
minutes
Current fuel consumption
Regenerated energy in the past
15 minutes
One symbol indicates 30 Wh.
Up to 5 symbols are shown.
Average vehicle speed since the hybrid system was started.
Elapsed time since the hybrid system was started.
Cruising range (

P. 99)

Hybrid battery (traction battery) status

Low

Full

Fuel consumption (vehicles with a navigation system or Lexus Display
Audio system)

Multi-information display

3
4

5
6
7

2. Instrument cluster



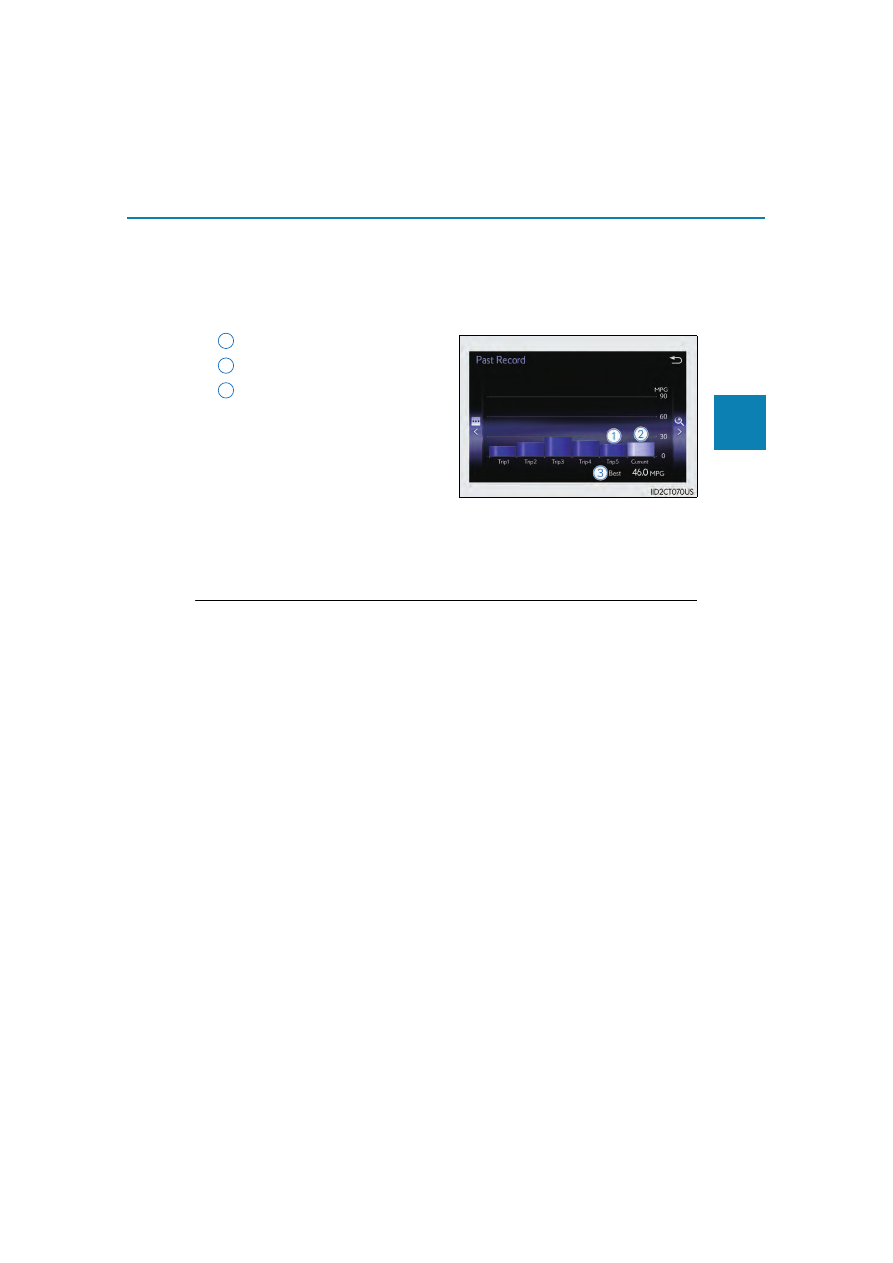

Lexus Display Audio screen

Press the “MENU” button on the Lexus Display Audio controller, then select
“Info” on the “Menu” screen, and then select “Fuel Consumption”.

If the “Trip Information” screen does not appear, move the controller to the right

and select “Trip Information”.

Fuel consumption in the past 15
minutes
Current fuel consumption
Regenerated energy in the past
15 minutes
One symbol indicates 30 Wh.
Up to 5 symbols are shown.
Average vehicle speed since the
hybrid system was started.
Elapsed time since the hybrid system was started.
Cruising range (

P. 99)

Average fuel consumption for the past 15 minutes is divided by color into past
averages and averages attained since the power switch was last turned to ON
mode. Use the displayed average fuel consumption as a reference.
The image is an example only.

■

Past record



Navigation system screen

Press the “MENU” button on the Remote Touch, then select “Info” on the
“Menu” screen, and then select “Fuel Consumption”.

If the “Energy Monitor” or “Trip Information” screen is displayed, select “Past

Record”.

Resetting the past record data
Best recorded fuel consumption
Average fuel consumption
Previous fuel consumption record
Updating the average fuel con-
sumption data

2
3

5
6

2
3
4
5

2. Instrument cluster

Instrument cl

uste
r



Lexus Display Audio screen

Press the “MENU” button on the Lexus Display Audio controller, then select
“Info” on the “Menu” screen, and then select “Fuel Consumption”.

If the “Past Record” screen does not appear, move the controller to the right and

select “Past Record”.

Previous fuel consumption record
Current fuel consumption
Best recorded fuel consumption

The average fuel consumption history is divided by color into past averages
and the average fuel consumption since the last updated. Use the displayed
average fuel consumption as a reference.
The image is an example only.

■

Updating the past record data



Vehicles with a navigation system

Update the average fuel consumption by selecting “Update” to measure the current fuel

consumption again.



Vehicles with a Lexus Display Audio system

Update the average fuel consumption by moving the controller to the left and select

“Update” to measure the current fuel consumption again.

■

Resetting the data



Vehicles with a navigation system

The fuel consumption data can be deleted by selecting “Clear”.



Vehicles with a Lexus Display Audio system

The fuel consumption data can be deleted by moving the controller to the left and select

“Clear”.

■

Cruising range
Displays the estimated maximum distance that can be driven with the quantity of fuel

remaining.
This distance is computed based on your average fuel consumption.

As a result, the actual distance that can be driven may differ from that displayed.

2
3

100

2. Instrument cluster

101

Operation of

each component

3-1. Key information

Keys .................................................. 102

3-2. Opening, closing and locking

the doors

Side doors.......................................107
Back door.........................................112
Smart access system with

push-button start........................116

3-3. Adjusting the seats

Front seats.......................................122
Rear seats........................................124
Driving position memory..........126
Head restraints .............................129

3-4. Adjusting the steering

wheel and mirrors

Steering wheel ............................. 132
Inside rear view mirror.............. 134
Outside rear view mirrors........137

3-5. Opening, closing the windows

and moon roof

Power windows............................ 139
Moon roof.......................................142

102

3-1. Key information

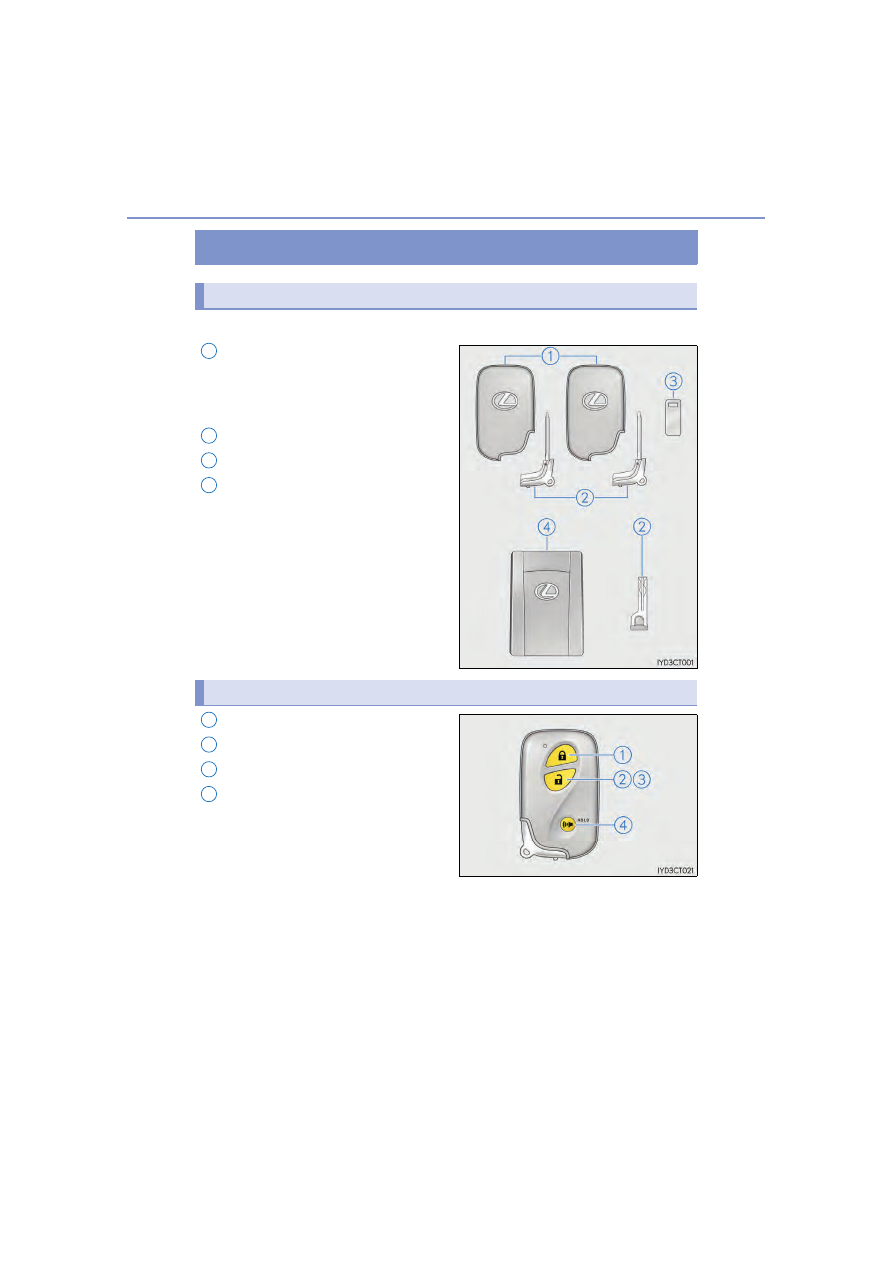

Keys

The following keys are provided with the vehicle.

Electronic keys

• Operating the smart access system

with push-button start (

P. 116)

• Operating the wireless remote con-

trol function

Mechanical keys
Key number plate
Card key (electronic key) (if
equipped)

Operating the smart access system with

push-button start (

P. 116)

Locks all the doors (

P. 107)

Unlocks all the doors (

P. 107)

Opens the windows

(

P. 107)

Sounds the alarm (

P. 103)

: This setting must be customized at your

Lexus dealer.

The keys

2
3
4

Wireless remote control

2
3
4

103

3-1. Key information

Op
era
tio

n of
ea

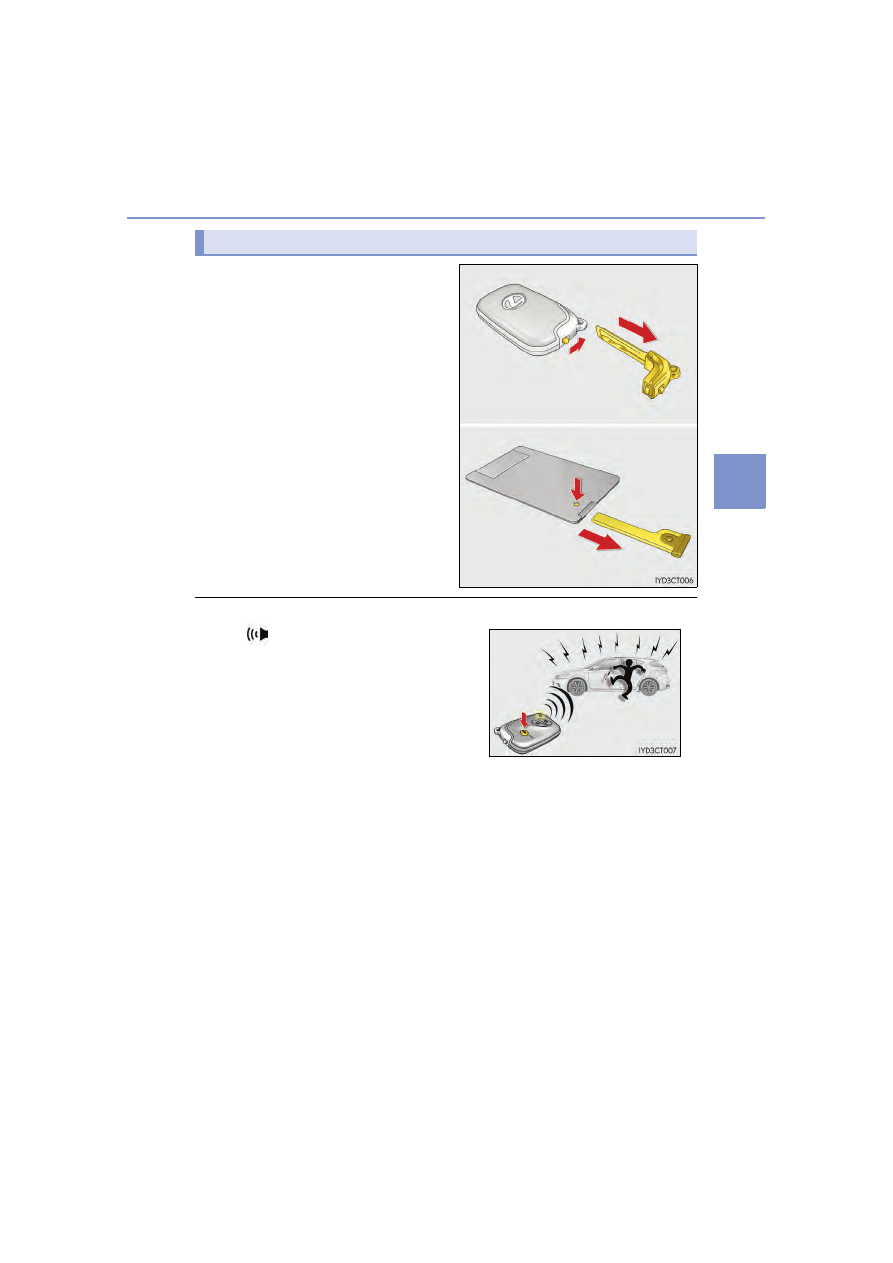

To take out the mechanical key:
Electronic keys: Slide the release lever
and take the key out.
Card key: Press the lock release button
and take the key out.

The mechanical key can only be

inserted in one direction, as the key only

has grooves on one side. If the key can-

not be inserted in a lock cylinder, turn it

over and re-attempt to insert it.
After using the mechanical key, store it

in the electronic key. Carry the mechan-

ical key together with the electronic key.

If the electronic key battery is depleted

or the entry function does not operate

properly, you will need the mechanical

key. (

P. 566)

■

Panic mode

Using the mechanical key

When

is pressed for longer than about one

second, an alarm will sound intermittently and

the vehicle lights will flash to deter any person

from trying to break into or damage your vehi-

cle.
To stop the alarm, press any button on the elec-

tronic key.

104

3-1. Key information

■

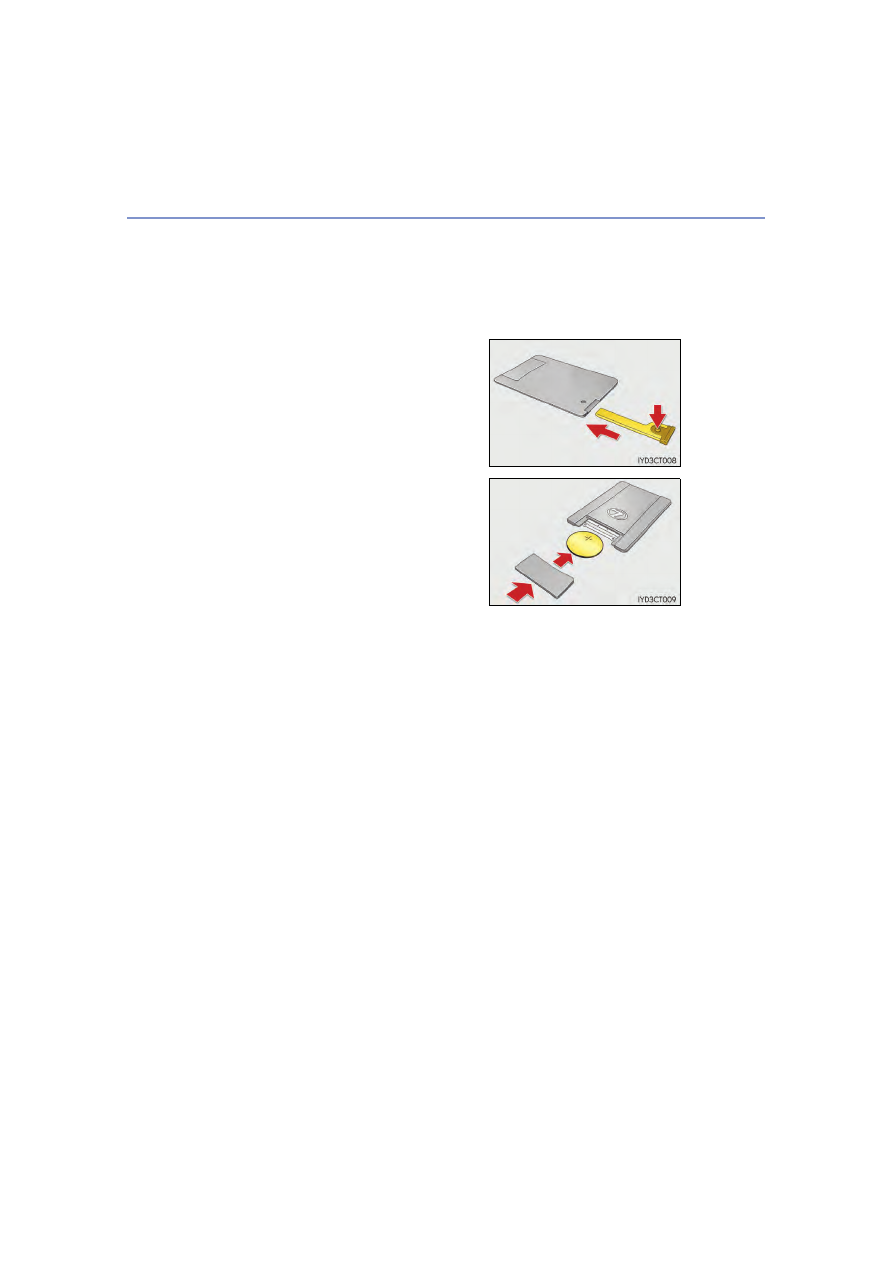

Card key (if equipped)

●

The card key is not waterproof.

●

The mechanical key that is stored inside the card key should be used only if a problem

arises, such as when the card key does not operate properly.

●

If it is difficult to take out the mechanical key, push down the lock release button using a

pen tip etc. If it is still difficult to pull it out, use a coin etc.

■

When required to leave the vehicle’s key with a parking attendant
Lock the glove box as circumstances demand. (

P. 434)

Remove the mechanical key for your own use and provide the attendant with the elec-

tronic key only.

■

If you lose your mechanical keys
New genuine mechanical keys can be made by your Lexus dealer using another

mechanical key and the key number stamped on your key number plate. Keep the plate

in a safe place such as your wallet, not in the vehicle.

■

When riding in an aircraft
When bringing an electronic key onto an aircraft, make sure you do not press any but-

tons on the electronic key while inside the aircraft cabin. If you are carrying an electronic

key in your bag etc., ensure that the buttons are not likely to be pressed accidentally.

Pressing a button may cause the electronic key to emit radio waves that could interfere

with the operation of the aircraft.

●

To store the mechanical key in the card key,

insert it while pressing the lock release button.

●

If the battery cover is not installed and the bat-

tery falls out or if the battery was removed

because the key got wet, reinstall the battery

with the positive terminal facing the Lexus

emblem.

105

3-1. Key information

Op
era
tio

n of
ea

■

Electronic key battery depletion

●

The standard battery life is 1 to 2 years. (The card key battery life is about a year and a

half.)

●

If the battery becomes low, an alarm will sound in the cabin when the hybrid system

stops. (

P. 554)

●

As the electronic key always receives radio waves, the battery will become depleted

even if the electronic key is not used. The following symptoms indicate that the elec-

tronic key battery may be depleted. Replace the battery when necessary. (

P. 509)

• The smart access system with push-button start or the wireless remote control does

not operate.

• The detection area becomes smaller.

• The LED indicator on the key surface does not turn on.

●

To avoid serious deterioration, do not leave the electronic key within 3 ft. (1 m) of the

following electrical appliances that produce a magnetic field:
• TVs

• Personal computers

• Cellular phones, cordless phones and battery chargers

• Recharging cellular phones or cordless phones

• Induction cookers

• Table lamps

■

Replacing the battery
P. 509

■

Confirmation of the registered key number
The number of keys already registered to the vehicle can be confirmed. Ask your Lexus

dealer for details.

■

If a wrong key is used
The key cylinder rotates freely to isolate inside mechanism.

106

3-1. Key information

NOTICE

■

To prevent key damage

●

Do not drop the keys, subject them to strong shocks or bend them.

●

Do not expose the keys to high temperatures for long periods of time.

●

Do not get the keys wet or wash them in an ultrasonic washer etc.

●

Do not attach metallic or magnetic materials to the keys or place the keys close to

such materials.

●

Do not disassemble the keys.

●

Do not attach a sticker or anything else to the surface of the electronic key.

●

Do not place the keys near objects that produce magnetic fields, such as TVs, audio

systems and induction cookers, or medical electrical equipment, such as low-fre-

quency therapy equipment.

■

Carrying the electronic key on your person
Carry the electronic key 3.9 in. (10 cm) or more away from electric appliances that are

turned on. Radio waves emitted from electric appliances within 3.9 in. (10 cm) of the

electronic key may interfere with the key, causing the key to not function properly.

■

In case of a smart access system with push-button start malfunction or other key-

related problems
Take your vehicle with all the electronic keys provided with your vehicle, including the

card key, to your Lexus dealer.

■

When an electronic key is lost
If the electronic key remains lost, the risk of vehicle theft increases significantly. Visit

your Lexus dealer immediately with all remaining electronic keys and the card key that

were provided with your vehicle.

■

Handling the card key (if equipped)

●

Do not apply excess force when inserting the mechanical key into the card key. Doing

so may damage the card key.

●

If the battery or card key terminals get wet, the battery may corrode.

If the key is dropped into water, or if drinking water etc. is spilled on the key, immedi-

ately remove the battery cover and wipe the battery and terminals. (To remove the

battery cover, lightly grasp and pull it.) If the battery is corroded, have your Lexus

dealer replace the battery.

●

Do not crush the battery cover or use a screwdriver to remove the battery cover.

Forcibly removing the battery cover may bend or damage the key.

●

If the battery cover is frequently removed, the battery cover may become loose.

●

When installing the battery, make sure to check the direction of the battery.

Installing the battery in the wrong direction may cause the battery to deplete rapidly.

●

The surface of the card key may be damaged, or its coating may peel off in the follow-

ing situations:
• The card key is carried together with hard objects, such as coins and keys.

• The card key is scraped with a sharp object, such as the tip of a mechanical pencil.

• The surface of the card key is wiped with thinner or benzene.

Content .. 4 5 6 7 ..
