34

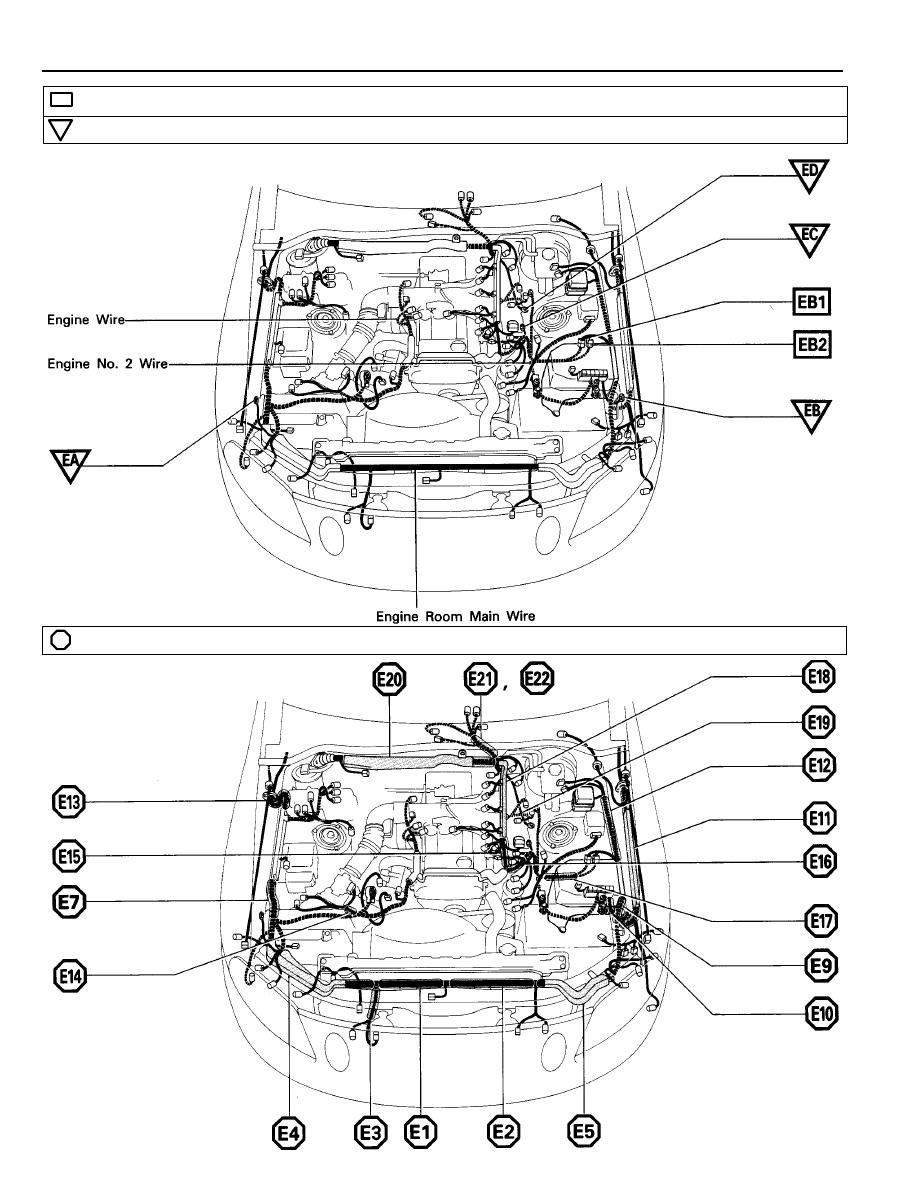

ELECTRICAL WIRING ROUTING

: Location of Connector Joining Wire Harness and Wire Harness

: Location of Ground Points

: Location of Splice Points

35

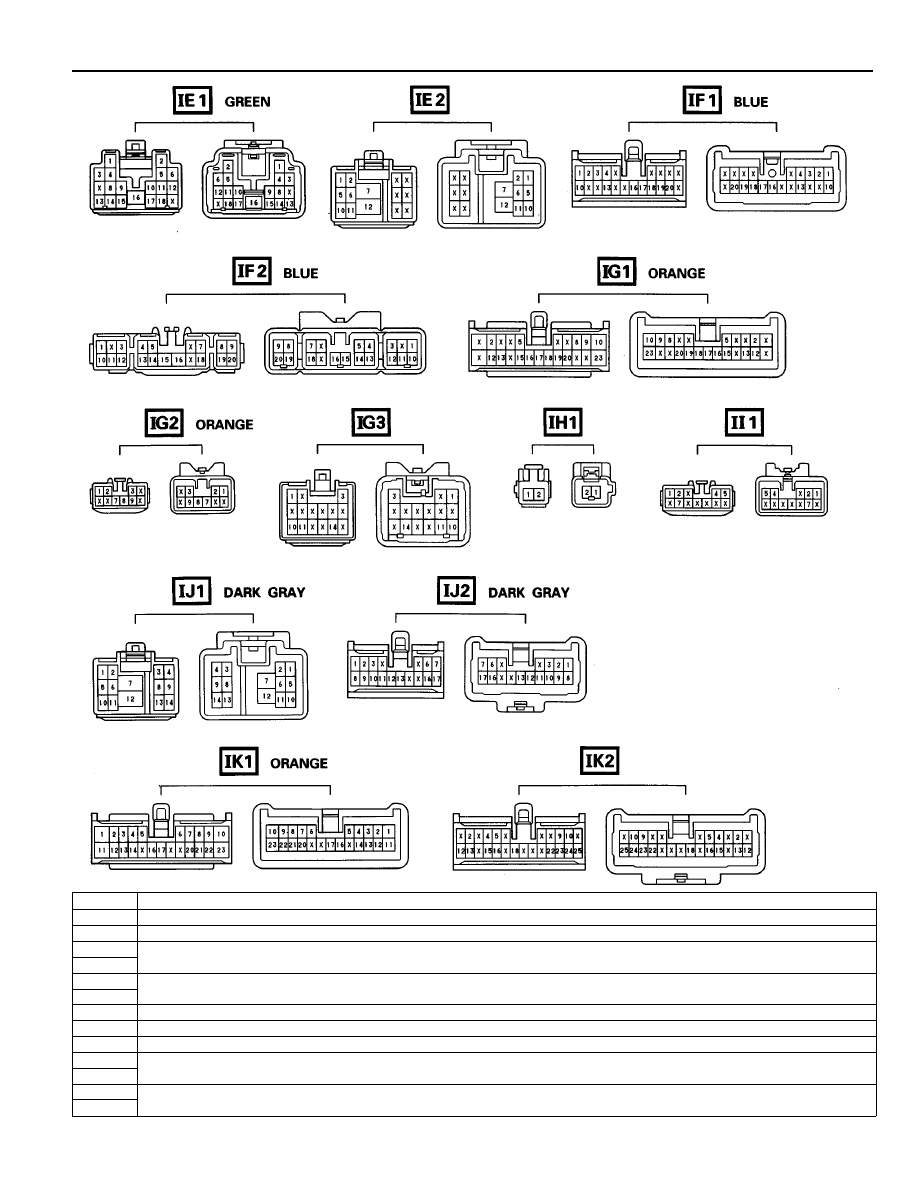

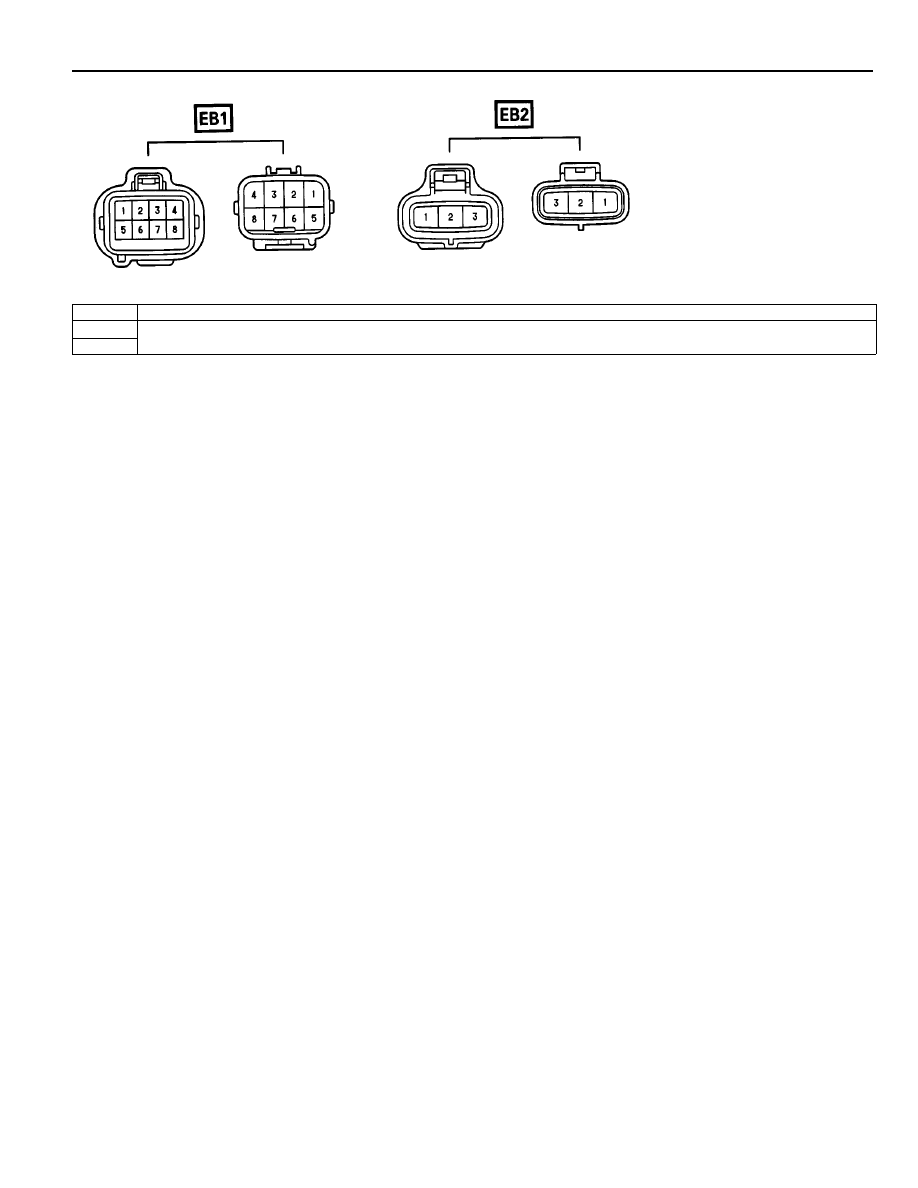

CODE

JOINING WIRE HARNESS AND WIRE HARNESS (CONNECTOR LOCATION)

EB1

ENGINE WIRE AND ENGINE ROOM MAIN WIRE (FRONT SIDE OF R/B NO 2)

EB2

ENGINE WIRE AND ENGINE ROOM MAIN WIRE (FRONT SIDE OF R/B NO. 2)

36

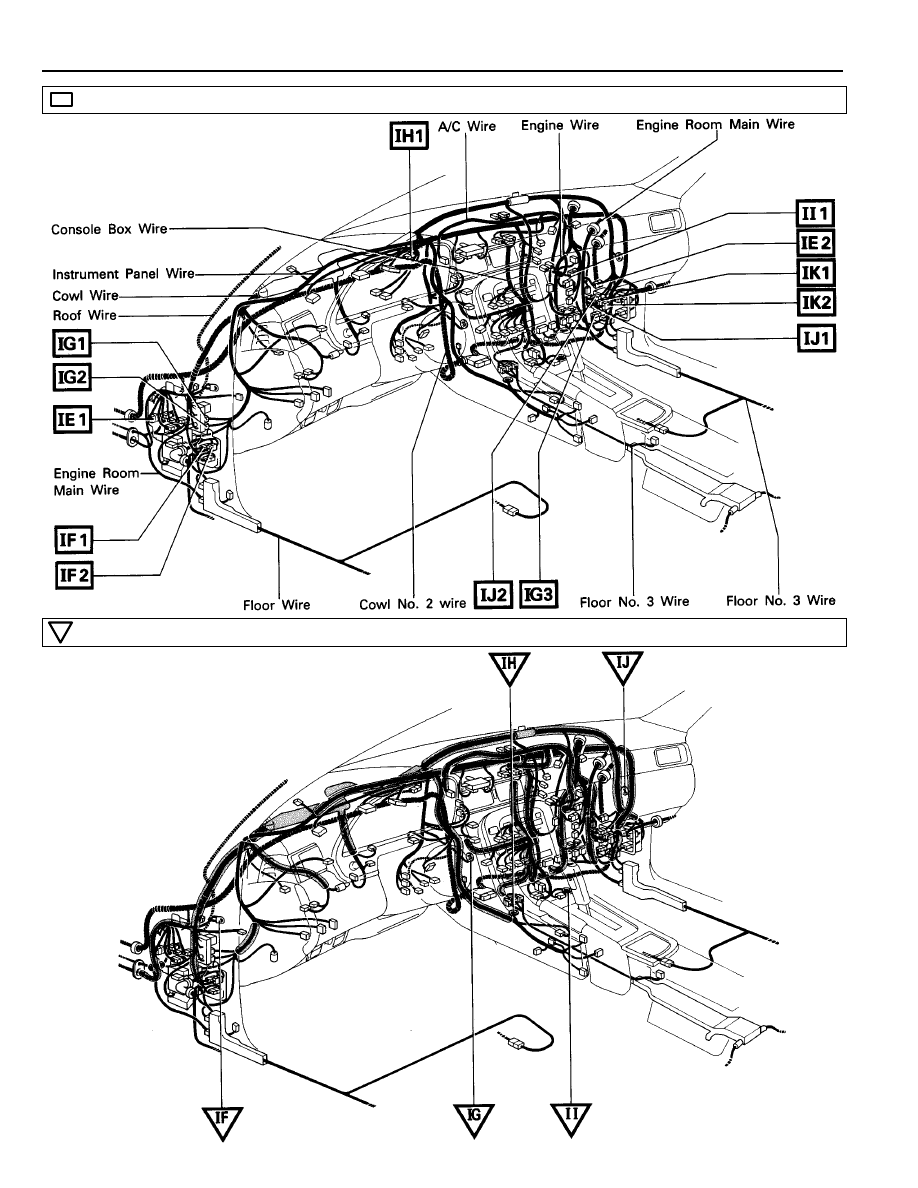

ELECTRICAL WIRING ROUTING

: Location of Connector Joining Wire Harness and Wire Harness

: Location of Ground Points

37

CODE

JOINING WIRE HARNESS AND WIRE HARNESS (CONNECTOR LOCATION)

IE1

ENGINE ROOM MAIN WIRE AND COWL WIRE (R/B NO. 4)

IE2

ENGINE ROOM MAIN WIRE AND COWL WIRE (BEHIND GLOVE BOX)

IF1

FRONT DOOR LH WIRE AND COWL WIRE (LEFT KICK PANEL)

IF2

FRONT DOOR LH WIRE AND COWL WIRE (LEFT KICK PANEL)

IG1

INSTRUMENT PANEL WIRE AND COWL WIRE (R/B NO 5)

IG2

INSTRUMENT PANEL WIRE AND COWL WIRE (R/B NO. 5)

IG3

INSTRUMENT PANEL WIRE AND COWL WIRE (RIGHT KICK PANEL)

IH1

COWL NO. 2 WIRE AND COWL WIRE (BEHIND COMBINATION METER)

II1

ENGINE WIRE AND A/C WIRE (BEHIND GLOVE BOX)

IJ1

ENGINE WIRE AND COWL WIRE (RIGHT KICK PANEL)

IJ2

ENGINE WIRE AND COWL WIRE (RIGHT KICK PANEL)

IK1

ENGINE WIRE AND INSTRUMENT PANEL WIRE (RIGHT KICK PANEL)

IK2

ENGINE WIRE AND INSTRUMENT PANEL WIRE (RIGHT KICK PANEL)
