29

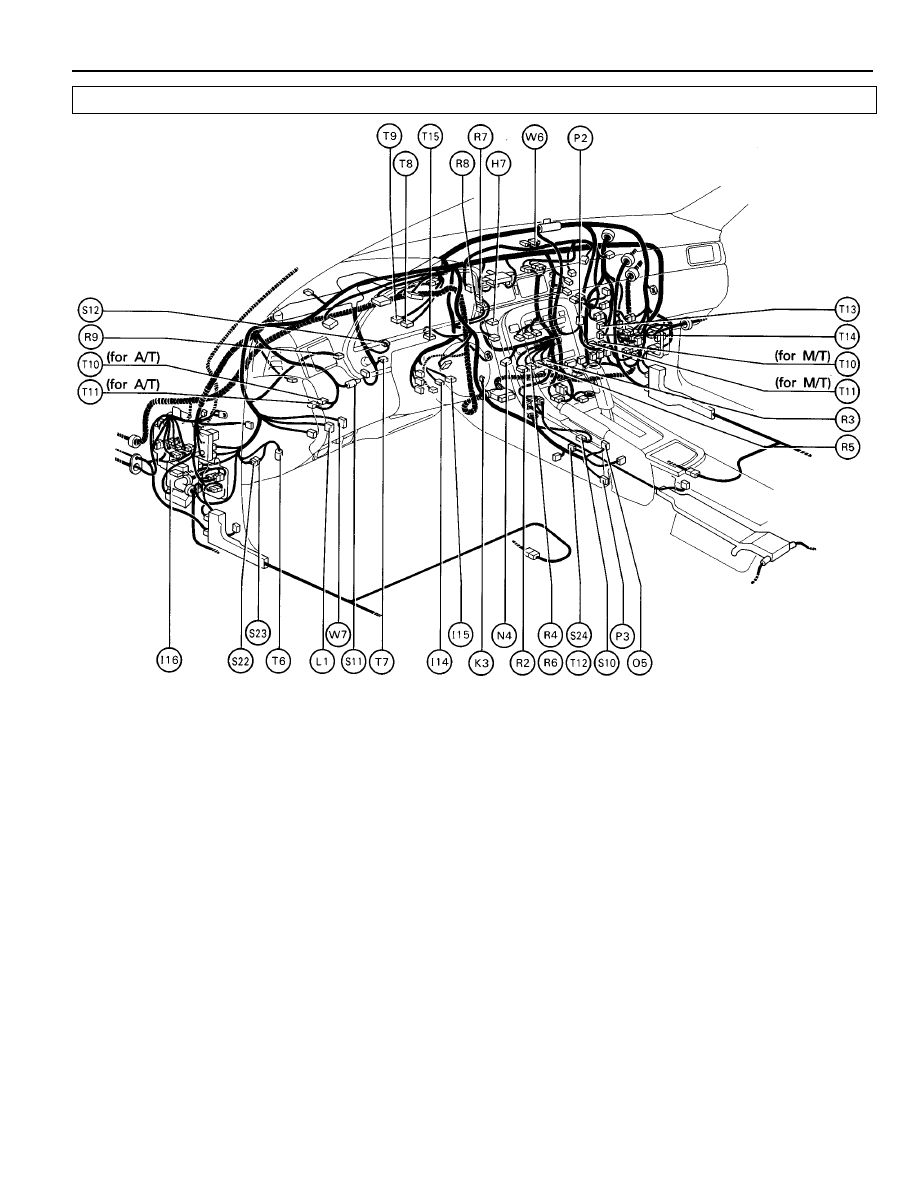

Position of Parts in Instrument Panel

H

7

Hazard SW

S

10

Shift Lock ECU

S

11

Step Light

I

14

Ignition Key Cylinder Light

S

12

Stop Light SW

I

15

Ignition SW, Unlock Warning SW and Key Inter Lock Solenoid

S

22

Short Connector

I

16

Integration Relay

S

23

Short Connector

S

24

Seat Heater SW (for M/T)

K

3

Kick Down SW

T

6

TDCL (Total Diagnostic Communication Link)

L

1

Luggage Compartment Door Open SW

T

7

Telescopic Position Sensor

T

8

Theft Deterrent and Door Lock Control ECU

N

4

Noise Filter (for A/C System)

T

9

Theft Deterrent and Door Lock Control ECU

T

10

Tilt and Power Telescopic ECU

O

5

O/D Main SW

T

11

Tilt and Power Telescopic ECU

T

12

Traction Cut SW and Seat Heater SW (for A/T)

P

2

PPS ECU

T

13

Traction ECU (for A/T)

P

3

Parking Brake SW

T

14

Traction ECU (for A/T)

T

15

Trip SW and Theft Deterrent Indicator Light

R

2

Radio and Player

R

3

Radio and Player

W

6

Water Temp. Sensor (for A/C System)

R

4

Radio and Player (w/ CD Player)

W

7

Wireless Door Lock Main SW

R

5

Radio and Player (w/o CD Player)

R

6

Radio and Player (w/o CD Player)

R

7

Remote Control Mirror ECU

R

8

Remote Control Mirror ECU

R

9

Rheostat

30

ELECTRICAL WIRING ROUTING

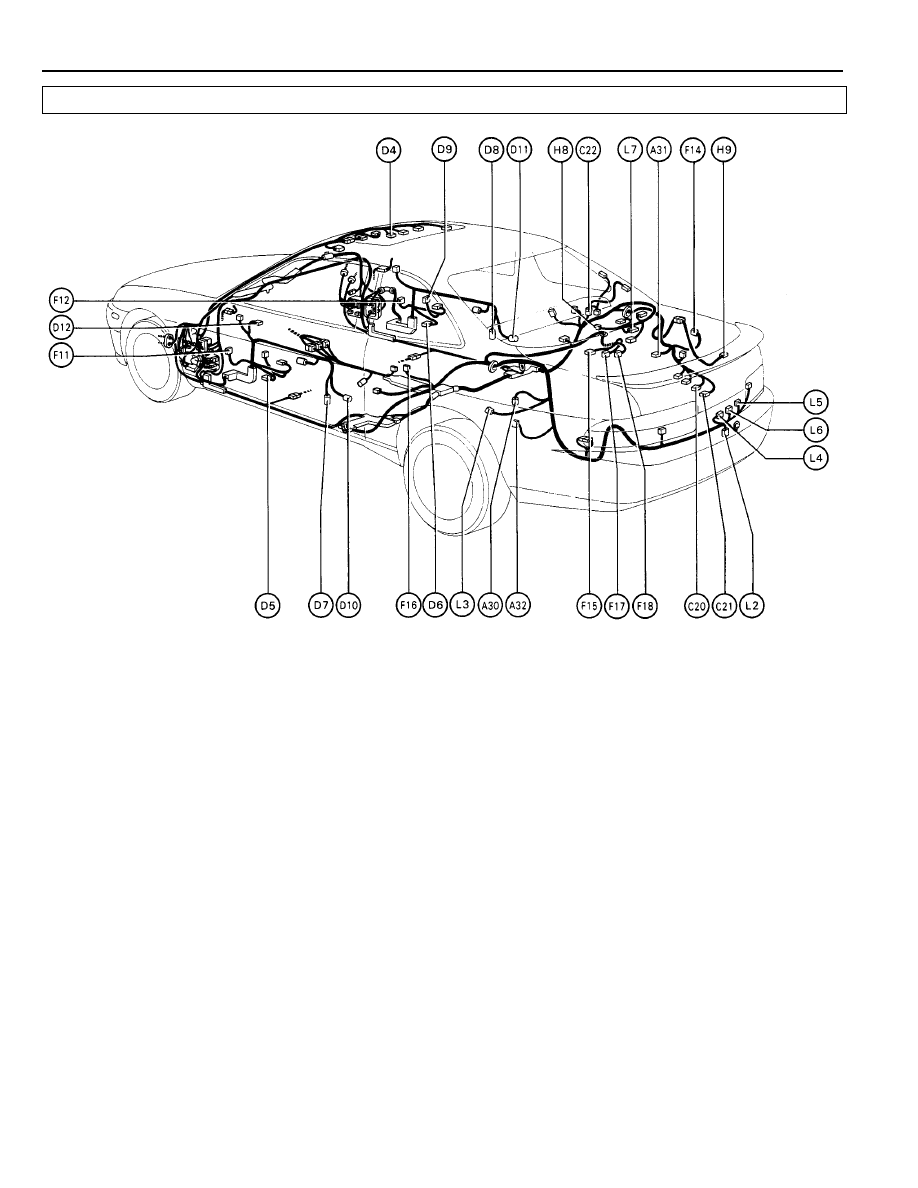

Position of Parts in Body

A

30

ABS Speed Sensor Rear LH

D 10

Door Lock Motor, Door Unlock Detection SW and

A

31

ABS Speed Sensor Rear RH

Door Open Detection SW LH

A

32

Auto Antenna Motor and Relay

D

11

Door Lock Motor, Door Unlock Detection SW and

Door Open Detection SW RH

C

20

CD Automatic Changer

D 12

Driving Position Memory and Return SW

C

21

CD Automatic Changer

C

22

Choke Coil

F

11

Front Door Speaker LH

F

12

Front Door Speaker RH

D

4

DAY/NIGHT Shift SW

F

14

Fuel Lid Opener Solenoid

D

5

Door Courtesy Light LH

F

15

Fuel Pump

D

6

Door Courtesy Light RH

F

16

Fuel Pump ECU

D

7

Door Key Lock and Unlock SW LH

F

17

Fuel Sender

D

8

Door Key Lock and Unlock SW RH

F

18

Fuel Sender

D

9

Door Lock Control SW RH

H

8

High Mount Stop Light (w/o Rear Spoiler)

H

9

High Mount Stop Light (w/ Rear Spoiler)

L

2

Licence Plate Light

L

3

Light Failure Sensor

L

4

Luggage Compartment Door Opener Motor

L

5

Luggage Compartment Key Unlock SW

L

6

Luggage Compartment Light SW

L

7

Luggage Compartment Light

31

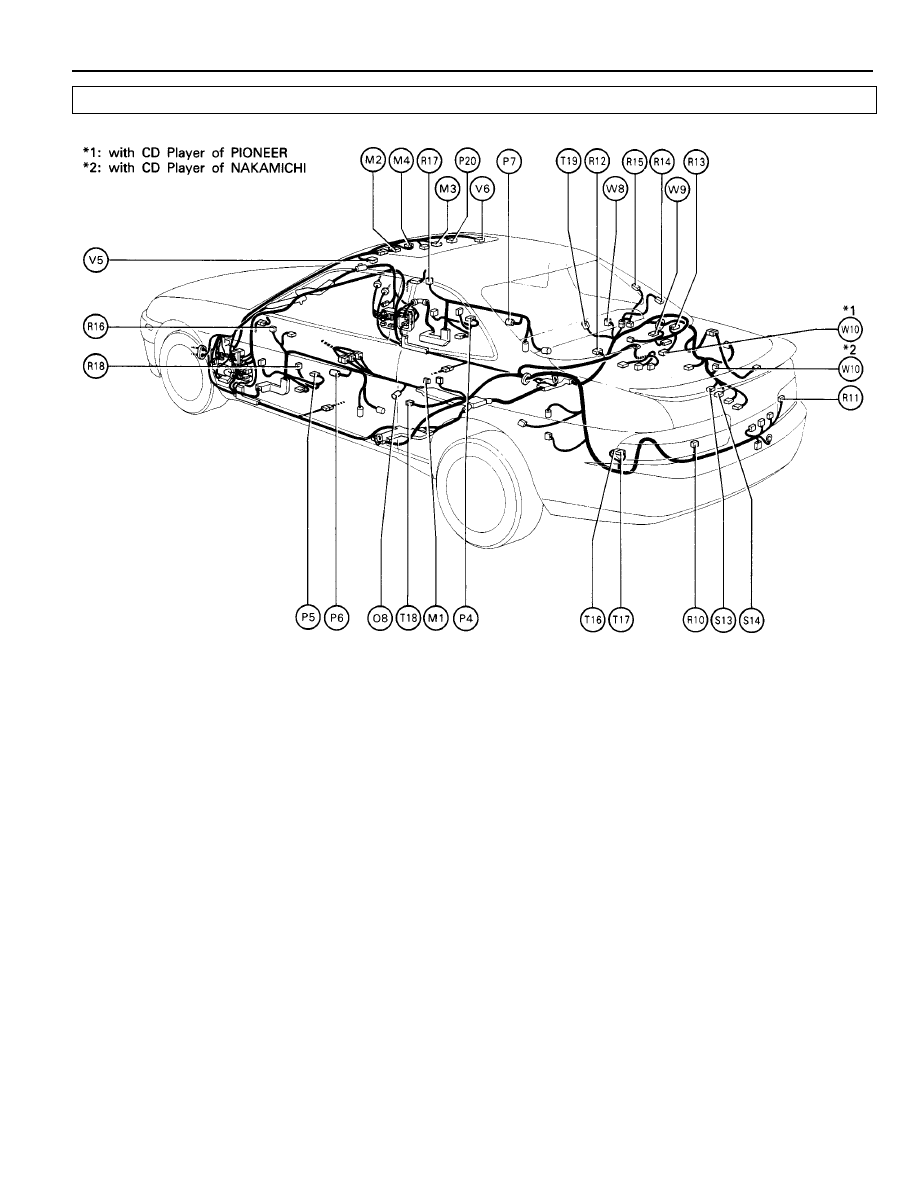

Position of Parts in Body

M

1

Mobilephone

R 16

Remote Control Mirror LH

M

2

Moon Roof Control Relay

R 17

Remote Control Mirror RH

M

3

Moon Roof Control SW

R 18

Remote Control Mirror SW

M

4

Moon Roof Motor and Limit SW

S

13

Stereo Power Amplifier

O

8

Oxygen Sensor Sub (for California)

S

14

Stereo Power Amplifier

P

4

Power Window Control SW RH

T

16

Telephone Transceiver and Speaker Relay

P

5

Power Window Master SW and Door Lock Control SW LH

T

17

Telephone Transceiver and Speaker Relay

P

6

Power Window Motor LH

T

18

Tension Reducer Solenoid LH

P

7

Power Window Motor RH

T

19

Tension Reducer Solenoid RH

P

20

Personal Light

V

5

Vanity Light LH

R

10

Rear Combination Light LH

V

6

Vanity Light RH

R

11

Rear Combination Light RH

R

12

Rear Speaker LH

W

8

Wireless Door Lock ECU

R

13

Rear Speaker RH

W

9

Woofer Speaker

R

14

Rear Window Defogger (+)

W 10

Woofer Speaker Amplifier

R

15

Rear Window Defogger (–)

32

ELECTRICAL WIRING ROUTING

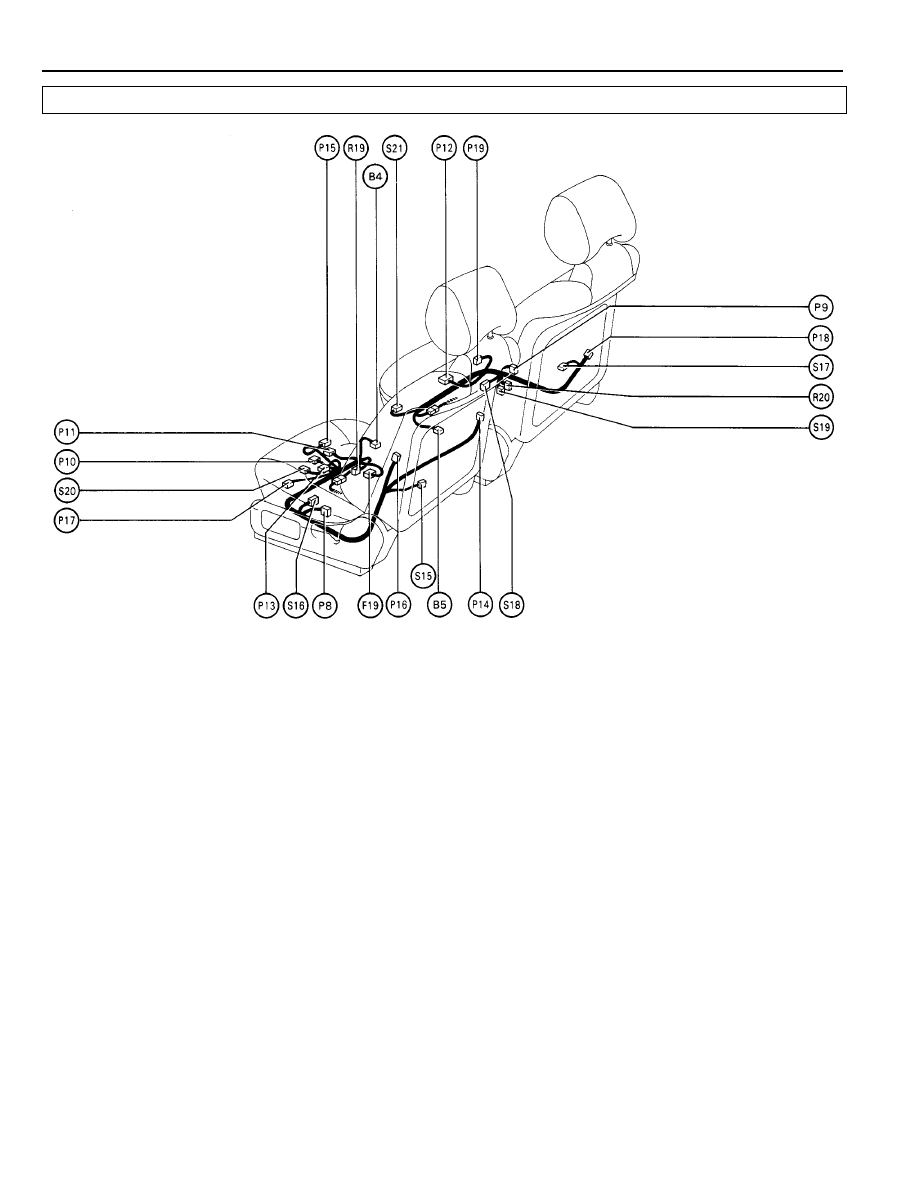

Position of Parts in Seat

B

4

Buckle SW LH

P

15

Power Seat Motor (for Driver’s Seat Rear Vertical Control)

B

5

Buckle SW RH

P

16

Power Seat Motor (for Driver’s Seat Reclining Motor Control)

P

17

Power Seat Motor (for Driver’s Seat Slide Control)

F

19

Front Vertical Position Sensor

P

18

Power Seat Motor (for Passenger’s Seat Reclining Control)

P

19

Power Seat Motor (for Passenger’s Seat Slide Control)

P

8

Power Seat Control SW (for Driver’s Seat)

P

9

Power Seat Control SW (for Passenger’s Seat)

R 19

Rear Vertical Position Sensor

P

10

Power Seat ECU (for Driver’s Seat)

R 20

Reclining Limit SW

P

11

Power Seat ECU (for Driver’s Seat)

P

12

Power Seat ECU (for Passenger’s Seat)

S

15

Seat Heater (for Driver’s Seat Back)

P

13

Power Seat Motor (for Driver’s Seat Front Vertical Control)

S

16

Seat Heater (for Driver’s Seat Cushion)

P

14

Power Seat Motor (for Driver’s Seat Lumbar

S

17

Seat Heater (for Passenger’s Seat Back)

Support Control)

S

18

Seat Heater (for Passenger’s Seat Cushion)

S

19

Slide Limit SW

S

20

Slide Position Sensor (for Driver’s Seat)

S

21

Slide Position Sensor (for Passenger’s Seat)
