CHANGE IN SUPPLY PARTS FOR INNER REAR VIEW MIRROR (CONT’D)

Page 3 of 3

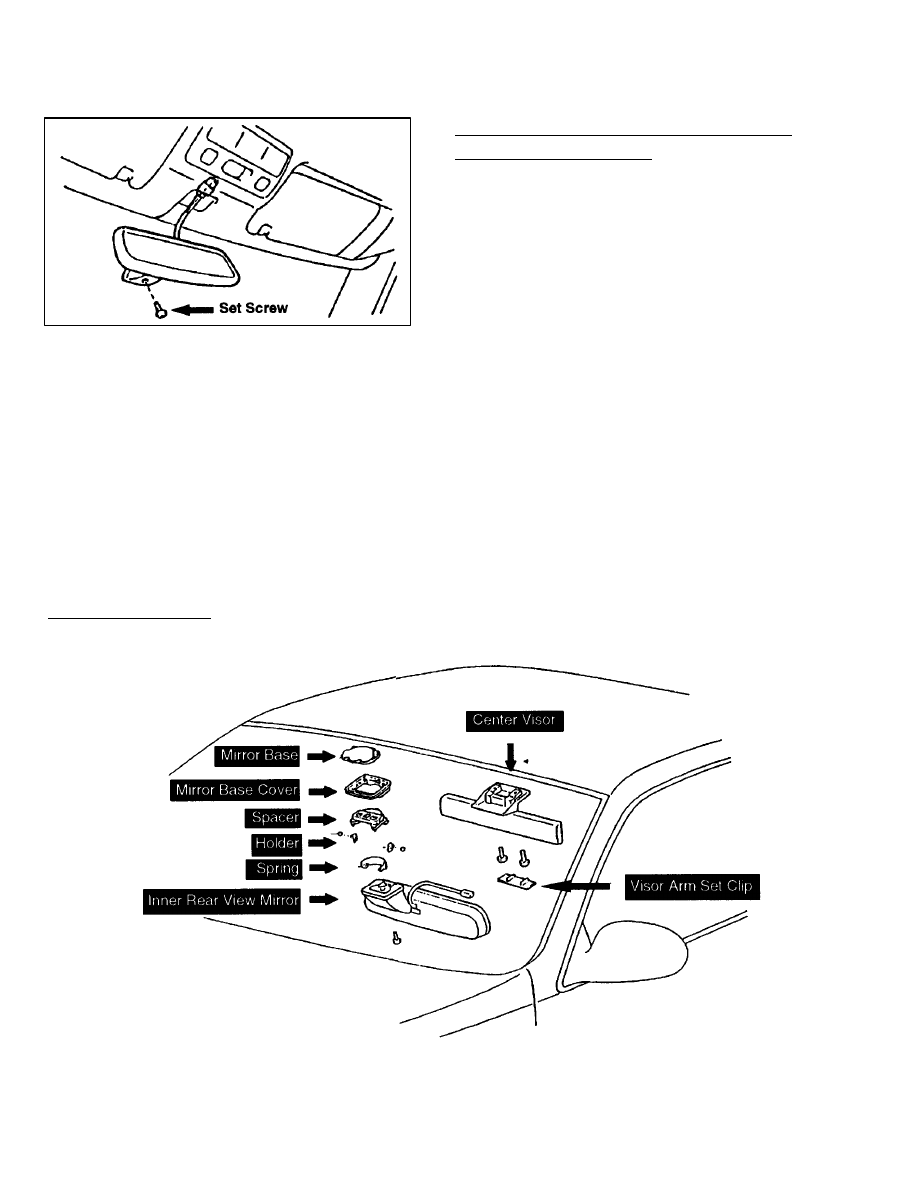

a) Install inner rear view mirror by re–installing

attachment set screw (Figure 5).

INNER REAR VIEW MIRROR & CENTER
VISOR INSTALLATION:

PARTS LOCATION:

Note: Use thread locking compound on

set screw to ensure screw reten-

tion.

b) Re–connect wire harness.

Note: Check review mirror dimming

operation before re–installation of
center visor.

c) Install center visor by re–installing two

attachment screws.

d) Re–install visor arm set clip.

REAR SUSPENSION NOISE

Page 1 of 2

PREVIOUS PART

NUMBER

48341-24040
48341-24070

Center Support Nut

Projection

New

Rear Spring Bumper

Previous

Rear Spring Bumper

SUSPENSION
SU95–005
OCTOBER 20, 1995
SC 300/400

The rear spring bumper has been changed in production on 1995 SC 300/400 in an effort to reduce
clunking/rattling noises.

SERVICE HINT:

A similar clunking/rattling type noise can be generated by an
improperly torqued center support nut (27 N

D

m, 280 kgf.cm,

20 ft.lbs).

PRODUCTION EFFECTIVE:

Starting VINs: JT8UZ30C*S0047966

JT8JZ31C*S0030524

PART NUMBER INFORMATION:

NEW PART NUMBER

PART NAME

QTY

48341-24071

Bumper, Rear Spring

2

REAR SUSPENSION NOISE

Page 2 of 2

WARRANTY INFORMATION:

OPCODE

DESCRIPTION

TIME

OPN

T1

T2

R&R Rear Shock Absorber

Assembly

(both sides including

48341-24040 or

replacement of spring

48341-24070

bumpers and all necessary

adjustments)

Replacement of the rear spring bumper under warranty is limited to correction of a problem based upon a
customer’s complaint.

482201A

1.8

91

41

SERVICE HINTS FOR REFRIGERANT LEAK DETECTION

Page 1 of 3

Use of electronic leak detectors for checking A/C systems refrigerant leakage is the only
method approved by TMS.  This type of leak detector is sensitive not only to refrigerant, but
also sensitive to numerous petrochemical substances (motor oil, gasoline, solvents, etc.)
commonly found in a repair shop environment.  Because this sensitivity could diminish the leak
detector ’s capacity for accurate leak detection, some service hints have been provided to help
increase the accuracy of your diagnosis.

SERVICE HINTS:

1.

Visual Inspection:  Do a quick visual inspection under the hood for signs of refrigerant
leakage.  Check for areas of heavy oil leakage at block and piping joints.  Many times
these areas have accumulated road dust and dirt.

2.

Inspection with leak detector:  NOTE:  Make sure the system is fully charged. Operate
the system to increase refrigerant pressure. Shut the system off before inspecting with
leak detector.

A.

Checking for leakage at a joint:  Wipe the oil/dirt accumulation off the joint with a
clean rag.  Do not use solvents to clean the joint. Refrigerant is heavier than air so
start checking for leaks with the detector wand about 1/4 in. below the joint. Move the



wand slowly across and around each joint (see illustration below).

Piping Joint

Move detector wand slowly across

and around each joint.

Block Joint

HEATING &
AIR CONDITIONING
AC95–001
MARCH 03, 1995
ALL MODELS
