DIFFERENTIAL REMOVAL

SA0S6–05

1.

REMOVE PROPELLER SHAFT
(See page

PR–6

 or

24

)

2.

DRAIN DIFFERENTIAL OIL

3.

DISCONNECT REAR DRIVE SHAFTS

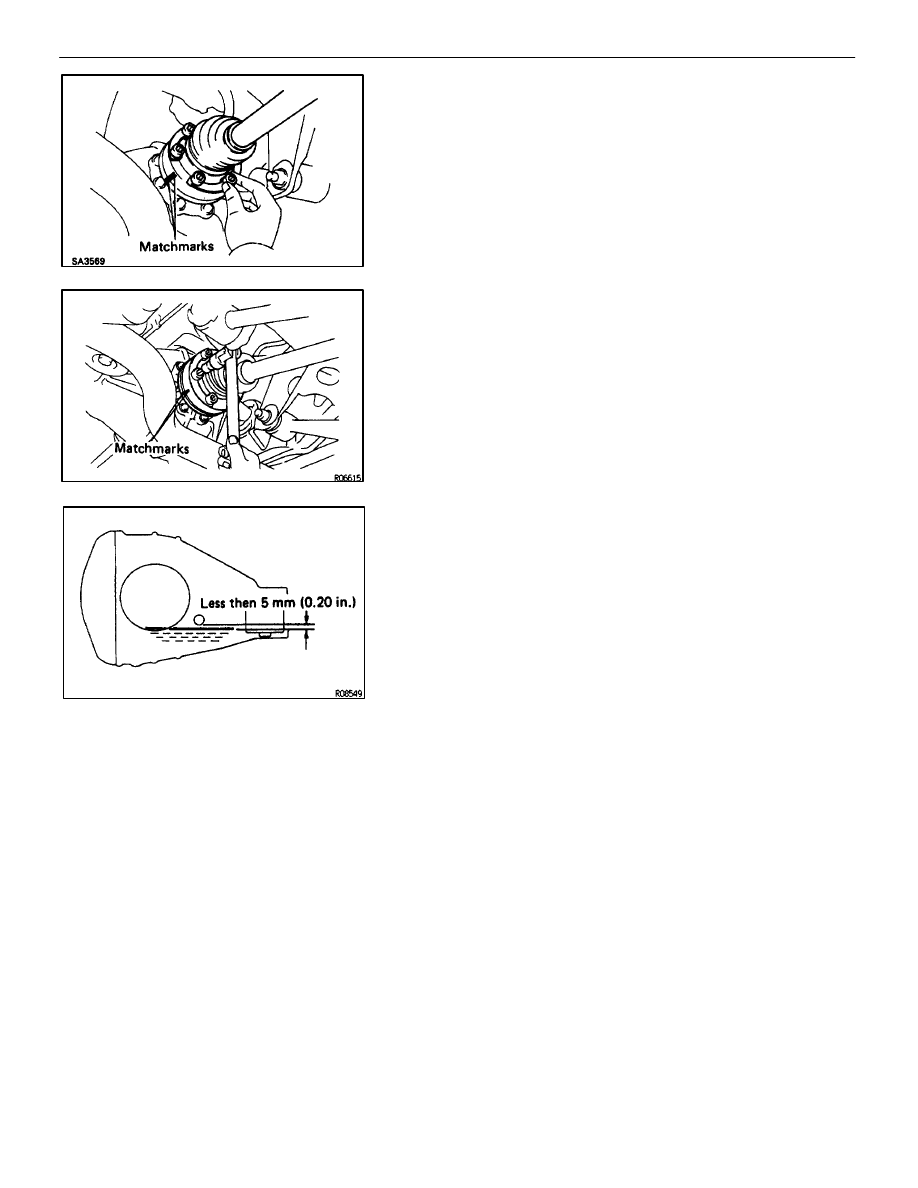

(a)  Place matchmarks on the drive shafts and side gear shafts.
(b)  Using a hexagon wrench, disconnect the drive shafts from

the differential.

(c)  Hang up the drive shafts using wire, etc.

4. REMOVE

DIFFERENTIAL

(a)  Support the differential with a jack.
(b)  Using a hexagon wrench, remove the 3 bolts.

(c)  Remove the 2 bolts and lower stoppers.
(d)  Remove the differential.

SA–82

–

SUSPENSION AND AXLE

REAR DIFFERENTIAL

(e)  Remove the upper mount stopper from the differential carrier.

HINT:

•

Same vehicles have the adjusting shim for adjusting the
propeller shaft joint angle installed on top of the upper
mount stopper.

•

Adjusting shim is not always as it is used upon need.

DIFFERENTIAL INSTALLATION

SA0S7–06

1. INSTALL

DIFFERENTIAL

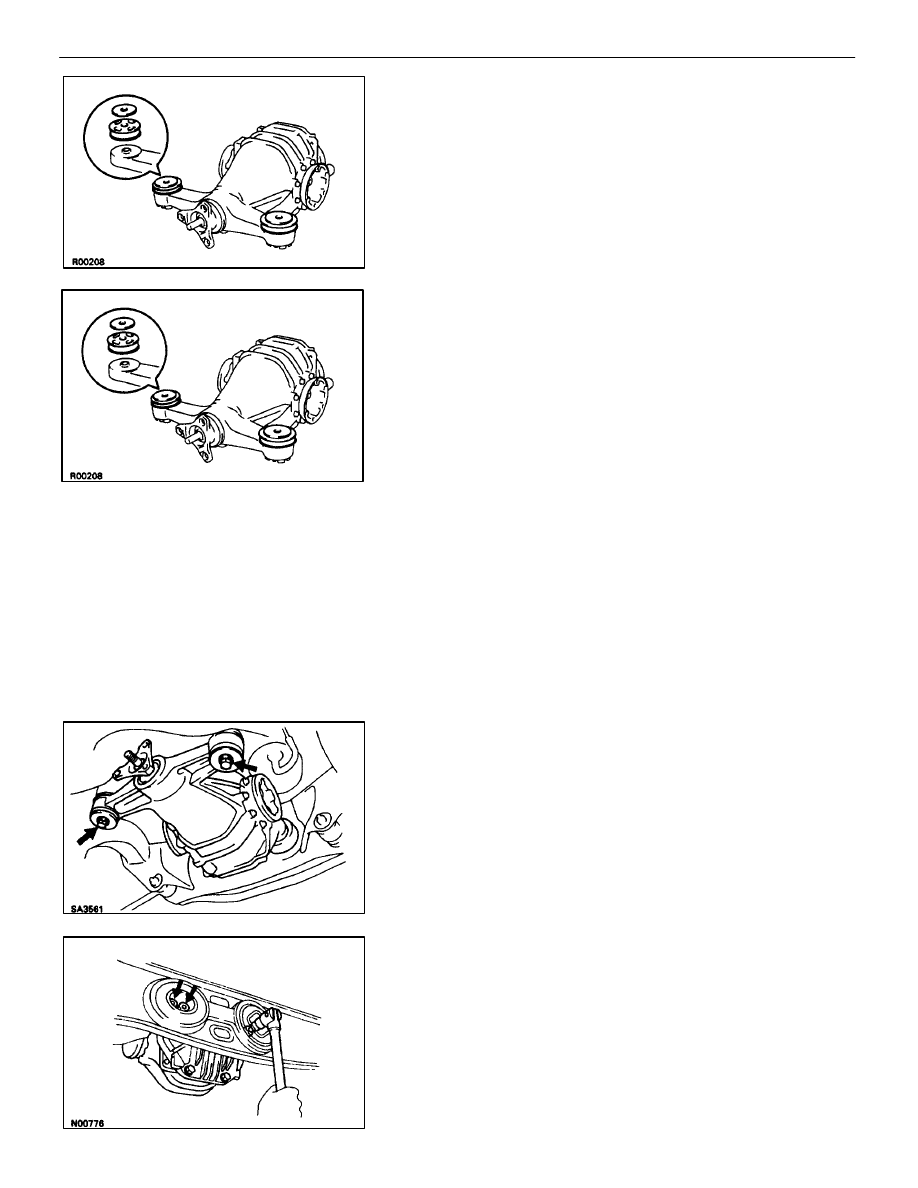

(a)  Install the upper mount stopper on the differential carrier.

HINT:

•

Use the upper mount stopper which was removed.

•

On vehicles with the adjusting shim installed on top of
the mount upper stopper, install that adjusting shim.

•

Adjusting shim is not always as it is used upon need.

(b)  Support the differential with a jack and install the lower

stoppers and 2 new bolts.

Torque: 147 N

⋅

m (1,500 kgf

⋅

cm, 108 ft

⋅

lbf)

(c)  Using a hexagon wrench, install 2 new LH mounting bolts.

Torque: 142 N

⋅

m (1,450 kgf

⋅

cm, 105 ft

⋅

lbf)

(d)  Using a hexagon wrench, install a new RH mounting bolt.

Torque: 142 N

⋅

m (1,450 kgf

⋅

cm, 105 ft

⋅

lbf)

–

SUSPENSION AND AXLE

REAR DIFFERENTIAL

SA–83

2.

CONNECT REAR DRIVE SHAFTS

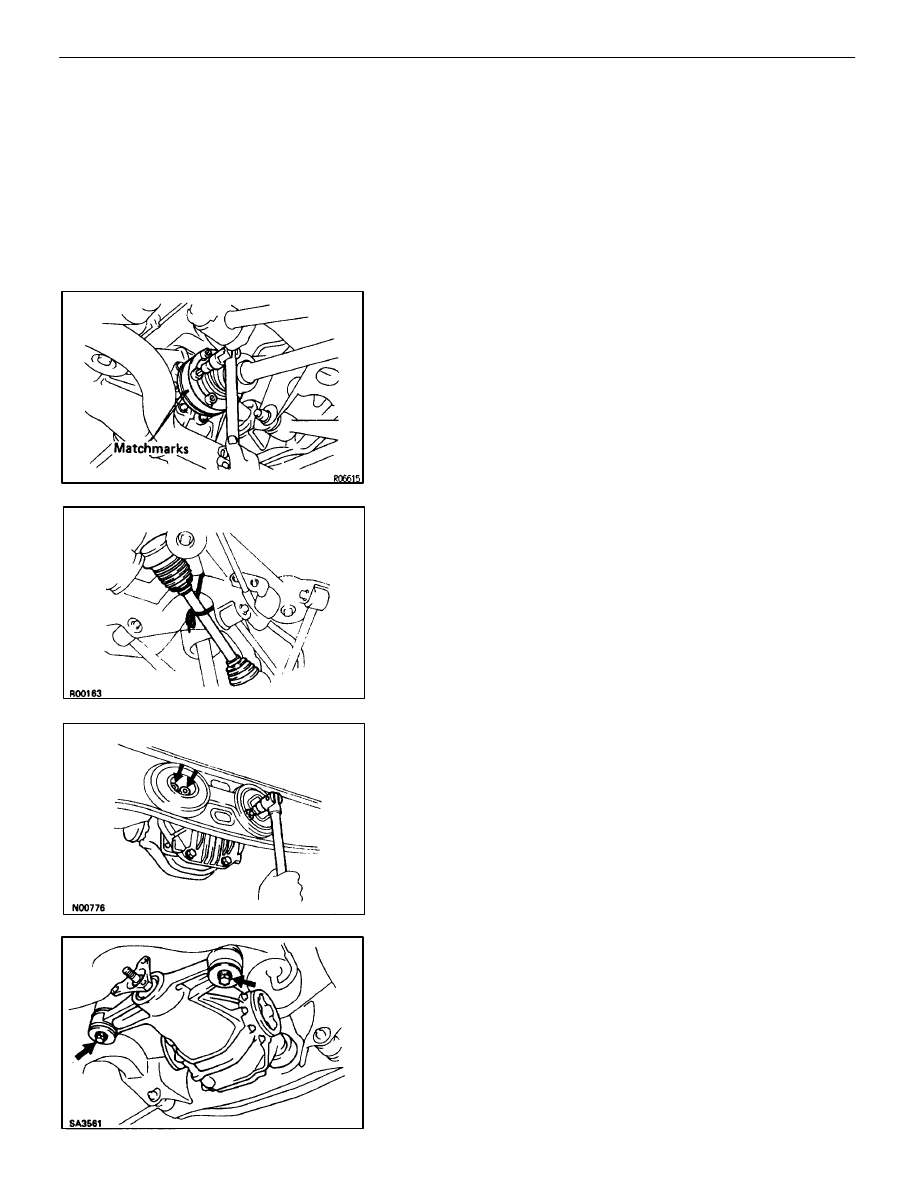

(a) Align

the matchmarks on the side gear shaft and drive shafts.

(b)  Apply a light coat of engine oil on the threads of the bolts.
(c)  Temporarily install the 12 hexagon bolts and 4 washers.

(d)  Using a hexagon wrench, torque the bolts.

Torque: 83 N

⋅

m (850 kgf

⋅

cm, 61 ft

⋅

lbf)

3.

INSTALL PROPELLER SHAFT
(See page

PR–12

 or

28

)

4.

FILL DIFFERENTIAL WITH OIL

Oil grade:

API GL–5 Hypoid Gear Oil

Viscosity:

Above–18

C (0

F) SAE 90

Below–18

C (0

F) SAE 80W–90 or 80W

Capacity:

1.35 liters (1.42 US qts, 1.19 lmp qts)

SA–84

–

SUSPENSION AND AXLE

REAR DIFFERENTIAL

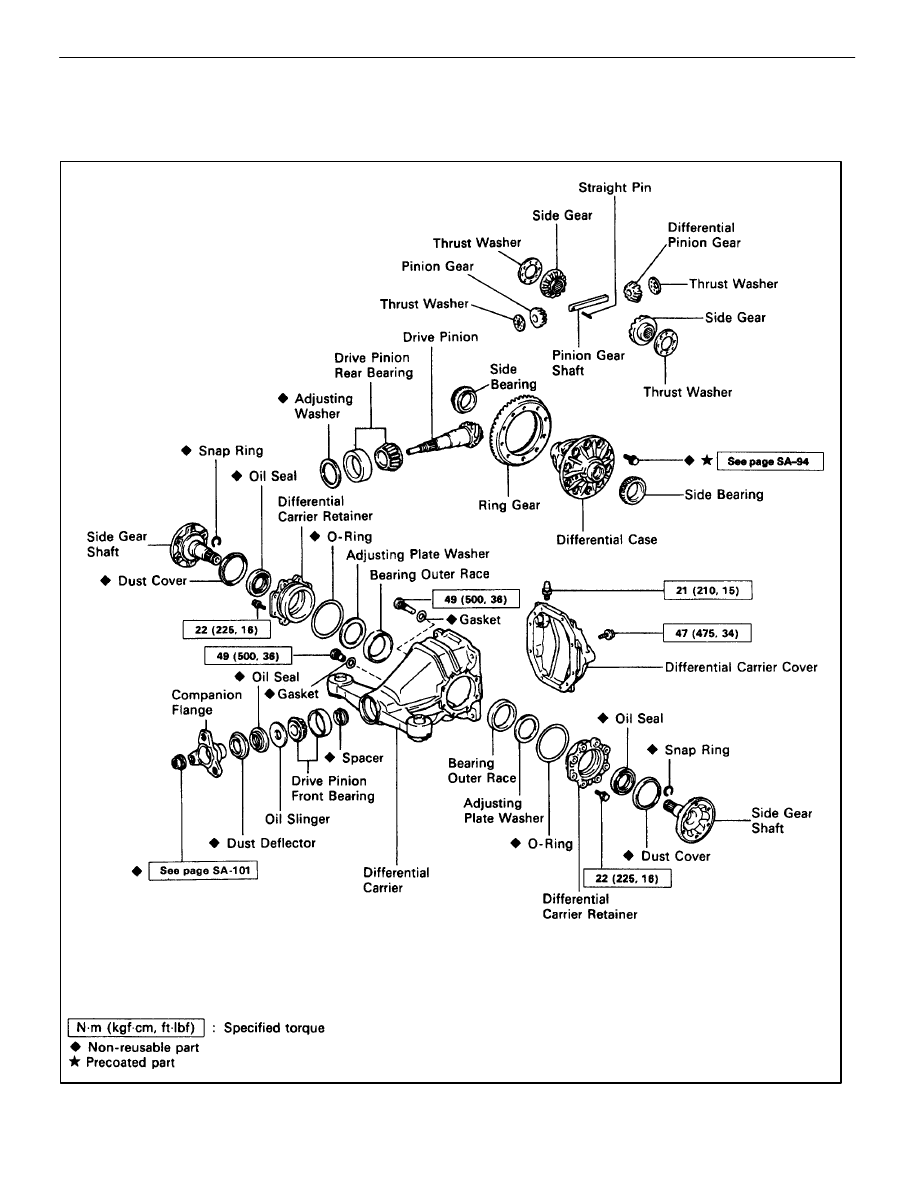

DIFFERENTIAL CARRIER
