STEERING COLUMN DISASSEMBLY

SR0EL–04

NOTICE: When placing the breakaway bracket in a vise during

disassembly or assembly of the steering column, use alumi-

num, etc. to prevent scratches to the tip of the capsule.

1.

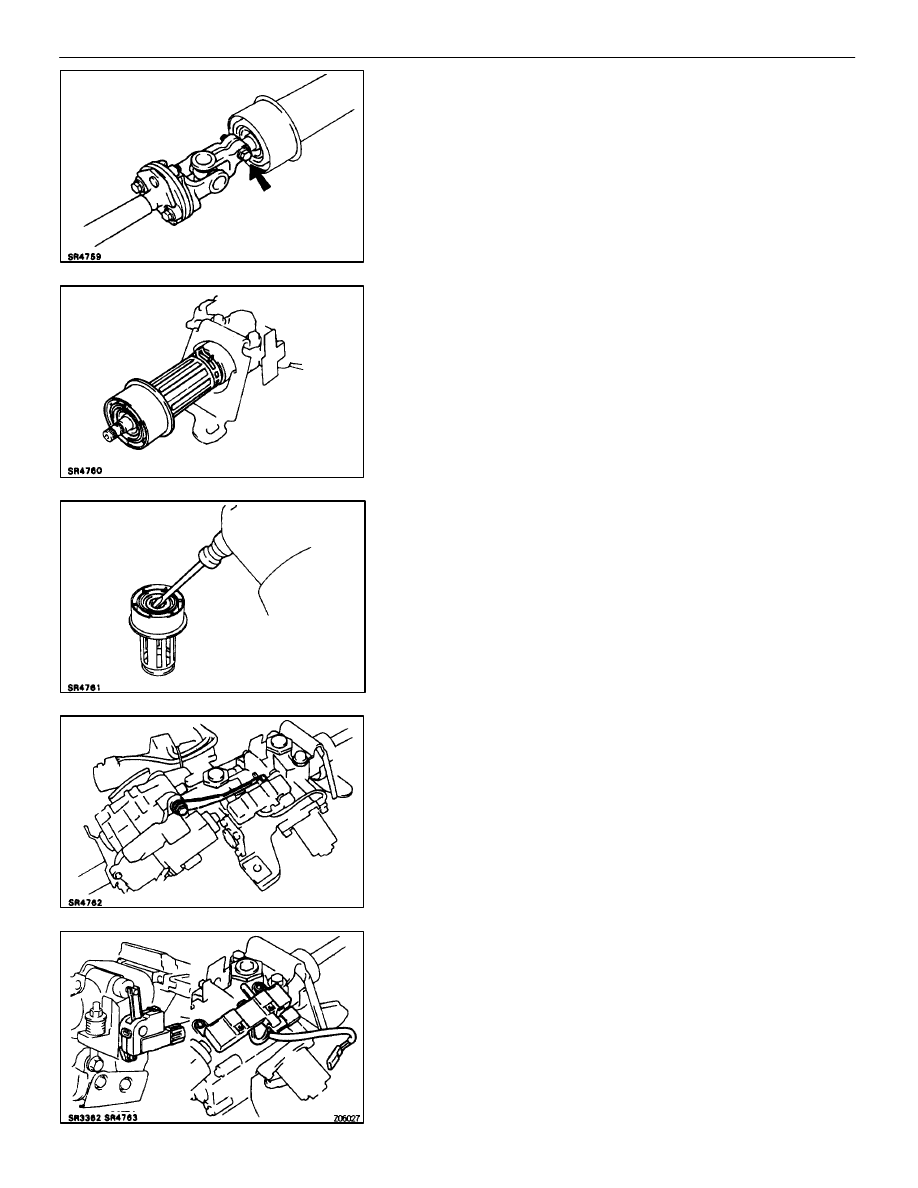

REMOVE IGNITION KEY CYLINDER ILLUMINATION

2.

REMOVE SLIDING YOKE
Place matchmarks on the sliding yoke and main shaft.

3.

REMOVE LOWER DUST COVER

(a)  Remove the clip and dust cover.

(b)  Using a screwdriver, remove the dust seal.

4.

REMOVE TELESCOPIC POSITION SENSOR PLATE

5.

REMOVE TILT AND TELESCOPIC POSITION SENSORS

–

STEERING

STEERING COLUMN

SR–29

6.

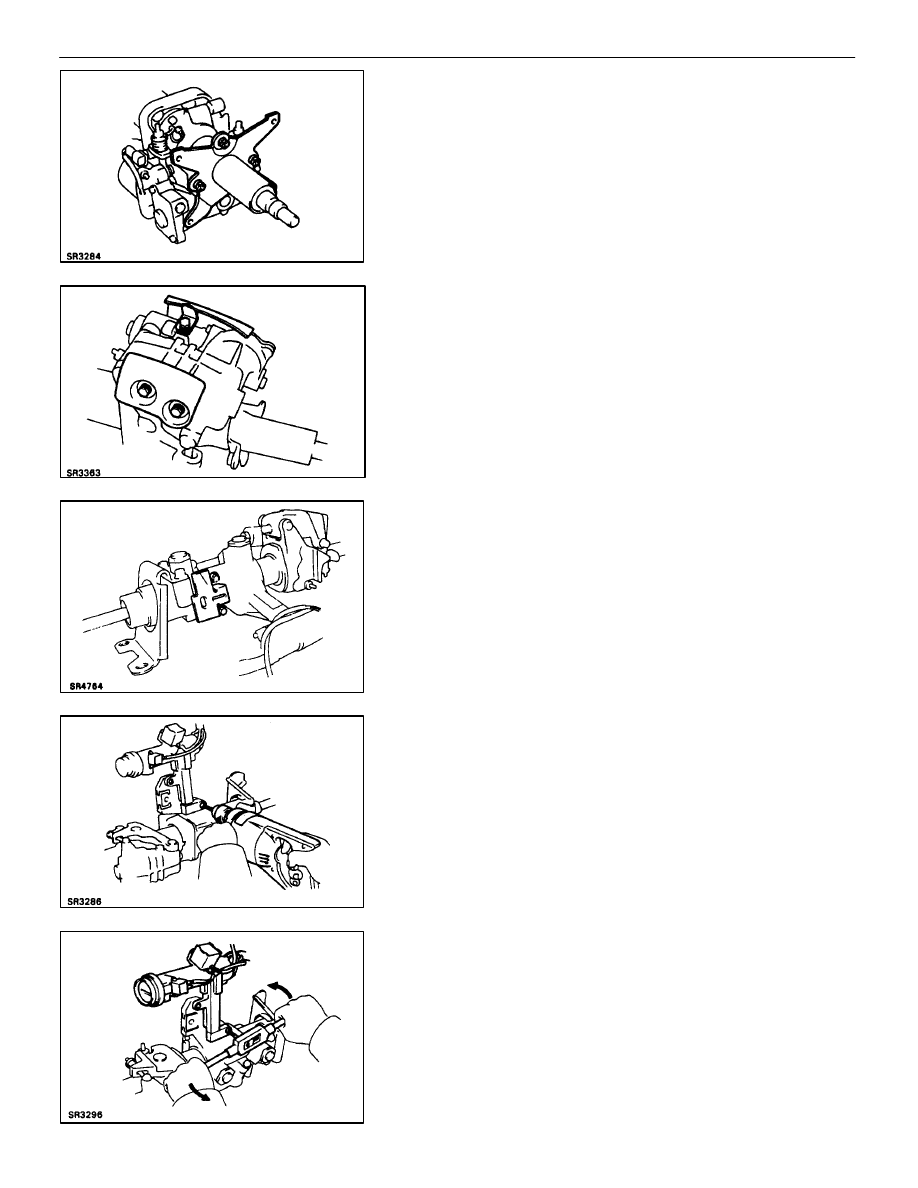

REMOVE TURN SIGNAL BRACKET

7.

REMOVE NO. 1 PROTECTOR AND NO. 2 PROTECTOR

8. REMOVE

CONNECTOR

BRACKET

9.

REMOVE UPPER BRACKET

(a)  Using a centering punch, mark the center of the 2

tapered–head  bolts.

(b)  Using a 4–5 mm (0.16–0.20 in.) drill, drill into the 2

tapered–head  bolts.

(c)  Using a screw extractor, remove the 2 tapered–head bolts.
(d)  Remove the bracket and column upper camp.

SR–30

–

STEERING

STEERING COLUMN

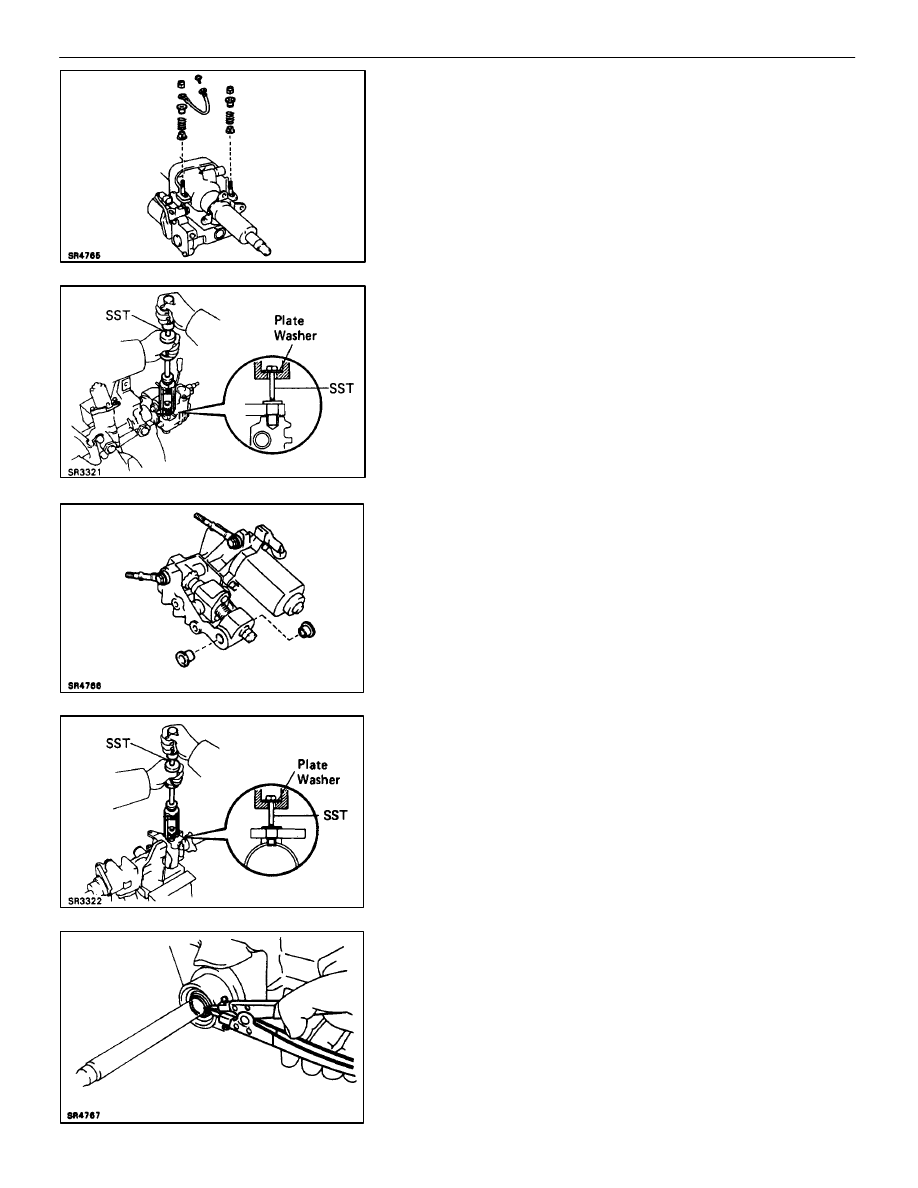

10. REMOVE TILT STEERING GEAR ASSEMBLY WITH

MOTOR

(a)  Remove the 2 nuts, spacers, springs, bushings and bond

cable.

(b) Set

SST

and plate

washer

(36

mm

outer

diameter),

as

shown, and then remove the 2 No. 2 tilt steering shafts.
SST 09213–54015 (09214–00030)
09910–00015 (09911–00011, 09912–00010)
(Reference) Plate washer

…

 90201–10201

(c)  Remove the tilt steering gear assembly.

(d)  Remove the 2 bushings and support stopper bolts.

11.  REMOVE COLUMN UPPER TUBE WITH MAIN SHAFT
(a)  Set SST and plate washer (36 mm outer diameter), as

shown, and then remove the 2 tilt steering shafts.
SST 09213–54015 (09214–00030)
09910–00015 (09911–00011, 09912–00010)
(Reference) Plate washer

…

 90201–10201

(b)  Using snap ring pliers, remove the snap ring from the main

shaft.

–

STEERING

STEERING COLUMN

SR–31

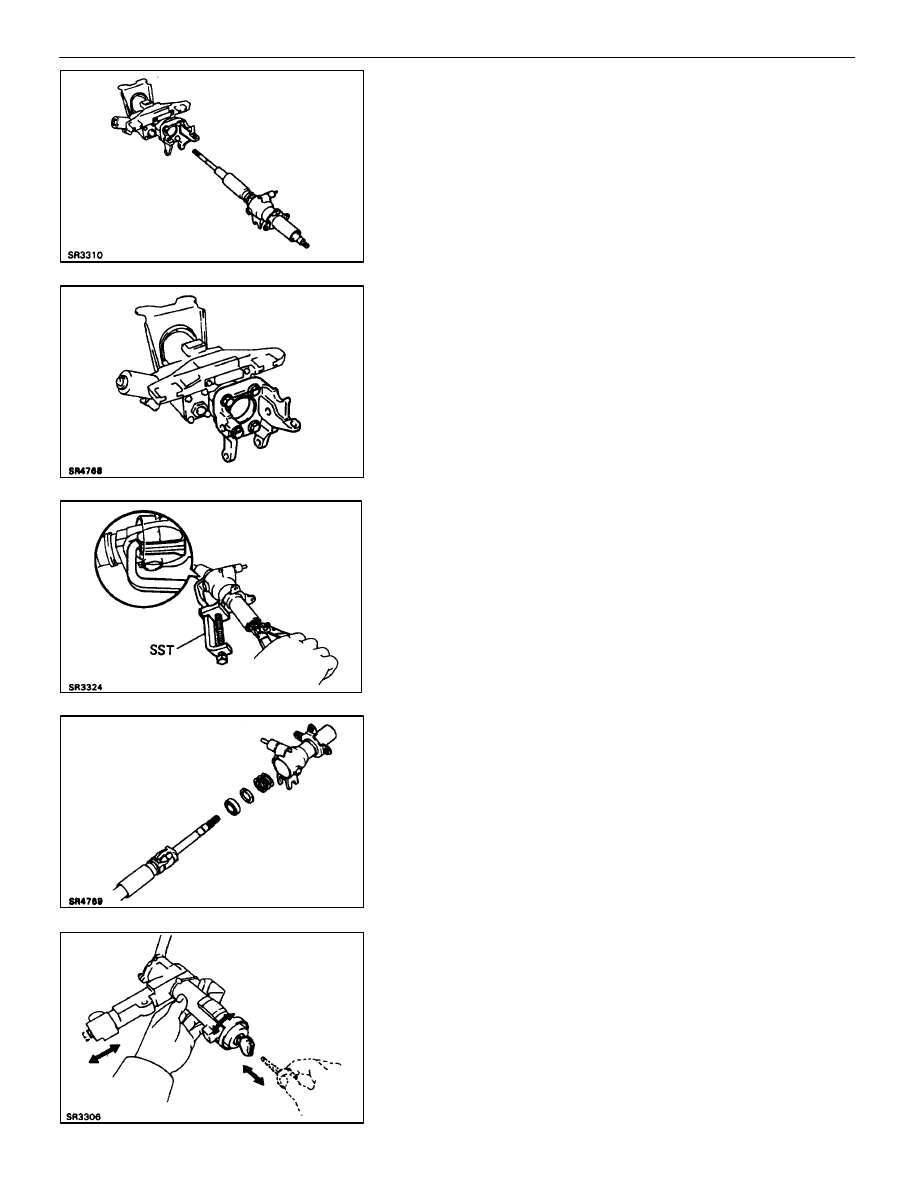

(c)  Remove the upper tube and main shaft from the lower tube.

12.  REMOVE TILT STEERING HOUSING SUPPORT

13.  REMOVE MAIN SHAFT ASSEMBLY
(a)  Secure the column upper tube in a vise.

NOTICE: Do not tighten the vise too tight.

(b)  Using SST, compress the compression spring.

SST 09950–20017 (09956–00010)

(c)  Using snap ring pliers, remove the snap ring.

(b)  Remove the main shaft from the upper tube.
(c)  Remove the spring, thrust collar and bearing.

STEERING COLUMN INSPECTION AND
REPLACEMENT

SR0EM–03

1.

INSPECT KEY CYLINDER
Check that the steering lock mechanism operates properly.

SR–32

–

STEERING

STEERING COLUMN
