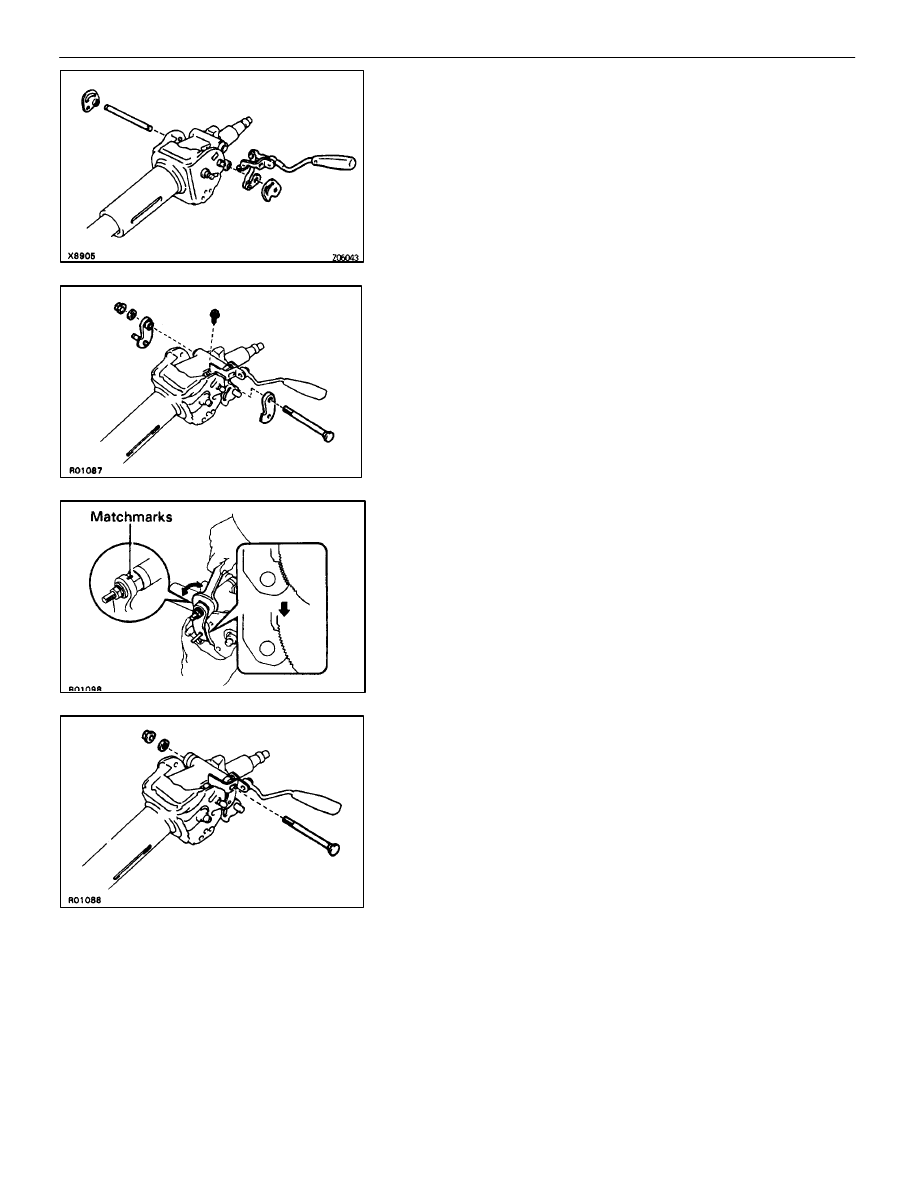

6.  INSTALL TILT LEVER LOCK SHAFT,  TILT LEVER

ASSEMBLY, TILT SUB LEVER AND TILT LEVER

(a)  Install the tilt lever lock shaft into the upper column tube.
(b)  Install the tilt lever assembly.
(c)  Install the tilt lever and tilt sub lever.

7. INSTALL

TILT

PAWLS

(a)  Install the 2 tilt pawls to the upper column tube.

HINT: Install the pawl pin into the long hole of the tilt lever and
tilt sub lever.

(b)  Install the bolt through the tilt pawls and tilt lever assembly.
(c)  Temporarily install the washer and nut.
(d)  Install and torque the tilt lever assembly installation bolt.

Torque: 2.9 N

⋅

m (30 kgf

⋅

cm, 26 in.

⋅

lbf)

8.

ENGAGE AND ADJUST TILT PAWL

(a) Engage

the tilt sub lever side pawl to the center of the ratchet.

(b)  While turning the tilt lever side collar, completely engage the

tilt lever side pawl to the ratchet.

(c)  Place matchmarks on the pawl and collar.

(d)  Remove the nut and washer.
(e)  Pull out the bolt.

–

STEERING

STEERING COLUMN

SR–21

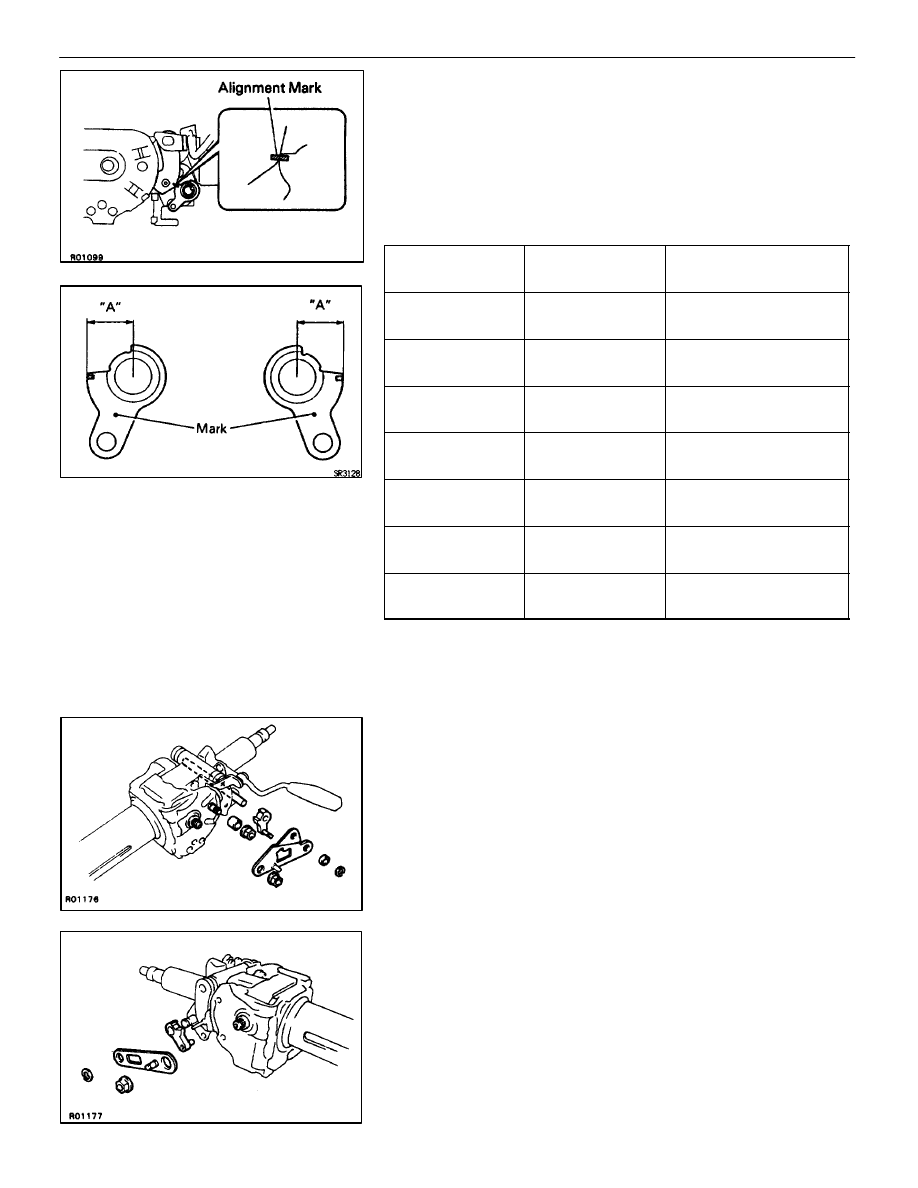

9.

SELECT 2 PAWL STOPPERS

(a)  With the tilt pawl and ratchet engaged, install the 2 pawl

stoppers.

(b)  Check that the alignment marks on the stopper and pawl

align when the stopper is lightly rotated to the pawl side.

(c)  If the alignment marks do not align, select pawl stoppers

according to the following table.

ÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑ

Tilt lever side

ÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑ

Tilt sub lever side

ÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑ

Dimension “A”

mm (in.)

ÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑ

1

ÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑ

A

ÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑ

12.68 – 12.74

(0.4992 – 0.5016)

ÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑ

2

ÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑ

B

ÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑ

12.61–12.67

(0.4965 – 0.4988)

ÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑ

3

ÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑ

C

ÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑ

12.54 – 12.60

(0.4937 – 0.4961)

ÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑ

4

ÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑ

D

ÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑ

12.47 – 12.53

(0.4909– 0.4933)

ÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑ

5

ÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑ

E

ÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑ

12.40 – 12.46

(0.4882 – 0.4906)

ÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑ

6

ÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑ

F

ÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑ

12.33 – 12.39

(0.4854 – 0.4878)

ÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑ

7

ÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑ

G

ÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑ

12.26 – 12.32

(0.4827 – 0.4850)

(d)  After selecting the stoppers, check that on both sides the

pawl and ratchet are fully engaged.

10.  INSTALL 2 PAWL STOPPERS AND 2 TILT LEVER

RETAINERS

(a)  Install the tilt sub lever side pawl stopper and retainer.
(b)  Install the spacer and new E–ring.
(c)  Install the nut to the tilt steering bolt.

Torque: 15 N

⋅

m (150 kgf

⋅

cm, 11 ft

⋅

lbf)

(d)  Install the collar to the tilt memory bolt.
(e)  Install the nut to the tilt memory bolt.

Torque: 5.9 N

⋅

m (60 kgf

⋅

cm, 52 in.

⋅

lbf)

(f)

Install the tilt lever side pawl stopper and tilt lever retainer.

(g)  Install the E–ring.
(h)  Install and torque the nut.

Torque: 15 N

⋅

m (150 kgf

⋅

cm, 11 ft

⋅

lbf)

SR–22

–

STEERING

STEERING COLUMN

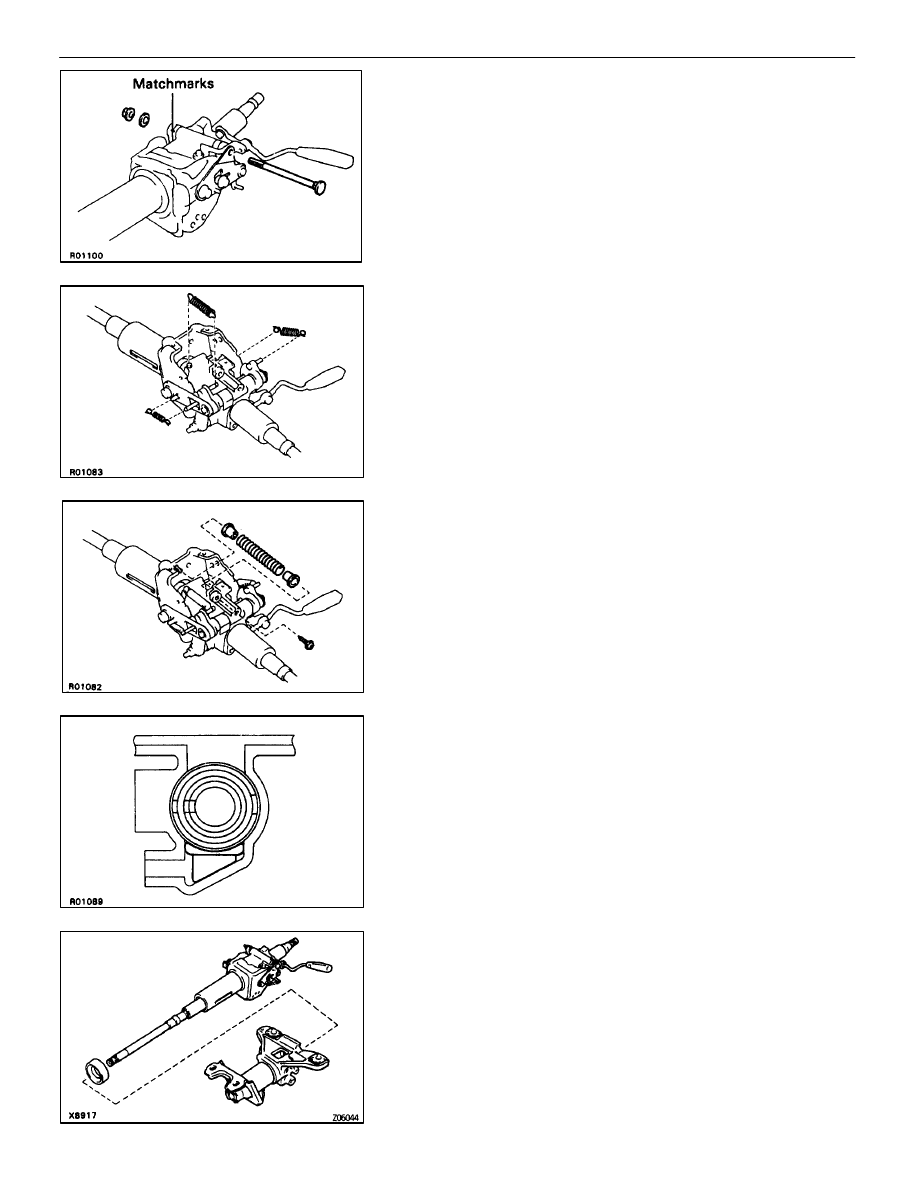

11. INSTALL

BOLT

(a)  Tighten the nut with the matchmarks on the pawl and collar

are aligned.

Torque: 5.9 N

⋅

m (60 kgf

⋅

cm, 52 in.

⋅

lbf)

(b)  Check that the pawls rotate smoothly.

12.  INSTALL 3 TENSION SPRINGS

13.  INSTALL COMPRESSION SPRING
(a)  Install the 2 bushings to the spring.
(b)  Install the spring and bolt.
(c)  Using a torx wrench, tighten the bolt.

Torx wrench: T30 (Part No. 09042–00010 or locally manufac-
tured tool)

Torque: 7.8 N

⋅

m (80 kgf

⋅

cm, 69 in.

⋅

lbf)

14.  INSTALL 2 LOCK WEDGES TO BREAKAWAY BRACKET

NOTICE: Make sure that no grease gets on the contact
surface between the lock wedge and the lower column
tube.

15. INSTALL

BREAKAWAY

BRACKET

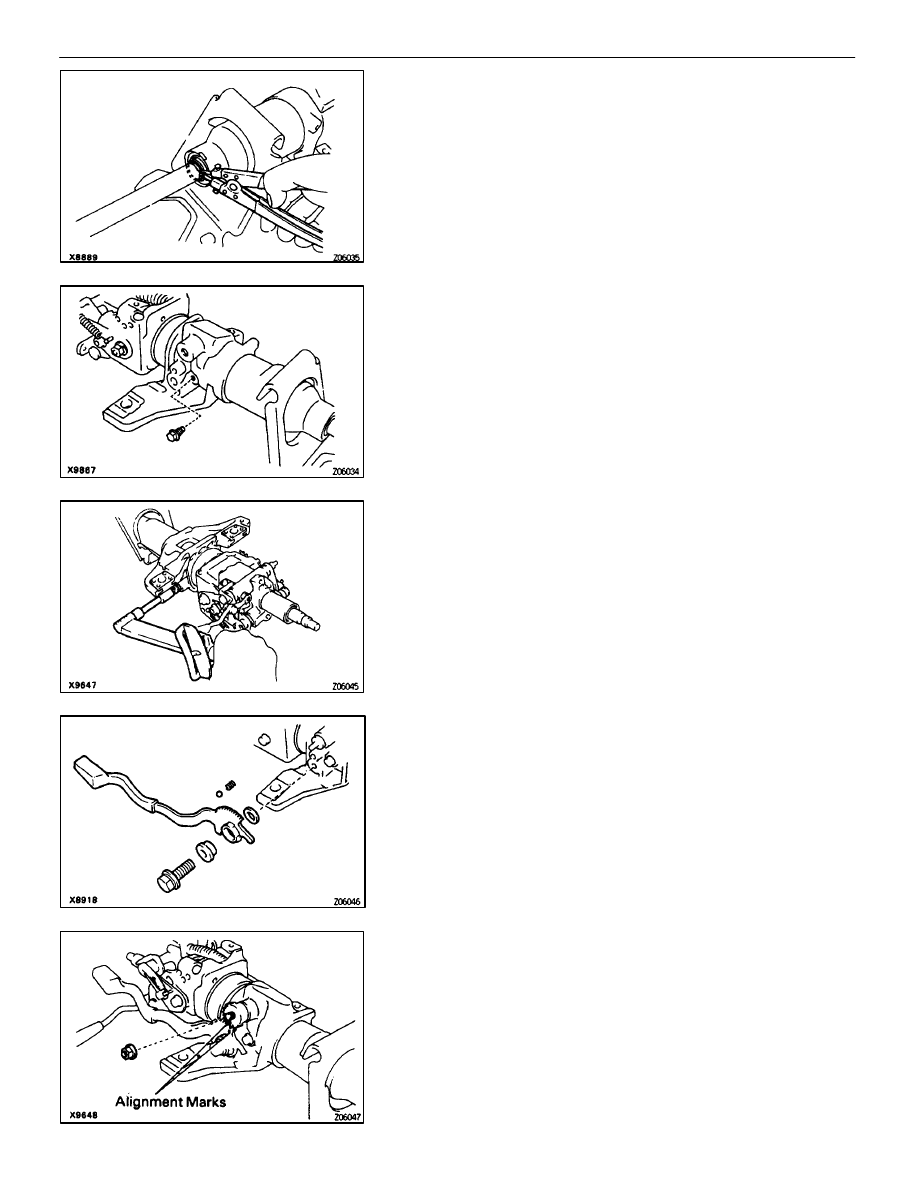

(a)  Install the steering shaft thrust stopper.
(b)  Install the breakaway bracket to the main shaft.

Be careful that the spline part of the main shaft does not sep-
arate.

–

STEERING

STEERING COLUMN

SR–23

(c)  Using snap ring pliers, install the snap ring to the main shaft.

(d)  Install the steering column tube stopper bolt.

Torque: 19 N

⋅

m (195 kgf

⋅

cm, 14 ft

⋅

lbf)

16.  INSTALL TELESCOPIC LEVER LOCK BOLT
(a)  Pull the steering column tube away from the breakaway

bracket and facing the body installation surface of the
breakaway bracket upward, temporarily install the lock bolt.

(b)  Install a double nut on the lock bolt.

Torque to 16 N

⋅

m (160 kgf

⋅

cm, 12 ft

⋅

lbf), loosen once, then

torque again to 7.4 N

⋅

m (75 kgf

⋅

cm, 65 in.

⋅

lbf).

17.  INSTALL TELESCOPIC LEVER
(a)  Install the compression spring and ball.
(b)  Install the washer, lever, collar and bolt.

Torque: 25 N

⋅

m (260 kgf

⋅

cm, 19 ft

⋅

lbf)

18. INSTALL  TELESCOPIC  LEVER SERRATION

ATTACHMENT

(a)  Rotate the telescopic lever until it touches the breakaway

bracket.

(b)  Install the serration attachment so that the alignment marks

on the telescopic lever and the serration attachment align.

Torque: 13 N

⋅

m (130 kgf

⋅

cm, 9 ft

⋅

lbf)

SR–24

–

STEERING

STEERING COLUMN
