(b)  Using SST to hold the flange, remove the nut.

SST 09930–00021

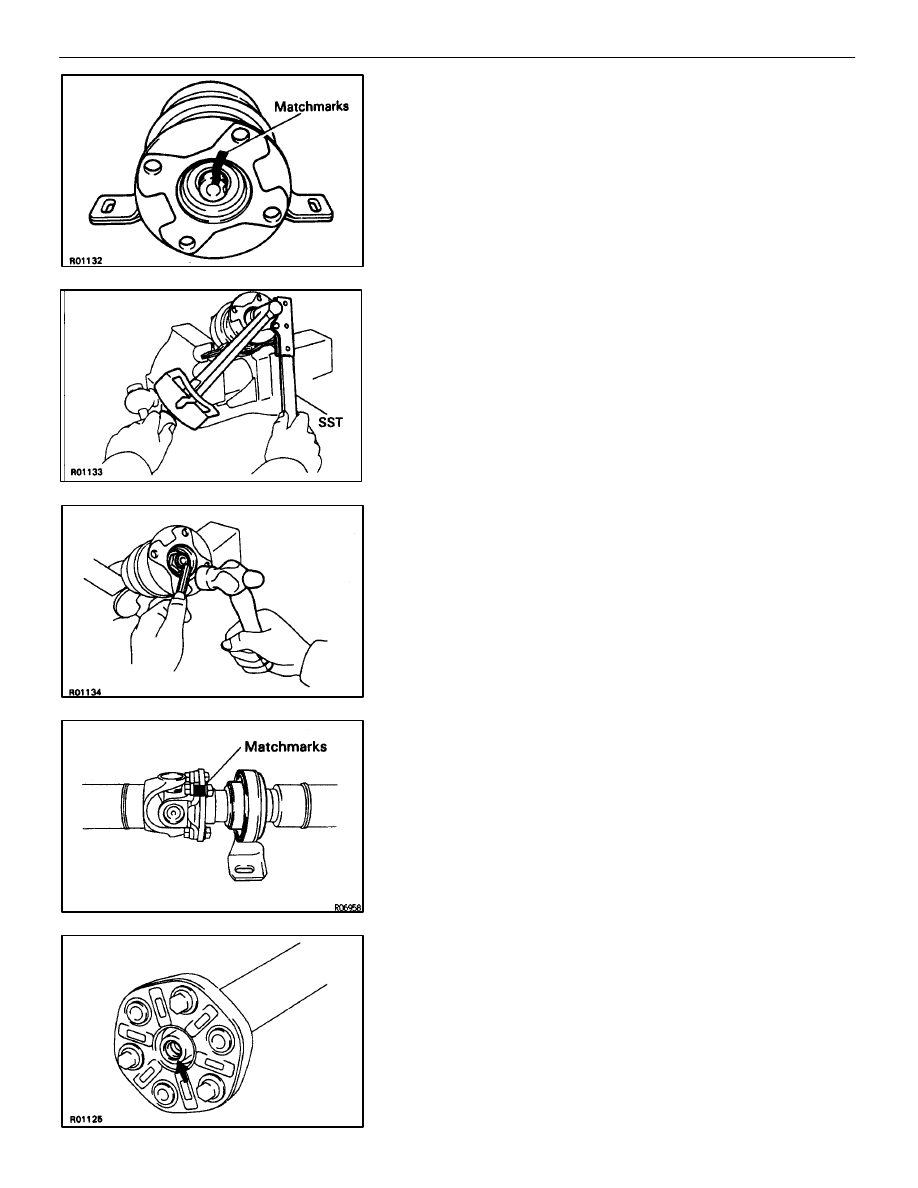

(c)  Place the matchmarks on the flange and intermediate shaft.
(d)  Remove the flange and center support bearing from the

intermediate shaft.

3.

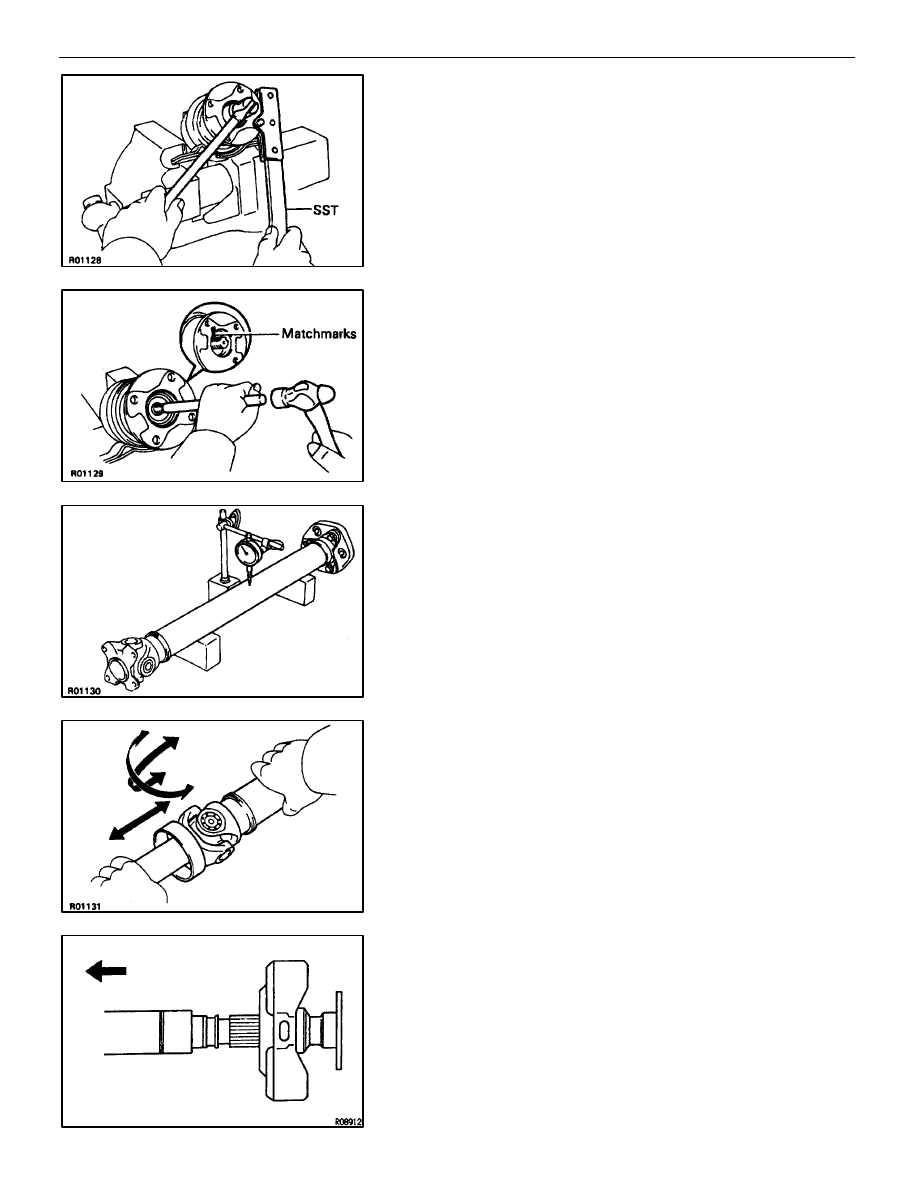

INSPECT RUNOUT OF INTERMEDIATE  SHAFT AND
PROPELLER SHAFT

Maximum runout:

0.8 mm (0.031 in.)

If the runout is greater than the maximum, replace the propel-
ler shaft assembly.

4.

INSPECT SPIDER BEARING

•

Check if the spider bearing rotates smoothly.

•

Check if there is any play in the spider bearing.

If necessary, replace the propeller shaft assembly.

5. INSTALL CENTER SUPPORT BEARING ON

INTERMEDIATE SHAFT
HINT: Install the center support bearing in the direction, as
shown and install the 2 washers.

–

PROPELLER SHAFT

PROPELLER SHAFT

PR–27

6.

INSTALL FLANGE ON INTERMEDIATE SHAFT

(a)  Coat the spline of the intermediate with MP grease.
(b)  Place the flange on the shaft and align the matchmarks.

HINT: If replacing either the center flange or intermediate
shaft, reassemble them so that the front yoke of the inter-
mediate shaft and the rear yoke of the propeller shaft are fac-
ing in the same direction.

(c)  Using SST to hold the flange, press the bearing into position

by tightening down a new nut.
SST 09330–00021

Torque: 181 N

⋅

m (1,850 kgf

⋅

cm, 134 ft

⋅

lbf)

(d)  Loosen the nut.
(e)  Torque the nut again.

Torque: 69 N

⋅

m (700 kgf

⋅

cm, 51 ft

⋅

lbf)

(f)  Using a punch and a hammer, stack the shaft.

7.

INSTALL PROPELLER SHAFT

(a) Align

the matchmarks on the flanges and connect the flanges

with 4 bolts, washers and nuts.
HINT: If replacing either the center flange or intermediate
shaft, reassemble them so that the front yoke of the inter-
mediate shaft and the rear yoke of the propeller shaft are fac-
ing in the same direction.

(b)  Torque the bolts and nuts.

Torque: 74 N

⋅

m (750 kgf

⋅

cm, 54 ft

⋅

lbf)

PROPELLER SHAFT INSTALLATION

PR04M–01

1.

INSTALL PROPELLER SHAFT

(a)  Apply grease to the flexible coupling centering bushings.

Grease:

Molybdenum disulphide lithium base, NLGI No.1 or

No.2.

PR–28

–

PROPELLER SHAFT

PROPELLER SHAFT

(b) Remove

SST.

(c)  Insert the yoke into the transmission.

(d)  Align the matchmarks and install the propeller shaft on the

differential with the 3 bolts, washers and nuts.
NOTICE: Bolts should be inserted from the propeller
shaft side.

Torque: 79 N

⋅

m (805 kgf

⋅

cm, 58 ft

⋅

lbf)

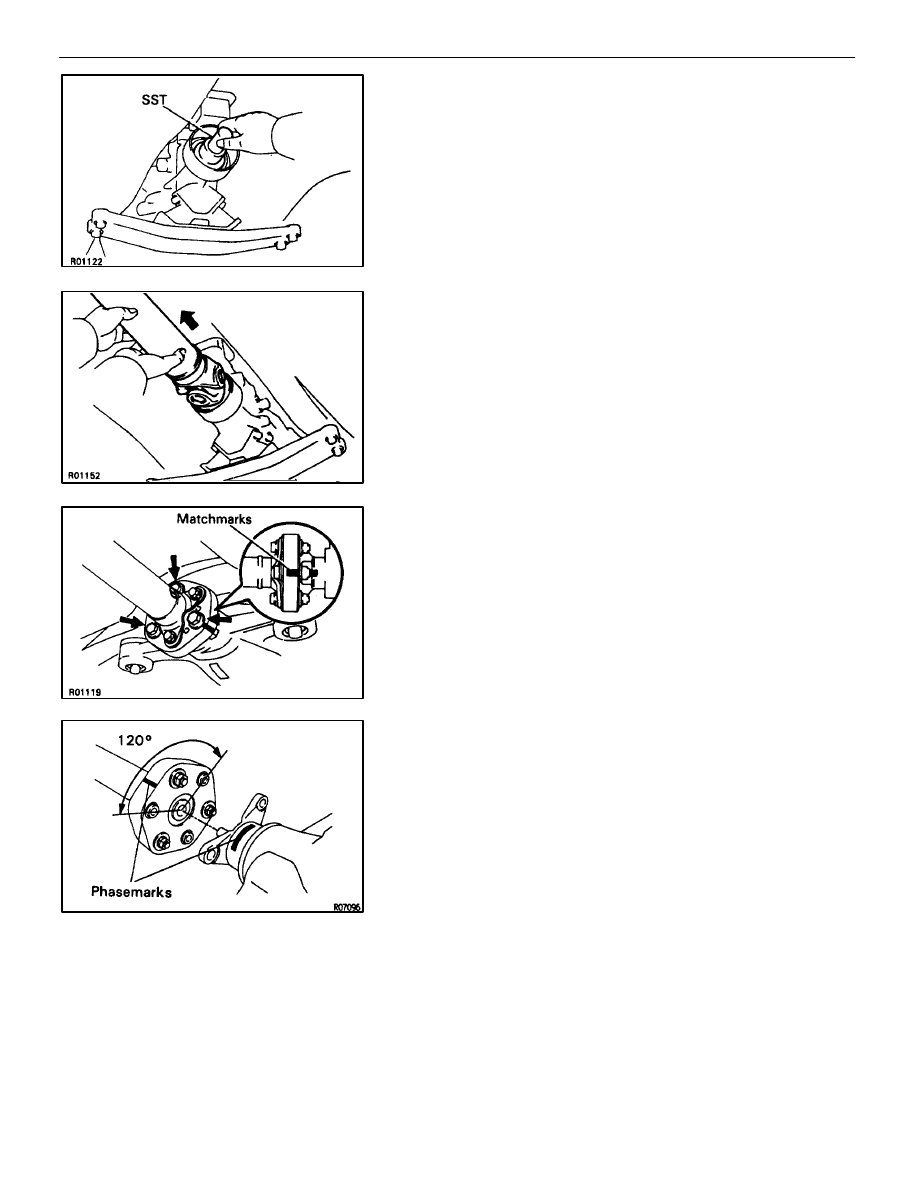

If using a new propeller shaft (w/ Phasemarks)
Install the propeller shaft phasemarks and differential phase-
marks so that their respective alignment phasemarks match.
If the propeller shaft phasemarks and differential phase-
marks do not align, install the propeller shaft and differential
alignment phasemarks are as close together as possible.
(w/o Phasemarks)
Install the propeller shaft.
(See page

PR–28

)

–

PROPELLER SHAFT

PROPELLER SHAFT

PR–29

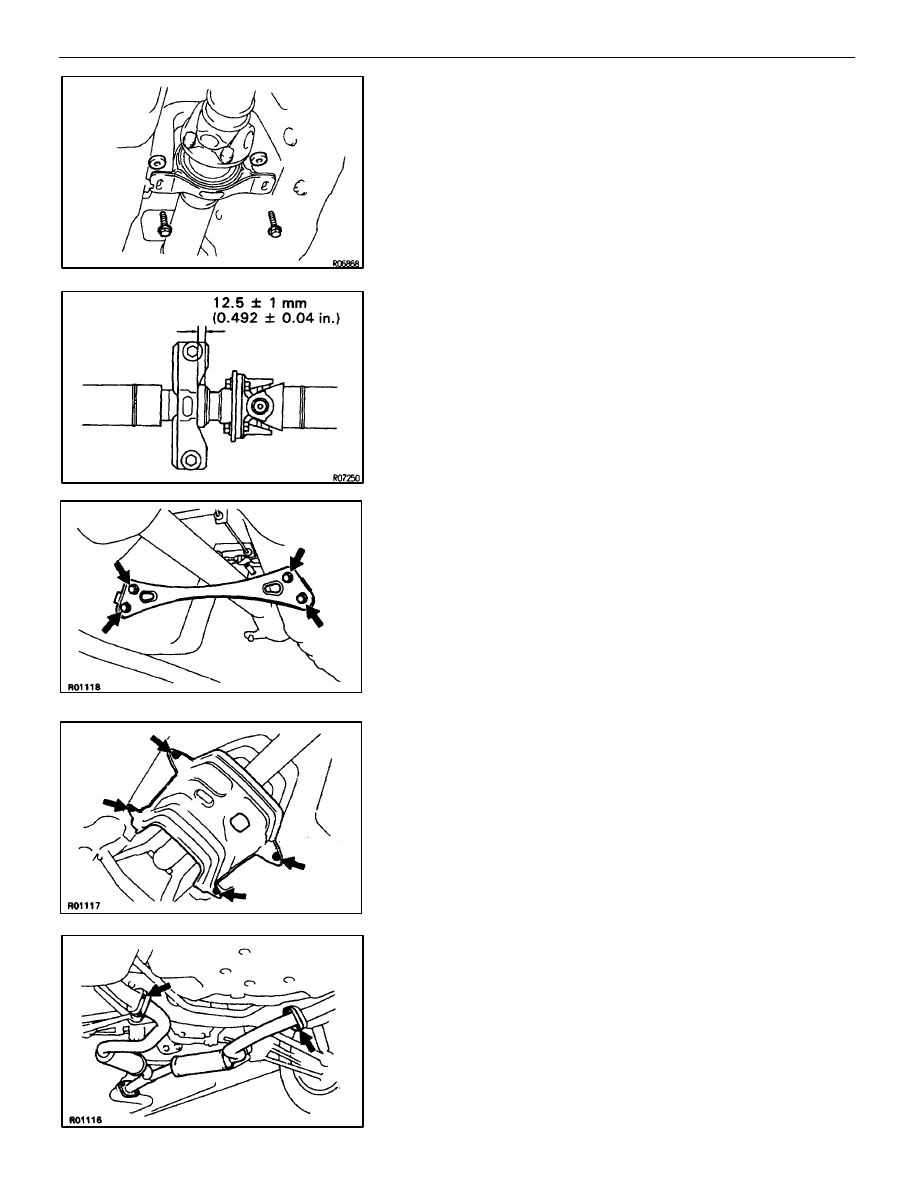

(f)  Temporarily install the center support bearing set bolts with

the adjusting washers.
HINT: Use the adjusting washers which were removed.

(g)  Torque the center support bearing set bolts.

Torque: 49 N

⋅

m (500 kgf

⋅

cm, 36 ft

⋅

lbf)

HINT: Adjust the center support bearing to keep the intervals,
as shown with the vehicle in the unladen condition.
Under the same condition, check if the center line of the cen-
ter support bearing is at right angles to the shaft axial direc-
tion.

2.

INSPECT JOINT ANGLE
(See page

PR–32

)

NOTICE: The joint angle should by all means be checked
when the propeller shaft is removed and installed.

3.

INSTALL CROSSMEMBER BRACE
Install the center floor crossmember brace and torque the 4
bolts.

Torque: 13 N

⋅

m (130 kgf

⋅

cm, 9 ft

⋅

lbf)

4. INSTALL

HEAT

INSULATOR

Install the heat insulator and torque the 4 nuts.

Torque: 5.4 N

⋅

m (55 kgf

⋅

cm, 48 in.

⋅

lbf)

5.

INSTALL EXHAUST CENTER PIPE

(a)  Install new gaskets.
(b)  Install the exhaust center pipe.
(c)  Connect the exhaust center pipe to the 2 rings.
(d)  Install and torque the new 4 nuts.

Torque: 19 N

⋅

m (195 kgf

⋅

cm, 14 ft

⋅

lbf)
