(c) Install the hose clamp.
(d) Connect the following hoses:
(1) PS air hose to No. 4 timing belt cover
(2) PCV hose to No. 2 cylinder head cover
(e) Connect the volume air flow meter connector.
(f) Connect the high–tension cord to the ignition coil.

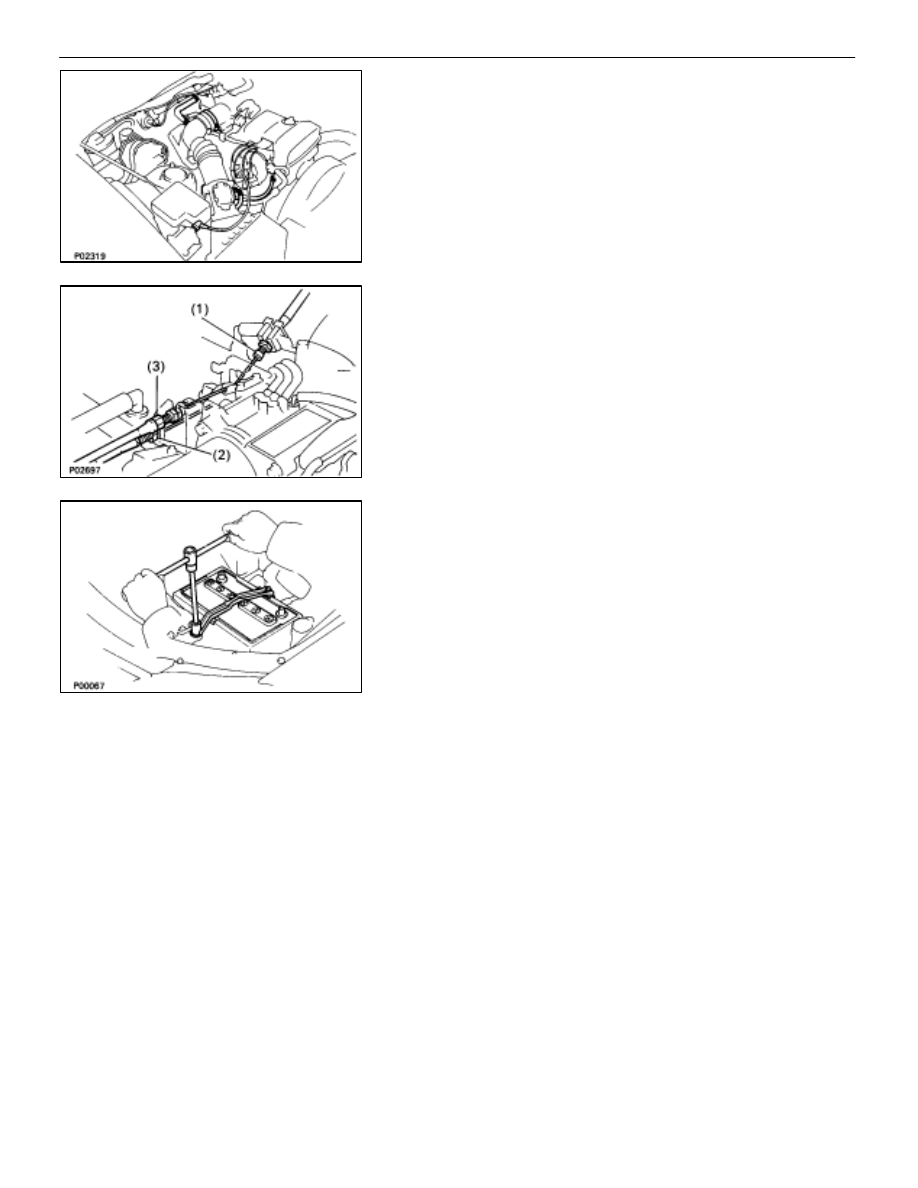

18. CONNECT CONTROL CABLES TO THROTTLE BODY
Connect the following cables:
(1) Accelerator
cables
(2) (A/T)
Throttle control cable
(3) Cruise control actuator cable
19. INSTALL
BATTERY
20. FILL ENGINE WITH COOLANT (See page CO–5)
Capacity (w/Heater):
M/T
8.5 liters (9.0 US qts, 7.5 lmp. qts)
A/T
8.4 liters (8.9 US qts, 7.4 lmp. qts)
21. START ENGINE AND CHECK FOR LEAKS
22. (A/T)
CHECK AUTOMATIC TRANSMISSION FLUID LEVEL
(See page MA–11)
NOTICE: Do not overfill.
23. CHECK IGNITION TIMING (See page IG–14)
Ignition timing:
10
°
BTDC @ idle
(w/ Terminals TE1 and E1 connected)
24. INSTALL ENGINE UNDER COVER
25. INSTALL
HOOD
26. PERFORM ROAD TEST
Check for abnormal noise, shock, slippage, correct shift
points and smooth operation.
27. RECHECK
ENGINE COOLANT AND ENGINE OIL LEVELS
EM–112
–
ENGINE MECHANICAL
Cylinder Block
