Lexus SC300 / Lexus SC400. Manual - part 427

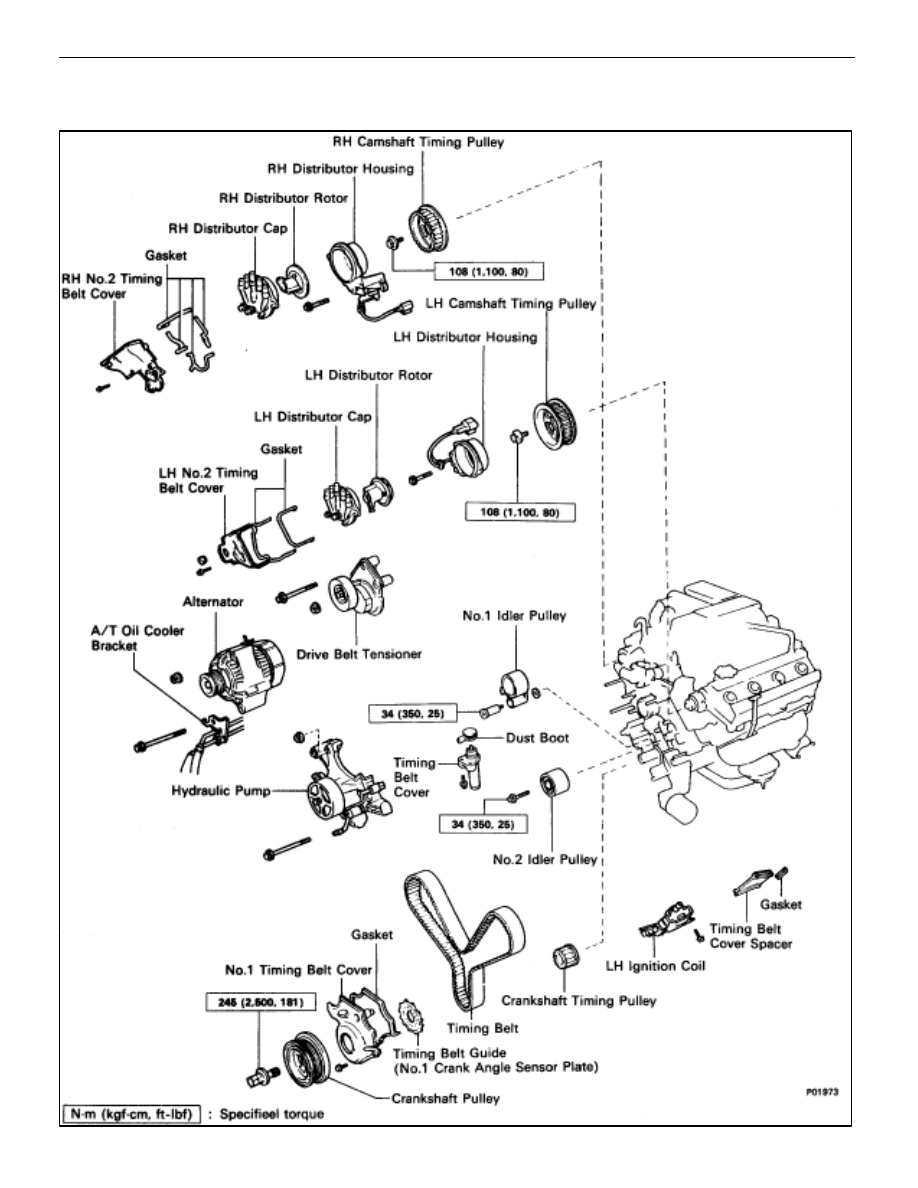

COMPONENTS FOR REMOVAL AND
INSTALLATION (Cont’d)

EM–34

–

ENGINE MECHANICAL

Timing Belt

REMOVAL OF TIMING BELT

(See Components on pages

EM–33

 and 34)

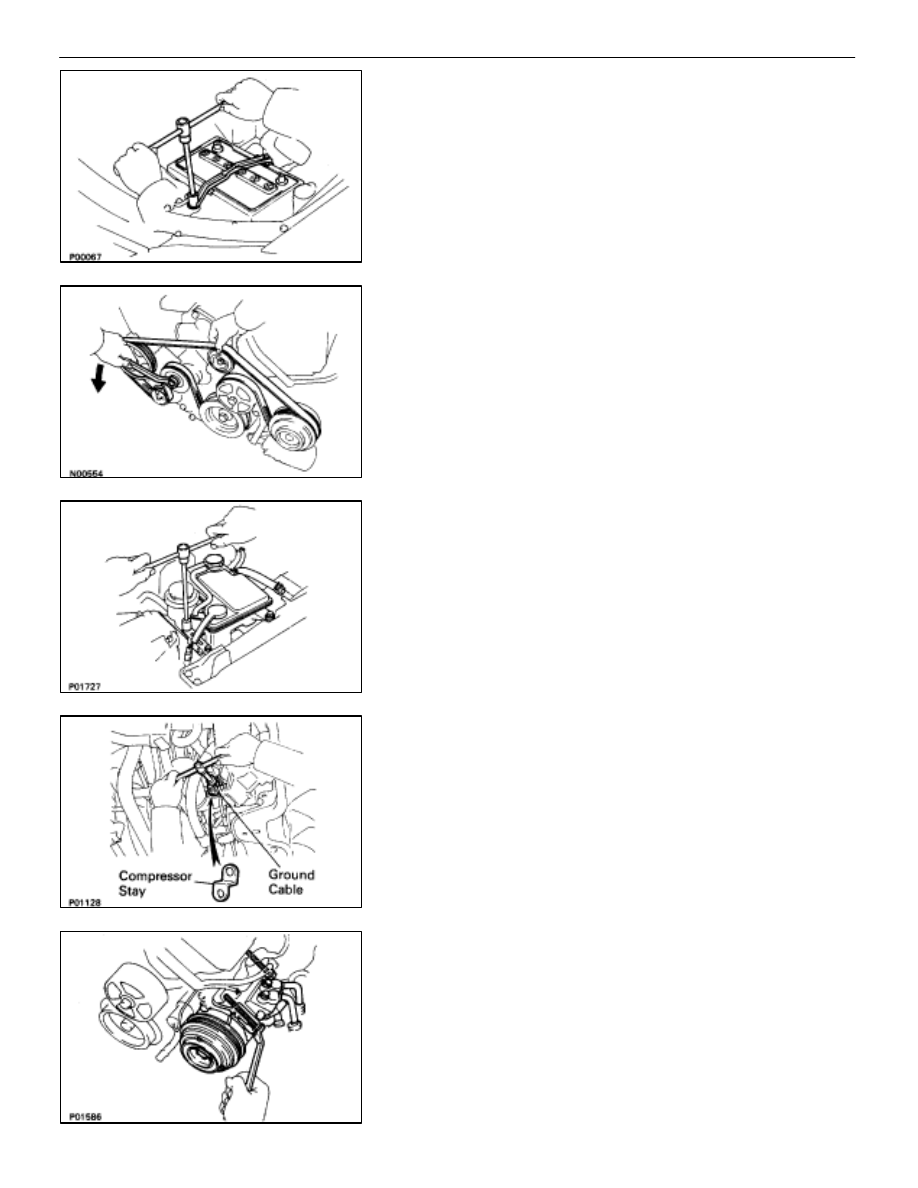

1. REMOVE

BATTERY

CAUTION: Work must be started after approx. 20 se-
conds or longer from the time the ignition switch is
turned to the ”LOCK” position and the negative (–) termi-
nal cable is disconnected from the battery.

2.

REMOVE ENGINE UNDER COVER

3.

DRAIN ENGINE COOLANT (See page

CO–6

)

4.

REMOVE DRIVE BELT
Loosen the drive belt tension by turning the drive belt tension-
er counterclockwise, and remove the drive belt.
HINT: The pulley bolt for the belt tensioner has a left–hand
thread.

5. REMOVE

RESERVOIR

TANK

RADIATOR

(See steps 12 and 13 on pages

EM–120

 and 121)

6. REMOVE

A/C

COMPRESSOR

WITHOUT

DISCONNECTING HOSES
(a)  Disconnect the compressor connector.
(b)  Remove the mounting nut, and disconnect the ground

cable.

(c)  Remove the mounting bolt and compressor stay.

(d)  Remove the two bolts, and disconnect the A/C

compressor from the engine.

HINT: Put aside the compressor, and suspend it.

–

ENGINE MECHANICAL

Timing Belt

EM–35

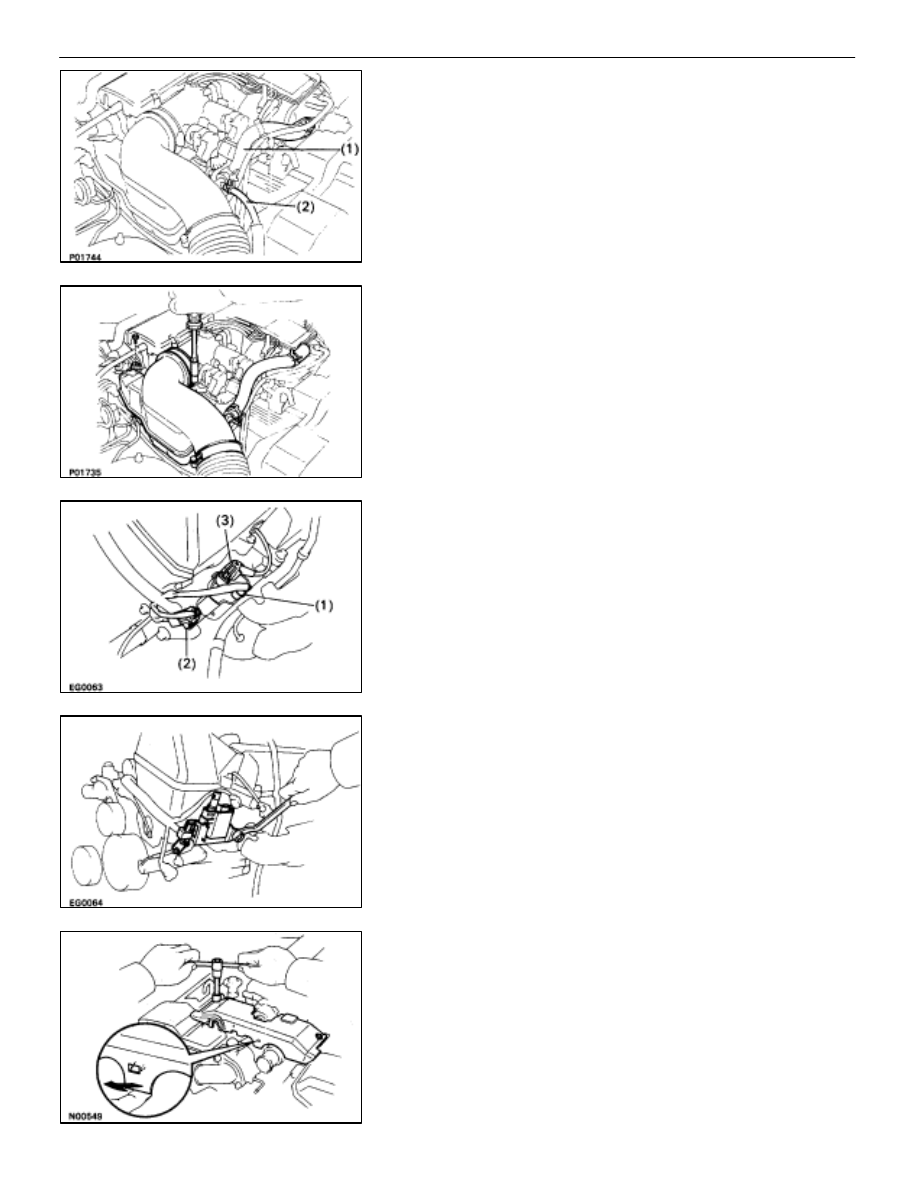

7.

REMOVE INTAKE AIR CONNECTOR
(a)  Disconnect the following hoses:

(1)

Air hose from ISC valve

(2)

Air hose (from PS air control valve) from intake air
connector

(b)  Remove the bolt holding the intake air connector to the

cylinder head cover.

(c)  Loosen the two hose clamps.
(d)  Disconnect the intake air connector from the throttle

body and air cleaner hose, and remove the throttle body.

8.

REMOVE LH IGNITION COIL
(a)  Disconnect the following connectors and cord:

(1)

Ignition coil connector

(2)

Noise filter connector

(3)

High–tension cord

(b)  Remove the two bolts and ignition coil.

9.

REMOVE UPPER HIGH–TENSION CORD COVER
(a)  Remove the two mounting bolts.
(b)  Disconnect the front side claw groove of the cord cover

from the claw of the lower cover, and remove the cord
cover.

EM–36

–

ENGINE MECHANICAL

Timing Belt

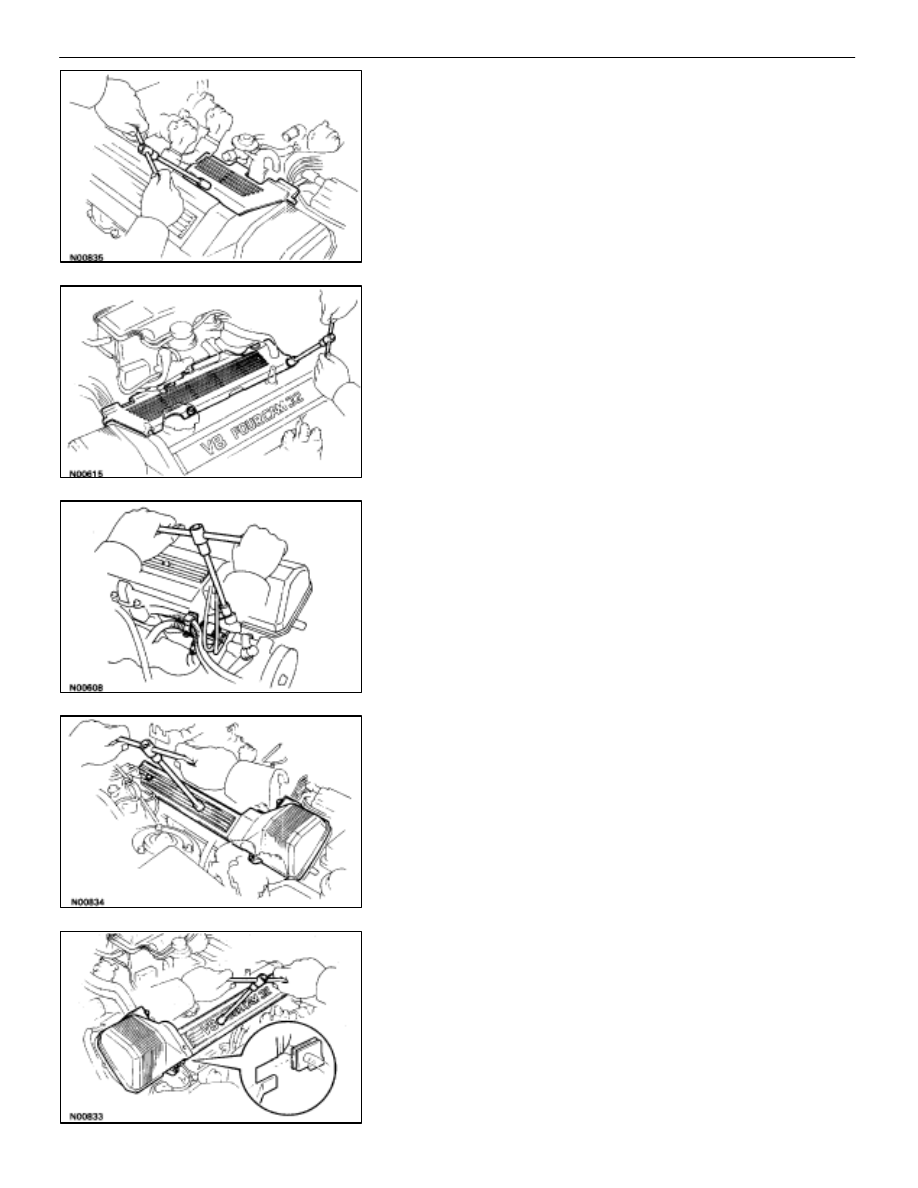

10.  REMOVE RH ENGINE WIRE COVER

Remove the bolt and engine wire cover.

11.  REMOVE LH ENGINE WIRE COVER

Remove the two bolts and engine wire cover.

12.  REMOVE VSV FOR EVAP SYSTEM

Remove the two bolts, and disconnect the VSV from cylinder
head and timing belt cover.

13.  REMOVE NO.3 TIMING BELT COVER

Remove the three bolts and timing belt cover.

14.  REMOVE LH NO.3 TIMING BELT COVER

(a)  Remove the four mounting bolts.
(b) Disconnect

the cord grommet from the timing belt cover,

and remove the timing belt cover.

(c)  Remove the cord grommet from the high–tension cord.

–

ENGINE MECHANICAL

Timing Belt

EM–37
