On–Vehicle Inspection

INSPECTION OF DRIVE BELT

(See step 1 on page

CH–5

)

INSPECTION OF FLUID LEVEL

1.

KEEP VEHICLE LEVEL

2.

INSPECT FLUID LEVEL
(a)  Using SST, connect terminals OP1 and E1 of the check

(”DIAGNOSIS”) connector.

SST 09843–18020
HINT: When terminals OP1 and E1 are connected, the circuit
of the water temp. sensor is grouded, fixing the fan speed at
approx. 1,100 rpm. (Fail–safe operation occurs.)

(b)  Keep the engine speed at 2,000 rpm until the fluid

temperature reaches the specified temperature.

Fluid temp.: 70–90

°

C (158–195

°

F)

(c)  Check that there is no foaming and emulsification of the

fluid in the reservoir tank.

(d)  Measure the fluid level with the engine running.
(e)  Stop the engine, and measure the fluid level.
(f)  Subtract (d) from (e).

Maximum stroke: 5 mm (0.20 in.)

(g)  Check the fluid level.
If low, add fluid.

Fluid: ATF DEXRON II

HINT: Check that fluid level is within the ”HOT” level on reser-
voir tank. If the fluid is cold, check that it is within the ”COLD”
level on the tank.
(h)  Remove the SST from the check connector.
SST 09843–18020

–

COOLIING SYSTEM

Electronically Controlled Hydraulic
Cooling Fan (On–Vehicle Inspection)

CO–23

BLEEDING OF HYDRAULIC COOLING
SYSTEM

1.

CHECK FLUID LEVEL IN RESERVOIR TANK
If low, add fluid.

Fluid: ATF DEXRON II

HINT: Check that fluid level is within the ”HOT” level on reser-
voir tank. If the fluid is cold, check that it is within the ”COLD”
level on the tank.

2.

BLEED COOLING SYSTEM
(a)  Using SST, connect terminals OP1 and E1 of the check

(”DIAGNOSIS”) connector.

SST 09843–18020
HINT: When terminals OP1 and E1 are connected, the circuit
of the water temp. sensor is grounded, fixing the fan speed
at approx. 1,100 rpm. (Fail–safe operation occurs.)
(b)  Start the engine without depressing the accelerator

pedal.

(c)  Leave the engine running for several seconds.
(d)  Check that there is no foaming and emulsification of the

fluid in the reservoir tank.

INSPECTION OF OIL PRESSURE

1.

CONNECT PRESSURE GAUGE
(a)  Remove the union bolt and gasket, and disconnect the

pressure hose from the hydraulic motor.

(b) Connect

the

gauge side of a pressure gauge to pressure

hose, and the valve side to the hydraulic motor.

CO–24

–

COOLIING SYSTEM

Electronically Controlled Hydraulic
Cooling Fan (On–Vehicle Inspection)

2.

INSPECT OIL PRESSURE
HINT: Before inspecting the oil pressure, first check that the
A/C is off.
(a)  Using SST, connect terminals OP1 and E1 of the check

(”DIAGNOSIS”) connector.

SST 09843–18020
HINT: When terminals OP1 and E1 are connected, the circuit
of the water temp. sensor is grounded, fixing the fan speed
at approx. 1,100 rpm. (Fail–safe operation occurs.)
(b)  Bleed the hydraulic cooling system
(See page

CO–24

)

(c)  Keep the engine speed at 2,000 rpm until the fluid

temperature reaches the specified temperature.

Fluid temp.: 70–90

°

C (158–195

°

F)

(d)  Check the fluid level is correct.

(e)  Measure the oil pressure at idling.

Oil pressure: 1,177–2,452 kPa

(12–25 kgf/cm, 171–356 psi)

(f)  Remove the SST from the check connector.
SST 09843–18020

(g)  Check that the oil pressure decreases.

3.  REMOVE PRESSURE GAUGE, AND CONNECT

PRESSURE HOSE

Torque: 64 N

⋅

m (650 kgf

⋅

cm, 47 ft

⋅

lbf)

–

COOLIING SYSTEM

Electronically Controlled Hydraulic
Cooling Fan (On–Vehicle Inspection)

CO–25

Hydraulic Pump

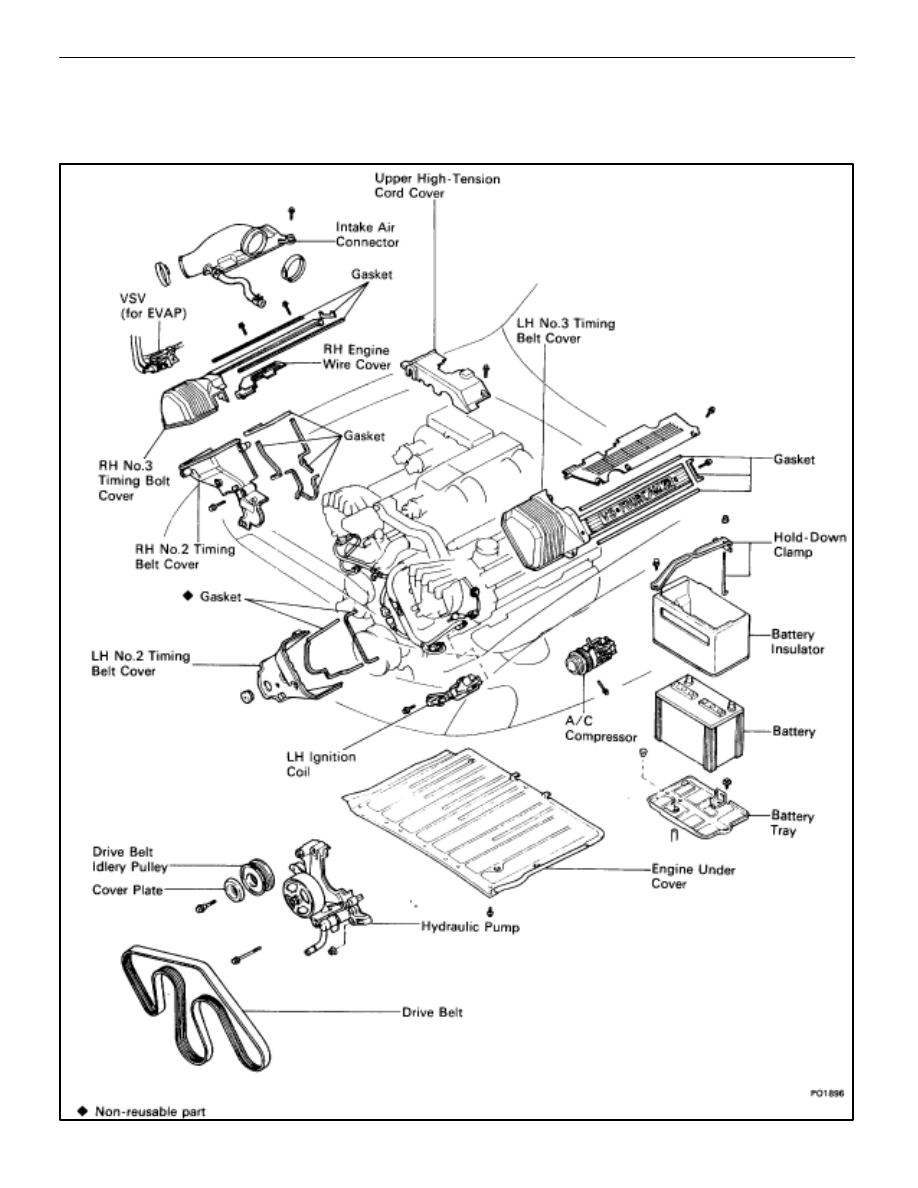

COMPONENTS FOR REMOVAL AND
INSTALLATION

CO–26

–

COOLIING SYSTEM

Electronically Controlled Hydraulic
Cooling Fan (Hydraulic Pump)
