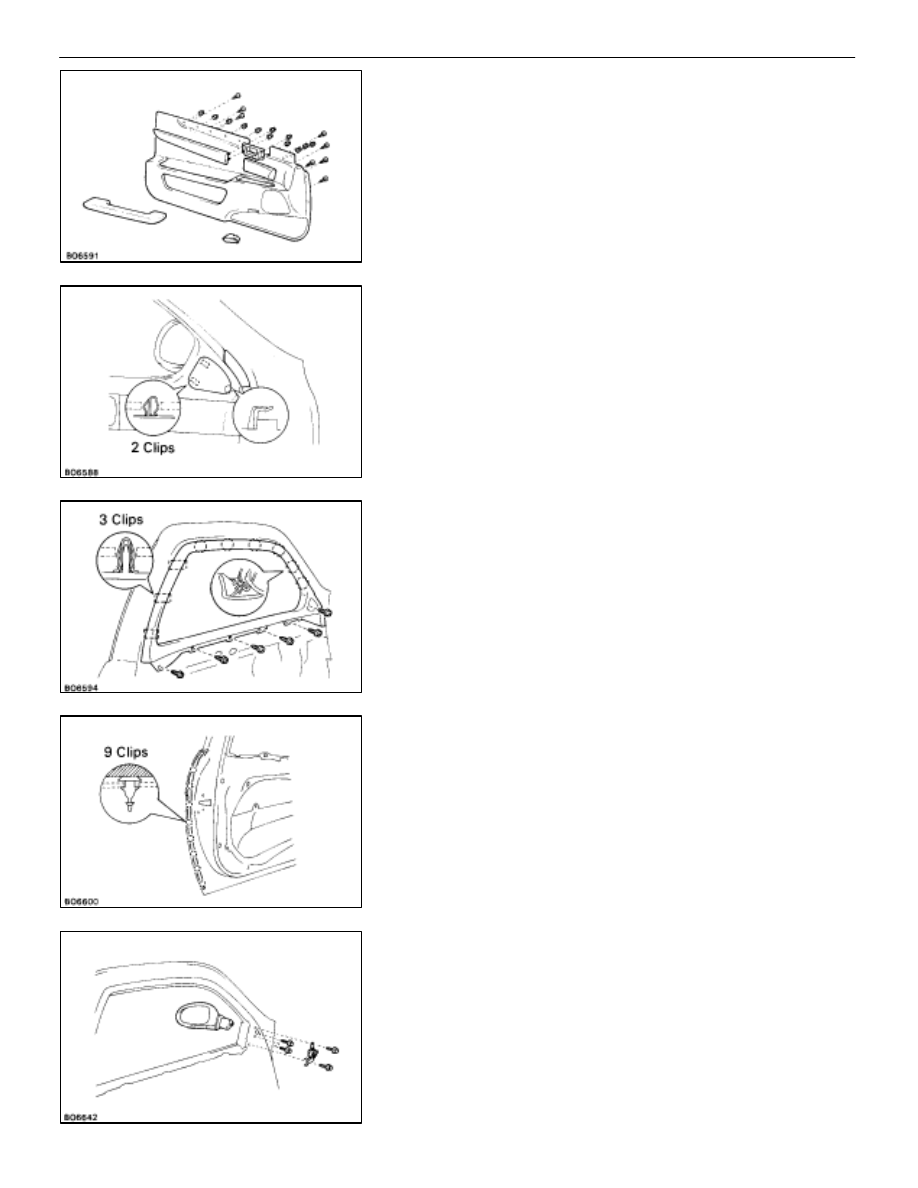

(f)  Remove twelve nuts, the front door trim ornament and

the door inside handle.

(g)  Remove eight screws and armrest.
(h)  Remove the door courtesy light.

4.

REMOVE DOOR SPEAKER GRILLE
Using a screwdriver, pry loose two clips and remove the cov-
er.
HINT:

Tape the screwdriver tip before use.

5.

REMOVE DOOR TRIM UPPER PANEL
Remove six screws and pry out the panel.

6.

REMOVE FRONT DOOR WEATHERSTRIP
While pulling the weatherstrip by hand, remove the nine clips
using a clip remover.
HINT:

Do not pull strongly on the weatherstrip as it may

tear.

7. REMOVE

OUTSIDE

REAR VIEW MIRROR AND SPEAKER

(a)  Remove two bolts and the speaker, disconnect the

connector.

(b)  Remove two bolts and the mirror, disconnect the

connector.

BO–34

–

BODY

Front Door

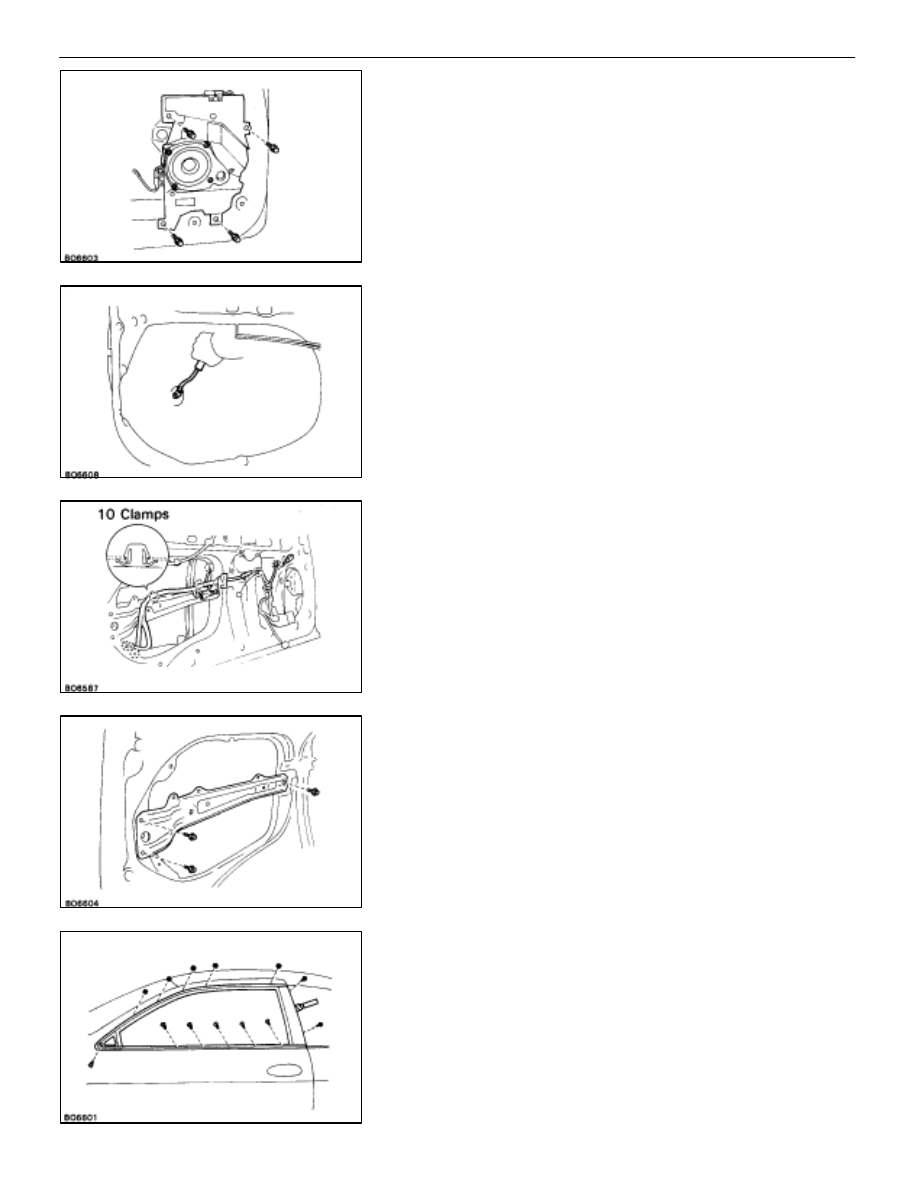

8.

REMOVE SPEAKER ASSEMBLY
Disconnect connectors from speaker assembly and remove
speaker assembly with four bolts.

9.

REMOVE SCREW GROMMETS
Using a clip remover, remove two grommets.

10.  REMOVE SERVICE HOLE COVER

Remove the cover by pulling at the edge by hand.
HINT:

Do not tear the cover.

11.  DISCONNECT WIRE HARNESS FROM DOOR PANEL

Using a clip remover, remove the wire harness clamps from
ten position on the door panel.

12.  REMOVE DOOR INSIDE PANEL FRAME

Remove three bolts and the frame.

13.  REMOVE FRONT DOOR BELT MOULDING

(a)  Remove eight screws and five nuts.
(b) Using

a

scraper,

remove the double–sided tape from the

rear side.

HINT:

Tape the scraper tip before use.

–

BODY

Front Door

BO–35

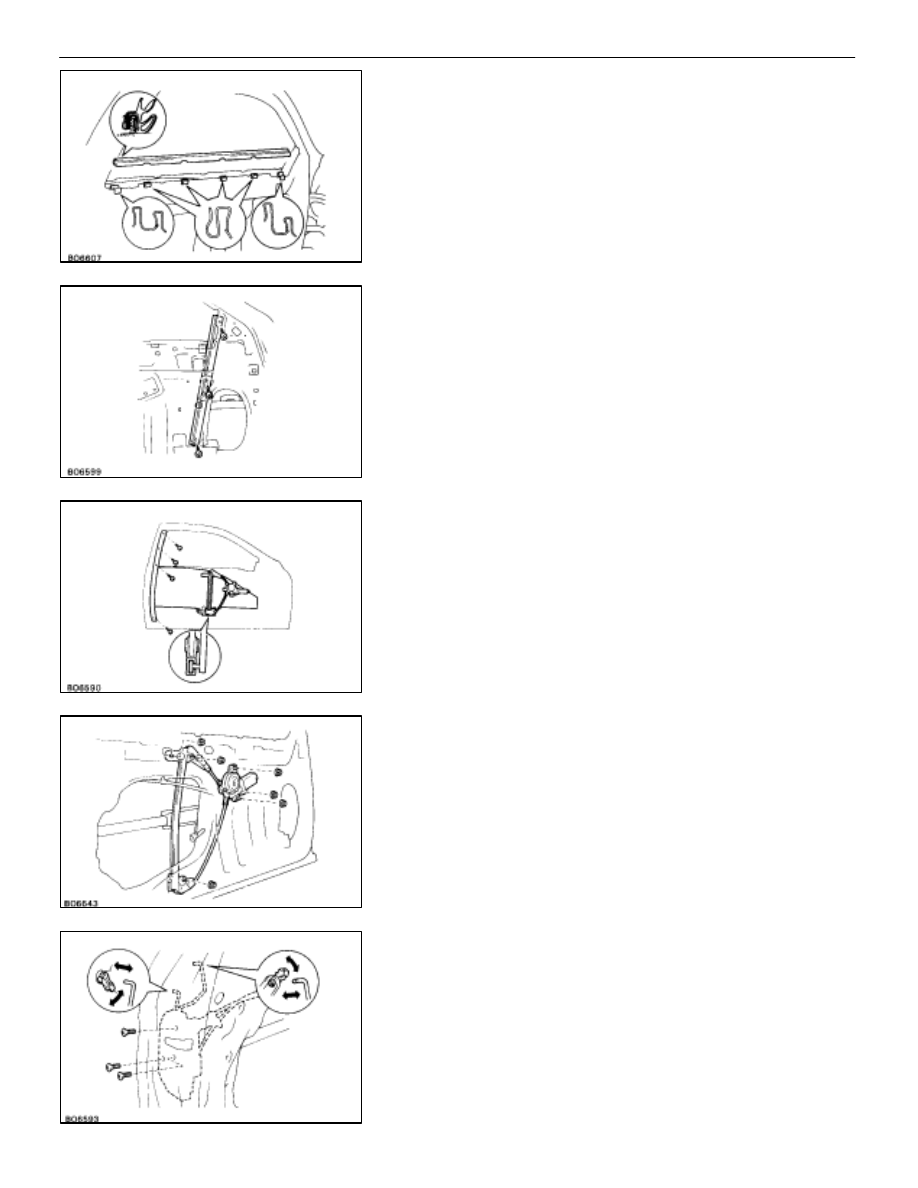

14.  REMOVE FRONT DOOR INNER WEATHERSTRIP

Pry loose the clips from the edge of the panel and remove the
belt moulding.

15.  REMOVE FRONT GLASS GUIDE

Remove three screws and the guide.

16.  REMOVE REAR GLASS GUIDE AND DOOR GLASS

(a)  Remove four screws from the guide.
(b)  Remove joining the window regulator and glass.
(c)  Pull the door glass with the guide out of the panel care

fully.

HINT:

Do not remove the guide from the glass.

17. REMOVE

WINDOW

REGULATOR

Remove six nuts and the regulator.

18.  REMOVE DOOR LOCK

(a)  Disconnect the two links from the outside handle and

key cylinder.

(b)  Disconnect the connector.
(c)  Using a trox rench, remove three screws and the door

lock.

BO–36

–

BODY

Front Door

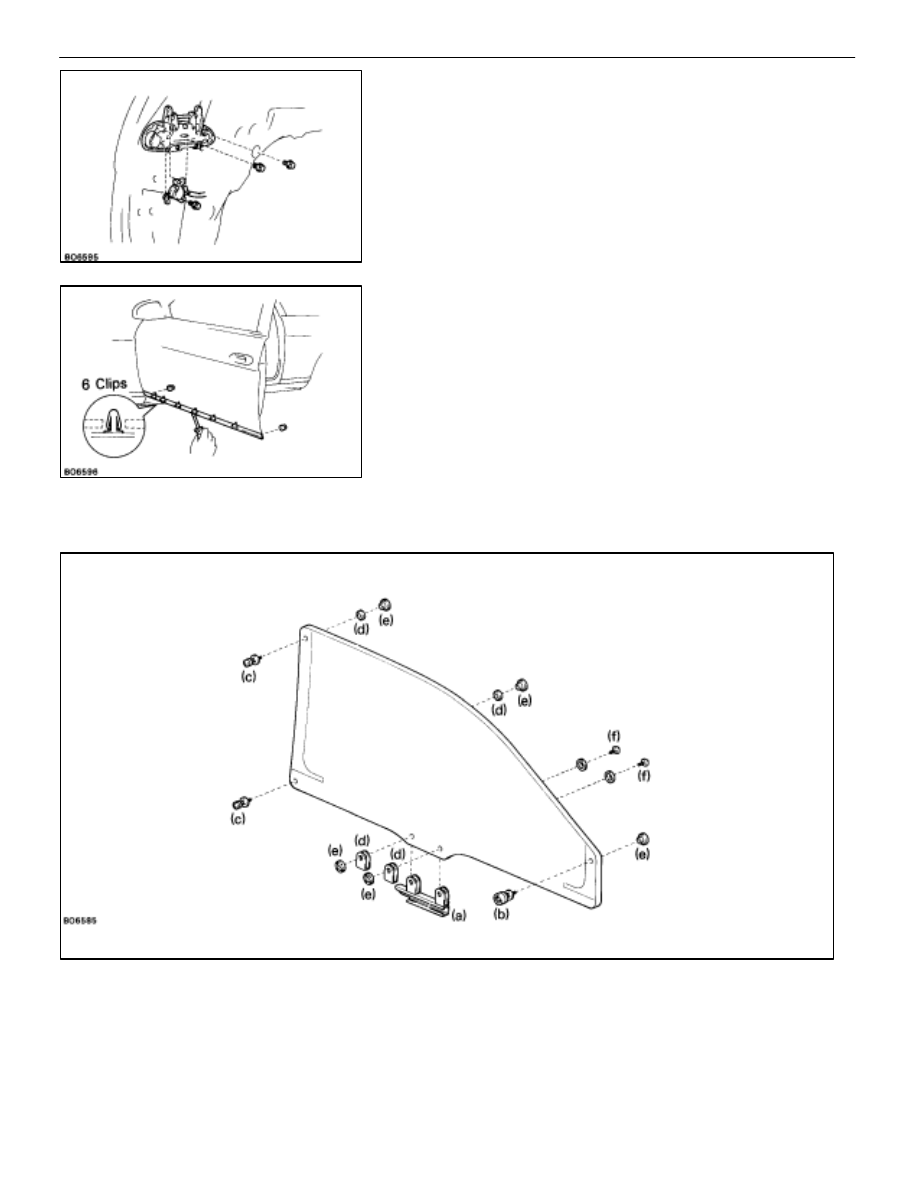

19.  REMOVE OUTSIDE HANDLE AND KEY CYLINDER

(a)  Disconnect the connector from key cylinder.
(b)  Remove three bolts, key cylinder and outside handle.

20.  REMOVE SIDE PROTECTION MOULDING

(a)  Remove two nuts.
(b)  Using a clip remover, pry out the moulding.

REPLACEMENT OF DOOR GLASS

REMOVE FOLLOWING PARTS:

(a)  Front door glass channel
(b)  Glass guide roller
(c)  Glass guide roller No. 2
(d) Washer
(e) Nut
(f) Bolt

–

BODY

Front Door

BO–37
