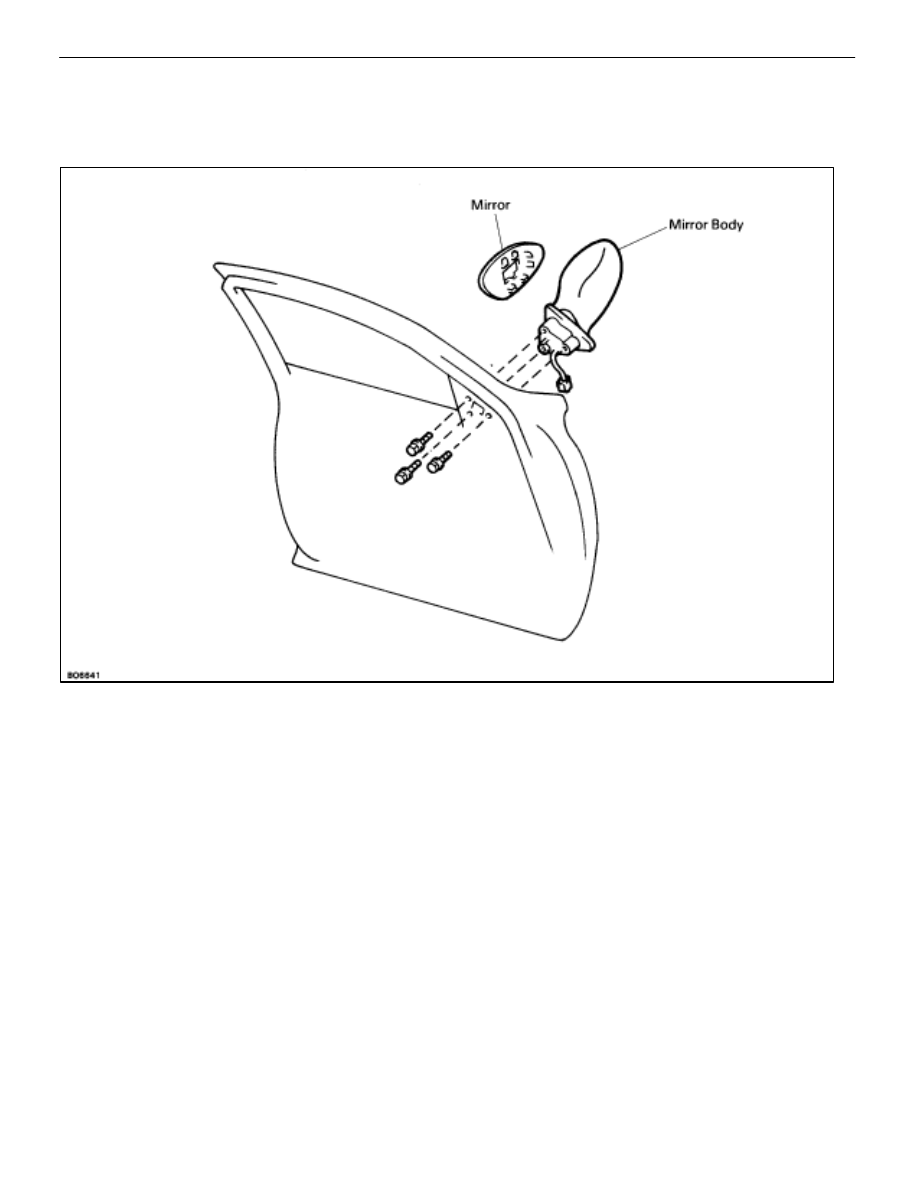

COMPONENTS

REMOVAL AND INSTALLATION OF
OUTSIDE REAR VIEW MIRROR

HINT: Install

the mirror by following the removal sequence

in reverse.

1.

DISCONNECT BATTERY CABLE FROM NEGATIVE
TERMINAL
CAUTION: Work must be started after approx. 20 se-
conds or longer from the time the ignition switch is
turned to the ”LOCK” position and the negative (–) termi-
nal cable is disconnected from the battery.

2.

REMOVE DOOR TRIM UPPER PANEL
Removal:

(See step 5 on page

BO–34

)

Installation: (See step 16 on page

BO–40

)

3. REMOVE

MIRROR

(a)  Connect the connector, install the mirror with two bolts.
(b)  Connect the connector, install the speaker with two

bolts.

BO–42

–

BODY

Mirror (Outside Rear View Mirror)

REPLACEMENT OF OUTSIDE REAR
VIEW MIRROR

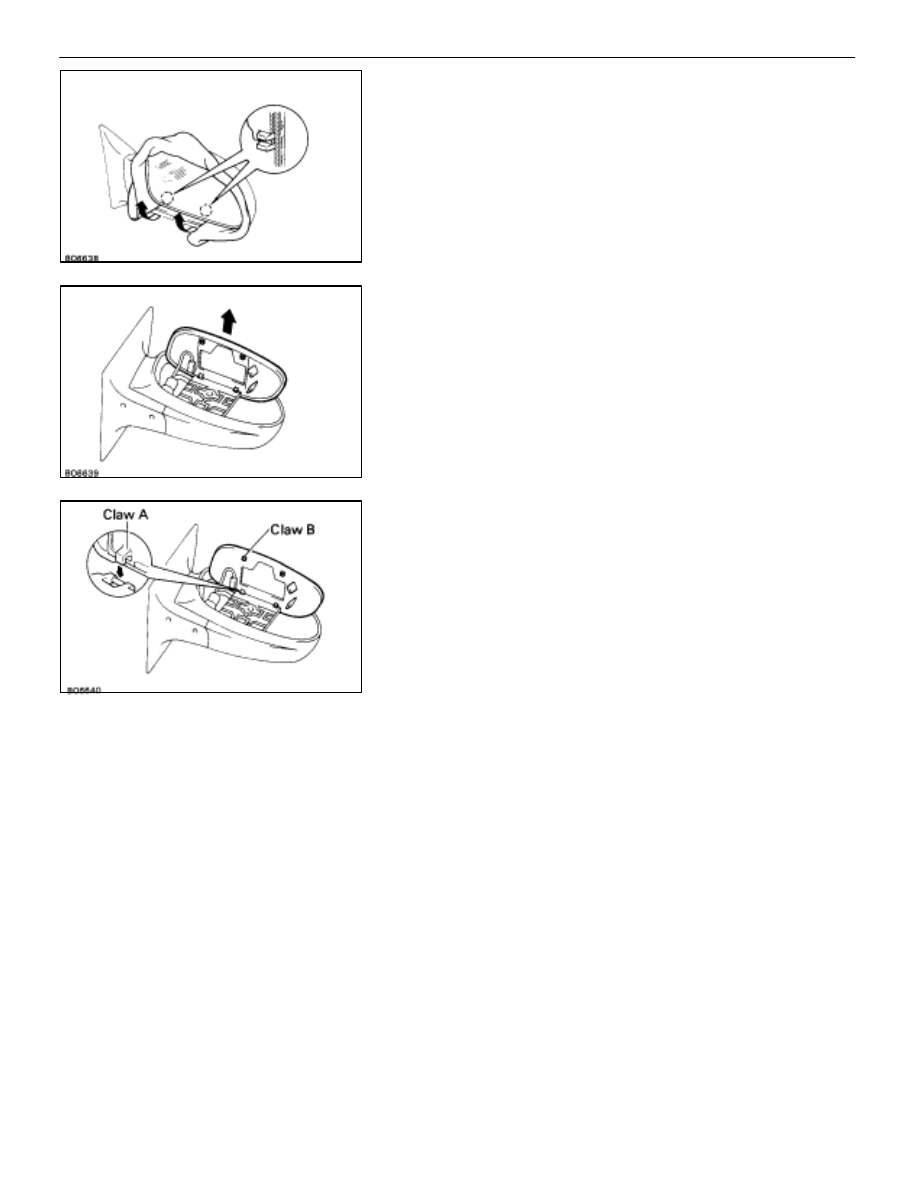

1.

IF NECESSARY, DISCONNECT MIRROR
(a)  Insert the shop rag between the mirror and the mirror

body to wrap up the mirror in the shop rag.

(b)  Pull up the lower side of the shop rag to disconnect the

mirror joint.

(c)  Pull up the mirror and disconnect it.

2. CONNECT

MIRROR

(a)  Connect the claws (A) and set the mirror to the mirror

body.

(b)  Push the mirror to connect the claws (B) and connect it.

–

BODY

Mirror (Outside Rear View Mirror)

BO–43

Inner Rear View Mirror

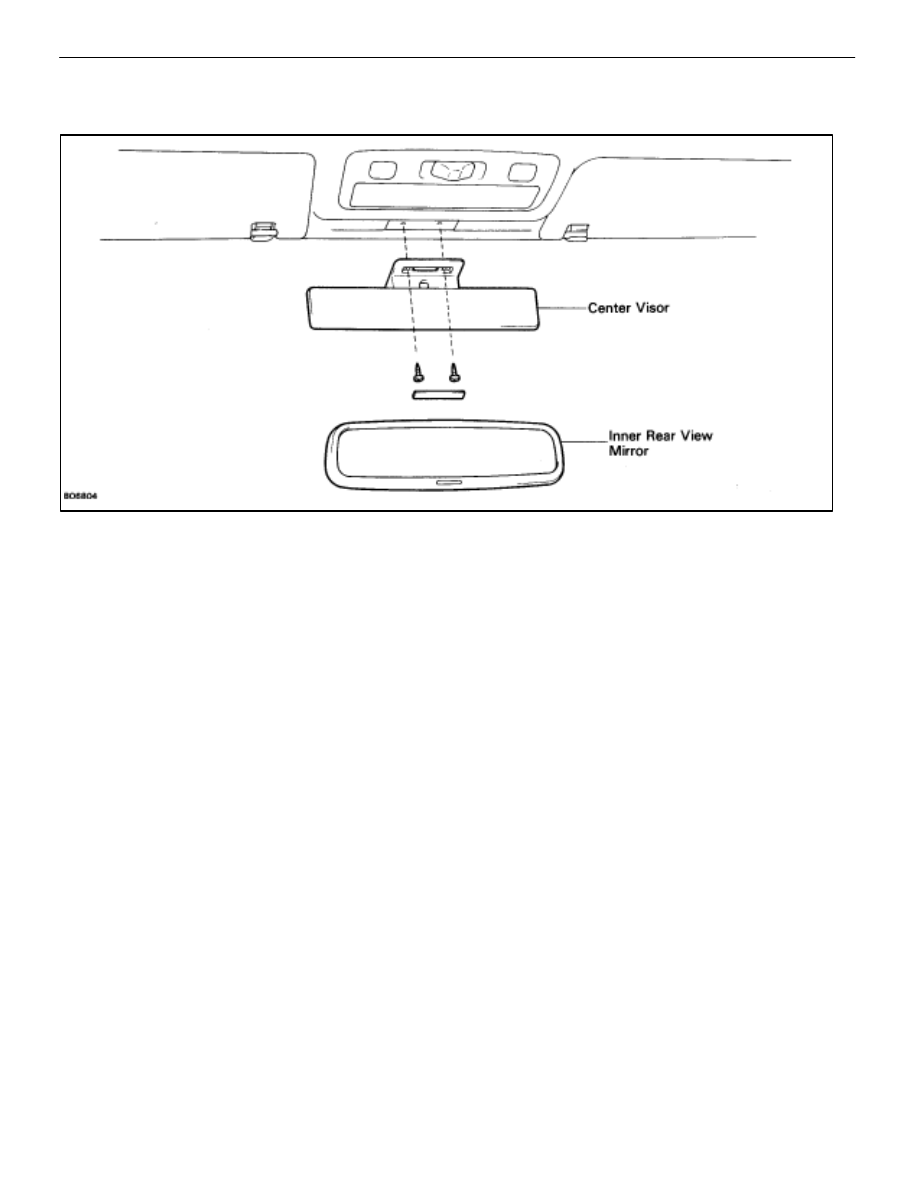

COMPONENTS

REMOVAL AND INSTALLATION OF
INNER REAR VIEW MIRROR

HINT:

Install the mirror following removal sequence in re-

verse.

1.

REMOVE CENTER VISOR
(See step 4 on page

BO–123

)

2.

REMOVE INNER REAR VIEW MIRROR
(a)  Remove the mirror from the mirror base.
(b)  Disconnect the connector.

BO–44

–

BODY

Mirror (Inner Rear View Mirror)
