Lexus SC300 / Lexus SC400. Manual - part 33

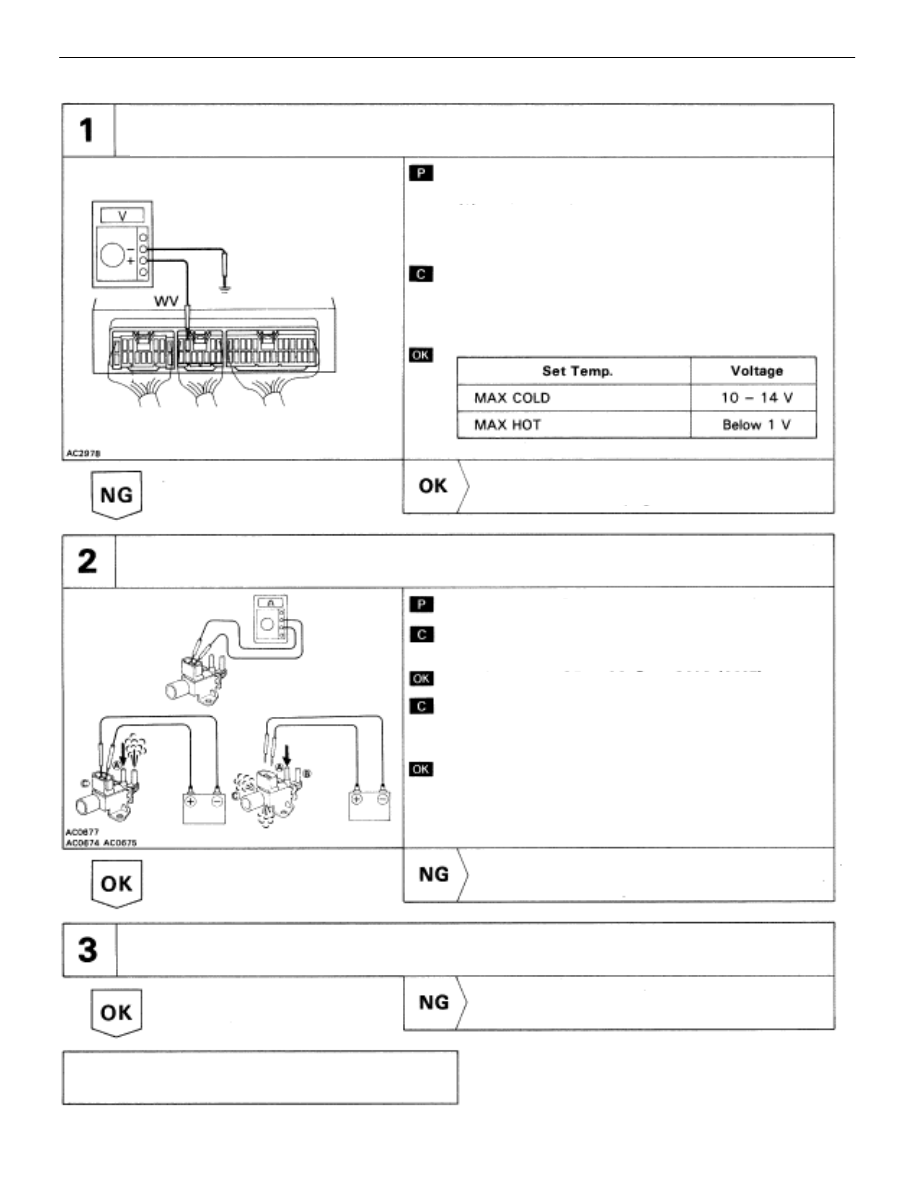

Check  voltage between terminal WV of  A/C control assembly connec-
tor body ground.

(1)

Remove console upper panel.(See page


BO-111

).

(2)

Remove A/C control assembly with connec–
tors still connected.

(3)

Start the engine.

Measure voltage between terminals WV of A/C con-
trol assembly connector and body ground
when the set temp. is not set to MAX COLD and
MAX HOT.

Proceed to next circuit inspection shown on
matrix chart. ( See page

AC-36

).

Check water valve VSV.

Water valve VSV connector.

Measure resistance between terminals of VSV con-
nector.

Resistance:

37 – 47

 at 20

°

C (68

°

F)

Check operation of water valve VSV when battery
voltage is applied to terminals of VSV connector or
not.

 Battery voltage is applied:

The air from A is flowing out through B.

 Battery voltage is not applied:

The air from A is flowing out through air filter.

Replace water valve VSV.

Check for open and short in harness and connector between VSV
and A/C control assembly (See page

IN-27

).

Repair or replace harness or connector.

Check and replace A/C control assembly.

INSPECTION PROCEDURE

–

AIR CONDITIONING SYSTEM

Troubleshooting

AC–91

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Temperature Control Switch Circuit

CIRCUIT DESCRIPTION

By turning the temp. control switch, the set temperature of the
A/C can be adjusted in steps of 1

°

F (USA) or 0.5

°

C (Canada).

Turning the switch fully will set the A/C to MAX. COLD or MAX.
HOT.
The ECU calculates the set temperature from the combination
of Hi (5 V) or Low (0 V) terminals SET 1 ~ 5 of the temp. control
SW and displays the set temperature on the LCD display.
If a malfunction occurs in the temp. control SW circuit, malfunc-
tions such as not being able to set the desired temperature oc-
cur.

DIAGNOSTIC CHART

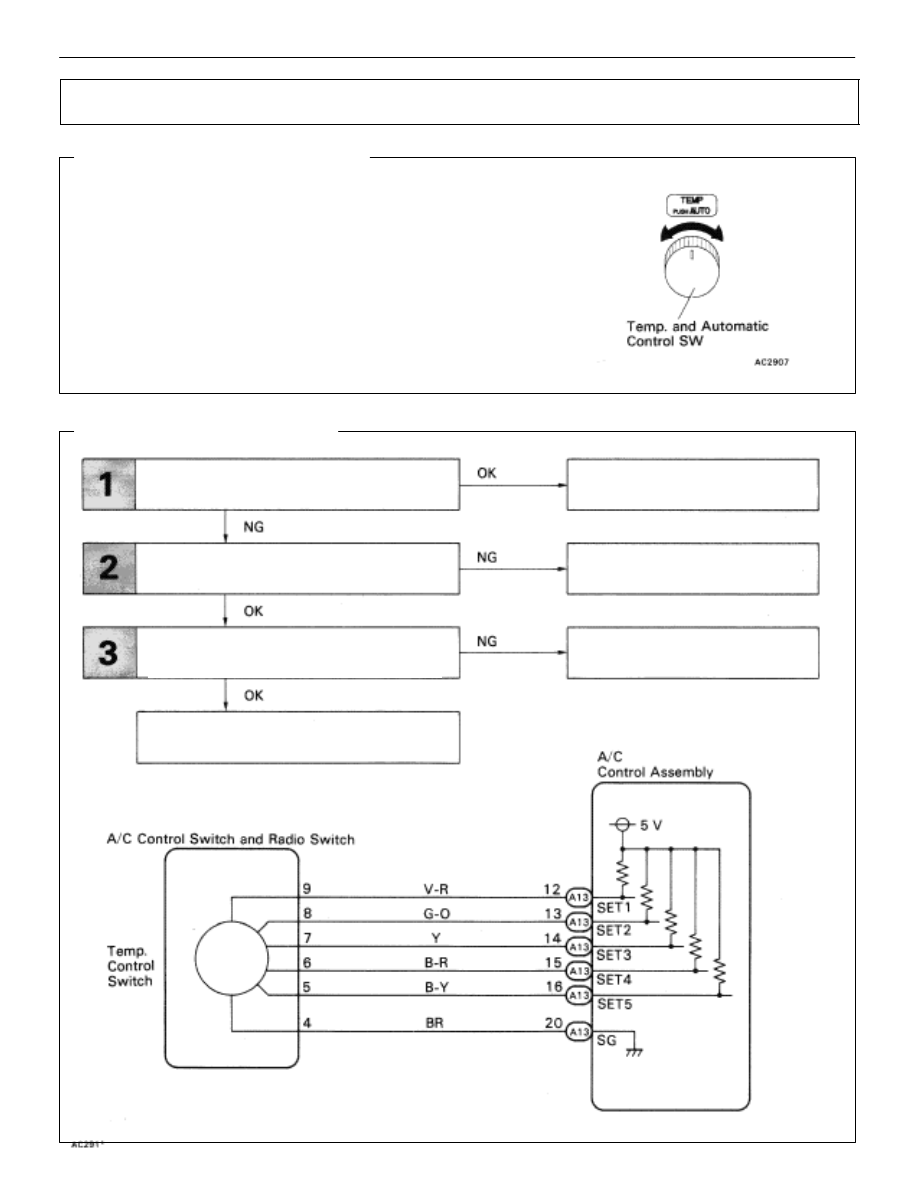

WIRING DIAGRAM

Check for  open and short in harness and
connector between A/C control assembly and
temp. control SW.

Check temp. control switch.

Proceed to next circuit inspection
shown on matrix chart (See page

AC-36

).

Replace temp. control switch.

Repair or replace harness or

connector.

Check and replace A/C control assembly.

Check voltage between terminal SET 1 ~ 5
and SG of A/C control assembly.

AC–92

–

AIR CONDITIONING SYSTEM

Troubleshooting

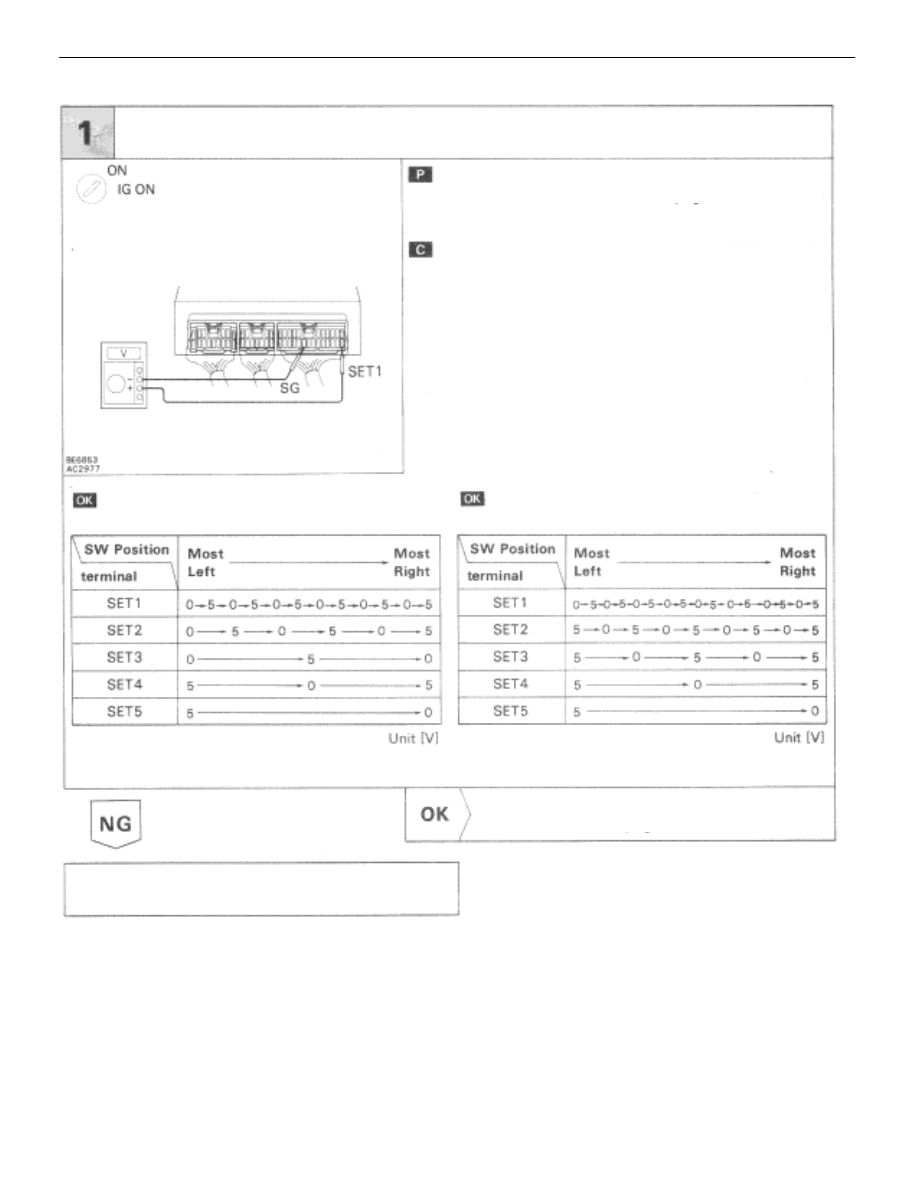

Check  voltage between terminal SET 1 ~ 5 and SG of  A/C control
assembly

(1)

Remove A/C control assembly with connec-
tors.(See page

AC-138

).

(2)

Turn ignition switch ON.

Measure voltage between terminals SET 1 ~ 5 and
SG of temp. control switch is turned from most left to
right position.

for USA spec.

for Canada spec.

Proceed to next circuit inspection shown on
matrix chart. ( See page

AC-36

).

Go to step (2).

INSPECTION PROCEDURE

–

AIR CONDITIONING SYSTEM

Troubleshooting

AC–93

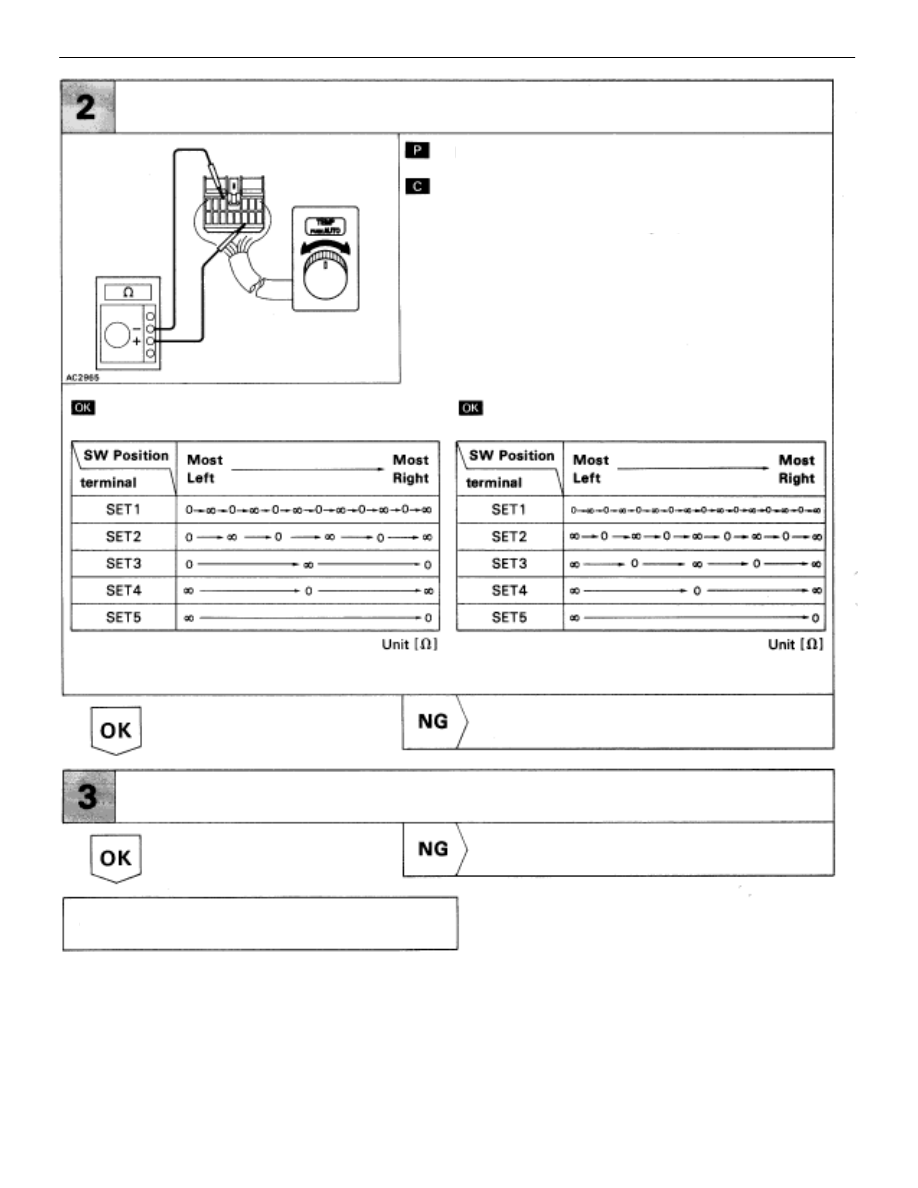

Check temp. control switch.
