2002 ES 300 Front Brake Tube (Left Hand)


24

8.  REINSTALL THE BOTTOM HALF OF AIR

CLEANER HOUSING

(a)  Secure the wire harness to the backside of the air

cleaner housing using the 2 attached wire clips.

(b)  Reinstall the 3 bolts in the bottom of the air cleaner

assembly.

(c)  Reinstall rubber intake hose onto throttle body and

tighten hose clamp.

(d) Reinstall the vacuum lines and electrical connectors

to the bottom half of the air cleaner housing.

NOTE:
Some ES 300 models may have a strut support bar

that could interfere with intake air hose
reinstallation.  The intake air hose and plastic
air box can be reinstalled with the strut
support bar installed in the vehicle.

9.  REINSTALL TOP OF AIR CLEANER HOUSING
(a)  Reinstall air filter.
(b)  Reinstall vacuum lines and electrical connectors on

the top of the air cleaner assembly.

Lexus Special Service Campaign 1LF


25

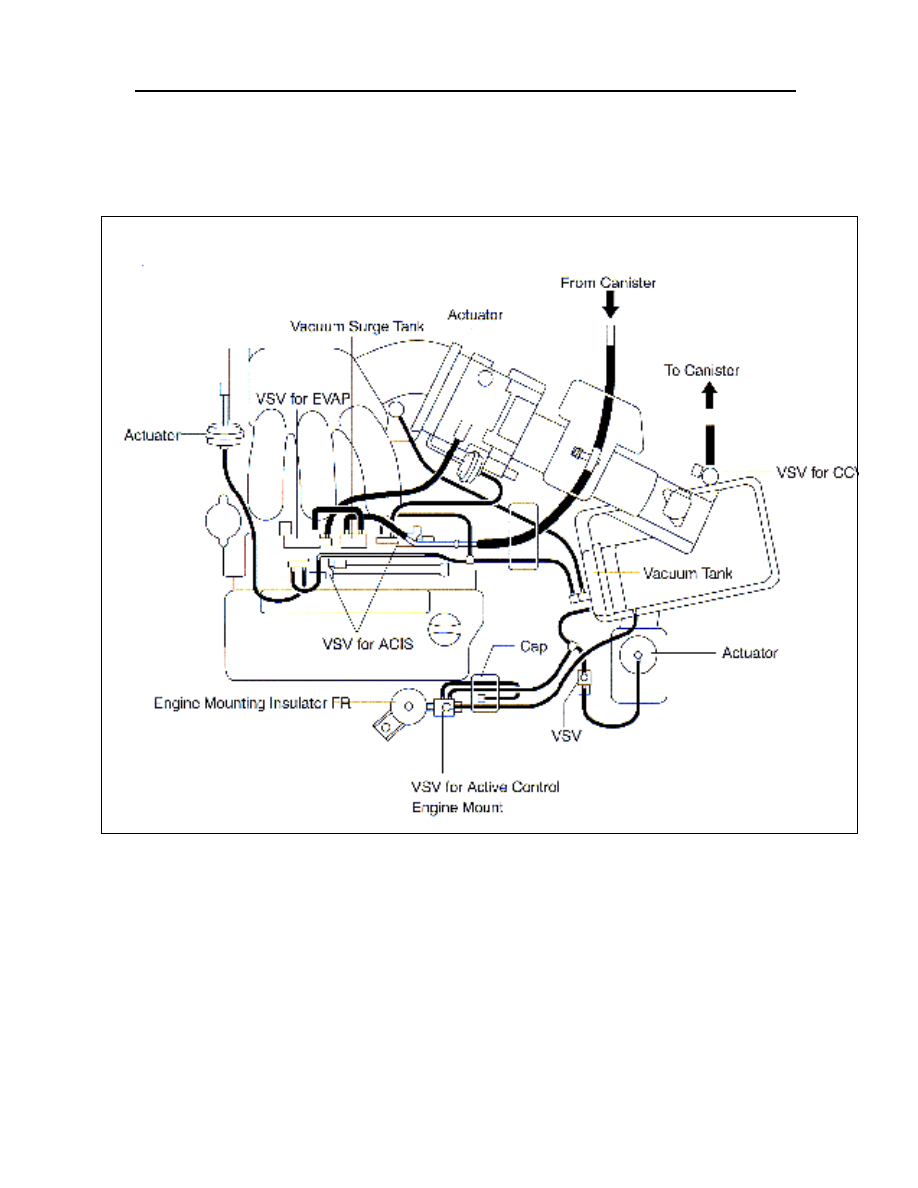

10.  CONFIRM VACUUM LINE ROUTING
(a)  Confirm that all of the vacuum lines are properly

reinstalled.  Reference the diagram below.

2002 ES 300 Front Brake Tube (Left Hand)


26

11.  REINSTALL RADIATOR LOWER AIR DEFLECTOR
(a)  Slide the air cleaner intake into the air cleaner

housing and reinstall the 2 bolts that secure the air
cleaner inlet assembly.

(b)  Reinstall the wire harness clip and 2 vacuum lines

that are secured to the air cleaner inlet assembly.

(c)  Position radiator lower air deflector over mounting

holes and reinstall 8 plastic clips that retain the
radiator lower air deflector to vehicle.

12.  TEST DRIVE VEHICLE
(a)  Test drive vehicle to confirm proper brake operation.
(b) Confirm that  check engine light  or any other MIL on

condition does not exist.

7.

SSC COMPLETION LABEL INSTALLATION

1.  After completing the repair and before returning the vehicle to the owner, an SSC

completion label that is enclosed in the owner s notification must be affixed to the left
front door hinge post near the check strap.

2.  The label is to be filled out as follows:

•



Write in SSC 1LE

•



Write in date of repair.

•



Write in your dealer code.

3.  Additional SSC completion labels, in

sheets of 50 (P/N 00410−01917), may be
ordered through the non−parts system on
a 1450 order form or through the TDN
system.

2002 ES 300

Driver s Side Front Airbag

Special Service Campaign 1LG

M/N 00241−10006−1LG

December 2001
