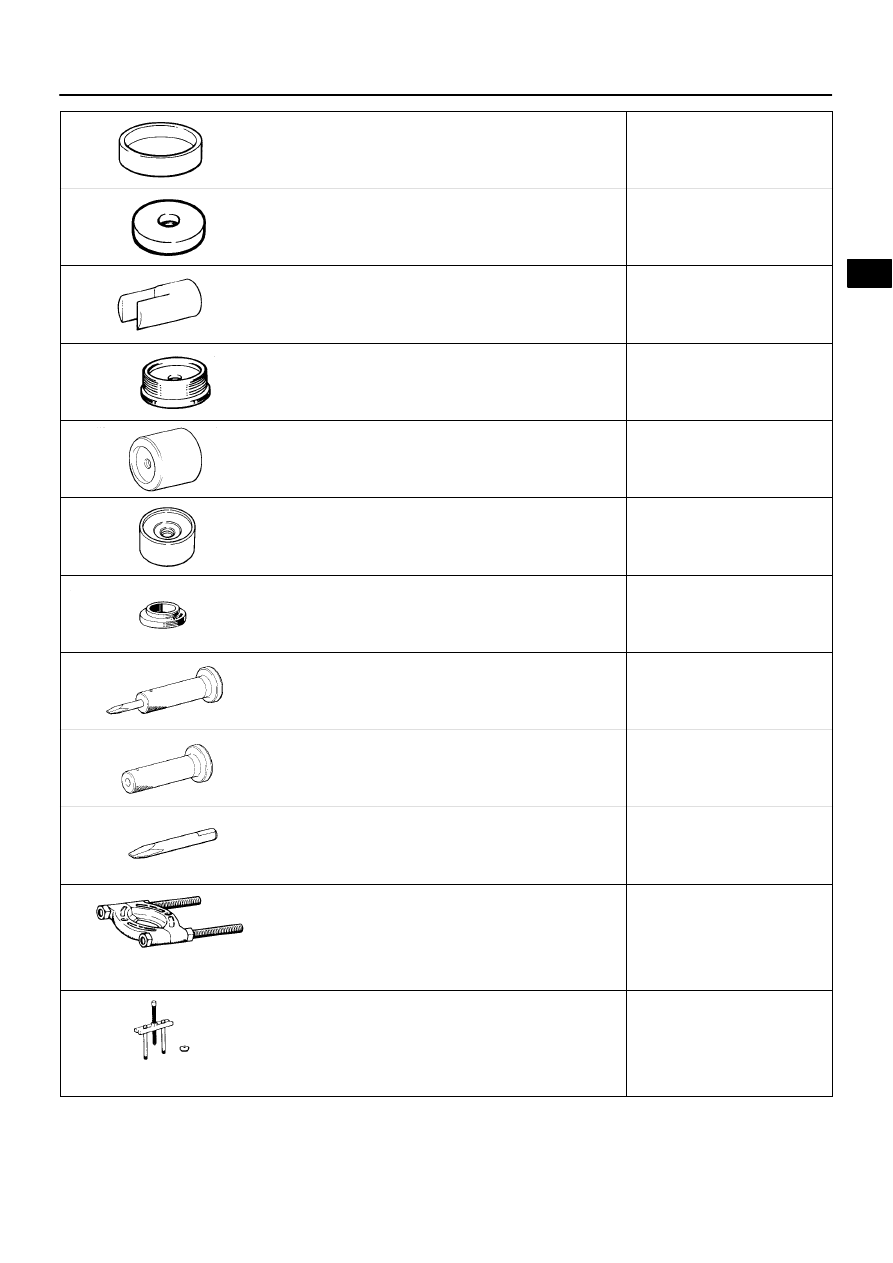

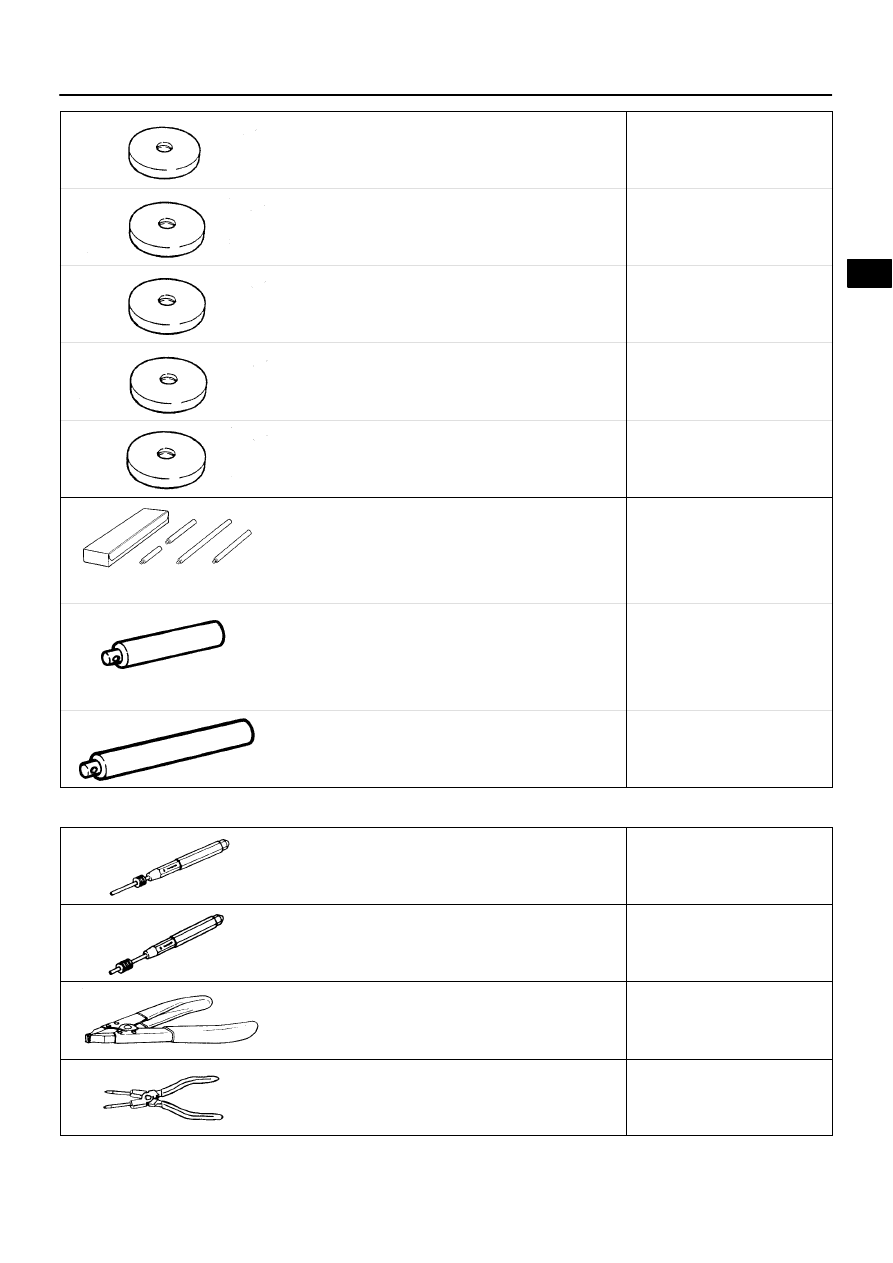

PREPARATION

AUTOMATIC TRANSMISSION / TRANS

02-3

12

U150E A/T REPAIR MANUAL   (RM913U)

09550-60010

Differential Side Bearing

Replacer

FRONT DIFFERENTIAL

ASSY(U150E)

(09951-00490)

Replacer 49

FRONT DIFFERENTIAL

ASSY(U150E)

09564-3201 1

Differential Preload Adaptor

FRONT DIFFERENTIAL

ASSY(U150E)

09608-10010

Steering Knuckle Oil Seal

Replacer

FRONT DIFFERENTIAL

ASSY(U150E)

09649-17010

Steering Knuckle Tool

AUTOMATIC TRANSAXLE

ASSY(U150E)

09710-30050

Suspension Arm Bushing Replacer

FRONT DIFFERENTIAL

ASSY(U150E)

09726-40010

Lower Control Shaft Bearing

Replacer

UNDERDRIVE PLANETARY GEAR

ASSY(U150E)

09930-00010

Drive Shaft Nut Chisel

UNDERDRIVE PLANETARY GEAR

ASSY(U150E)

(09931-00010)

Handle

UNDERDRIVE PLANETARY GEAR

ASSY(U150E)

(09931-00020)

Nut Chisel

UNDERDRIVE PLANETARY GEAR

ASSY(U150E)

09950-00020

Bearing Remover

AUTOMATIC TRANSAXLE

ASSY(U150E)

UNDERDRIVE PLANETARY GEAR

ASSY(U150E)

FRONT DIFFERENTIAL

ASSY(U150E)

09950-00030

Bearing Remover Attachment

AUTOMATIC TRANSAXLE

ASSY(U150E)

UNDERDRIVE PLANETARY GEAR

ASSY(U150E)

FRONT DIFFERENTIAL

ASSY(U150E)

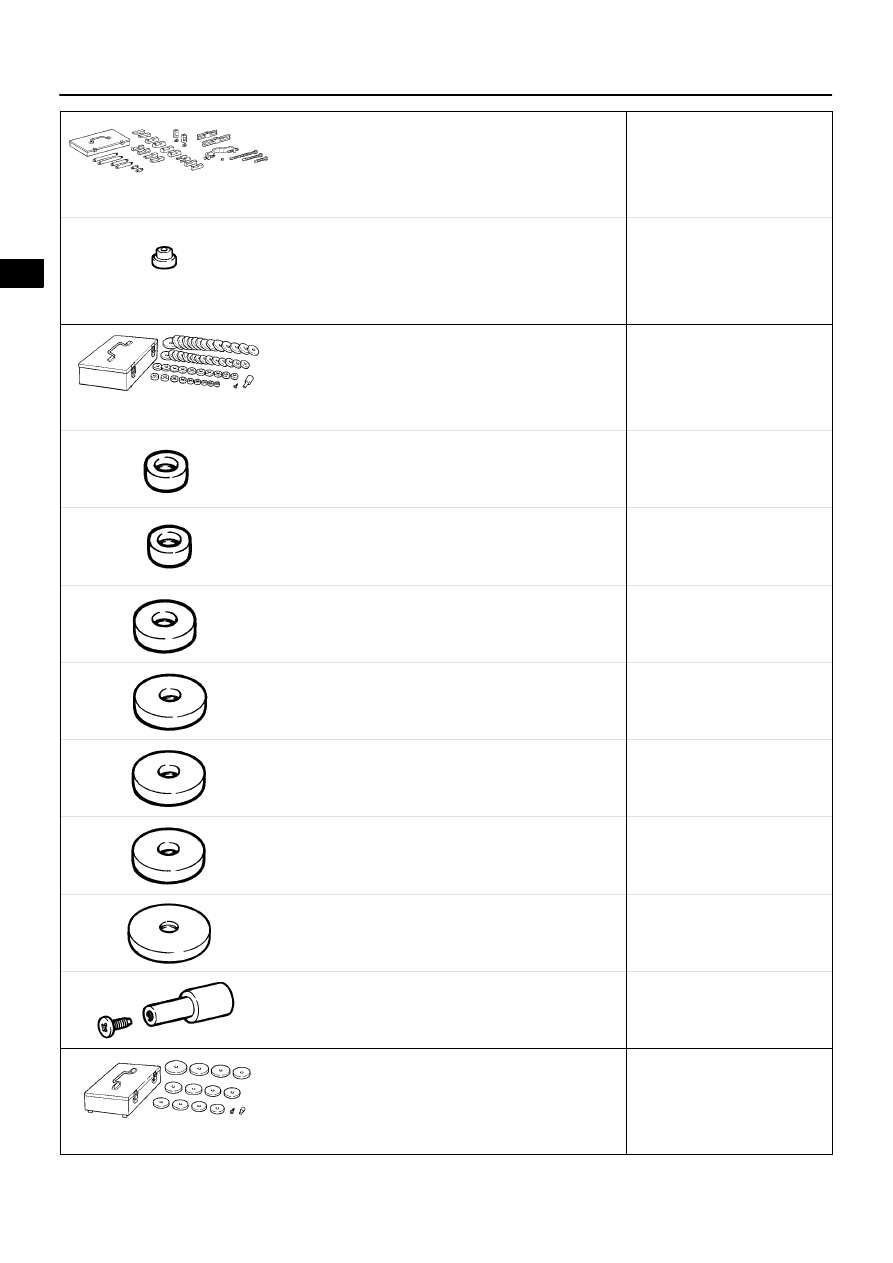

02-4

-

PREPARATION

AUTOMATIC TRANSMISSION / TRANS

13

U150E A/T REPAIR MANUAL   (RM913U)

09950-4001 1

Puller B Set

AUTOMATIC TRANSAXLE

ASSY(U150E)

UNDERDRIVE PLANETARY GEAR

ASSY(U150E)

FRONT DIFFERENTIAL

ASSY(U150E)

(09957-04010)

Attachment

AUTOMATIC TRANSAXLE

ASSY(U150E)

UNDERDRIVE PLANETARY GEAR

ASSY(U150E)

FRONT DIFFERENTIAL

ASSY(U150E)

09950-60010

Replacer Set

AUTOMATIC TRANSAXLE

ASSY(U150E)

UNDERDRIVE PLANETARY GEAR

ASSY(U150E)

FRONT DIFFERENTIAL

ASSY(U150E)

(09951-00230)

Replacer 23

AUTOMATIC TRANSAXLE

ASSY(U150E)

(09951-00260)

Replacer 26

UNDERDRIVE PLANETARY GEAR

ASSY(U150E)

(09951-00320)

Replacer 32

AUTOMATIC TRANSAXLE

ASSY(U150E)

UNDERDRIVE PLANETARY GEAR

ASSY(U150E)

(09951-00450)

Replacer 45

AUTOMATIC TRANSAXLE

ASSY(U150E)

(09951-00490)

Replacer 49

FRONT DIFFERENTIAL

ASSY(U150E)

(09951-00500)

Replacer 50

AUTOMATIC TRANSAXLE

ASSY(U150E)

(09951-00590)

Replacer 59

AUTOMATIC TRANSAXLE

ASSY(U150E)

(09952-06010)

Adapter

AUTOMATIC TRANSAXLE

ASSY(U150E)

09950-60020

Replacer Set No.2

AUTOMATIC TRANSAXLE

ASSY(U150E)

UNDERDRIVE PLANETARY GEAR

ASSY(U150E)

FRONT DIFFERENTIAL

ASSY(U150E)

-

PREPARATION

AUTOMATIC TRANSMISSION / TRANS

02-5

14

U150E A/T REPAIR MANUAL   (RM913U)

(09951-00750)

Replacer 75

AUTOMATIC TRANSAXLE

ASSY(U150E)

(09951-00810)

Replacer 81

AUTOMATIC TRANSAXLE

ASSY(U150E)

(09951-00890)

Replacer 89

UNDERDRIVE PLANETARY GEAR

ASSY(U150E)

FRONT DIFFERENTIAL

ASSY(U150E)

(09951-00910)

Replacer 91

AUTOMATIC TRANSAXLE

ASSY(U150E)

FRONT DIFFERENTIAL

ASSY(U150E)

(09951-01030)

Replacer 103

AUTOMATIC TRANSAXLE

ASSY(U150E)

09950-70010

Handle Set

AUTOMATIC TRANSAXLE

ASSY(U150E)

UNDERDRIVE PLANETARY GEAR

ASSY(U150E)

FRONT DIFFERENTIAL

ASSY(U150E)

(09951-07100)

Handle 100

AUTOMATIC TRANSAXLE

ASSY(U150E)

UNDERDRIVE PLANETARY GEAR

ASSY(U150E)

FRONT DIFFERENTIAL

ASSY(U150E)

(09951-07150)

Handle 150

AUTOMATIC TRANSAXLE

ASSY(U150E)

FRONT DIFFERENTIAL

ASSY(U150E)

Recomended Tools

09031-00030

Pin Punch

AUTOMATIC TRANSAXLE

ASSY(U150E)

09031-00040

Pin Punch .

FRONT DIFFERENTIAL

ASSY(U150E)

09905-00012

Snap Ring No.1 Expander

AUTOMATIC TRANSAXLE

ASSY(U150E)

FORWARD CLUTCH ASSY(U150E)

DIRECT CLUTCH ASSY(U150E)

09905-00013

Snap Ring Pliers

UNDERDRIVE PLANETARY GEAR

ASSY(U150E)

02-6

-

PREPARATION

AUTOMATIC TRANSMISSION / TRANS

15

U150E A/T REPAIR MANUAL   (RM913U)

Equipment

Dial indicator with magnetic base

Feeler gauge

Vernier calipers

Torque wrench

Plastic hammer

Straight edge

Press

Seal packing 2403, THREE BOND 2403 or equivalent

Seal packing 2430, THREE BOND 2430 or equivalent

Lubricant

Item

Capacity

Classification

(Automatic transaxle fluid

 Dry fill

 Drain and refill

8.98 liters (9.5 US qts, 7.9 Imp. qts)

3.10 liters (3.3 US qts, 2.8 Imp. qts)

ATF TYPE T-IV or equivalent

SSM (Special Service Materials)

08826-00090

Seal Packing 1281,

THREE BOND 1281 or equivalent

(FIPG)

08833-00080

Adhesive 1344

THREE BOND 1344

LOCTITE 242 or equivalent
