Lexus ES300 (2002 year). Manual - part 404

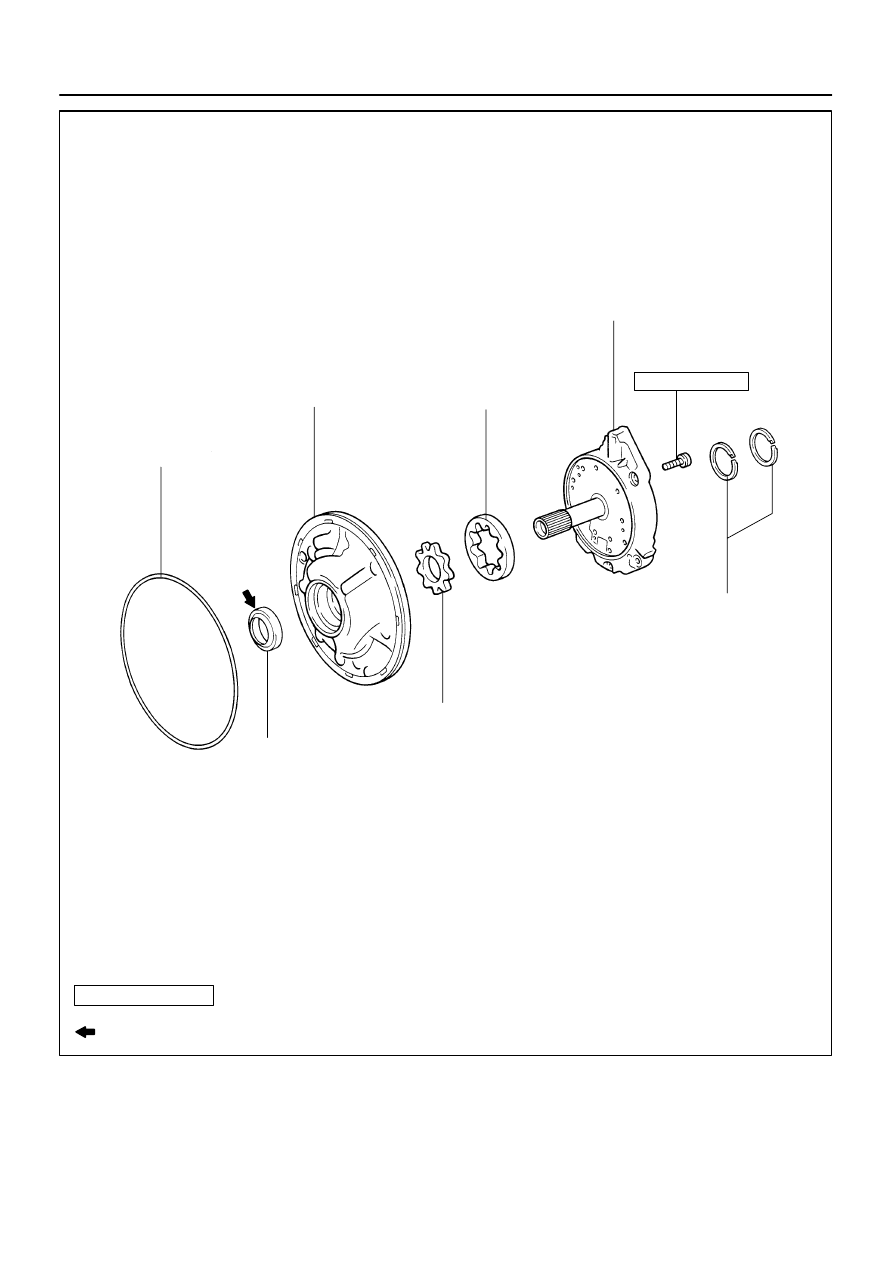

D03643



 O-ring

Oil Pump Body

Oil Pump Drive Gear

Oil Pump Driven Gear

Stator Shaft Assy

x11

Clutch Drum
Oil Seal Ring

N·m (kgf·cm, ft·lbf) : Specified torque



 Non-reusable part

9.8 (100, 87 in.

⋅

lbf)



 Front Oil Pump Oil Seal

Apply petroleum jelly

-

AUTOMATIC TRANSMISSION / TRANS

AUTOMATIC TRANSMISSION / TRANSAXLE (U150E)

40-5

27

U150E A/T REPAIR MANUAL   (RM913U)

D26471

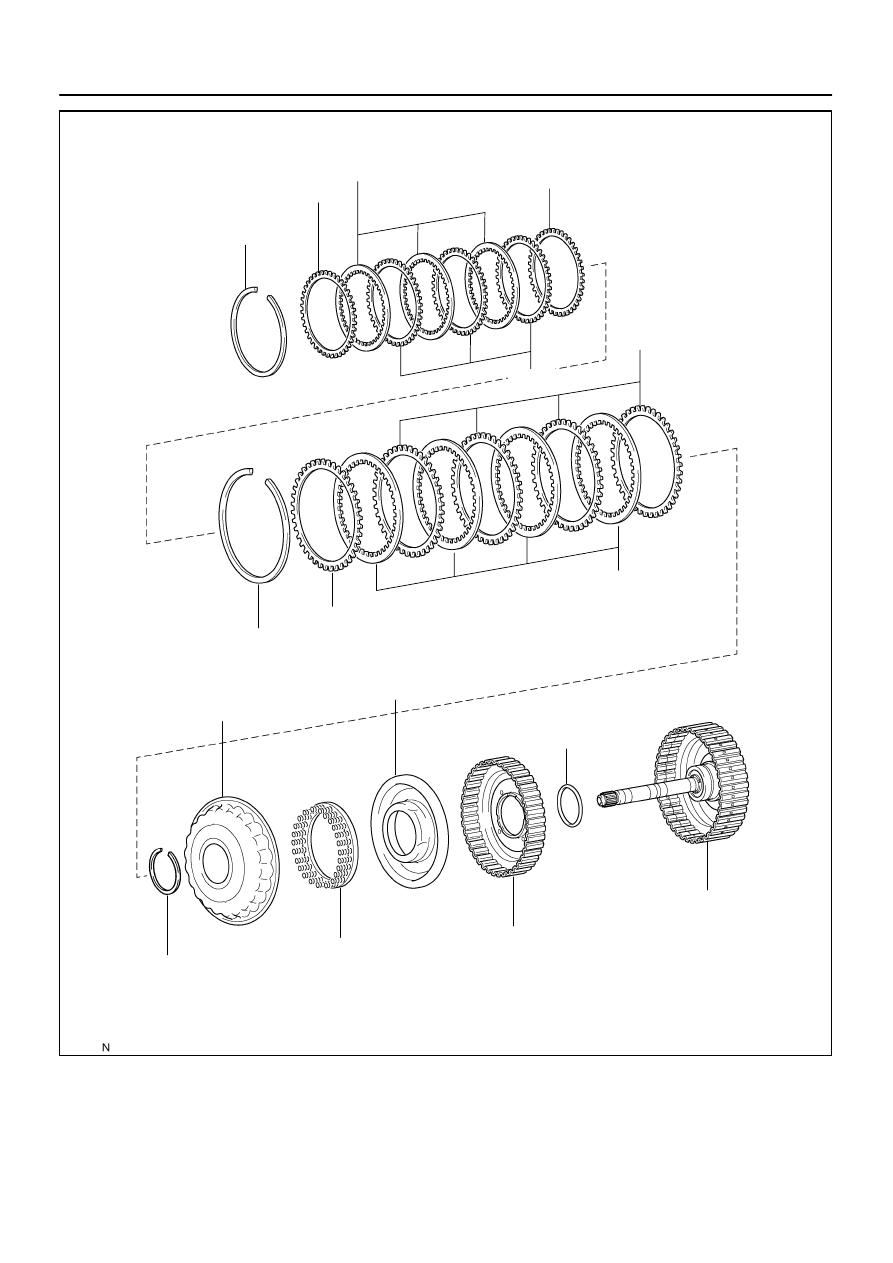

Snap Ring

Snap Ring

Flange

Disc

Plate

Cushion Plate

Disc

Plate

Flange

Snap Ring

O/D Direct
Clutch Balancer

O/D Direct Clutch
Return Spring Sub-assy

O/D Direct
Clutch Piston

O/D Direct Clutch
Drum Sub-assy



 O-ring

Intermediate Shaft



 Non-reusable part

40-6

-

AUTOMATIC TRANSMISSION / TRANS

AUTOMATIC TRANSMISSION / TRANSAXLE (U150E)

28

U150E A/T REPAIR MANUAL   (RM913U)

D26720

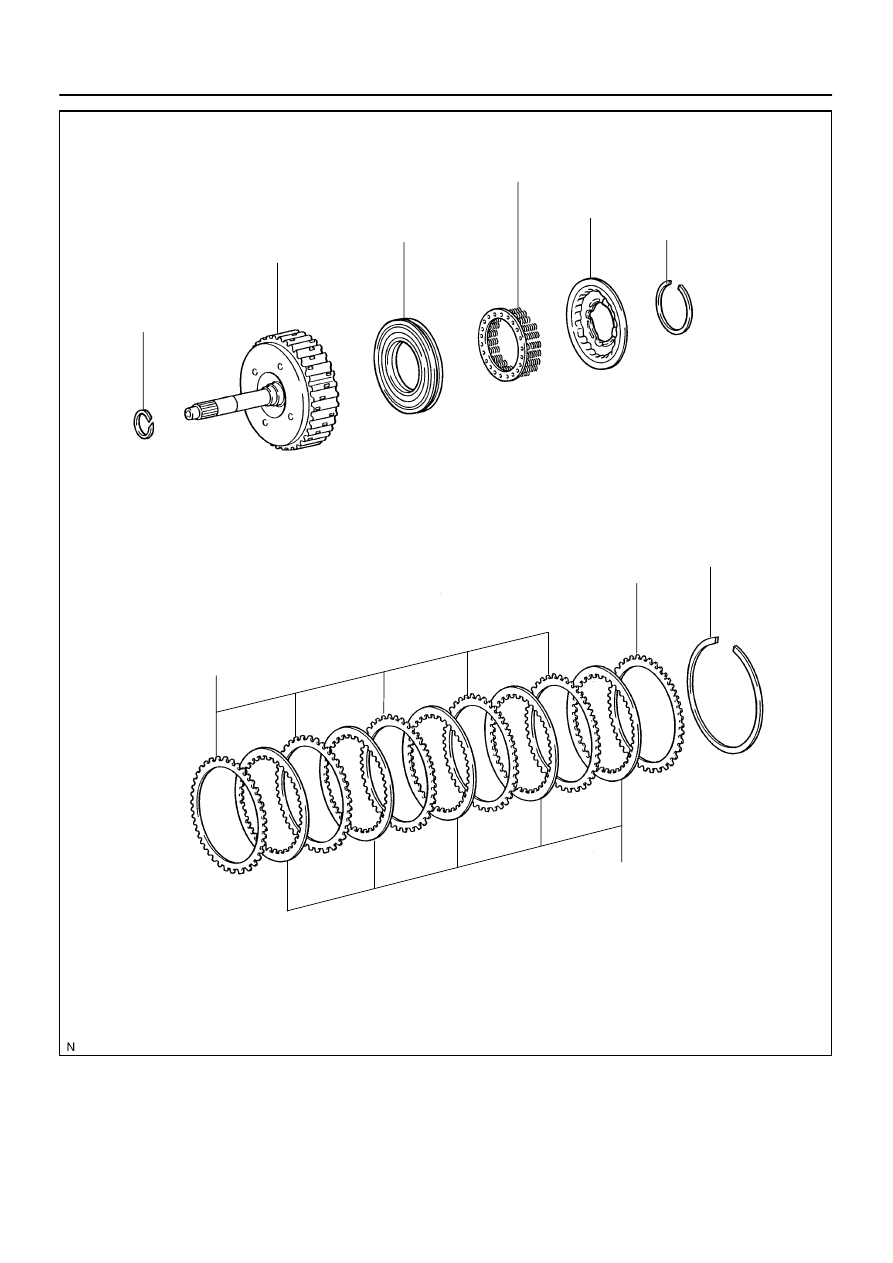

Forward Clutch Drum

Forward Clutch Piston Sub-assy

Foward Clutch Return Spring Sub-assy

Snap Ring

Plate

Disc

Flange

Input Shaft Oil Seal Ring



 Non-reusable part

Snap Ring

Foward Clutch Balancer

-

AUTOMATIC TRANSMISSION / TRANS

AUTOMATIC TRANSMISSION / TRANSAXLE (U150E)

40-7

29

U150E A/T REPAIR MANUAL   (RM913U)

D26702

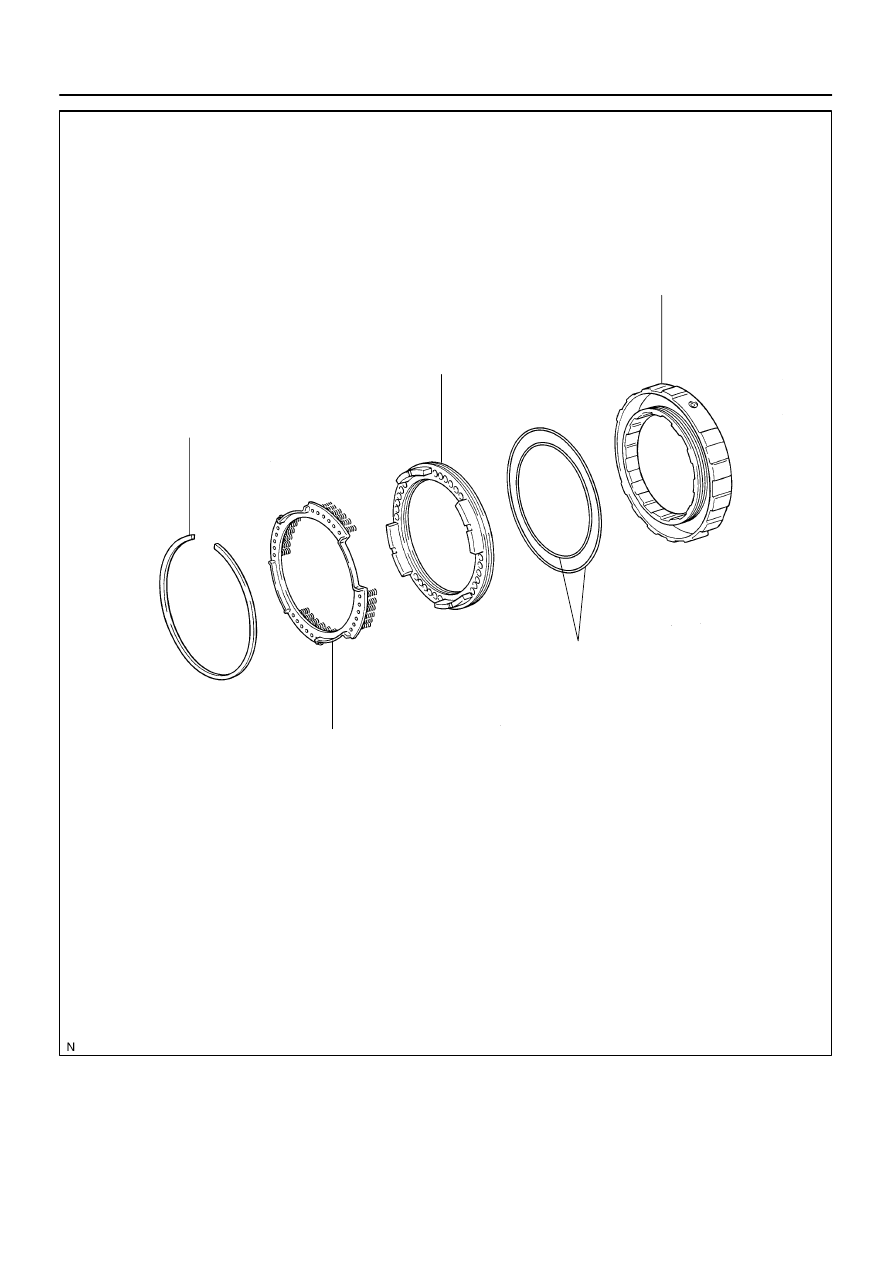

Snap Ring

2nd Brake Piston Return Spring Sub-assy

2nd Brake Piston

2nd Brake Cylinder



 O-ring



 Non-reusable part

40-8

-

AUTOMATIC TRANSMISSION / TRANS

AUTOMATIC TRANSMISSION / TRANSAXLE (U150E)

30

U150E A/T REPAIR MANUAL   (RM913U)
