Lexus ES300 (2002 year). Manual - part 403

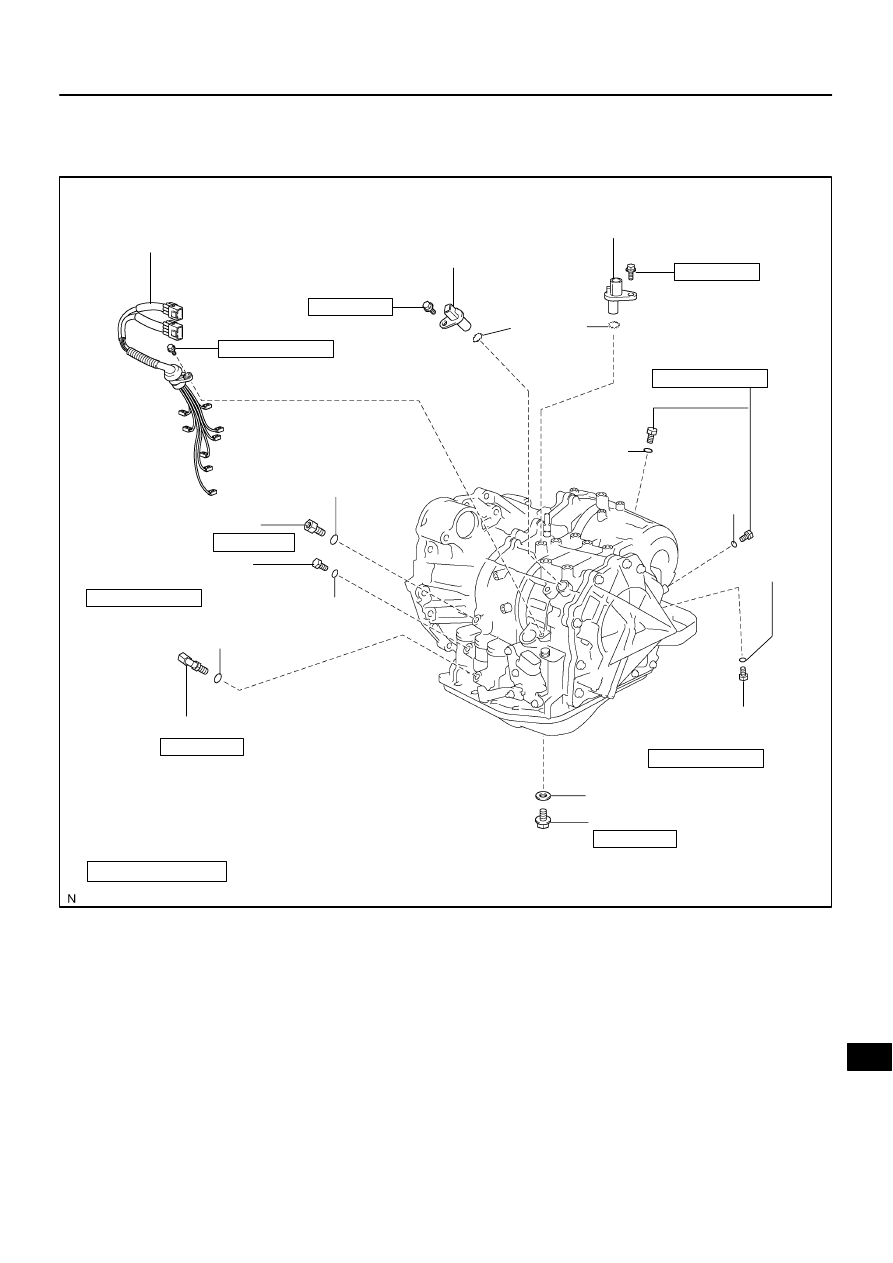

400GZ-01

D26455

N·m (kgf·cm, ft·lbf) : Specified torque



 Non-reusable part

Elbow

27 (276, 20)

Drain Plug

Drain Plug Gasket



Automatic Transmission
Case Plug

O-Ring

Automatic Transmission
Case Plug

Speed Sensor

Transmission Wire

Automatic Transmission
Case Plug

Union

27 (275, 20)

49 (500, 36)

Speed Sensor

7.4 (75, 65 in.

⋅

lbf)



O-Ring



O-Ring



O-Ring



O-Ring



O-Ring



7.4 (75, 65 in.

⋅

lbf)

7.4 (75, 65 in.

⋅

lbf)

11.3 (158, 8)

11.3 (158, 8)

5.4 (55, 48 in.

⋅

lbf)

O-Ring



-

AUTOMATIC TRANSMISSION / TRANS

AUTOMATIC TRANSMISSION / TRANSAXLE (U150E)

40-1

23

U150E A/T REPAIR MANUAL   (RM913U)

AUTOMATIC TRANSMISSION / TRANSAXLE (U150E)

COMPONENTS

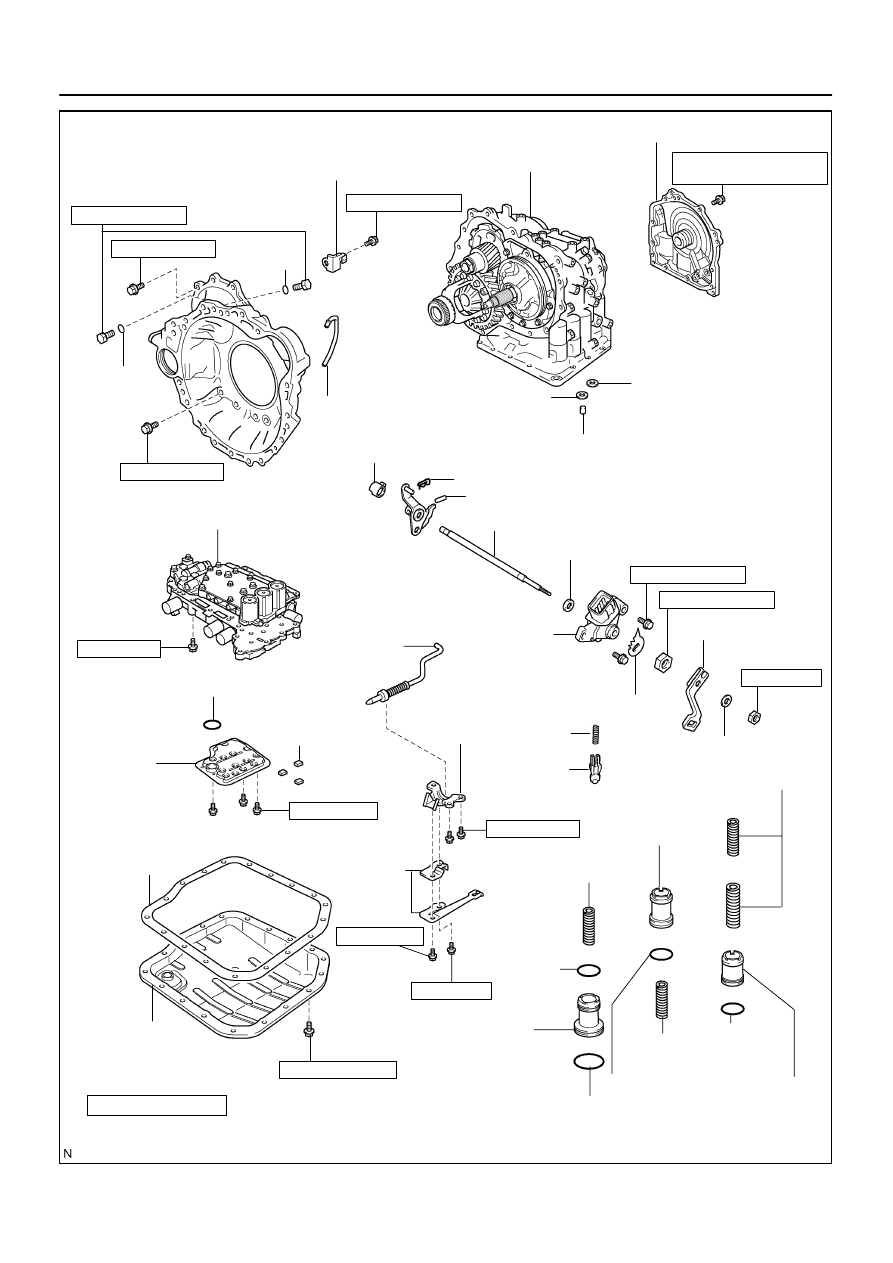

D26458

N·m (kgf·cm, ft·lbf) : Specified torque



 Non-reusable part

O-Ring





 Precoated part



x 18

Automatic Transaxle
Oil Pan Sub-assy

Automatic Transaxle
Oil Pan Gasket

Valve Body
Oil Strainer Assy

Oil Cleaner
Magnet





Oil Strainer Gasket

7.8 (80, 69 in.

⋅

lbf)

10.8 (110, 8 )

x 17

Transmission Valve Body Assy

Parking Lock
Rod Sub-assy

Parking Lock
Pawl Bracket

Manual Detent
Spring Sub-assy

10.8 (110, 8)

20.1 (205, 15)

20.1 (205, 15)

11.8 (120, 9)

C-3  Accumulator
Piston

O-Ring



Compression
Spring

O-Ring



O-Ring



B-3 Accumulator
Piston

Compression Spring

Reverse Clutch
Accumulator Piston

Compression Spring

Washer

Control Shaft Lever

Nut Stopper

Park/ Neutral
Position Switch

Manual Valve Lever Shaft Oil Seal

Manual Valve Lever Shaft

Sloted Spring Pin

Retainer Spring



Spacer

12.7 (130, 9)

6.9 (70, 61 in.

⋅

lbf)

5.4 (55, 48 in.

⋅

lbf)



x 5

O-Ring



x 11

O-Ring



Transaxle Apply Tube Clamp

Automatic Transaxle
Case Sub-assy

Transaxle Rear Cover

x 11

Governor Apply Gasket

Transaxle Case
2nd Brake Gasket

Differential Gear
Lube Apply Tube

Brake Drum Gasket

7.4 (75, 65 in.

⋅

lbf)

29.4 (300, 21.7)

9.8 (100, 87 in.

⋅

lbf)

22.1 (225, 16.3)

Case Plug

Spring

Check Ball
Body

Bolt A: 18.6 (190, 14)
Other bolt: 24.5 (250, 18)

40-2

-

AUTOMATIC TRANSMISSION / TRANS

AUTOMATIC TRANSMISSION / TRANSAXLE (U150E)

24

U150E A/T REPAIR MANUAL   (RM913U)

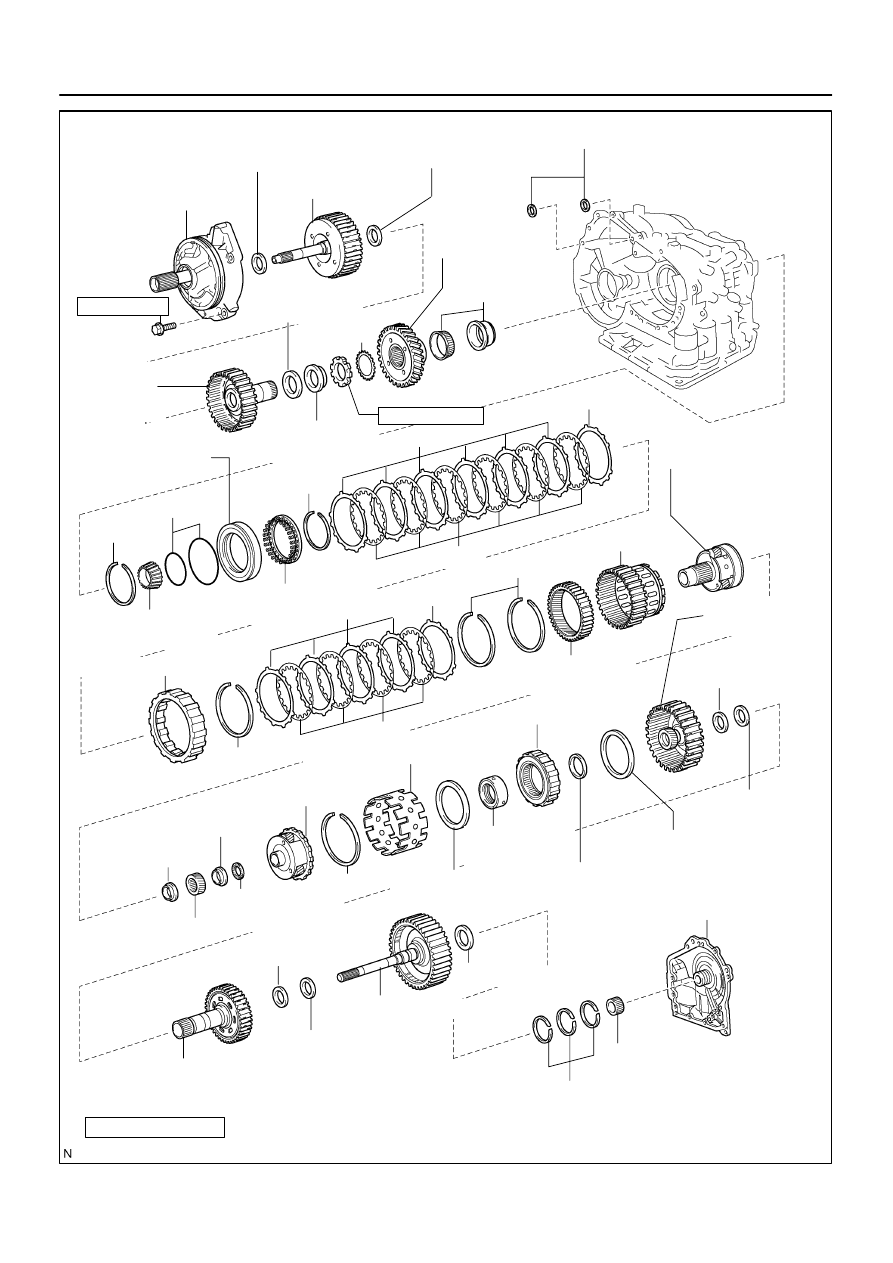

D26457

N·m (kgf·cm, ft·lbf) : Specified torque



 Non-reusable part



x 7

Oil Pump Assy

Thrust Needle
Roller Bearing

Forward Clutch Assy

Thrust Needle
Roller Bearing

22.1 (226, 16)

O/D Brake gasket

Counter Drive
Gear Bearing

Counter
Drive Gear



Washer

Nut

Thrust Bearing
Race No. 1

Thrust Needle
Roller Bearing

Multiple
Disc Clutch
Clutch Hub

268 (2,732, 198)

1st & Reverse
Brake Piston

O-Ring

Snap Ring

Snap Ring

Plate

Flange

Disc

1st & Reverse Brake
Return Spring

Counter Drive
Gear Bearing

Planetary Carrier
Thrust Washer No. 1

Front Planetary
Gear Assy

Brake Hub

Snap Ring

Flange

Plate

Disc

Snap Ring

Second Brake Piston Assy

Front Planetary
Ring Gear

Thrust Bearing Race

Thrust Needle
Roller Bearing

Planetary Carrier
Thrust Washer No. 2

Thrust Needle
Roller Bearing

1 way Clutch
Inner Race

1 way Clutch Assy

1 way Clutch Outer Sleeve

Rear Planetary
Gear Assy

Thrust Bearing
Race No. 2

Thrust Needle
Roller Bearing

Input Sun Gear

Thrust Needle
Roller Bearing

Snap Ring

Thrust Bearing

Transaxle Rear Cover

Needle Roller Bearing

Outer Rear Clutch Oil Seal Ring



Direct Clutch Assy

Thrust Bearing Race

O/D Direct
Clutch Hub Sub-assy

Thrust Bearing

Rear Planetary
Sun Gear Assy

-

AUTOMATIC TRANSMISSION / TRANS

AUTOMATIC TRANSMISSION / TRANSAXLE (U150E)

40-3

25

U150E A/T REPAIR MANUAL   (RM913U)

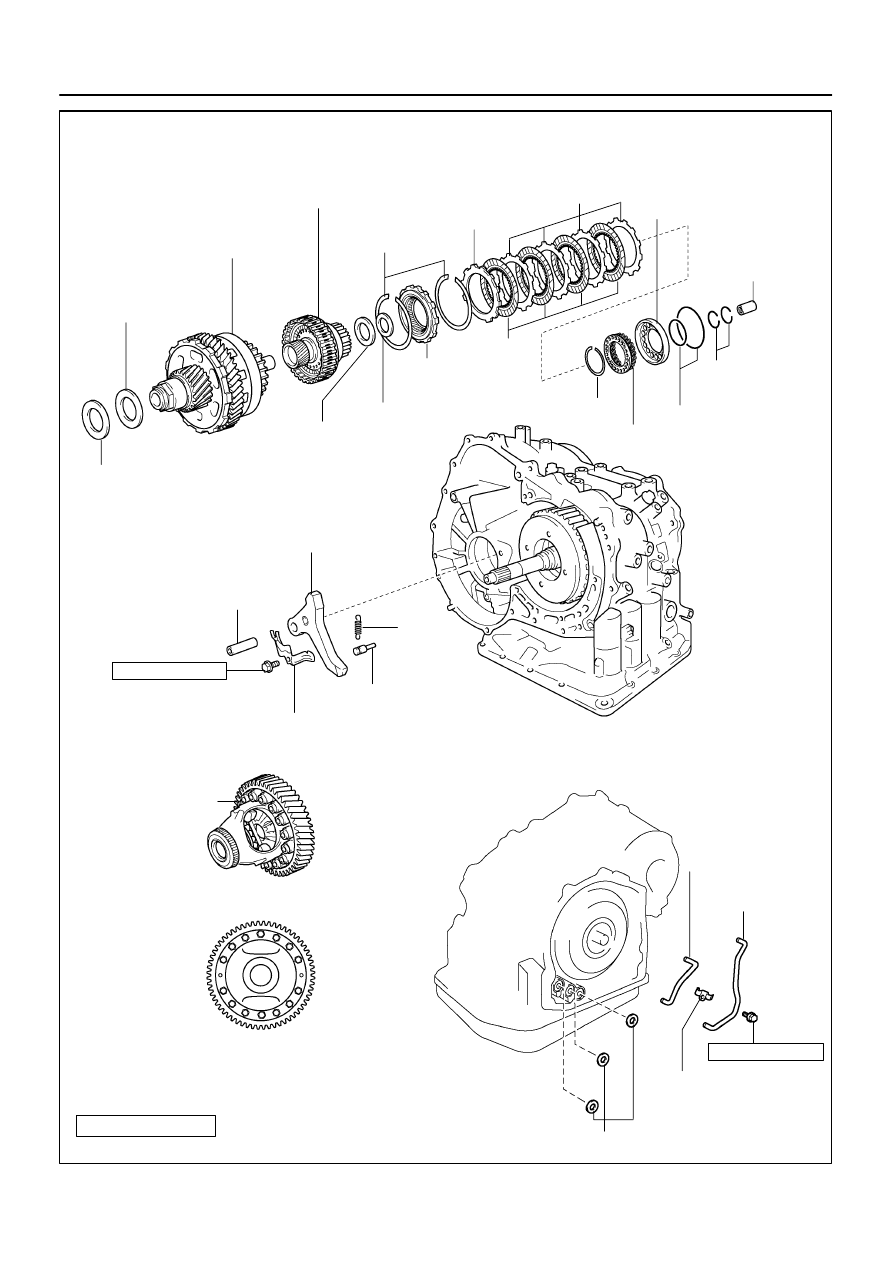

D26594

O-Ring



N·m (kgf·cm, ft·lbf) : Specified torque



 Non-reusable part

Thrust Needle
Roller Bearing

Thrust Bearing
Underdrive Race No. 2

U/D Planetary
Gear Assy

U/D Clutch Assy

Snap Ring

Flange

Plate

Disc

U/D 1 way
Clutch Assy

Thrust Bearing Race

Needle Roller Bearing

Snap Ring

U/D Brake Return
Spring Sub-assy

U/D Clutch
Drum Oil Seal Ring

Needle Roller
Bearing

U/D Brake Piston



Parking Lock Pawl

Parking Lock Pawl Shaft

Torsion
Spring

Parking Lock Pawl Pin

Pawl Shaft Clamp

9.8 (100, 87 in.

⋅

lbf)

Front Differential Assy

Clutch Apply Tube

Brake Apply Tube

Transaxle Apply
Tube Clamp

Governor Apply Gasket No. 1



5.4 (55, 48 in.

⋅

lbf)

40-4

-

AUTOMATIC TRANSMISSION / TRANS

AUTOMATIC TRANSMISSION / TRANSAXLE (U150E)

26

U150E A/T REPAIR MANUAL   (RM913U)
