2002 LEXUS ES300 REPAIR MANUAL   (RM911U)

EMISSION CONTROL

PREPARATION

SST

09992-00242

Turbocharger  Pressure Gauge

EMISSION CONTROL SYSTEM

Equipment

Service Wire Harness

Ohmmeter

Vacuum gauge

020WX-01

02-8

-

PREPARATION

INTAKE

51

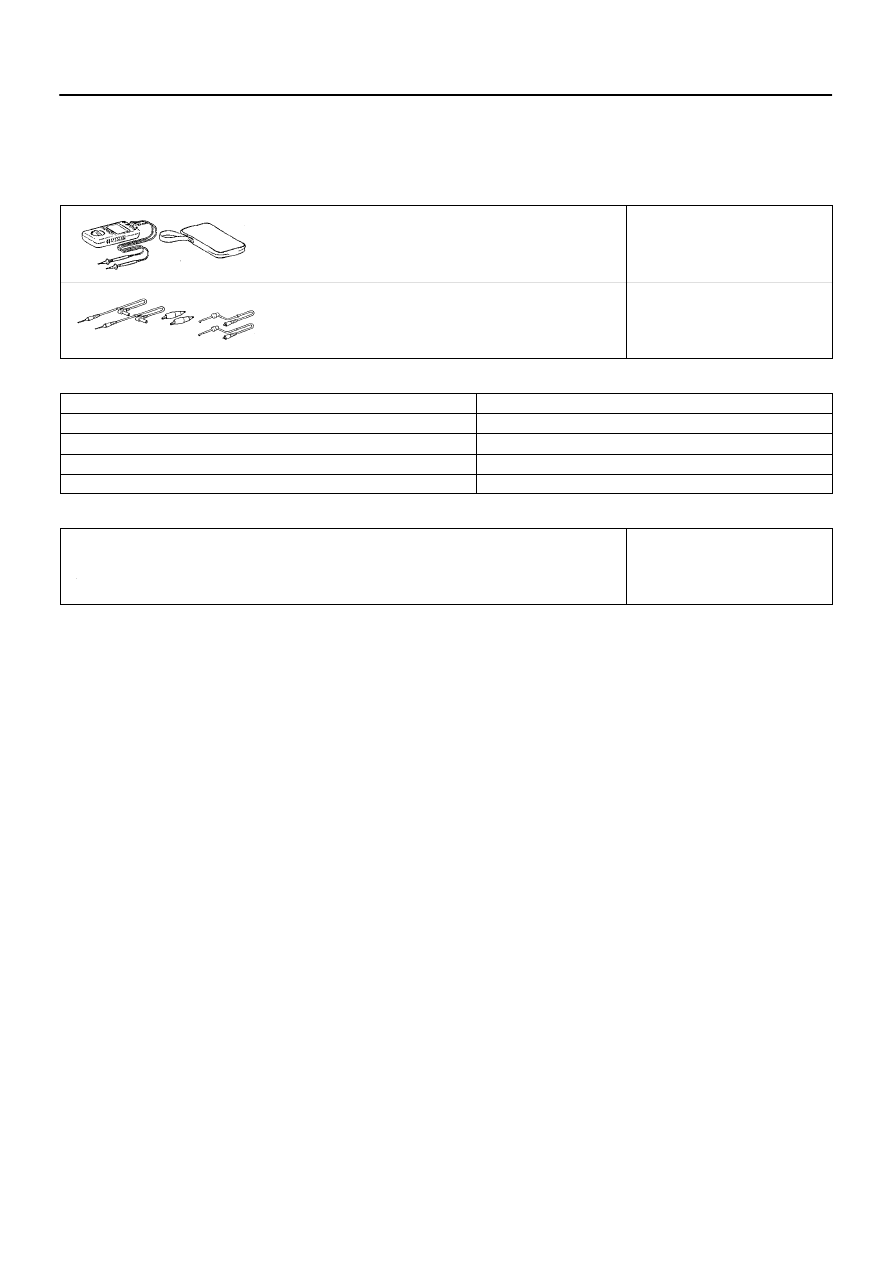

2002 LEXUS ES300 REPAIR MANUAL   (RM911U)

INTAKE

PREPARATION

Recomended Tools

09082-00040

TOYOTA Electrical Tester

INTAKE AIR CONTROL SYSTEM

(09083-00150)

Test Lead Set

INTAKE AIR CONTROL SYSTEM

Equipment

Service Wire Harness

Ohmmeter

Radiator cap tester

Torque wrench

Hand-held vacuum pump

SSM

08826-00080

Seal Packing Black or equivalent

(FIPG)

INTAKE AIR CONTROL VALVE ASSY

NO.2

020WY-01

-

PREPARATION

ENGINE MECHANICAL

02-9

52

2002 LEXUS ES300 REPAIR MANUAL   (RM911U)

ENGINE MECHANICAL

PREPARATION

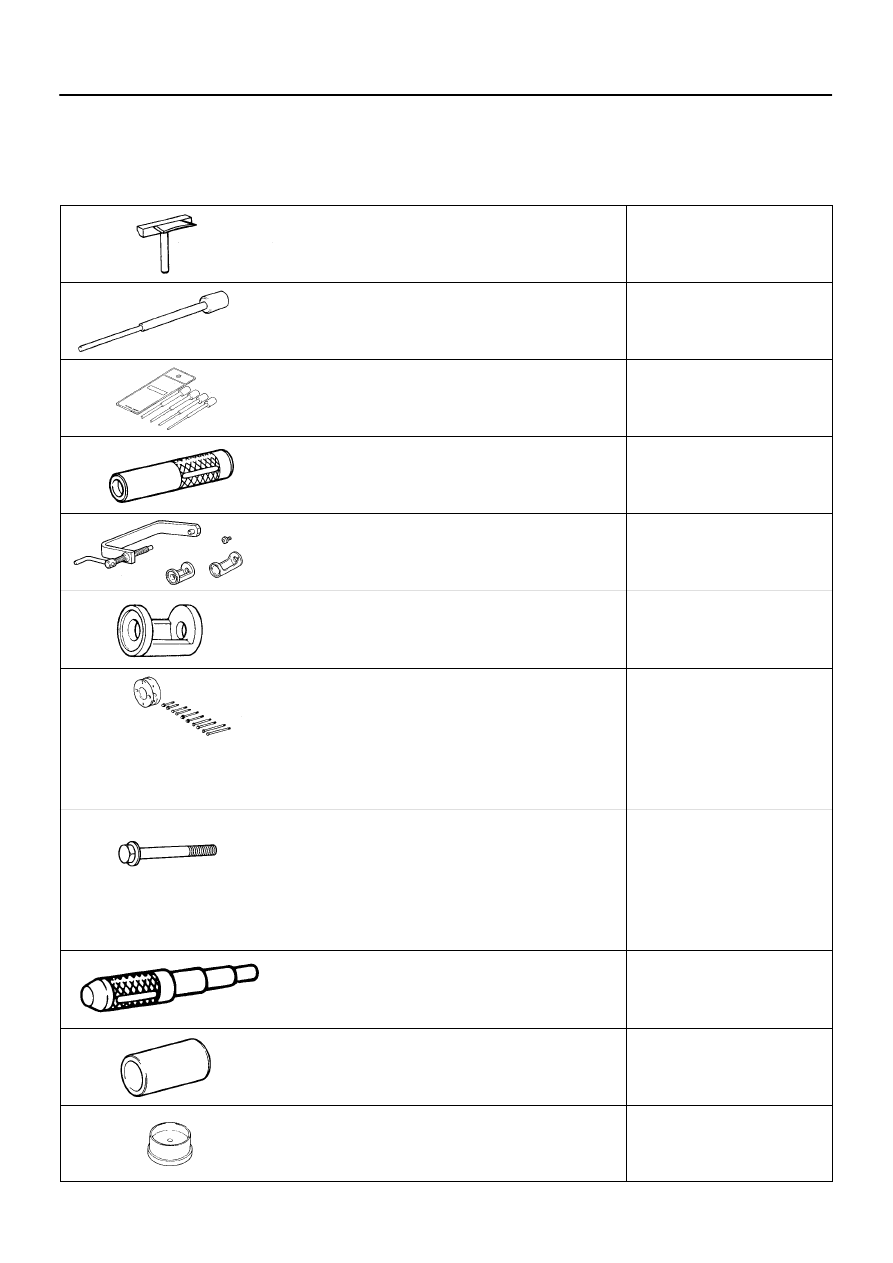

SST

09032-00100

Oil Pan Seal Cutter

PARTIAL ENGINE ASSY

09201-01055

Valve Guide Bushing Remover &

Replacer 5.5

CYLINDER HEAD ASSY

09201-10000

Valve Guide Bushing Remover &

Replacer Set

CYLINDER HEAD ASSY

09201-41020

Valve Stem Oil Seal Replacer

CYLINDER HEAD ASSY

09202-70020

Valve Spring Compressor

CYLINDER HEAD ASSY

(09202-00010)

Attachment

CYLINDER HEAD ASSY

09213-54015

Crankshaft Pulley Holding Tool

PARTIAL ENGINE ASSY

CAMSHAFT(RH BANK)

OIL PUMP SEAL

ENGINE REAR OIL SEAL

CYLINDER HEAD GASKET

CYLINDER HEAD GASKET NO.2

TIMING BELT

CAMSHAFT(LH BANK)

(91651-60855)

Bolt

PARTIAL ENGINE ASSY

CAMSHAFT(RH BANK)

OIL PUMP SEAL

ENGINE REAR OIL SEAL

CYLINDER HEAD GASKET

CYLINDER HEAD GASKET NO.2

TIMING BELT

CAMSHAFT(LH BANK)

09222-30010

Connecting Rod Bushing Remover

& Replacer

CYLINDER BLOCK

09223-00010

Cover & Seal Replacer

PARTIAL ENGINE ASSY

OIL PUMP SEAL

09223-15030

Oil Seal & Bearing Replacer

PARTIAL ENGINE ASSY

ENGINE REAR OIL SEAL

02-10

-

PREPARATION

ENGINE MECHANICAL

53

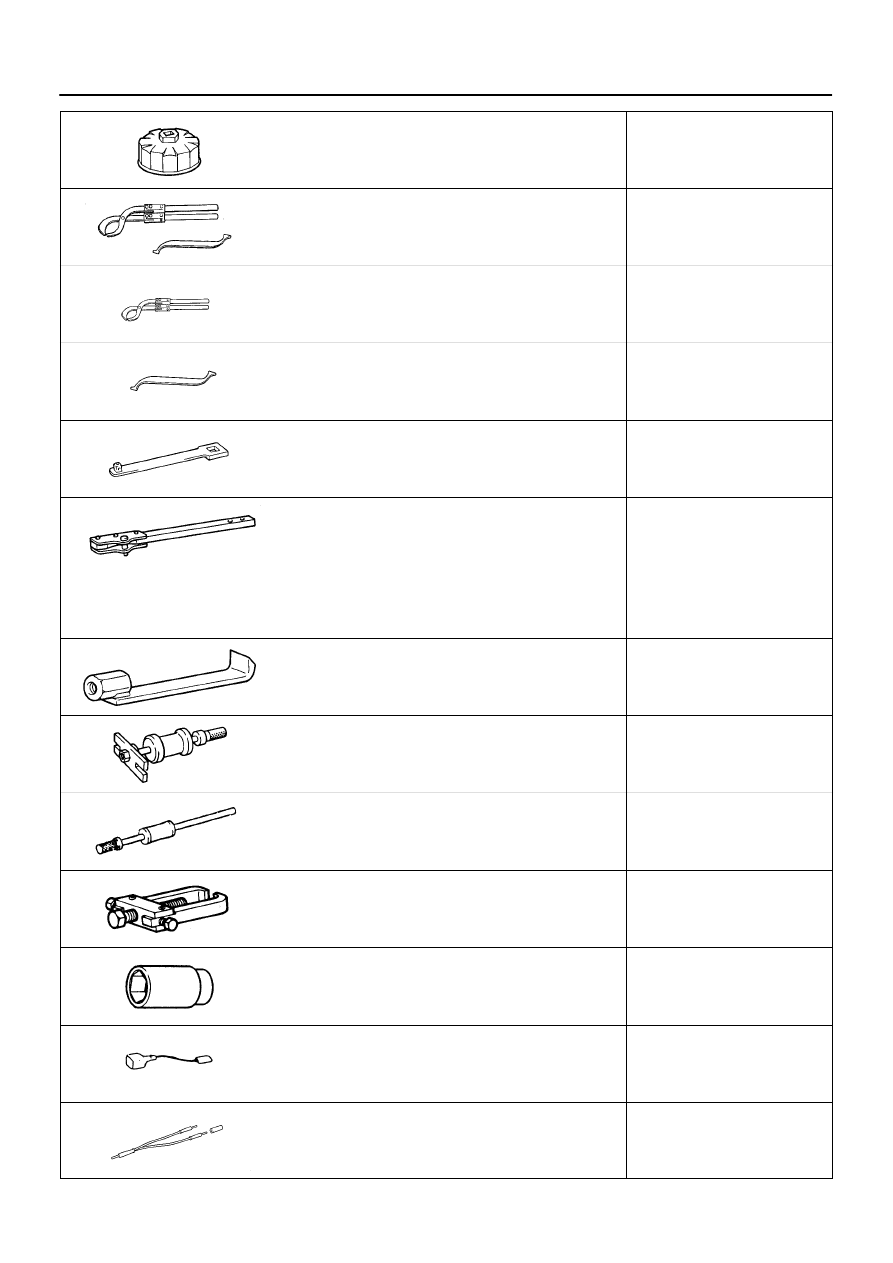

2002 LEXUS ES300 REPAIR MANUAL   (RM911U)

09228-07501

Oil Filter Wrench

PARTIAL ENGINE ASSY

09248-55040

Valve Clearance Adjust Tool Set

PARTIAL ENGINE ASSY

CAMSHAFT(RH BANK)

VALVE CLEARANCE

CAMSHAFT(LH BANK)

(09248-05410)

Valve Lifter Press

PARTIAL ENGINE ASSY

CAMSHAFT(RH BANK)

VALVE CLEARANCE

CAMSHAFT(LH BANK)

(09248-05420)

Valve Lifter Stopper

PARTIAL ENGINE ASSY

CAMSHAFT(RH BANK)

VALVE CLEARANCE

CAMSHAFT(LH BANK)

09249-63010

Torque Wrench Adaptor

CAMSHAFT(RH BANK)

CYLINDER HEAD GASKET

CYLINDER HEAD GASKET NO.2

CAMSHAFT(LH BANK)

09330-00021

Companion Flange Holding Tool

PARTIAL ENGINE ASSY

CAMSHAFT(RH BANK)

OIL PUMP SEAL

ENGINE REAR OIL SEAL

CYLINDER HEAD GASKET

CYLINDER HEAD GASKET NO.2

TIMING BELT

CAMSHAFT(LH BANK)

09520-01010

Drive Shaft Remover Attachment

PARTIAL ENGINE ASSY

09520-24010

Differential Side Gear Shaft

Puller

PARTIAL ENGINE ASSY

(09520-32040)

Shocker Set

PARTIAL ENGINE ASSY

09628-6201 1

Boll Joint Puller

PARTIAL ENGINE ASSY

09816-30010

Oil Pressure Switch Socket

PARTIAL ENGINE ASSY

09843-18030

Tacho-pulse Pickup Wire No.2

ENGINE ASSEMBLY

PARTIAL ENGINE ASSY

CYLINDER HEAD GASKET

CYLINDER HEAD GASKET NO.2

09843-18040

Diagnosis Check Wire No.2

ENGINE ASSEMBLY

PARTIAL ENGINE ASSY

CYLINDER HEAD GASKET

CYLINDER HEAD GASKET NO.2
