030GW-01

03-8

-

SERVICE SPECIFICATIONS

EMISSION CONTROL

109

2002 LEXUS ES300 REPAIR MANUAL   (RM911U)

EMISSION CONTROL

SERVICE DATA

VSV for pressure switching valve
Resistance

at 20

C (68

F)

at 120

C (248

F)

37 - 44

Ω

51 - 62

Ω

VSV for EVAP
Resistance

at 20

C (68

F)

27 - 33

Ω

VSV for canister closed valve
Resistance

at 20

C (68

F)

25 - 30

Ω

Oxygen sensor
Resistance

at 20

C (68

F)

11 - 16

Ω

A/F sensor
Resistance

at 20

C (68

F)

at 800

C (1,472

F)

0.8 - 1.4

Ω

1.8 - 3.2

Ω

030GX-01

-

SERVICE SPECIFICATIONS

INTAKE

03-9

110

2002 LEXUS ES300 REPAIR MANUAL   (RM911U)

INTAKE

SERVICE DATA

Intake air control valve No.3 (VSV)
Resistance

at 20

C (68

F)

37 - 44

Ω

Vacuum switching valve assy No.1
Resistance

at 20

C (68

F)

33 - 39

Ω

020ZO-01

-

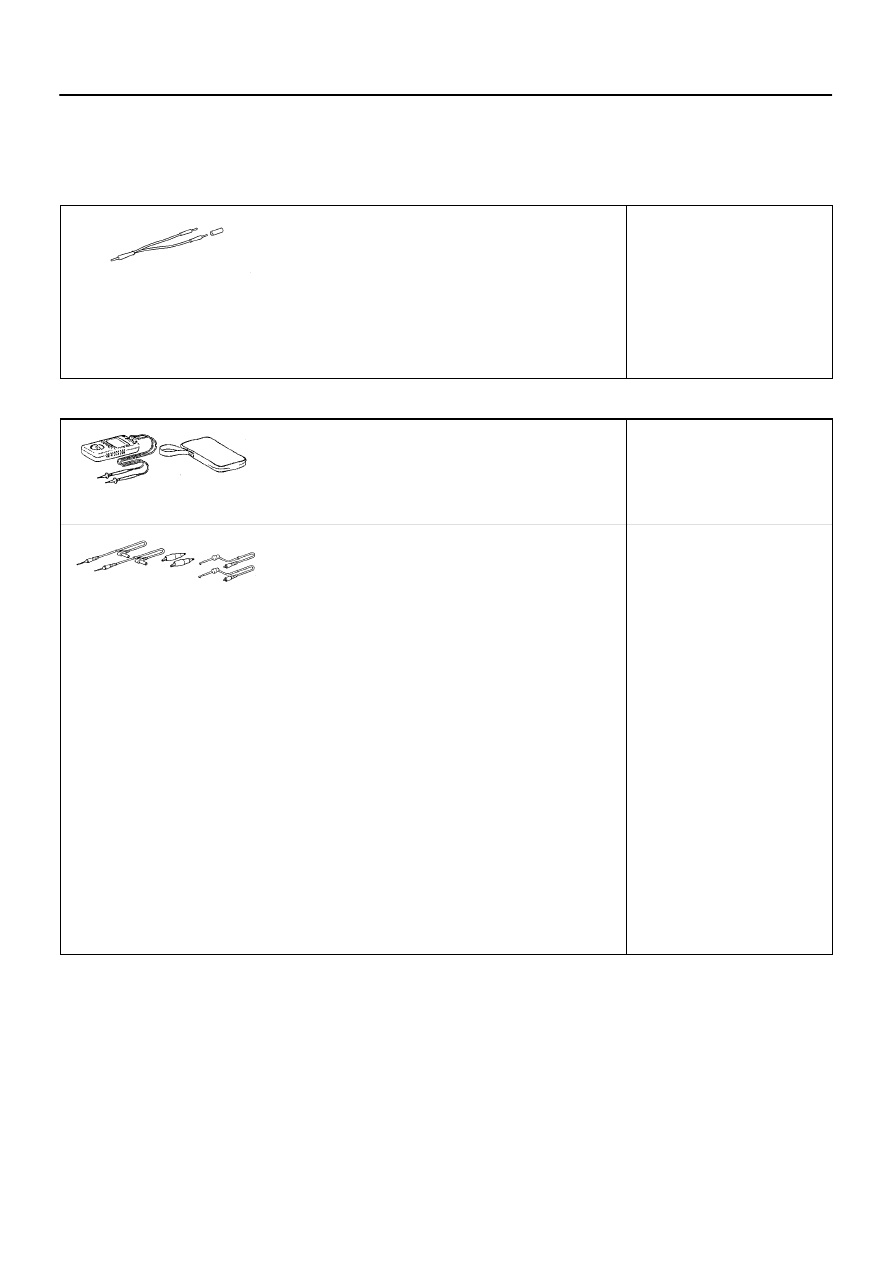

PREPARATION

DIAGNOSTICS

02-1

44

2002 LEXUS ES300 REPAIR MANUAL   (RM911U)

DIAGNOSTICS

PREPARATION

SST

09843-18040

Diagnosis Check Wire No.2

AIR CONDITIONING SYSTEM

SUPPLEMENTAL RESTRAINT

SYSTEM

ELECTRONIC MODULATED

SUSPENSION SYSTEM

ABS WITH EBD & BA & TRAC & VSC

SYSTEM

COMBINATION METER

ABS WITH EBD SYSTEM

SFI SYSTEM(1MZ-FE)

Recomended Tools

09082-00040

TOYOTA Electrical Tester

ELECTRONIC CONTROLLED

AUTOMATIC TRANSAXLE[ECT]

SUPPLEMENTAL RESTRAINT

SYSTEM

LIGHTING SYSTEM

SFI SYSTEM(1MZ-FE)

(09083-00150)

Test Lead Set

AIR CONDITIONING SYSTEM

ELECTRONIC CONTROLLED

AUTOMATIC TRANSAXLE[ECT]

SUPPLEMENTAL RESTRAINT

SYSTEM

WIPER AND WASHER SYSTEM

LIGHTING SYSTEM

AUDIO SYSTEM

ELECTRONIC MODULATED

SUSPENSION SYSTEM

ABS WITH EBD & BA & TRAC & VSC

SYSTEM

LEXUS NAVIGATION SYSTEM

WIRELESS DOOR LOCK CONTROL

SYSTEM

LUGGAGE COMPARTMENT DOOR

OPENER SYSTEM

KEY UNLOCK WARNING SYSTEM

ENGINE IMMOBILISER SYSTEM

MULTIPLEX COMMUNICATION

SYSTEM

CRUISE CONTROL SYSTEM

COMBINATION METER

ABS WITH EBD SYSTEM

SFI SYSTEM(1MZ-FE)

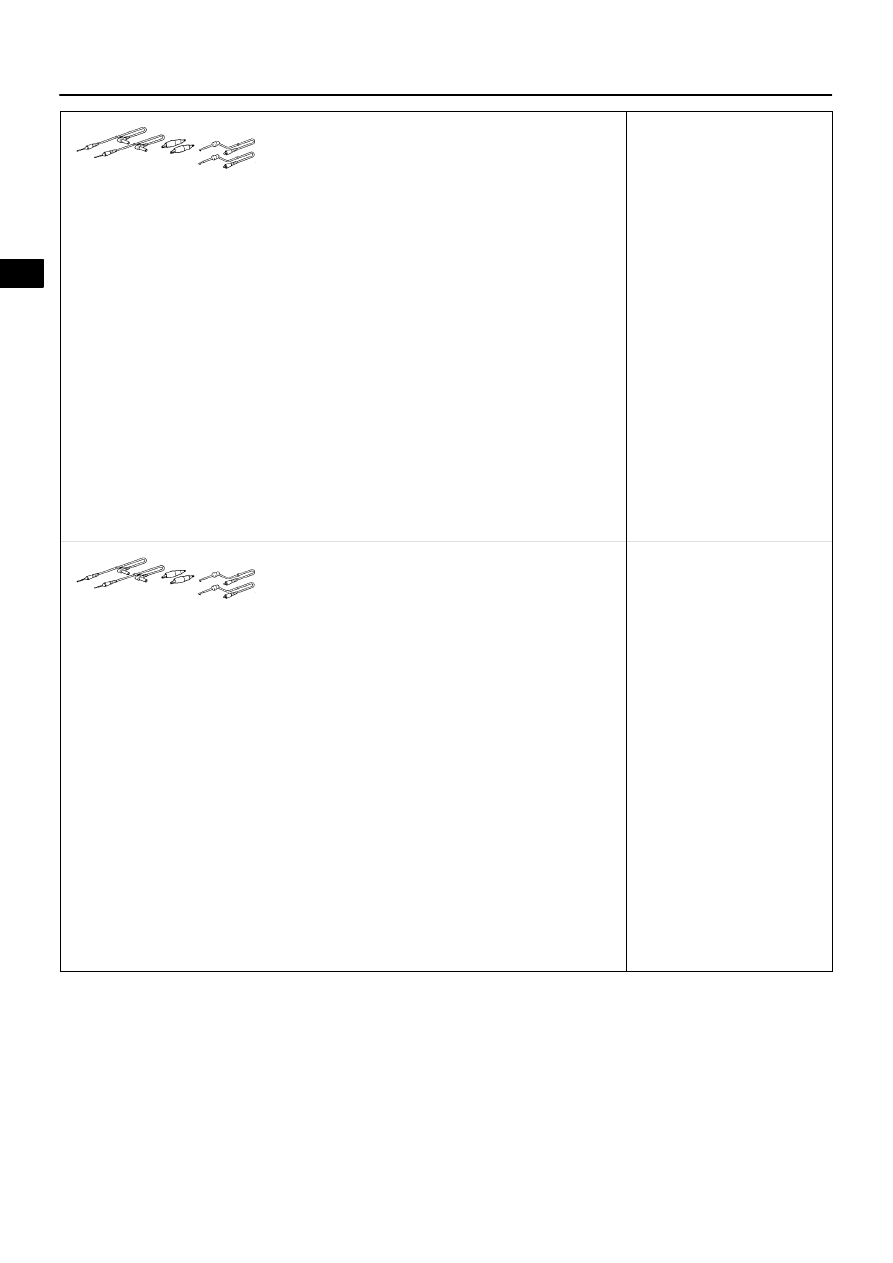

02-2

-

PREPARATION

DIAGNOSTICS

45

2002 LEXUS ES300 REPAIR MANUAL   (RM911U)

(09083-00150)

Test Lead Set

AIR CONDITIONING SYSTEM

ELECTRONIC CONTROLLED

AUTOMATIC TRANSAXLE[ECT]

SUPPLEMENTAL RESTRAINT

SYSTEM

WIPER AND WASHER SYSTEM

LIGHTING SYSTEM

AUDIO SYSTEM

ELECTRONIC MODULATED

SUSPENSION SYSTEM

ABS WITH EBD & BA & TRAC & VSC

SYSTEM

LEXUS NAVIGATION SYSTEM

WIRELESS DOOR LOCK CONTROL

SYSTEM

LUGGAGE COMPARTMENT DOOR

OPENER SYSTEM

KEY UNLOCK WARNING SYSTEM

ENGINE IMMOBILISER SYSTEM

MULTIPLEX COMMUNICATION

SYSTEM

CRUISE CONTROL SYSTEM

COMBINATION METER

ABS WITH EBD SYSTEM

SFI SYSTEM(1MZ-FE)

(09083-00150)

Test Lead Set

AIR CONDITIONING SYSTEM

ELECTRONIC CONTROLLED

AUTOMATIC TRANSAXLE[ECT]

SUPPLEMENTAL RESTRAINT

SYSTEM

WIPER AND WASHER SYSTEM

LIGHTING SYSTEM

AUDIO SYSTEM

ELECTRONIC MODULATED

SUSPENSION SYSTEM

ABS WITH EBD & BA & TRAC & VSC

SYSTEM

LEXUS NAVIGATION SYSTEM

WIRELESS DOOR LOCK CONTROL

SYSTEM

LUGGAGE COMPARTMENT DOOR

OPENER SYSTEM

KEY UNLOCK WARNING SYSTEM

ENGINE IMMOBILISER SYSTEM

MULTIPLEX COMMUNICATION

SYSTEM

CRUISE CONTROL SYSTEM

COMBINATION METER

ABS WITH EBD SYSTEM

SFI SYSTEM(1MZ-FE)
