PREPARATION

AUTOMATIC TRANSAXLE

PP–29

74

1997 LEXUS ES300   (RM511U)

AUTOMATIC TRANSAXLE

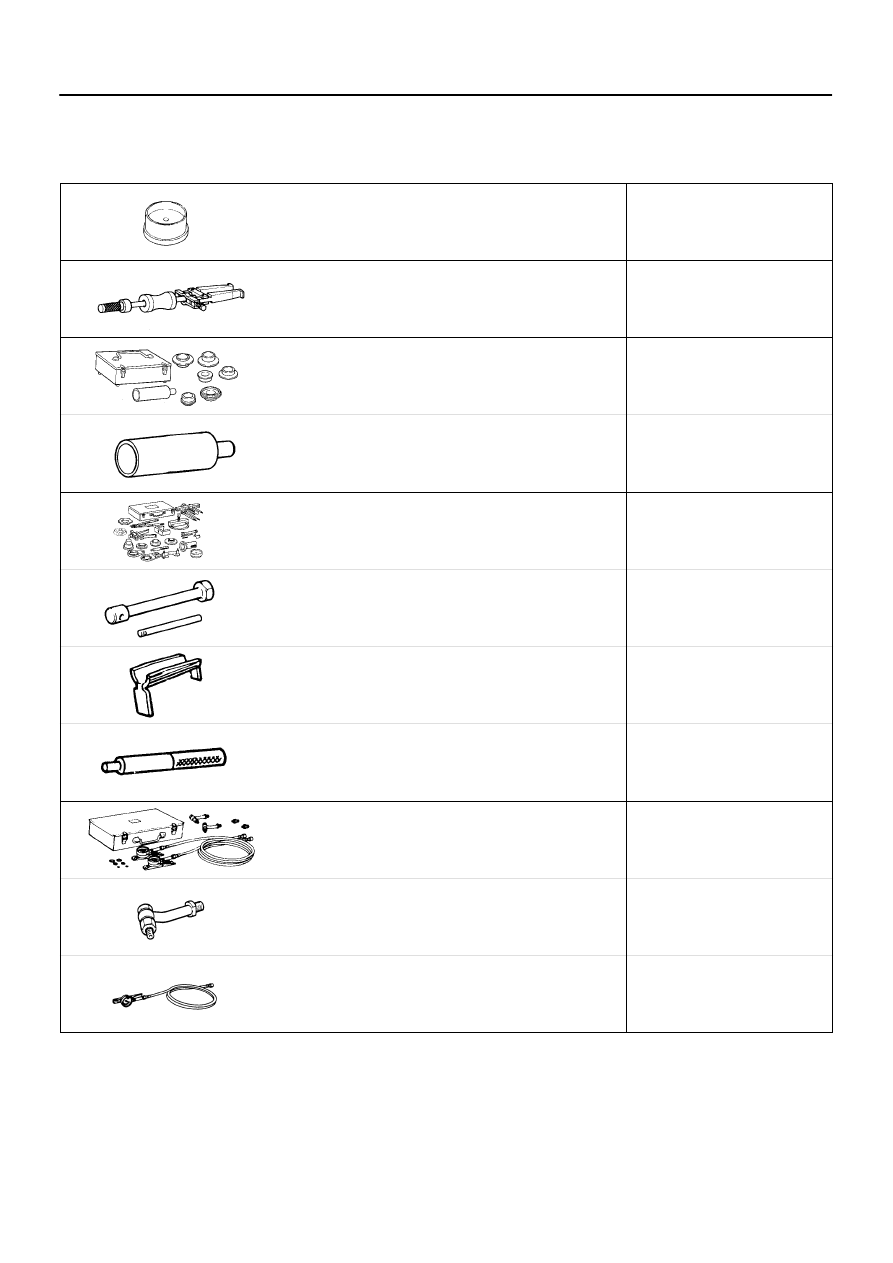

SST (Special Service Tools)

09223–15020

Oil Seal & Bearing Replacer

09308–00010

Oil Seal Puller

Side gear shaft oil seal

09316–60011

Transmission & Transfer Bearing

Replacer

RH side bearing

(09316–00011)

Replacer Pipe

RH side gear shaft oil seal

09350–32014

TOYOTA Automatic Transmission

Tool Set

(09351–32010)

One–way Clutch Test Tool

(09351–32020)

Stator Stopper

(09351–32130)

Handle

09992–00095

Automatic Transmission Oil

Pressure Gauge Set

Line pressure

(09992–00231)

Adaptor C

(09992–00271)

Gauge Assy

PP0BB–01

PP–30

–

PREPARATION

AUTOMATIC TRANSAXLE

75

1997 LEXUS ES300   (RM511U)

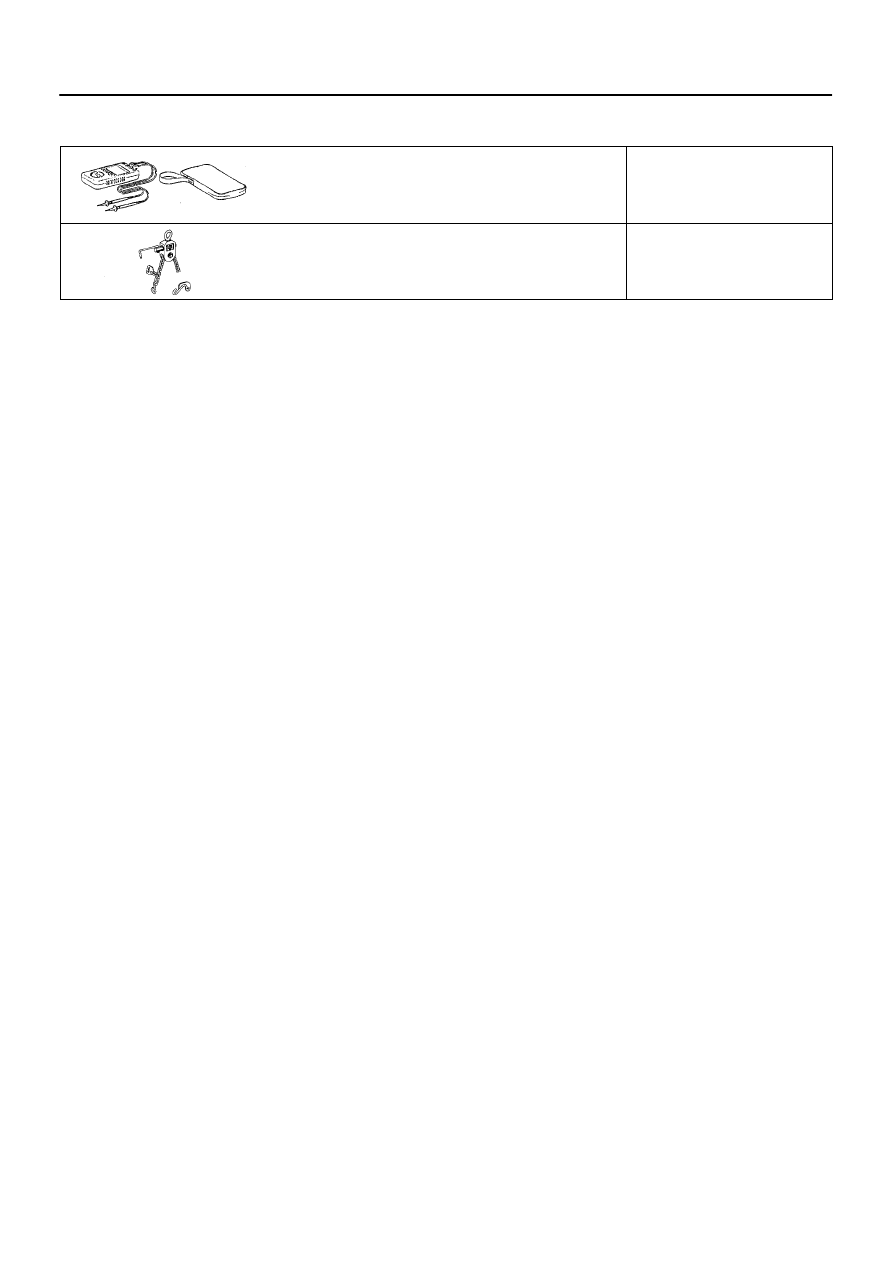

RECOMMENDED TOOLS

09082–00040

TOYOTA Electrical Tester.

09090–04010

Engine Sling Device .

PP0BC–01

–

PREPARATION

AUTOMATIC TRANSAXLE

PP–31

76

1997 LEXUS ES300   (RM511U)

EQUIPMENT

Straight edge

Torque converter clutch

Vernier calipers

Torque converter clutch

Dial indicator or dial indicator with magnetic base

Drive plate

Hexagon Wrench (10 mm)

Torque wrench

OBD II scan tool

PP0BD–03

PP–32

–

PREPARATION

AUTOMATIC TRANSAXLE

77

1997 LEXUS ES300   (RM511U)

LUBRICANT

Item

Capacity

Classification

Automatic transaxle fluid

(w/o Differential oil)

  Dry fill

  Drain and refill

6.75 liters (7.1 US qts, 5.9 Imp. qts)

3.50 liters (3.7 US qts, 3.1 Imp. qts)

ATF D–II or DEXRON

®

III (DEXRON

®

II)

Differential fluid

0.85 liters (0.9 US qts, 0.7 Imp. qts)

ATF D–II or DEXRON

®

III (DEXRON

®

II)
