PREPARATION

MAINTENANCE

PP–1

46

1997 LEXUS ES300   (RM511U)

MAINTENANCE

EQUIPMENT

Mirror

Brake hose

Torque wrench

PP06O–07

PP–2

–

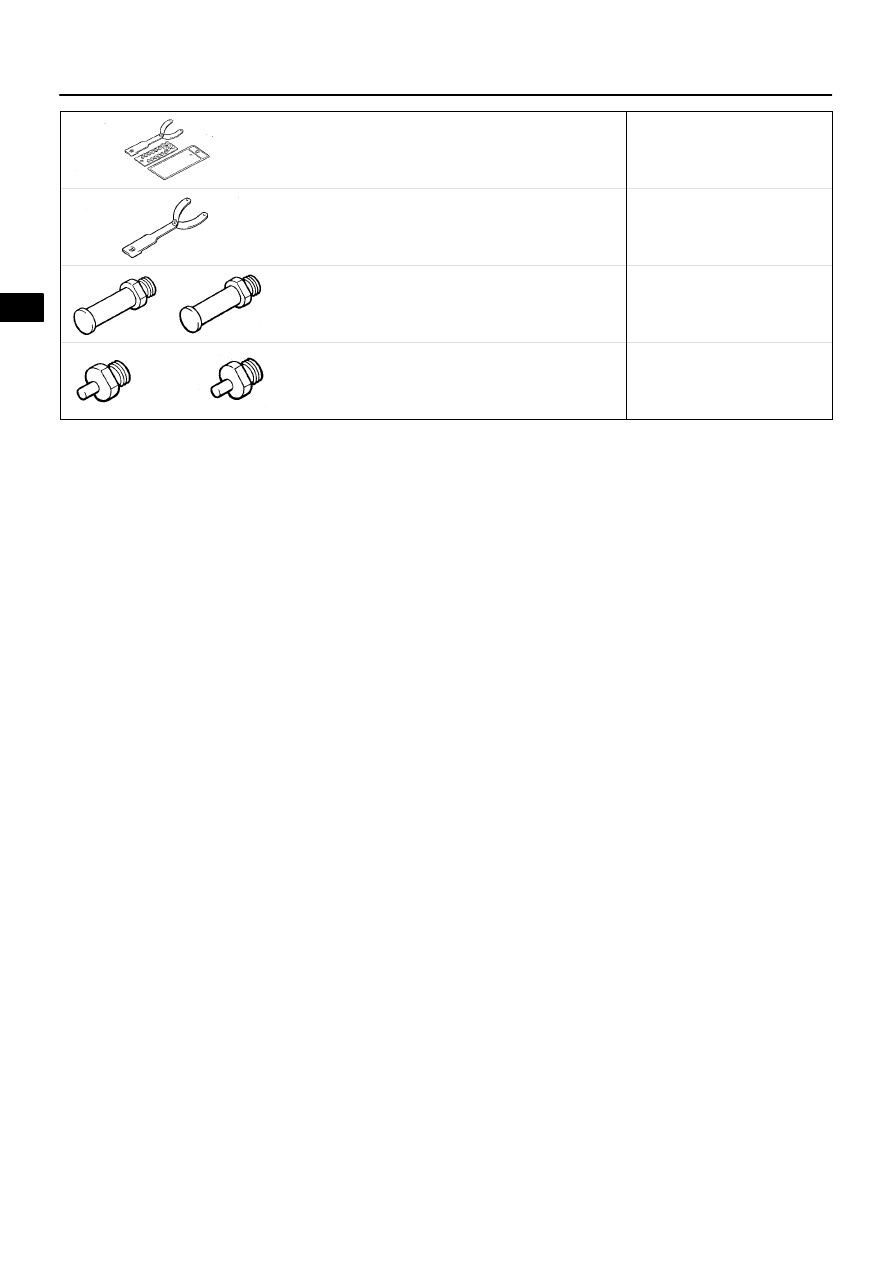

PREPARATION

ENGINE MECHANICAL

47

1997 LEXUS ES300   (RM511U)

ENGINE MECHANICAL

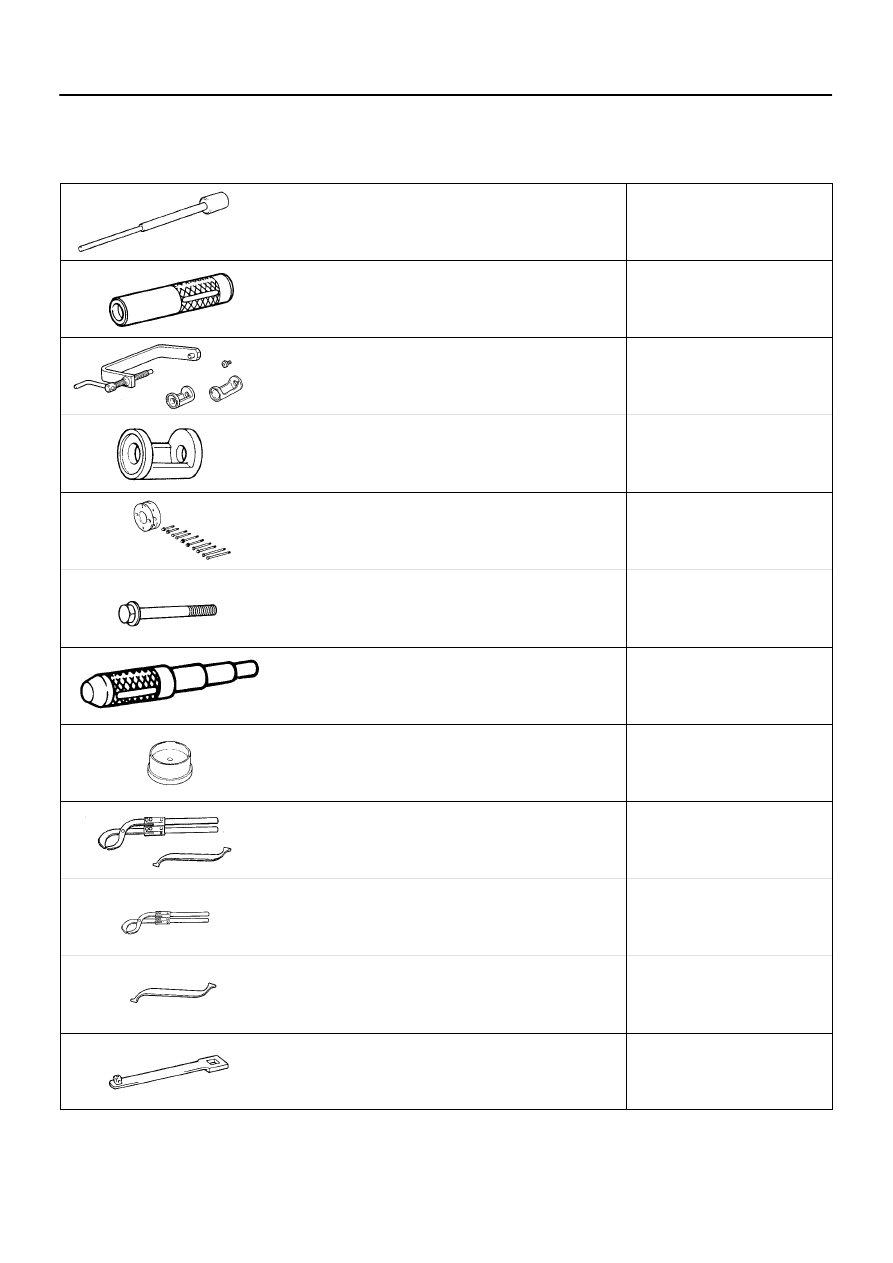

SST (Special Service Tools)

09201–01055

Valve Guide Bushing Remover & Re

placer 5.5

09201–41020

Valve Stem Oil Seal Replacer

09202–70020

Valve Spring Compressor

(09202–00010)

Attachment

09213–54015

Crankshaft Pulley Holding Tool

(91651–60855)

Bolt

09222–30010

Connecting Rod Bushing Remover

& Replacer

09223–15030

Oil Seal & Bearing Replacer

Crankshaft rear oil seal

09248–55040

Valve Clearance Adjust Tool Set

(09248–05410)

Valve Lifter Press

(09248–05420)

Valve Lifter Stopper

09249–63010

Torque Wrench Adaptor

RH camshaft timing pulley

–

PREPARATION

ENGINE MECHANICAL

PP–3

48

1997 LEXUS ES300   (RM511U)

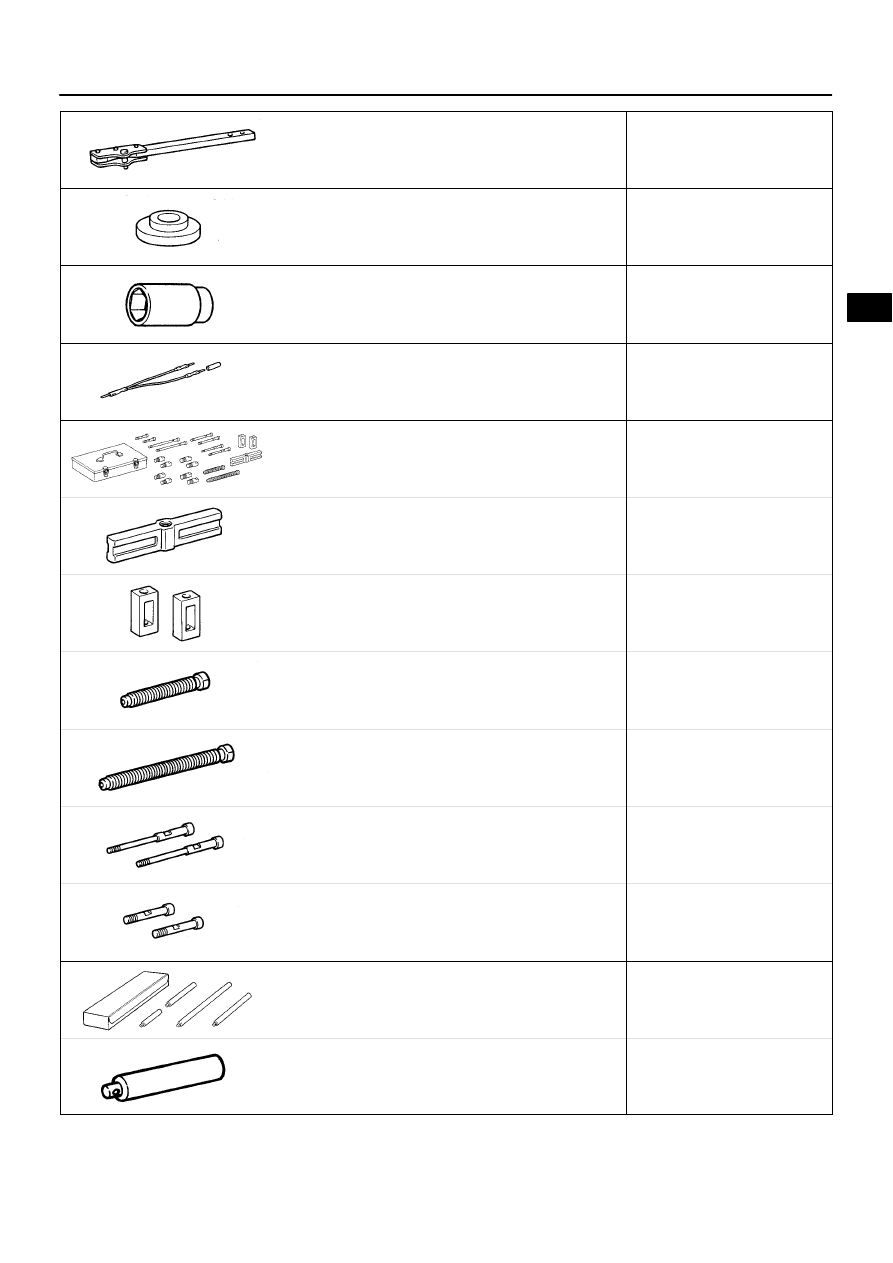

09330–00021

Companion Flange Holding Tool

Crankshaft pulley

09608–03071

Replacer

Spark plug tube gasket

09816–30010

Oil Pressure Switch Socket

Knock sensor

09843–18020

Diagnosis Check Wire

09950–50010

Puller C Set

(09951–05010)

Hanger 150

Crankshaft pulley

Crankshaft timing pulley

(09952–05010)

Slide Arm

Crankshaft pulley

Crankshaft timing pulley

(09953–05010)

Center Bolt 100

Crankshaft pulley

Crankshaft timing pulley

(09953–05020)

Center Bolt 150

Crankshaft pulley

Crankshaft timing pulley

(09954–05010)

Claw No.1

Crankshaft timing pulley

(09954–05020)

Claw No.2

Crankshaft pulley

09950–70010

Handle Set

(09951–07100)

Handle 100

Valve guide bushing

Crankshaft rear oil seal

PP–4

–

PREPARATION

ENGINE MECHANICAL

49

1997 LEXUS ES300   (RM511U)

09960–10010

Variable Pin Wrench Set

(09962–01000)

Variable Pin Wrench Arm Assy

Camshaft timing pulley

Camshaft sub–gear

(09963–01000)

Pin 10

Camshaft timing pulley

(09963–00500)

Pin 5

Camshaft sub–gear
