BR07D–01

R00327

W04507

–

BRAKE

FRONT SPEED SENSOR

BR–59

1174

1997 LEXUS ES300   (RM511U)

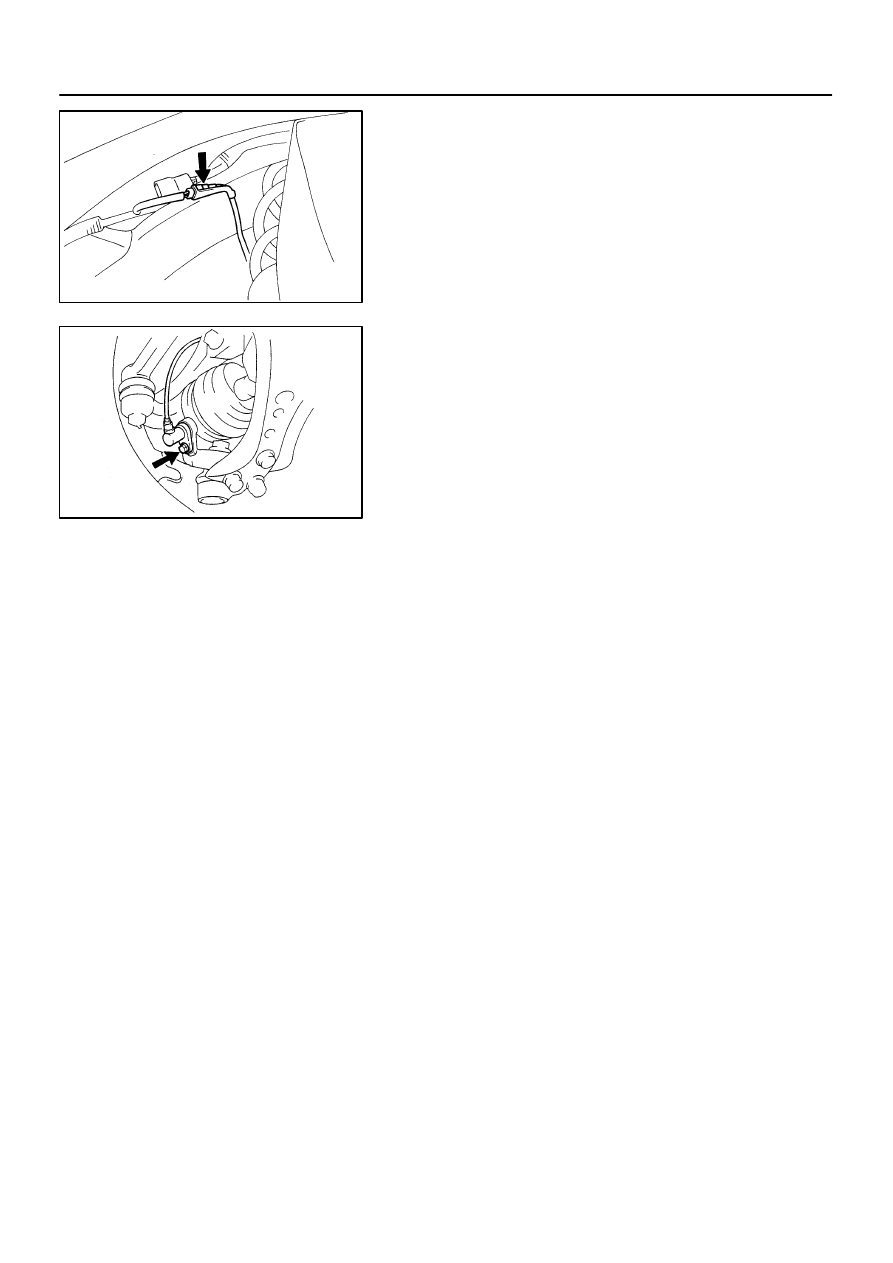

REMOVAL

1.

DISCONNECT SPEED SENSOR CONNECTOR

(a)

Remove the fender liner.

(b)

Disconnect the speed sensor connector.

2.

REMOVE SPEED SENSOR

(a)

Remove the bolt, flexible hose and speed sensor harness
clamp from the shock absorber.
Torque: 29 N·m (300 kgf·cm, 21 ft·lbf)

(b)

Remove the resin clip and clamp bolt holding the sensor
harness to the body.
Torque: 5.4 N·m (55 kgf·cm, 48 in.·lbf)

(c)

Remove the speed sensor from the steering knuckle.
Torque: 7.8 N·m (80 kgf·cm, 69 in.·lbf)

BR07E–04

BR–60

–

BRAKE

FRONT SPEED SENSOR

1175

1997 LEXUS ES300   (RM511U)

INSTALLATION

Installation is in the reverse order of removal (See page

BR–59

).

AFTER INSTALLATION, CHECK SPEED SENSOR SIGNAL (See page

DI–232

 or

DI–273

)

BR07F–04

W03274

W03274

N·m (kgf·cm, ft·lbf)

: Specified torque

5.4 (55, 48 in.·lbf)

Rear Speed Sensor

7.8 (80, 69 in.·lbf)

5.4 (55, 48 in.·lbf)

–

BRAKE

REAR SPEED SENSOR

BR–61

1176

1997 LEXUS ES300   (RM511U)

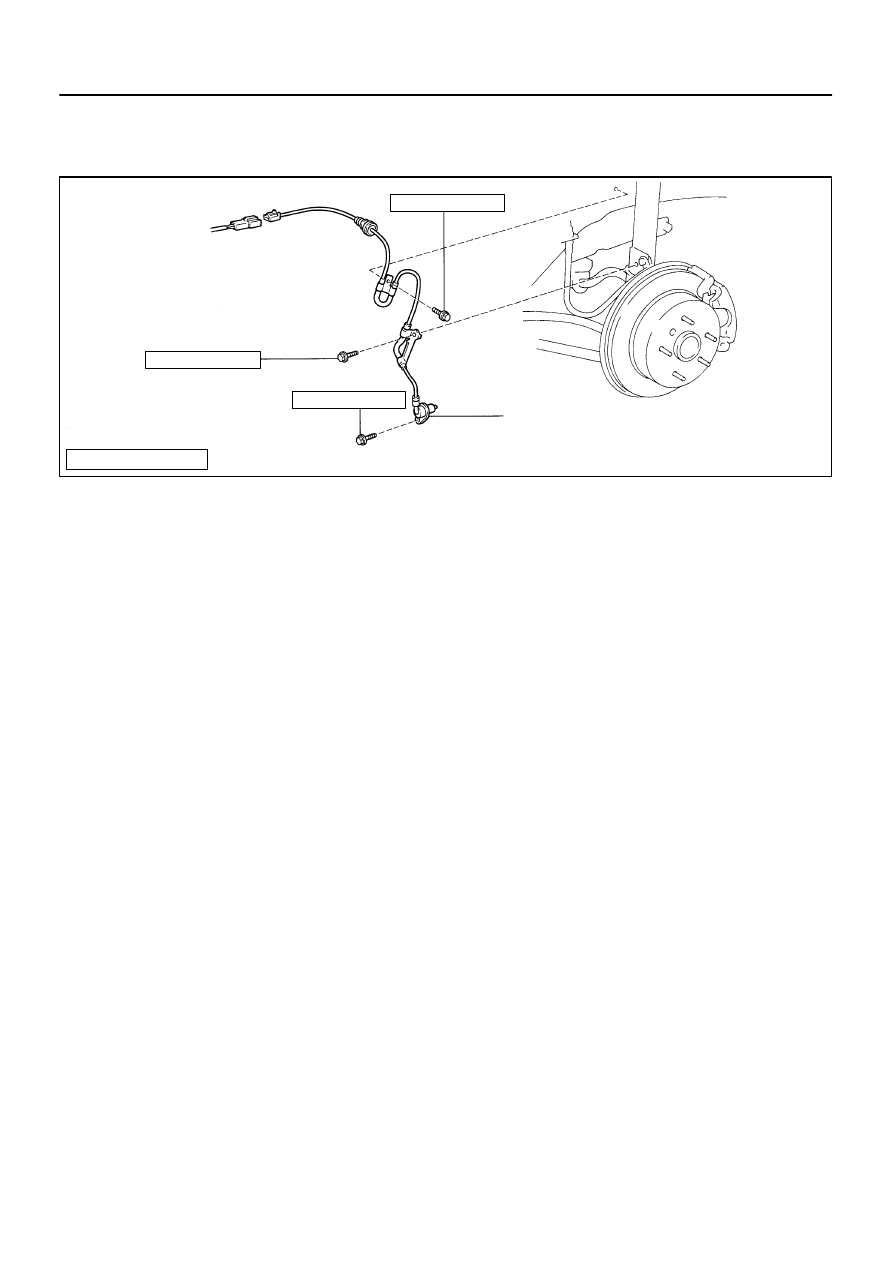

REAR SPEED SENSOR

COMPONENTS

BR07G–01

R00330

W04508

BR–62

–

BRAKE

REAR SPEED SENSOR

1177

1997 LEXUS ES300   (RM511U)

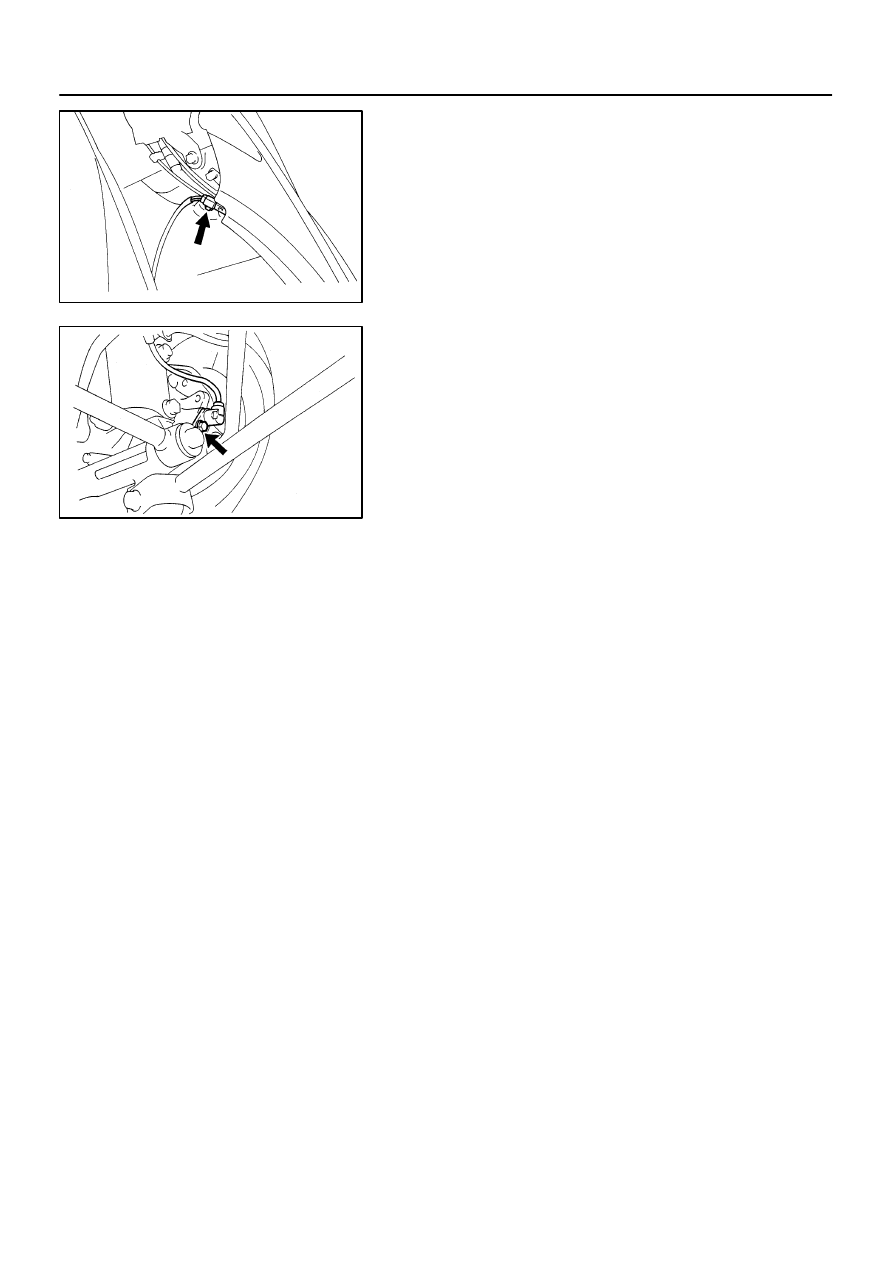

REMOVAL

1.

DISCONNECT SPEED SENSOR CONNECTOR

(a)

Remove the seat cushion and seatback.

(b)

Disconnect the speed sensor connector, and pull out the
sensor wire harness with the grommet.

2.

REMOVE SPEED SENSOR

(a)

Remove the 2 clamp bolts holding the sensor wire har-
ness to the body and shock absorber.
Torque: 5.4 N·m (55 kgf·cm, 48 in.·lbf)

(b)

Remove the speed sensor from the axle carrier.
Torque: 7.8 N·m (80 kgf·cm, 69 in.·lbf)
