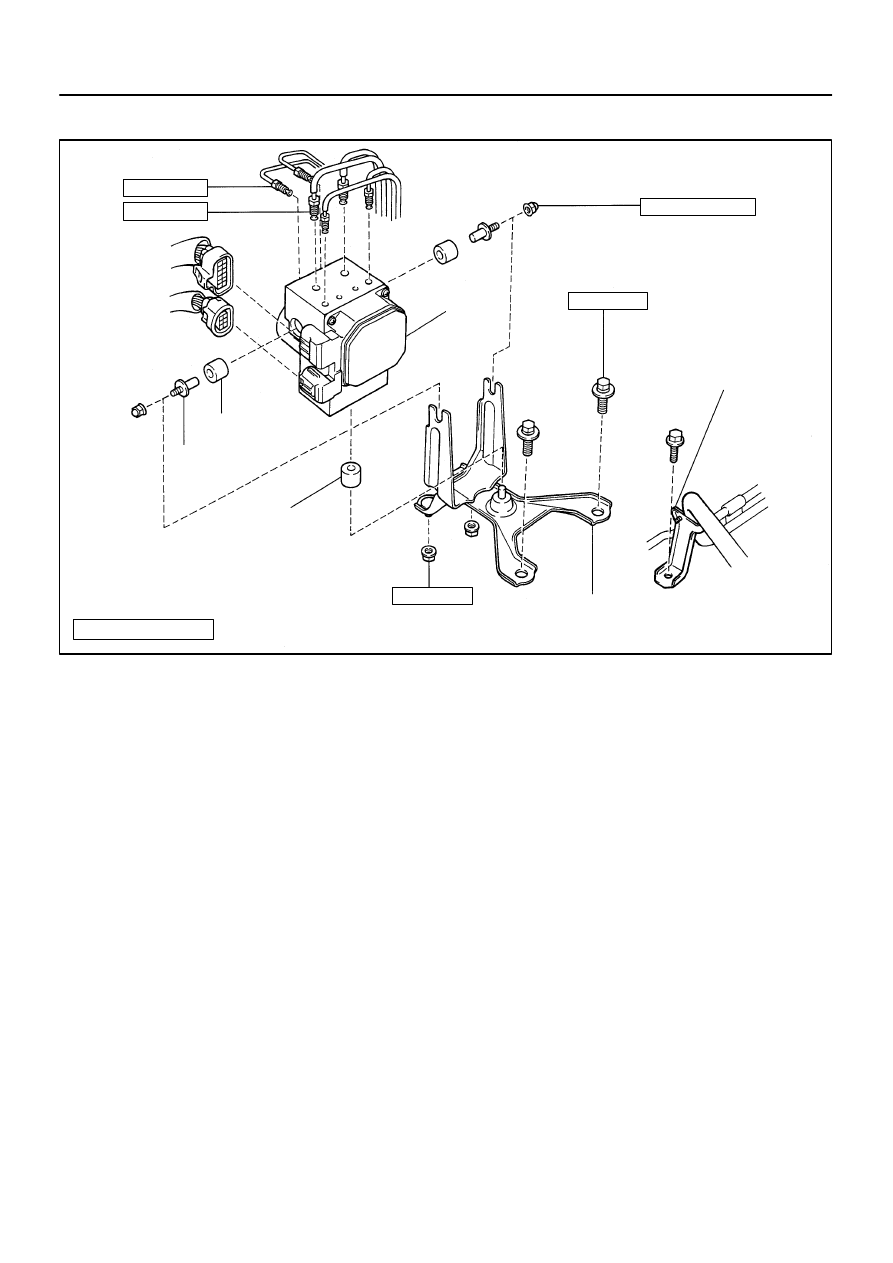

BR077–01

W03272

Cushion

Holder

ABS & TRAC
Actuator

A/C Tube Clamp
Bracket

Actuator Bracket

15 (155, 11)

5.4 (55, 48 in.·lbf)

19 (195, 14)

N·m (kgf·cm, ft·lbf)

: Specified torque

19 (195, 14)

Cushion

20 (200, 14)

–

BRAKE

ABS & TRAC ACTUATOR

BR–55

1170

1997 LEXUS ES300   (RM511U)

COMPONENTS

BR078–06

W03245

SST

BR–56

–

BRAKE

ABS & TRAC ACTUATOR

1171

1997 LEXUS ES300   (RM511U)

REMOVAL

1.

REMOVE RIGHT FRONT FENDER LINER

2.

REMOVE A/C TUBE CLAMP BRACKET BOLT

3.

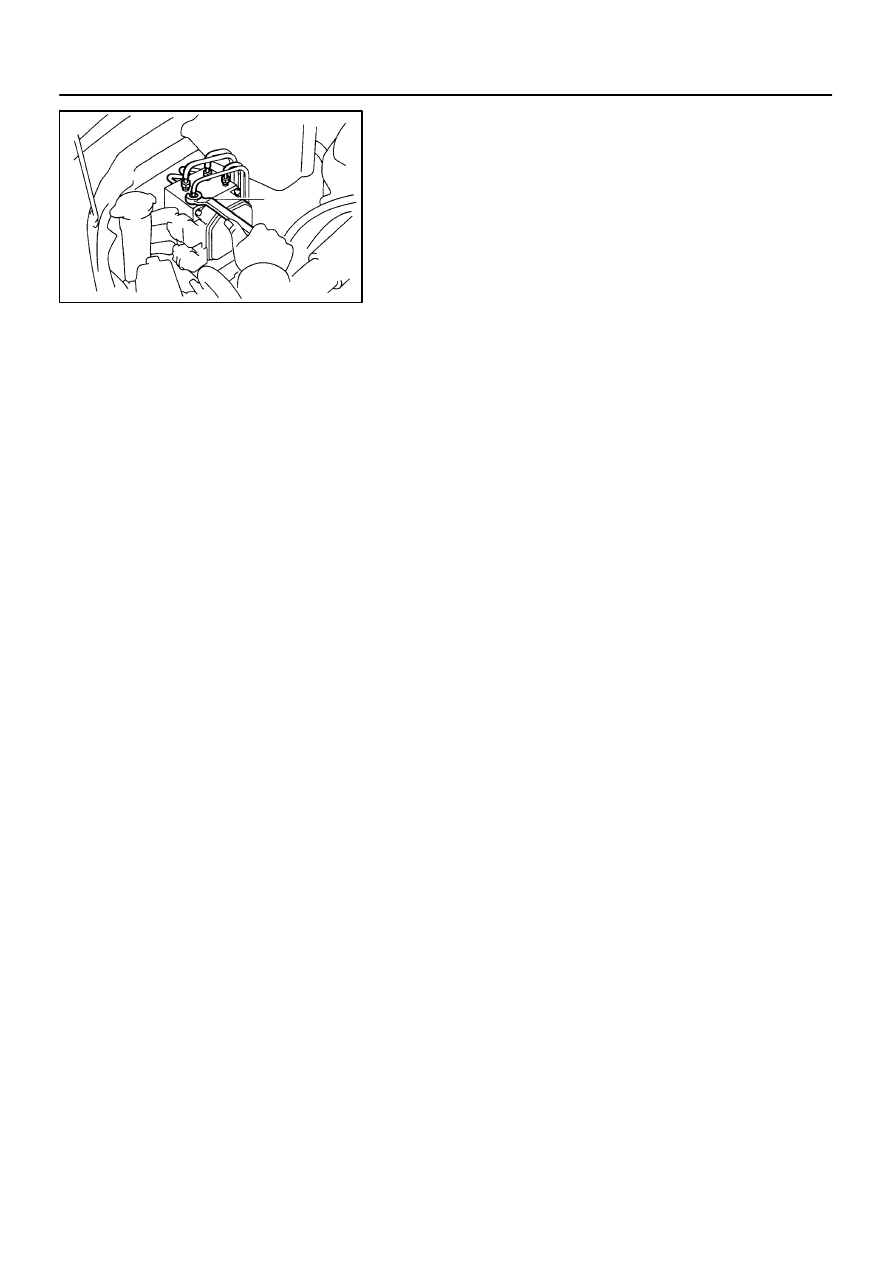

DISCONNECT BRAKE LINES

Using SST, disconnect the 6 brake lines from the ABS & TRAC
actuator.

SST

09751–36011

Torque:
10 mm nut  15 N·m (155 kgf·cm, 11 ft·lbf)
12 mm nut  20 N·m (200 kgf·cm, 14 ft·lbf)

4.

REMOVE ABS & TRAC ACTUATOR ASSEMBLY

(a)

Disconnect the 2 connectors.

(b)

Remove the 2 bolts, 2 nuts and ABS & TRAC actuator as-
sembly.
Torque: 19 N·m (195 kgf·cm, 14 ft·lbf)

5.

REMOVE ABS & TRAC ACTUATOR

(a)

Remove the 2 nuts and ABS & TRAC actuator from actua-
tor bracket.
Torque: 5.4 N·m (55 kgf·cm, 48 in.·lbf)

(b)

Remove the 2 holders and 3 cushions from the ABS &
TRAC actuator.

BR079–01

–

BRAKE

ABS & TRAC ACTUATOR

BR–57

1172

1997 LEXUS ES300   (RM511U)

INSTALLATION

Installation is in the reverse order of removal (See page

BR–56

).

1.

AFTER INSTALLATION, FILL BRAKE RESERVOIR WITH BRAKE FLUID AND BLEED BRAKE
SYSTEM (See page

BR–4

)

2.

CHECK FOR LEAKS

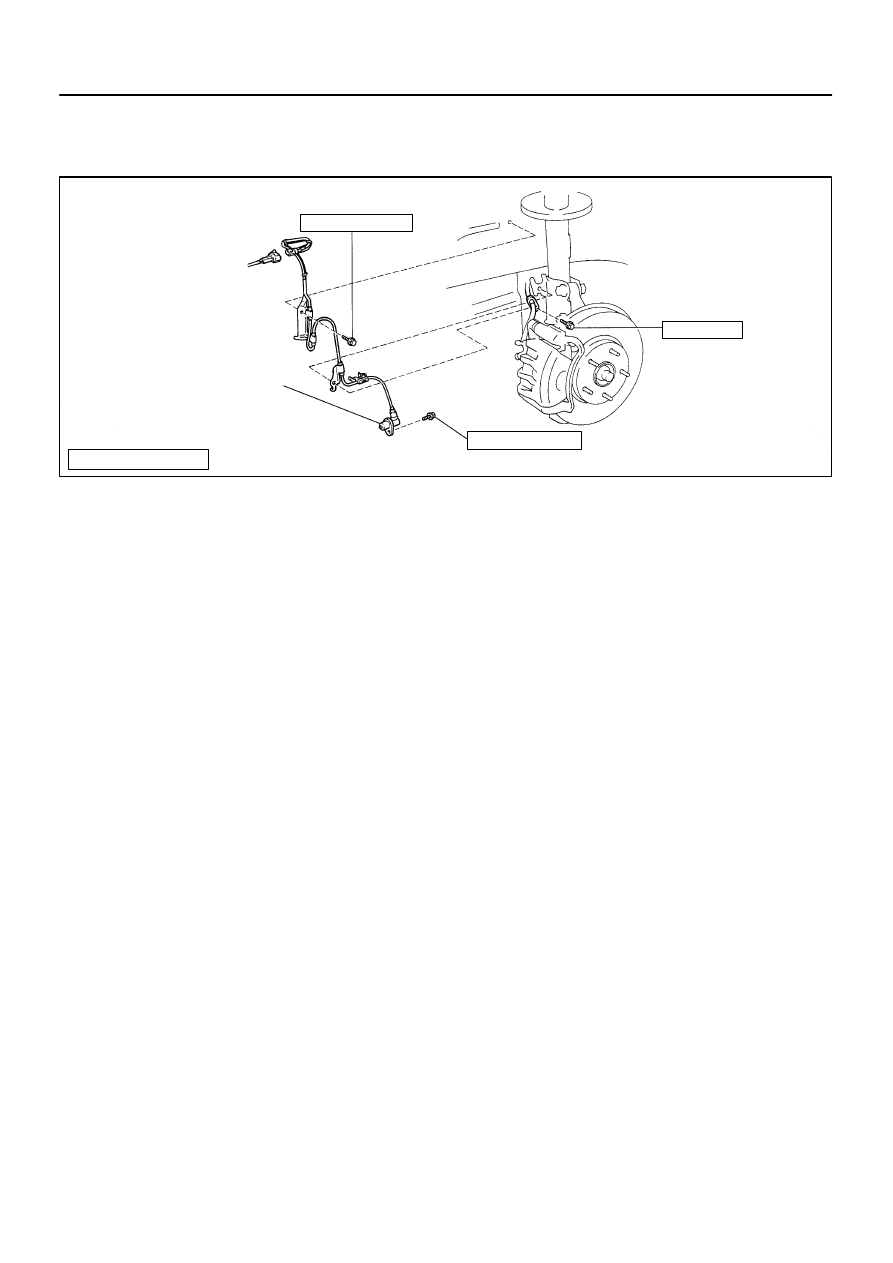

BR07C–04

W03273

W03273

N·m (kgf·cm, ft·lbf)

: Specified torque

29 (300, 21)

Front Speed Sensor

7.8 (80, 69 in.·lbf)

5.4 (55, 48 in.·lbf)

BR–58

–

BRAKE

FRONT SPEED SENSOR

1173

1997 LEXUS ES300   (RM511U)

FRONT SPEED SENSOR

COMPONENTS
