Lexus ES300 (1997 year). Manual - part 230





BO3EE–01

N21419

N21418

N21416

N21417

BO–102

–

BODY

FRONT SEAT

1280

1997 LEXUS ES300   (RM511U)

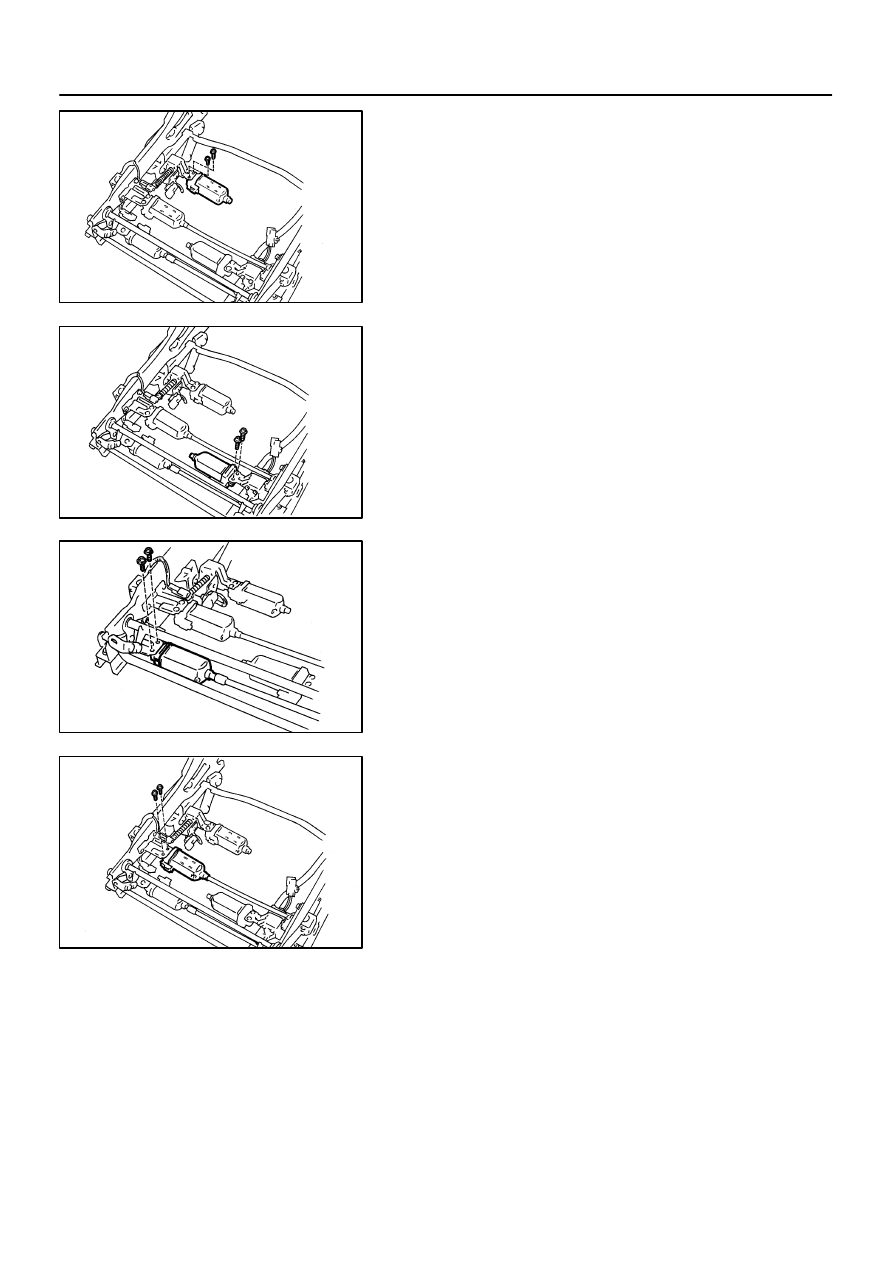

REASSEMBLY

1.

INSTALL RECLINING MOTOR

Connect the No.2 drive cable, then install the reclining motor
with 2 screws.

2.

INSTALL SLIDE MOTOR

Connect the No.1 drive cable, then install the slide motor with
2 screws.

3.

INSTALL FRONT VERTICAL MOTOR

Install the rear vertical motor with 2 screws.

4.

INSTALL REAR VERTICAL MOTOR

Install the front vertical motor with 2 screws.
5.

INSTALL LOWER SEAT CUSHION SHIELD

6.

INSTALL SEAT CUSHION COVER

(a)

Install the seat cushion cover with new hog rings to seat
cushion pad.

(b)

Install the seat cushion cover with pad to the seat cushion
frame with new hog rings.

HINT:
Install the hog rings to prevent wrinkles as least as possible.
7.

INSTALL SEAT CUSHION ASSEMBLY

Install the seat cushion assembly with 4 bolts.

–

BODY

FRONT SEAT

BO–103

1281

1997 LEXUS ES300   (RM511U)

8.

INSTALL SEATBACK COVER

(a)

Install the seatback cover with new hog rings to the seat-
back pad.

HINT:
Install the hog rings to prevent wrinkles as least as possible.
(b)

Install the seatback cover with pad to the seatback frame
with new hog rings.

HINT:
Install the hog rings to prevent wrinkles as least as possible.
(c)

Install the headrest supports.

9.

INSTALL SEATBACK ASSEMBLY

10.

INSTALL THESE PARTS:

(a)

Seat cushion inner shield

(b)

Seat cushion shield

(c)

Switch knobs

(d)

Headrest

BO0B6–01

BO–104

–

BODY

FRONT SEAT

1282

1997 LEXUS ES300   (RM511U)

INSTALLATION

Installation is in the reverse order of removal (See page

BO–99

).

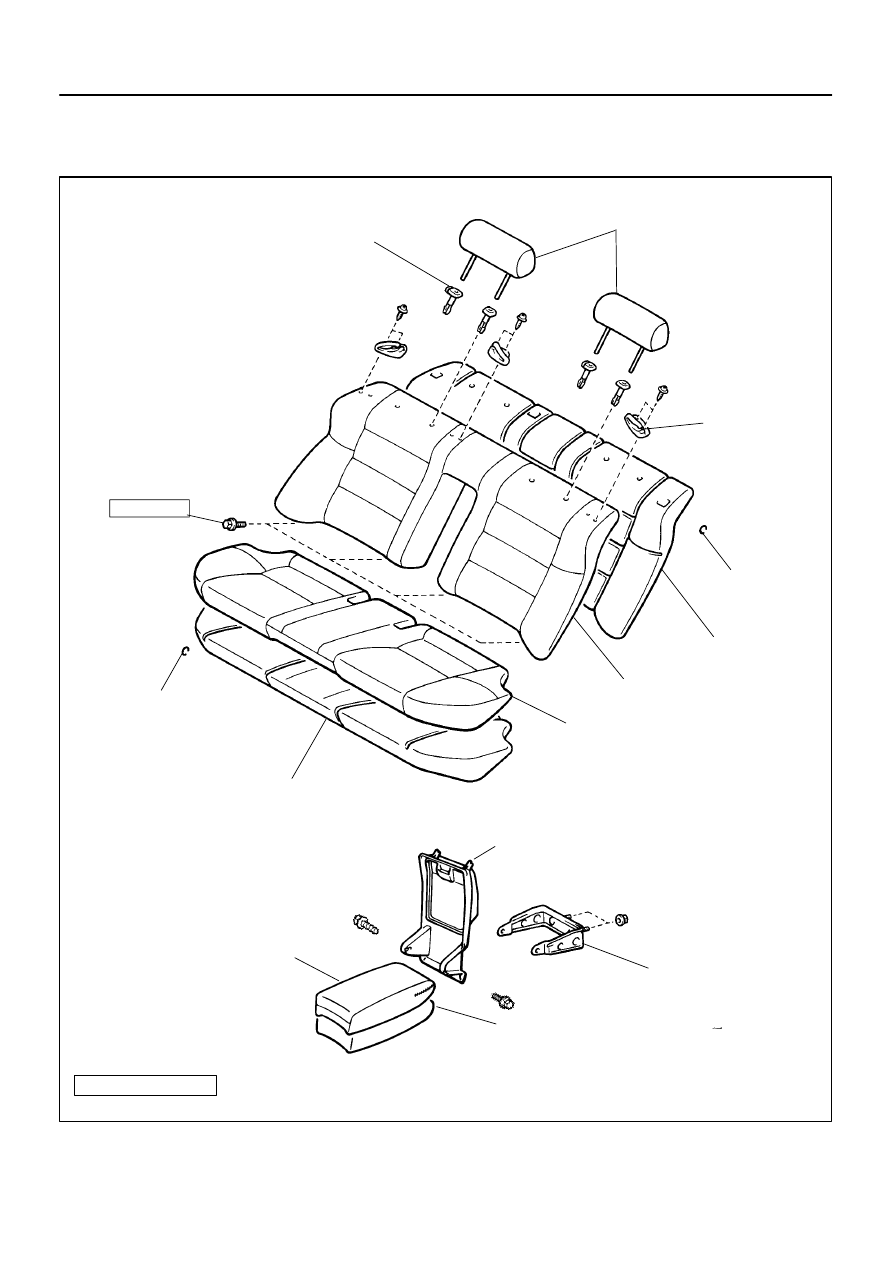

BO0B7–05

H01613

Headrest

Headrest Support

Belt Guide



 Hog Ring

Seatback Pad with Frame

Seatback Cover

Seat Cushion Cover

Seat Cushion Pad with Frame

Center Armrest Bracket

Center Armrest Hinge

Center Armrest Pad

Center Armrest Cover



 Hog Ring

: Specified torque

N·m (kgf·cm, ft·lbf)



 Non–reusable part

18 (185, 13)

–

BODY

REAR SEAT

BO–105

1283

1997 LEXUS ES300   (RM511U)

REAR SEAT

COMPONENTS
