Lexus ES300 (1997 year). Manual - part 228

BO0B0–01

N21430

: 4 Clips

N21455

: 2 Clips

N21456

: 2 Clips

BO–94

–

BODY

ROOF HEADLINING

1272

1997 LEXUS ES300   (RM511U)

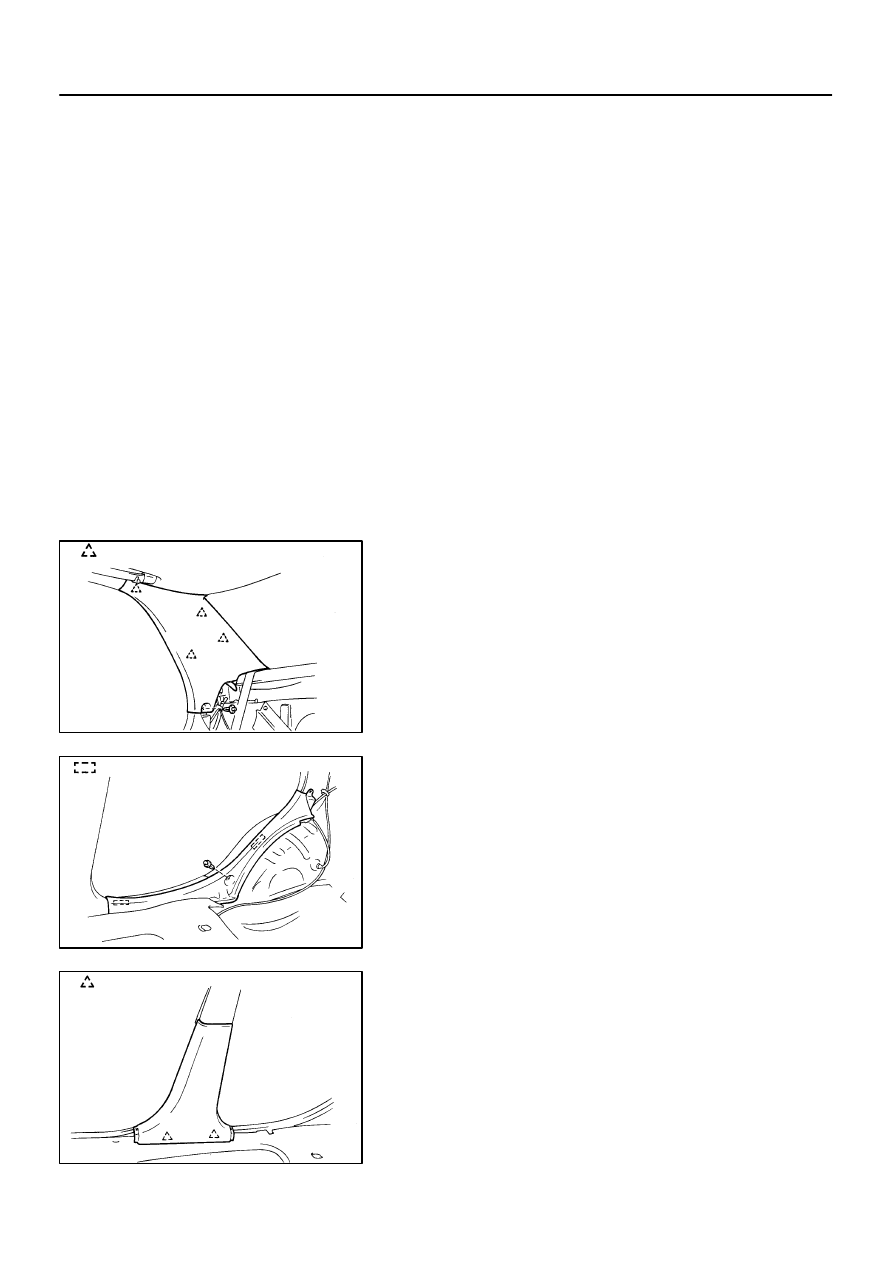

REMOVAL

1.

REMOVE THESE PARTS:

(a)

Front seat

(b)

Rear seat cushion

(c)

Rear seat belt lower side bolts

(d)

Rear seatback

(e)

Front door scuff inside plate

(f)

Front seat belt shoulder anchor bolts

(g)

Sun visors and holders

(h)

Assist grips

2.

REMOVE ROOF SIDE INNER GARNISH

(a)

Remove the clip.

(b)

Using a screwdriver, pry loose and remove the garnish.

HINT:
Tape the screwdriver tip before use.

3.

REMOVE REAR SEAT SIDE GARNISH

(a)

Remove the clip.

(b)

Pry loose and remove the garnish.

4.

REMOVE LOWER CENTER PILLAR GARNISH

Using a screwdriver, pry off the garnish.
HINT:
Tape the screwdriver tip before use.

N21457

: 4 Clips

N21458

: 2 Clips

: Clip

N21415

N21789

: 3 Clips

–

BODY

ROOF HEADLINING

BO–95

1273

1997 LEXUS ES300   (RM511U)

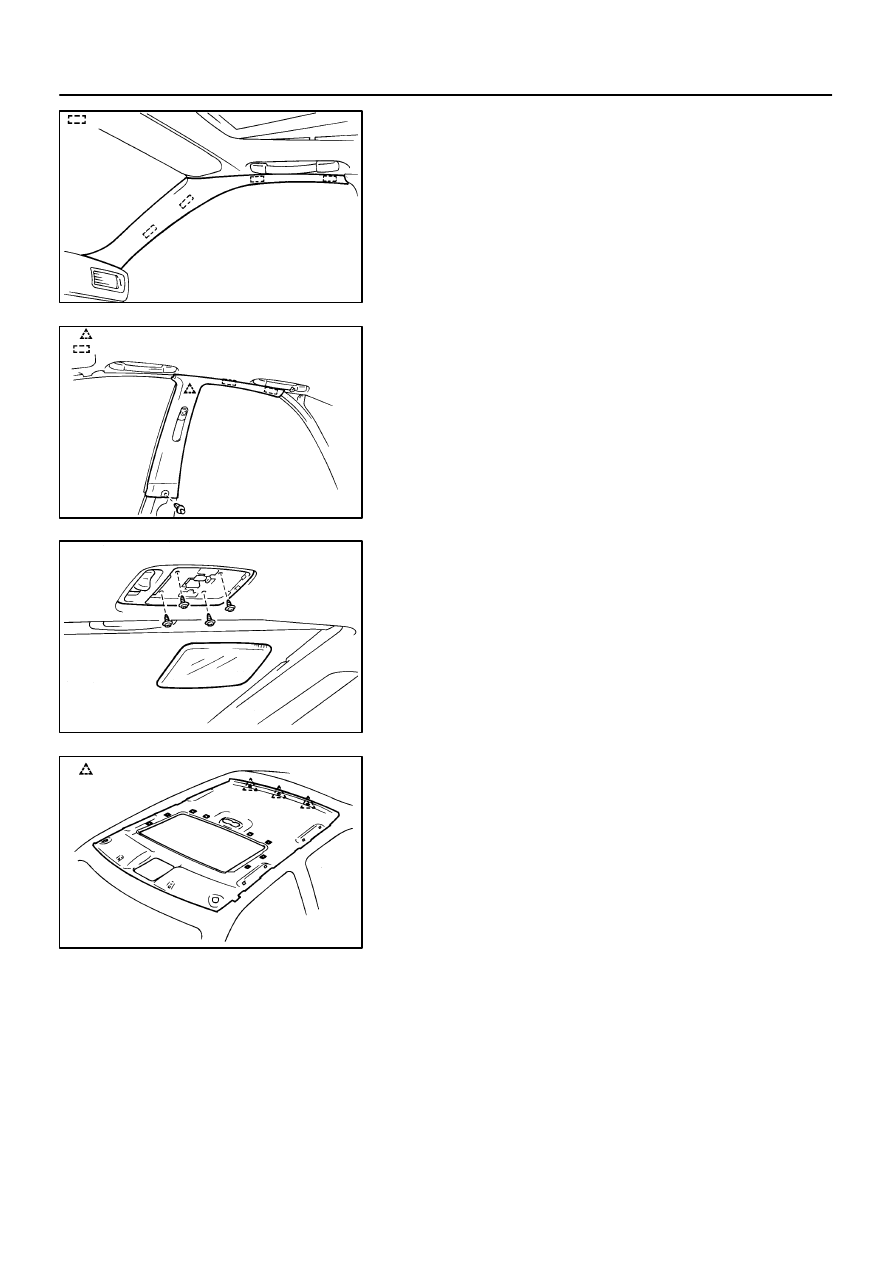

5.

REMOVE FRONT PILLAR GARNISH

(a)

Pry out clips by your hand.

(b)

Pull the garnish upward to remove it.

6.

REMOVE CENTER PILLAR GARNISH

(a)

Remove the clip.

(b)

Pry off the garnish.

7.

REMOVE ROOM LIGHT

(a)

Using a screwdriver, remove the room light lens.

HINT:
Tape the screwdriver tip before use.
(b)

Remove the 4 screws, then disconnect the connector.

8.

REMOVE ROOF CONSOLE BOX

9.

REMOVE ROOF HEADLINING

(a)

Disconnect the 3 clips from the roof panel rear end.

(b)

Remove the headlining.

(c)

Bring out the headlining.

BO0B1–01

BO–96

–

BODY

ROOF HEADLINING

1274

1997 LEXUS ES300   (RM511U)

INSTALLATION

Installation is in the reverse order of removal (See page

BO–94

).

BO3E9–01

H13534

Headrest

Headrest
Support

Lumber Support
Lever

Seatback Frame

Lumber
Support

Hog Ring

Seatback Cover

Seat Cushion Cover

Hog Ring

Seatback Pad

Seat Cushion Pad

Seat Cushion Frame

Seat Cushion
Inner Shield

Seat Adjuster

Seat Track Cover

Seat Cushion Shield

Switch Knob

Lower Seat Cushion Shield

37 (375, 27)

37 (375, 27)

37 (375, 27)

N·m (kgf·cm, ft·lbf)

: Specified torque

 Non–reusable part

Power Seat Switch

–

BODY

FRONT SEAT

BO–97

1275

1997 LEXUS ES300   (RM511U)

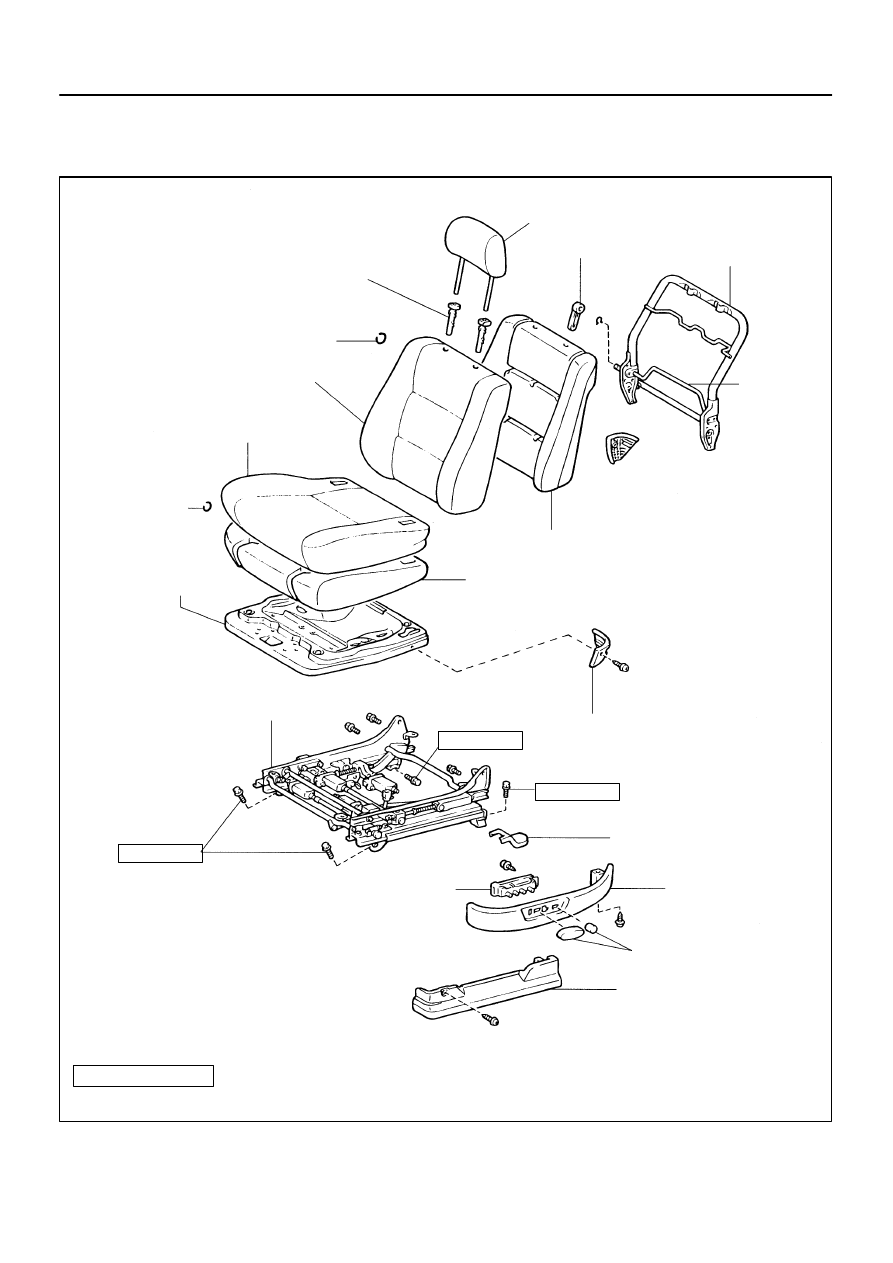

FRONT SEAT

COMPONENTS
