BO0AT–01

BO–86

–

BODY

INSTRUMENT PANEL

1264

1997 LEXUS ES300   (RM511U)

DISASSEMBLY

1.

REMOVE THESE PARTS:

(a)

Defroster nozzle No.1 garnish

(b)

Side defroster nozzle No.1 duct

(c)

Side defroster nozzle No.2 duct

(d)

Defroster nozzle

(e)

Heater to register No.1 duct

(f)

Heater to register No.3 duct

(g)

Heater to register No.2 duct

(h)

No.1 register

(i)

No.3 register

(j)

Center bracket

2.

REMOVE INSTRUMENT PANEL WIRE

Remove the screws, clips and wire.

BO0AU–01

–

BODY

INSTRUMENT PANEL

BO–87

1265

1997 LEXUS ES300   (RM511U)

REASSEMBLY

Reassembly is in the reverse order of disassembly (See page

BO–86

).

BO0AV–01

BO–88

–

BODY

INSTRUMENT PANEL

1266

1997 LEXUS ES300   (RM511U)

INSTALLATION

Installation is in the reverse order of removal (See page

BO–82

).

BO0AW–03

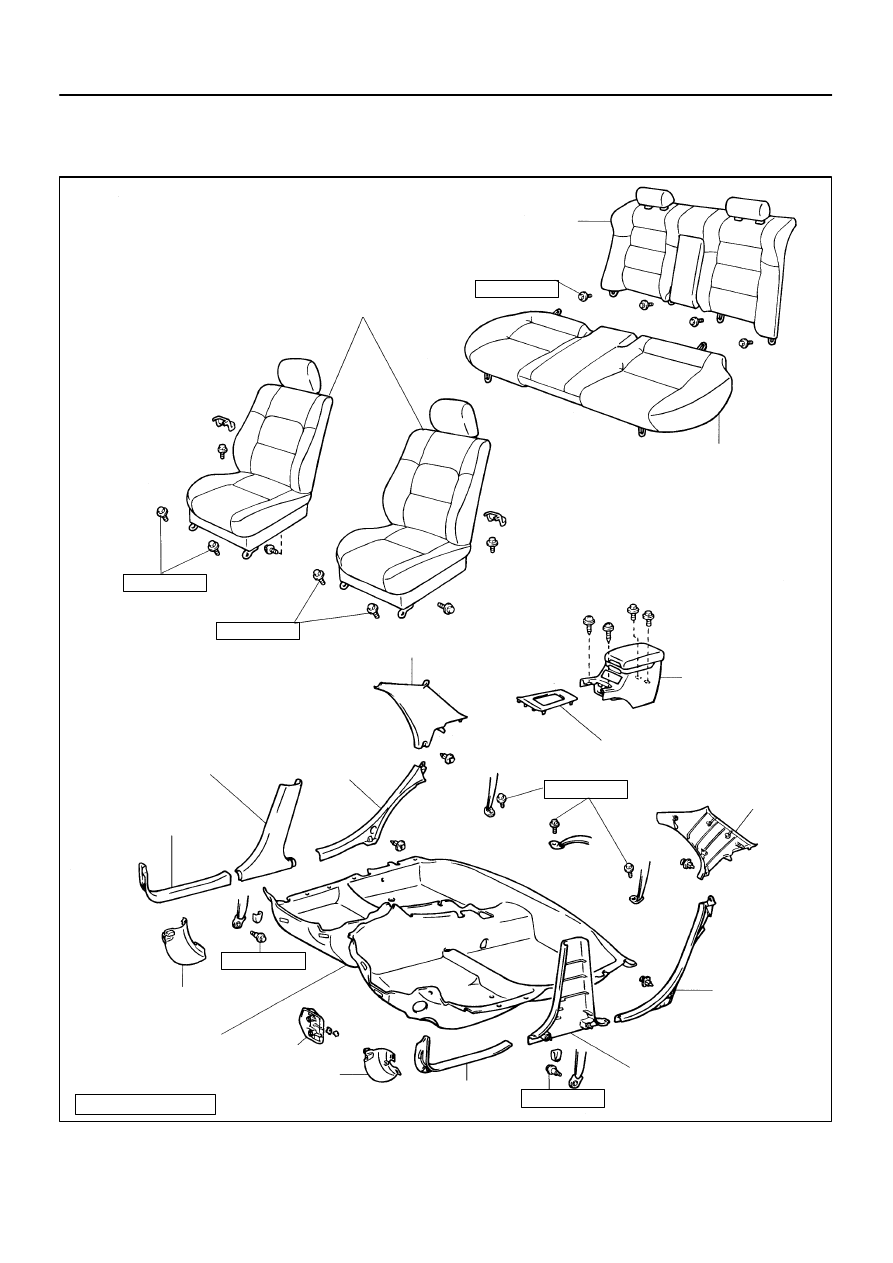

N21800

N·m (kgf·cm, ft·lbf) : Specified torque

Front Seat

Rear Seatback

Rear Seat Cushion

Rear Console Box

Upper Console Panel

Roof Side Inner Garnish

Front Door Scuff
Inside Plate

Lower Center
Pillar Garnish

Rear Seat
 Side Garnish

Roof Side
Inner Garnish

Cowl Side Trim

Floor Carpet

Footrest

Cowl Side Trim

Lower Center
Pillar Garnish

Rear Seat
Side Garnish

Front Door Scuff
Inside Plate

42 (430, 31)

42 (430, 31)

42 (430, 31)

37 (375, 27)

37 (375, 27)

18 (185, 13)

–

BODY

FLOOR CARPET

BO–89

1267

1997 LEXUS ES300   (RM511U)

FLOOR CARPET

COMPONENTS
